Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure SYNTHESIS

SKU: ARSG SYNTHESIS 141 TSS - 12696
€23.25
VAT included

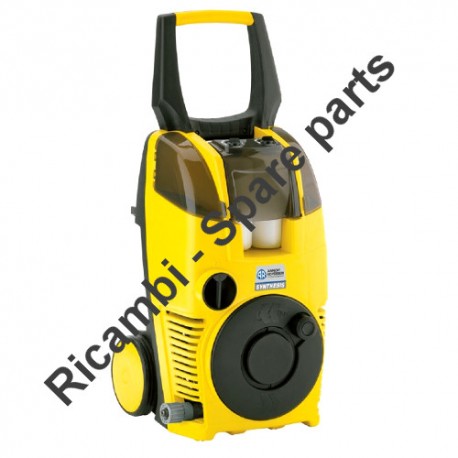

AR Farmer's Division Parts for Pressure SYNTHESIS 141 TSS

Distribution and Sale at attractive prices of AR Farmer's Division Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pressure Washer SYNTHESIS 141 TSS - 12696.
AR Farmer's Division Parts for Pressure SYNTHESIS
  • AR Farmer's Division Parts for Pressure SYNTHESIS
  • AR Farmer's Division Parts for Pressure SYNTHESIS
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure SYNTHESIS

SKU: ARSG SYNTHESIS 141 TSS - 12696 Condition: New
€23.25
VAT included

AR Farmer's Division Parts for Pressure SYNTHESIS 141 TSS

Distribution and Sale at attractive prices of AR Farmer's Division Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pressure Washer SYNTHESIS 141 TSS - 12696.
settings 92 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Busines Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3020022 Yellow Casing €18.54
2
 photo_cameraImage coming soon 2900620 Handle €8.38
3
 photo_cameraImage coming soon 3020111 Door €14.79
4
 photo_cameraImage coming soon 3020041 Door €10.14
5
 photo_cameraImage coming soon 2900900 Ball €5.54
6
 photo_cameraImage coming soon 2100300 screw €4.72
7
 photo_cameraImage coming soon 2900870 Pipe Clips €9.73
8
 photo_cameraImage coming soon 3020061 Door €10.14
9
 photo_cameraImage coming soon 1700140 Tube Cleaner €5.37
10
 photo_cameraImage coming soon 3020130 Junction €15.25
11
 photo_cameraImage coming soon 40008 Tank €16.43
12
 photo_cameraImage coming soon 1270960 pipe cleaner €4.41
13
 photo_cameraImage coming soon 2600100 cable clamp €2.74
14
 photo_cameraImage coming soon 3020010 base €37.57
15
 photo_cameraImage coming soon 2440076 Wheel €7.15
16
 photo_cameraImage coming soon 3020070 Plate €7.66
17
 photo_cameraImage coming soon 2900500 Screw €2.26
18
 photo_cameraImage coming soon 2180330 Rubber €4.96
20
 photo_cameraImage coming soon 3020100 Handle €9.87
22
 photo_cameraImage coming soon 2900680 Knob €7.64
23
 photo_cameraImage coming soon 2900670 Disk €13.72
25
 photo_cameraImage coming soon 2900660 Rotor Hose Reel €14.67
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
A
 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker 2574 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker €9.62
D
 Water Seals for Pressure Washers AR Farmer's Event 131-141 2575 Water Seals for Pressure Washers AR Farmer's Event 131-141 €9.62
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
2
 photo_cameraImage coming soon 2100630 Junction €6.91
3
 photo_cameraImage coming soon 2101000 Screw €4.80
4
 photo_cameraImage coming soon 2101450 Flange €6.77
5
 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 2122 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 €19.40
6
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
8
 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS 2109050 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS €2.41
9
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
10
 Holder Seal for Pressure Washer AR BC Serie 1 - 2 2020041 Holder Seal for Pressure Washer AR BC Serie 1 - 2 €1.40
11
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
12
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
13
 photo_cameraImage coming soon 2561120 Spring €5.21
14
 photo_cameraImage coming soon 2100130 Piston €9.67
15
 photo_cameraImage coming soon 2020140 Ring €5.00
16
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
17
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
18
 photo_cameraImage coming soon 2560480 Bushing €1.40
19
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
20
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
22
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
23
 photo_cameraImage coming soon 1250280 sphere €2.67
24
 photo_cameraImage coming soon 480480 O-ring €5.63
25
 photo_cameraImage coming soon 1560490 Hose €7.24
26
 photo_cameraImage coming soon 1020230 O-Ring €4.58
27
 photo_cameraImage coming soon 2900880 Junction €16.48
28
 photo_cameraImage coming soon 1260740 O-Ring €4.59
29
 photo_cameraImage coming soon 2900800 Pin €18.66
30
 photo_cameraImage coming soon 2900890 Ring Nut €14.87
31
 photo_cameraImage coming soon 2900830 Junction €20.82
32
 photo_cameraImage coming soon 2909010 Preassembly Fitting €34.17
33
 photo_cameraImage coming soon 1461470 junction €3.26
34
 photo_cameraImage coming soon 42337 Preassembly Fitting €48.51
35
 photo_cameraImage coming soon 42336 Preassembly Pump TSS €150.47
36
 photo_cameraImage coming soon 2021960 Fork €4.94
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
3
 photo_cameraImage coming soon 2102180 Disk €12.09
4
 photo_cameraImage coming soon 2109270 Pre-Assembly Body Pump €26.29
5
 photo_cameraImage coming soon 2100980 Screw €4.53
6
 photo_cameraImage coming soon 2440160 Plate €5.13
7
 photo_cameraImage coming soon 2100110 Fairlead €5.09
8
 photo_cameraImage coming soon 1343400 Cable €26.02
9
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
10
 photo_cameraImage coming soon 2020850 Washer €5.08
11
 photo_cameraImage coming soon 1680250 Fan €7.11
12
 photo_cameraImage coming soon 2020570 screw €1.59
13
 photo_cameraImage coming soon 1262400 washer €1.73
14
 photo_cameraImage coming soon 3020050 Box €9.57
15
 photo_cameraImage coming soon 2900770 Box €8.05
16
 photo_cameraImage coming soon 2900420 Switch €15.10
18
 photo_cameraImage coming soon 2900780 Cover €7.91
19
 photo_cameraImage coming soon 1680670 Capacitor €20.65
20
 Annovi Reverberi O-Ring for Pressure Washer 2590 390201 Annovi Reverberi O-Ring for Pressure Washer 2590 €0.87
21
 photo_cameraImage coming soon 44174 Engine €181.73
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
*
 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
1
 Lance Head for Pressure Washers B&D PW 2100 WR 40755 Lance Head for Pressure Washers B&D PW 2100 WR €24.60
2
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
3
 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 40344 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 €28.07 Not available for order
4
 photo_cameraImage coming soon 40487 Lance Supplied 40667 €15.51
5
 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 40417 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 €12.42
6
 photo_cameraImage coming soon 40350 Gun->40925+3082750+3780492 €36.26
7
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
8
 photo_cameraImage coming soon 3020140 High Pressure Tube €46.26
9
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure SYNTHESIS 141 TSS

Distribution and Sale at attractive prices of AR Farmer's Division Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pressure Washer SYNTHESIS 141 TSS - 12696.

In the following tables, look for the spare part and its respective code.
ARSG SYNTHESIS 141 TSS - 12696

Pressure Washer SYNTHESIS 141 TSS - 12696 Spare Parts

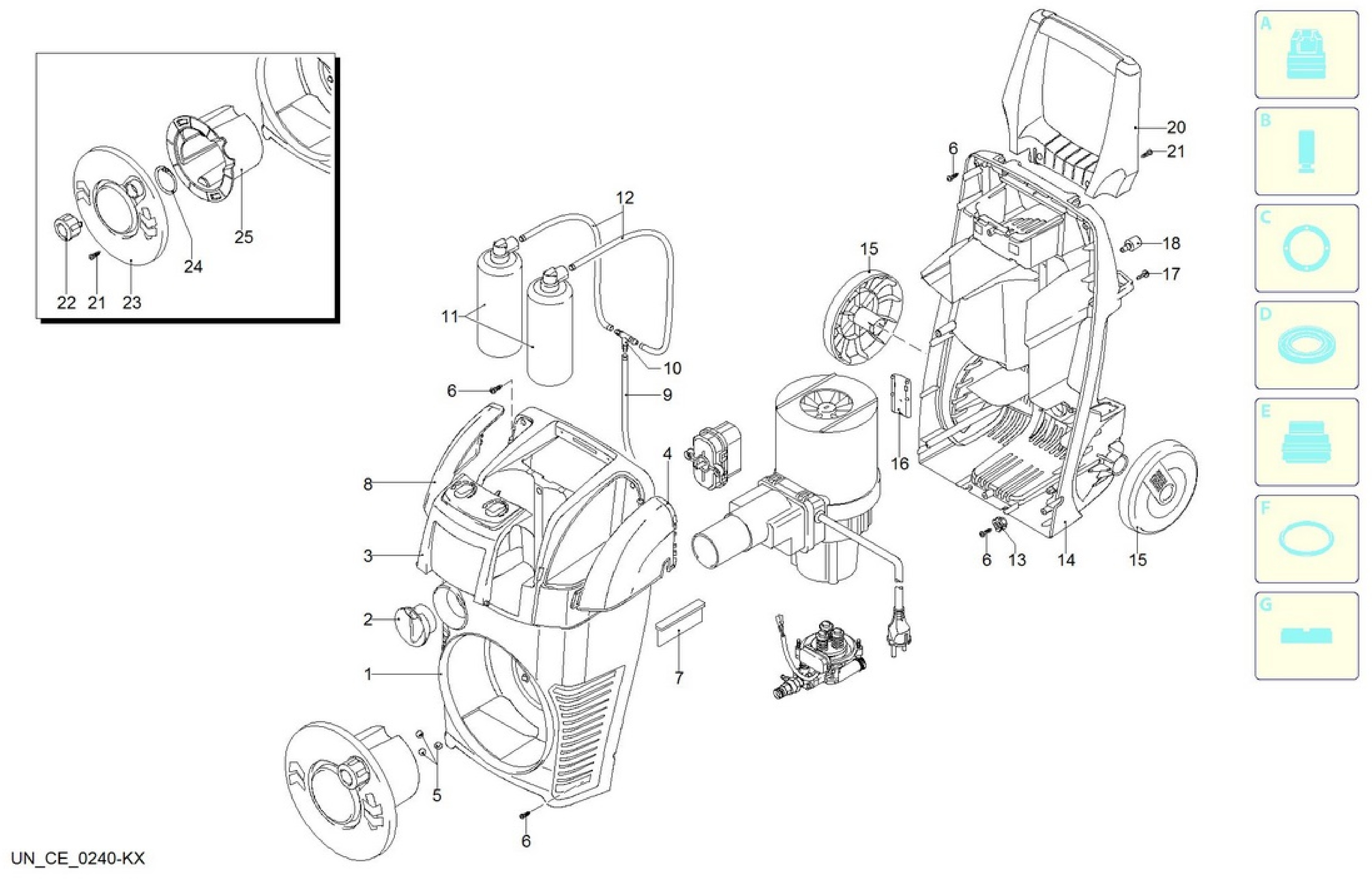

Casing 141 TSS - 12696 Pag.1
# Part Num. Description
1 3020022 Yellow Casing
2 2900620 Knob
3 3020111 Door
4 3020041 Door
5 2900900 Ball
6 2100300 Screw
7 2900870 Hose Stop
8 3020061 Door
9 1700140 Tube Cleaner
10 3020130 Junction
11 40008 Tank
12 1270960 Tube Cleaner
13 2600100 Strain Relief
14 3020010 Base
15 2440076 Wheel
16 3020070 Plate
17 2900500 Screw
18 2180330 Grommet
20 3020100 Handle
21 2100300 Screw
22 2900680 Knob
23 2900670 Disk
24 380240 Nut
25 2900660 Rotor Hose Reel

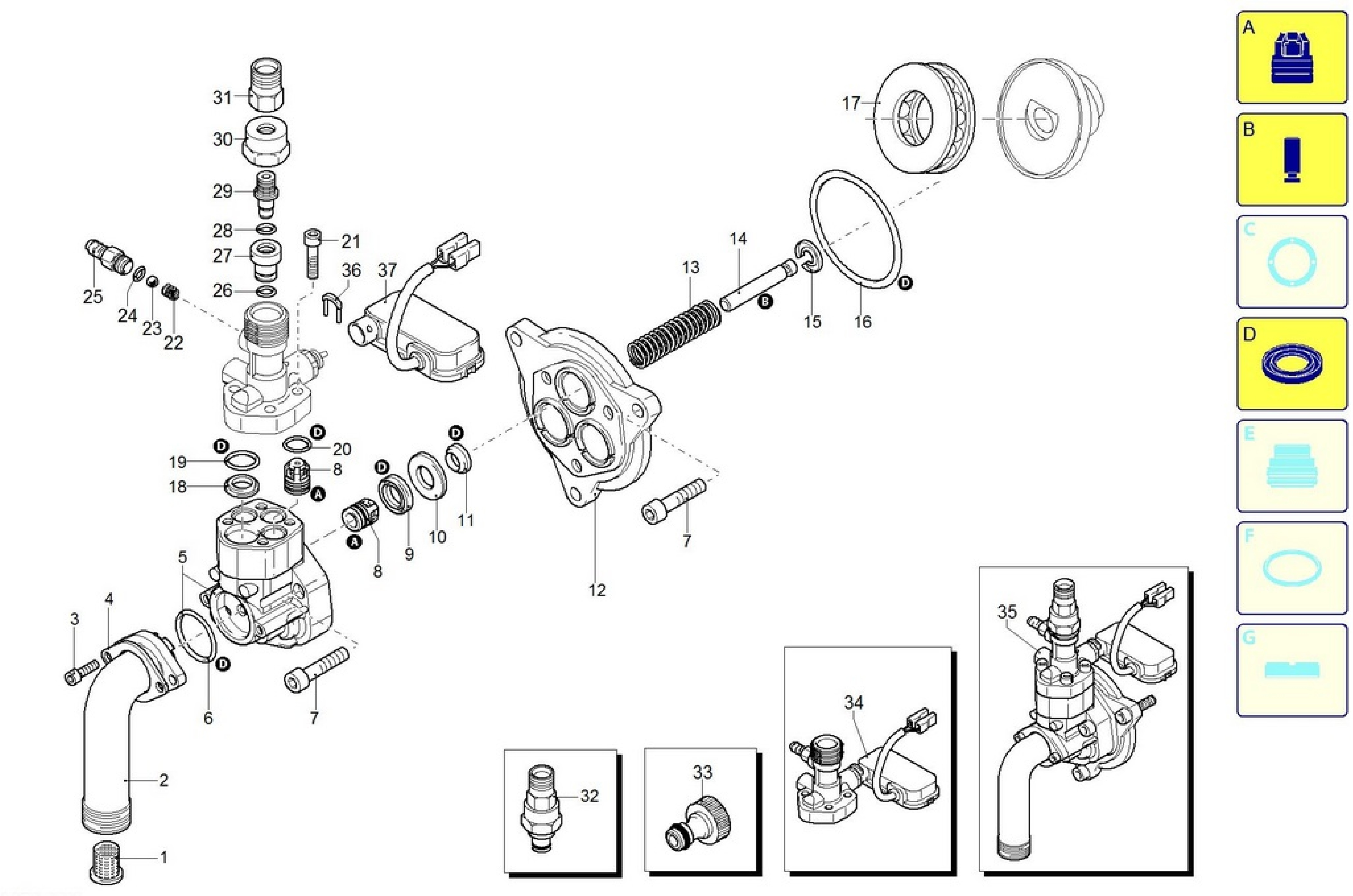

Pump 141 TSS - 12696 Pag.2
1 1340260 Filter
2 2100630 Junction
3 2101000 Screw
4 2101450 Flanged
5 2122 Head + OR
6 550350 O-Ring
7 850850 Screw
8 2109050 Valve
9 2200141 Watertight
10 2020041 Ring
11 1683500 Oil Seal
12 2100030 Piston Guide
13 2561120 Spring
14 2100130 Piston
15 2020140 Ring
16 850840 O-Ring
17 2021570 Bearing
18 2560480 Bush
19 394280 O-Ring
20 880840 O-Ring
21 1260760 Screw
22 1560520 Spring
23 1250280 Ball
24 480480 O-Ring
25 1560490 Hose
26 1020230 O-Ring
27 2900880 Junction
28 1260740 O-Ring
29 2900800 Pin
30 2900890 Ring Nut
31 2900830 Junction
32 2909010 Preassembly Fitting
33 1461470 Junction
34 42337 Preassembly Fitting
35 42336 Preassembly Pump TSS
36 2021960 Fork
37 2029721 Preassembly Box TSS
A 2574 Valve Kit
B 2508 Piston Kit
D 2575 Kit Held

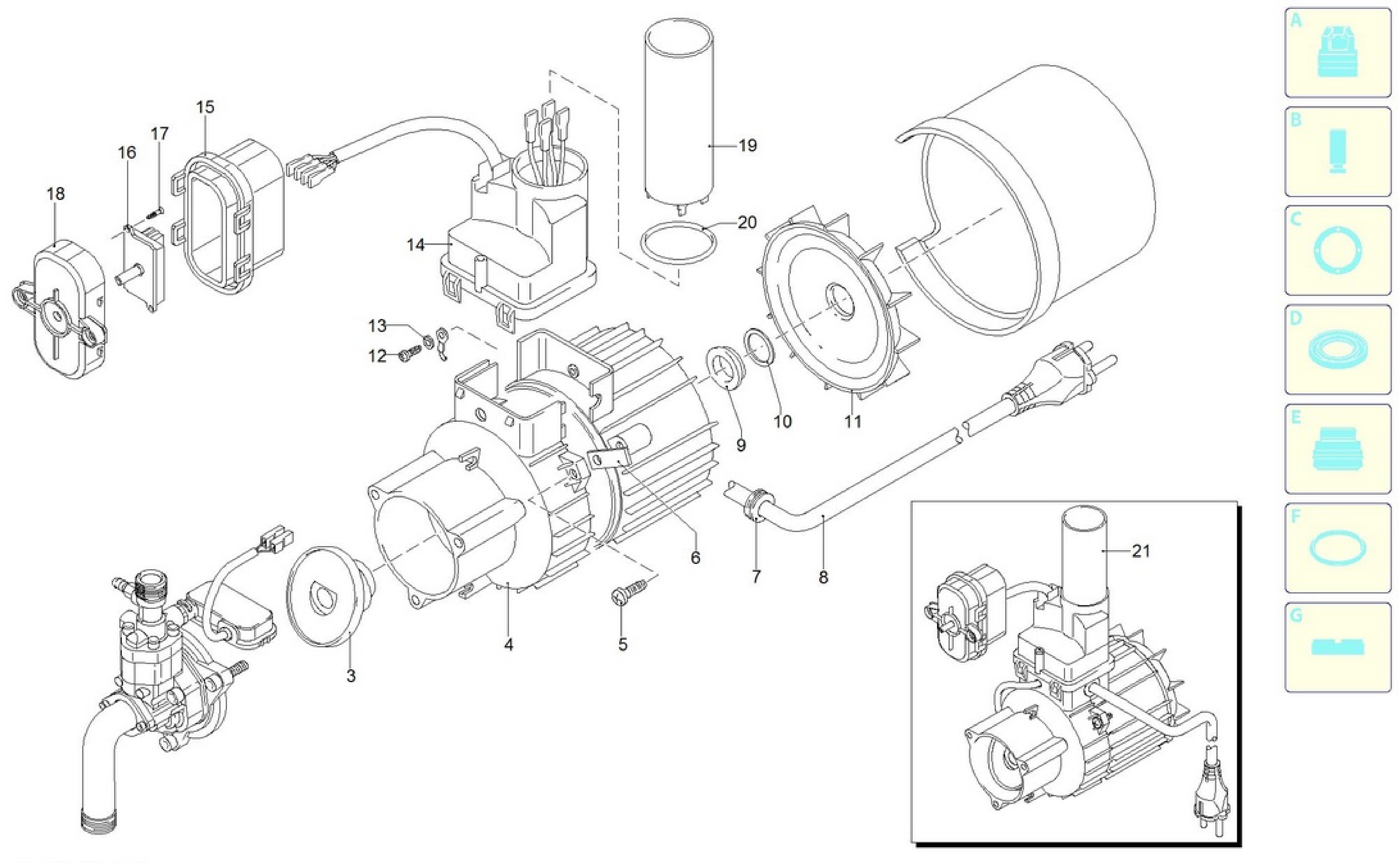

Engine 141 TSS - 12696 Pag.3
3 2102180 Disk
4 2109270 Preassembly The Pump Body
5 2100980 Screw
6 2440160 Plate
7 2100110 Fairlead
8 1343400 Cable
9 1340350 Seal
10 2020850 Washer
11 1680250 Fan
12 2020570 Screw
13 1262400 Washer
14 3020050 Box
15 2900770 Box
16 2900420 Switch
17 2000210 Screw
18 2900780 Cover
19 1680670 Capacitor
20 390201 O-Ring
21 44174 Engine

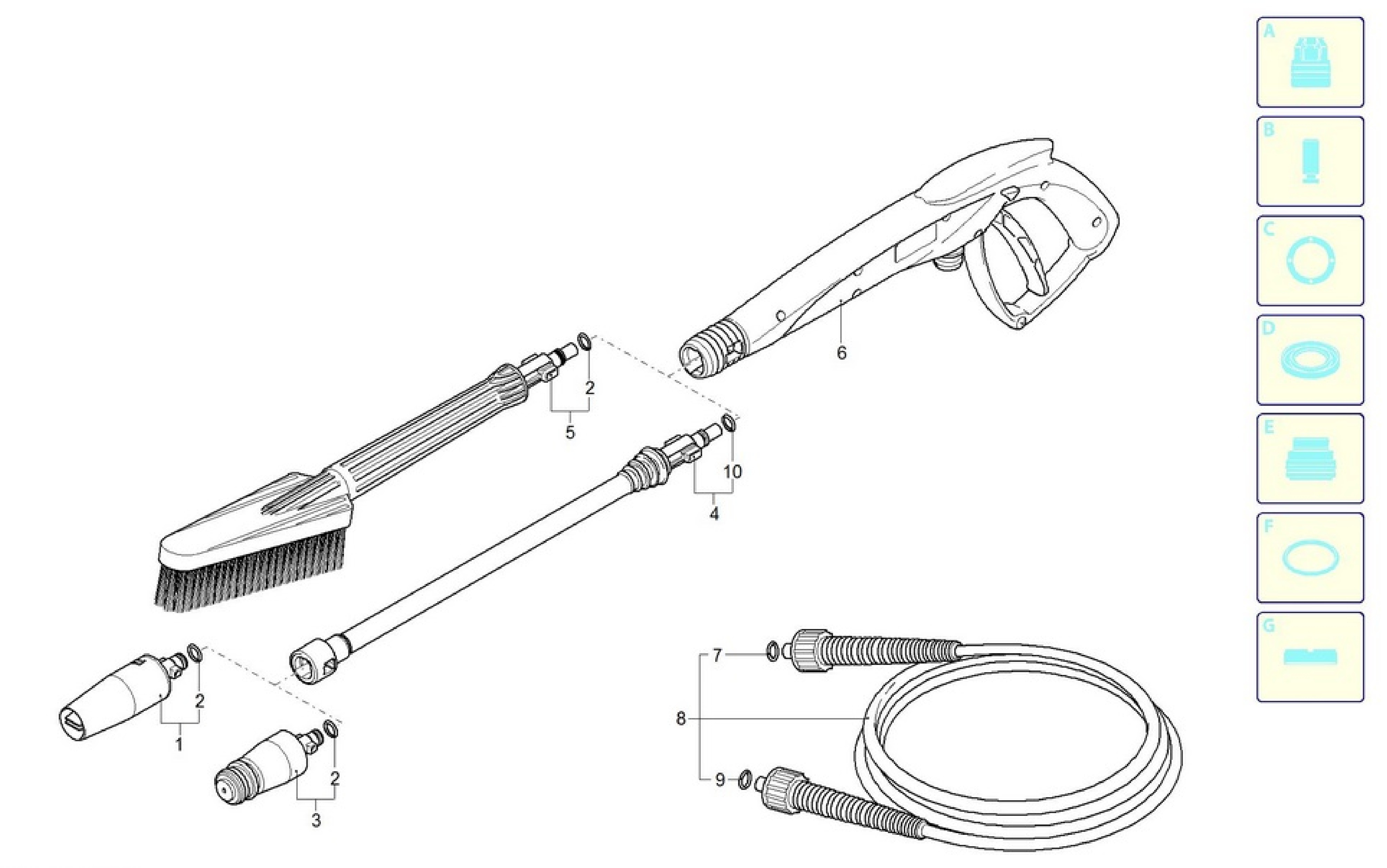

Accessories 141 TSS - 12696 Pag.4
1 40755 Nozzle
2 1680220 O-Ring
3 40344 Nozzle Rotopower
4 40487 Lance Supplied 40667
5 40417 Fixed Brush
6 40350 Gun->40925+3082750+3780492
7 600180 O-Ring
8 3020140 High Pressure Tube
9 2000770 O-Ring
10 880840 O-Ring
* 2000570 OR 10x2 Parker
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG SYNTHESIS 141 TSS - 12696
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 141 TSS

Diagram AR Farmer's 141 TSS

Download (542.63KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Cold Water High Pressure Washer 120 bar AR142 Sale
Annovi Reverberi S.p.A. SKU: AR142
Cold Water High Pressure Washer 120 bar AR142
Cold Water High Pressure Washer 120 bar AR142 3 Axial piston pump driven by the oscillating plate, hardened stainless steel pistons, an automatic safety valve with pressure in the pump head, water filter. Complete kit with foam tank of...
Last items in stock €108.09
Details
Cold Water High Pressure Washer 145 bar AR491 -5% Sale
Annovi Reverberi S.p.A. SKU: AR491
Cold Water High Pressure Washer 145 bar AR491
Cold Water High Pressure Washer 145 bar AR491 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminium head, tempered stainless steel pistons.
Last items in stock €330.09 €347.46
Details
Cold Water High Pressure Washer 135 bar AR391 -5% Sale
Annovi Reverberi S.p.A. SKU: AR391
Cold Water High Pressure Washer 135 bar AR391
Cold Water High Pressure Washer 135 bar AR391 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminim head, tempered stainless steel pistons. Automatic by-pass valve with pump head...
Last items in stock €207.38 €218.29
Details
Cold Water High Pressure Washer 160 bar AR590 -5% Sale
Annovi Reverberi S.p.A. SKU: AR590
Cold Water High Pressure Washer 160 bar AR590
Cold Water High Pressure Washer 160 bar AR590 Three-piston pump hardened stainless. Brass head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection. Total stop to halt. Water...
Last items in stock €424.26 €446.59
Details
Water Cleaning Hose
Ferritalia SKU: DES91914
Hight Pressure Washers Hose 8 mt
Hight Pressure Washers Hose 8 mt Original spare part for high pressure washer with a maximum pressure of about 180 bar. - Diameter connections F-F: M14x1,5 mm - Max Pressure: 18 MPa - about 180 bar - Maximum temperature: 60 ° C. -...
Last items in stock €32.35
Details
Water Cleaning Hose
Valex s.p.a. SKU: 1520117
Hight Pressure Washers Hose 7,5 mt
Hight Pressure Washers Hose 7,5 mt Original spare part for high pressure washer with a maximum pressure of about 300 bar. Part for the following products:  - HIGHT PRESSURE HOSE FOR PRESSURE WASHER CARRY 2500 - Tech Info: -...
Last items in stock €36.30
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Annovi Reverberi S.p.A. SKU: 2020041
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Holder Seal for Pressure Washer AR BC Serie 1 - 2 Genuine part Annovi&Reverberi, Holder Seal for Pressure Washer AR BC Serie 1 - 2 - ARSG Mirage - HOT 120 - Event 131...
AVAILABLE €1.40
Details
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500
Annovi Reverberi S.p.A. SKU: 40417
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 Genuine parts Black & Decker, Fixed Brush for Pressure Washers PW 1300 B - 12610 - PW 1400 B - 12340 -  PW 1400 P - 12341 - 1500 WB - 12342 - 1500 WB - 2007 -...
Last items in stock €12.42
Details
Lance Head for Pressure Washers B&D PW 2100 WR
Annovi Reverberi S.p.A. SKU: 40755
Lance Head for Pressure Washers B&D PW 2100 WR
Lance Head for Pressure Washers B&D PW 2100 WR Genuine part Annovi & Reverberi, Lance Head for Pressure washers PW 2100 WR - PW 2100 XR - AR BC - Modelli 50 Hz - Serie 4 - 440 - ARSG - Modelli...
AVAILABLE €24.60
Details
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Annovi Reverberi S.p.A. SKU: 2508
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120
Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 Original part Annovi & Rverberi, Piston Kit S.210 for Pressure Washers Series HOT - HOT 120 - 1106 - Event - 131 N TSS - Event - 141 N TSS PRO - Event...
AVAILABLE €16.82
Details
Pump Bearing for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 2021570
Pump Bearing for Pressure Washer AR2590
Pump Bearing for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Pump Bearing for Pressure Washer Annovi & Reverberi AR BC - Model 50 Hz - Series 25 - 2590 - 24424. Parts For the Following Products: - AR BC - 50 Hz...
Last items in stock €9.62
Details
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Annovi Reverberi S.p.A. SKU: 1683500
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG Genuine Part for Annovi & Reverberi, Oil Seal mm 12x2x5/7" for Pressure Washers ARSG EVENT - EXTREME - MR CLEAN - NRG - PRO CLEAN...
AVAILABLE €2.54
Details
AR O RING for Pressure Washer AR8880
Annovi Reverberi S.p.A. SKU: 550350
AR O-RING for Pressure Washer AR8880
AR O-RING for Pressure Washer AR8880 Genuine spare part Annovi Reverberi, O-RING for Pressure Washers AR8880 - AR8840 - AR8860 - AR1120. Part for the following products: -  Pressure Washer Annovi Reverberi 8880 - 22915 - ...
AVAILABLE €0.62
Details
Annovi Reverberi O-R for Pressure Washer 2590
Annovi Reverberi S.p.A. SKU: 390201
Annovi Reverberi O-Ring for Pressure Washer 2590
Annovi Reverberi O-Ring for Pressure Washer 2590 Genuine spare part Annovi Reverberi, O-R 39,34x2,62 for Pressure Washers AR2590 - AR111. Part for the following products: -  Pressure Washer Annovi Reverberi 2590 - 24424 - ...
AVAILABLE €0.87
Details
Comments (0)
