| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 40715 Lance + Head | €76.78 | |
|
2
|
photo_cameraImage coming soon | 40714 Gun | €66.44 | |
|
3
|
|
1460702 High Pressure Hose for Pressure Washer ARSG Vip - 8.130 | €22.66 | |
|
4
|
|
2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker | €0.53 | |
|
5
|
photo_cameraImage coming soon | 40246 Spear + Head | €43.59 | |
|
6
|
|
40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV | €31.47 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
We are AR Farmer's Division original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PRO CLEAN 150 TSS - 12697.
In the following tables, look for the spare part and its respective code.
| Pressure Washer PRO CLEAN 150 TSS - 12697 | ||

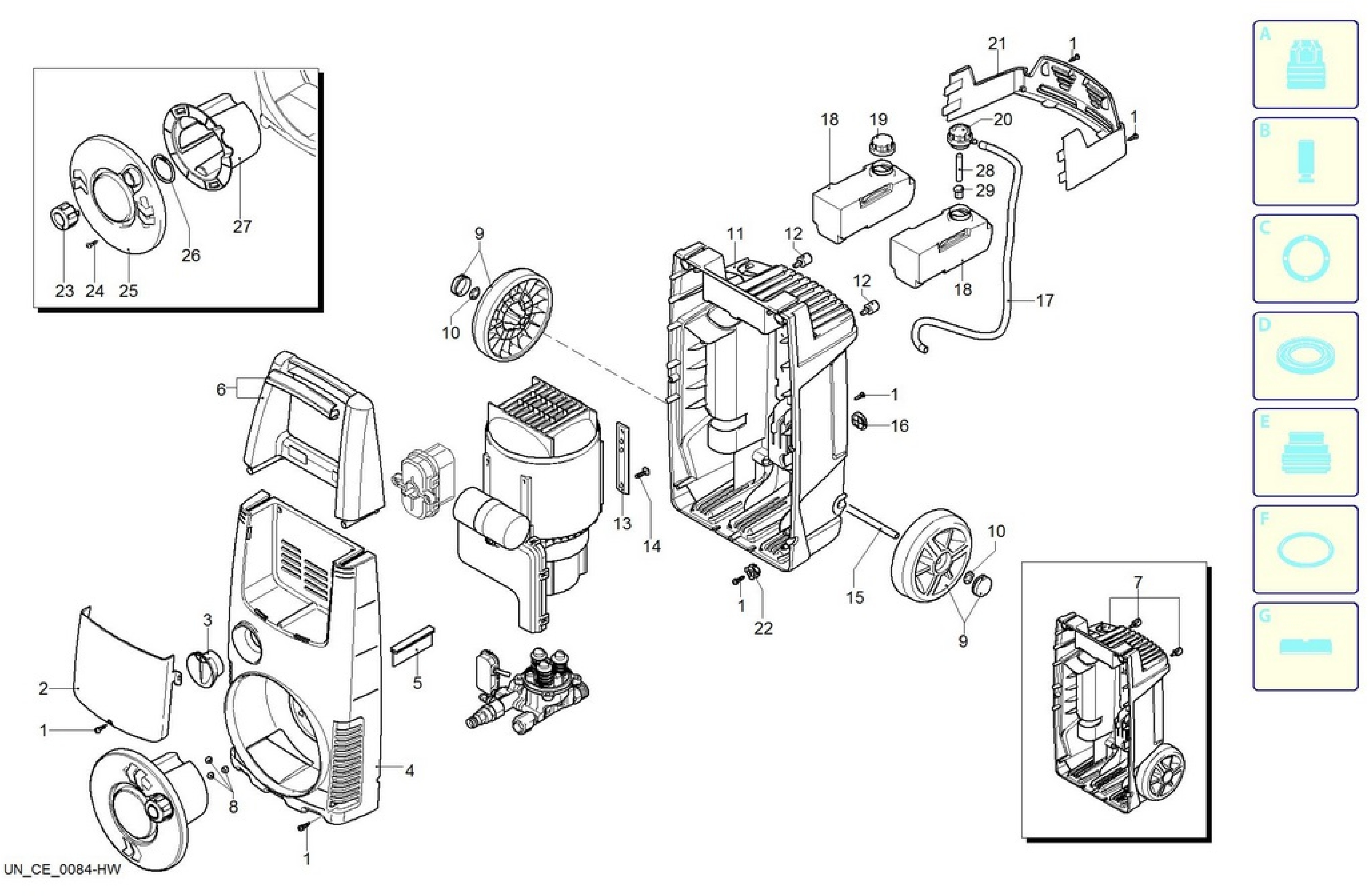

| Casing 150 TSS - 12697 Pag.1 |
||
|
#
|
Part Num.
|
Description |
|
1
|
2100300
|
Screw |
|
2
|
2900650
|
Protection |
|
3
|
2900620
|
Handle |
|
4
|
2900613
|
Yellow Casing |
|
5
|
2900870
|
Pipe Clips |
|
6
|
2909013
|
Handle |
|
7
|
2909007
|
Pre-Assembly Base |
|
8
|
2900900
|
Ball |
|
9
|
2500320 | Wheel |
|
10
|
1680880 | Washer |
|
11
|
2900600
|
Base |
|
12
|
2180330
|
Rubber |
|
13
|
2900720
|
Plate |
|
14
|
2440280
|
Screw |
|
15
|
2900840
|
Axle |
|
16
|
1682310
|
Stopper |
|
17
|
2901000
|
Tube Cleaner |
|
18
|
2900710
|
Tank |
|
19
|
2900690
|
Stopper |
|
20
|
42113
|
Pre-Assembly Plug |
|
21
|
2900640
|
Holders Accessories |
|
22
|
2600100
|
Strain Relief |
|
23
|
2900680
|
Knob |
|
24
|
2100300
|
Screw |
|
25
|
2900670
|
Disk |
|
26
|
380420
|
Ring |
|
27
|
2900660
|
Rotor Hose Reel |
|
28
|
2900940
|
Tube Cleaner |
|
29
|
2000230
|
Filter |

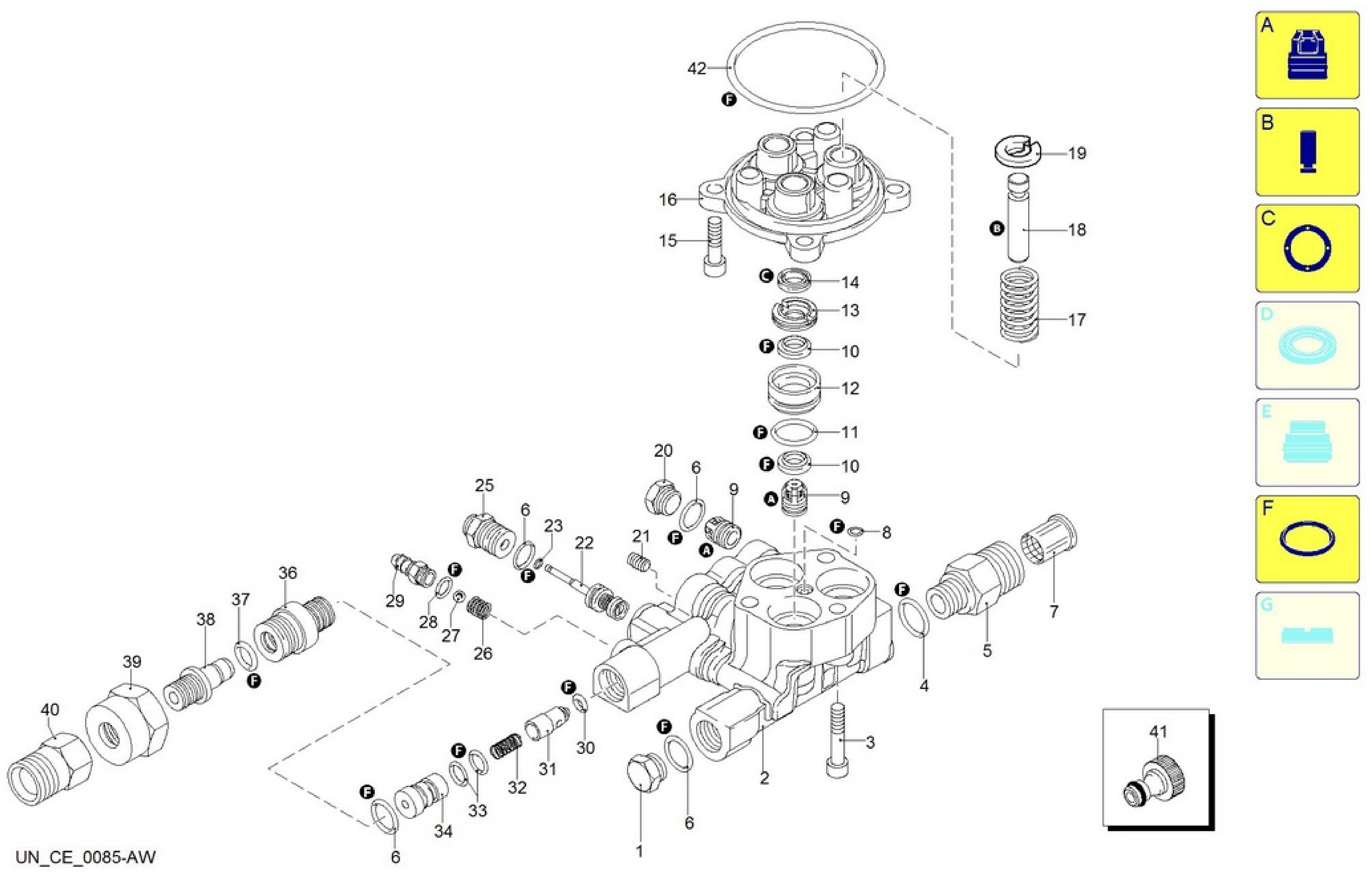

| Pump 150 TSS - 12697 Pag.2 |
||
| 1 | 1980740 | Stopper |
| 2 | 2900200 | Top |
| 3 | 800220 | Screw |
| 4 | 820510 | O-Ring |
| 5 | 2900850 | Junction |
| 6 | 740290 | O-Ring |
| 7 | 1340260 | Filter |
| 8 | 480560 | O-Ring |
| 9 | 2849051 | Complete Valve |
| 10 | 2200141 | Water Seal |
| 11 | 770590 | O-Ring |
| 12 | 2840550 | Bush |
| 13 | 2840540 | Bush |
| 14 | 1683500 | Oil Seal |
| 15 | 2900500 | Screw |
| 16 | 2900020 | Piston Guide |
| 17 | 2901170 | Spring |
| 18 | 2840530 | Piston |
| 19 | 2840050 | Firm |
| 20 | 2840130 | Stopper |
| 21 | 2840470 | Screw |
| 22 | 2909005 | Pre-Assembly Spring |
| 23 | 1120680 | O-Ring |
| 25 | 2900130 | Junction |
| 26 | 1560520 | Spring |
| 27 | 1250280 | Ball |
| 28 | 480480 | O-Ring |
| 29 | 1982520 | Hose |
| 30 | 1460430 | O-Ring |
| 31 | 2901070 | Shutter |
| 32 | 1080091 | Spring |
| 33 | 800560 | O-Ring |
| 34 | 2901060 | Injector |
| 36 | 2900810 | Junction |
| 37 | 1260740 | O-Ring |
| 38 | 2900800 | Pin |
| 39 | 2900820 | Ferrule |
| 40 | 2900830 | Junction |
| 41 | 1461470 | Junction |
| 42 | 3040270 | O-Ring |
| A | 2233 | Valve Kit |
| B | 2313 | Piston Kit |
| C | 42124 | Oil Seals Kit |
| F | 42438 | Seal Kit |

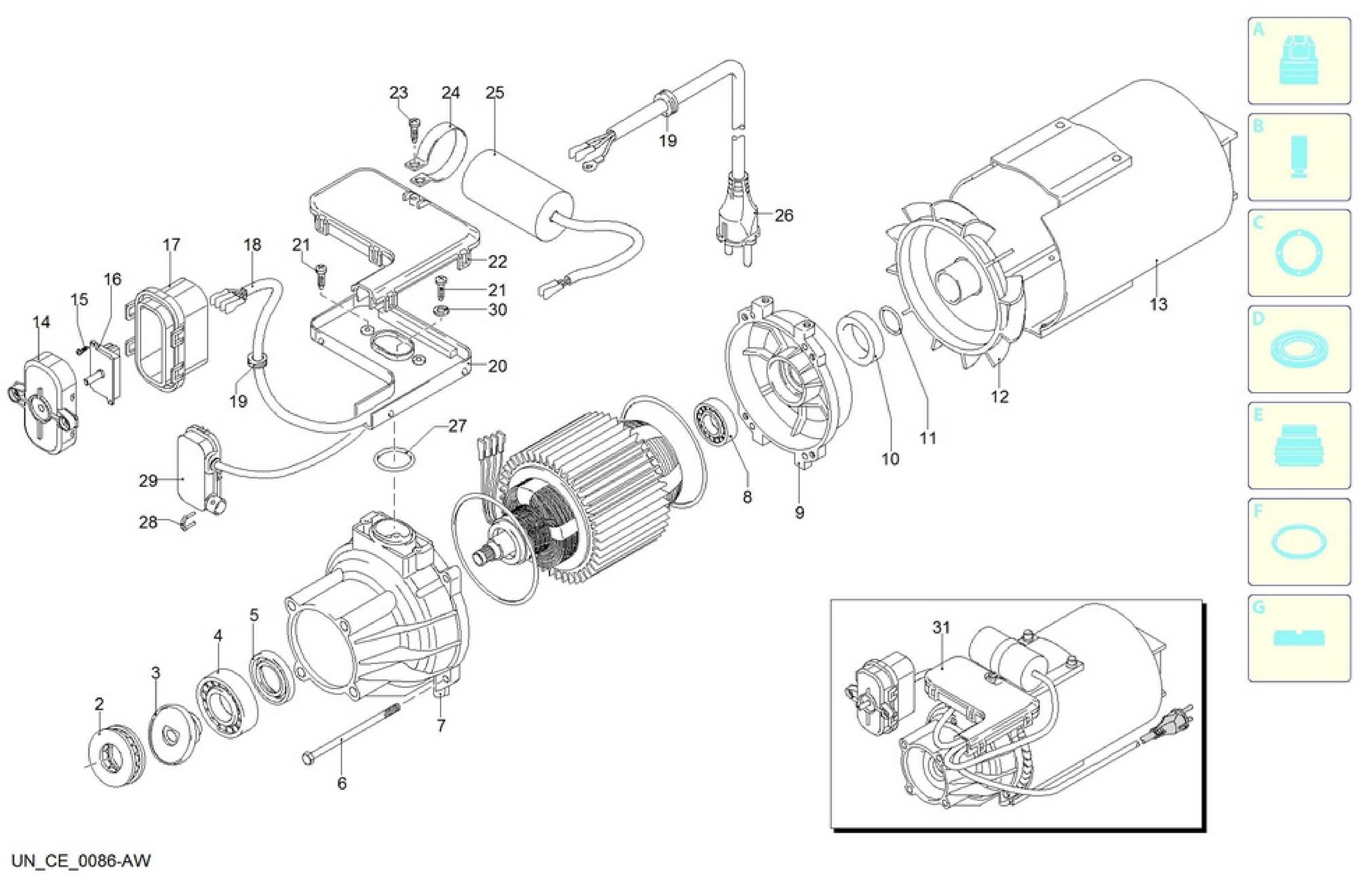

| Engine 150 TSS - 12697 Pag.3 |
||
| 2 | 2900170 | Thrust Bearing |
| 3 | 2900260 | Plate |
| 4 | 1780490 | Ball Bearing |
| 5 | 1460530 | Oil Seal |
| 6 | 2320090 | Screw |
| 7 | 2900010 | Body Pump |
| 8 | 1460590 | Bearing |
| 9 | 1460040 | Shield |
| 10 | 1461200 | Oil Seal |
| 11 | 394280 | O-Ring |
| 12 | 1460370 | Fan |
| 13 | 1460340 | Conveyor |
| 14 | 2900780 | Cover |
| 15 | 2000210 | Screw |
| 16 | 2900420 | Switch |
| 17 | 2900770 | Box |
| 18 | 2900930 | Cable |
| 19 | 2021480 | Fairlead |
| 20 | 2900750 | Box |
| 21 | 2020570 | Screw |
| 22 | 2900760 | Cover |
| 23 | 2100300 | Screw |
| 24 | 1340280 | Band |
| 25 | 2900980 | Capacitor |
| 26 | 1760450 | Cable |
| 27 | 660170 | O-Ring |
| 28 | 2022201 | Fork |
| 29 | 2029753 | Pre-Assembly Box TSS |
| 30 | 1262400 | Washer |
| 31 | 44111 | Engine |

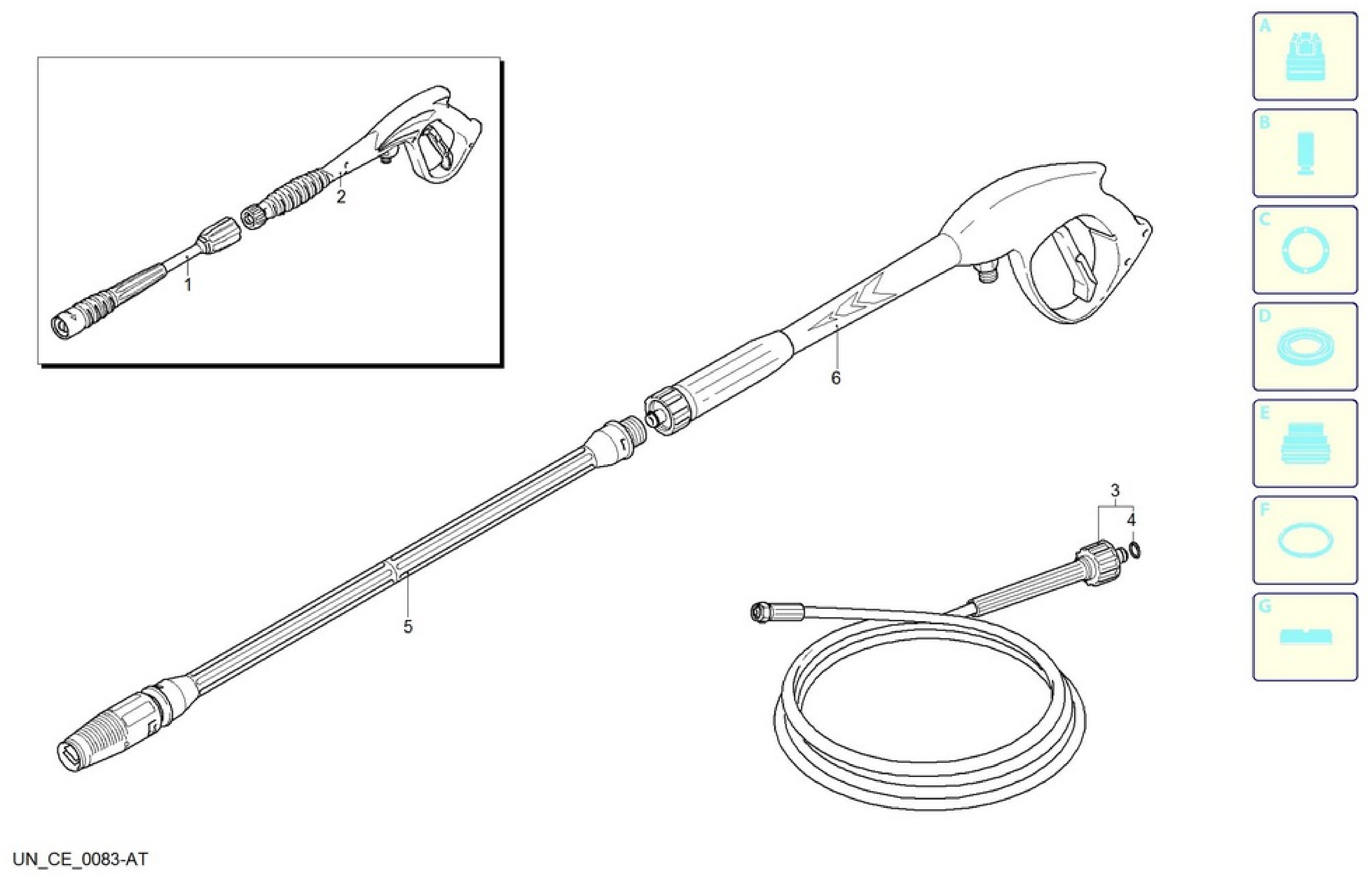

| Accessories 150 TSS - 12697 Pag.4 |
||
| 1 | 40715 | Lance + Head |
| 2 | 40714 | Gun |
| 3 | 1460702 | High Pressure Hose |
| 4 | 2000770 | O-Ring |
| 5 | 40246 | Spear + Head |
| 6 | 40925 | Gun |
