Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure Washer NRG 100 TSS

SKU: ARSG NRG 100 TSS - 12250
€39.89
VAT included

AR Farmer's Division Parts for Pressure Washer NRG 100 TSS

AR Farmer's Division service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Pressure Washer NRG 100 TSS - 12250.

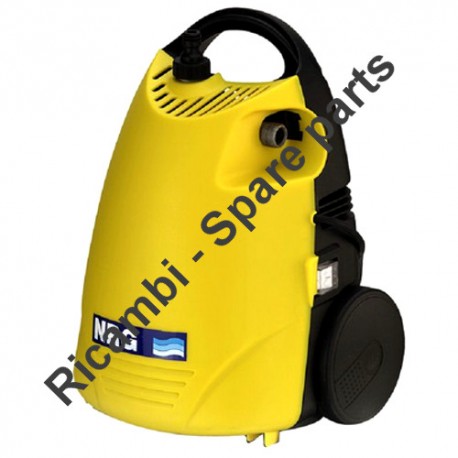

AR Farmer's Division Parts for Pressure NRG
  • AR Farmer's Division Parts for Pressure NRG
  • AR Farmer's Division Parts for Pressure NRG
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure Washer NRG 100 TSS

SKU: ARSG NRG 100 TSS - 12250 Condition: New
€39.89
VAT included

AR Farmer's Division Parts for Pressure Washer NRG 100 TSS

AR Farmer's Division service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Pressure Washer NRG 100 TSS - 12250.

settings 64 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

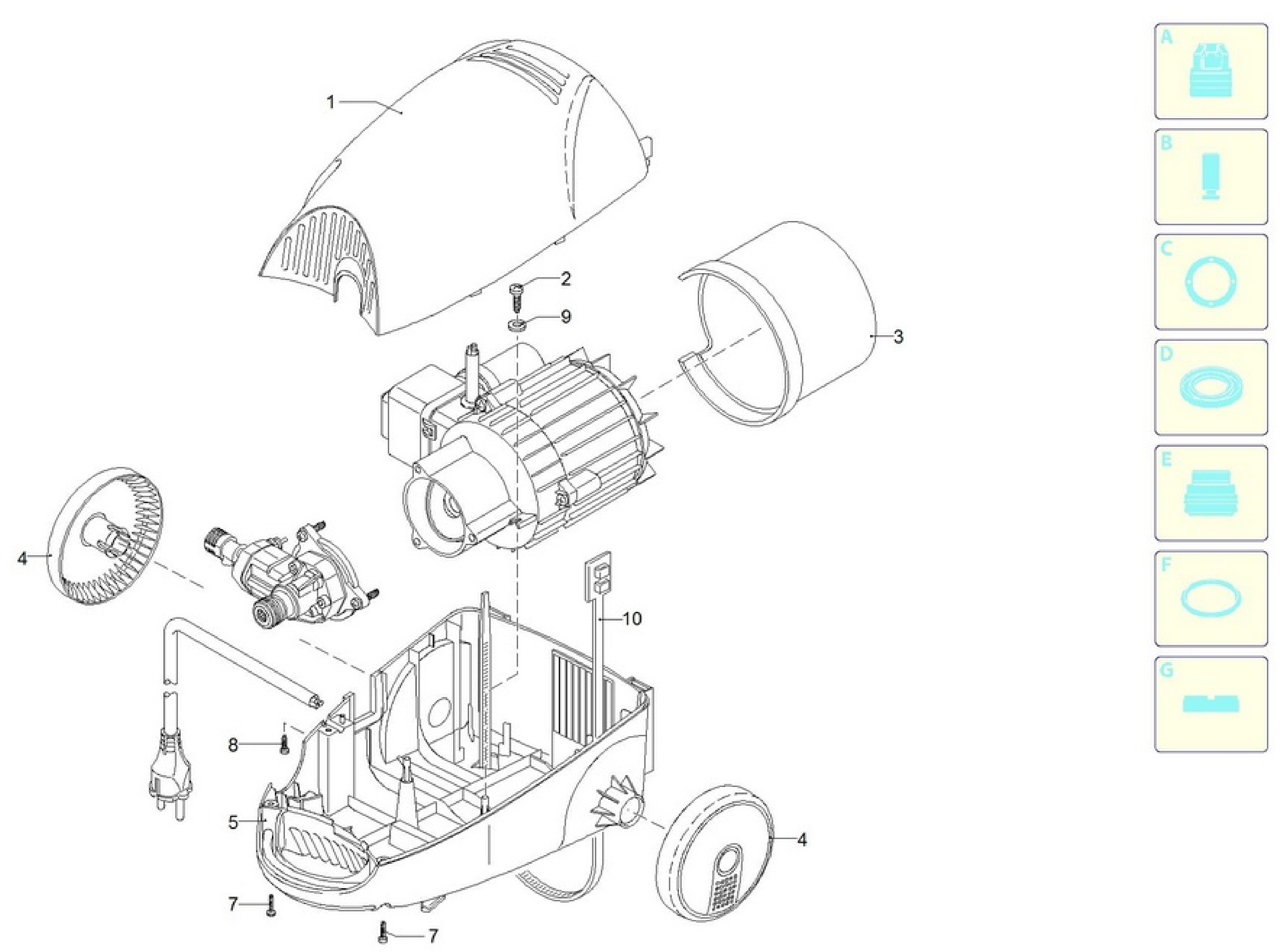

Esploso pagina 1
Pos. Item Price Buy
D
 photo_cameraImage coming soon 2332 Kit Held €5.87
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
A
 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker 2574 Kit Parts Valves for Pressure Washers AR-AR Farmer's Division-Black&Decker €9.62
1
 photo_cameraImage coming soon 2100230 Yellow Casing €9.41
2
 photo_cameraImage coming soon 2100300 screw €4.72
3
 photo_cameraImage coming soon 2100070 Conveyor €1.71
5
 photo_cameraImage coming soon 2100240 Black Casing €11.87
10
 photo_cameraImage coming soon 50055 SWITCH €13.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

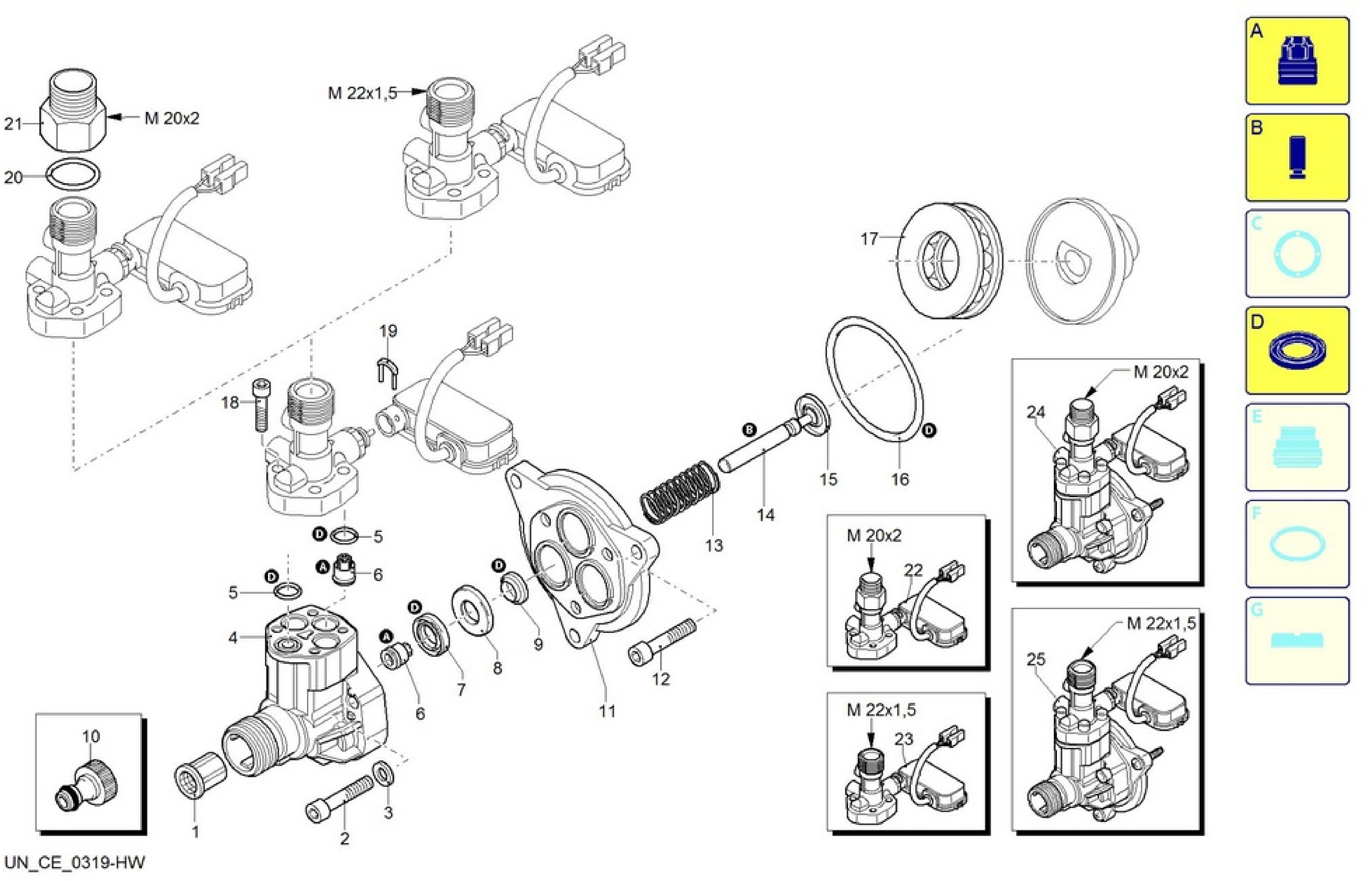

Esploso pagina 2
Pos. Item Price Buy
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
3
 photo_cameraImage coming soon 2560690 Washer €4.01
4
 Head for Pressure Washers B&D and AR Farmer's Division 2560450 Head for Pressure Washers B&D and AR Farmer's Division €22.20
5
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
6
 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS 2109050 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS €2.41
7
 O-R mm 12x18x5/4,5 for Pressure Washers DRIVE-PW-MR CLEAN-NRG 2101120 O-R mm 12x18x5/4,5 for Pressure Washers DRIVE-PW-MR CLEAN-NRG €2.72
8
 Holder Seal for Pressure Washer AR BC Serie 1 - 2 2020041 Holder Seal for Pressure Washer AR BC Serie 1 - 2 €1.40
9
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
10
 photo_cameraImage coming soon 1461470 junction €3.26
11
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
12
 photo_cameraImage coming soon 2100960 Screw €4.41
13
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
14
 photo_cameraImage coming soon 2100130 Piston €9.67
15
 photo_cameraImage coming soon 2020140 Ring €5.00
16
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
17
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
18
 photo_cameraImage coming soon 2560720 Lives €4.72
19
 photo_cameraImage coming soon 2021960 Fork €4.94
20
 photo_cameraImage coming soon 390180 O-ring €1.58
21
 photo_cameraImage coming soon 2620760 Junction €9.10
22
 Fitting Assembly for Pressure Washers Black&Decker PW 1400-1500 2317 Fitting Assembly for Pressure Washers Black&Decker PW 1400-1500 €35.11 Not available for order
23
 photo_cameraImage coming soon 2253 Pre-Assembly Fitting €26.19
24
 photo_cameraImage coming soon 42323 Pre-Installing Pump TSS €88.70
25
 photo_cameraImage coming soon 2331 Pre-Installing Pump TSS €88.03
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2100280 Headphones €5.13
2
 photo_cameraImage coming soon 1682270 Switch €6.38
3
 AR Capacitor Box for AR 111 2100060 AR Capacitor Box for AR 111 €6.13
da 2 pz: €0.50
4
 Annovi Reverberi O-Ring for Pressure Washer 2590 390201 Annovi Reverberi O-Ring for Pressure Washer 2590 €0.87
5
 photo_cameraImage coming soon 1683790 Capacitor €9.26
6
 photo_cameraImage coming soon 2200090 Cable €16.03
7
 photo_cameraImage coming soon 2020570 screw €1.59
8
 photo_cameraImage coming soon 1262400 washer €1.73
9
 photo_cameraImage coming soon 2100110 Fairlead €5.09
12
 photo_cameraImage coming soon 2109204 Pre-Installing The Pump Body €13.55
13
 photo_cameraImage coming soon 2100980 Screw €4.53
15
 photo_cameraImage coming soon 2020850 Washer €5.08
16
 photo_cameraImage coming soon 1680250 Fan €7.11
17
 photo_cameraImage coming soon 44010 Engine €99.58
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

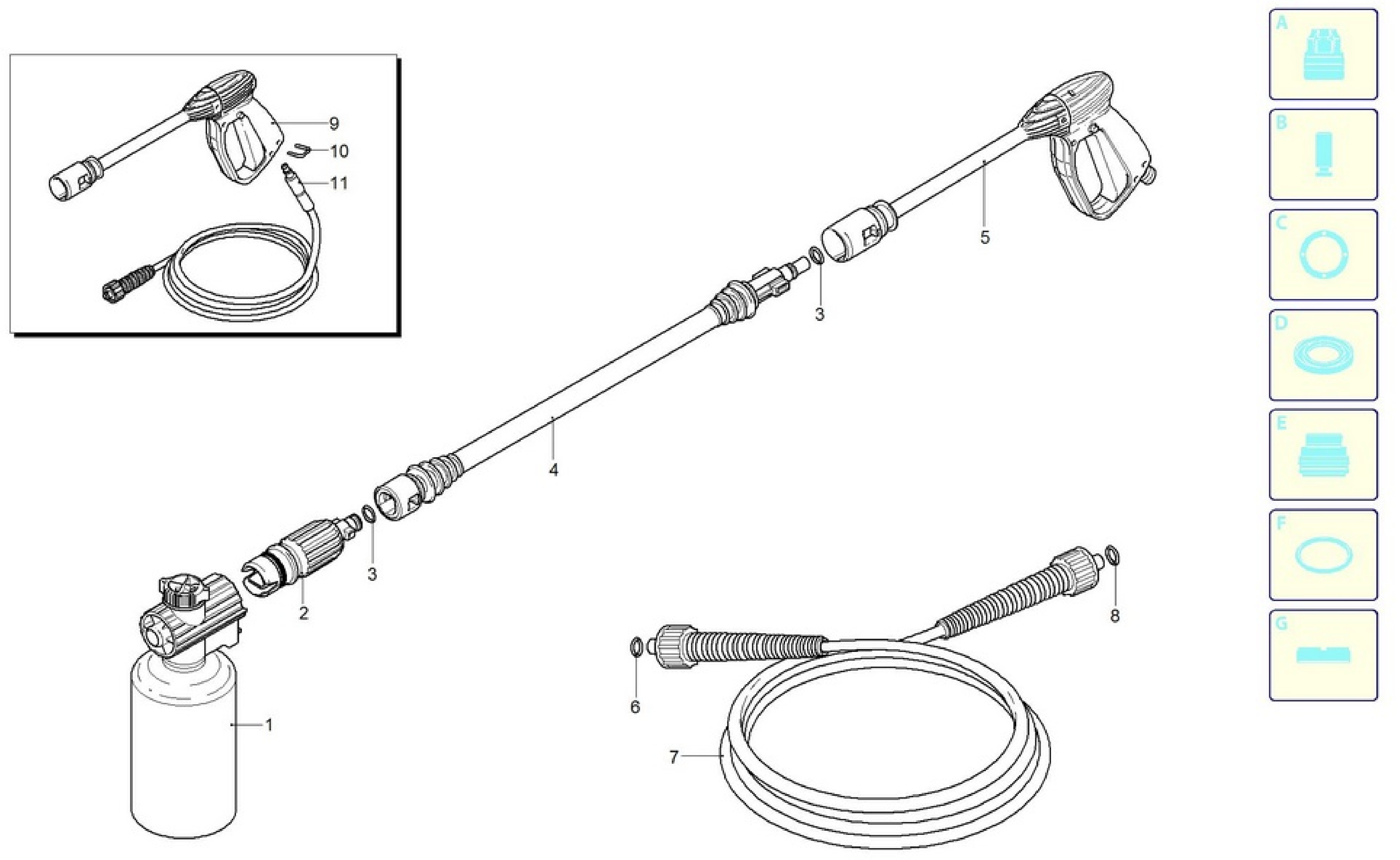

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 40530 Tank €8.15
2
 Lance Head for Pressure Washer AR Farmer's Division Nrg 100 TSS 40669 Lance Head for Pressure Washer AR Farmer's Division Nrg 100 TSS €12.42
3
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
4
 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 40667 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 €16.78
5
 photo_cameraImage coming soon 40666 Gun->40925+3082750+3780492 €32.52
6
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
7
 photo_cameraImage coming soon 2620420 High Pressure Hose €18.03
8
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
9
 Gun for Pressure Washer AR Farmer's Division 100-120 TSS-TSS2 40409 Gun for Pressure Washer AR Farmer's Division 100-120 TSS-TSS2 €25.87
10
 Fork Lock High Pressure Hose for Pressure Washers B & D PW 1400 2000080 Fork Lock High Pressure Hose for Pressure Washers B & D PW 1400 €1.26
11
 High Pressure Hose for Pressure Washers Black&Decker PW 1400 B-P 2000420 High Pressure Hose for Pressure Washers Black&Decker PW 1400 B-P €37.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure Washer NRG 100 TSS

AR Farmer's Division service center

and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Pressure Washer NRG 100 TSS - 12250.

In the following tables, look for the spare part and its respective code.
ARSG NRG 100 TSS - 12250

Pressure Washer NRG 100 TSS - 12250
Casing 100 TSS - 12250 Pag.1
# Part Num. Description
1 2100230 Yellow Casing
2 2100300 Screw
3 2100070 Conveyor
4 2100250 Wheel
5 2100240 Black Casing
7 2000110 Screw
8 2000210 Screw
9 480650 Washer
10 50055 Band
Pump 100 TSS - 12250 Pag.2
1 1340260 Filter
2 850850 Screw
3 2560690 Washer
4 2560450 Top
5 880840 O-Ring
6 2109050 Valve
7 2101120 Water Seal
8 2020041 Ring
9 1683500 Oil Seal
10 1461470 Junction
11 2100030 Piston Guide
12 2100960 Screw
13 2020150 Spring
14 2100130 Piston
15 2020140 Ring
16 850840 O-Ring
17 2021570 Bearing
18 2560720 Screw
19 2021960 Fork
20 390180 O-Ring
21 2620760 Junction
22 2317 Pre-Assembly Fitting
23 2253 Pre-Assembly Fitting
24 42323 Pre-Installing Pump TSS
25 2331 Pre-Installing Pump TSS
A 2574 Valve Kit
B 2508 Piston Kit
D 2332 Kit Held
Engine 100 TSS - 12250 Pag.3
1 2100280 Headphones
2 1682270 Switch
3 2100060 Capacitor Box
4 390201 O-Ring
5 1683790 Capacitor
6 2200090 Cable
7 2020570 Screw
8 1262400 Washer
9 2100110 Fairlead
11 2101711 Plate
12 2109204 Pre-Installing The Pump Body
13 2100980 Screw
14 2029721 Pre-Assembly Box TSS
15 2020850 Washer
16 1680250 Fan
17 44010 Engine
Accessories 100 TSS - 12250 Pag.4
1 40530 Tank
2 40669 Head
3 1680220 O-Ring
4 40667 Lance
5 40666 Gun->40925+3082750
+3780492
6 1080250 O-Ring
7 2620420 High Pressure Tube
8 2000770 O-Ring
9 40409 Gun
10 2000080 Fork
11 2000420 High Pressure Tube with fork
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG NRG 100 TSS - 12250
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 100 TSS

Diagram AR Farmer's 100 TSS

Download (457.46KB)
