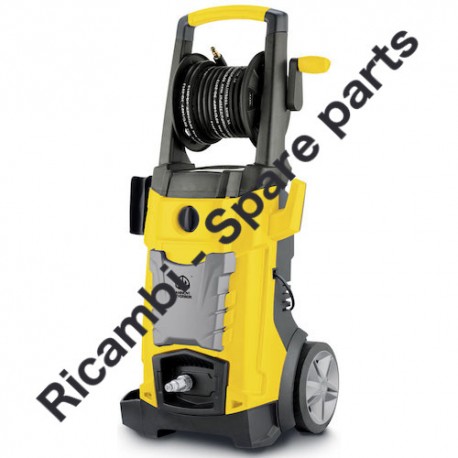

AR Pressure Cleaner 191K X-TRA Parts

SKU: AR 191K X-TRA - 14587
€19.07
VAT included

AR Parts for Pressure Washer 191K X-TRA

Genuine Parts AR Farmer's Division for to repair damaged parts, for Pressure Washer 191K X-TRA - 14587

Fix Your Pressure Washer 191K X-TRA - 14587. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
AR Pressure Cleaner 191K X-TRA Parts
  • AR Pressure Cleaner 191K X-TRA Parts
  • AR Pressure Cleaner 191K X-TRA Parts Drawing
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 1
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 2
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 3
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 4
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 5
  • AR Pressure Cleaner 191K X-TRA Parts Drawing - 6

AR Pressure Cleaner 191K X-TRA Parts

SKU: AR 191K X-TRA - 14587 Condition: New
€19.07
VAT included

AR Parts for Pressure Washer 191K X-TRA

Genuine Parts AR Farmer's Division for to repair damaged parts, for Pressure Washer 191K X-TRA - 14587

Fix Your Pressure Washer 191K X-TRA - 14587. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 70 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
M
photo_cameraImage coming soon 4100990 Screw kit €12.43
1
photo_cameraImage coming soon 4100270 Handle €22.37
3
photo_cameraImage coming soon 4100280 Handle €8.74
4
photo_cameraImage coming soon 3081390 Screw €1.29
5
photo_cameraImage coming soon 3081390 Screw €1.29
7
photo_cameraImage coming soon 4100504 Knob €1.69
8
photo_cameraImage coming soon 4100533 Protection Grey RAL 9006 €11.84
9
photo_cameraImage coming soon 4100250 Guard €10.18
10
photo_cameraImage coming soon 3081390 Screw €1.29
12
photo_cameraImage coming soon 3080580 cable clamp €2.88
13
photo_cameraImage coming soon 4100230 Guard €5.79
15
photo_cameraImage coming soon 3440120 Stirrup €6.43
16
photo_cameraImage coming soon 3086080 Screw €3.08
17
photo_cameraImage coming soon 3441170 Support €13.18
18
photo_cameraImage coming soon 3086080 Screw €3.08
20
photo_cameraImage coming soon 4100600 base €29.81
21
photo_cameraImage coming soon 4100630 Holder €9.67
23
photo_cameraImage coming soon 4101000 Holder €15.14
25
photo_cameraImage coming soon 4100640 Holder €7.44
26
photo_cameraImage coming soon 3081390 Screw €1.29
27
photo_cameraImage coming soon 4100930 Protection €5.88
30
photo_cameraImage coming soon 4100610 Guard €7.24
32
Wheel for Pressure Washers AR Blu Clean Series 3 - 381-391 4100010 Wheel for Pressure Washers AR Blu Clean Series 3 - 381-391 €18.73
33
photo_cameraImage coming soon 4101010 Stop Ring €5.88
34
photo_cameraImage coming soon 4101020 Washer €5.88
35
photo_cameraImage coming soon 4100510 Protection €7.64
36
photo_cameraImage coming soon 4100620 Guard €7.24
37
photo_cameraImage coming soon 3440710 Tank €15.12
39
photo_cameraImage coming soon 4100950 Hose €4.94
40
photo_cameraImage coming soon 4100960 Junction €4.94
41
photo_cameraImage coming soon 4100970 Hose €6.56
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4100340 Stirrup €5.88
2
photo_cameraImage coming soon 3081390 Screw €1.29
3
photo_cameraImage coming soon 4101040 Disc €18.72
4
photo_cameraImage coming soon 3081390 Screw €1.29
5
photo_cameraImage coming soon 4100330 Stirrup €5.88
6
photo_cameraImage coming soon 4101050 Lever €8.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4381560 PUMP SA €263.00
2
photo_cameraImage coming soon 4101090 Grommet €8.05
3
photo_cameraImage coming soon 3080400 Connector €15.45
4
photo_cameraImage coming soon 4382990 Fan cowling €10.75
5
photo_cameraImage coming soon 3441120 cable €34.56
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
B
Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
A
Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
G
Detergent Suction Kit for Pressure Washer AR BC 381 3440610 Detergent Suction Kit for Pressure Washer AR BC 381 €15.54
F
photo_cameraImage coming soon 4384310 TSS valve kit €15.67
C
photo_cameraImage coming soon 4384430 TSS kit €11.78
1
photo_cameraImage coming soon 3083210 Cork €7.45
2
photo_cameraImage coming soon 3081730 Vine €4.88
3
photo_cameraImage coming soon 3083220 Head €31.25
5
photo_cameraImage coming soon 3081750 washer €4.22
6
photo_cameraImage coming soon 3081740 Vine €1.99
7
Pump Body for Pressure Washers AR BC 395 - 490 - 491 3083230 Pump Body for Pressure Washers AR BC 395 - 490 - 491 €17.94
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4382130 MOTOR 220/240 €226.86
3
photo_cameraImage coming soon 3441000 ring €2.09
4
photo_cameraImage coming soon 3081950 screw €1.89
5
photo_cameraImage coming soon 3081750 washer €4.22
6
photo_cameraImage coming soon 4382090 Wobble plate €8.87
7
photo_cameraImage coming soon 43056 Bearing kits €18.90
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon 3081450 Switch €13.09
5
photo_cameraImage coming soon 4102730 Box €11.73
6
photo_cameraImage coming soon 4100850 Switch €13.47
10
photo_cameraImage coming soon 4101070 Bracket €5.15
11
Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
12
photo_cameraImage coming soon 4101080 Connector €5.92
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Parts for Pressure Washer 191K X-TRA

Fix Your Pressure Washer 191K X-TRA - 14587. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
AR Pressure Cleaner 191K X-TRA - 14587

191K X-TRA - 14587

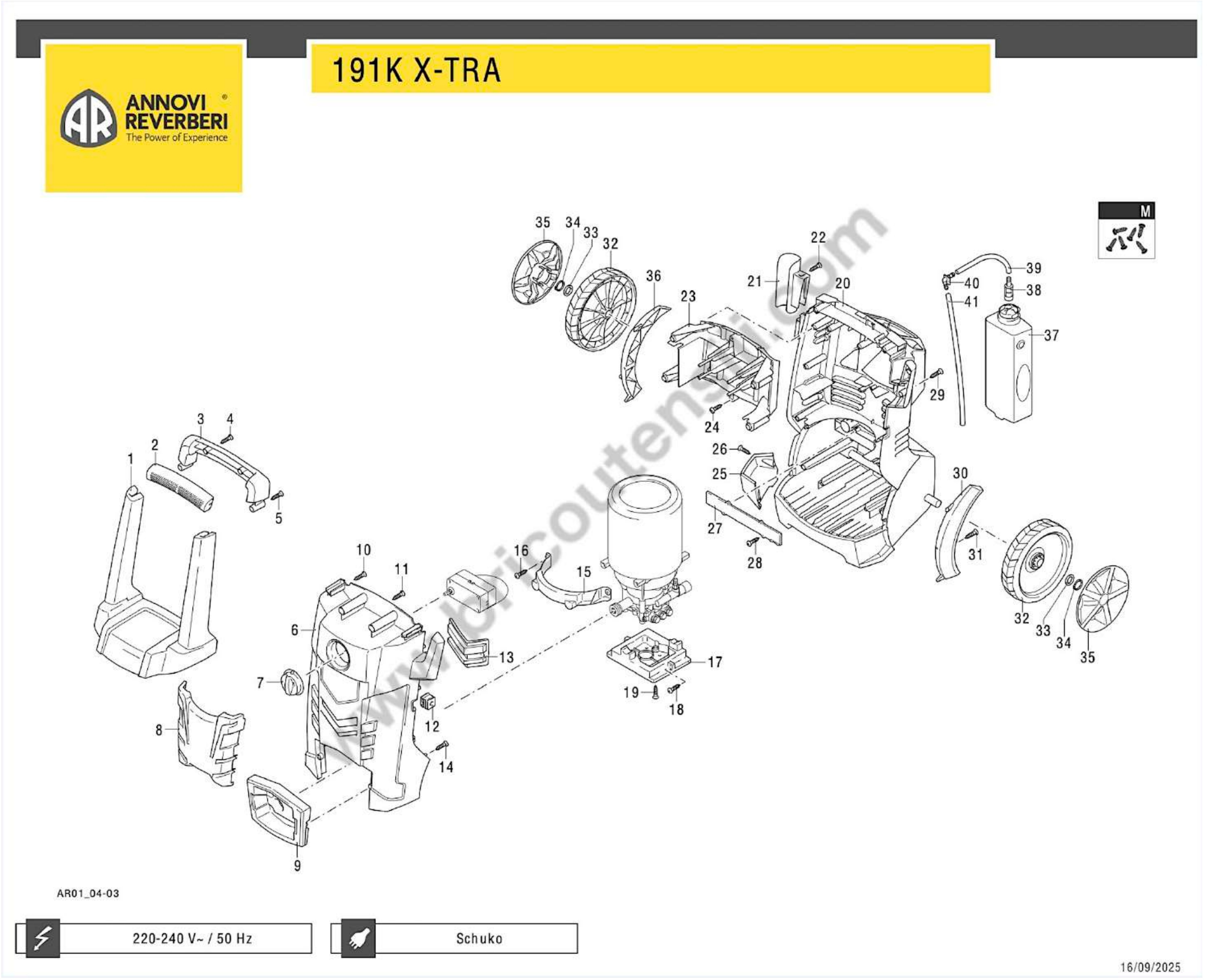

Pressure Washer Pag.1
# Part Num Description
1 4100270 Handle
2 4100495 Knob
3 4100280 Handle
4 3081390 Screw
5 3081390 Screw
6 4100225 Casing
7 4100504 Knob
8 4100533 Guard
9 4100250 Guard
10 3081390 Screw
11 3086100 Screw
12 3080580 Cable gland
13 4100230 Guard
14 3086100 Screw
15 3440120 Bracket
16 3086080 Screw
17 3441170 Support
18 3086080 Screw
19 3086090 Screw
20 4100600 Base
21 4100630 Support
22 5480500 Screw
23 4101000 Support
24 3086120 Screw
25 4100640 Support
26 3081390 Screw
27 4100930 Guard
28 3086120 Screw
29 5460570 Screw
30 4100610 Guard
31 3086100 Screw
32 4100010 Wheel
33 4101010 Washer
34 4101020 Lock
35 4100510 Guard
36 4100620 Guard
37 3440710 Tank
38 3440720 Filter
39 4100950 Pipe
40 4100960 Fitting
41 4100970 Pipe
M 4100990 Screw kit

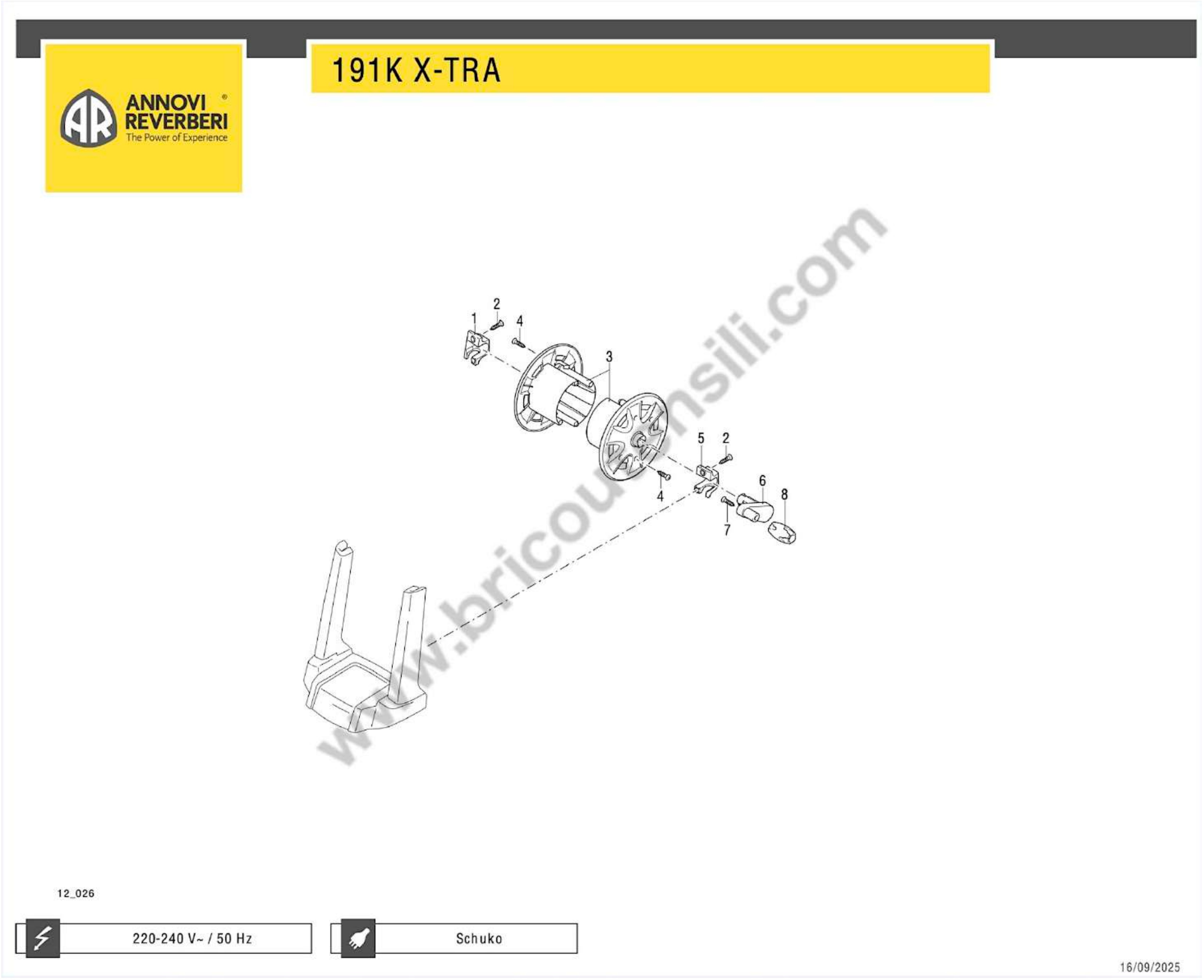

Hose Reel Pag.2
1 4100340 Bracket
2 3081390 Screw
3 4101040 Plate
4 3081390 Screw
5 4100330 Bracket
6 4101050 Lever
7 5460700 Screw
8 4101063 Knob

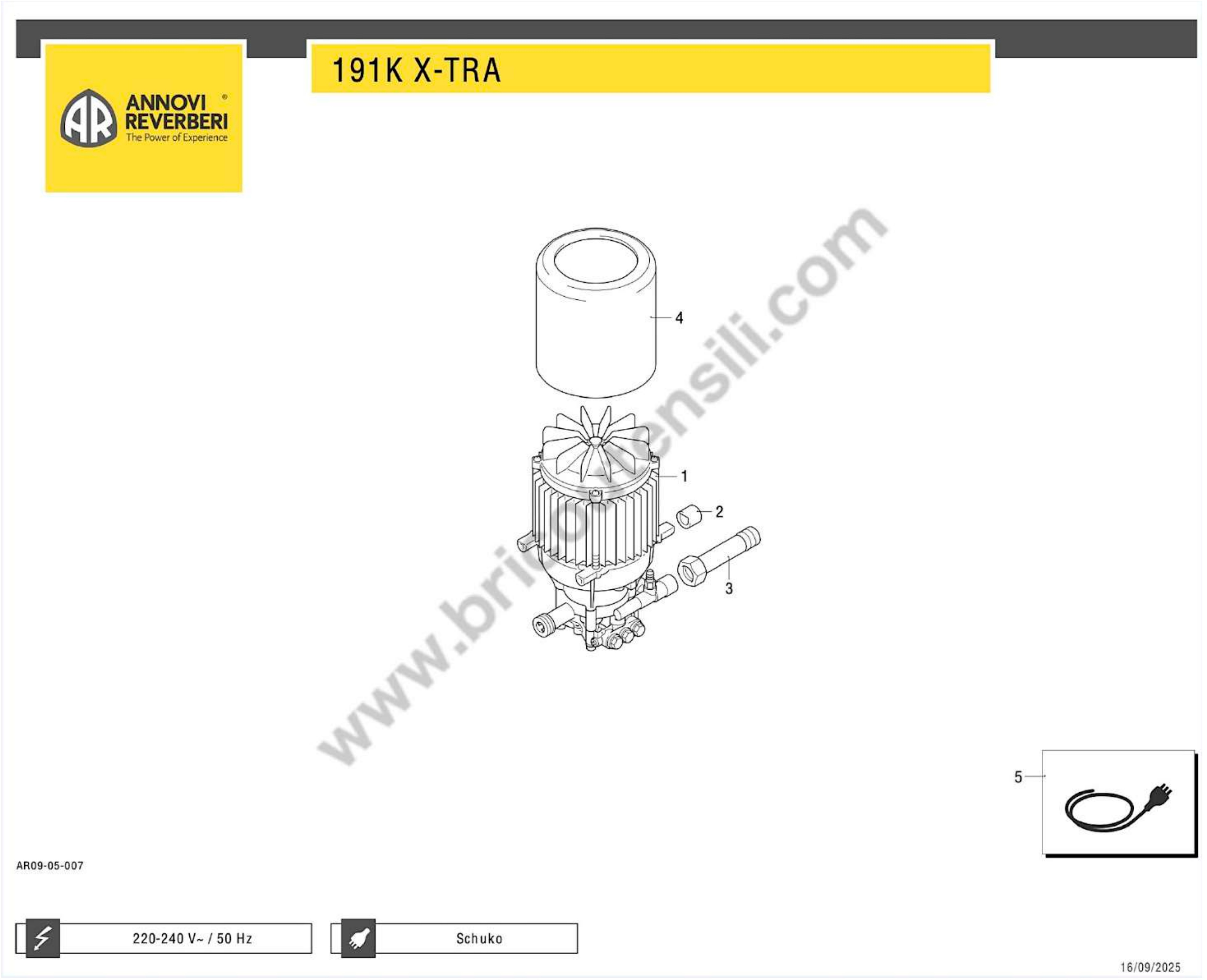

Electric Pump Pag.3
1 4381560 Electric pump assembly
2 4101090 Rubber foot
3 3080400 Fitting
4 4382990 Fan cowling
5 3441120 Cable

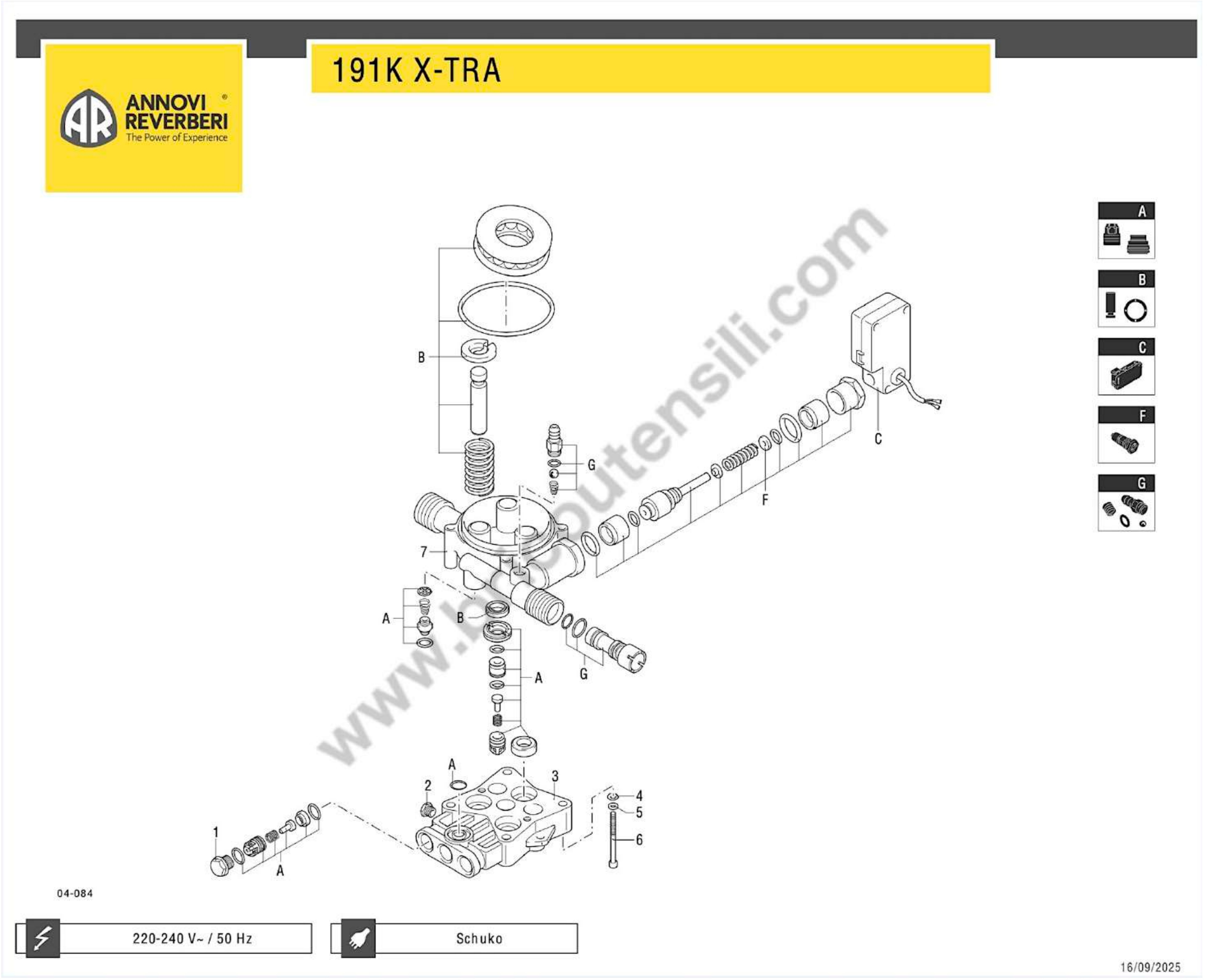

Pump Pag.4
1 3083210 Plug
2 3081730 Screw
3 3083220 Head
4 3081760 Washer
5 3081750 Washer
6 3081740 Screw
7 3083230 Pump body
A 3081290 Valves + seals kit
B 3081270 Piston + seal kit
C 4384430 TSS kit
F 4384310 Valve kit TSS
G 3440610 Detergent suction kit

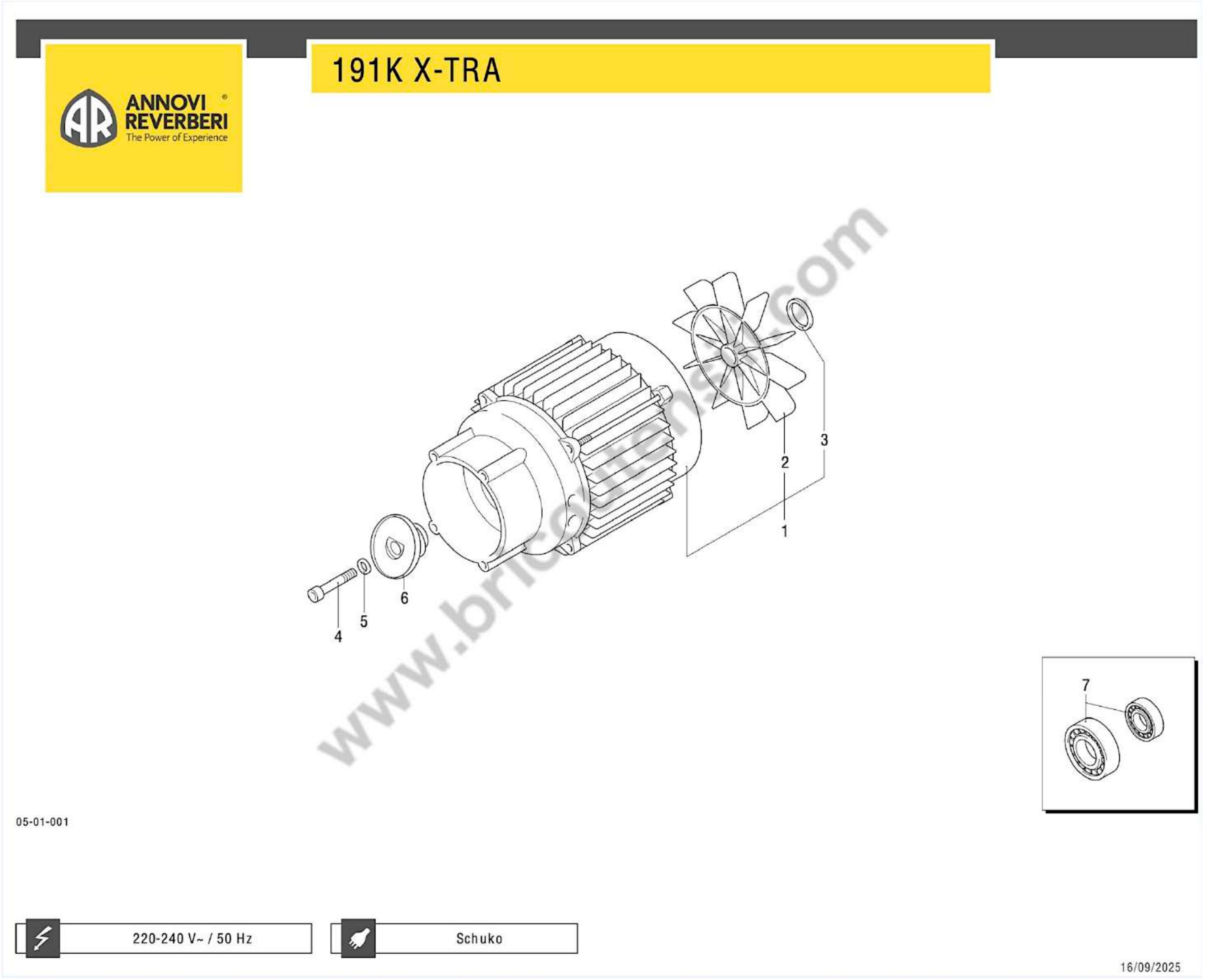

Motor Pag.5
1 4382130 Motor
2 5460680 Fan
3 3441000 Ring
4 3081950 Screw
5 3081750 Washer
6 4382090 Wobble plate
7 43056 Bearings kit

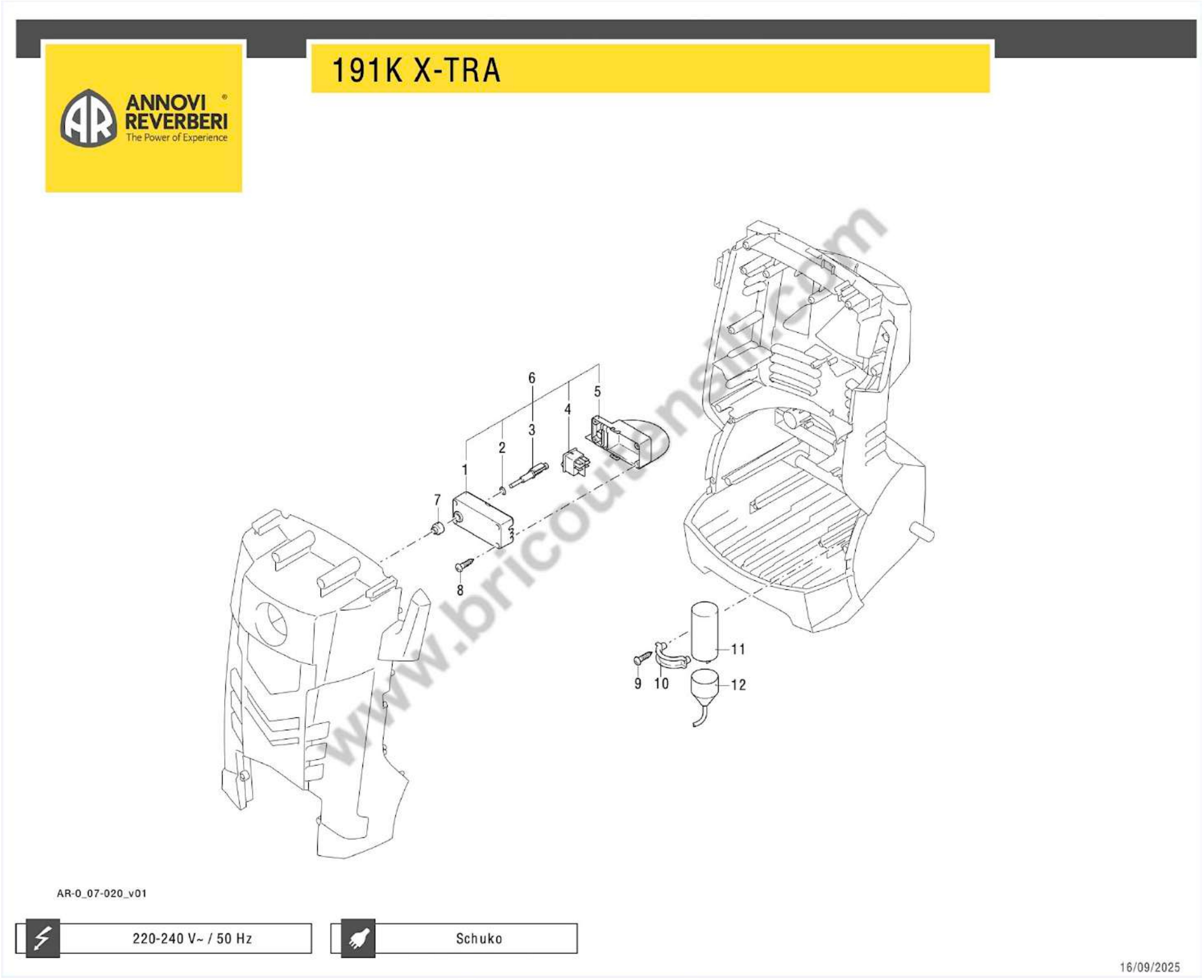

Electric Circuit Pag.6
1 4102740 Cover
2 3086170 O-ring
3 4102750 Pin
4 3081450 Switch
5 4102730 Box
6 4100850 Box kit [Switch]
7 5340420 Gland
8 3086110 Screw
9 5480500 Screw
10 4101070 Bracket
11 3081620 Capacitor
12 4101080 Connector

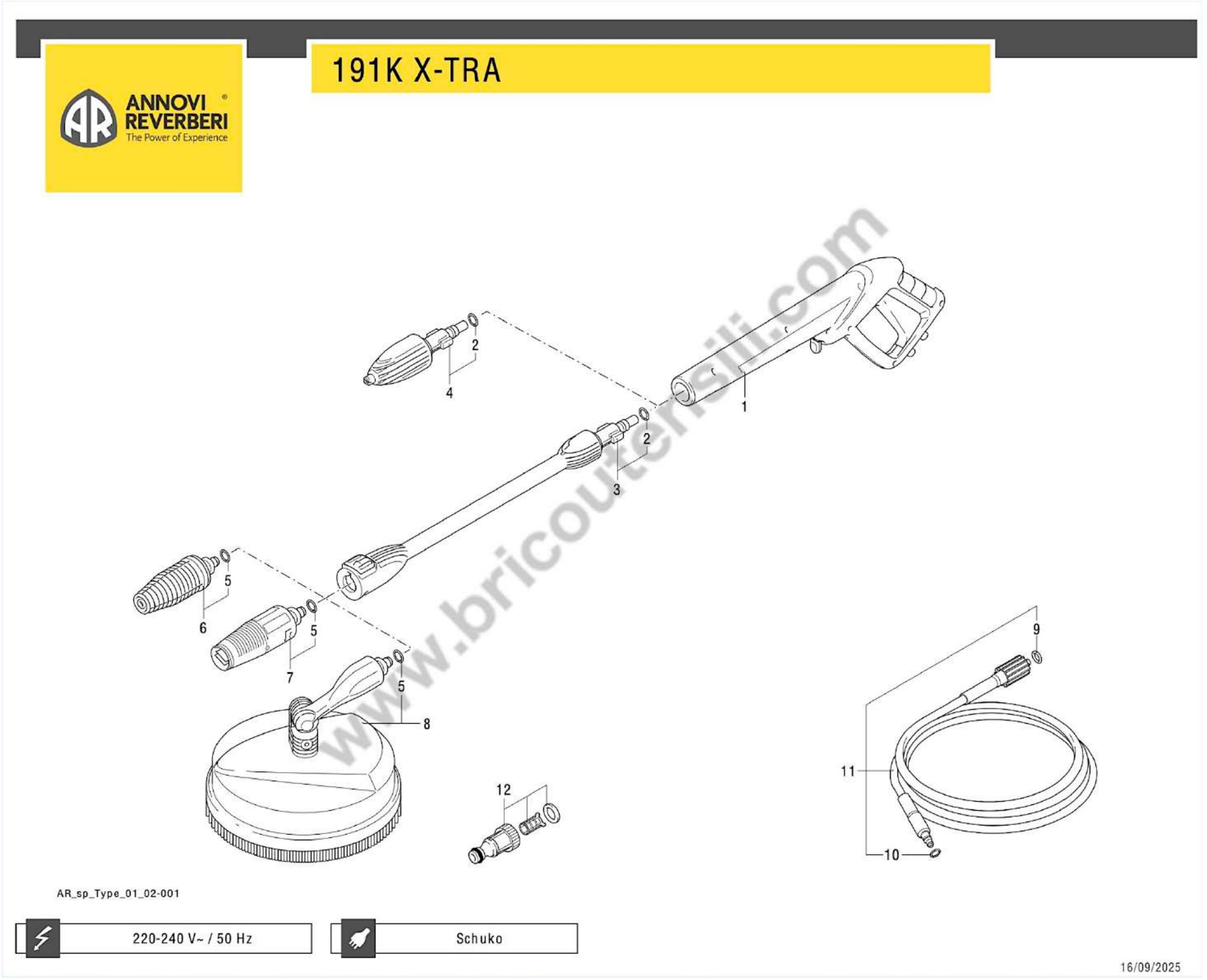

Accessories Pag.7
1 4100786 Gun
2 3083700 OR
3 4100775 Extension (Lance)
4 4100730 Lance head
5 3083370 O-ring
6 4100800 Head (Rotopower)
7 4381820 Lance head (Adjustable jet)
8 3085280 Mini Patio
9 3083380 OR
10 3083400 O-ring
11 4101940 High pressure hose
12 3082130 Water coupling kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AR 191K X-TRA - 14587
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

AR 191K X-TRA Parts Drawing

AR 191K X-TRA Parts Drawing

Download (427.81KB)

You might also like

Annovi Reverberi S.p.A. SKU: 3081620
Capacitor for Pressure Washers Blue Clean AR395-490-588 Genuine replacement part  Annovi & Reverberi, Capacitor  for A&R Pressure Washers models  Blue Clean  AR395 - AR490 - AR588 . Part for the following Items: - Pressure...
Last items in stock €22.86
Annovi Reverberi S.p.A. SKU: 3081280
Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS Genuine part Annovi & Reverberi, Kit TSS for pressure washers : Black & Decker - BXPW 1700 E - 14111 - 1800 E - 14112 - 2200 E - 14114 - 1700 PE - 14121 - 1800 PE - 14122 -...
AVAILABLE €12.87
Annovi Reverberi S.p.A. SKU: 40409
Gun for Pressure Washer AR Farmer's Division 100-120 TSS-TSS2 Original part Annovi Reverberi, Trigger Gun with bayonet Plug + Locking with Forc for pressure washers AR Farmer's Division NRG 100-120 TSS - DRIVE 100 TSS - MIRAGE 120...
Last items in stock €25.87
Annovi Reverberi S.p.A. SKU: 4100800
Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S Genuine parts Black & Decker,Extension Turbo Head for Pressure Washers BXPW 1300 E - 1400-1500 - 1600-1700 - 1800-2000 - 2200 E - 1300 EP - 1400 PE - PW...
Usually Ships in: 7/10 Business Days Approx. €13.57
Annovi Reverberi S.p.A. SKU: 50975
Lance for Pressure Washer Black&Decker PW 1700-2000 Original spare part Annovi & Reverberi, Lance + Head for Pressure Washers Black&Decker PW 1700 - 2000. Parts for the following items. - Black & Decker - PW 1700 SPL - 14240 -...
AVAILABLE €17.46
Annovi Reverberi S.p.A. SKU: 50976
Lance + Rotopower for Pressure Washer Black&Decker PW 1700-2000 Original spare part Annovi & Reverberi, Lance + Rotopower for Pressure Washers Black&Decker PW 1700 - 2000. Parts for the following items. - Black &...
on 7/10 Business Days Approx. €18.50
Annovi Reverberi S.p.A. SKU: 3083700
O-Ring for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring For the Following Products: - Black & Decker - BXPW 1300 E - 14107 - Black & Decker - BXPW 1300 PE - 14117 - Black & Decker...
AVAILABLE €0.53
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Annovi Reverberi S.p.A. SKU: 2020041
Holder Seal for Pressure Washer AR BC Serie 1 - 2 Genuine part Annovi&Reverberi, Holder Seal for Pressure Washer AR BC Serie 1 - 2 - ARSG Mirage - HOT 120 - Event 131...
AVAILABLE €1.40
Annovi Reverberi S.p.A. SKU: 3082750
Lance Adaptor for Pressure Washer B&D BXPW 2100 PE Genuine part Black&Decker, Lance Adaptor for Guns 40925 + HP 3780492 (Gun 40350) for Black&Decker BXPW 2100 PE - PW 2100- 2200 SPB PLUS - PW 1900 SPB - Michelin Euro MPX...
AVAILABLE €13.81
Annovi Reverberi S.p.A. SKU: 3083380
O-Ring mm 10x2,5 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 10x2,5 Shor For the Following Products: - Black & Decker - BXPW 2100 E - 14116 - Black & Decker - BXPW 2100 PE -...
AVAILABLE €0.46
Annovi Reverberi S.p.A. SKU: 3083390
O-Ring mm 4,8x1,8 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 4,8x1,8 Shor For the Following Products: - Black & Decker - PW 1600 SL - 14082 - Black & Decker - PW 1600 SL PLUS...
AVAILABLE €0.46
Annovi Reverberi S.p.A. SKU: 3083400
O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker Original part Annovi & Rverberi, HP Hose O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker - Michelin - AR BC - ARSG - Stanley. Part for the...
Usually Ships in: 7/10 Business Days Approx. €0.53
Annovi Reverberi S.p.A. SKU: 3083370
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker Original part Annovi & Rverberi, HP Hose O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker - Michelin - AR BC - ARSG - Stanley. Part for the...
AVAILABLE €0.53
Annovi Reverberi S.p.A. SKU: 4101550
Lance Head for Pressure Washer Stanley SXPW22E Genuine spare part Stanley, Lance Head for Pressure Washers Stanley SXPW22E - SXPW22PE. Part for the following products: - Pressure...
Usually Shipped On 10/15 Business Days Approx. €10.50
Annovi Reverberi S.p.A. SKU: 4100010
Wheel for Pressure Washers AR Blu Clean Series 3 - 381-391 Original Parts Annovi & Reverberi, Wheel for Pressure Washers AR Blu Clean AR- AR Blu Clean Series 3 - 381 391 - 481 - 491 - 586 - Michelin Europa - MPX 130 BC...
AVAILABLE €18.73
Annovi Reverberi S.p.A. SKU: 3085130
Switch for Pressure Washer Annovi & Reverberi AR479 Genuine Replacement Part Annovi & Reverberi, Switch Assembly for Pressure Washers AR479 - 14440 - AR379 - AR475. Part For the Following Products: - Idropulitrice Annovi &...
AVAILABLE €16.73
Annovi Reverberi S.p.A. SKU: 3082360
Power Cord for Pressure Washer Black&Decker PW 1400 E Genuine part Black & Decker, Power Cord 2x0.75 mm2 hd5vv-f for Pressure Washers Annovi Reverberi - ARSG - Black&Decker - Michelin - Stanley Parts for the following...
AVAILABLE €21.06
Annovi Reverberi S.p.A. SKU: 3083230
Pump Body for Pressure Washers AR BC 395 - 490 - 491 Genuine Part Annovi Reverberi, Pump Body for Pressure Washers AR BC 395 - 490 - 491 Part for the following products: - ...
Usually Ships in: 10/15 Business Days Approx. €17.94
Annovi Reverberi S.p.A. SKU: 3440610
Detergent Suction Kit for Pressure Washer AR BC 381 Original part Annovi & Reverberi, Detergent Suction Kit for Pressure Washer AR BC 381 - 481 - 490 - 491 Part for the following products:...
on 7/10 Business Days Approx €15.54
Comments (0)
