Annovi Reverberi S.p.A.

AR Pressure Cleaner 171K X-TRA Parts

SKU: AR 171K X-TRA - 14441
€16.37
VAT included

AR Parts for Pressure Washer 171K X-TRA

Genuine Parts AR Farmer's Division for to repair damaged parts, for Pressure Washer 171K X-TRA

Fix Your Pressure Washer 171K X-TRA. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
AR Pressure Cleaner 171K X-TRA Parts
  • AR Pressure Cleaner 171K X-TRA Parts
  • AR Pressure Cleaner 171K X-TRA Parts Diagram
  • AR Pressure Cleaner 171K X-TRA Parts Diagram - 1
  • AR Pressure Cleaner 171K X-TRA Parts Diagram - 2
  • AR Pressure Cleaner 171K X-TRA Parts Diagram - 3
Annovi Reverberi S.p.A.

AR Pressure Cleaner 171K X-TRA Parts

SKU: AR 171K X-TRA - 14441 Condition: New
€16.37
VAT included

AR Parts for Pressure Washer 171K X-TRA

Genuine Parts AR Farmer's Division for to repair damaged parts, for Pressure Washer 171K X-TRA

Fix Your Pressure Washer 171K X-TRA. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 42 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
6
 photo_cameraImage coming soon 3086040 Valve + seal kit €4.72
7
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

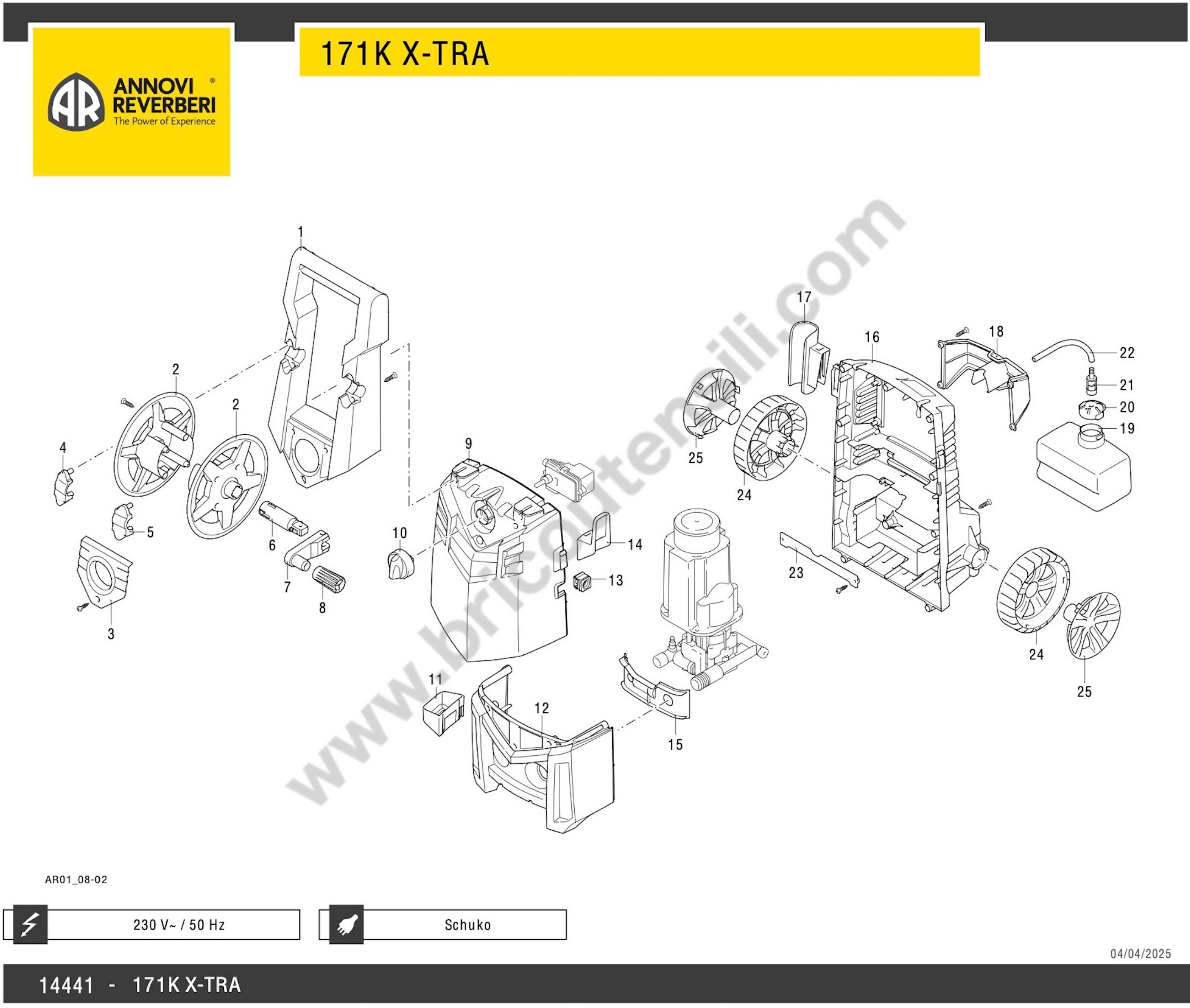

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3085070 Handle €15.89
2
 photo_cameraImage coming soon 3085060 Plate €21.55
3
 photo_cameraImage coming soon 3085030 Guard €6.85
4
 photo_cameraImage coming soon 3085040 Bracket €5.52
6
 photo_cameraImage coming soon 3085240 Hub pin €1.38
7
 photo_cameraImage coming soon 3085250 Lever €4.01
8
 photo_cameraImage coming soon 3085260 Knob €6.65
9
 photo_cameraImage coming soon 3085090 Casing €16.99
10
 photo_cameraImage coming soon 3085080 Knob €2.91
11
 photo_cameraImage coming soon 3085230 Accessories carrier €5.20
12
 photo_cameraImage coming soon 3085100 Guard €11.51
13
 photo_cameraImage coming soon 3080580 cable clamp €2.88
14
 photo_cameraImage coming soon 3085220 Accessories carrier €4.27
15
 photo_cameraImage coming soon 3085110 Guard €8.92
16
 photo_cameraImage coming soon 3085200 base €21.15
17
 photo_cameraImage coming soon 3085210 Support €6.63
18
 photo_cameraImage coming soon 3085050 Guard €6.85
19
 photo_cameraImage coming soon 3085180 Tank €17.18
20
 photo_cameraImage coming soon 3085190 Plug €3.46
22
 photo_cameraImage coming soon 4221120 Pipe €7.03
23
 photo_cameraImage coming soon 3085150 Guard €2.47
24
 photo_cameraImage coming soon 3085160 Wheel €15.90
25
 photo_cameraImage coming soon 3085170 Guard €7.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

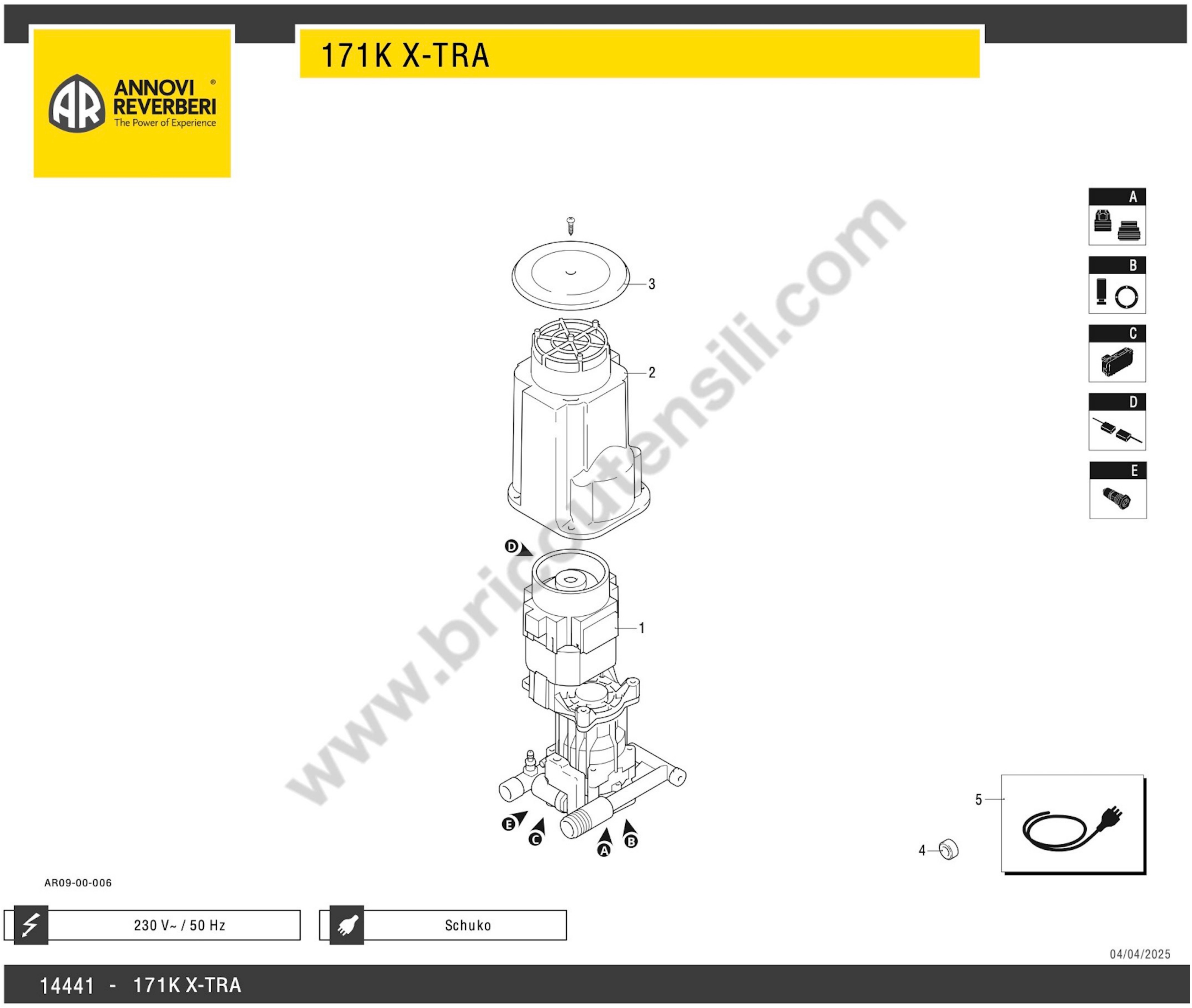

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4720670 Electric pump assembly €234.53
2
 photo_cameraImage coming soon 4100890 Conveyor €14.92
3
 photo_cameraImage coming soon 4101930 Plate €6.56
5
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €21.06
6
 photo_cameraImage coming soon 3086040 Valve + seal kit €4.72
7
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

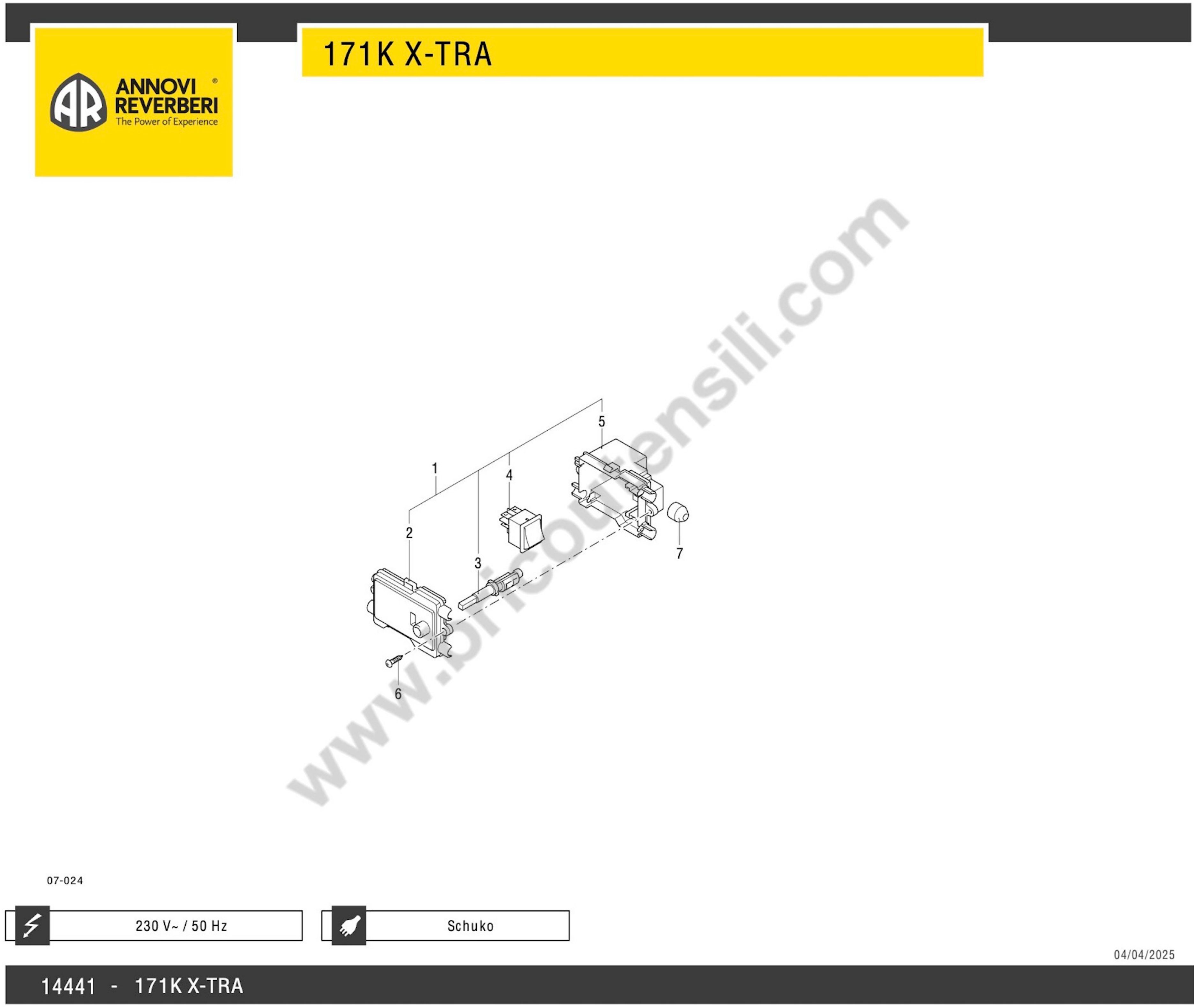

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Switch for Pressure Washer Annovi & Reverberi AR479 3085130 Switch for Pressure Washer Annovi & Reverberi AR479 €16.73
4
 photo_cameraImage coming soon 3081450 Switch €13.09
6
 photo_cameraImage coming soon 3081390 Screw €1.29
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

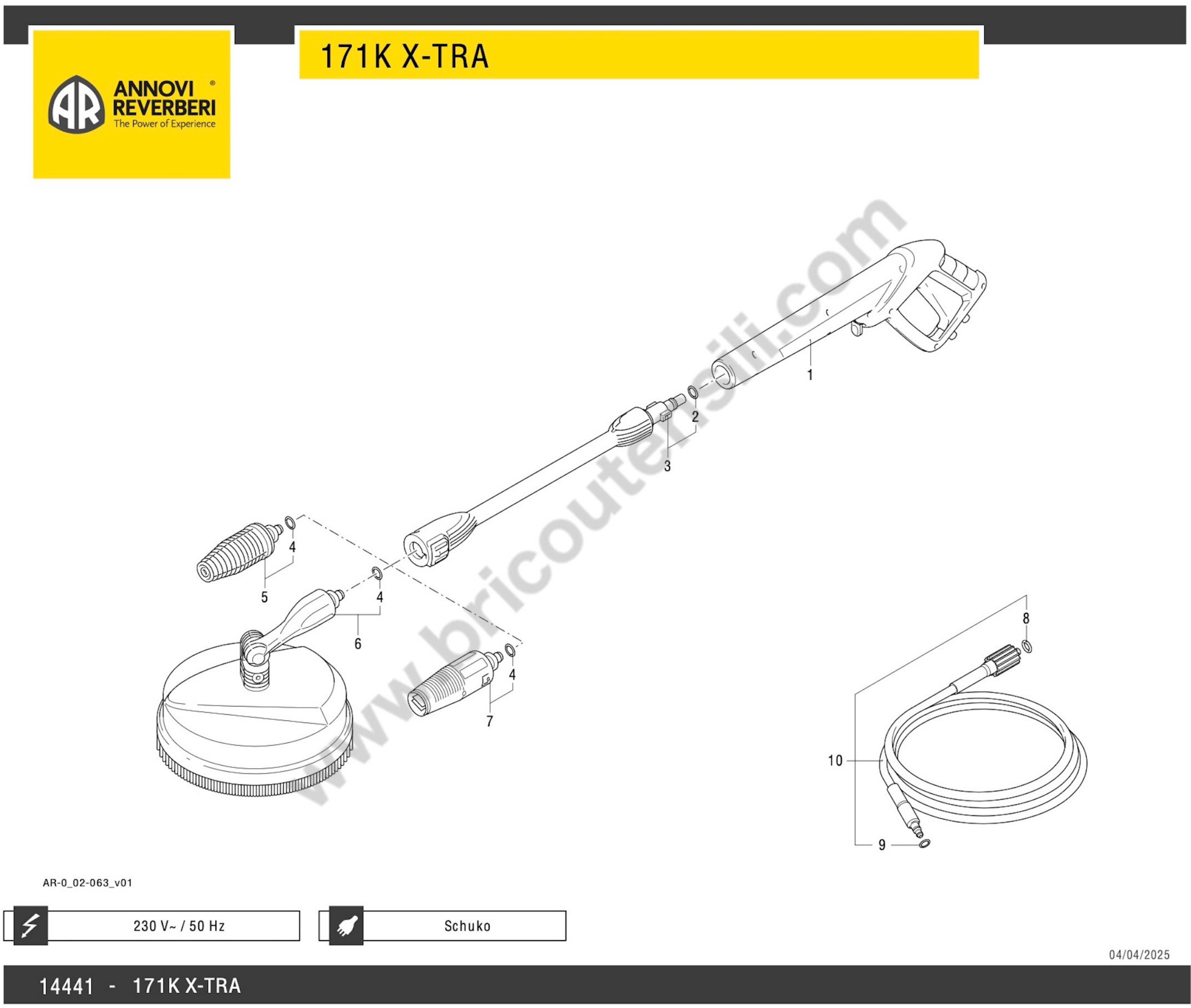

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4100786 Gun €20.52
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4100775 Extension €15.45
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
5
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
6
 photo_cameraImage coming soon 3085280 Mini Patio Yellow €34.07
7
 Lance Head for Pressure Washer Stanley SXPW22E 4101550 Lance Head for Pressure Washer Stanley SXPW22E €10.50
8
 O-Ring mm 10x2,5 for Pressure Washers Black & Decker 3083380 O-Ring mm 10x2,5 for Pressure Washers Black & Decker €0.46
9
 O-Ring mm 4,8x1,8 for Pressure Washers Black & Decker 3083390 O-Ring mm 4,8x1,8 for Pressure Washers Black & Decker €0.46
10
 photo_cameraImage coming soon 4102400 High pressure hose €31.50

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Parts for Pressure Washer 171K X-TRA

Fix Your Pressure Washer 171K X-TRA. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
AR Pressure Cleaner 171K X-TRA - 14441

AR Pressure Cleaner 171K X-TRA - 14441
Pressure Cleaner Pag.1
# Part Num Description
1 3085070 Handle
2 3085060 Disc
3 3085030 Protection
4 3085040 Bracket
5 3085700 Bracket
6 3085240 Pin
7 3085250 Lever
8 3085260 Knob
9 3085090 Hood
10 3085080 Knob
11 3085230 Accessory holder
12 3085100 Protection
13 3080580 Cable gland
14 3085220 Accessory holder
15 3085110 Protection
16 3085200 Base
17 3085210 Support
18 3085050 Protection
19 3085180 Tank
20 3085190 Cap
21 3440720 Filter
22 4221120 Tube
23 3085150 Protection
24 3085160 Wheel
25 3085170 Protection
Pump Pag.2
1 4720670 Pre-assembly of electric pump
2 4100890 Conveyor
3 4101930 Disc
4 5480770 Inductance
5 3082360 Cable
6 3086040 Valve + seal kit
7 3081270 Piston + seal kit
8 4384420 TSS kit
9 4720810 Brush kit for motor
10 4384300 TSS valve kit
Electrical Circuit Pag.3
1 3085130 Switch
2 3086350 Cover
3 4102750 Rod
4 3081450 Switch
5 3086340 Box
6 3081390 Screw
7 5340420 Gland
Accessories Pag.4
1 4100786 Gun
2 3083700 OR
3 4100775 Extension (Lance)
4 3083370 OR
5 4100800 Head (Rotopower)
6 3085280 Mini Patio Yellow
7 4101550 Head
8 3083380 OR
9 3083390 OR
10 4102400 High Pressure Hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AR 171K X-TRA - 14441
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

AR 171K X-TRA Parts Diagram

AR 171K X-TRA Parts Diagram

Download (1.01MB)
