Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer 163K X-TRA - 14332

SKU: ARSG 163K X-TRA - 14332
€9.72
VAT included

ARSG Parts for Pressure Washer 163K X-TRA - 14332

Distribution and Sale of, AR Farmer's Division original spare parts for Pressure Washer 163K X-TRA - 14332.

Fix Your ARSG Pressure Washer 163K X-TRA - 14332. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
ARSG Parts for Pressure Washer 163K X-TRA - 14332
  • ARSG Parts for Pressure Washer 163K X-TRA - 14332
  • ARSG Parts for Pressure Washer 163K X-TRA - 14332
  • ARSG Parts for Pressure Washer 163K X-TRA - 14332
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer 163K X-TRA - 14332

SKU: ARSG 163K X-TRA - 14332 Condition: New
€9.72
VAT included

ARSG Parts for Pressure Washer 163K X-TRA - 14332

Distribution and Sale of, AR Farmer's Division original spare parts for Pressure Washer 163K X-TRA - 14332.

Fix Your ARSG Pressure Washer 163K X-TRA - 14332. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
settings 46 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL 3082600 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL €9.71
2
 photo_cameraImage coming soon 4101930 Plate €6.56
3
 photo_cameraImage coming soon 4100890 Conveyor €14.92
4
 photo_cameraImage coming soon 3085170 Guard €7.66
5
 photo_cameraImage coming soon 3085160 Wheel €15.90
6
 photo_cameraImage coming soon 3085210 Support €6.63
7
 photo_cameraImage coming soon 3085200 base €21.15
8
 photo_cameraImage coming soon 3085050 Guard €6.85
9
 photo_cameraImage coming soon 4221120 Pipe €7.03
11
 photo_cameraImage coming soon 3085190 Plug €3.46
12
 photo_cameraImage coming soon 3085180 Tank €17.18
13
 photo_cameraImage coming soon 3085150 Guard €2.47
14
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
15
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
16
 photo_cameraImage coming soon 4101530 TSS kit €21.74
17
 photo_cameraImage coming soon 3085290 Electric pump assembly €172.77
18
 photo_cameraImage coming soon 3085110 Guard €8.92
19
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €21.06
20
 photo_cameraImage coming soon 3080580 cable clamp €2.88
21
 photo_cameraImage coming soon 3085220 Accessories carrier €4.27
22
 Switch for Pressure Washer Annovi & Reverberi AR479 3085130 Switch for Pressure Washer Annovi & Reverberi AR479 €16.73
23
 photo_cameraImage coming soon 3085090 Casing €16.99
24
 photo_cameraImage coming soon 3085100 Guard €11.51
25
 photo_cameraImage coming soon 3085230 Accessories carrier €5.20
26
 photo_cameraImage coming soon 3085080 Knob €2.91
27
 photo_cameraImage coming soon 3085070 Handle €15.89
28
 photo_cameraImage coming soon 3085240 Hub pin €1.38
29
 photo_cameraImage coming soon 3085250 Lever €4.01
30
 photo_cameraImage coming soon 3085260 Knob €6.65
31
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
32
 photo_cameraImage coming soon 3085060 Plate €21.55
33
 photo_cameraImage coming soon 3085040 Bracket €5.52
34
 photo_cameraImage coming soon 3085030 Guard €6.85
35
 photo_cameraImage coming soon 3085140 Screw kit €1.96
36
 photo_cameraImage coming soon 4821000 Suction kit €9.01
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4100786 Gun €20.52
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4100775 Extension €15.45
4
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
5
 photo_cameraImage coming soon 3085280 Mini Patio Yellow €34.07
6
 photo_cameraImage coming soon 4381830 HEAD SA €14.22
7
 photo_cameraImage coming soon 4102400 High pressure hose €34.40
8
 O-Ring mm 10x2,5 for Pressure Washers Black & Decker 3083380 O-Ring mm 10x2,5 for Pressure Washers Black & Decker €0.46
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer 163K X-TRA - 14332

Fix Your ARSG Pressure Washer 163K X-TRA - 14332. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

In the following tables, look for the spare part and its respective code.
ARSG 163K X-TRA - 14332

ARSG 163K X-TRA - 14332 / 163K X-TRA (230 V - 50 Hz)

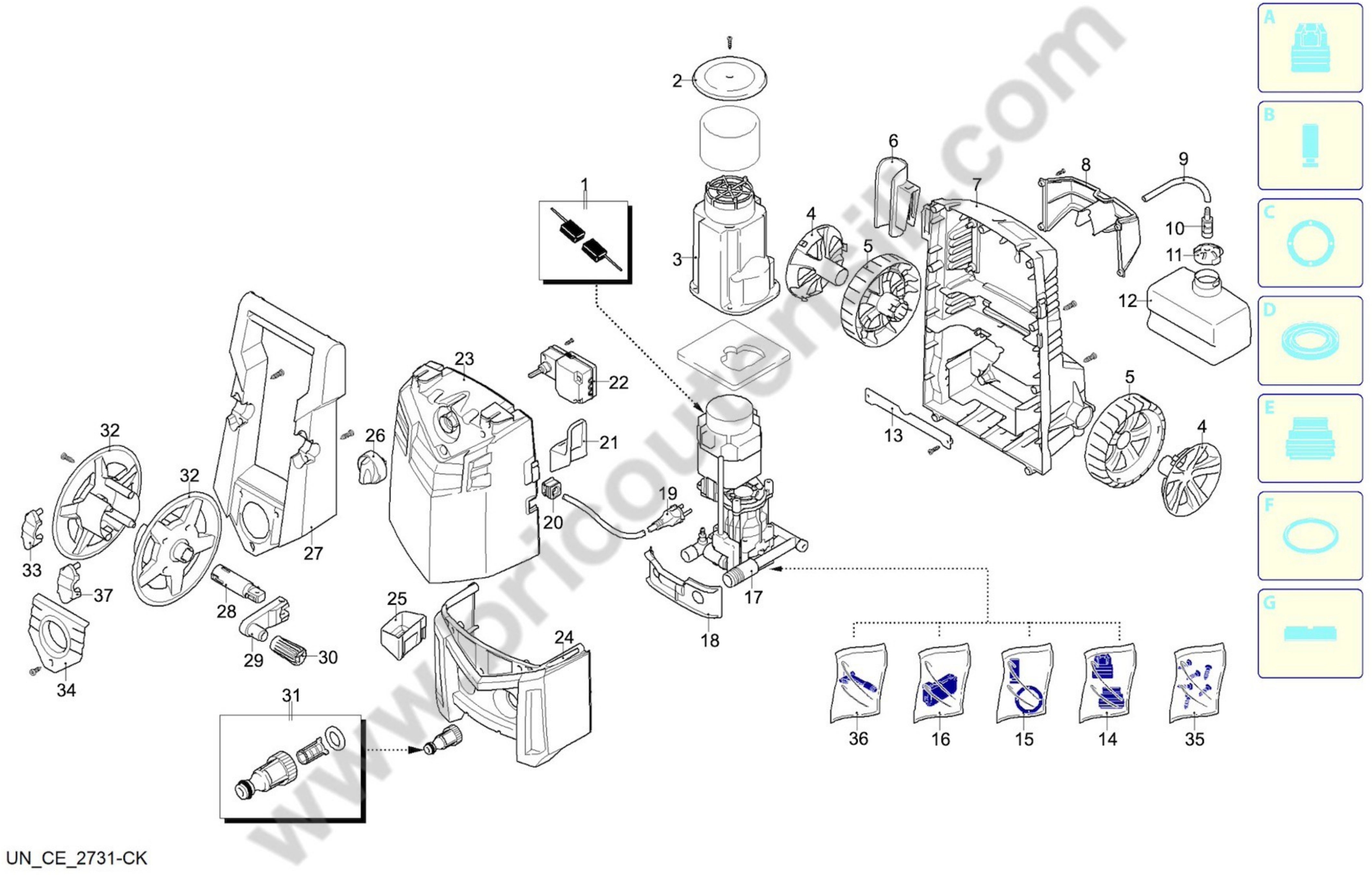

Casing Pag.1
# Part Num. Description
1 3082600 Brush kit for motor
2 4101930 Plate
3 4100890 Conveyor
4 3085170 Guard
5 3085160 Wheel
6 3085210 Support
7 3085200 Base
8 3085050 Guard
9 4221120 Pipe
10 3440720 Filter
11 3085190 Plug
12 3085180 Tank
13 3085150 Guard
14 3081290 Valves + seals kit
15 3081270 Piston + seals kit
16 4101530 TSS kit
17 3085290 Electric pump assembly
18 3085110 Guard
19 3082360 Cable
20 3080580 Cable gland
21 3085220 Accessories carrier
22 3085130 Switch
23 3085090 Casing
24 3085100 Guard
25 3085230 Accessories carrier
26 3085080 Knob
27 3085070 Handle
28 3085240 Hub pin
29 3085250 Lever
30 3085260 Knob
31 3082130 Water coupling kit
32 3085060 Plate
33 3085040 Bracket
34 3085030 Guard
35 3085140 Screw kit
36 4821000 Suction kit
37 3085700 Bracket

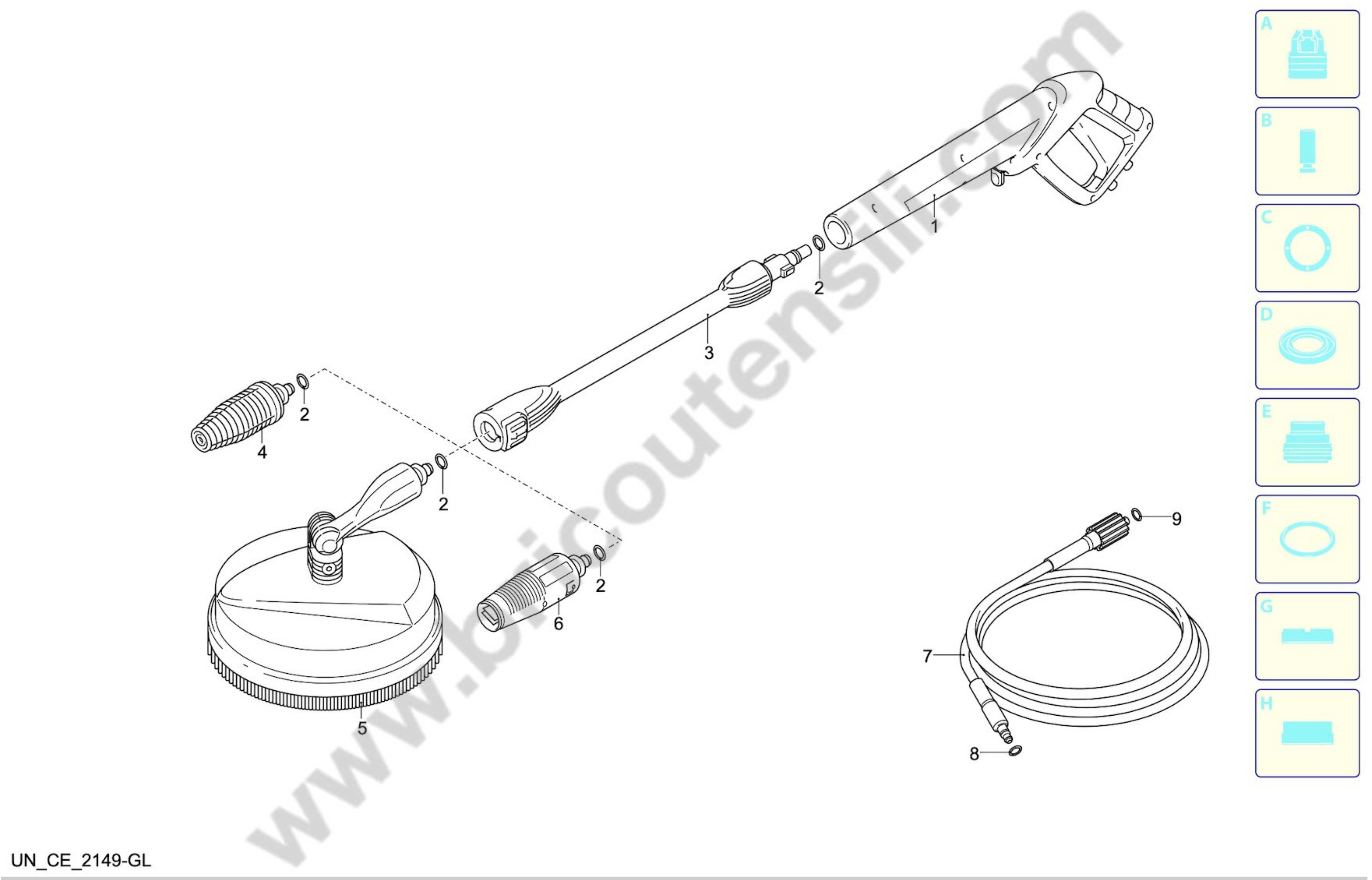

Standard Accessories Pag.2
1 4100786 Gun
2 3083700 O-ring
3 4100775 Extension
4 4100800 Lance head
5 3085280 Patio Cleaner
6 4381830 Lance head
7 4102400 High pressure hose
8 3083380 O-ring
9 3083400 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG 163K X-TRA - 14332
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Diagram ARSG 163K X-TRA - 14332

Diagram ARSG 163K X-TRA - 14332

Download (418.39KB)
