Annovi Reverberi S.p.A.

Parts for Pressure Washer AR490

SKU: 13088
€0.12
VAT included

Parts for Pressure Washer AR490 - 13088

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer AR490 - 13088.

Parts for Pressure Washer AR490
  • New
  • Out-of-Stock
  • Parts for Pressure Washer AR490

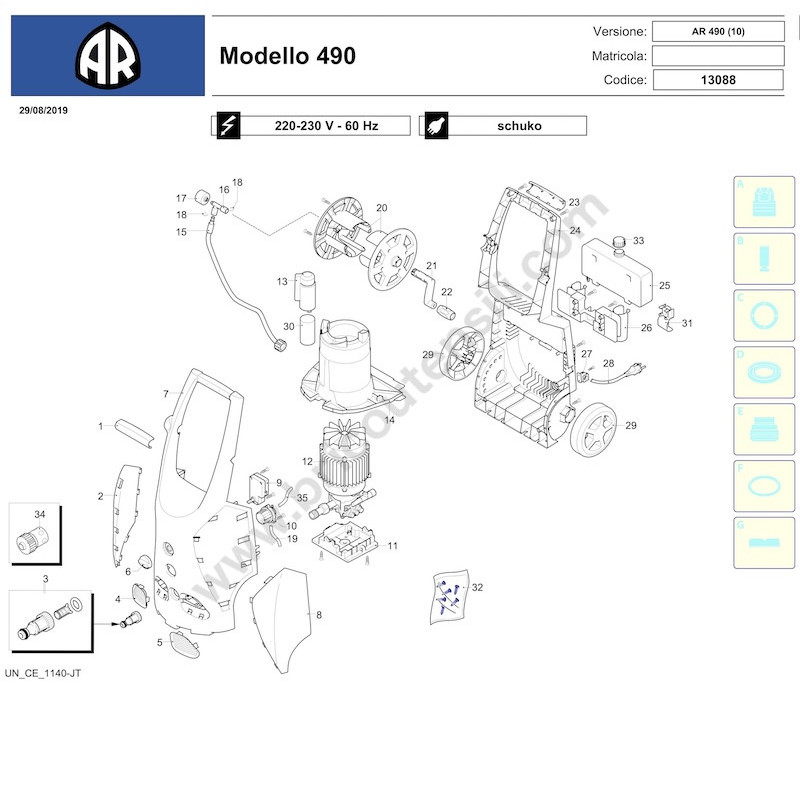

  • AR 490 Drawing
  • AR 490 Drawing - 1
  • AR 490 Drawing - 2
Annovi Reverberi S.p.A.

Parts for Pressure Washer AR490

SKU: 13088 Condition: New
€0.12
VAT included

Parts for Pressure Washer AR490 - 13088

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer AR490 - 13088.

settings 59 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

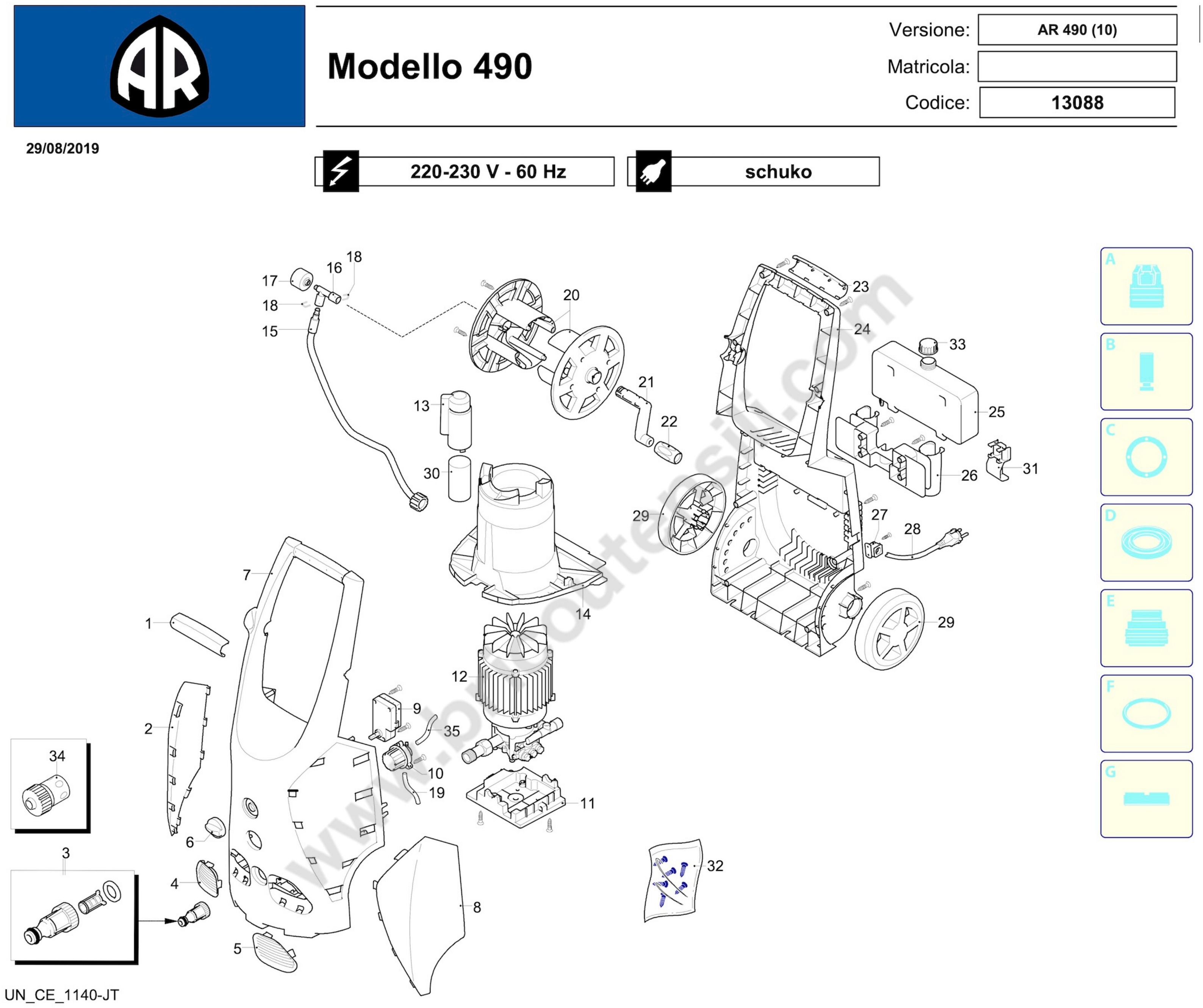

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3080810 knob €6.34
2
 photo_cameraImage coming soon 3082680 Protection €6.51
3
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
4
 photo_cameraImage coming soon 3080340 Grid €1.37
5
 photo_cameraImage coming soon 3080330 Grid €1.37
6
 Switch Knob for Pressure Washers Annovi & Reverberi AR395-490 3080480 Switch Knob for Pressure Washers Annovi & Reverberi AR395-490 €1.37
7
 photo_cameraImage coming soon 3080291 Blue Casing €24.63
8
 photo_cameraImage coming soon 3082690 Protection €6.51
9
 Switch for Pressure Washers Annovi & Reverberi AR395-490 3082010 Switch for Pressure Washers Annovi & Reverberi AR395-490 €5.98
10
 Chemical Regulator for Blue Clean Pressure Washer AR395-490-588-590 3082000 Chemical Regulator for Blue Clean Pressure Washer AR395-490-588-590 €6.99
11
 photo_cameraImage coming soon 3440781 Support €3.64
12
 photo_cameraImage coming soon 3441160 Electric pump assembly Annovi Reverberi for pressure washer €404.72
13
 photo_cameraImage coming soon 3081630 capacitor carrier €2.12
14
 photo_cameraImage coming soon 3080520 Conveyor €15.03
15
 High Pressure Hose for Pressure Washers Blue Clean AR490-588-590 3081640 High Pressure Hose for Pressure Washers Blue Clean AR490-588-590 €31.90
16
 Annovi T Joint for AR590 3080780 Annovi T Joint for AR590 €13.68
17
 Gauge for Pressure Washers Annovi & Reverberi AR 490 3080420 Gauge for Pressure Washers Annovi & Reverberi AR 490 €21.86
18
 photo_cameraImage coming soon 3081650 fork €1.65
19
 AR395 Detergent hose 3081490 AR395 Detergent hose €3.42
20
 photo_cameraImage coming soon 3080390 Plate €8.52
21
 Handle Hose Reel for Pressure Washer AR BC 383 - 388 - 490 3080220 Handle Hose Reel for Pressure Washer AR BC 383 - 388 - 490 €2.54
da 2 pz: €0.48
22
 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 3081060 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 €2.54
23
 photo_cameraImage coming soon 3080820 knob €6.34
24
 photo_cameraImage coming soon 3080321 base €24.63
25
 Tank 3080370 Tank €15.03
26
 photo_cameraImage coming soon 3080190 accessories carrier €9.11
27
 photo_cameraImage coming soon 3080580 cable clamp €1.37
28
 photo_cameraImage coming soon 3082090 Cable €23.34
29
 photo_cameraImage coming soon 3080361 Wheel €6.08
30
 Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €17.80
31
 photo_cameraImage coming soon 3081070 accessories carrier €2.33
32
 photo_cameraImage coming soon 3400530 screw Kit €1.65
33
 photo_cameraImage coming soon 3080380 stopper €0.89
34
 photo_cameraImage coming soon 3082741 Quick coupling Annovi Reverberi for pressure washer €7.06
35
 AR490 Detergent hose 3084130 AR490 Detergent hose €2.51
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

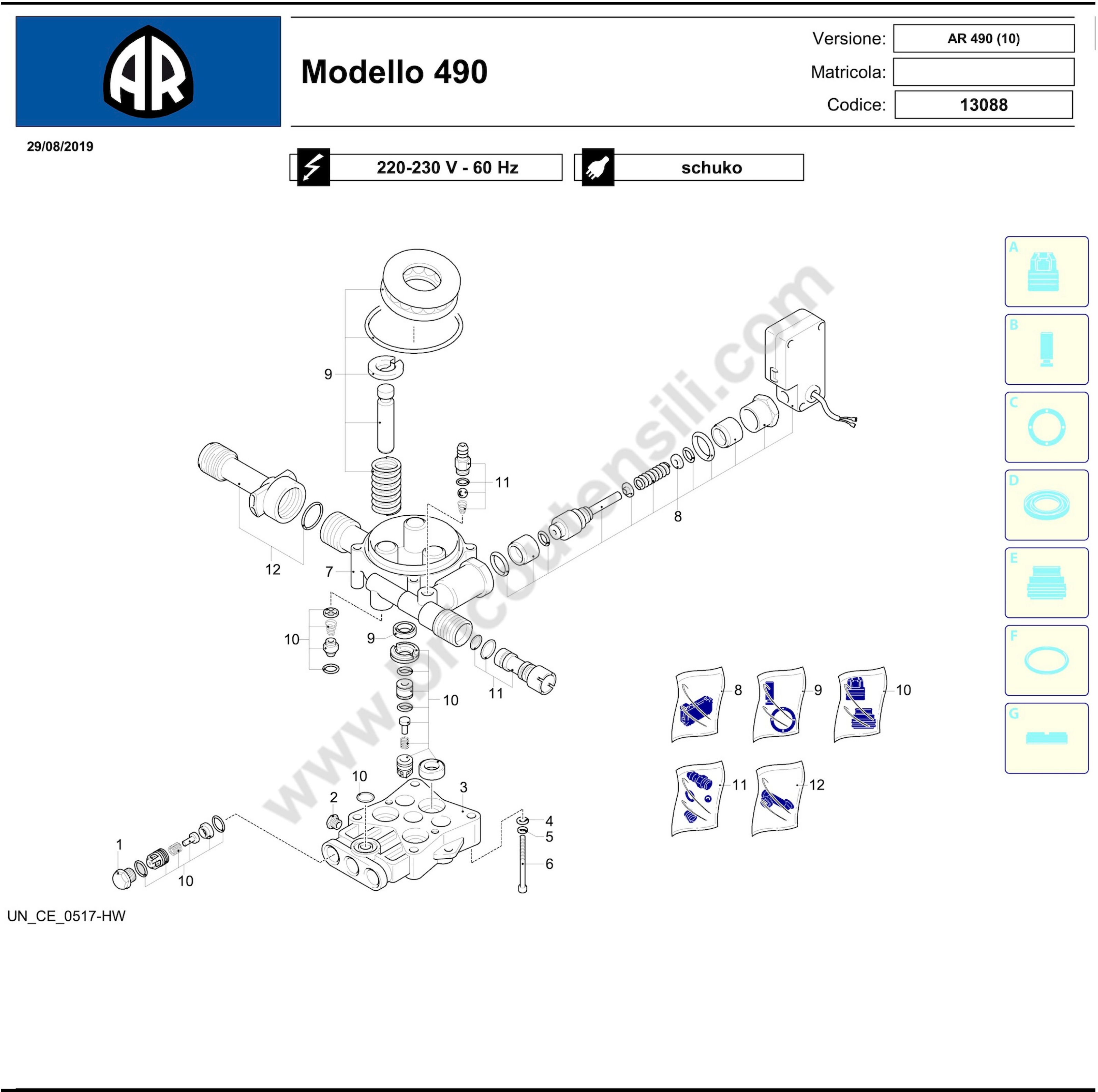

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3083210 Cork €3.22
2
 photo_cameraImage coming soon 3081730 Vine €0.56
3
 photo_cameraImage coming soon 3083220 Head €10.75
4
 photo_cameraImage coming soon 3081760 Washer €0.62
5
 photo_cameraImage coming soon 3081750 washer €0.62
6
 photo_cameraImage coming soon 3081740 Vine €1.85
7
 Pump Body for Pressure Washers AR BC 395 - 490 - 491 3083230 Pump Body for Pressure Washers AR BC 395 - 490 - 491 €13.68
8
 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 3440560 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 €19.15
9
 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 3440570 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 €15.03
10
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.08
11
 Detergent Suction Kit for Pressure Washer AR BC 381 3440610 Detergent Suction Kit for Pressure Washer AR BC 381 €8.08
12
 photo_cameraImage coming soon 3440620 Suction Kit €3.07
Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

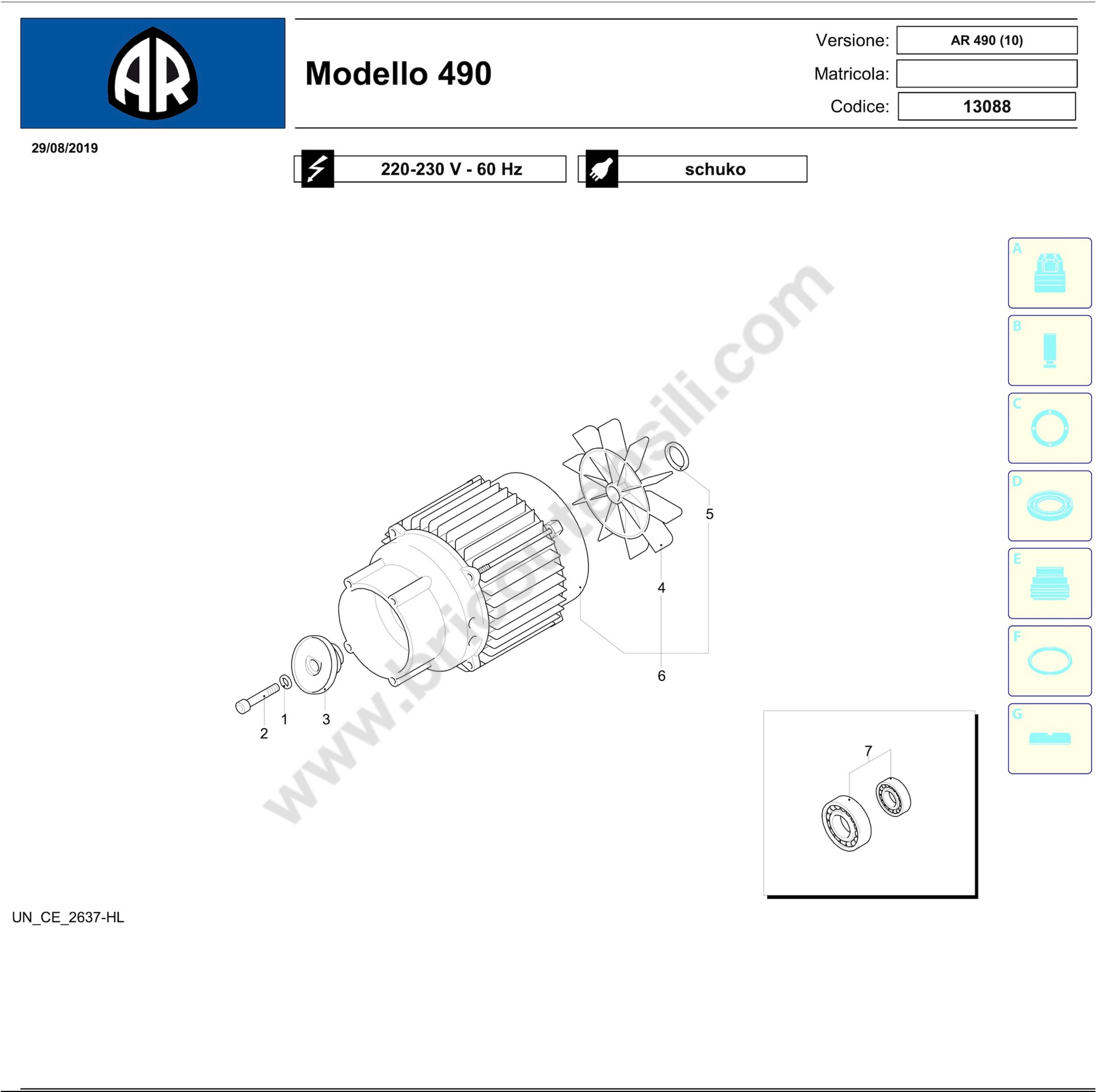

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3081750 washer €0.62
2
 photo_cameraImage coming soon 3081950 screw €0.62
3
 photo_cameraImage coming soon 3441210 Wobble plate / Plate Annovi Reverberi for pressure washer €11.18
4
 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 3440370 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 €1.04
5
 photo_cameraImage coming soon 3441000 ring €0.83
6
 photo_cameraImage coming soon 3441150 Motor Annovi Reverberi for pressure washer €401.47
7
 photo_cameraImage coming soon 43056 Bearing kits €19.15
Page 4 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

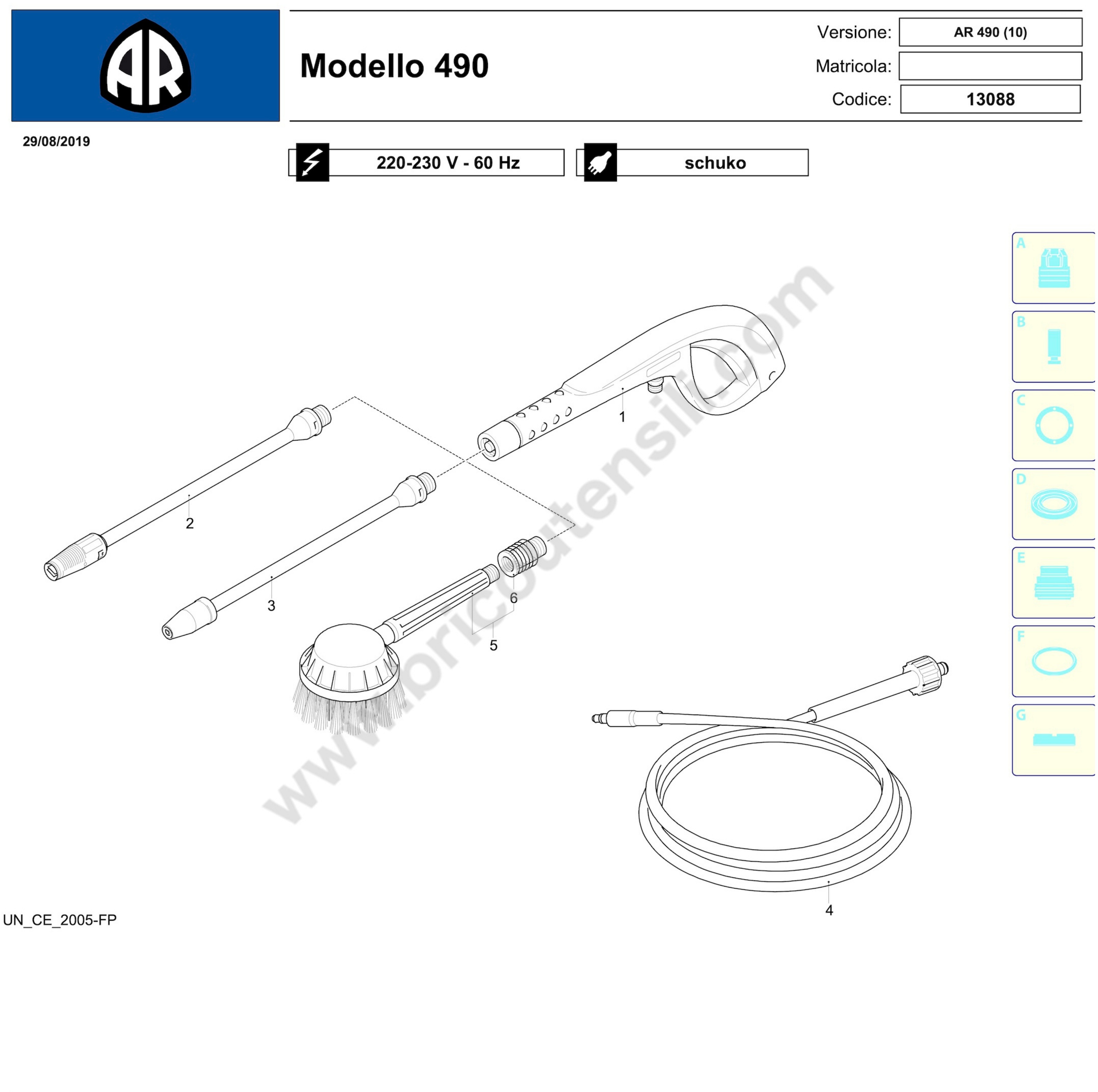

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 3082710 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 €44.43
2
 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR490 3083070 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR490 €20.51
3
 Lance + Rotopower for Pressure Washer Michelin MPX 150 L 3082120 Lance + Rotopower for Pressure Washer Michelin MPX 150 L €19.36
4
 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 3082100 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 €74.33
5
 photo_cameraImage coming soon 3082031 Rotating brush Annovi Reverberi for pressure washer €21.66
6
 Michelin Adaptor for Pressure Washer MPX 140 L 3081600 Michelin Adaptor for Pressure Washer MPX 140 L €1.94

Shipping and delivery information will be available shortly.

Parts for Pressure Washer AR490 - 13088

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer AR490 - 13088.

In the following tables, look for the spare part and its respective code.
AR490 - 13088

AR Model 490 Pag.1
# Part Num. Description
1 3080810 Knob
2 3082680 Guard / Protection
3 3082130 Water coupling kit
4 3080340 Grill
5 3080330 Grill
6 3080480 Knob
7 3080291 Blue casing
8 3082690 Guard / Protection
9 3082010 Box
10 3082000 Detergent regulator
11 3440781 Support
12 3441160 Electric pump assembly
13 3081630 Capacitor holder
14 3080520 Conveyor / Duct
15 3081640 High pressure hose
16 3080780 Fitting / Fitting connector
17 3080420 Pressure gauge
18 3081650 Fork
19 3081490 Detergent hose
20 3080390 Disc
21 3080220 Lever
22 3081060 Knob
23 3080820 Knob
24 3080321 Base
25 3080370 Tank
26 3080190 Accessory holder
27 3080580 Cable gland
28 3082090 Cable
29 3080361 Wheel
30 3081620 Capacitor
31 3081070 Accessory holder
32 3400530 Screw kit
33 3080380 Plug / Cap
34 3082741 Quick coupling
35 3084130 Detergent hose
AR Model 490 Pag.2
# Part Num. Description
1 3083210 Plug / Cap
2 3081730 Screw
3 3083220 Head
4 3081760 Washer
5 3081750 Washer
6 3081740 Screw
7 3083230 Pump body
8 3440560 TSS kit
9 3440570 Pistons + seals kit
10 3081290 Valves + seals kit
11 3440610 Detergent suction kit
12 3440620 Suction kit
AR Model 490 Pag.3
# Part Num. Description
1 3081750 Washer
2 3081950 Screw
3 3441210 Wobble plate / Plate
4 3440370 Fan
5 3441000 Ring
6 3441150 Motor
7 43056 Bearings kit
AR Model 490 Pag.4
# Part Num. Description
1 3082710 Gun
2 3083070 Lance + head
3 3082120 Lance + rotopower
4 3082100 High pressure hose
5 3082031 Rotating brush
6 3081600 Adapter
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
13088

Data sheet

Machine Type
Pressure Washer
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

AR 490

AR 490

Download (1.56MB)
