Annovi Reverberi S.p.A.

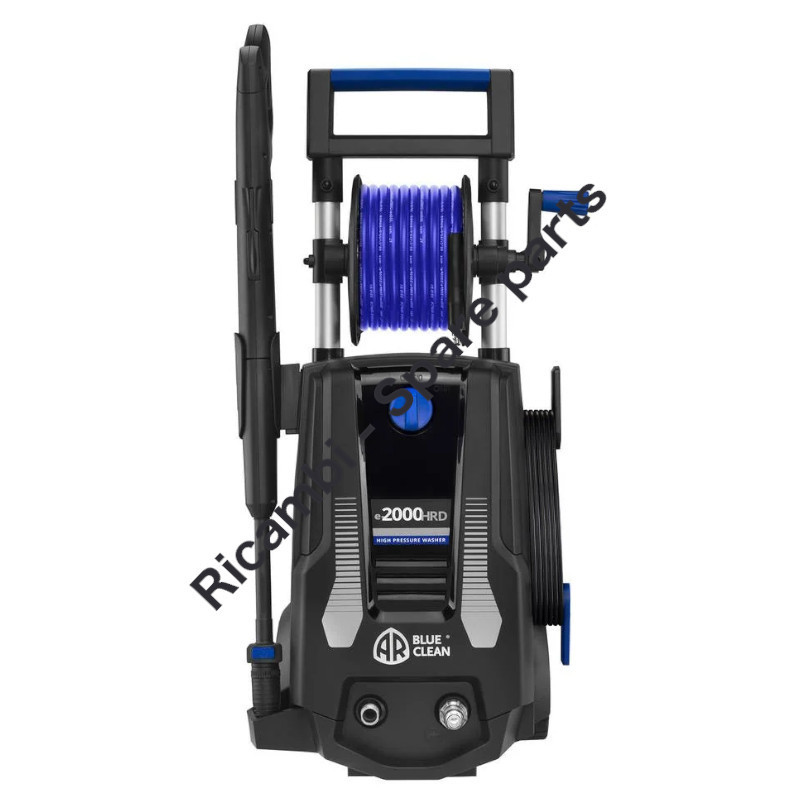

Parts for Pressure Washer e-2000 HRD

SKU: 15027
€0.12
VAT included

Parts for Pressure Washer e-2000 HRD - 15027

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer e-2000 HRD - 15027.

Parts for Pressure Washer e-2000 HRD
  • New
  • Out-of-Stock
  • Parts for Pressure Washer e-2000 HRD
  • AR e-2000 HRD DRAWING
  • AR e-2000 HRD DRAWING - 1
  • AR e-2000 HRD DRAWING - 2
Annovi Reverberi S.p.A.

Parts for Pressure Washer e-2000 HRD

SKU: 15027 Condition: New
€0.12
VAT included

Parts for Pressure Washer e-2000 HRD - 15027

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer e-2000 HRD - 15027.

settings 55 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

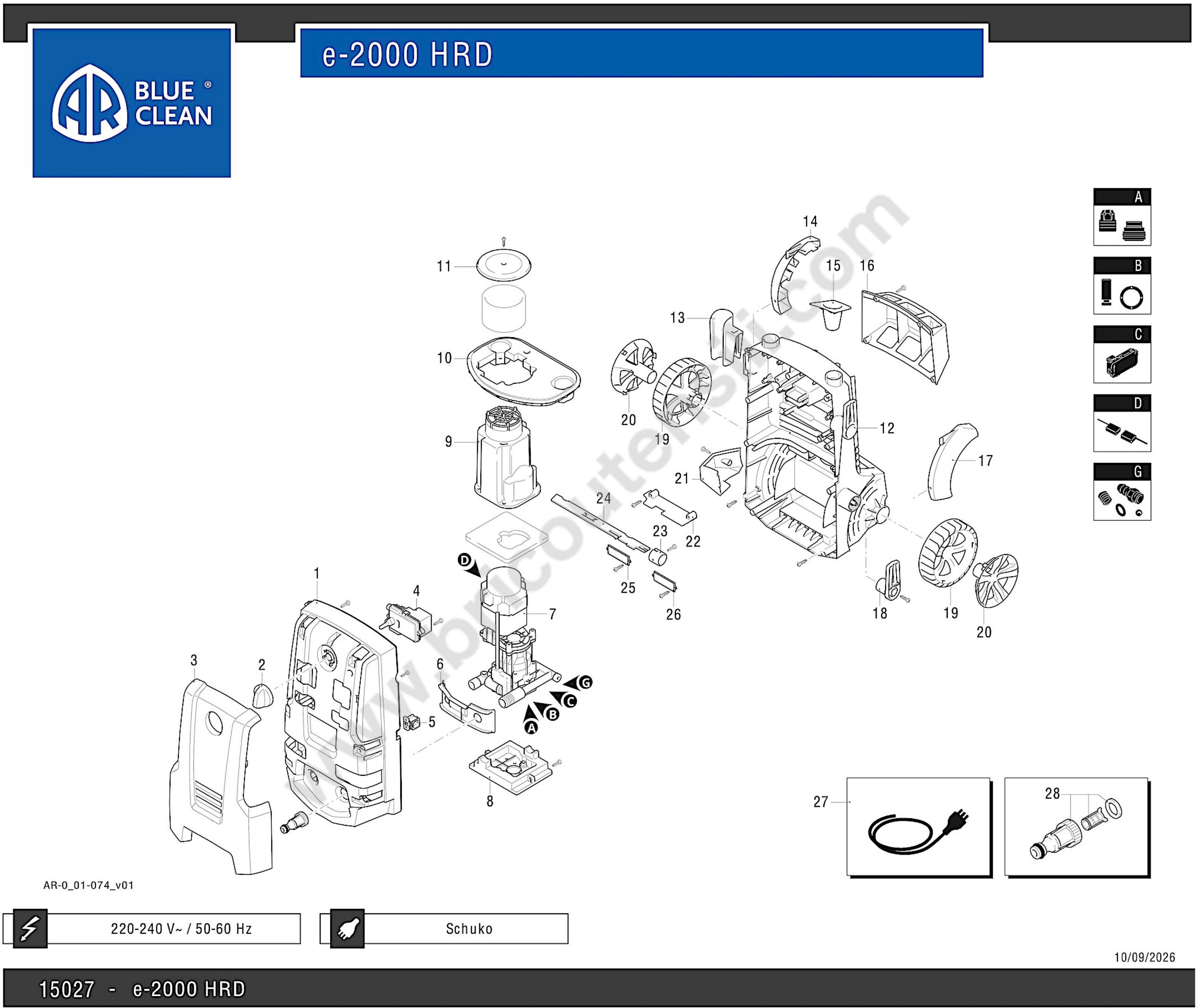

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
B
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €17.80
D
 photo_cameraImage coming soon 3082590 MOTOR BRUSHES KIT (X2) MOD.9650 Annovi Reverberi for pressure washer €8.95
A
 photo_cameraImage coming soon 4220640 VALVES/WATER SEALS KIT NEW YL8 PUMP ARNA Annovi Reverberi for pressure washer €10.97
C
 photo_cameraImage coming soon 4220650 TSS KIT FOR 120V/60Hz 16 AWG YL NEW YL8 PUMP ARNA(YL) Annovi Reverberi for pressure washer €27.34
G
 photo_cameraImage coming soon 4821000 Suction kit €9.01
1
 photo_cameraImage coming soon 4221320 FRONT HOUSING MPP (STANLEY) Annovi Reverberi for pressure washer €20.62
2
 photo_cameraImage coming soon 4221080 Knob €5.88
4
 photo_cameraImage coming soon 4221070 Switch €17.30
5
 photo_cameraImage coming soon 3080580 cable clamp €1.37
6
 photo_cameraImage coming soon 3085110 Guard €8.92
7
 photo_cameraImage coming soon 4222740 NOT FOUND Annovi Reverberi for pressure washer €142.61
8
 photo_cameraImage coming soon 4221150 Support €5.64
9
 photo_cameraImage coming soon 4100890 Conveyor €14.92
10
 photo_cameraImage coming soon 4220190 Guard €7.82
11
 photo_cameraImage coming soon 4101930 Plate €6.56
12
 photo_cameraImage coming soon 4220160 Casing €22.57
13
 photo_cameraImage coming soon 4220040 Accessories carrier €9.53
14
 photo_cameraImage coming soon 4220170 Guard €7.82
15
 photo_cameraImage coming soon 4220310 Accessories carrier €7.82
16
 photo_cameraImage coming soon 4220230 Casing €9.59
17
 photo_cameraImage coming soon 4220180 Guard €5.24
18
 photo_cameraImage coming soon 4220280 Accessories carrier €1.31
19
 photo_cameraImage coming soon 4221710 WHEEL STANLEY USA (MPP) Annovi Reverberi for pressure washer €10.03
21
 photo_cameraImage coming soon 4220050 Accessories carrier €9.53
22
 photo_cameraImage coming soon 4821030 SUPPORT HPS235 Annovi Reverberi for pressure washer €1.65
23
 photo_cameraImage coming soon 4220270 LOCK BUTTON MPP Annovi Reverberi for pressure washer €1.44
24
 photo_cameraImage coming soon 4220260 Hook €5.64
25
 photo_cameraImage coming soon 4220200 Guard €1.58
26
 photo_cameraImage coming soon 4220210 Guard €1.37
27
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €20.62
28
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

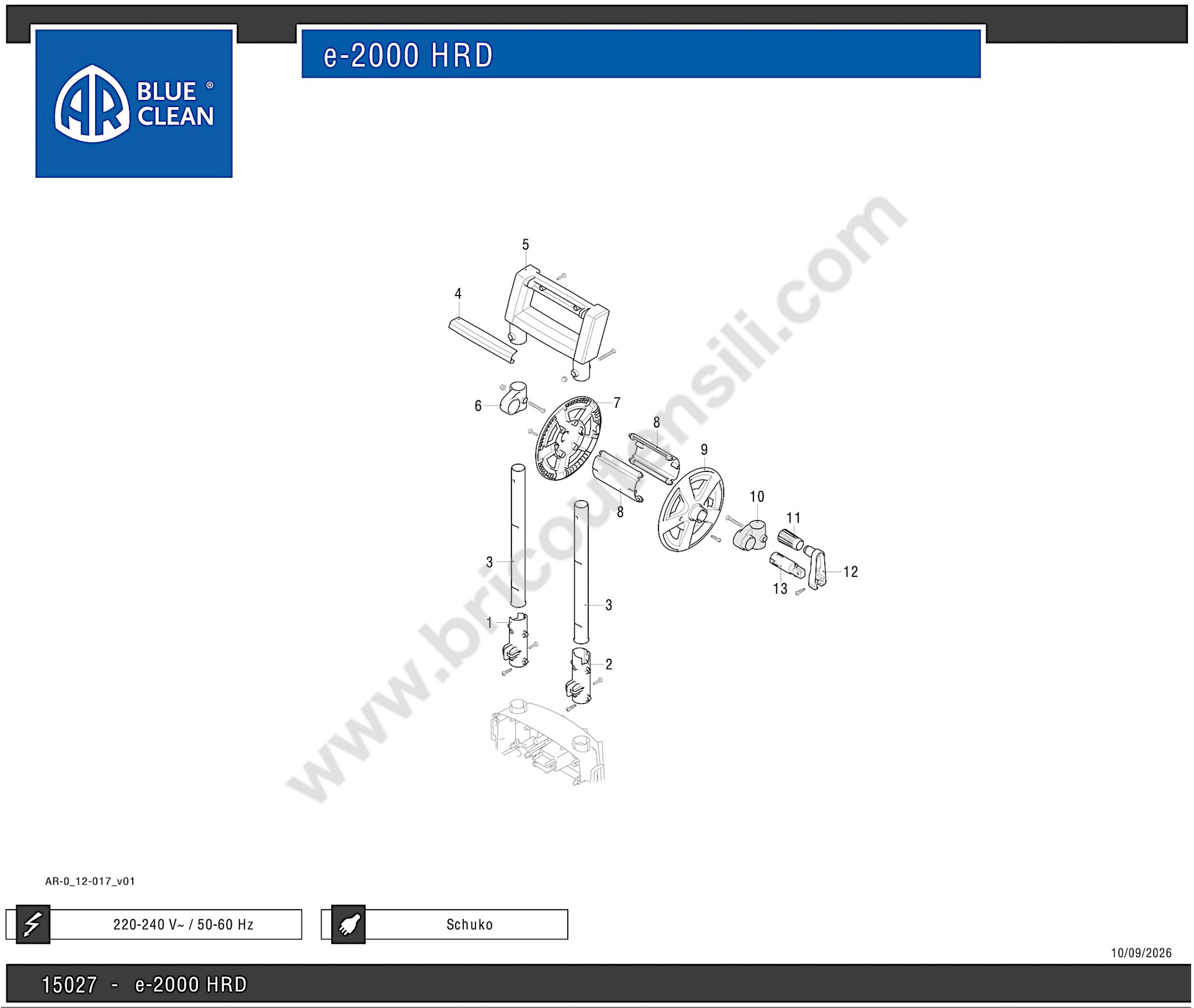

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4220240 Guide €3.80
2
 photo_cameraImage coming soon 4220250 Guide €3.80
3
 photo_cameraImage coming soon 4221090 Pipe €19.94
5
 photo_cameraImage coming soon 4221340 HANDLE MPP (STANLEY) Annovi Reverberi for pressure washer €13.68
6
 photo_cameraImage coming soon 4220300 Bracket €2.55
7
 photo_cameraImage coming soon 4101770 Plate €11.18
8
 photo_cameraImage coming soon 4102120 Support €4.12
9
 photo_cameraImage coming soon 4101680 Plate €11.18
10
 photo_cameraImage coming soon 4220290 Bracket €2.55
11
 Knob 4101673 Knob €2.54
12
 photo_cameraImage coming soon 4101660 Lever €3.68
13
 photo_cameraImage coming soon 4221100 Hub pin €1.96
Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

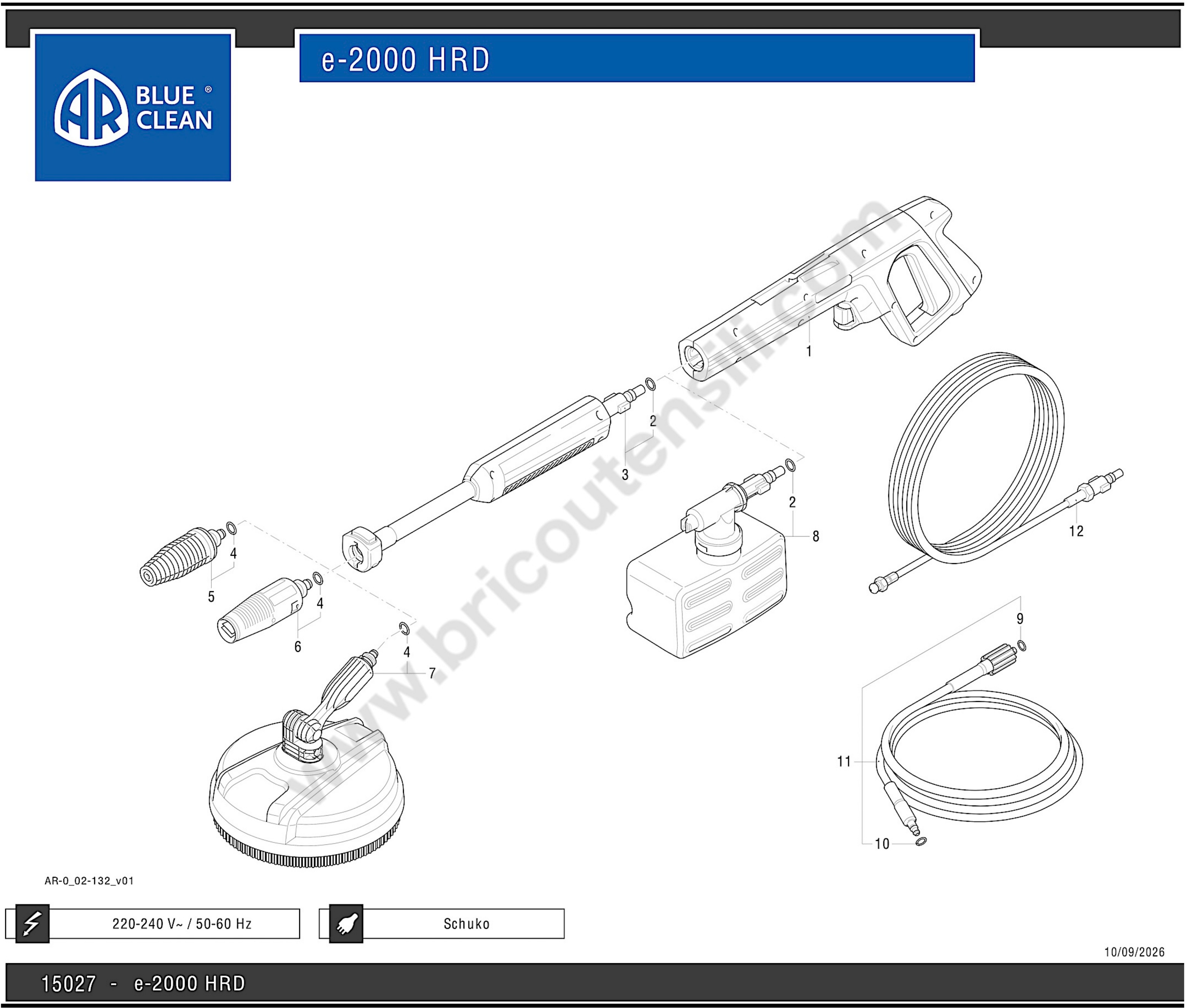

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381482 Gun €22.79
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.40
3
 photo_cameraImage coming soon 4381492 Extension €19.36
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.40
5
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €12.53
6
 Lance Head for Pressure Washer Stanley SXPW22E 4101550 Lance Head for Pressure Washer Stanley SXPW22E €12.53
7
 photo_cameraImage coming soon 3084354 Mini Patio Blue RAL 5002 €30.42
8
 photo_cameraImage coming soon 4222560 HIGH PRESSURE FOAM LANCE BAYONET BLUE KNOB (1000ML) Annovi Reverberi for pressure washer €17.80
9
 O-Ring mm 10x2,5 for Pressure Washers Black & Decker 3083380 O-Ring mm 10x2,5 for Pressure Washers Black & Decker €0.46
10
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.40
11
 photo_cameraImage coming soon 4222540 HP HOSE 1/4" 8M SUPER SOFT 200 BAR M22X1.5(F) QUICK 02 BLUE Annovi Reverberi for pressure washer €44.43
12
 photo_cameraImage coming soon 4222510 PIPE CLEANING ACCESSORY BAYONET 6M Annovi Reverberi for pressure washer €39.06

Shipping and delivery information will be available shortly.

Parts for Pressure Washer e-2000 HRD - 15027

Genuine replacement parts AR Farmer's Division for to fix damaged parts, for Pressure Washer e-2000 HRD - 15027.

In the following tables, look for the spare part and its respective code.
e-2000 HRD - 15027

AR e-2000 HRD -  Pag.1
# Part Num. Description
1 4221320 FRONT HOUSING MPP (STANLEY)
2 4221080 SWITCH KNOB MPP BLUE AR 5002 (YL)
3 4221331 NOT FOUND
4 4221070 COMPLETE SWITCH BOX MPP (YL)
5 3080580 CABLE GLAND FOR CABLE SECTION 3G1-16AWG
6 3085110 SPLASH GUARD RUBBER
7 4222740 NOT FOUND
8 4221150 ELECTRIC PUMP SUPPORT ARNA YL8 (YL)
9 4100890 UNIVERSAL FAN COVER UNI.(YL)
10 4220190 MOTOR COVER BRACKET MPP
11 4101930 UNIVERSAL CONVEYOR DISC (YL)
12 4220160 BACK CASE MPP
13 4220040 GUN No.5 SIDE HOOK MPP ARNA (YL)
14 4220170 LEFT WHEELS CAP MPP
15 4220310 ROTARY NOZZLE CARRIER MPP
16 4220230 ACCESSORIES CARRIER OPP
17 4220180 RIGHT WHEELS CAP MPP
18 4220280 CABLE HOOK (BLUE AR)
19 4221710 WHEEL STANLEY USA (MPP)
20 4221721 NOT FOUND
21 4220050 LOWER NOZZLE TRAY MPP ARNA
22 4821030 SUPPORT HPS235
23 4220270 LOCK BUTTON MPP
24 4220260 EXTENSION LOCK MPP
25 4220200 LEFT WATERPROOFER MPP
26 4220210 RIGHT WATERPROOFER MPP
27 3082360 CABLE 2x1 W/ SCHUKO PLUG
28 3082130 WATER INLET COUPLING 3/4"G(F)+FILTER+GASKET
A 4220640 VALVES/WATER SEALS KIT NEW YL8 PUMP ARNA
B 3081270 PISTONS/OIL SEALS/BEARING KIT FOR PUMP NO.08
C 4220650 TSS KIT FOR 120V/60Hz 16 AWG YL NEW YL8 PUMP ARNA(YL)
D 3082590 MOTOR BRUSHES KIT (X2) MOD.9650
G 4821000 INLET KIT
AR e-2000 HRD -  Pag.2
# Part Num. Description
1 4220240 LEFT EXTENSION GUIDER MPP
2 4220250 RIGHT EXTENSION GUIDER MPP
3 4221090 HANDLE PIPE MPP (YL)
4 4221352 NOT FOUND
5 4221340 HANDLE MPP (STANLEY)
6 4220300 LEFT REEL BRACKET MPP
7 4101770 HOSE REEL DISC LEFT BLACK (YL)
8 4102120 HOSE REEL CARRIER (YL) L-128
9 4101680 HOSE REEL DISC RIGHT BLACK (YL)
10 4220290 RIGHT REEL BRACKET MPP
11 4101673 REEL KNOB BLUE RAL 5002
12 4101660 REEL LEVER BLACK RAL 7021 (YL)
13 4221100 REEL PIN MPP (YL)
AR e-2000 HRD -  Pag.3
# Part Num. Description
1 4381482 GUN ARBC BLUE MPP YLG180 (QUICK COUPLING)
2 3083700 O-RING 8x2 80 SHORE BAYONET CONNECTION LANCE-GUN
3 4381492 EXTENSION LANCE ARBC OPP/MPP
4 3083370 O-RING 6x2 80SH FOR QUICK CONNECT HEAD
5 4100800 ROTOPOWER NOZZLE HEAD D.1.2 BLACK (YL)
6 4101550 ADJUSTABLE NOZZLE HEAD D.1.05 LIGHT
7 3084354 COMPLETE MINI PATIO CLEANER BLUE RAL 5002 AR LOGO
8 4222560 HIGH PRESSURE FOAM LANCE BAYONET BLUE KNOB (1000ML)
9 3083380 O-RING 10x2.5 80SH FOR HP HOSE W/ SWIVEL D.15
10 3083400 O-RING 5.1x1.6 90SH FOR HP HOSE QUICK COUPLING NO.02
11 4222540 HP HOSE 1/4" 8M SUPER SOFT 200 BAR M22X1.5(F) QUICK 02 BLUE
12 4222510 PIPE CLEANING ACCESSORY BAYONET 6M
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
15027

Data sheet

Machine Type
Pressure Washer
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

e-2000 HRD Drawing

e-2000 HRD Drawing

Download (1.14MB)
