Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470

SKU: ARSG X-TRA Clean 160 - 13470
€1.10
VAT included

ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 160 - 13470.
ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
  • ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
  • ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
  • ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
  • ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
  • ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470

SKU: ARSG X-TRA Clean 160 - 13470 Condition: New
€1.10
VAT included

ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 160 - 13470.
settings 68 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3440021 Casing €26.03
3
 photo_cameraImage coming soon 3080580 cable clamp €2.88
4
 photo_cameraImage coming soon 3440192 Knob €7.10
5
 photo_cameraImage coming soon 3440182 Knob €5.14
6
 photo_cameraImage coming soon 3440250 Switch €10.41
7
 photo_cameraImage coming soon 3440120 Stirrup €6.43
8
 photo_cameraImage coming soon 3440350 Detergent hose €7.04
9
 photo_cameraImage coming soon 3440360 Detergent hose €6.43
10
 photo_cameraImage coming soon 3400940 Electric pump assembly €527.47
12
 photo_cameraImage coming soon 3440051 Cover €9.54
14
 photo_cameraImage coming soon 3440041 Handle €21.77
15
 AR Accessories Carrier for ARSG X-TRA Clean 130 3440111 AR Accessories Carrier for ARSG X-TRA Clean 130 €4.63
da 2 pz: €0.50
16
 photo_cameraImage coming soon 3400560 wheel €21.17
18
 photo_cameraImage coming soon 3440150 Tank €9.27
19
 photo_cameraImage coming soon 3440150 Tank €9.27
20
 photo_cameraImage coming soon 3440011 base €26.85
21
 photo_cameraImage coming soon 3440081 Accessories carrier €18.19
22
 photo_cameraImage coming soon 3440091 Cover €18.12
23
 photo_cameraImage coming soon 3440260 Bracket €7.78
24
 photo_cameraImage coming soon 3440101 Plate €10.68
25
 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 3081060 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 €3.58
26
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
27
 photo_cameraImage coming soon 3441120 cable €34.56
28
 photo_cameraImage coming soon 3080390 Plate €14.66
29
 photo_cameraImage coming soon 3440651 Lever €7.25
30
 Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
31
 photo_cameraImage coming soon 3440130 Fan Cover €12.32
32
 photo_cameraImage coming soon 3440590 Screw kit €10.89
33
 photo_cameraImage coming soon 3441400 Fitting €25.22
34
 photo_cameraImage coming soon 4101520 Fork €1.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
2
 photo_cameraImage coming soon 2900200 Top €49.14
3
 photo_cameraImage coming soon 800220 screw €2.26
5
 photo_cameraImage coming soon 2840550 bushing €7.80
6
 photo_cameraImage coming soon 2840540 bushing €3.25
7
 Piston Guide for Pressure Washers Annovi & Reverberi AR588-AR590 3400020 Piston Guide for Pressure Washers Annovi & Reverberi AR588-AR590 €20.19
8
 photo_cameraImage coming soon 2840130 stopper €4.71
9
 photo_cameraImage coming soon 2840830 screw €7.24
10
 photo_cameraImage coming soon 2909006 spring pre-assembly €17.76
11
 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 2900130 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 €10.82
12
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
13
 DeWalt DXPW002E Spring 3780450 DeWalt DXPW002E Spring €2.64
14
 photo_cameraImage coming soon 2901110 injector €11.22
15
 photo_cameraImage coming soon 3400150 junction €18.39
16
 Pre-Assembly Box TSS for Pressure Washers AR-BC 588-590 3400400 Pre-Assembly Box TSS for Pressure Washers AR-BC 588-590 €27.18
17
 photo_cameraImage coming soon 2022201 fork €3.36
18
 photo_cameraImage coming soon 3409407 Pump assembly €217.66
19
 Kit Pistons for Pressure Washers Annovi & Reverberi AR588-AR590 3400420 Kit Pistons for Pressure Washers Annovi & Reverberi AR588-AR590 €28.62
20
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR588/590 3400430 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR588/590 €17.11
21
 photo_cameraImage coming soon 3400440 Kit detergent suction €12.85
22
 photo_cameraImage coming soon 3400540 bearing €10.09
24
 photo_cameraImage coming soon 3400640 Fitting €16.97
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3081950 screw €1.89
2
 photo_cameraImage coming soon 3081750 washer €4.22
3
 photo_cameraImage coming soon 3400590 disk €16.03
4
 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 3440370 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 €7.03
5
 photo_cameraImage coming soon 3441000 ring €2.09
6
 photo_cameraImage coming soon 3400750 Motor €279.17
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 3400260 Trigger Gun for Pressure Washer AR Blue Clean AR 340/588/590 €25.00
2
 Lance + Rotopower for Pressure Washer A&R Blue Clean 590 3400280 Lance + Rotopower for Pressure Washer A&R Blue Clean 590 €28.90
3
 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 590 3400270 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 590 €35.24
4
 photo_cameraImage coming soon 3440330 High pressure hose €88.87
5
 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 3082100 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 €65.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer X-TRA Clean 160 - 13470

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 160 - 13470.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi X-TRA Clean 160

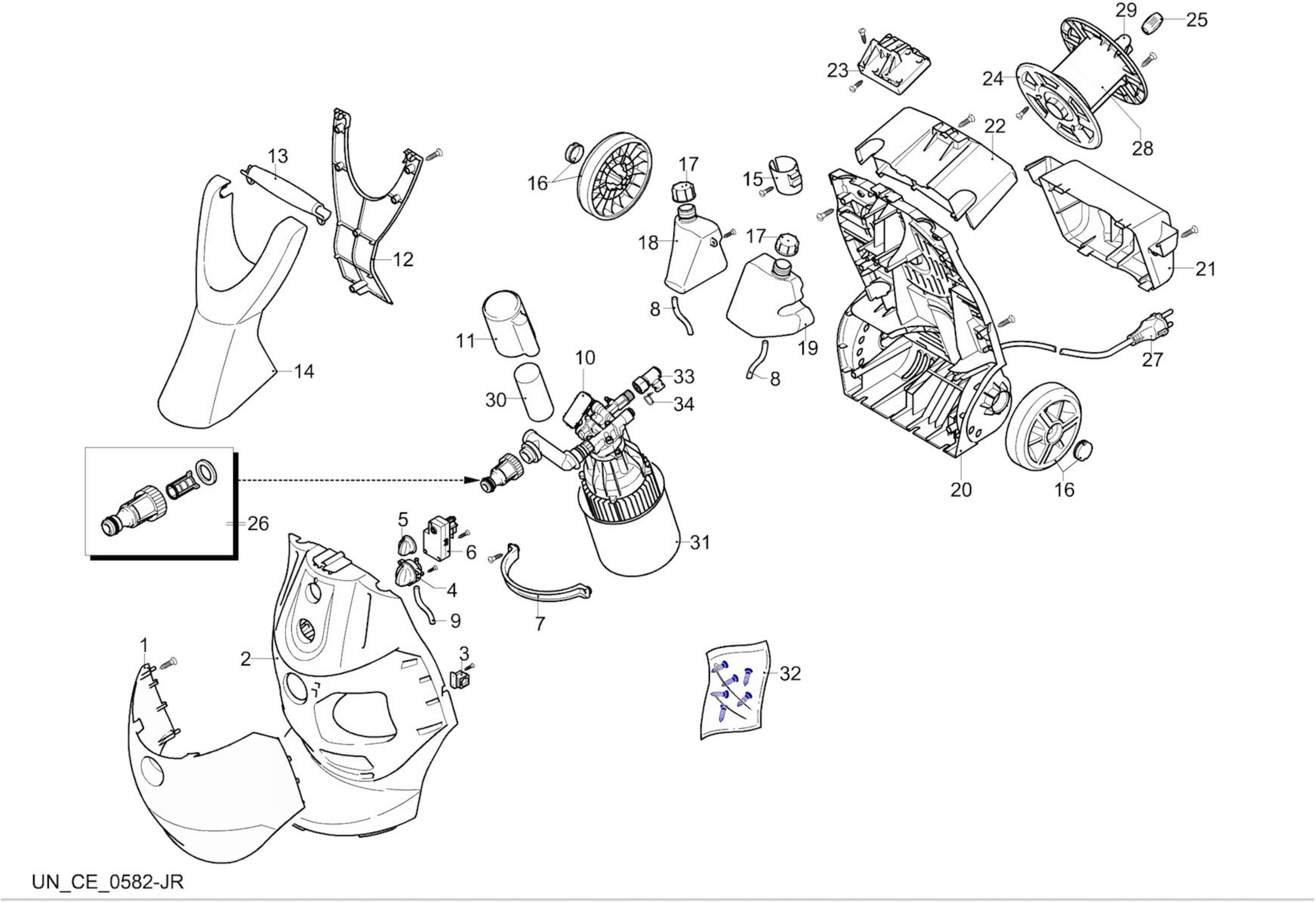

X-TRA Clean 160 - 13470 - Casing Pag.1
# Part Num. Description
1 3440035 Cover
2 3440021 Casing
3 3080580 Cable gland
4 3440192 Knob
5 3440182 Knob
6 3440250 Switch
7 3440120 Bracket
8 3440350 Detergent hose
9 3440360 Detergent hose
10 3400940 Electric pump assembly
11 3440400 Capacitor carrier
12 3440051 Cover
13 3440063 Handle
14 3440041 Handle
15 3440111 Accessories carrier
16 3400560 Wheel
17 3440173 Plug
18 3440150 Tank
19 3440150 Tank
20 3440011 Base
21 3440081 Accessories carrier
22 3440091 Cover
23 3440260 Bracket
24 3440101 Plate
25 3081060 Knob
26 3082130 Water coupling kit
27 3441120 Cable
28 3080390 Plate
29 3440651 Lever
30 3081620 Capacitor
31 3440130 Fan cowling
32 3440590 Screw kit
33 3441400 Fitting
34 4101520 Fork

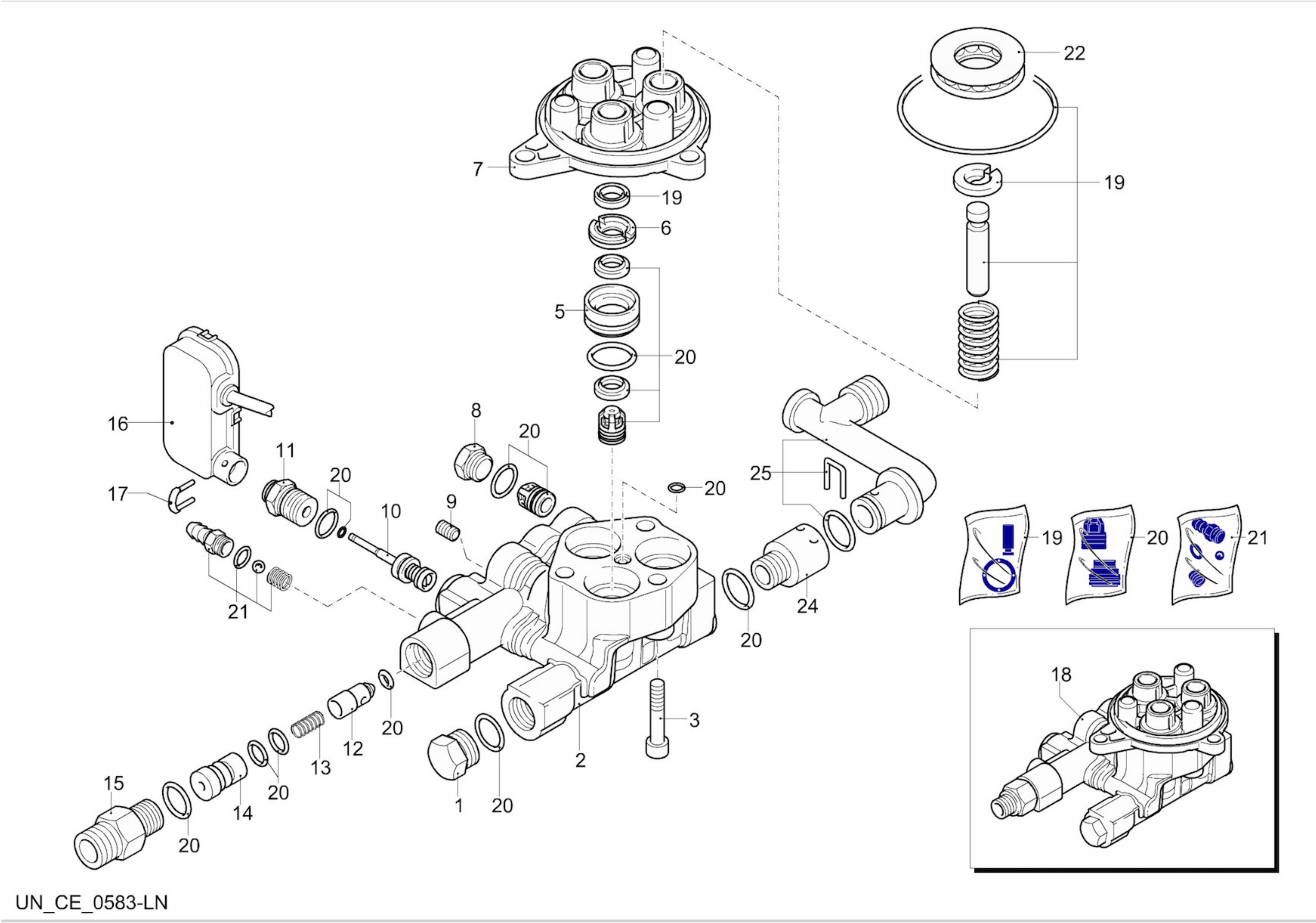

X-TRA Clean 160 - 13470 - Pump Pag.2
1 1980740 Plug
2 2900200 Head
3 800220 Screw
5 2840550 Bushing
6 2840540 Bushing
7 3400020 Piston guide
8 2840130 Plug
9 2840830 Screw
10 2909006 Spring assembly
11 2900130 Fitting
12 2901070 Shutter
13 3780450 Spring
14 2901110 Injector
15 3400150 Fitting
16 3400400 TSS box assembly
17 2022201 Fork
18 3409407 Pump assembly
19 3400420 Piston + seals kit
20 3400430 Valves + seals kit
21 3400440 Detergent suction kit
22 3400540 Bearing
24 3400640 Fitting
25 3400740 Suction kit

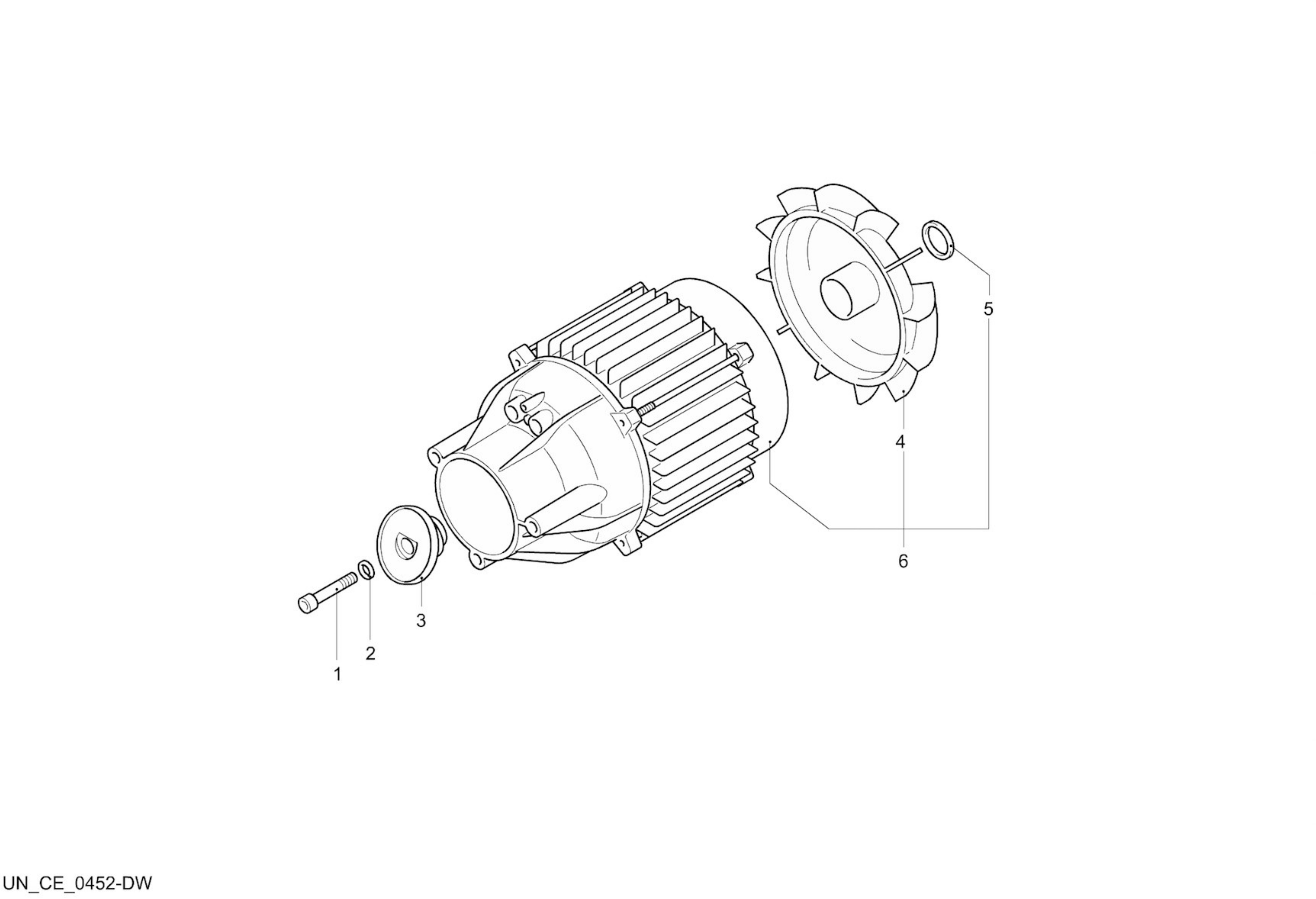

X-TRA Clean 160 - 13470 - Motor Pag.3
1 3081950 Screw
2 3081750 Washer
3 3400590 Wobble plate
4 3440370 Fan
5 3441000 Ring
6 3400750 Motor

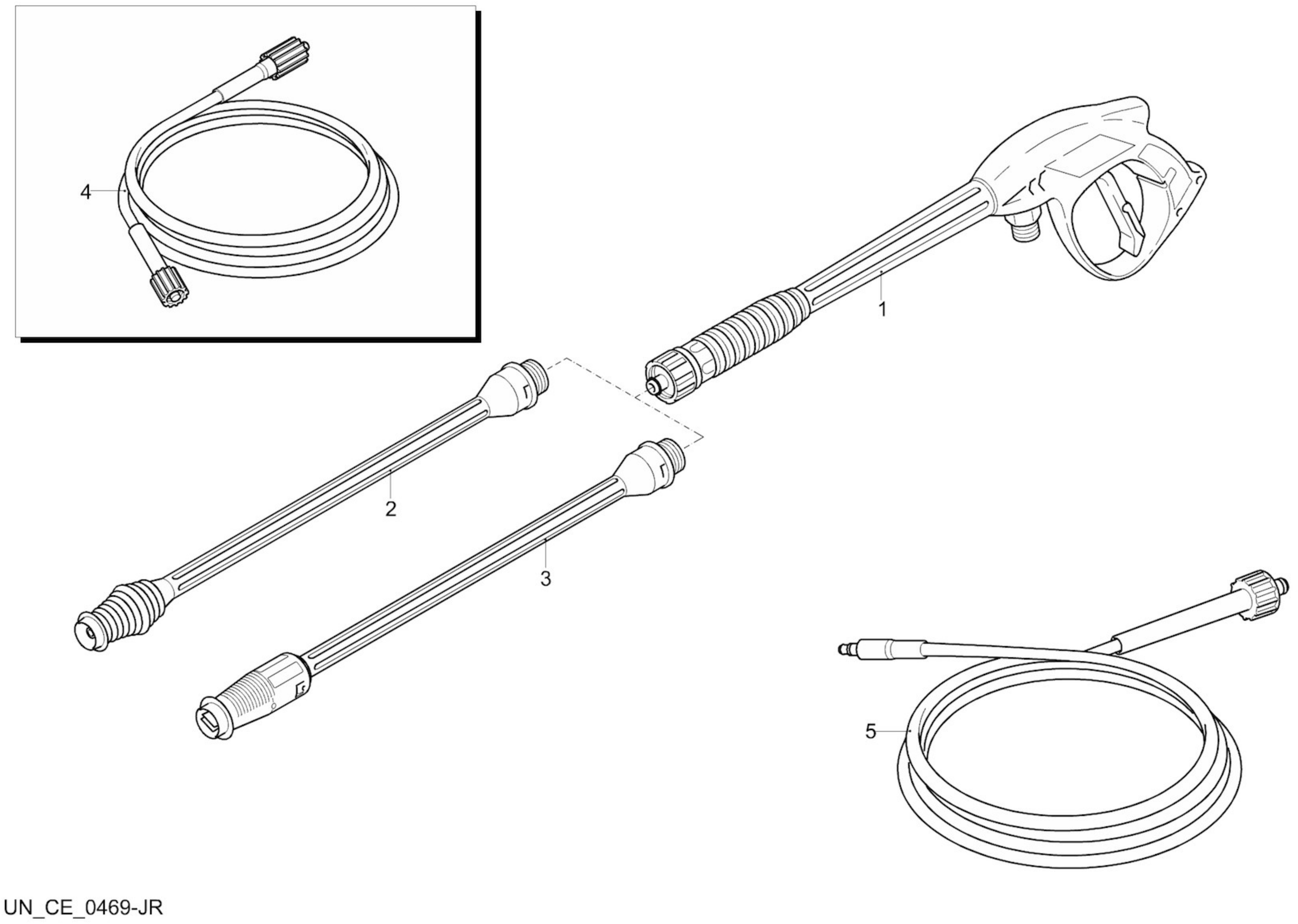

X-TRA Clean 160 - 13470 - Standard Accessories Pag.4
1
 Gun
2
 Lance + rotopower
3
 Lance + lance head
4
3440330
 High pressure hose
5
 3082100 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG X-TRA Clean 160 - 13470
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Diagram X-TRA Clean 160 - 13470

Diagram X-TRA Clean 160 - 13470

Download (754.7KB)
