Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468

SKU: ARSG X-TRA Clean 140 - 13468
€13.91
VAT included

ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 140 - 13468.
ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
  • ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
  • ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
  • ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
  • ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
  • ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468

SKU: ARSG X-TRA Clean 140 - 13468 Condition: New
€13.91
VAT included

ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 140 - 13468.
settings 51 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

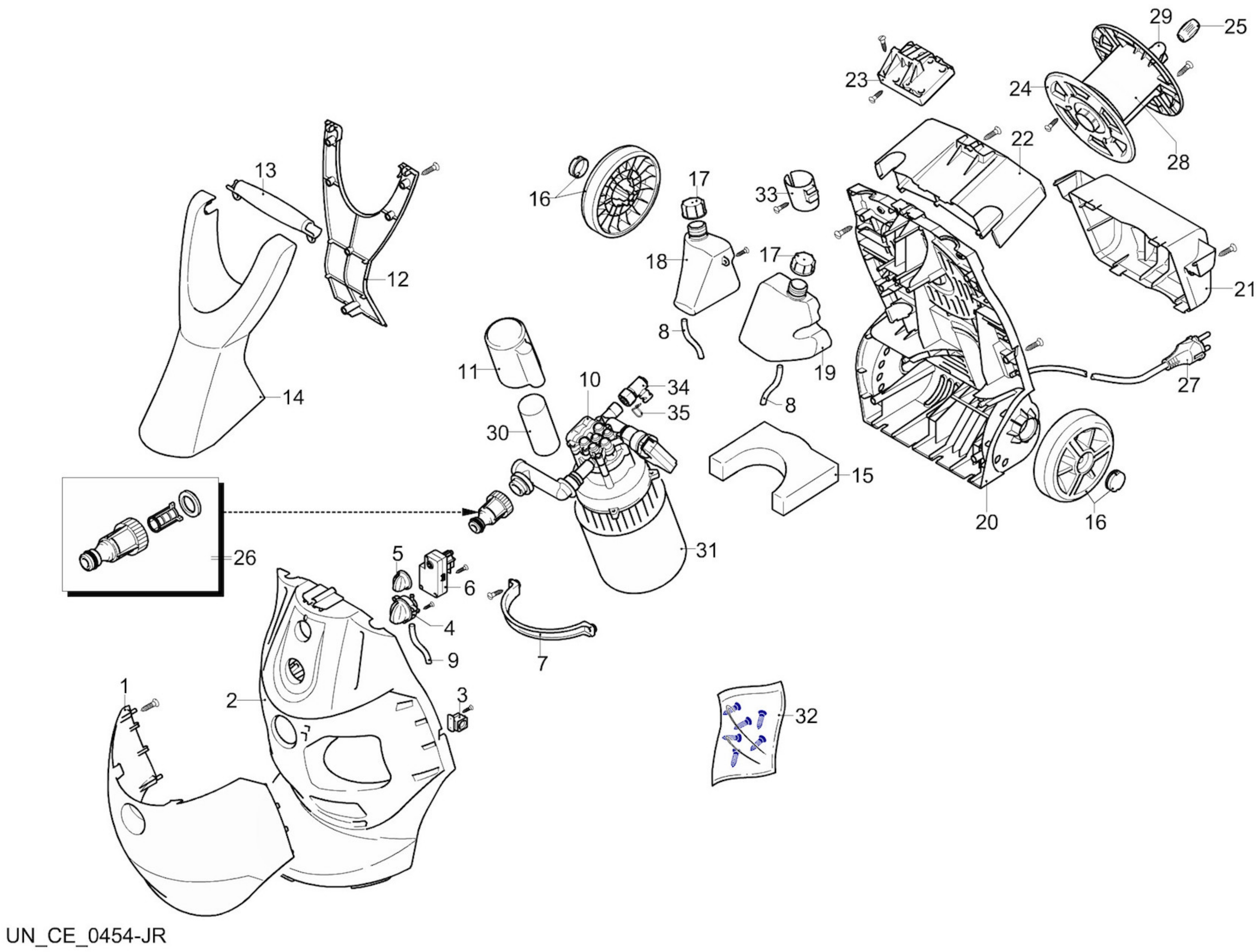

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3440021 Casing €26.03
3
 photo_cameraImage coming soon 3080580 cable clamp €1.37 Not available for order
4
 photo_cameraImage coming soon 3440192 Knob €7.10
5
 photo_cameraImage coming soon 3440182 Knob €5.14
6
 photo_cameraImage coming soon 3440250 Switch €10.41
7
 photo_cameraImage coming soon 3440120 Stirrup €6.43
8
 photo_cameraImage coming soon 3440350 Detergent hose €7.04
9
 photo_cameraImage coming soon 3440360 Detergent hose €6.43
10
 photo_cameraImage coming soon 3440390 Electric pump assembly €392.31
12
 photo_cameraImage coming soon 3440051 Cover €9.54
14
 photo_cameraImage coming soon 3440041 Handle €21.77
15
 photo_cameraImage coming soon 3440280 Support €5.75
16
 photo_cameraImage coming soon 3400560 wheel €21.17
18
 photo_cameraImage coming soon 3440150 Tank €9.27
19
 photo_cameraImage coming soon 3440150 Tank €9.27
20
 photo_cameraImage coming soon 3440011 base €26.85
21
 photo_cameraImage coming soon 3440081 Accessories carrier €18.19
22
 photo_cameraImage coming soon 3440091 Cover €18.12
23
 photo_cameraImage coming soon 3440140 Bracket €9.54
24
 photo_cameraImage coming soon 3440101 Plate €10.68
25
 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 3081060 Knob Handle Hose Reel for Pressure Washer AR BC 490 - 505 €3.58
26
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
27
 photo_cameraImage coming soon 3400350 Cable €26.84
28
 photo_cameraImage coming soon 3080390 Plate €14.66
29
 photo_cameraImage coming soon 3440651 Lever €7.25
30
 Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
31
 photo_cameraImage coming soon 3440130 Fan Cover €12.32
32
 photo_cameraImage coming soon 3440590 Screw kit €10.89
33
 AR Accessories Carrier for ARSG X-TRA Clean 130 3440111 AR Accessories Carrier for ARSG X-TRA Clean 130 €4.63
da 2 pz: €0.50
34
 photo_cameraImage coming soon 3441400 Fitting €25.22
35
 photo_cameraImage coming soon 4101520 Fork €1.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

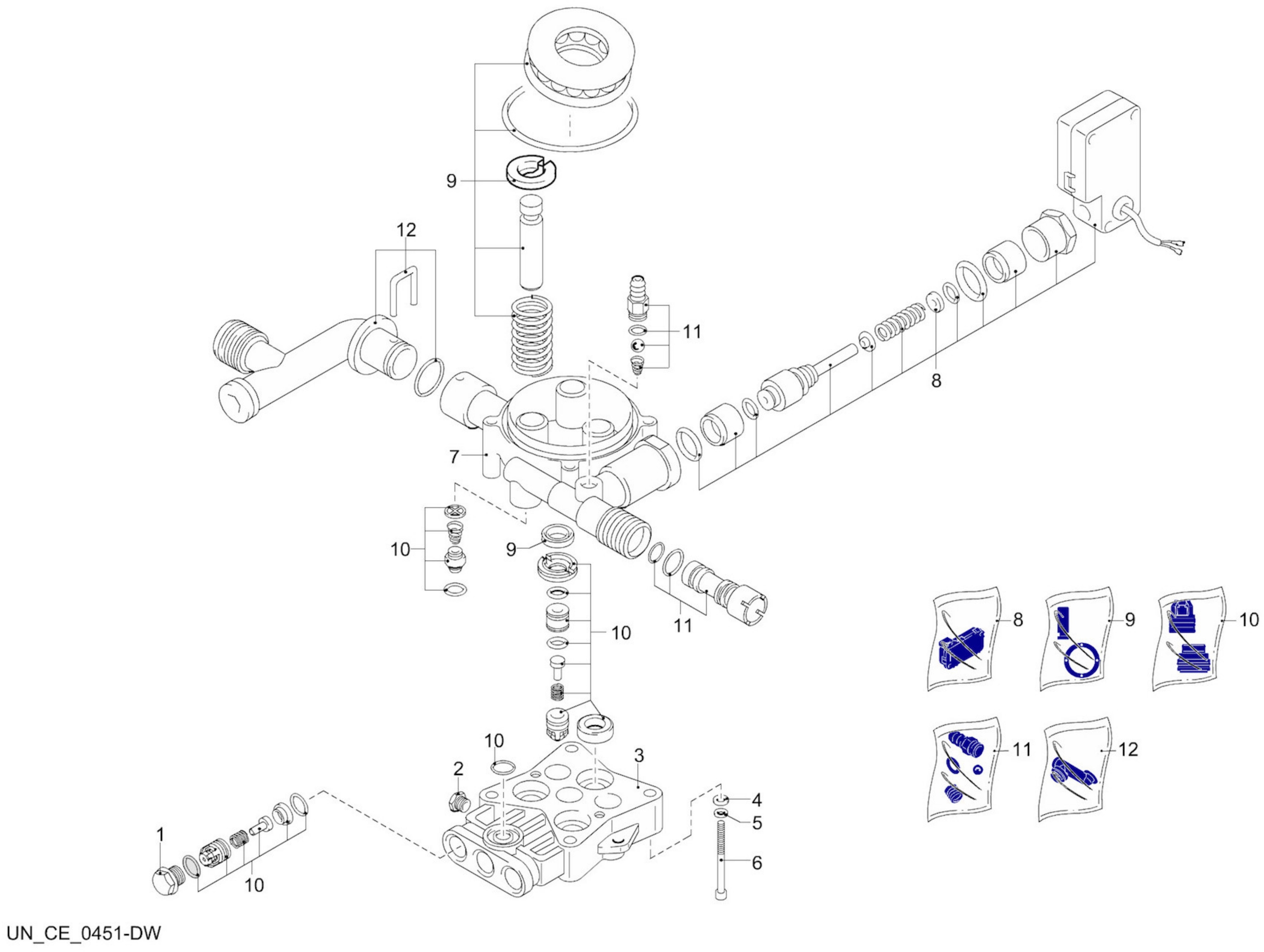

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3083210 Cork €7.45
2
 photo_cameraImage coming soon 3081730 Vine €4.88
3
 photo_cameraImage coming soon 3083220 Head €31.25
5
 photo_cameraImage coming soon 3081750 washer €4.22
6
 photo_cameraImage coming soon 3081740 Vine €1.99
7
 photo_cameraImage coming soon 3083231 Pump body €17.65
8
 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 3440560 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 €21.53
9
 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 3440570 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 €17.00
10
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.08
11
 Detergent Suction Kit for Pressure Washer AR BC 381 3440610 Detergent Suction Kit for Pressure Washer AR BC 381 €8.08
12
 photo_cameraImage coming soon 3440600 Suction kit €7.78
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

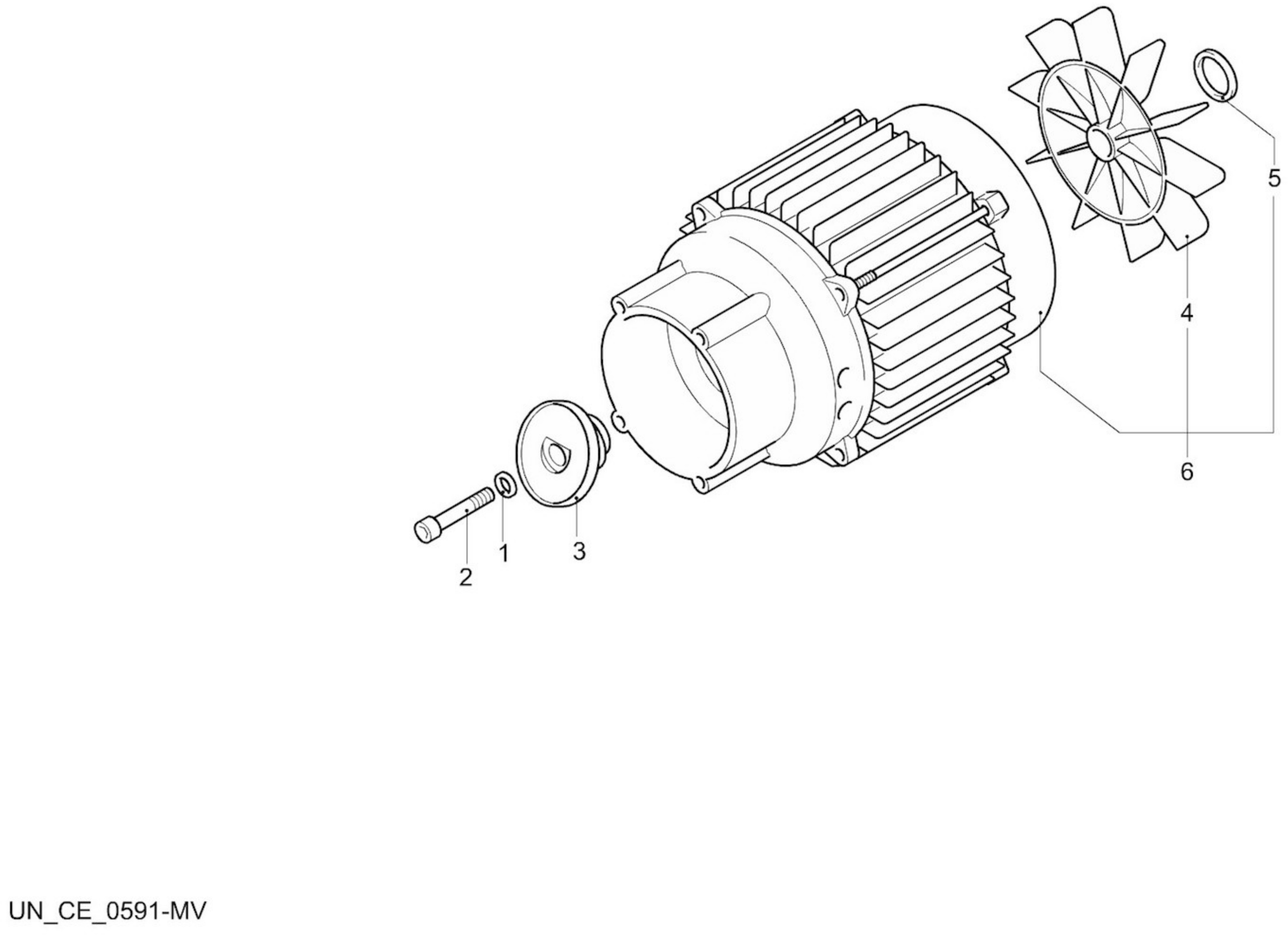

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3081750 washer €4.22
2
 photo_cameraImage coming soon 3081950 screw €1.89
3
 photo_cameraImage coming soon 3440950 Disk €15.05
4
 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 3440370 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 €7.03
5
 photo_cameraImage coming soon 3441000 ring €2.09
6
 photo_cameraImage coming soon 3440980 Motor €313.92
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

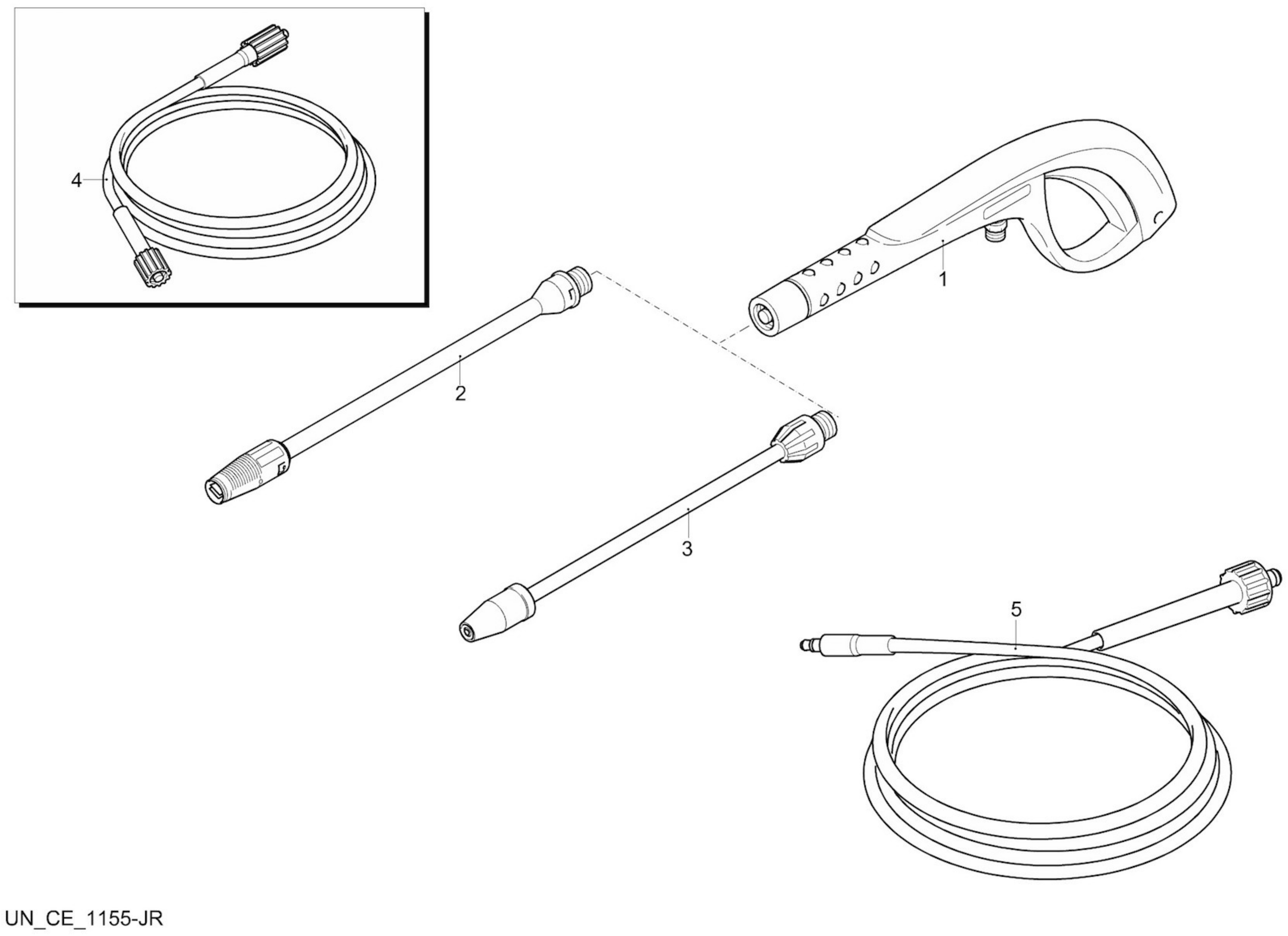

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 3082710 Trigger Gun for Pressure Washer Annovi & Reverberi Blue Clean AR395/490 €40.13
2
 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 3083070 Lance for Pressure Washer Annovi & Reverberi Blue Clean AR 490 €20.36
3
 Lance + Rotopower for Pressure Washer Michelin MPX 150 L 3082120 Lance + Rotopower for Pressure Washer Michelin MPX 150 L €20.37
4
 photo_cameraImage coming soon 3440330 High pressure hose €88.87
5
 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 3082100 Hose for Pressure Washer Annovi & Reverberi Blue Clean AR 490-491-588-590 €65.00

Shipping and delivery information will be available shortly.

ARSG Parts for Pressure Washer X-TRA Clean 140 - 13468

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for Pressure Washer X-TRA Clean 140 - 13468.

In the following tables, look for the spare part and its respective code.
ARSG X-TRA Clean 140 - 13468

X-TRA Clean 140 - 13468 - Casing Pag.1
# Part Num. Description
1 3440035 Cover
2 3440021 Casing
3 3080580 Cable gland
4 3440192 Knob
5 3440182 Knob
6 3440250 Switch
7 3440120 Bracket
8 3440350 Detergent hose
9 3440360 Detergent hose
10 3440390 Electric pump assembly
11 3440400 Capacitor carrier
12 3440051 Cover
13 3440063 Handle
14 3440041 Handle
15 3440280 Support
16 3400560 Wheel
17 3440173 Plug
18 3440150 Tank
19 3440150 Tank
20 3440011 Base
21 3440081 Accessories carrier
22 3440091 Cover
23 3440140 Bracket
24 3440101 Plate
25 3081060 Knob
26 3082130 Water coupling kit
27 3400350 Cable
28 3080390 Plate
29 3440651 Lever
30 3081620 Capacitor
31 3440130 Fan cowling
32 3440590 Screw kit
33 3440111 Accessories carrier
34 3441400 Fitting
35 4101520 Fork
X-TRA Clean 140 - 13468 - Pump Pag.2
1 3083210 Plug
2 3081730 Screw
3 3083220 Head
4 3081760 Washer
5 3081750 Washer
6 3081740 Screw
7 3083231 Pump body
8 3440560 TSS kit
9 3440570 Piston + seals kit
10 3081290 Valves + seals kit
11 3440610 Detergent suction kit
12 3440600 Suction kit
X-TRA Clean 140 - 13468 - Motor Pag.3
1 3081750 Washer
2 3081950 Screw
3 3440950 Wobble plate
4 3440370 Fan
5 3441000 Ring
6 3440980 Motor
X-TRA Clean 140 - 13468 - Standard Accessories Pag.4
1 3082710 Gun
2 3083070 Lance + lance head
3 3082120 Lance + rotopower
4 3440330 High pressure hose
5 3082100 High pressure hose

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG X-TRA Clean 140 - 13468
6 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram X-TRA Clean 140 - 13468

Diagram X-TRA Clean 140 - 13468

Download (809.11KB)
