Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure 308 H4S Line

SKU: ARSG 308 H4S Line - 23149
€22.01
VAT included

AR Farmer's Division Parts for Pressure 308 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 308 H4S Line - 23149.
AR Farmer's Division Parts for Pressure H4S Line 108-208-308
  • AR Farmer's Division Parts for Pressure H4S Line 108-208-308
  • AR Farmer's Division Parts for Pressure 308 H4S Line
  • AR Farmer's Division Parts for Pressure 308 H4S Line
  • AR Farmer's Division Parts for Pressure 308 H4S Line
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Pressure 308 H4S Line

SKU: ARSG 308 H4S Line - 23149 Condition: New
€22.01
VAT included

AR Farmer's Division Parts for Pressure 308 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 308 H4S Line - 23149.
settings 102 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
97 spare parts
Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2281641 Handle €126.72
2
 photo_cameraImage coming soon 2281631 Casing €251.48
3
 photo_cameraImage coming soon 2281700 Knob €18.64
4
 photo_cameraImage coming soon 2281690 Antivibration €16.63
5
 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 380561 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 €30.53
6
 photo_cameraImage coming soon 50016 Stopper €8.16
7
 photo_cameraImage coming soon 320620 Washer €4.67
8
 photo_cameraImage coming soon 200230 Screw €4.81
9
 photo_cameraImage coming soon 2240110 Nut €5.68
10
 photo_cameraImage coming soon 4926 Engine €2,086.39
11
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
12
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
13
 photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
14
 photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
15
 photo_cameraImage coming soon 961900 Screw €5.54
Page 2 zoom_in View exploded
Esploso pagina 2
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2186 Kit Valves €21.37
B
 photo_cameraImage coming soon 2187 Piston Kit €65.52
C
 photo_cameraImage coming soon 2188 Kit Oil Seals €25.49
E
 photo_cameraImage coming soon 2189 Kit Kept Water €34.02
F
 photo_cameraImage coming soon 2190 Gasket Kit €8.93
G
 photo_cameraImage coming soon 2191 Kit Support Rings €6.22
1
 photo_cameraImage coming soon 1980300 nut €1.58
3
 photo_cameraImage coming soon 1980390 insert €11.72
4
 photo_cameraImage coming soon 1980220 disk €2.13
5
 photo_cameraImage coming soon 2760410 Spring €3.54
6
 photo_cameraImage coming soon 2760400 Piston €12.80
7
 photo_cameraImage coming soon 2260100 O-Ring €1.29
8
 photo_cameraImage coming soon 660190 O-ring €4.40
9
 photo_cameraImage coming soon 2760210 Ring €1.58
10
 photo_cameraImage coming soon 2760570 Driving €18.43
11
 photo_cameraImage coming soon 1200690 O-ring €4.26
12
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
13
 photo_cameraImage coming soon 2260070 Shutter €15.62
14
 photo_cameraImage coming soon 2760090 Office €7.17
15
 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
16
 photo_cameraImage coming soon 1982520 Hose €6.27
17
 photo_cameraImage coming soon 480480 O-ring €5.63
18
 photo_cameraImage coming soon 1250280 sphere €2.67
19
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
20
 photo_cameraImage coming soon 2760230 Junction €11.62
22
 photo_cameraImage coming soon 1470210 O-ring €1.58
23
 AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
25
 AR Pressure Washer 787 Shutter 2760130 AR Pressure Washer 787 Shutter €6.40
27
 photo_cameraImage coming soon 801080 Screw €4.67
29
 photo_cameraImage coming soon 2760330 Head €88.09
33
 photo_cameraImage coming soon 2760260 Stopper €3.41
34
 photo_cameraImage coming soon 2760590 Stopper €16.63
35
 Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
36
 photo_cameraImage coming soon 2760220 Ring €4.94
37
 photo_cameraImage coming soon 1342761 Tenuta Water €10.92
38
 photo_cameraImage coming soon 1981580 Ring €4.94
39
 photo_cameraImage coming soon 1981570 Piston Guide €8.50
40
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
41
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
42
 photo_cameraImage coming soon 640070 O-Ring €4.47
43
 photo_cameraImage coming soon 2760310 Spacer €5.28
44
 photo_cameraImage coming soon 1260460 oil seal €4.47
45
 photo_cameraImage coming soon 2760010 Pump Housing €55.85
46
 photo_cameraImage coming soon 1266740 Oil Seal €3.95
47
 photo_cameraImage coming soon 1260790 Ring €1.36
48
 photo_cameraImage coming soon 1780550 Ring €4.87
49
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
50
 photo_cameraImage coming soon 880130 Stopper €6.67
51
 photo_cameraImage coming soon 2760040 Piston €25.76
52
 photo_cameraImage coming soon 1780050 Plug €6.18
53
 photo_cameraImage coming soon 1780710 Piston Rod €25.83
54
 photo_cameraImage coming soon 2760280 O-Ring €5.06
55
 photo_cameraImage coming soon 802190 Screw €4.47
56
 photo_cameraImage coming soon 2760110 Cover €18.59
58
 photo_cameraImage coming soon 1321190 Bearing €14.57
59
 photo_cameraImage coming soon 1321080 Ring €7.98
62
 photo_cameraImage coming soon 2769211 Pre-Assembly Head €230.28
64
 photo_cameraImage coming soon 480671 Ring €11.25
66
 photo_cameraImage coming soon 180030 screw €2.03
67
 photo_cameraImage coming soon 820440 Screw €4.74
68
 photo_cameraImage coming soon 1780330 Tree €117.78
71
 photo_cameraImage coming soon 2760290 Flange €22.62
72
 photo_cameraImage coming soon 2761090 Washer €4.67
73
 photo_cameraImage coming soon 2761080 Junction €14.95
74
 photo_cameraImage coming soon 2760180 Stopper €8.86
79
 photo_cameraImage coming soon 1981780 Knob €2.28
80
 photo_cameraImage coming soon 1080070 plug €2.64
81
 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
82
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
83
 photo_cameraImage coming soon 2500490 Junction €23.39
84
 photo_cameraImage coming soon 740290 O-ring €2.67
85
 photo_cameraImage coming soon 3212 Fitting Kit €20.68
87
 photo_cameraImage coming soon 2760630 Valve €16.36
88
 photo_cameraImage coming soon 1461470 junction €3.26
90
 photo_cameraImage coming soon 40086 Junction €8.16
91
 photo_cameraImage coming soon 23565 Pump €4.73
Page 3 zoom_in View exploded
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3082 Nozzle €24.68
2
 photo_cameraImage coming soon 40541 Lancia + Head Without Nozzle €62.30
3
 photo_cameraImage coming soon 40651 Lance + Nozzle €77.48
4
 photo_cameraImage coming soon 41322 Gun €81.51
5
 photo_cameraImage coming soon 1540110 Washer €5.54
6
 photo_cameraImage coming soon 3119 High Pressure Tube €283.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure 308 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 308 H4S Line - 23149.

In the following tables, look for the spare part and its respective code.
ARSG 308 H4S Line - 23149

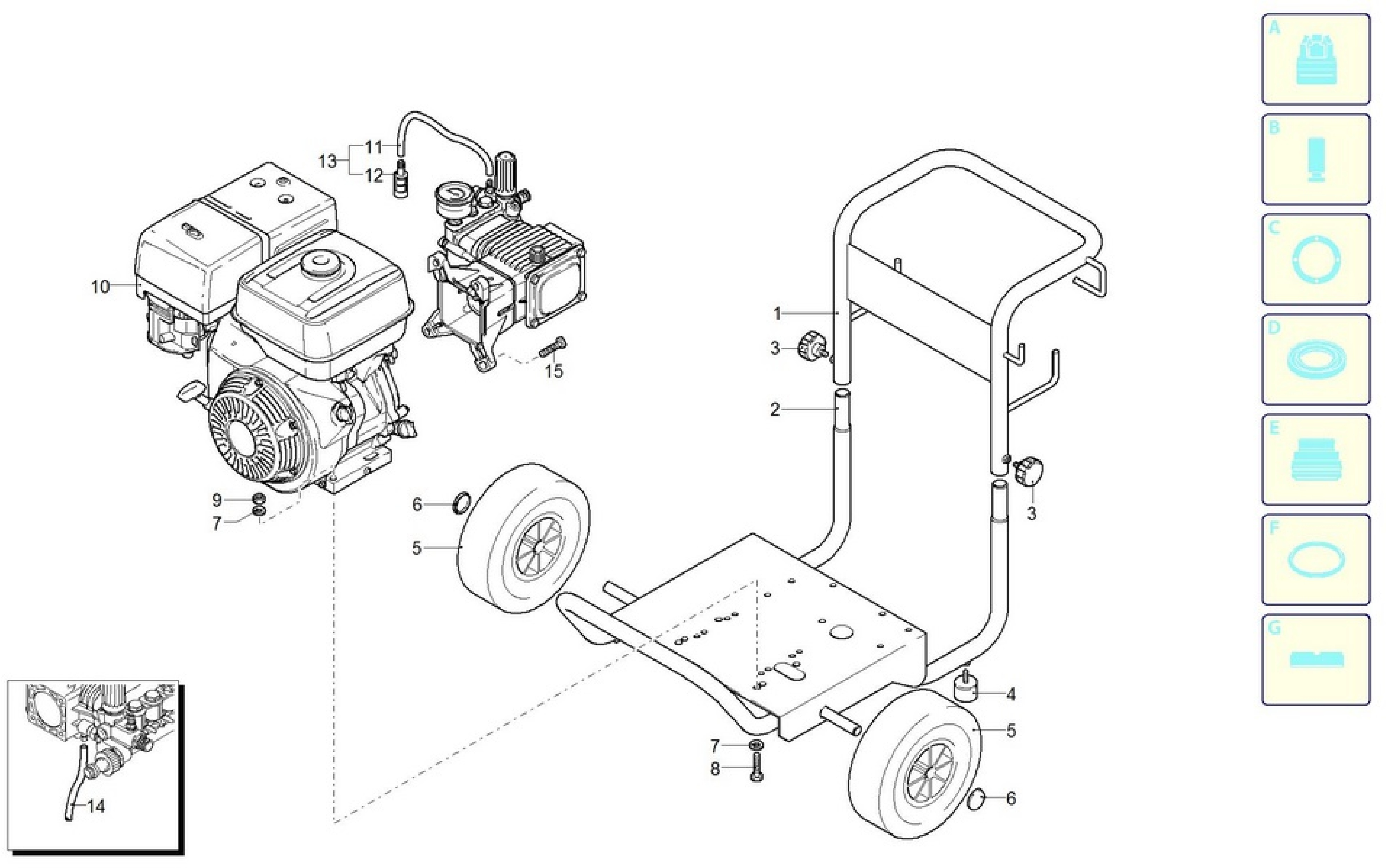

Casing 308 H4S - 23149 Pag.1
# Part Num. Description
1 2281641 Handle
2 2281631 Casing
3 2281700 Knob
4 2281690 Antivibration
5 380561 Wheel
6 50016 Cork
7 320620 Washer
8 200230 Screw
9 2240110 Nut
10 4926 Engine
11 1262790 Pipe Cleaner
12 1341030 Filter
13 1269115 Pre-Assembly Tube
14 2180150 Pipe Cleaner
15 961900 Screw

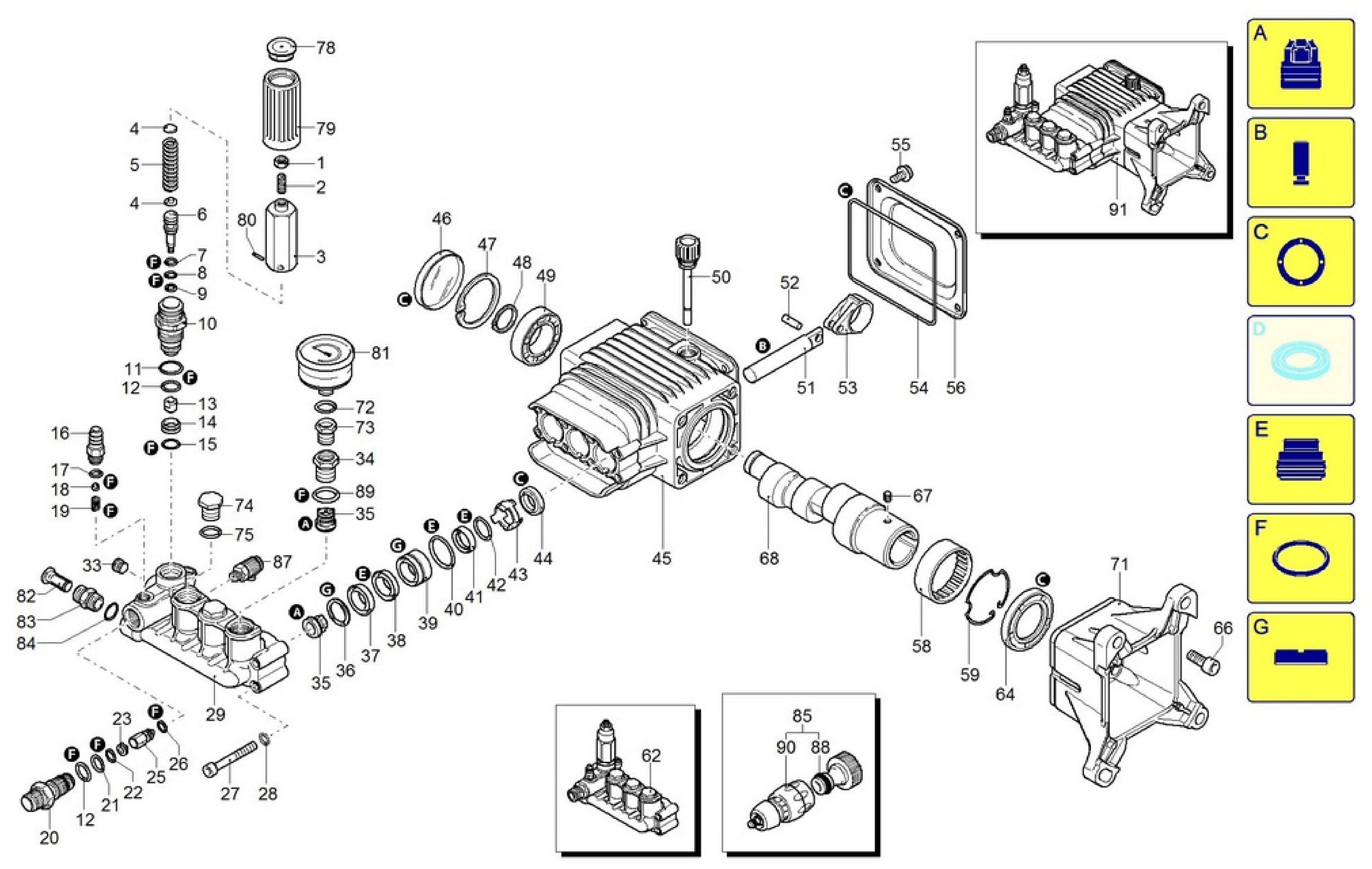

Pump 308 H4S - 23149 Pag.2
1 1980300 Nut
2 392840 Screw
3 1980390 Insert
4 1980220 Disk
5 2760410 Spring
6 2760400 Piston
7 2260100 O-Ring
8 660190 O-Ring
9 2760210 Ring
10 2760570 Guide
11 1200690 O-Ring
12 394280 O-Ring
13 2260070 Shutter
14 2760090 Office
15 770140 O-Ring
16 1982520 Hose
17 480480 O-Ring
18 1250280 Ball
19 1560520 Spring
20 2760230 Junction
21 2760270 O-Ring
22 1470210 O-Ring
23 2760120 Insert
25 2760130 Shutter
26 2101770 O-Ring
27 801080 Screw
28 1381550 Washer
29 2760330 Head
33 2760260 Cork
34 2760590 Cork
35 2769050 Complete Valve
36 2760220 Ring
37 1342761 Water Seal
38 1981580 Ring
39 1981570 Piston Guide
40 770260 O-Ring
41 1260440 Water Seal
42 640070 O-Ring
43 2760310 Spacer
44 1260460 Oil Seal
45 2760010 Pump Housing
46 1266740 Oil Seal
47 1260790 Ring
48 1780550 Ring
49 1780490 Bearing
50 880130 Cork
51 2760040 Piston
52 1780050 Plug
53 1780710 Piston Rod
54 2760280 O-Ring
55 802190 Screw
56 2760110 Cover
58 1321190 Bearing
59 1321080 Ring
62 2769211 Pre-Assembly Head
64 480671 Ring
66 180030 Screw
67 820440 Screw
68 1780330 Shaft
71 2760290 Flange
72 2761090 Washer
73 2761080 Junction
74 2760180 Cork
75 1200690 O-Ring
78 1981770 Cork
79 1981780 Knob
80 1080070 Plug
81 1381580 Manometer
82 1340260 Filter
83 2500490 Junction
84 740290 O-Ring
85 3212 Fitting Kit
87 2760630 Valve
88 1461470 Junction
89 2761090 Washer
90 40086 Junction
91 23565 Pump
A 2186 Valve Kit
B 2187 Piston Kit
C 2188 Oil Seals Kit
E 2189 Kit Held Water
F 2190 Seal Kit
G 2191 Kit Support Rings

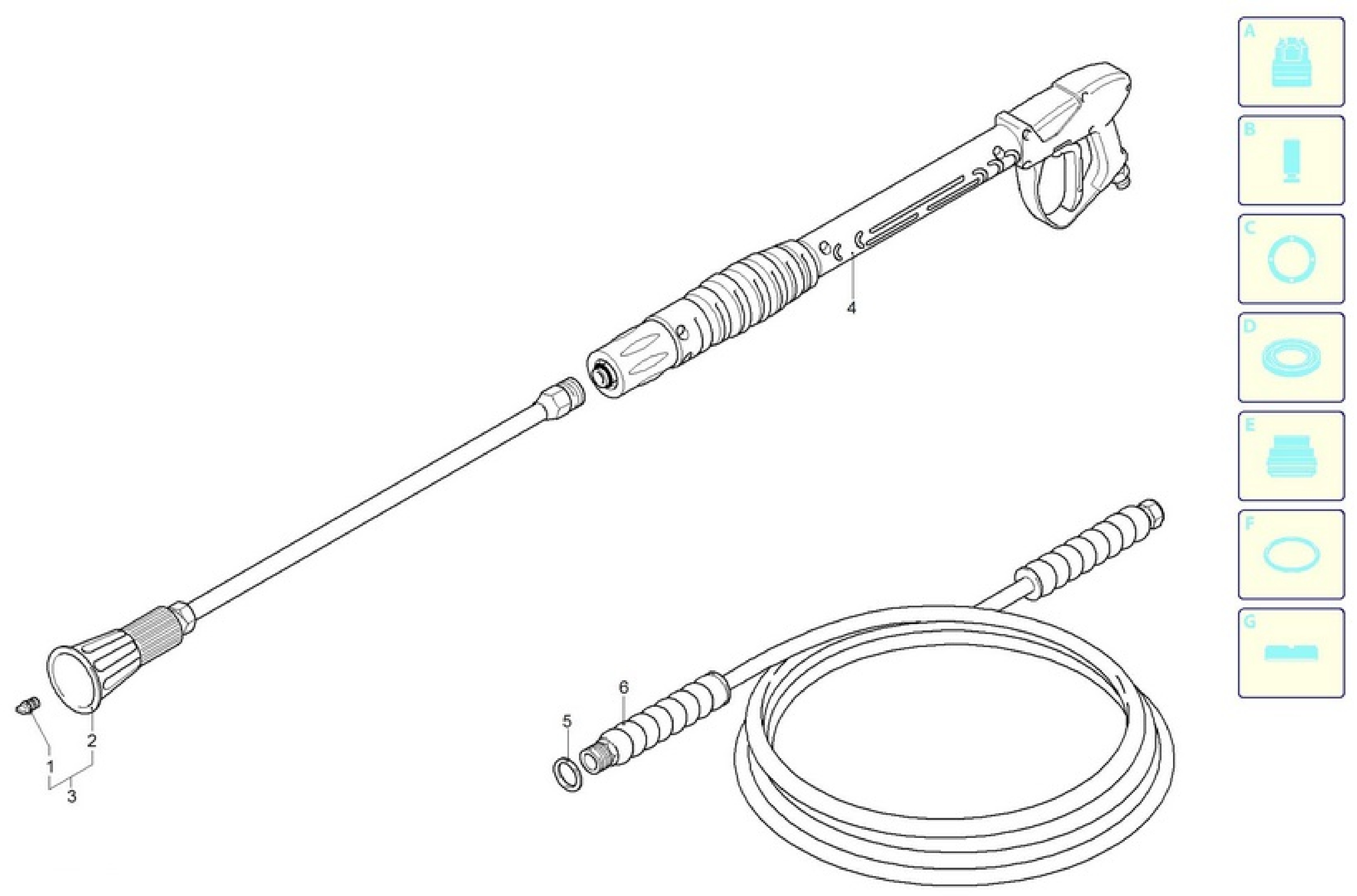

Accessories 308 H4S - 23149 Pag.3
1 3082 Nozzle
2 40541 Lance + Head Without Nozzle
3 40651 Lance + Head
4 41322 Gun
5 1540110 Washer
6 3119 High Pressure Tube

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG 308 H4S Line - 23149
6 Items

Specific References

New

Download

Diagram AR Farmer's Division 308

Diagram AR Farmer's Division 308

Download (348.88KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Cold Water High Pressure Washer 120 bar AR142 Sale
Annovi Reverberi S.p.A. SKU: AR142
Cold Water High Pressure Washer 120 bar AR142
Cold Water High Pressure Washer 120 bar AR142 3 Axial piston pump driven by the oscillating plate, hardened stainless steel pistons, an automatic safety valve with pressure in the pump head, water filter. Complete kit with foam tank of...
Last items in stock €108.09
Details
Cold Water High Pressure Washer 145 bar AR491 -5% Sale
Annovi Reverberi S.p.A. SKU: AR491
Cold Water High Pressure Washer 145 bar AR491
Cold Water High Pressure Washer 145 bar AR491 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminium head, tempered stainless steel pistons.
Last items in stock €330.09 €347.46
Details
Cold Water High Pressure Washer 135 bar AR391 -5% Sale
Annovi Reverberi S.p.A. SKU: AR391
Cold Water High Pressure Washer 135 bar AR391
Cold Water High Pressure Washer 135 bar AR391 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminim head, tempered stainless steel pistons. Automatic by-pass valve with pump head...
Last items in stock €207.38 €218.29
Details
Cold Water High Pressure Washer 160 bar AR590 -5% Sale
Annovi Reverberi S.p.A. SKU: AR590
Cold Water High Pressure Washer 160 bar AR590
Cold Water High Pressure Washer 160 bar AR590 Three-piston pump hardened stainless. Brass head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection. Total stop to halt. Water...
Last items in stock €424.26 €446.59
Details
Water Cleaning Hose
Ferritalia SKU: DES91914
Hight Pressure Washers Hose 8 mt
Hight Pressure Washers Hose 8 mt Original spare part for high pressure washer with a maximum pressure of about 180 bar. - Diameter connections F-F: M14x1,5 mm - Max Pressure: 18 MPa - about 180 bar - Maximum temperature: 60 ° C. -...
Last items in stock €32.35
Details
Water Cleaning Hose
Valex s.p.a. SKU: 1520117
Hight Pressure Washers Hose 7,5 mt
Hight Pressure Washers Hose 7,5 mt Original spare part for high pressure washer with a maximum pressure of about 300 bar. Part for the following products:  - HIGHT PRESSURE HOSE FOR PRESSURE WASHER CARRY 2500 - Tech Info: -...
Last items in stock €36.30
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
AR Pressure Washer 787 Shutter
Annovi Reverberi S.p.A. SKU: 2760130
AR Pressure Washer 787 Shutter
AR Shutter for Pressure Washer AR 787 Genuine Parts for Annovi & Reverberi, Shutter for Pressure Washer AR787 - ARSG 830 H4S - KDB 940 - PROLINER RS 15.15 RLW. Part for the following products: - Annovi Reverberi 820 - 22327 -...
Last items in stock €6.40
Details
AR780 Injector Insert
Annovi Reverberi S.p.A. SKU: 2760120
AR780 Injector Insert
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Details
Comments (0)
