AR Farmer's Division Parts for Pressure 840 H4S Line

SKU: ARSG 840 H4S Line - 22195
€30.47
VAT included

AR Farmer's Division Parts for Pressure 840 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 840 H4S Line - 22195.
AR Farmer's Division Parts for Pressure 800 H4S Line 840-850
  • AR Farmer's Division Parts for Pressure 800 H4S Line 840-850
  • AR Farmer's Division Parts for Pressure 840 H4S Line
  • AR Farmer's Division Parts for Pressure 840 H4S Line
  • AR Farmer's Division Parts for Pressure 840 H4S Line
  • AR Farmer's Division Parts for Pressure 840 H4S Line

AR Farmer's Division Parts for Pressure 840 H4S Line

SKU: ARSG 840 H4S Line - 22195 Condition: New
€30.47
VAT included

AR Farmer's Division Parts for Pressure 840 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 840 H4S Line - 22195.
settings 121 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

117 spare parts
Pos. Item Price Buy
7
photo_cameraImage coming soon 1560410 Driving €27.03
8
photo_cameraImage coming soon 1560440 Disk €12.46
9
photo_cameraImage coming soon 1560350 Spring €7.98
10
photo_cameraImage coming soon 1080610 Disk €6.61
Pos. Item Price Buy
1
photo_cameraImage coming soon 2281640 Handle €125.97
2
photo_cameraImage coming soon 2281630 Frame €249.96
3
photo_cameraImage coming soon 2281700 Knob €18.64
4
photo_cameraImage coming soon 2281690 Antivibration €16.63
5
Wheel for Pressure Washer AR Blue Clean Series 810 - 820 380561 Wheel for Pressure Washer AR Blue Clean Series 810 - 820 €30.53
6
photo_cameraImage coming soon 50016 Stopper €8.16
7
photo_cameraImage coming soon 320620 Washer €4.67
8
photo_cameraImage coming soon 200230 Screw €4.81
9
photo_cameraImage coming soon 2240110 Nut €5.68
10
photo_cameraImage coming soon 4554 Engine €2,031.65
11
photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
12
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
13
photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
14
photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
15
photo_cameraImage coming soon 961900 Screw €5.54
Pos. Item Price Buy
1
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
2
photo_cameraImage coming soon 960850 Cork €14.81
3
photo_cameraImage coming soon 889052 Valve Complete €8.50
4
photo_cameraImage coming soon 1382740 Tenuta Water €16.70
5
photo_cameraImage coming soon 880581 stopper €7.73
6
photo_cameraImage coming soon 820510 O-ring €5.63
11
photo_cameraImage coming soon 960110 Ring €2.41
13
photo_cameraImage coming soon 1380090 Piston Guide €12.55
14
photo_cameraImage coming soon 961240 O-Ring €4.80
15
photo_cameraImage coming soon 880330 Tenuta Water €8.14
16
photo_cameraImage coming soon 1383130 Ring €10.75
17
photo_cameraImage coming soon 850370 screw €2.26
18
photo_cameraImage coming soon 1380050 Support €20.71
19
photo_cameraImage coming soon 640030 O-Ring €5.01
21
photo_cameraImage coming soon 1382770 Pump Housing €112.58
22
photo_cameraImage coming soon 880130 Stopper €6.67
23
photo_cameraImage coming soon 962010 Nut €6.12
24
photo_cameraImage coming soon 962000 Washer €4.87
25
photo_cameraImage coming soon 1380940 Piston €31.99
26
photo_cameraImage coming soon 1380950 Disk €4.94
27
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
28
photo_cameraImage coming soon 1380920 Piston €26.73
29
photo_cameraImage coming soon 1380060 Plug €6.39
30
photo_cameraImage coming soon 1383020 Piston Rod €30.80
31
photo_cameraImage coming soon 1080401 ring €2.13
34
photo_cameraImage coming soon 1780510 O-Ring €5.35
40
photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
40
photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
40
photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
40
photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
41
photo_cameraImage coming soon 2281510 Flange €24.48
42
photo_cameraImage coming soon 740290 O-ring €2.67
43
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
44
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
50
photo_cameraImage coming soon 820150 Screw €5.42
51
photo_cameraImage coming soon 40393 Junction €13.66
52
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
53
photo_cameraImage coming soon 22454 Complete Valve €125.16
Pos. Item Price Buy
1
photo_cameraImage coming soon 1560580 Stopper €5.28
2
photo_cameraImage coming soon 540290 Screw €5.47
3
photo_cameraImage coming soon 1660210 Nut €4.59
4
photo_cameraImage coming soon 1560400 Knob €6.39
5
photo_cameraImage coming soon 1080070 plug €2.64
6
photo_cameraImage coming soon 1560420 Screw €30.81
11
photo_cameraImage coming soon 1080660 Plug €5.54
12
photo_cameraImage coming soon 1080540 Piston €18.64
13
photo_cameraImage coming soon 391000 O-Ring €4.73
14
photo_cameraImage coming soon 1080640 Ring €5.20
15
photo_cameraImage coming soon 1560150 O-Ring €4.59
16
photo_cameraImage coming soon 1560100 Shutter €12.13
17
photo_cameraImage coming soon 1560140 Spring €5.98
19
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
20
photo_cameraImage coming soon 2280340 Bearing €26.80
21
photo_cameraImage coming soon 1560010 Valve Body €27.03
22
photo_cameraImage coming soon 1080550 Ring €5.42
23
photo_cameraImage coming soon 480480 O-ring €5.63
24
photo_cameraImage coming soon 1560280 Washer €7.49
25
photo_cameraImage coming soon 1560320 Piston €22.26
26
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
27
photo_cameraImage coming soon 1560051 Junction €21.52
28
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
29
photo_cameraImage coming soon 1560510 Nut €10.40
30
photo_cameraImage coming soon 1560530 Junction €23.07
31
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
32
photo_cameraImage coming soon 1250280 sphere €2.67
34
photo_cameraImage coming soon 1560490 Hose €7.24
35
photo_cameraImage coming soon 1789010 Cover €24.45
37
photo_cameraImage coming soon 2280130 Shaft €107.64
38
photo_cameraImage coming soon 820440 Screw €4.74
39
photo_cameraImage coming soon 621170 Ring €8.57
40
photo_cameraImage coming soon 1540020 Collector €24.21
41
photo_cameraImage coming soon 1540120 Washer €5.81
42
photo_cameraImage coming soon 1540090 Junction €17.83
43
photo_cameraImage coming soon 1560290 Washer €7.62
47
photo_cameraImage coming soon 180101 O-Ring €4.73
49
photo_cameraImage coming soon 2281590 Head €179.17
50
photo_cameraImage coming soon 1560880 Junction €22.33
71
photo_cameraImage coming soon 180030 screw €2.03
77
photo_cameraImage coming soon 1383150 Bearing €32.01
78
photo_cameraImage coming soon 2289235 Pre-Assembly Head €442.19
86
photo_cameraImage coming soon 1260250 Level Indicator €1.69
89
photo_cameraImage coming soon 1140450 O-Ring €4.25
91
Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
92
photo_cameraImage coming soon 1380220 O-Ring €4.87
94
photo_cameraImage coming soon 50129 POINTER €40.60
95
photo_cameraImage coming soon 20699 Pump Pre-Assembly €709.50
Pos. Item Price Buy
A
photo_cameraImage coming soon 1828 Valve Kit €29.59
G
photo_cameraImage coming soon 1829 Kit Support Rings €11.93
C
photo_cameraImage coming soon 1856 Oil Seals Kit €34.22
E
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
F
photo_cameraImage coming soon 2611 Gasket Kit €17.56
B
photo_cameraImage coming soon 2757 Piston Kit €88.44

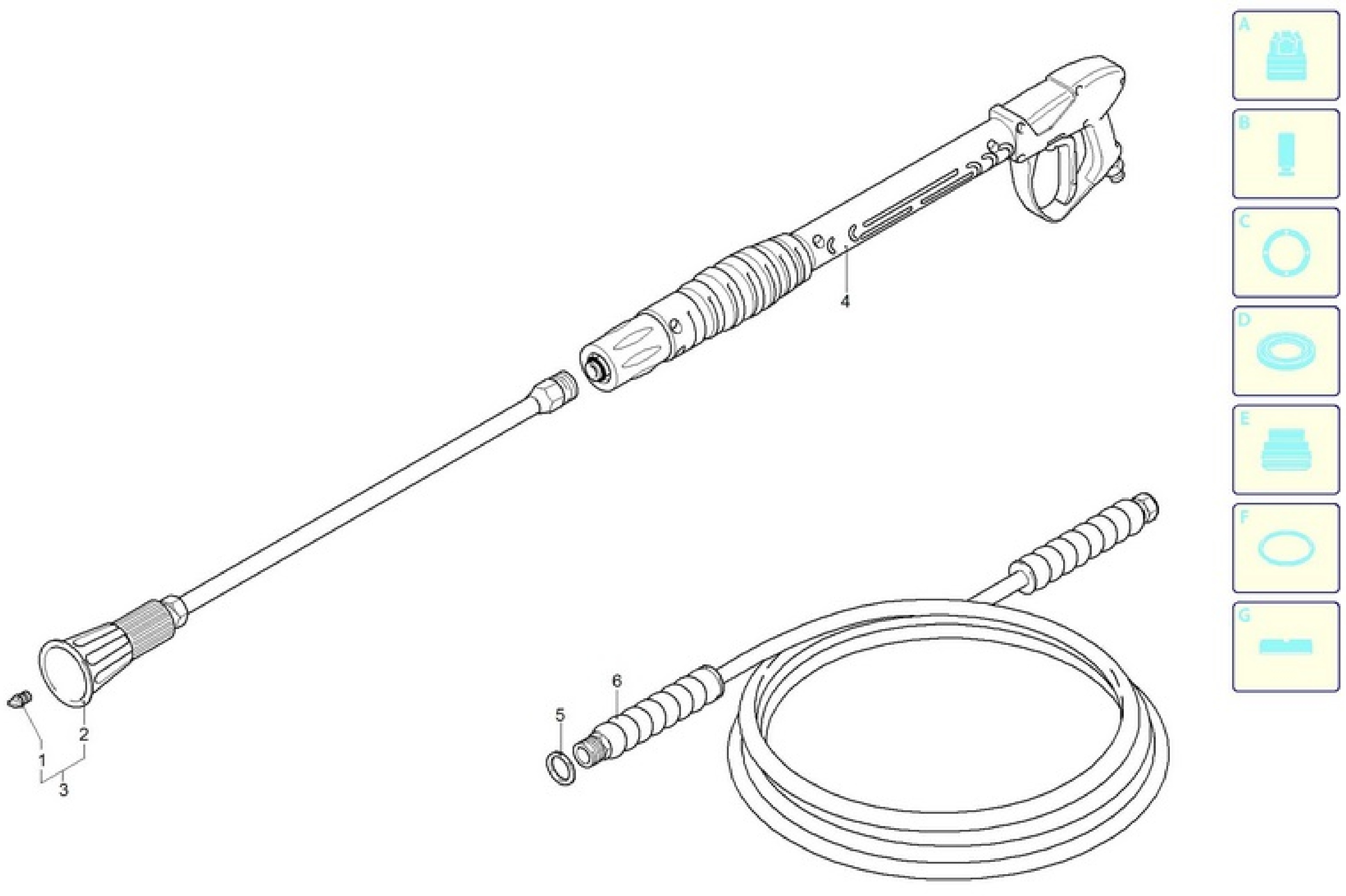

1
photo_cameraImage coming soon 3082 Nozzle €24.68
2
photo_cameraImage coming soon 40541 Lancia + Head Without Nozzle €62.30
3
photo_cameraImage coming soon 40650 Lancia + Head €77.48
4
photo_cameraImage coming soon 41322 Gun €81.51
5
photo_cameraImage coming soon 1540110 Washer €5.54
6
photo_cameraImage coming soon 3119 High Pressure Tube €283.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Pressure 840 H4S Line

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 840 H4S Line - 22195.

In the following tables, look for the spare part and its respective code.
ARSG 840 H4S Line - 22195

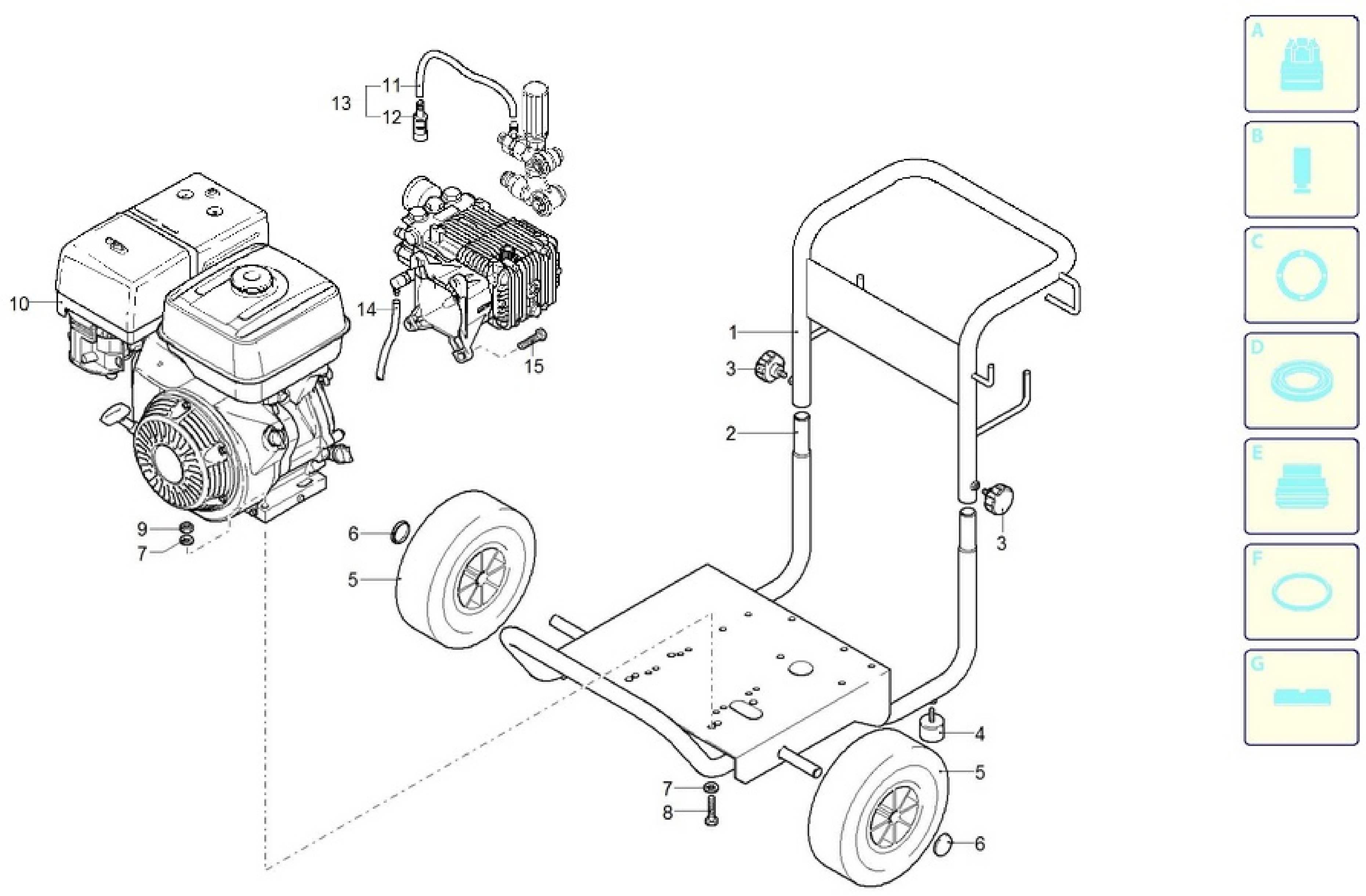

Casing 840 H4S - 22195 Pag.1
# Part Num. Description
1 2281640 Handle
2 2281630 Frame
3 2281700 Knob
4 2281690 Antivibration
5 380561 Wheel
6 50016 Cork
7 320620 Washer
8 200230 Screw
9 2240110 Nut
10 4554 Engine
11 1262790 Tube Cleaner
12 1341030 Filter
13 1269115 Pre-Assembly Tube
14 2180150 Tube Cleaner
15 961900 Screw

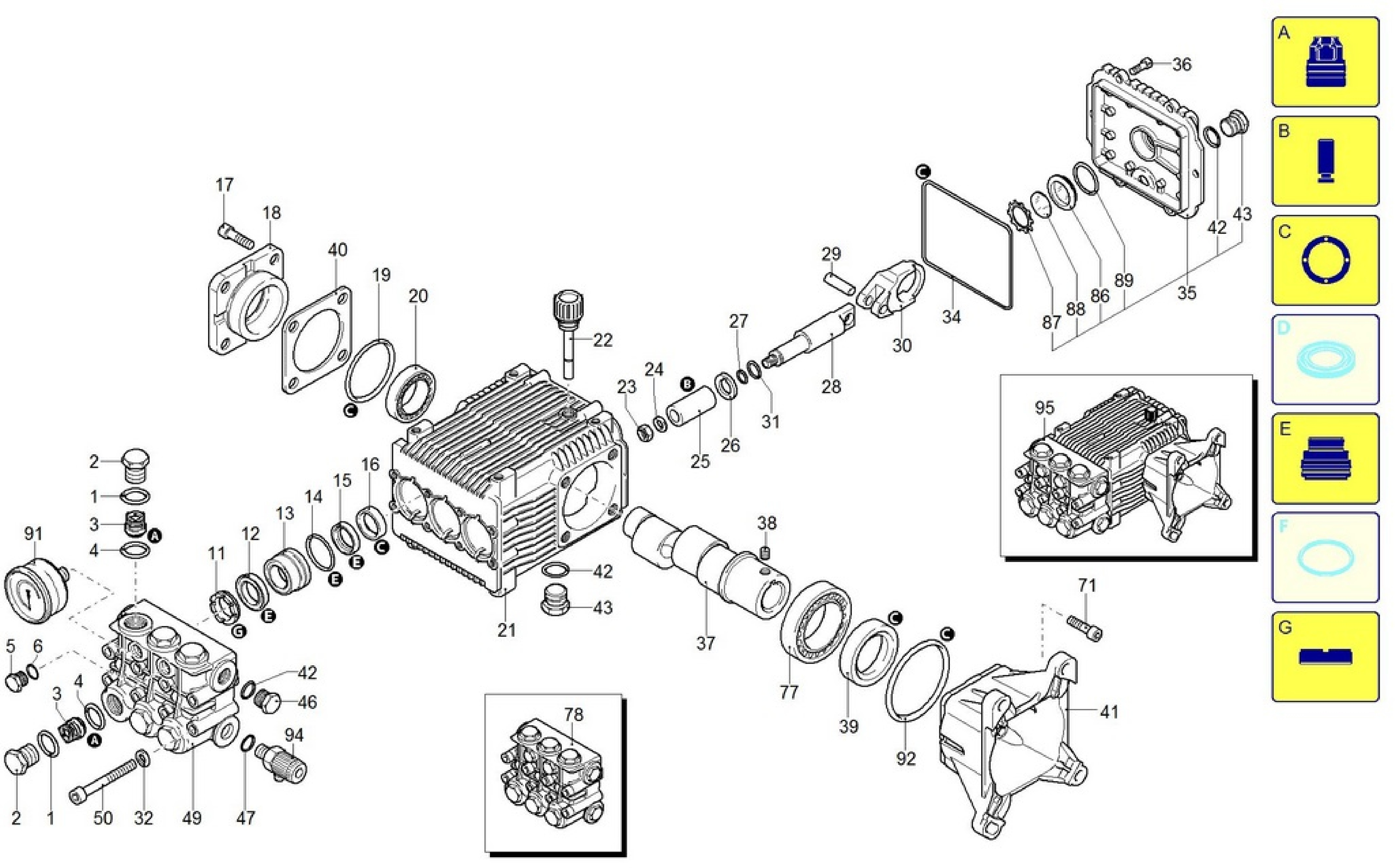

Pump 840 H4S - 22195 Pag.2
1 960160 O-Ring
2 960850 Cork
3 889052 Valve Complete
4 1382740 Watertight
5 880581 Cork
6 820510 O-Ring
11 960110 Ring
12 1382740 Watertight
13 1380090 Piston Guide
14 961240 O-Ring
15 880330 Watertight
16 1383130 Ring
17 850370 Screw
18 1380050 Support
19 640030 O-Ring
20 2280340 Bearing
21 1382770 Body Pump
22 880130 Cork
23 962010 Nut
24 962000 Washer
25 1380940 Piston
26 1380950 Disk
27 600180 O-Ring
28 1380920 Piston
29 1380060 Plug
30 1383020 Piston Rod
31 1080401 Ring
32 1381850 Washer
34 1780510 O-Ring
35 1789010 Cover
36 1343510 Screw
37 2280130 Shaft
38 820440 Screw
39 621170 Ring
40 1380120 Thickness 0.10 Mm
40 1380130 Thickness 0.20 Mm
40 1380530 Thickness 0.25 Mm
40 1382810 Thickness 0.05 Mm
41 2281510 Flange
42 740290 O-Ring
43 1980740 Cork
46 1980740 Cork
47 180101 O-Ring
49 2281590 Head
50 820150 Screw
71 180030 Screw
77 1383150 Bearing
78 2289235 Pre-Assembly Head
86 1260250 Level Indicator
87 1260430 Ring
88 1780690 Disk
89 1140450 O-Ring
91 1381580 Manometer
92 1380220 O-Ring
94 50129 Valve
95 20699 Pump Pre-Assembly
A 1828 Valve Kit
B 2757 Piston Kit
C 1856 Oil Seals Kit
E 1857 Water Seal Kit
G 1829 Kit Support Rings

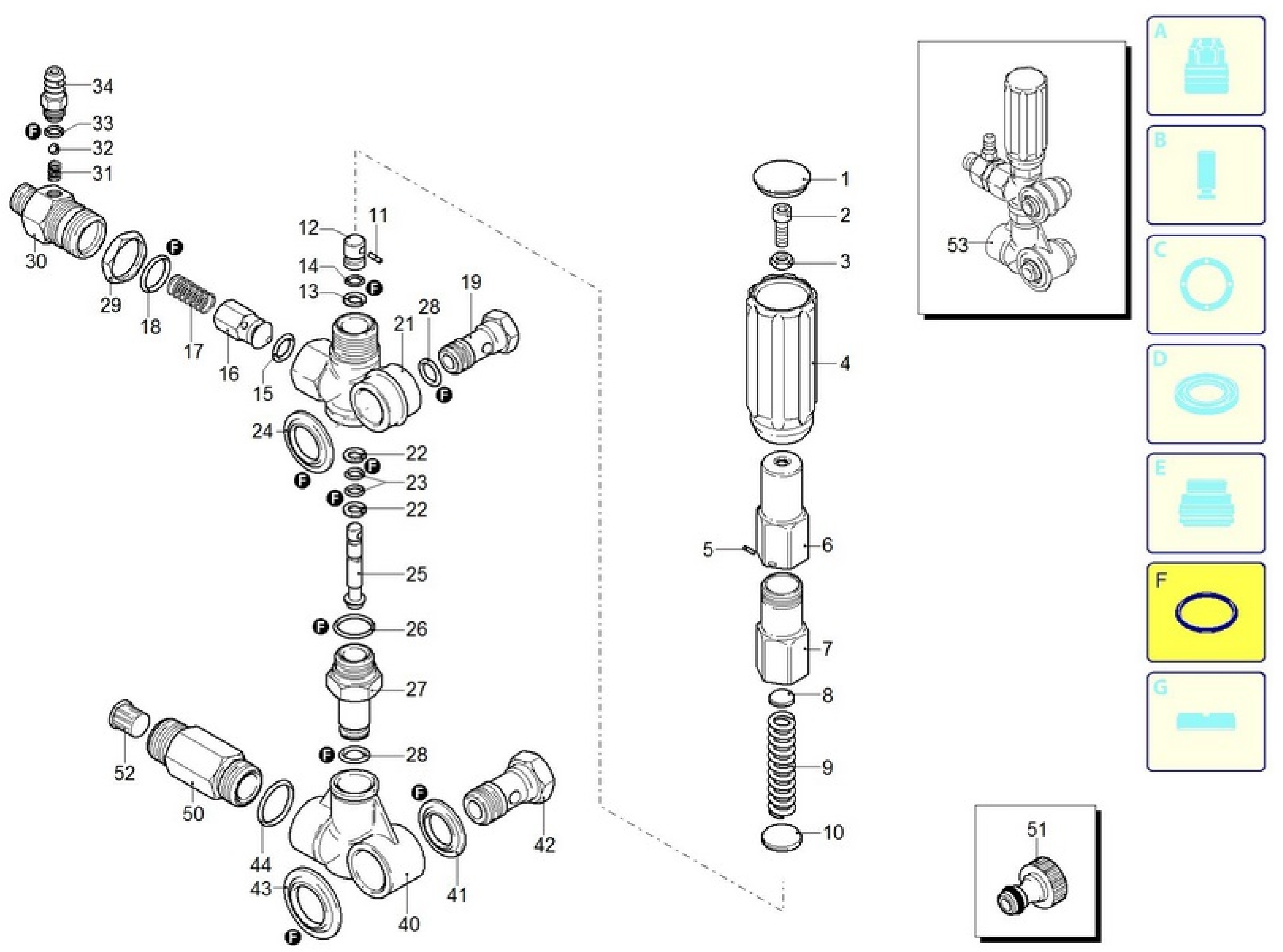

Valve 840 H4S - 22195 Pag.3
1 1560580 Cork
2 540290 Screw
3 1660210 Nut
4 1560400 Knob
5 1080070 Plug
6 1560420 Screw
7 1560410 Guide
8 1560440 Disk
9 1560350 Spring
10 1080610 Disk
11 1080660 Plug
12 1080540 Piston
13 391000 O-Ring
14 1080640 Ring
15 1560150 O-Ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-Ring
19 1540272 Screw
21 1560010 Valve Body
22 1080550 Ring
23 480480 O-Ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-Ring
27 1560051 Junction
28 390080 O-Ring
29 1560510 Nut
30 1560530 Junction
31 1560520 Spring
32 1250280 Ball
33 480480 O-Ring
34 1560490 Hose
40 1540020 Collector
41 1540120 Washer
42 1540090 Junction
43 1560290 Washer
44 480440 O-Ring
50 1560880 Junction
51 40393 Junction
52 1340260 Filter
53 22454 Valve Complete
F 2611 Seal Kit
Accessories 840 H4S - 22195 Pag.4
1 3082 Nozzle
2 40541 Spear + Head Without Nozzle
3 40650 Spear + Head
4 41322 Gun
5 1540110 Washer
6 3119 High Pressure Tube

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG 840 H4S Line - 22195
6 Items

Specific References

New

Download

Diagram AR Farmer's 840

Diagram AR Farmer's 840

Download (427.79KB)

You might also like

Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Comments (0)
