Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

SKU: PROLINER SV 1510 TSS RLW - 12320
€30.06
VAT included

ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
  • ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

SKU: PROLINER SV 1510 TSS RLW - 12320 Condition: New
€30.06
VAT included

ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER SV 1510 TSS RLW - 12320
settings 114 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

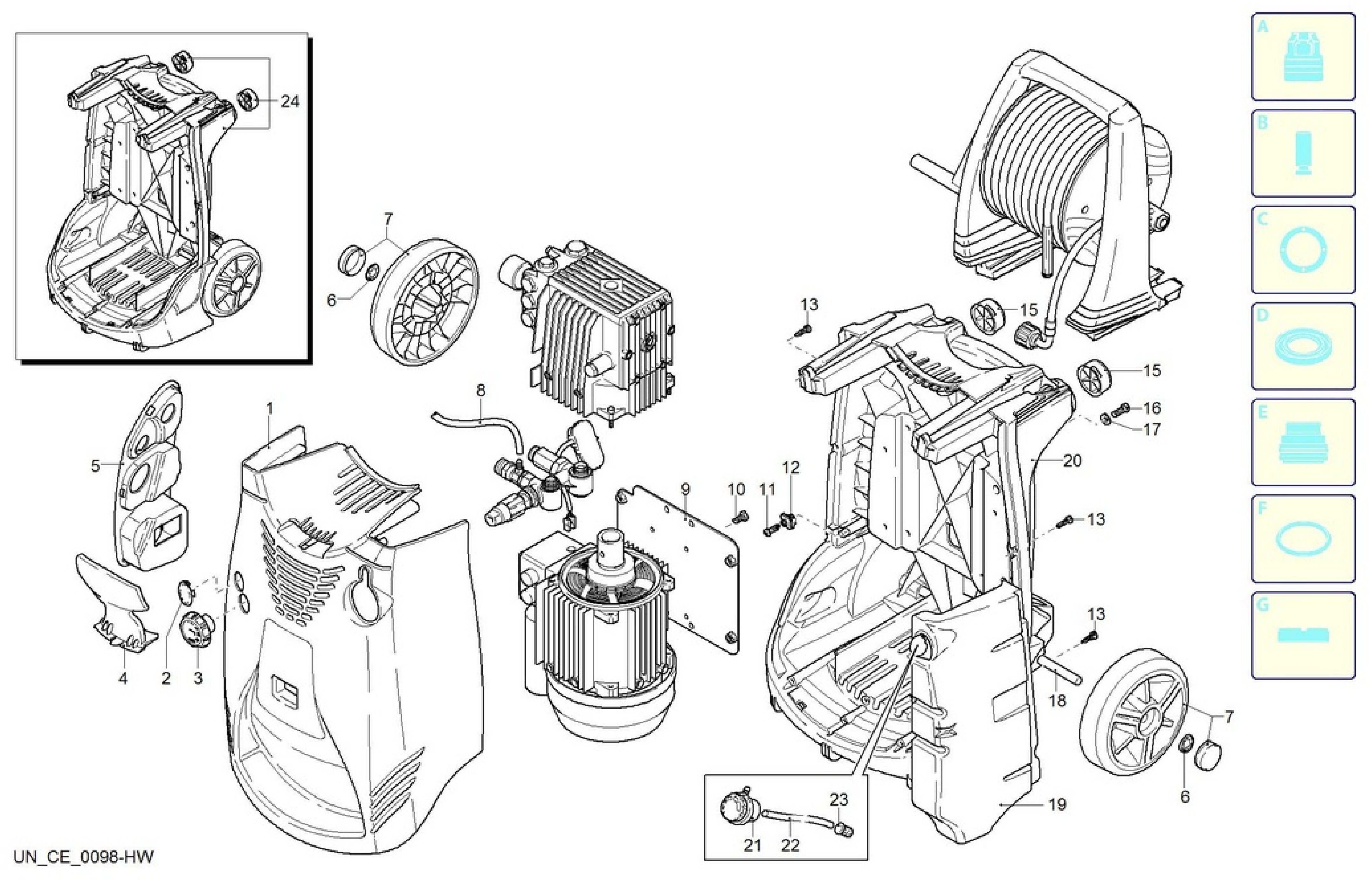

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2500044 Yellow Casing €57.45
2
 photo_cameraImage coming soon 1263020 Clamp €4.67
2
 photo_cameraImage coming soon 2500340 Stopper €2.46
3
 photo_cameraImage coming soon 2500310 knob €7.15
4
 photo_cameraImage coming soon 2500050 hook €6.68
5
 photo_cameraImage coming soon 2100070 Conveyor €1.71
5
 photo_cameraImage coming soon 2500240 Bowl €12.18
6
 Annovi AR747 Lock Washer 1680880 Annovi AR747 Lock Washer €1.03
da 5 pz: €0.10
7
 Wheel for Pressure Washers AR Farmer's - AR Blu Clean 2500320 Wheel for Pressure Washers AR Farmer's - AR Blu Clean €11.86
8
 photo_cameraImage coming soon 2500330 pipe cleaner €4.40
9
 photo_cameraImage coming soon 2500100 Plate €19.22
11
 photo_cameraImage coming soon 2100300 screw €4.72
12
 photo_cameraImage coming soon 2600100 cable clamp €2.74
15
 ARSG - AR Pressure Washer Grommet 2500130 ARSG - AR Pressure Washer Grommet €3.09
16
 photo_cameraImage coming soon 880280 screw €2.03
17
 photo_cameraImage coming soon 2180300 washer €2.20
18
 photo_cameraImage coming soon 2500120 Axle €16.59
19
 photo_cameraImage coming soon 2500110 tank €23.19
20
 photo_cameraImage coming soon 2500010 base €82.50
21
 photo_cameraImage coming soon 42113 Pre-assembly plug €5.62
23
 photo_cameraImage coming soon 2000230 filter €2.03
24
 photo_cameraImage coming soon 2509000 Pre-assembly base €111.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

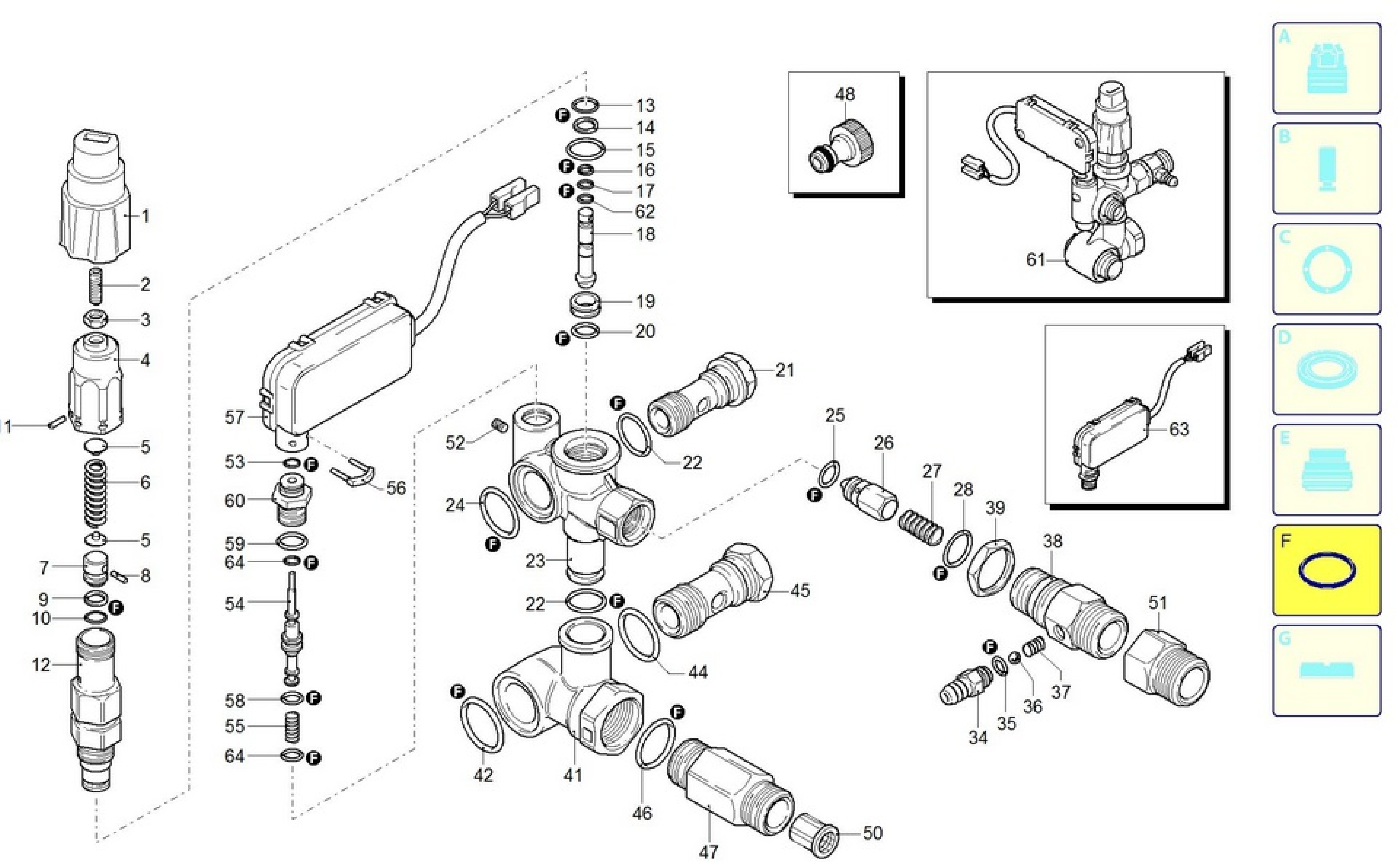

Esploso pagina 2
Pos. Item Price Buy
A
 photo_cameraImage coming soon 1864 Kit Valves €29.19
C
 Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER 1865 Oil Sealed for Pressure Washers AR Farmer's Division BLITZ-PROLINER €22.86
E
 Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1866 Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €42.50
F
 Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS 2040 Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS €6.90
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
B
 photo_cameraImage coming soon 2628 Piston Kit €79.19
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
2
 photo_cameraImage coming soon 1269101 Cover €21.37
3
 photo_cameraImage coming soon 1260040 Oil Seal €3.64
3
 photo_cameraImage coming soon 2100540 Junction €5.28
4
 photo_cameraImage coming soon 1260780 Screw €4.81
4
 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 2122 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 €19.40
5
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
5
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
6
 photo_cameraImage coming soon 740290 O-ring €2.67
7
 Pump Body for Pressure Washer ARSG PROLINER XPRO 9.14 TSS 1260012 Pump Body for Pressure Washer ARSG PROLINER XPRO 9.14 TSS €96.77
8
 photo_cameraImage coming soon 1266740 Oil Seal €3.95
8
 Water Seal for Pressure Washers ARSG FRESH FOG 2200140 Water Seal for Pressure Washers ARSG FRESH FOG €1.37
9
 photo_cameraImage coming soon 1260790 Ring €1.36
9
 AR Seal Support Ring D.12 2020040 AR Seal Support Ring D.12 €5.14
10
 photo_cameraImage coming soon 1320370 Bearing €5.94
10
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
11
 photo_cameraImage coming soon 1320330 Bushing €17.60
11
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
12
 photo_cameraImage coming soon 1260460 oil seal €4.47
12
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
13
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
13
 photo_cameraImage coming soon 2100130 Piston €9.67
14
 O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 1260420 O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 €0.38
14
 photo_cameraImage coming soon 2020140 Ring €5.00
15
 photo_cameraImage coming soon 1260151 Piston Guide €8.54
15
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
16
 photo_cameraImage coming soon 1271650 Water Seal €5.94
16
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
17
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
18
 photo_cameraImage coming soon 2020481 Office €8.66
18
 photo_cameraImage coming soon 820361 Stopper €4.41
19
 photo_cameraImage coming soon 180101 O-Ring €4.73
19
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
20
 photo_cameraImage coming soon 1320022 Head €132.10
20
 photo_cameraImage coming soon 1460150 Piston €6.43
22
 photo_cameraImage coming soon 680570 Screw €5.48
23
 photo_cameraImage coming soon 1080190 O-ring €4.40
23
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
24
 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
24
 photo_cameraImage coming soon 2021900 Piston €10.84
25
 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 1269050 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 €4.43
25
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
26
 photo_cameraImage coming soon 1343450 Disk €3.26
26
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
27
 photo_cameraImage coming soon 1343160 Junction €6.22
28
 photo_cameraImage coming soon 1343000 Disk €5.37
28
 Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 3232 Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 €34.75
34
 photo_cameraImage coming soon 1080070 plug €2.64
35
 photo_cameraImage coming soon 1320140 Piston Rod €25.00
36
 photo_cameraImage coming soon 1260070 Piston €20.01
36
 photo_cameraImage coming soon 2100960 Screw €4.41
37
 photo_cameraImage coming soon 1260080 Plug €2.19
39
 photo_cameraImage coming soon 480480 O-ring €5.63
41
 photo_cameraImage coming soon 1461470 junction €3.26
42
 photo_cameraImage coming soon 1260110 Nut €1.65
46
 photo_cameraImage coming soon 800560 O-ring €1.59
47
 photo_cameraImage coming soon 391000 O-Ring €4.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

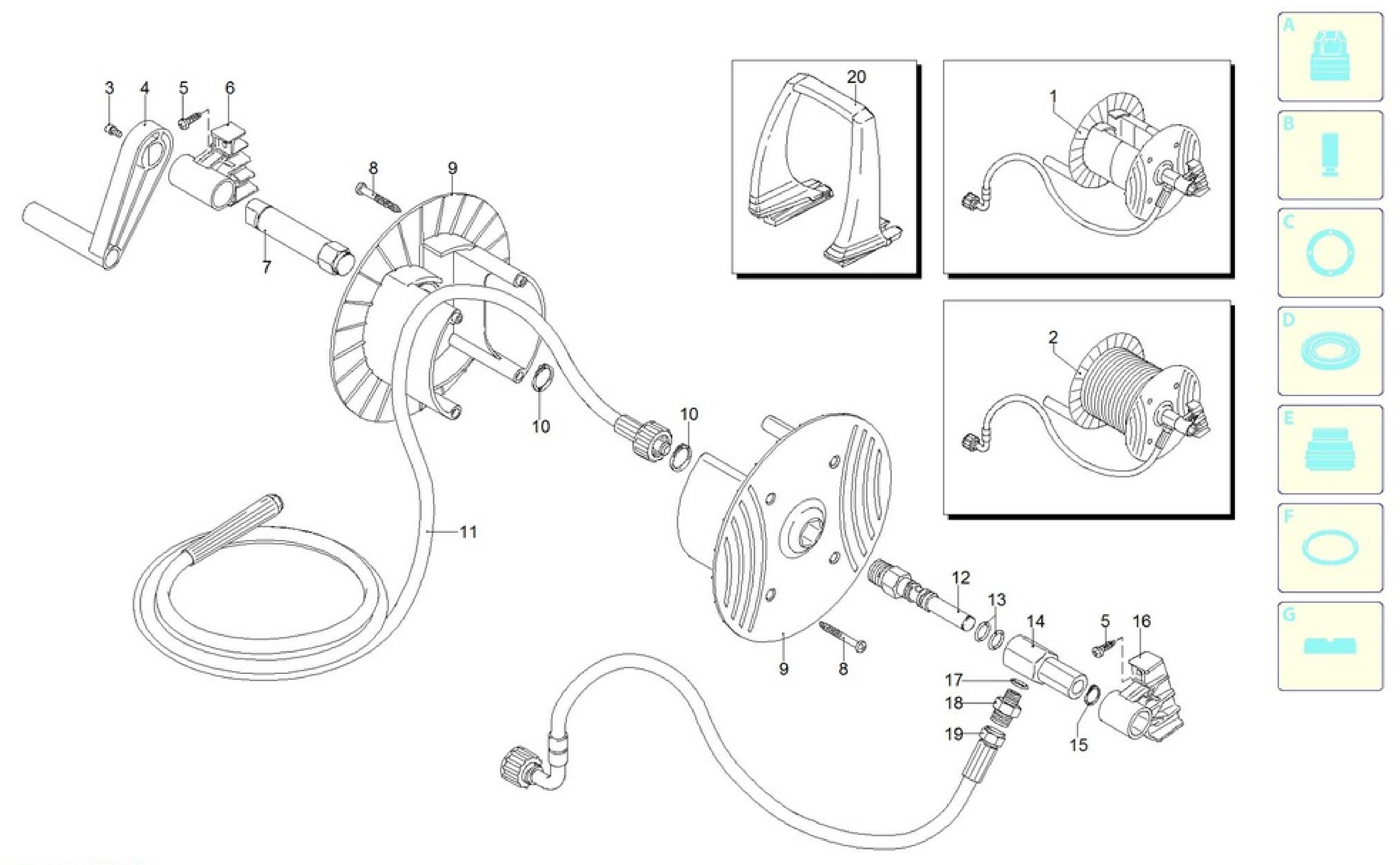

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2100280 Headphones €5.13
2
 photo_cameraImage coming soon 2102070 Switch €12.38
3
 AR Capacitor Box for AR 111 2100060 AR Capacitor Box for AR 111 €6.13
da 2 pz: €0.50
4
 Annovi Reverberi O-Ring for Pressure Washer 2590 390201 Annovi Reverberi O-Ring for Pressure Washer 2590 €0.87
5
 photo_cameraImage coming soon 1683790 Capacitor €9.26
6
 photo_cameraImage coming soon 1262400 washer €1.73
7
 photo_cameraImage coming soon 2020570 screw €1.59
9
 photo_cameraImage coming soon 2109204 Pre-Installing The Pump Body €13.55
10
 photo_cameraImage coming soon 2102050 Box €5.70
11
 photo_cameraImage coming soon 1462900 Cable Sleeve €2.19
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

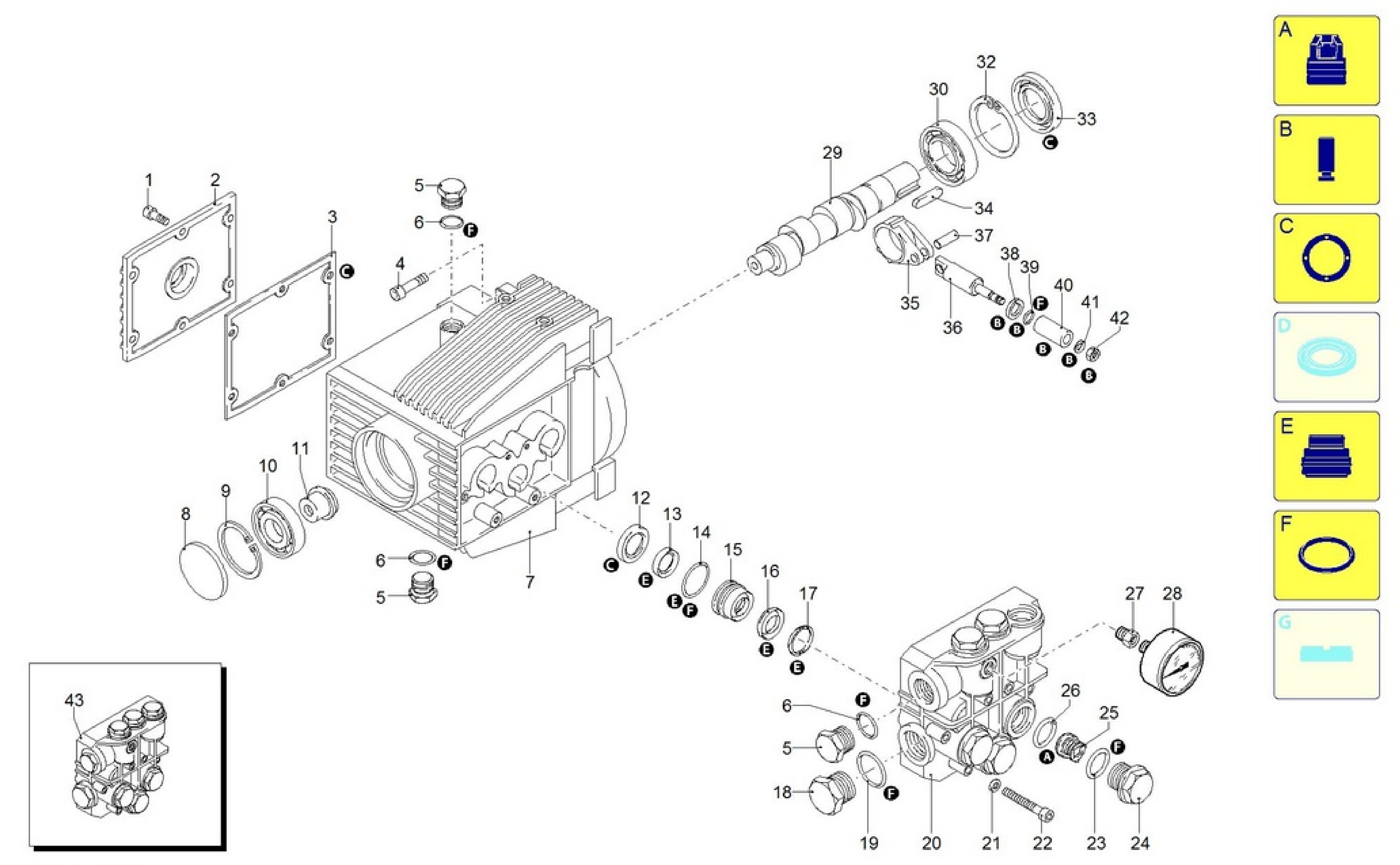

Esploso pagina 4
Pos. Item Price Buy
29
 photo_cameraImage coming soon 1260180 Tree €75.73
29
 photo_cameraImage coming soon 1980390 insert €11.72
30
 photo_cameraImage coming soon 1060120 Nut €1.54
32
 photo_cameraImage coming soon 1981780 Knob €2.28
32
 Disc for Wood Lathe Machines Fox F46-717A F46717A-32 Disc for Wood Lathe Machines Fox F46-717A €34.43
33
 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
40
 photo_cameraImage coming soon 2101450 Flange €6.77
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

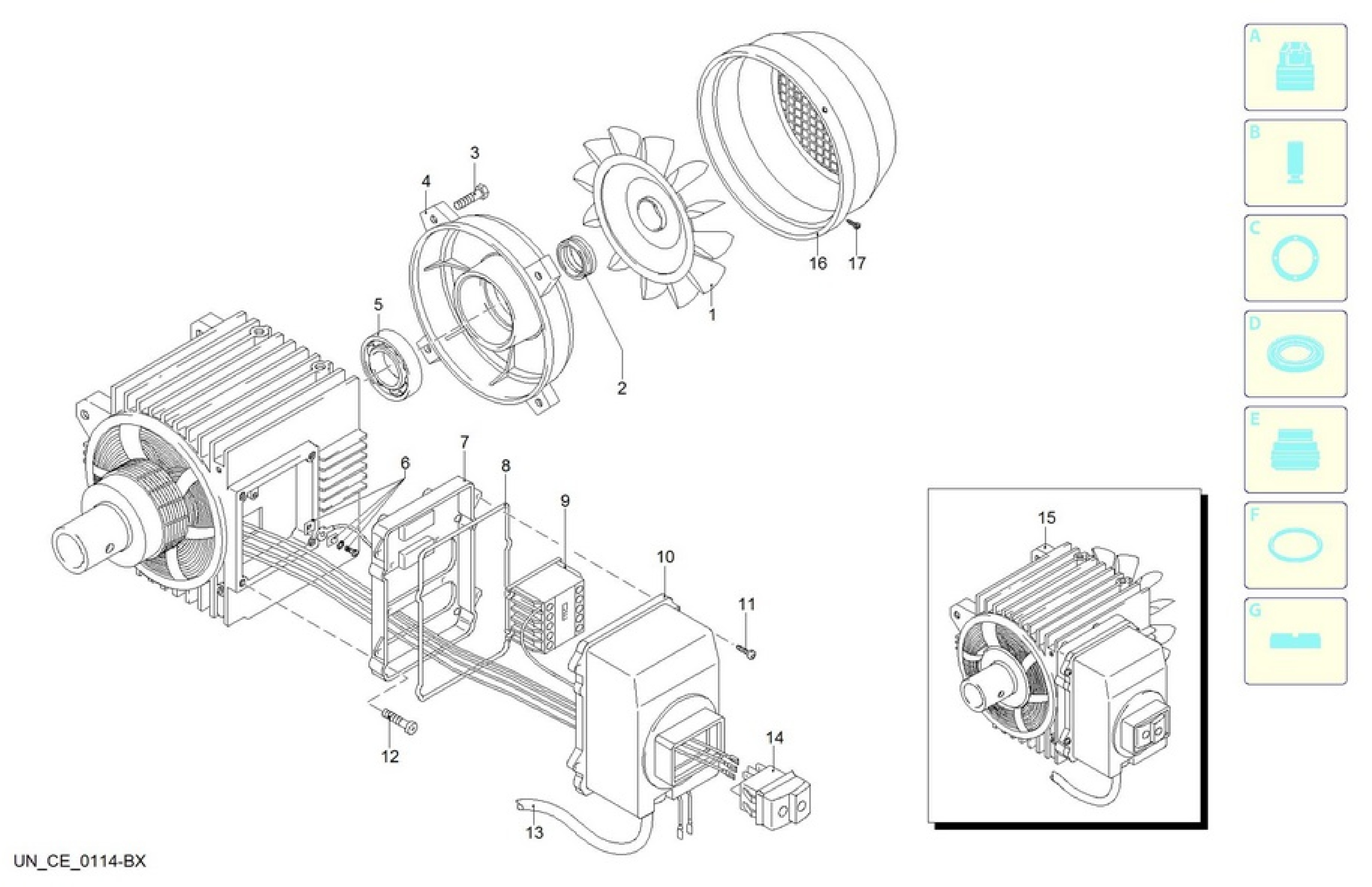

Esploso pagina 5
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

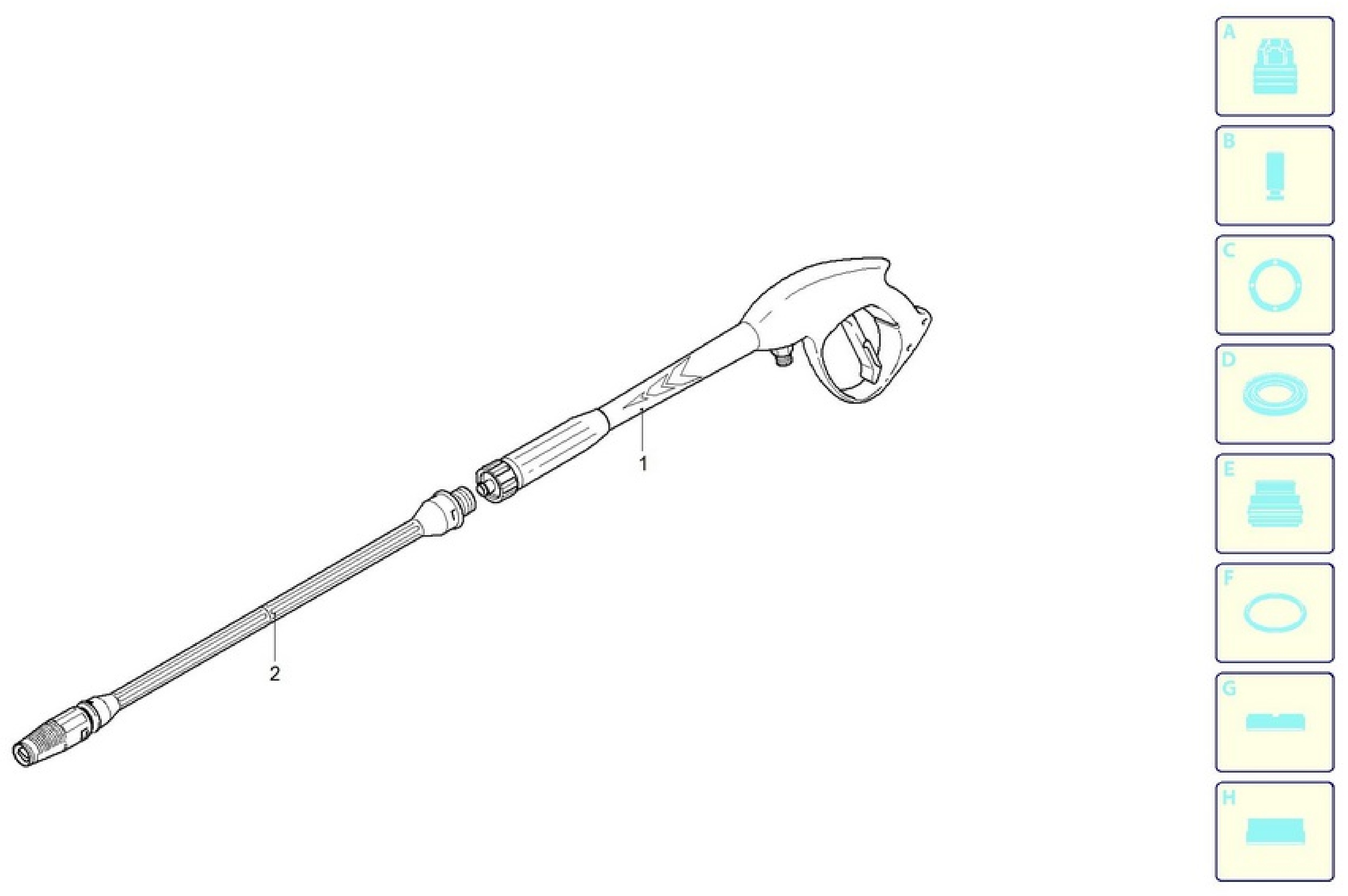

Esploso pagina 6
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER SV 1510 TSS RLW - 12320

In the following tables, look for the spare part and its respective code.

Casing SV 1510 TSS RLW - 12320 Pag.1
1 2500044 Yellow Casing
2 2500340 Stopper
3 2500310 Knob
4 2500050 Hook
5 2500240 Bowl
6 1680880 Washer
7 2500320 Wheel
8 2500330 Tube Cleaner
9 2500100 Plate
10 1260470 Screw
11 2100300 Screw
12 2600100 Strain Relief
13 2100300 Screw
15 2500130 Rubber
16 880280 Screw
17 2180300 Washer
18 2500120 Axle
19 2500110 Tank
20 2500010 Base
21 42113 Pre-Assembly Plug
22 2500330 Tube Cleaner
23 2000230 Filter
24 2509000 Pre-Assembly Base
Pump SV 1510 TSS RLW - 12320 Pag.2
1 1260760 Screw
2 1269101 Cover
3 1260040 Oil Seal
4 1260780 Screw
5 1980740 Stopper
6 740290 O-Ring
7 1260012 Pump Body
8 1266740 Oil Seal
9 1260790 Ring
10 1320370 Bearing
11 1320330 Bush
12 1260460 Oil Seal
13 1260440 Watertight
14 1260420 O-Ring
15 1260151 Piston Guide
16 1271650 Watertight
17 1520120 Ring
18 820361 Stopper
19 180101 O-Ring
20 1320022 Head
21 1381550 Washer
22 680570 Screw
23 960160 O-Ring
24 1260162 Stopper
25 1269050 Complete Valve
26 880830 O-Ring
27 1343160 Junction
28 3232 Manometer
29 1260180 Shaft
30 1320370 Bearing
32 1260790 Ring
33 1260750 Ring
34 1380520 Tongue
35 1320140 Piston Rod
36 1260070 Piston
37 1260080 Thorn
38 1260091 Disk
39 480480 O-Ring
40 1260121 Piston
41 1260100 Washer
42 1260110 Nut
43 1269253 Pre-Assembly Head
A 1864 Valve Kit
B 2628 Piston Kit
C 1865 Oil Seals Kit
E 1866 Kit Held Water
F 2040 Seal Kit
Valve SV 1510 TSS RLW - 12320 Pag.3
1 2500210 Knob
2 392840 Screw
3 1980300 Nut
4 2500540 Insert
5 1980220 Disk
6 1271070 Spring
7 1080041 Piston
8 1080070 Thorn
9 1080401 Ring
10 1080250 O-Ring
11 1080070 Thorn
12 1980210 Piston Guide
13 740290 O-Ring
14 800560 O-Ring
15 880830 O-Ring
16 1271170 Ring
17 1080190 O-Ring
18 1271160 Piston
19 1980200 Office
20 1470210 O-Ring
21 1540272 Screw
22 390080 O-Ring
23 1540660 Valve Body
24 1140450 O-Ring
25 1460430 O-Ring
26 1540170 Shutter
27 1080091 Spring
28 394280 O-Ring
34 1560490 Hose
35 480480 O-Ring
36 1250280 Sphere
37 1560520 Spring
38 1540570 Junction
39 1540300 Nut
41 1540280 Collector
42 1540630 O-Ring
44 880270 O-Ring
45 2260420 Screw
46 480440 O-Ring
47 1560900 Junction
48 1461470 Junction
50 1340260 Filter
51 1123960 Junction
52 1981190 Screw
53 1260820 O-Ring
54 1540881 Piston
55 1981320 Spring
56 2022201 Fork
57 2029753 Pre-Assembly Box TSS
58 660191 O-Ring
59 880840 O-Ring
60 1540870 Stopper
61 22075 Complete Valve
62 1120681 O-Ring
63 42458 Kit TSS
64 1080192 O-Ring
F 42451 Seal Kit
Motor SV 1510 TSS RLW - 12320 Pag.4
1 1260300 Fan
2 1260970 Seal
3 480621 Screw
4 1260961 Shield
5 1260950 Bearing
6 1269100 Clamp
7 1981590 Box
8 2180670 O-Ring
9 1700740 Mini-Contactor
10 1981600 Cover
11 2000210 Screw
12 1261560 Screw
13 1270980 Cable
14 2320280 Switch
15 44001 Engine
16 1271660 Fan Cover
17 1261570 Screw
RLW S-SV 1510 TSS RLW - 12320 Pag.5
1 40644 Pre Assembly Hose Reel
2 40377 Hose Pre-Assembly
3 2360360 Screw
4 2360150 Lever
5 2100300 Screw
6 2500060 Stirrup
7 2500360 Pin
8 1681280 Screw
9 2360230 Disk
10 380420 Ring
11 2500390 High Pressure Tube
12 2360210 Pin
13 390080 O-Ring
14 2360220 Junction
15 2360320 Ring
16 2500070 Stirrup
17 820510 O-Ring
18 2360310 Junction
19 2360250 High Pressure Tube
20 2500020 Handle
Accessories SV 1510 TSS RLW - 12320 Pag.6
1 40925 Gun
2 40039 Lance + Nozle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
PROLINER SV 1510 TSS RLW - 12320
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's SV 1510 RLW

Diagram AR Farmer's SV 1510 RLW

Download (745.22KB)

You might also like

Gauge for Pressure Washers Annovi & Reverberi AR777-787-797
Annovi Reverberi S.p.A. SKU: 3232
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797
Gauge for Pressure Washers Annovi & Reverberi AR777-787-797 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean AR 777 - AR 787 - AR 797 - AR 810 - AR 935 - AR 1005 - PROLINER SV 1510...
Last items in stock €34.75
Details
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Annovi Reverberi S.p.A. SKU: 2500320
Wheel for Pressure Washers AR Farmer's - AR Blu Clean
Wheel for Pressure Washers AR Farmer's - AR Blu Clean Original Parts Annovi & Reverberi, Wheel for Pressure Washers ARSG - AR Blu Clean - Michelin. Part for the following items: - ARSG - Models 50 Hz - Proliner Z - 8.150 Z TSS -...
Last items in stock €11.86
Details
Collector Screw for Pressure Washers Annovi & Reverberi
Annovi Reverberi S.p.A. SKU: 2260420
Collector Screw for Pressure Washers Annovi & Reverberi
Collector Screw for Pressure Washers Annovi Reverberi Genuine Spare Part Annovi Reverberi, Collector Screw for Pressure Washers Blitz - 8.13 - 8.15 - 10.12 - Proliner SV - SV 1310 TSS - SV 1510 TSS...
Last items in stock €8.09
Details
Motor Bearing for Pressure Washer AR767 Sale
Annovi Reverberi S.p.A. SKU: 1260950
Motor Bearing for Pressure Washer AR767
Motor Bearing for Pressure Washer AR767 Genuine part Annovi & Reverberi, Motor Bearing (6205 Z) for Pressure Washers Annovi & Reverberi AR BC Serie 7 - 767 - 12364 - 767 RLW - 12409 - 777 - 12365. Part For the Following...
AVAILABLE €7.01
Details
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS
Annovi Reverberi S.p.A. SKU: 2040
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS
Gasket Kit for Pressure Washer ARSG Proliner SV - SV 1310 TSS Genuine Part Annovi & Reverberi, O-Ring Gasket Kit for Pressure Washers ARSG Proliner SV - SV 1310 TSS - 12402 - Proliner SV - SV 1510 TSS - 12403, Part for the...
AVAILABLE €6.90
Details
ARSG - AR Pressure Washer Grommet
Annovi Reverberi S.p.A. SKU: 2500130
ARSG - AR Pressure Washer Grommet
ARSG - AR Pressure Washer Grommet Genuine part Annovi Reverberi, Grommet for Pressure Washers ARSG - AR. Part for the following products: - Annovi Reverberi 780 - 22341 - ARSG PROLINER Z 9.160 Z TSS - 12395 - ARSG PROLINER...
AVAILABLE €3.09
Details
Annovi Spring for Pressure Washer AR747
Annovi Reverberi S.p.A. SKU: 1981320
Annovi Spring for Pressure Washer AR747
Annovi Spring for Pressure Washer AR747 Genuine part Annovi Reverberi, TSS Spring DE 8,7 X 15,9 x 1,2 for Pressure Washer AR747 - AR767 - AR780. Part for the Following Products: -  Pressure Washer AR Farmer's...
AVAILABLE €1.54
Details
AR Spring for Pressure Washer AR6640
Annovi Reverberi S.p.A. SKU: 1271070
AR6640 Piston Guide Spring
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Details
Comments (0)
