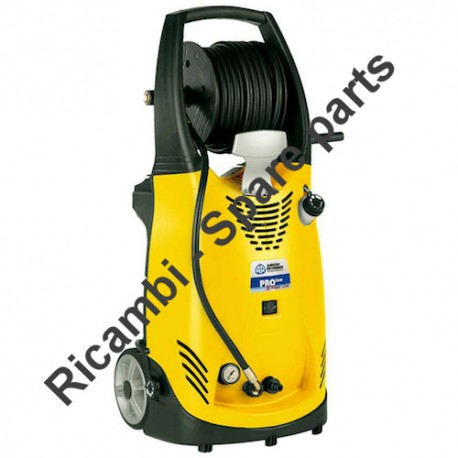

ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

SKU: PROLINER Z 9.160 Z TSS RLW 12495
€14.24
VAT included

ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
  • ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

SKU: PROLINER Z 9.160 Z TSS RLW 12495 Condition: New
€14.24
VAT included

ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495
settings 147 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

142 spare parts
Pos. Item Price Buy
21
photo_cameraImage coming soon 1270091 injector €12.02
22
photo_cameraImage coming soon 1981190 screw €1.58
24
photo_cameraImage coming soon 660190 O-ring €4.40
25
photo_cameraImage coming soon 1982990 piston €8.90

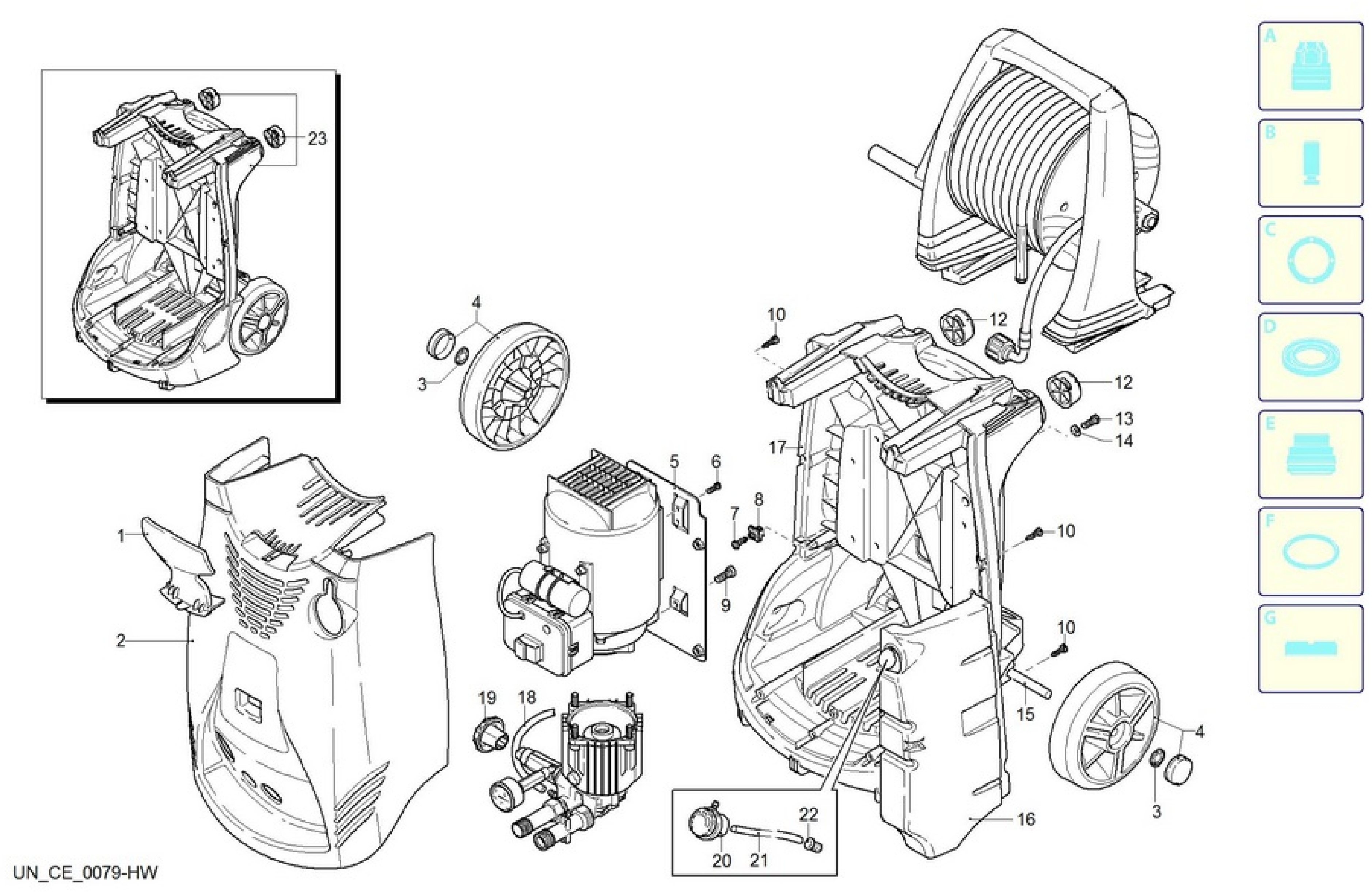

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
C
Kit Parts Oil Sealed for Pressure Washers Annovi & Reverberi 737-747 2511 Kit Parts Oil Sealed for Pressure Washers Annovi & Reverberi 737-747 €14.23
A
Kit Parts Valves for Pressure Washers Annovi & Reverberi 737-747 2581 Kit Parts Valves for Pressure Washers Annovi & Reverberi 737-747 €32.36
E
Kit Parts Water Sealed for Pressure Washers Annovi & Reverberi 737-747 2582 Kit Parts Water Sealed for Pressure Washers Annovi & Reverberi 737-747 €38.15
B
Kit Parts Pistons for Pressure Washers Annovi & Reverberi 737-747 2593 Kit Parts Pistons for Pressure Washers Annovi & Reverberi 737-747 €32.36
F
Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 2799 Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 €11.58
1
photo_cameraImage coming soon 2500050 hook €6.68
2
photo_cameraImage coming soon 2500034 Yellow Casing €26.65
3
Annovi AR747 Lock Washer 1680880 Annovi AR747 Lock Washer €1.03
da 5 pz: €0.10
4
Wheel for Pressure Washers AR Farmer's - AR Blu Clean 2500320 Wheel for Pressure Washers AR Farmer's - AR Blu Clean €11.86
5
photo_cameraImage coming soon 2500090 plate €24.97
6
photo_cameraImage coming soon 2320190 screw €1.58
7
photo_cameraImage coming soon 2100300 screw €4.72
8
photo_cameraImage coming soon 2600100 cable clamp €2.74
9
photo_cameraImage coming soon 850370 screw €2.26
12
ARSG - AR Pressure Washer Grommet 2500130 ARSG - AR Pressure Washer Grommet €3.09
13
photo_cameraImage coming soon 880280 screw €2.03
14
photo_cameraImage coming soon 2180300 washer €2.20
15
photo_cameraImage coming soon 2500120 Axle €16.59
16
photo_cameraImage coming soon 2500110 tank €23.19
17
photo_cameraImage coming soon 2500010 base €82.50
18
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
19
photo_cameraImage coming soon 2500310 knob €7.15
20
photo_cameraImage coming soon 42113 Pre-assembly plug €5.62
21
photo_cameraImage coming soon 2500330 pipe cleaner €4.40
22
photo_cameraImage coming soon 2000230 filter €2.03
23
photo_cameraImage coming soon 2509000 Pre-assembly base €111.35

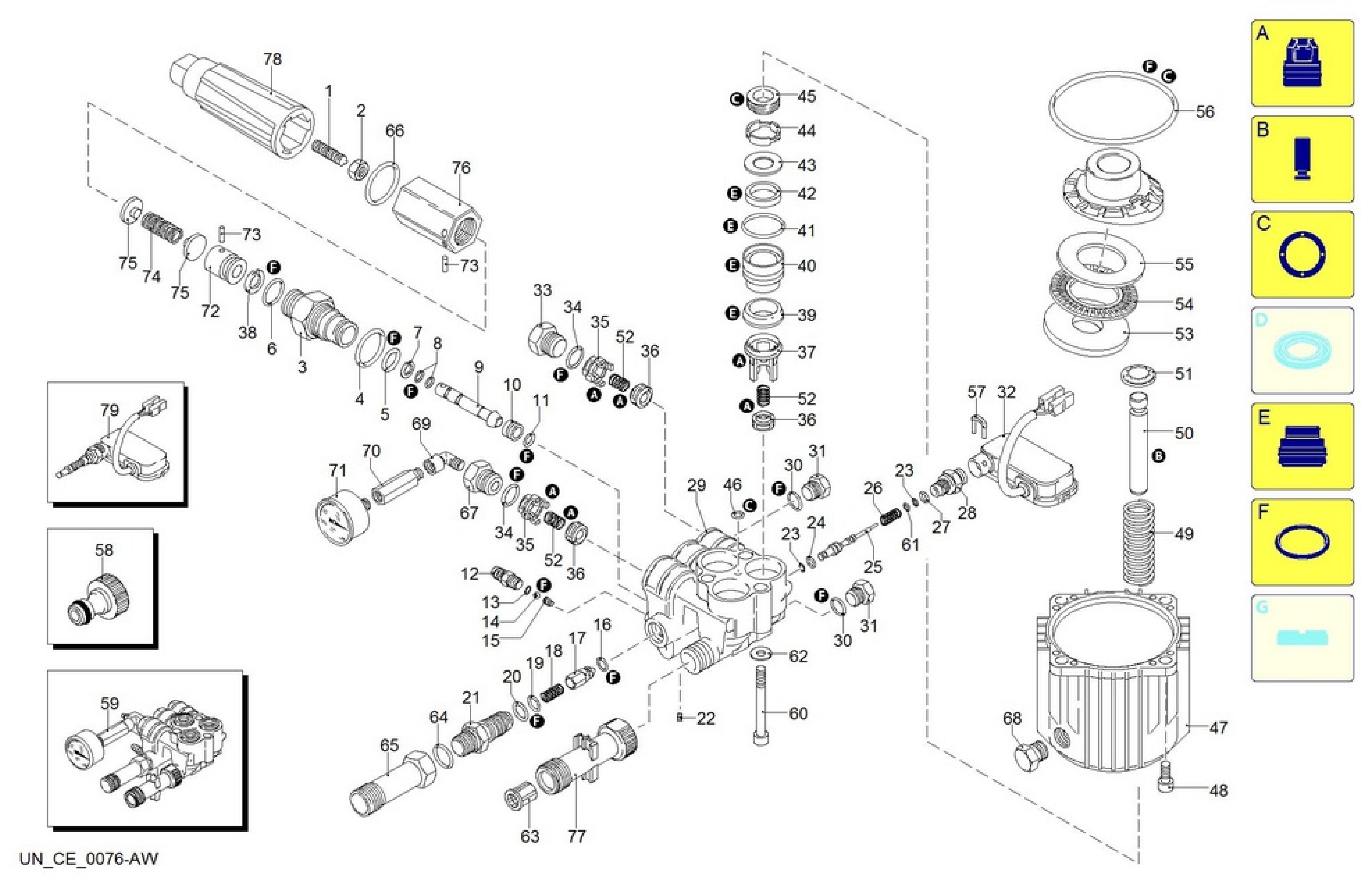

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1980470 screw €1.73
2
photo_cameraImage coming soon 1980300 nut €1.58
3
photo_cameraImage coming soon 1980210 piston guide €15.49
4
photo_cameraImage coming soon 740290 O-ring €2.67
5
photo_cameraImage coming soon 800560 O-ring €1.59
6
O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
7
photo_cameraImage coming soon 1271170 ring €2.03
8
photo_cameraImage coming soon 1080190 O-ring €4.40
9
photo_cameraImage coming soon 1271160 piston €19.89
10
photo_cameraImage coming soon 1980200 seat €8.07
11
photo_cameraImage coming soon 1470210 O-ring €1.58
12
photo_cameraImage coming soon 1982520 Hose €6.27
13
photo_cameraImage coming soon 480480 O-ring €5.63
14
photo_cameraImage coming soon 1250280 sphere €2.67
15
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
16
photo_cameraImage coming soon 1460430 O-ring €4.60
17
photo_cameraImage coming soon 1540170 shutter €5.08
18
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
19
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
20
photo_cameraImage coming soon 1200690 O-ring €4.26

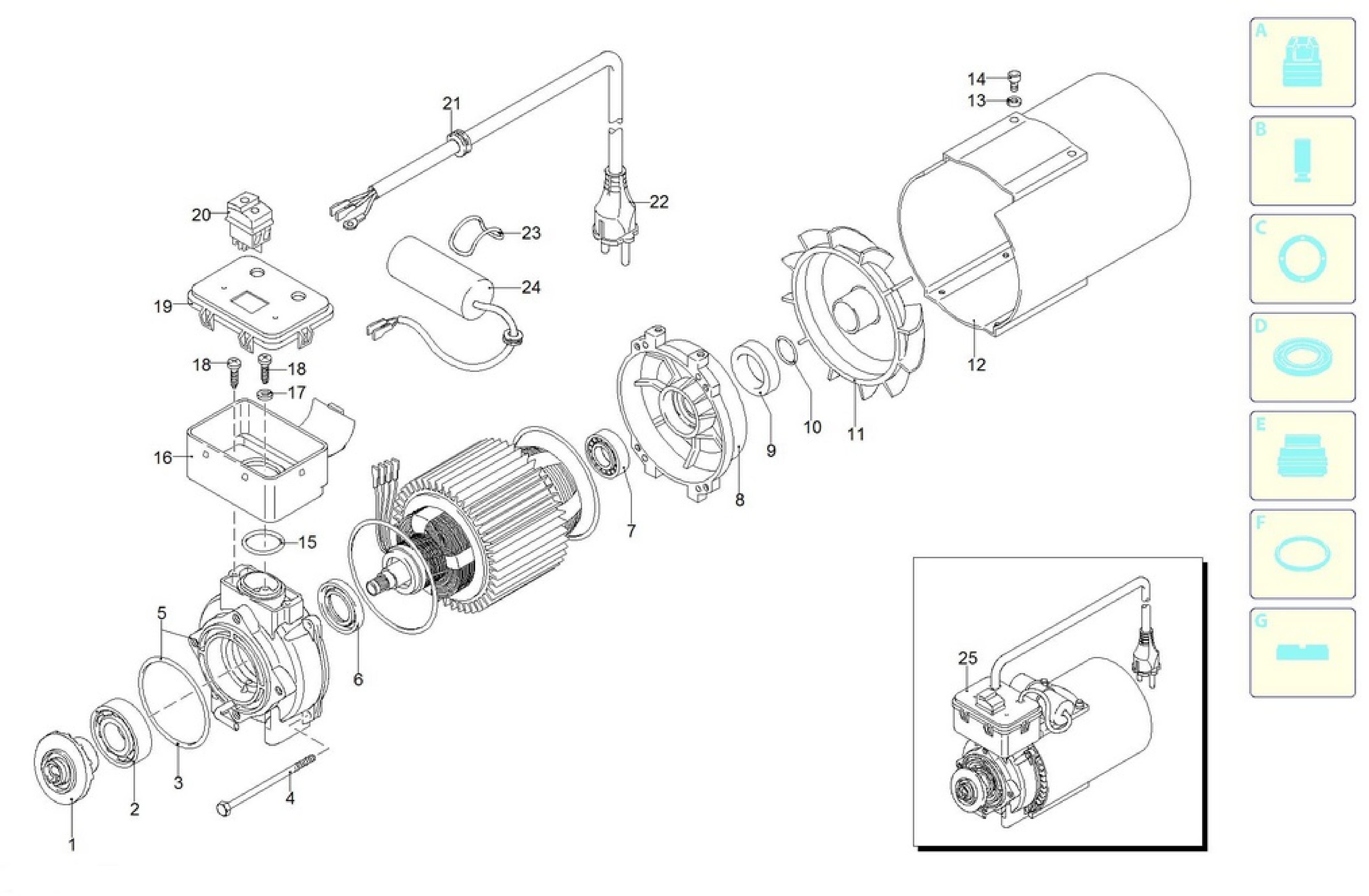

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1983110 disk €25.86
2
photo_cameraImage coming soon 1981210 bearing €17.05
4
photo_cameraImage coming soon 2320830 screw €2.34
5
photo_cameraImage coming soon 1982040 flange €41.45
6
Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
7
photo_cameraImage coming soon 1460590 bearing €7.15
8
photo_cameraImage coming soon 1460040 shield €23.19
9
photo_cameraImage coming soon 1461200 oil seal €1.88
11
photo_cameraImage coming soon 1460370 fan €6.01
12
photo_cameraImage coming soon 1460340 conveyor €16.59
13
photo_cameraImage coming soon 1680960 washer €1.51
14
photo_cameraImage coming soon 1460460 screw €1.58
15
photo_cameraImage coming soon 660170 O-ring €1.81
16
photo_cameraImage coming soon 2320131 box €6.85
17
photo_cameraImage coming soon 1262400 washer €1.73
18
photo_cameraImage coming soon 2020570 screw €1.59
19
photo_cameraImage coming soon 2320270 cover €6.37
20
Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 2320280 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 €10.01
21
photo_cameraImage coming soon 2021480 Grommet €4.16
22
photo_cameraImage coming soon 1760450 cable €28.26
23
photo_cameraImage coming soon 2100840 O-ring €1.97
24
Capacitor for Pressure Washers Annovi & Reverberi AR747 1982190 Capacitor for Pressure Washers Annovi & Reverberi AR747 €28.62
25
photo_cameraImage coming soon 4704 engine €295.77
26
Annovi Spring for Pressure Washer AR747 1981320 Annovi Spring for Pressure Washer AR747 €1.54
27
O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
28
photo_cameraImage coming soon 1983360 junction €15.49
29
photo_cameraImage coming soon 1982170 head €138.81
30
photo_cameraImage coming soon 820510 O-ring €5.63
31
photo_cameraImage coming soon 880581 stopper €7.73
32
photo_cameraImage coming soon 2029752 Pre-assembly box TSS €34.86
33
Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
34
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
35
photo_cameraImage coming soon 1981460 bushing €2.57
36
photo_cameraImage coming soon 880240 valve €2.34
37
photo_cameraImage coming soon 1981450 bushing €3.04
38
photo_cameraImage coming soon 1080401 ring €2.13
39
photo_cameraImage coming soon 2460180 Tenuta water €7.58
40
photo_cameraImage coming soon 1981470 piston guide €15.37
41
photo_cameraImage coming soon 770130 O-ring €1.58
42
photo_cameraImage coming soon 1260440 Watertight 3 €4.53
43
photo_cameraImage coming soon 1980170 ring €3.93
44
photo_cameraImage coming soon 1980430 spacer €2.12
45
photo_cameraImage coming soon 1260460 oil seal €4.47
46
photo_cameraImage coming soon 770090 O-ring €1.58
47
photo_cameraImage coming soon 1980460 pump body €39.80
48
photo_cameraImage coming soon 180030 screw €2.03
49
photo_cameraImage coming soon 1981140 spring €3.87
50
Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME 1981440 Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME €18.24
51
photo_cameraImage coming soon 1980150 ring €2.26
52
photo_cameraImage coming soon 1322230 spring €2.20
53
photo_cameraImage coming soon 1980130 Fifth wheel €14.60
54
photo_cameraImage coming soon 1980250 Fifth wheel €10.28
55
photo_cameraImage coming soon 1980240 Fifth wheel €4.47
56
photo_cameraImage coming soon 1980340 O-ring €2.26
57
photo_cameraImage coming soon 2022201 fork €3.36
58
photo_cameraImage coming soon 1461470 junction €3.26
59
photo_cameraImage coming soon 1989264 Pre-assembly head €299.48
60
photo_cameraImage coming soon 1980310 screw €2.34
61
photo_cameraImage coming soon 1260820 O-ring €1.59
62
photo_cameraImage coming soon 650530 washer €2.03
63
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
64
photo_cameraImage coming soon 390180 O-ring €1.58
65
photo_cameraImage coming soon 2440210 extension €20.71
66
photo_cameraImage coming soon 1150640 O-ring €1.97
67
photo_cameraImage coming soon 2500450 stopper €21.54
68
photo_cameraImage coming soon 1980290 stopper €5.84
69
photo_cameraImage coming soon 1465850 junction €7.22
70
photo_cameraImage coming soon 2500140 extension €7.22
71
Gauge for Pressure Washers Annovi & Reverberi AR747-780 3230 Gauge for Pressure Washers Annovi & Reverberi AR747-780 €27.18
72
photo_cameraImage coming soon 1080041 piston €12.34
73
photo_cameraImage coming soon 1080070 plug €2.64
74
AR6640 Piston Guide Spring 1271070 AR6640 Piston Guide Spring €3.01
75
photo_cameraImage coming soon 1980220 disk €2.13
76
photo_cameraImage coming soon 1980390 insert €11.72
77
photo_cameraImage coming soon 2500270 extension + 1267810 >>42575 €5.17
78
photo_cameraImage coming soon 2500080 knob €3.57
79
photo_cameraImage coming soon 42143 Kit Tss €33.06

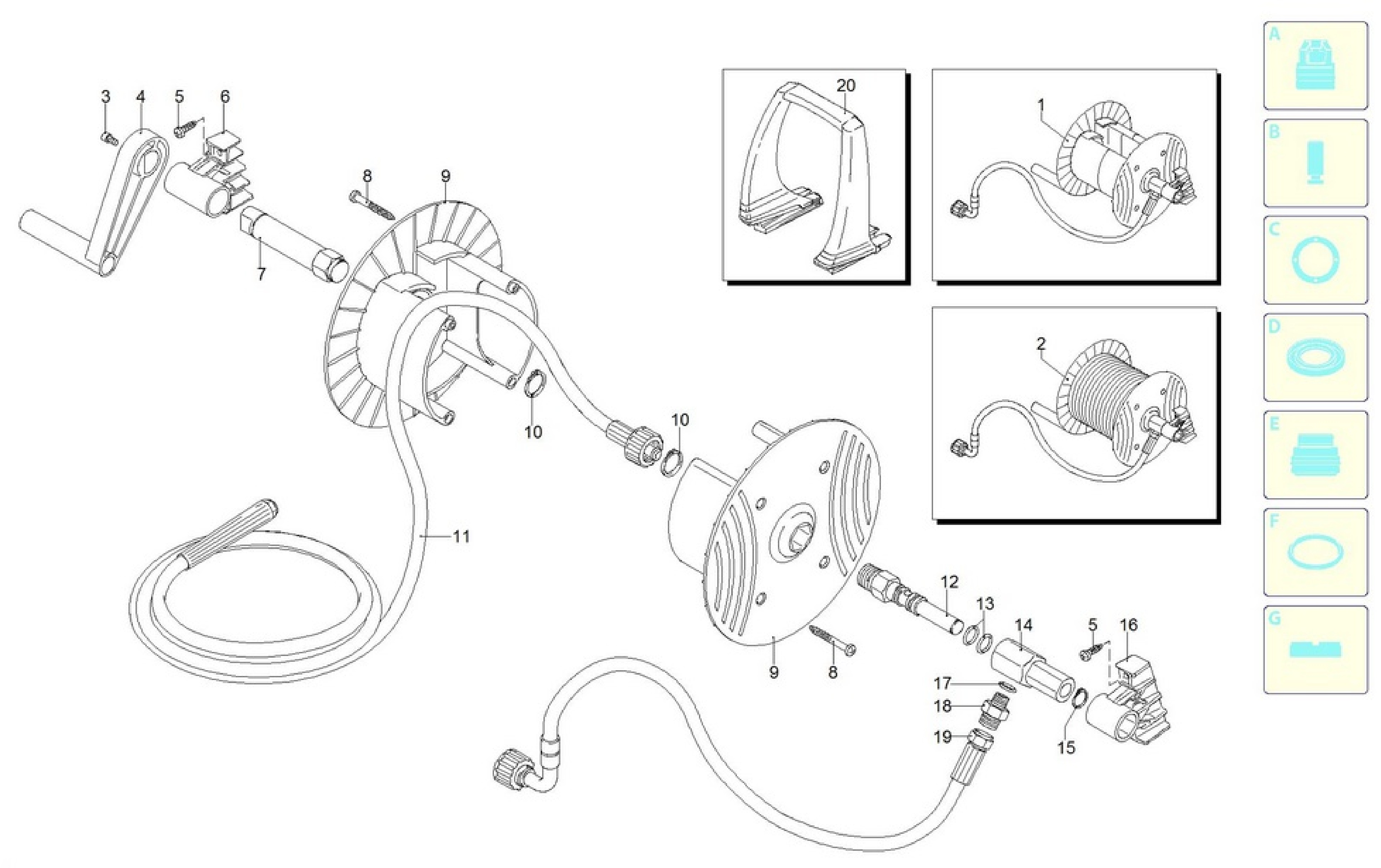

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 40644 Pre Mounting Hose Reel €146.19
2
photo_cameraImage coming soon 40377 Hose Pre-Assembly €273.24
4
photo_cameraImage coming soon 2360150 Lever €3.04
6
photo_cameraImage coming soon 2500060 Stirrup €7.54
7
photo_cameraImage coming soon 2500360 Pin €21.76
9
photo_cameraImage coming soon 2360230 Disk €12.57
11
photo_cameraImage coming soon 2500460 High Pressure Tube €178.08
12
photo_cameraImage coming soon 2360210 Pin €21.76
13
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
14
photo_cameraImage coming soon 2360220 Junction €29.39
16
photo_cameraImage coming soon 2500070 Stirrup €7.54
18
photo_cameraImage coming soon 2360310 Junction €4.23
19
photo_cameraImage coming soon 2360250 High Pressure Tube €46.08
20
photo_cameraImage coming soon 2500020 handle €62.87

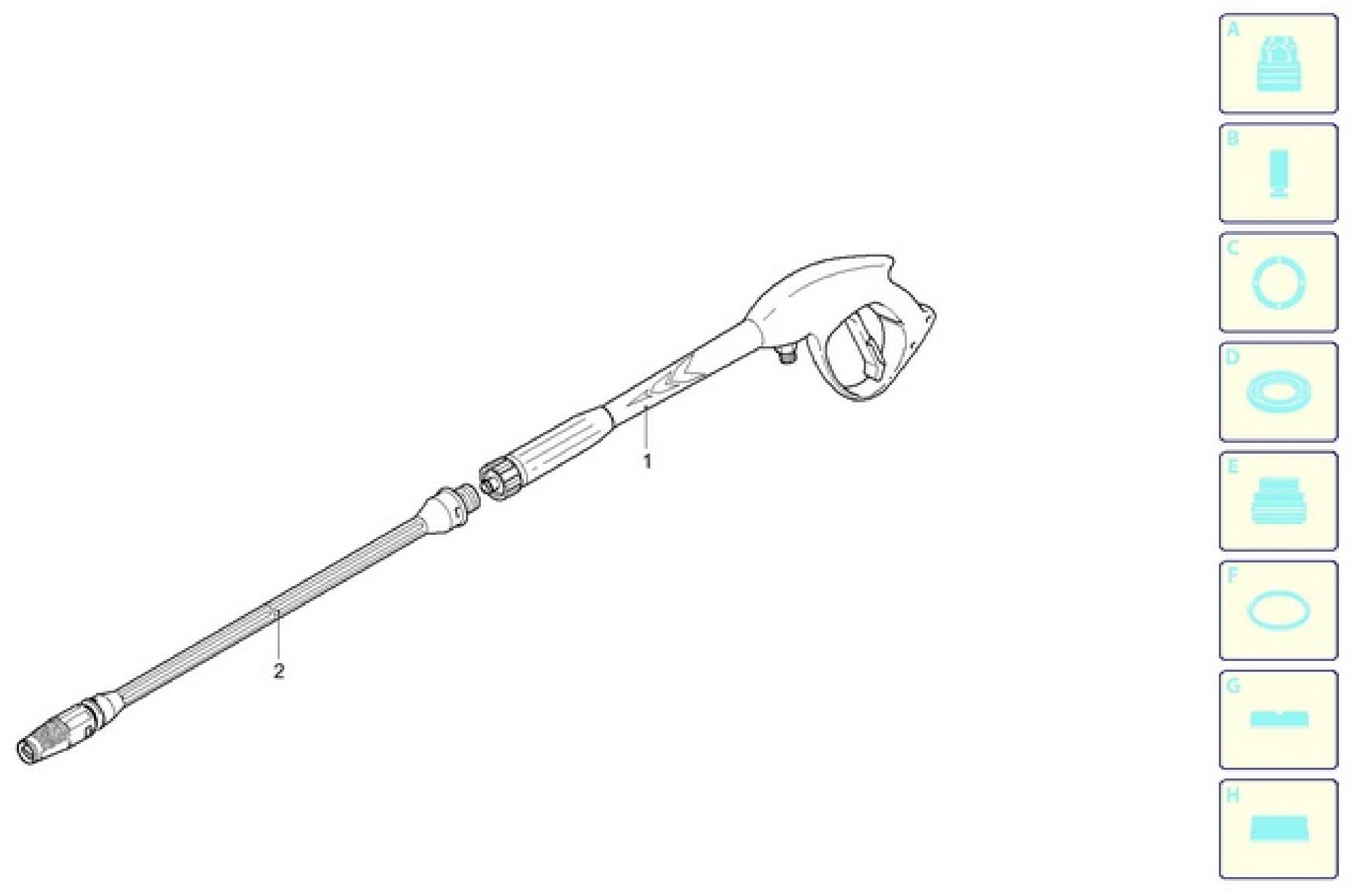

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer PROLINER Z 9.160 Z TSS RLW - 12495

In the following tables, look for the spare part and its respective code.

Casing 9.160 Z TSS RLW - 12495 Pag.1
1 2500050 Hook
2 2500034 Yellow Casing
3 1680880 Washer
4 2500320 Wheel
5 2500090 Plate
6 2320190 Screw
7 2100300 Screw
8 2600100 Strain Relief
9 850370 Screw
10 2100300 Screw
12 2500130 Grommet
13 880280 Screw
14 2180300 Washer
15 2500120 Axle
16 2500110 Tank
17 2500010 Base
18 1270960 Tube Cleaner
19 2500310 Knob
20 42113 Pre-Assembly Plug
21 2500330 Tube Cleaner
22 2000230 Filter
23 2509000 Pre-Assembly Base
Pump 9.160 Z TSS RLW - 12495 Pag.2
1 1980470 Screw
2 1980300 Nut
3 1980210 Piston Guide
4 740290 O-Ring
5 800560 O-Ring
6 1080250 O-Ring
7 1271170 Ring
8 1080190 O-Ring
9 1271160 Piston
10 1980200 Office
11 1470210 O-Ring
12 1982520 Hose
13 480480 O-Ring
14 1250280 Sphere
15 1560520 Spring
16 1460430 O-Ring
17 1540170 Shutter
18 1080091 Spring
19 394280 O-Ring
20 1200690 O-Ring
21 1270091 Injector
22 1981190 Screw
23 1080190 O-Ring
24 660190 O-Ring
25 1982990 Piston
26 1981320 Spring
27 880840 O-Ring
28 1983360 Junction
29 1982170 Head
30 820510 O-Ring
31 880581 Cork
32 2029752 Pre-Assembly Box TSS
33 1260162 Cork
34 960160 O-Ring
35 1981460 Bush
36 880240 Valve
37 1981450 Bush
38 1080401 Ring
39 2460180 O-Ring
40 1981470 Piston Guide
41 770130 O-Ring
42 1260440 Watertight
43 1980170 Ring
44 1980430 Spacer
45 1260460 Oil Seal
46 770090 O-Ring
47 1980460 Body Pump
48 180030 Screw
49 1981140 Spring
50 1981440 Piston
51 1980150 Ring
52 1322230 Spring
53 1980130 Fifth Wheel
54 1980250 Fifth Wheel
55 1980240 Fifth Wheel
56 1980340 O-Ring
57 2022201 Fork
58 1461470 Junction
59 1989264 Pre-Assembly Head
60 1980310 Screw
61 1260820 O-Ring
62 650530 Washer
63 1340260 Filter
64 390180 O-Ring
65 2440210 Extension
66 1150640 O-Ring
67 2500450 Cork
68 1980290 Level Indicator
69 1465850 Junction
70 2500140 Extension
71 3230 Manometer
72 1080041 Piston
73 1080070 Plug
74 1271070 Spring
75 1980220 Disk
76 1980390 Insert
77 2500270 Extension + 1267810 >>42575
78 2500080 Knob
79 42143 Kit TSS
A 2581 Valve Kit
B 2593 Piston Kit
C 2511 Oil Seals Kit
E 2582 Kit Held Water
F 2799 Seal Kit
Motor 9.160 Z TSS RLW - 12495 Pag.3
1 1983110 Disk
2 1981210 Bearing
3 1980340 O-Ring
4 2320830 Screw
5 1982040 Flange
6 1260750 Ring
7 1460590 Bearing
8 1460040 Shield
9 1461200 Oil Seal
10 394280 O-Ring
11 1460370 Fan
12 1460340 Conveyor
13 1680960 Washer
14 1460460 Screw
15 660170 O-Ring
16 2320131 Box
17 1262400 Washer
18 2020570 Screw
19 2320270 Cover
20 2320280 Switch
21 2021480 Fairlead
22 1760450 Cable
23 2100840 O-Ring
24 1982190 Capacitor
25 4704 Engine
RLW Z 9.160 Z TSS RLW - 12495 Pag.4
1 40644 Pre Mounting Hose Reel
2 40377 Hose Pre-Assembly
3 2360360 Screw
4 2360150 Lever
5 2100300 Screw
6 2500060 Stirrup
7 2500360 Pin
8 1681280 Screw
9 2360230 Disk
10 380420 Ring
11 2500460 High Pressure Hose
12 2360210 Pin
13 390080 O-Ring
14 2360220 Junction
15 2360320 Ring
16 2500070 Stirrup
17 820510 O-Ring
18 2360310 Junction
19 2360250 High Pressure Hose
20 2500020 Handle
Accessories 9.160 Z TSS RLW - 12495 Pag.5
1 40925 Gun
2 40029 Spear + Nozle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
PROLINER Z 9.160 Z TSS RLW 12495
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 9.160 Z RLW

Diagram AR Farmer's 9.160 Z RLW

Download (578.42KB)

You might also like

Annovi Reverberi S.p.A. SKU: 3230
Gauge for Pressure Washers Annovi & Reverberi AR747-780 Original part Annovi & Reverberi, high pressure gauge for pressure washers models Blue Clean PROLINER Z - ROLINER RS - AR 747 - AR780. - Pressure gauge with...
Last items in stock €27.18
Annovi Reverberi S.p.A. SKU: 1982190
Capacitor for Pressure Washers Annovi & Reverberi AR747 Original part Annovi & Reverberi, high pressure Capacitor for pressure washers models Blue Clean AR 747 - EXTREME 9.160 Z TSS - EXTREME 150 TSS REG...
Last items in stock €28.62
Annovi Reverberi S.p.A. SKU: 2500320
Wheel for Pressure Washers AR Farmer's - AR Blu Clean Original Parts Annovi & Reverberi, Wheel for Pressure Washers ARSG - AR Blu Clean - Michelin. Part for the following items: - ARSG - Models 50 Hz - Proliner Z - 8.150 Z TSS -...
Last items in stock €11.86
Annovi Reverberi S.p.A. SKU: 1981440
Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME Original Parts Annovi & Reverberi, Piston D.15x73,5 for Pressure Washer AR Farmer's Division PROLINER Z 8.150 Z TSS - PROLINER Z 9.160 Z TSS - Annovi & Reverberi AR737...
Last items in stock €18.24
Annovi Reverberi S.p.A. SKU: 2500130
ARSG - AR Pressure Washer Grommet Genuine part Annovi Reverberi, Grommet for Pressure Washers ARSG - AR. Part for the following products: - Annovi Reverberi 780 - 22341 - ARSG PROLINER Z 9.160 Z TSS - 12395 - ARSG PROLINER...
AVAILABLE €3.09
Annovi Reverberi S.p.A. SKU: 1981320
Annovi Spring for Pressure Washer AR747 Genuine part Annovi Reverberi, TSS Spring DE 8,7 X 15,9 x 1,2 for Pressure Washer AR747 - AR767 - AR780. Part for the Following Products: -  Pressure Washer AR Farmer's...
AVAILABLE €1.54
Annovi Reverberi S.p.A. SKU: 1271070
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Comments (0)
