Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436

SKU: Top Wash S 120 T - 20436
€23.30
VAT included

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 120 T - 20436.

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436
  • ARSG Parts for Pressure Washer Top Wash S 120 T - 20436
  • ARSG Parts for Pressure Washer Top Wash S 120 T - 20436
  • ARSG Parts for Pressure Washer Top Wash S 120 T - 20436
  • ARSG Parts for Pressure Washer Top Wash S 120 T - 20436
Annovi Reverberi S.p.A.

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436

SKU: Top Wash S 120 T - 20436 Condition: New
€23.30
VAT included

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 120 T - 20436.

settings 149 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
119 spare parts
Esploso pagina 1
Pos. Item Price Buy
8
 photo_cameraImage coming soon 318483 SPRING (B) €3.19
8
 photo_cameraImage coming soon 323486 GEAR COVER (A) ASS'Y €16.92
8
 photo_cameraImage coming soon 980866 COVER KIT €38.82
Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 876031 O-RING (S-16) €1.57
2
 photo_cameraImage coming soon 2020990 Washer €4.72
2
 photo_cameraImage coming soon 323487 LOCATOR ASS'Y €9.92
3
 Pushing Button for Angle Grinders Hitachi G15VA - G15YF 301944 Pushing Button for Angle Grinders Hitachi G15VA - G15YF €1.52
3
 photo_cameraImage coming soon 323488 CLICK SPRING €3.02
4
 photo_cameraImage coming soon 321737 GEAR COVER ASS'Y €48.09
4
 photo_cameraImage coming soon 971468 FRINGER (A) €1.52
5
 photo_cameraImage coming soon 317662 O-RING (F) €2.33
5
 photo_cameraImage coming soon 949558 NUT M8 (10 PCS.) €1.26
6
 photo_cameraImage coming soon 160311 Nut €6.22
6
 photo_cameraImage coming soon 321130 CAP €4.04
6
 photo_cameraImage coming soon 323558 PROTECT COVER (A) €5.02
7
 photo_cameraImage coming soon 321134 HOLDER PIN (B) €23.71
7
 photo_cameraImage coming soon 390311 Washer €4.60
9
 photo_cameraImage coming soon 321132 BLADE HOLDER (A) €27.02
9
 photo_cameraImage coming soon 629T12 BALL BEARING 629T12DDC3PS2-L €5.44
9
 photo_cameraImage coming soon 872573 SET RING €1.92
11
 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner 2000240 O-Ring 5,23x2,62 for Pressure Washers AR Farmer's Division ProLiner €0.33
11
 photo_cameraImage coming soon 323491 SOCKET (A) ASS'Y €12.92
12
 photo_cameraImage coming soon 306024 Spring INGR.W6V4-VA4 €1.92
12
 photo_cameraImage coming soon 323476 CLUTCH DISC €5.02
12A
 photo_cameraImage coming soon 360603F ARMATURE 230V G12-13SE2 230-240V €49.64
12
 photo_cameraImage coming soon 380250 Screw €5.21
13
 photo_cameraImage coming soon 321732 FAN GUIDE €1.75
14
 photo_cameraImage coming soon 620610 Screw €5.01
15
 photo_cameraImage coming soon 322134 SPECIAL BOLT M4 €17.02
15
 photo_cameraImage coming soon 340551E STATOR 230V €42.61
15
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
16
 photo_cameraImage coming soon 321131 LEVER (A) €17.02
17B
 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 315877 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 €1.59
17
 photo_cameraImage coming soon 321135 SPRING (D) €24.91
20
 photo_cameraImage coming soon 322695 HANDLE €8.13
20
 photo_cameraImage coming soon 933545 WASHER (A) €1.52
22A
 photo_cameraImage coming soon 331067 BATTERY BCL 1015 (EUROPE,AUS,NZL) €71.92
28
 photo_cameraImage coming soon 994301 SPINDLE (A) €18.28
32
 photo_cameraImage coming soon 323512 BRUSH HOLDER (A) €5.02
36
 photo_cameraImage coming soon 323479 SWITCH (1P PILLAR TYPE) W/LOCK €18.92
39A
 photo_cameraImage coming soon 326671 CARCASSA W6VB3 €22.92
39A
 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC 329054 Gear and Pinion Set for Angle Grinders Hitachi G13VA-G13YC €22.30
42
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
44
 photo_cameraImage coming soon 311738 SWITCH BOX €3.28
49A
 photo_cameraImage coming soon 326672 COPERTURA Grip W6V4-VA4 €16.92
502
 photo_cameraImage coming soon 994322 SIDE HANDLE €14.05
Page 2 zoom_in View exploded
Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1683000 Wobble plate €11.87
5
 photo_cameraImage coming soon 621130 Bearing €18.59
10
 photo_cameraImage coming soon 957754 RUBBER RING €1.67
10
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
17
 photo_cameraImage coming soon 820510 O-ring €5.63
19
 Pin Retainer for Angle Grinder Hitachi G12 301943 Pin Retainer for Angle Grinder Hitachi G12 €4.19
23
 photo_cameraImage coming soon 480480 O-ring €5.63
23
 photo_cameraImage coming soon 6201DD BALL BEARING 6201DDCMPS2L €7.04
24
 photo_cameraImage coming soon 1250280 sphere €2.67
25
 photo_cameraImage coming soon 308545 PACKING GLAND €10.20
25
 photo_cameraImage coming soon 323472 FAN GUIDE €1.52
26
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
27
 photo_cameraImage coming soon 2109051 Valve €6.77
27
 photo_cameraImage coming soon 340599E STATOR 220V-240V €22.92
27
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
30
 photo_cameraImage coming soon 311744 SET PIN €1.42
30
 photo_cameraImage coming soon 323471 GANCIO SUP. W6V4-VA4 €3.02
30
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
31
 photo_cameraImage coming soon 1460150 Piston €6.43
31
 photo_cameraImage coming soon 311743 LEVER €6.62
33
 photo_cameraImage coming soon 311491 SET PIECE (B) €5.32
33
 photo_cameraImage coming soon 999091 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €15.02
35
 photo_cameraImage coming soon 311745 WHEEL GUARD ASS'Y (TOOLLESS TYPE) €33.02
37
 photo_cameraImage coming soon 2100610 Connection €6.56
38
 photo_cameraImage coming soon 2101000 Screw €4.80
40
 photo_cameraImage coming soon 40393 Junction €13.66
40
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
41
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
41
 photo_cameraImage coming soon 321731 HOUSING G12SE2-G13SE2 €15.90
45
 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS 2123 Head with O-R for Pressure Washers AR Top Wash 100 T-EXTREME 150 TSS €22.20
45
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
46
 Water Seal for Pressure Washers ARSG FRESH FOG 2200140 Water Seal for Pressure Washers ARSG FRESH FOG €1.37
46
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
47
 AR Seal Support Ring D.12 2020040 AR Seal Support Ring D.12 €5.14
47
 photo_cameraImage coming soon 321739 TAIL COVER (B) €6.43
48
 photo_cameraImage coming soon 2021740 O-ring €4.80
50
 photo_cameraImage coming soon 2020030 Bushing €7.11
50
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
51
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
51
 photo_cameraImage coming soon 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €12.89
51
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
52
 AR410 Piston Guide 2020120 AR410 Piston Guide €21.12
52
 photo_cameraImage coming soon 317810 BRUSH HOLDER €5.94
53
 photo_cameraImage coming soon 1680680 O-Ring €5.27
53
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.18
54
 photo_cameraImage coming soon 2020130 Piston €10.64
54
 photo_cameraImage coming soon 321738 TAIL COVER (A) €6.43
55
 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS 2020150 Piston Spring for Pressure Washers AR Wash Top 100 T-EXTREME 150 TSS €6.90
55
 Switch for Angle Grinders Hitachi G12SE 311739 Switch for Angle Grinders Hitachi G12SE €22.19
56
 photo_cameraImage coming soon 2020140 Ring €5.00
58
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
59
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
60
 photo_cameraImage coming soon 1460260 Piston €3.75
61
 photo_cameraImage coming soon 1460430 O-ring €4.60
63
 photo_cameraImage coming soon 1080190 O-ring €4.40
63
 photo_cameraImage coming soon 308554 PADDLE LEVER €3.41
64
 photo_cameraImage coming soon 1460140 Piston €16.50
64
 photo_cameraImage coming soon 308557 LEVER ACTION SEAL €1.70
64
 photo_cameraImage coming soon 308558 LEVER ACTION SEAL €1.70
65
 photo_cameraImage coming soon 301631 SPRING (F) €1.22
65
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
66
 photo_cameraImage coming soon 1080401 ring €2.13
67
 photo_cameraImage coming soon 1343450 Disk €3.26
67
 photo_cameraImage coming soon 308555 LOCK LEVER (BLACK) €1.89
67
 photo_cameraImage coming soon 308556 LOCK LEVER (GRAY) €1.89
68
 AR Spring for Pressure Washer AR589 1460190 AR Spring for Pressure Washer AR589 €3.09
69
 photo_cameraImage coming soon 1343000 Disk €5.37
71
 photo_cameraImage coming soon 1980640 Insert €5.73
73
 photo_cameraImage coming soon 1060120 Nut €1.54
74
 photo_cameraImage coming soon 1981780 Knob €2.28
Page 3 zoom_in View exploded

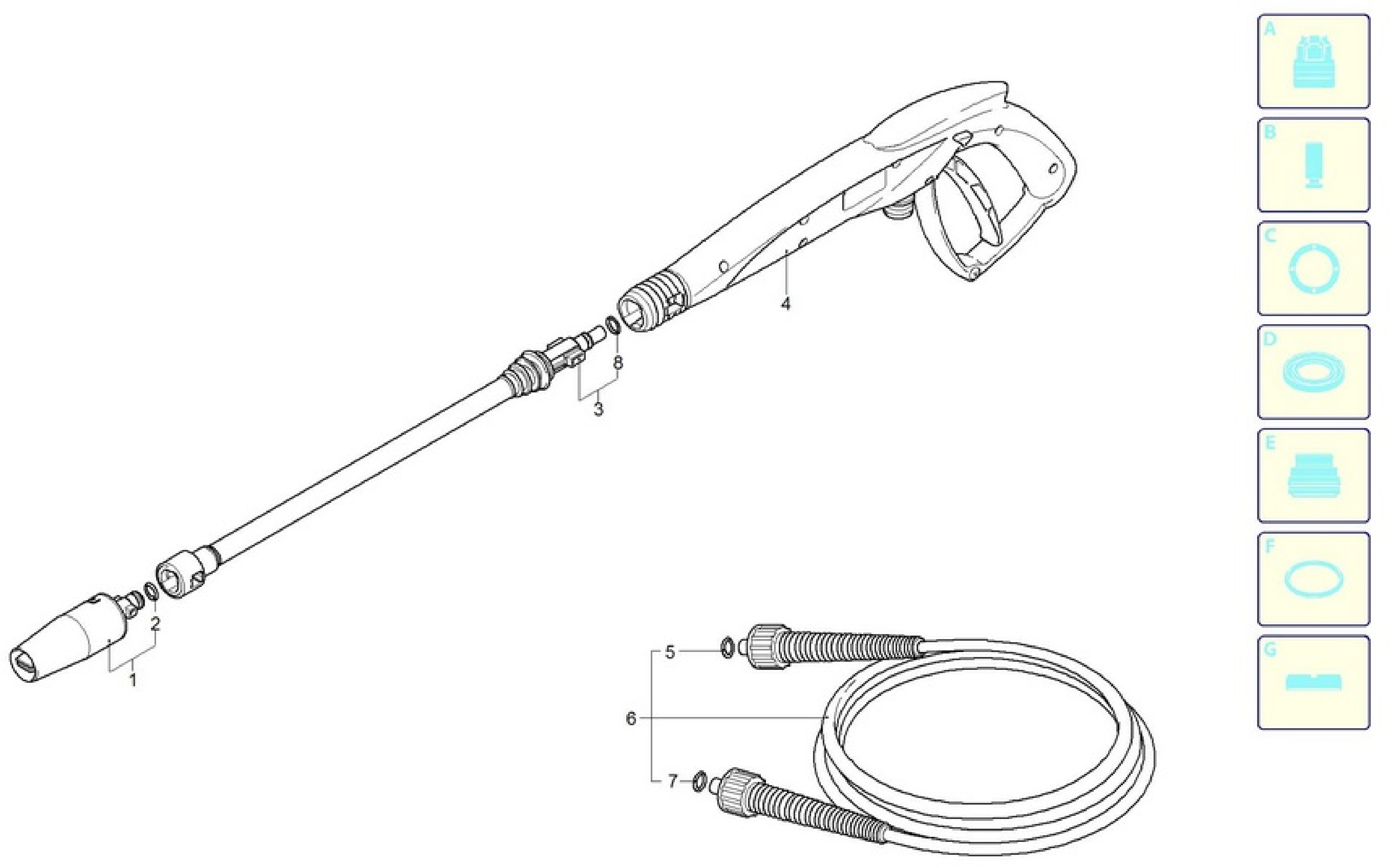

Esploso pagina 3
Pos. Item Price Buy
A
 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division 2577 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division €14.62
D
 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W 2687 Kit Inlet-Outlet Valves for Pressure Washers Black & Decker PW 1800 W €18.20
B
 photo_cameraImage coming soon 2734 Piston Kit €22.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ARSG Parts for Pressure Washer Top Wash S 120 T - 20436

AR Farmer's Division Genuine Spare parts or replacements parts for to repair Pressure Washer Top Wash S 120 T - 20436.

In the following tables, look for the spare part and its respective code.
Top Wash S 120 T - 20436

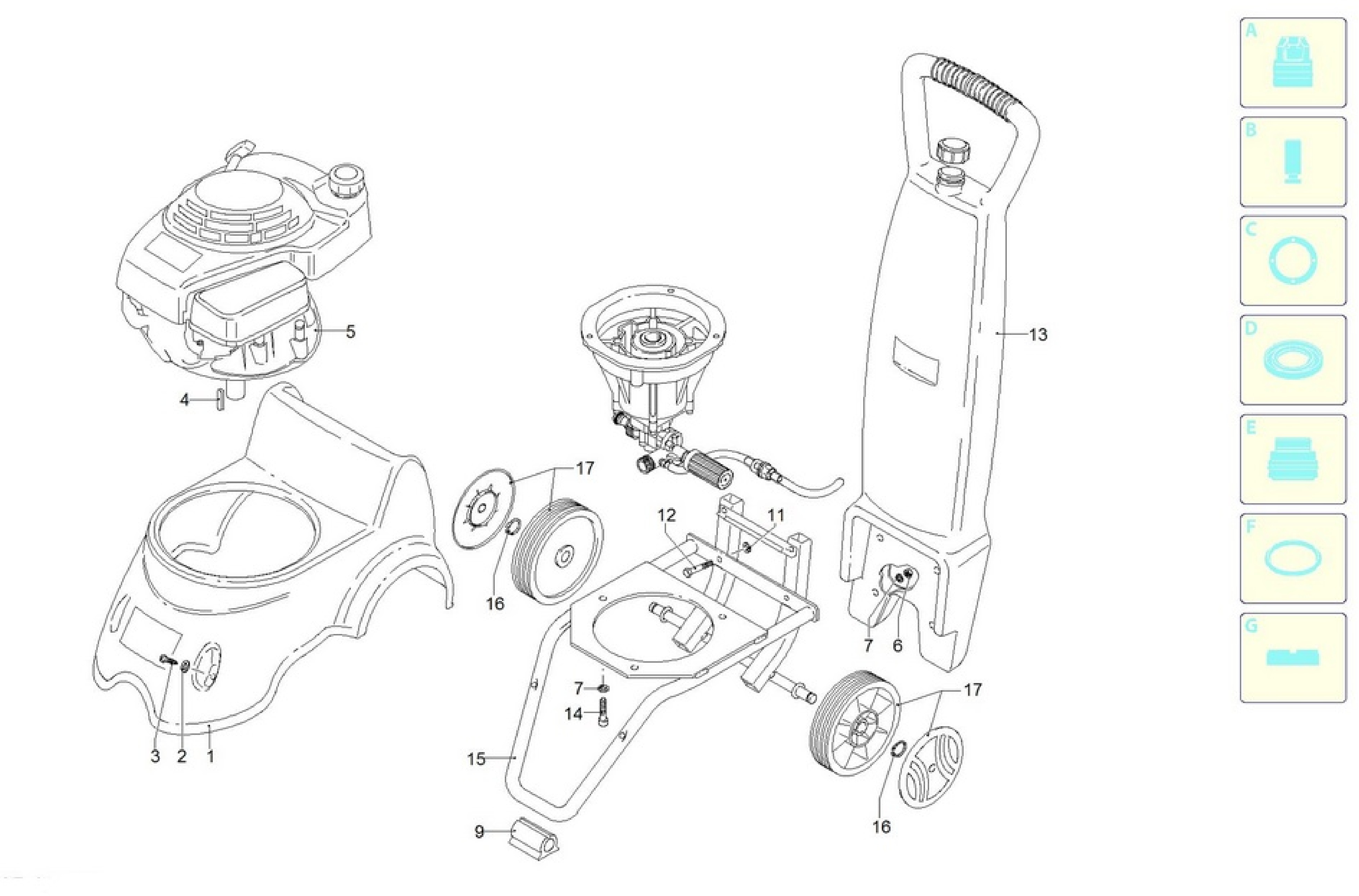

Casing 120 T - 20436 Pag.1
1 2060170 Yellow Casing
2 2020990 Washer
3 2060200 Screw
4 621390 Tab
5 4139 Engine
6 160311 Nut
7 390311 Washer
9 1262540 Foot
11 2000240 O-Ring
12 380250 Screw
13 2060180 Handle
14 620610 Screw
15 2060190 Base
16 2060110 Ring
17 2060160 Wheel

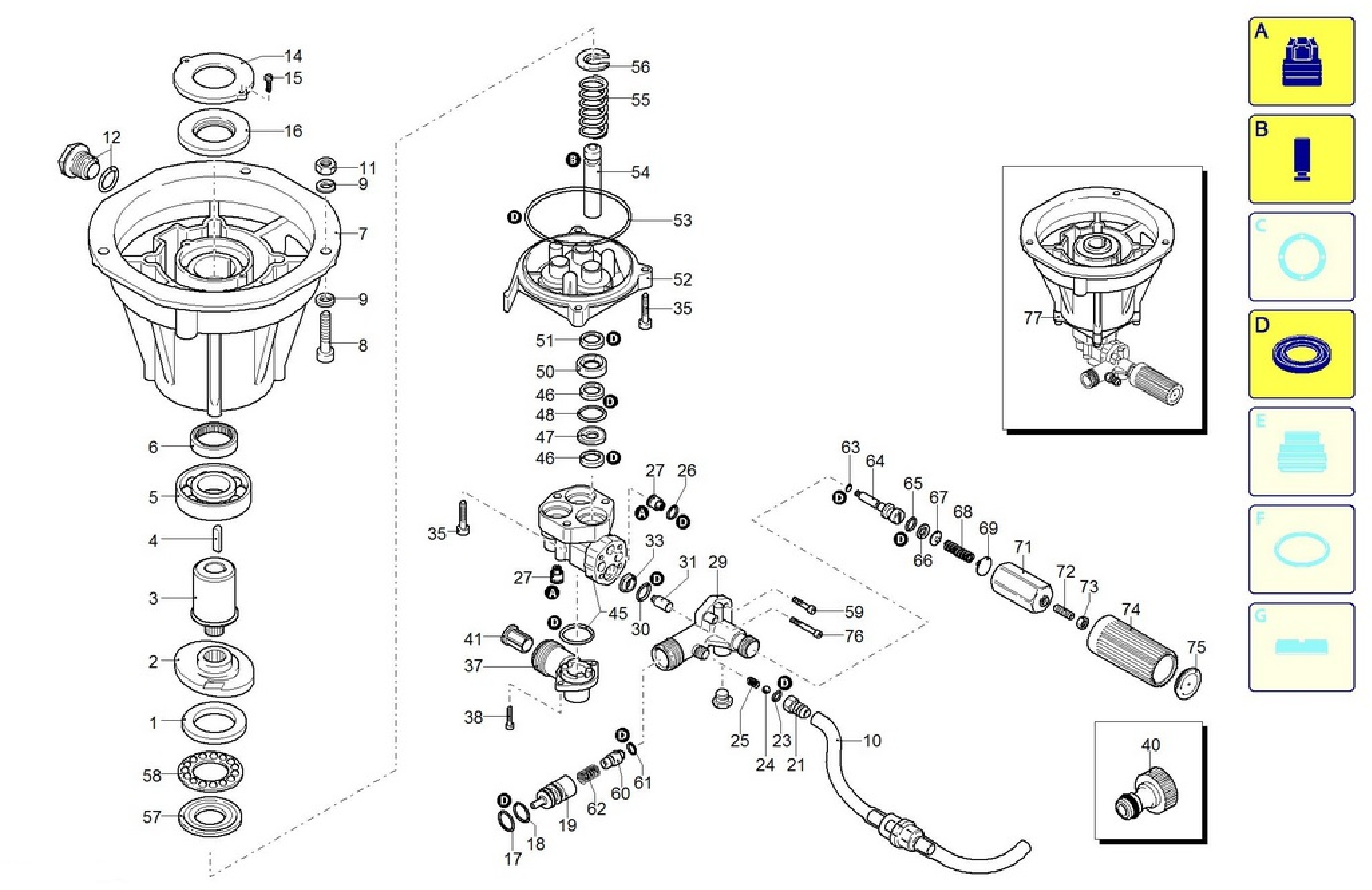

Pump 120 T - 20436 Pag.2
1 1460070 Fifth Wheel
2 1683000 Disk
3 2060020 Shaft
4 621390 Tab
5 621130 Bearing
6 550280 Bush
7 2060010 Flanged
8 1520840 Screw
9 390311 Washer
10 1269119 Pre-Assembly Tube
11 160311 Nut
12 740440 Cork
14 2060030 Cover
15 1261570 Screw
16 540331 Ring
17 820510 O-Ring
18 1465720 O-Ring
19 2020490 Injector
21 1460382 Hose
23 480480 O-Ring
24 1250280 Ball
25 1250270 Spring
26 880840 O-Ring
27 2109051 Valve
29 2060300 Junction
30 394280 O-Ring
31 1460150 Piston
33 2020480 Office
35 850850 Screw
37 2100610 Junction
38 2101000 Screw
40 40393 Junction
41 1340260 Filter
45 2123 Head + OR
46 2200140 Water Seal
47 2020040 Ring
48 2021740 O-Ring
50 2020030 Bush
51 1683500 Oil Seal
52 2020120 Piston Guide
53 1680680 O-Ring
54 2020130 Piston
55 2020150 Spring
56 2020140 Ring
57 1680340 Fifth Wheel
58 1461770 Fifth Wheel
59 1260760 Screw
60 1460260 Piston
61 1460430 O-Ring
62 1540140 Spring
63 1080190 O-Ring
64 1460140 Piston
65 600180 O-Ring
66 1080401 Ring
67 1343450 Disk
68 1460190 Spring
69 1343000 Disk
71 1980640 Insert
72 392840 Screw
73 1060120 Nut
74 1981780 Knob
75 1981770 Cork
76 1260760 Screw
77 20364 Pump Pre-Assembly
A 2577 Valve Kit
B 2734 Piston Kit
D 2687 Kit Held
Accessories 120 T - 20436 Pag.3
1 40442 Head
2 1680220 O-Ring
3 40667 Lance
4 40350 Trigger Gun->40925+3082750+3780492
5 1080250 O-Ring
6 2620470 High Pressure Tube
7 2000770 O-Ring
8 880840 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Top Wash S 120 T - 20436
12 Items

Specific References

New

Download

Diagram AR Farmer's 120 T-20436

Diagram AR Farmer's 120 T-20436

Download (324.22KB)

You might also like

Cold Water High Pressure Washer 130 bar AR388 -5% Sale
Annovi Reverberi S.p.A. SKU: AR388
Cold Water High Pressure Washer 130 bar AR388
Cold Water High Pressure Washer 130 bar AR388 Three-piston pump hardened stainless. Aluminum head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection.
Last items in stock €182.71 €192.33
Details
Cold Water High Pressure Washer 120 bar AR142 Sale
Annovi Reverberi S.p.A. SKU: AR142
Cold Water High Pressure Washer 120 bar AR142
Cold Water High Pressure Washer 120 bar AR142 3 Axial piston pump driven by the oscillating plate, hardened stainless steel pistons, an automatic safety valve with pressure in the pump head, water filter. Complete kit with foam tank of...
Last items in stock €108.09
Details
Cold Water High Pressure Washer 145 bar AR491 -5% Sale
Annovi Reverberi S.p.A. SKU: AR491
Cold Water High Pressure Washer 145 bar AR491
Cold Water High Pressure Washer 145 bar AR491 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminium head, tempered stainless steel pistons.
Last items in stock €330.09 €347.46
Details
Cold Water High Pressure Washer 135 bar AR391 -5% Sale
Annovi Reverberi S.p.A. SKU: AR391
Cold Water High Pressure Washer 135 bar AR391
Cold Water High Pressure Washer 135 bar AR391 Two-wheel trolley with handle and hose reel. 3 Axial stainless steel pistons wobble-plate pump with aluminim head, tempered stainless steel pistons. Automatic by-pass valve with pump head...
Last items in stock €207.38 €218.29
Details
Cold Water High Pressure Washer 160 bar AR590 -5% Sale
Annovi Reverberi S.p.A. SKU: AR590
Cold Water High Pressure Washer 160 bar AR590
Cold Water High Pressure Washer 160 bar AR590 Three-piston pump hardened stainless. Brass head, safety valve for automatic reset of the pressure in the pump head. Electric motor with overheating protection. Total stop to halt. Water...
Last items in stock €424.26 €446.59
Details
Water Cleaning Hose
Ferritalia SKU: DES91914
Hight Pressure Washers Hose 8 mt
Hight Pressure Washers Hose 8 mt Original spare part for high pressure washer with a maximum pressure of about 180 bar. - Diameter connections F-F: M14x1,5 mm - Max Pressure: 18 MPa - about 180 bar - Maximum temperature: 60 ° C. -...
Last items in stock €32.35
Details
Water Cleaning Hose
Valex s.p.a. SKU: 1520117
Hight Pressure Washers Hose 7,5 mt
Hight Pressure Washers Hose 7,5 mt Original spare part for high pressure washer with a maximum pressure of about 300 bar. Part for the following products:  - HIGHT PRESSURE HOSE FOR PRESSURE WASHER CARRY 2500 - Tech Info: -...
Last items in stock €36.30
Details
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Annovi Reverberi S.p.A. SKU: 3082290
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142
Hose for Pressure Washer Annovi & Reverberi Blue Clean 142 Genuine part Annovi & Reverberi, High pressure Hose for Pressure Washers AR BC 141 - 142 - Black & Decker - PW 1400 K - K PLUS - Michelin MPX 100 - 110 - 120....
Last items in stock €18.90
Details
Water Seal for Pressure Washers ARSG FRESH FOG
Annovi Reverberi S.p.A. SKU: 2200140
Water Seal for Pressure Washers ARSG FRESH FOG
Water Seal for Pressure Washers ARSG FRESH FOG Genuine Part Annovi & Reverberi, Water Seal for Pressure Washers FRESH FOG - 12519 - FRESH FOG - 13672 - FRESH FOG - 12930 - RESH FOG - 13276 - FRESH FOG - 14036. Part for the...
AVAILABLE €1.37
Details
AR 410 Piston Guide
Annovi Reverberi S.p.A. SKU: 2020120
AR410 Piston Guide
Annovi Reverberi Piston Guide for Pressure Washer AR410 Genuine part Annovi Reverberi, Piston Guide for Pressure Washers AR410 - AR555 - AR420 - PW2500 SLX. Part for the Following Products: - ARSG Top Wash S 100 T - 20435 - ARSG...
Last items in stock €21.12
Details
AR Spring for Pressure Washer AR589
Annovi Reverberi S.p.A. SKU: 1460190
AR Spring for Pressure Washer AR589
Annovi Reverberi Spring for Pressure Washer AR589 Genuine spare part Annovi Reverberi, Spring for Pressure Washers AR589 - AR757 - AR1001 - AR555. Part for the following products: - Pressure Washer Annovi Reverberi 589 -...
AVAILABLE €3.09
Details
Comments (0)
