Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945

SKU: ARSG EXTREME 9.160 Z TSS - 11945
€14.24
VAT included

AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945

We are AR Farmer's Division original Accessories and spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer EXTREME 9.160 Z TSS - 11945.
AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
  • AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
  • AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
  • AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
  • AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
  • AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945

SKU: ARSG EXTREME 9.160 Z TSS - 11945 Condition: New
€14.24
VAT included

AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945

We are AR Farmer's Division original Accessories and spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer EXTREME 9.160 Z TSS - 11945.
settings 131 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually shipped in 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

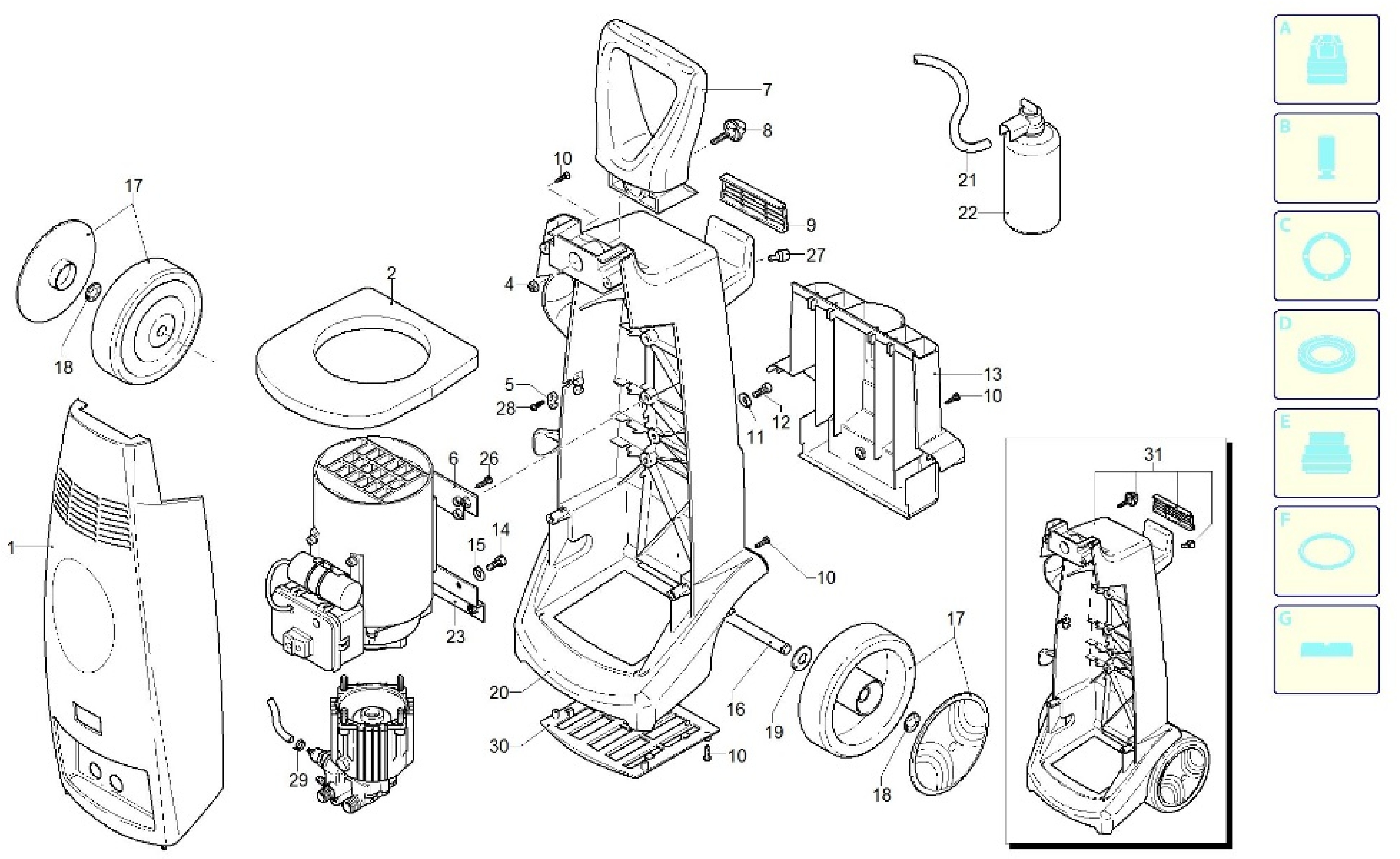

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2180760 Sponge €16.36
4
 photo_cameraImage coming soon 390440 Nut €4.79
5
 photo_cameraImage coming soon 1263020 Clamp €4.67
6
 photo_cameraImage coming soon 2180700 Plate €22.04
7
 photo_cameraImage coming soon 2180040 Handle €25.08
8
 photo_cameraImage coming soon 2180060 Knob €9.54
9
 photo_cameraImage coming soon 2180090 Grid €9.00
10
 photo_cameraImage coming soon 1261560 Screw €4.67
11
 photo_cameraImage coming soon 2180300 washer €2.20
13
 photo_cameraImage coming soon 2180050 Holders Accessories €22.11
14
 photo_cameraImage coming soon 850370 screw €2.26
15
 photo_cameraImage coming soon 961340 Washer €4.47
16
 photo_cameraImage coming soon 2180080 Axle €10.48
17
 photo_cameraImage coming soon 2180140 Wheel €19.54
18
 Annovi AR747 Lock Washer 1680880 Annovi AR747 Lock Washer €1.03
da 5 pz: €0.10
19
 photo_cameraImage coming soon 1680890 Washer €5.05
21
 photo_cameraImage coming soon 1270960 pipe cleaner €4.41
22
 photo_cameraImage coming soon 40008 Tank €16.43
23
 photo_cameraImage coming soon 2180710 Plate €16.70
27
 photo_cameraImage coming soon 2180330 Rubber €4.96
29
 photo_cameraImage coming soon 2020940 Band €6.70
30
 photo_cameraImage coming soon 2180441 Grid €11.43
31
 photo_cameraImage coming soon 2189001 Pre-Assembly Base €73.61
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

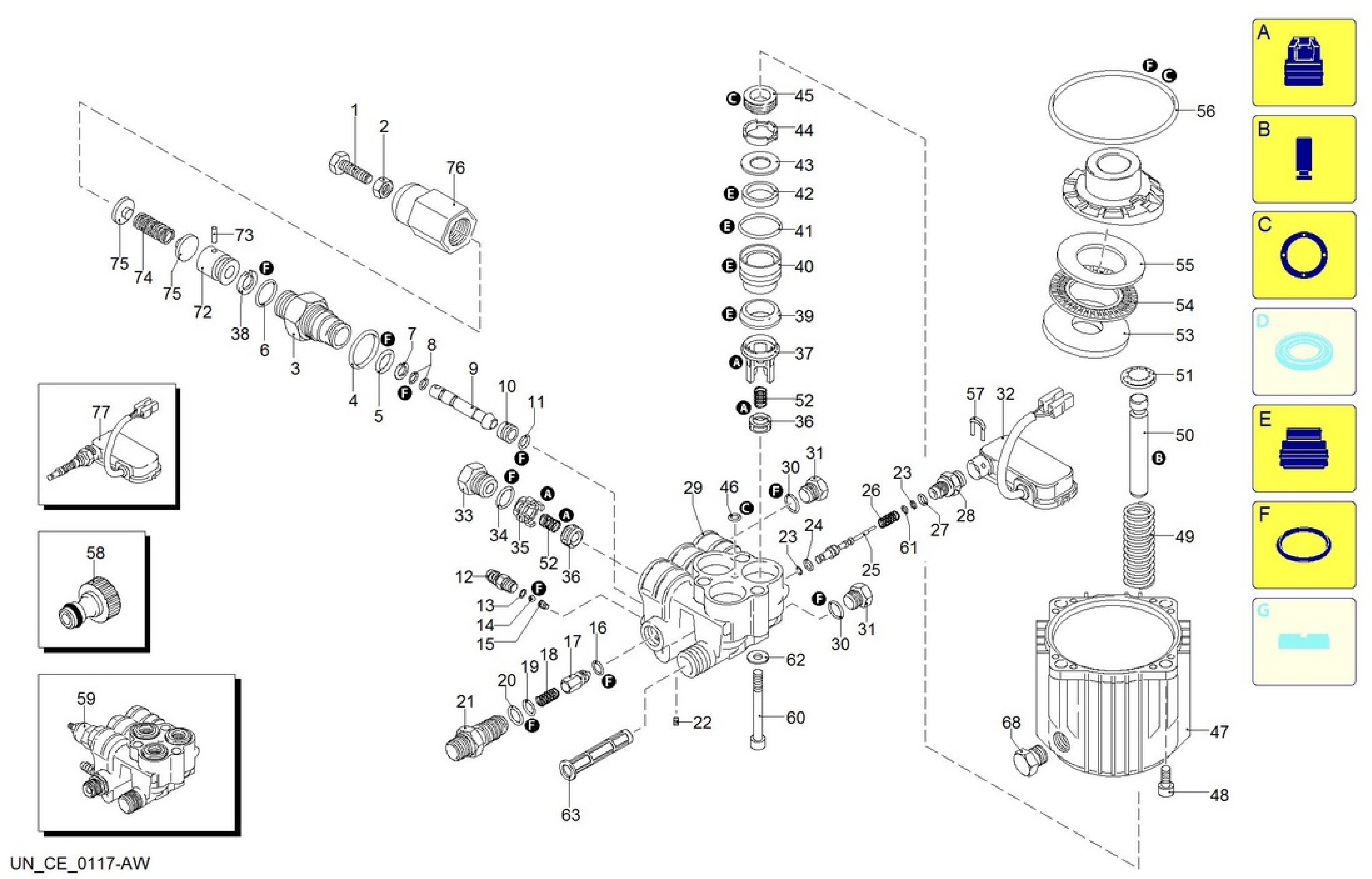

Esploso pagina 2
Pos. Item Price Buy
C
 Kit Parts Oil Sealed for Pressure Washers Annovi & Reverberi 737-747 2511 Kit Parts Oil Sealed for Pressure Washers Annovi & Reverberi 737-747 €14.23
A
 Kit Parts Valves for Pressure Washers Annovi & Reverberi 737-747 2581 Kit Parts Valves for Pressure Washers Annovi & Reverberi 737-747 €32.36
E
 Kit Parts Water Sealed for Pressure Washers Annovi & Reverberi 737-747 2582 Kit Parts Water Sealed for Pressure Washers Annovi & Reverberi 737-747 €38.15
B
 Kit Parts Pistons for Pressure Washers Annovi & Reverberi 737-747 2593 Kit Parts Pistons for Pressure Washers Annovi & Reverberi 737-747 €32.36
F
 Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 2799 Kit Gaskets OR for Pressure Washers AR Blue Clean 737-747 €11.58
1
 photo_cameraImage coming soon 110640 Screw €4.47
2
 photo_cameraImage coming soon 1980300 nut €1.58
3
 photo_cameraImage coming soon 1980530 Piston Guide €17.45
4
 photo_cameraImage coming soon 740290 O-ring €2.67
5
 photo_cameraImage coming soon 800560 O-ring €1.59
6
 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
7
 photo_cameraImage coming soon 1271170 ring €2.03
8
 photo_cameraImage coming soon 1080190 O-ring €4.40
9
 photo_cameraImage coming soon 1271160 piston €19.89
10
 photo_cameraImage coming soon 1980200 seat €8.07
11
 photo_cameraImage coming soon 1470210 O-ring €1.58
12
 photo_cameraImage coming soon 1982520 Hose €6.27
13
 photo_cameraImage coming soon 480480 O-ring €5.63
14
 photo_cameraImage coming soon 1250280 sphere €2.67
15
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
16
 photo_cameraImage coming soon 1460430 O-ring €4.60
17
 photo_cameraImage coming soon 1540170 shutter €5.08
18
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
19
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
20
 photo_cameraImage coming soon 1200690 O-ring €4.26
21
 photo_cameraImage coming soon 1270091 injector €12.02
22
 photo_cameraImage coming soon 1981190 screw €1.58
24
 photo_cameraImage coming soon 660190 O-ring €4.40
25
 photo_cameraImage coming soon 1982990 piston €8.90
26
 Annovi Spring for Pressure Washer AR747 1981320 Annovi Spring for Pressure Washer AR747 €1.54
27
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
28
 photo_cameraImage coming soon 1983360 junction €15.49
29
 photo_cameraImage coming soon 1982170 head €138.81
30
 photo_cameraImage coming soon 820510 O-ring €5.63
31
 photo_cameraImage coming soon 880581 stopper €7.73
32
 photo_cameraImage coming soon 2029752 Pre-assembly box TSS €34.86
33
 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
34
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
35
 photo_cameraImage coming soon 1981460 bushing €2.57
36
 photo_cameraImage coming soon 880240 valve €2.34
37
 photo_cameraImage coming soon 1981450 bushing €3.04
38
 photo_cameraImage coming soon 1080401 ring €2.13
39
 photo_cameraImage coming soon 2460180 Tenuta water €7.58
40
 photo_cameraImage coming soon 1981470 piston guide €15.37
41
 photo_cameraImage coming soon 770130 O-ring €1.58
42
 photo_cameraImage coming soon 1260440 Watertight 3 €4.53
43
 photo_cameraImage coming soon 1980170 ring €3.93
44
 photo_cameraImage coming soon 1980430 spacer €2.12
45
 photo_cameraImage coming soon 1260460 oil seal €4.47
46
 photo_cameraImage coming soon 770090 O-ring €1.58
47
 photo_cameraImage coming soon 1980460 pump body €39.80
48
 photo_cameraImage coming soon 180030 screw €2.03
49
 photo_cameraImage coming soon 1981140 spring €3.87
50
 Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME 1981440 Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME €18.24
51
 photo_cameraImage coming soon 1980150 ring €2.26
52
 photo_cameraImage coming soon 1322230 spring €2.20
53
 photo_cameraImage coming soon 1980130 Fifth wheel €14.60
54
 photo_cameraImage coming soon 1980250 Fifth wheel €10.28
55
 photo_cameraImage coming soon 1980240 Fifth wheel €4.47
56
 photo_cameraImage coming soon 1980340 O-ring €2.26
57
 photo_cameraImage coming soon 2022201 fork €3.36
58
 Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 1270940 Snap Fitting For Pressure Washers ARSG Blitz - 8.13 - 8.15 €2.71
59
 photo_cameraImage coming soon 1989257 Pre-Assembly Head €189.51
60
 photo_cameraImage coming soon 1980310 screw €2.34
61
 photo_cameraImage coming soon 1260820 O-ring €1.59
62
 photo_cameraImage coming soon 650530 washer €2.03
63
 Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 1260660 Water Filter for Pressure Washers AR Farmer's Division Blitz 8.13 €2.08
68
 photo_cameraImage coming soon 1980290 stopper €5.84
72
 photo_cameraImage coming soon 1080041 piston €12.34
73
 photo_cameraImage coming soon 1080070 plug €2.64
74
 photo_cameraImage coming soon 1980520 Spring €9.61
75
 photo_cameraImage coming soon 1980220 disk €2.13
76
 photo_cameraImage coming soon 1980540 Insert €15.01
77
 photo_cameraImage coming soon 42143 Kit Tss €33.06
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

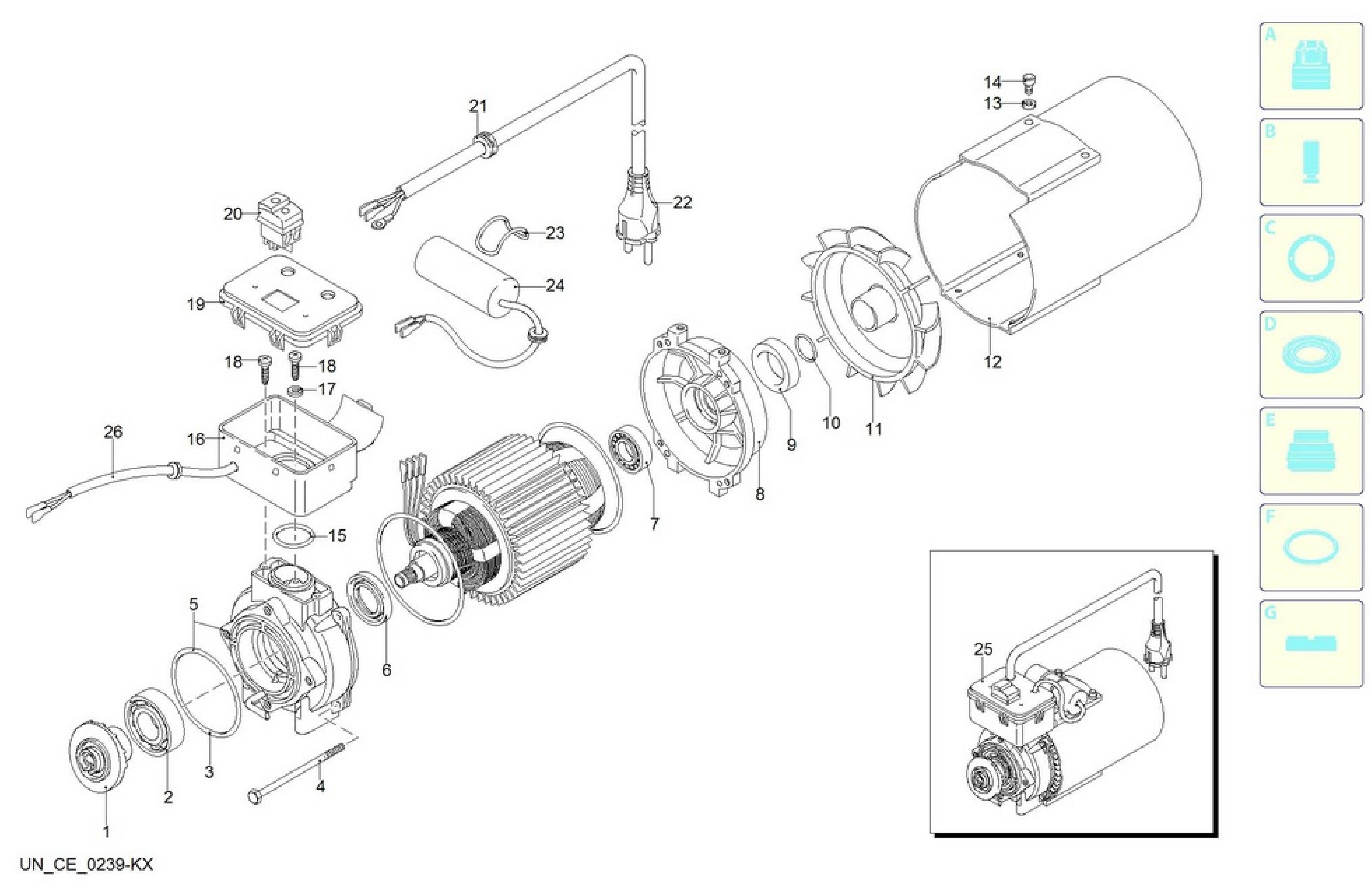

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1983110 disk €25.86
2
 photo_cameraImage coming soon 1981210 bearing €17.05
4
 photo_cameraImage coming soon 2320830 screw €2.34
5
 photo_cameraImage coming soon 1982040 flange €41.45
6
 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
7
 photo_cameraImage coming soon 1460590 bearing €7.15
8
 photo_cameraImage coming soon 1460040 shield €23.19
9
 photo_cameraImage coming soon 1461200 oil seal €1.88
11
 photo_cameraImage coming soon 1460370 fan €6.01
12
 photo_cameraImage coming soon 1460340 conveyor €16.59
13
 photo_cameraImage coming soon 1680960 washer €1.51
14
 photo_cameraImage coming soon 1460460 screw €1.58
15
 photo_cameraImage coming soon 660170 O-ring €1.81
16
 photo_cameraImage coming soon 2320131 box €6.85
17
 photo_cameraImage coming soon 1262400 washer €1.73
18
 photo_cameraImage coming soon 2020570 screw €1.59
19
 photo_cameraImage coming soon 2320270 cover €6.37
20
 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 2320280 Switch for Pressure Washers Annovi & Reverberi ARSG Vip - 8.130 €10.01
21
 photo_cameraImage coming soon 2021480 Grommet €4.16
22
 photo_cameraImage coming soon 1760450 cable €28.26
23
 photo_cameraImage coming soon 2320640 O-Ring €1.93
24
 Capacitor for Pressure Washers Annovi & Reverberi AR747 1982190 Capacitor for Pressure Washers Annovi & Reverberi AR747 €28.62
25
 photo_cameraImage coming soon 4704 engine €295.77
26
 photo_cameraImage coming soon 2021560 Cable €7.11
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

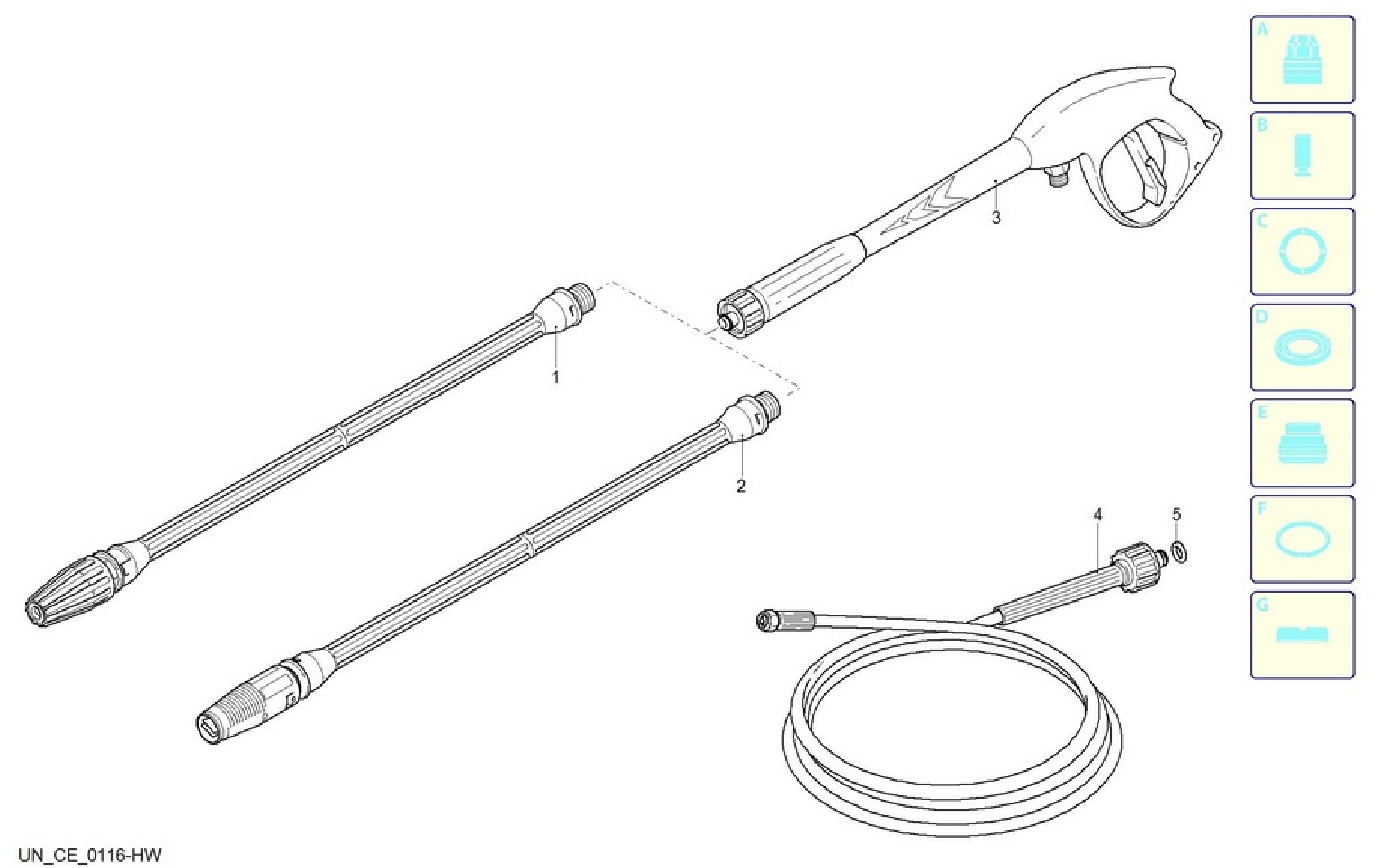

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 40167 Lance + Rotopower €52.12
2
 Lance for Washers AR Farmer's Division Proliner Z - 8.150 - 9.160 40029 Lance for Washers AR Farmer's Division Proliner Z - 8.150 - 9.160 €60.20
3
 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV 40925 Gun for Pressure Washers AR Farmer's Division Vip-K-Proliner Z-PRO-SV €31.47
4
 photo_cameraImage coming soon 1262443 High Pressure Tube €45.25
5
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Washer EXTREME 9.160 Z TSS - 11945

We are AR Farmer's Division original Accessories and spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer EXTREME 9.160 Z TSS - 11945.

In the following tables, look for the spare part and its respective code.
Pressure Washer EXTREME 9.160 Z TSS - 11945

Pressure Washer EXTREME 9.160 Z TSS - 11945 Spare Parts
Casing Pag.1
# Part Num. Description
1 2180690 Yellow Casing
2 2180760 Sponge
4 390440 Nut
5 1263020 Clamp
6 2180700 Plate
7 2180040 Handle
8 2180060 Knob
9 2180090 Grid
10 1261560 Lives
11 2180300 Washer
12 1343510 Lives
13 2180050 Holders Accessories
14 850370 Lives
15 961340 Washer
16 2180080 Axle
17 2180140 Wheel
18 1680880 Washer
19 1680890 Washer
20 2180010 Base
21 1270960 Tube Cleaner
22 40008 Tank
23 2180710 Plate
26 1680650 Screw
27 2180330 Rubber
28 2000110 Screw
29 2020940 Band
30 2180441 Grid
31 2189001 Pre-Assembly Base
Pump Pag.2
1 110640 Screw
2 1980300 Nut
3 1980530 Piston Guide
4 740290 O-Ring
5 800560 O-Ring
6 1080250 O-Ring
7 1271170 Ring
8 1080190 O-Ring
9 1271160 Piston
10 1980200 Office
11 1470210 O-Ring
12 1982520 Hose
13 480480 O-Ring
14 1250280 Ball
15 1560520 Spring
16 1460430 O-Ring
17 1540170 Shutter
18 1080091 Spring
19 394280 O-Ring
20 1200690 O-Ring
21 1270091 Injector
22 1981190 Screw
23 1080190 O-Ring
24 660190 O-Ring
25 1982990 Piston
26 1981320 Spring
27 880840 O-Ring
28 1983360 Junction
29 1982170 Head
30 820510 O-Ring
31 880581 Stopper
32 2029752 Pre-Assembly Box Tss
33 1260162 Cork
34 960160 O-Ring
35 1981460 Bush
36 880240 Valve
37 1981450 Bush
38 1080401 Ring
39 2460180 O-Ring
40 1981470 Piston Guide
41 770130 O-Ring
42 1260440 Watertight
43 1980170 Ring
44 1980430 Spacer
45 1260460 Oil Seal
46 770090 O-Ring
47 1980460 Body Pump
48 180030 Screw
49 1981140 Spring
50 1981440 Piston
51 1980150 Ring
52 1322230 Spring
53 1980130 Fifth Wheel
54 1980250 Fifth Wheel
55 1980240 Fifth Wheel
56 1980340 O-Ring
57 2022201 Fork
58 1270940 Connection
59 1989257 Pre-Assembly Head
60 1980310 Screw
61 1260820 O-Ring
62 650530 Washer
63 1260660 Filter
68 1980290 Level Indicator
72 1080041 Piston
73 1080070 Thorn
74 1980520 Spring
75 1980220 Disk
76 1980540 Insert
77 42143 Kit Tss
A 2581 Valve Kit
B 2593 Piston Kit
C 2511 Oil Seals Kit
E 2582 Kit Held Water
F 2799 Seal Kit
Motor Pag.3
1 1983110 Disk
2 1981210 Bearing
3 1980340 O-Ring
4 2320830 Screw
5 1982040 Flange
6 1260750 Ring
7 1460590 Bearing
8 1460040 Shield
9 1461200 Oil Seal
10 394280 O-Ring
11 1460370 Fan
12 1460340 Conveyor
13 1680960 Washer
14 1460460 Screw
15 660170 O-Ring
16 2320131 Box
17 1262400 Washer
18 2020570 Screw
19 2320270 Cover
20 2320280 Switch
21 2021480 Fairlead
22 1760450 Cable
23 2320640 O-Ring
24 1982190 Condenser
25 4704 Engine
26 2021560 Cable
Accessories Pag.4
1 40167 Lance + Rotopower
2 40029 LANCE + head
3 40925 gun
4 1262443 High pressure hose
5 2000770 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ARSG EXTREME 9.160 Z TSS - 11945
4 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR Farmer's 9.160 Z TSS

Diagram AR Farmer's 9.160 Z TSS

Download (526.51KB)

You might also like

Capacitor for Pressure Washers Annovi & Reverberi AR747
Annovi Reverberi S.p.A. SKU: 1982190
Capacitor for Pressure Washers Annovi & Reverberi AR747
Capacitor for Pressure Washers Annovi & Reverberi AR747 Original part Annovi & Reverberi, high pressure Capacitor for pressure washers models Blue Clean AR 747 - EXTREME 9.160 Z TSS - EXTREME 150 TSS REG...
Last items in stock €28.62
Details
Water Seals S.202 VE for Pressure Washers AR Farmer's Extreme
Annovi Reverberi S.p.A. SKU: 2791
Water Seals S.202 VE for Pressure Washers AR Farmer's Extreme
Water Seals S.202 VE for Pressure Washers AR Farmer's Extreme Original Parts Annovi & Reverberi, Water Seals Kit S.202 VE for Pumps Extreme 150 TSS REG - AR BLU CLEAN Serie 555. Part for the following products: - ARSG - Models 50...
Last items in stock €25.65
Details
Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME
Annovi Reverberi S.p.A. SKU: 1981440
Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME
Piston D.15x73,5 for Pressure Washers AR Farmer's PROLINER-EXTREME Original Parts Annovi & Reverberi, Piston D.15x73,5 for Pressure Washer AR Farmer's Division PROLINER Z 8.150 Z TSS - PROLINER Z 9.160 Z TSS - Annovi & Reverberi AR737...
Last items in stock €18.24
Details
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1460702
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
High Pressure Hose for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi & Reverberi, High Pressure Hose for Pressure Washers ARSG Vip - 8.130 - Proliner S - S 1308 - Event - 141 N TSS...
Last items in stock €22.66
Details
Holder Seal for Pressure Washer ARSG Extreme - 150 TSS Sale
Annovi Reverberi S.p.A. SKU: 2320080
Holder Seal for Pressure Washer ARSG Extreme - 150 TSS
Holder Seal for Pressure Washer ARSG Extreme - 150 TSS Genuine part Annovi&Reverberi, Holder Seal mm 12 for Pressure Washer ARSG > Modelli Extreme - 150 TSS REG - 11572 - AR BC Serie 5 - 555 - 12356 Parts for the following...
AVAILABLE €9.21
Details
Annovi Spring for Pressure Washer AR747
Annovi Reverberi S.p.A. SKU: 1981320
Annovi Spring for Pressure Washer AR747
Annovi Spring for Pressure Washer AR747 Genuine part Annovi Reverberi, TSS Spring DE 8,7 X 15,9 x 1,2 for Pressure Washer AR747 - AR767 - AR780. Part for the Following Products: -  Pressure Washer AR Farmer's...
AVAILABLE €1.54
Details
Comments (0)
