Annovi Reverberi S.p.A.

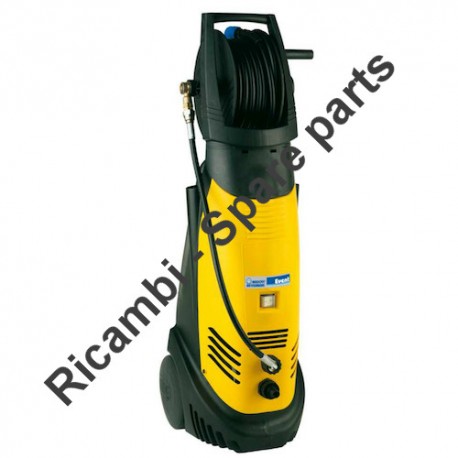

AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488

SKU: EVENT 141 N TSS RLW - 12488
€23.25
VAT included

AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488

Genuine Parts AR Farmer's Division for to repair Pressure Washer EVENT 141 N TSS RLW - 12488.
AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
  • AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488
Annovi Reverberi S.p.A.

AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488

SKU: EVENT 141 N TSS RLW - 12488 Condition: New
€23.25
VAT included

AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488

Genuine Parts AR Farmer's Division for to repair Pressure Washer EVENT 141 N TSS RLW - 12488.
settings 90 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
83 spare parts
Esploso pagina 1
Pos. Item Price Buy
5
 photo_cameraImage coming soon 2440490 Stirrup €11.26
10
 photo_cameraImage coming soon 2620550 High Pressure Hose €31.89
12
 photo_cameraImage coming soon 2109270 Pre-Assembly Body Pump €26.29
18
 photo_cameraImage coming soon 2860150 High Pressure Hose €27.75
19
 photo_cameraImage coming soon 1680670 Capacitor €20.65
20
 photo_cameraImage coming soon 2360460 Disk €10.50
21
 photo_cameraImage coming soon 2440160 Plate €5.13
22
 photo_cameraImage coming soon 2561120 Spring €5.21
23
 photo_cameraImage coming soon 2100130 Piston €9.67
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2180740 Ferrule €2.09
2
 photo_cameraImage coming soon 2440040 Yellow Casing €21.21
4
 photo_cameraImage coming soon 2440070 Wheel €7.86
5
 photo_cameraImage coming soon 2100300 screw €4.72
6
 photo_cameraImage coming soon 2440020 Black Casing €24.61
7
 photo_cameraImage coming soon 2440120 Stirrup €7.89
8
 photo_cameraImage coming soon 2440010 Black Casing €24.61
9
 photo_cameraImage coming soon 2440170 Holders Accessories €17.14
10
 photo_cameraImage coming soon 2440150 Holder €7.75
11
 photo_cameraImage coming soon 2440570 Guide €5.25
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
B
 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 2508 Piston Kit S.210 for Pressure Washer A&R ARSG HOT 120 €16.82
D
 Water Seals for Pressure Washers AR Farmer's Event 131-141 2575 Water Seals for Pressure Washers AR Farmer's Event 131-141 €9.62
A
 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division 2577 Kit Valves S.202/232 for Pressure Washers AR-AR Farmer's Division €14.62
1
 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
2
 photo_cameraImage coming soon 2101000 Screw €4.80
3
 photo_cameraImage coming soon 2100630 Junction €6.91
4
 photo_cameraImage coming soon 390180 O-ring €1.58
5
 AR O-RING for Pressure Washer AR8880 550350 AR O-RING for Pressure Washer AR8880 €0.62
6
 photo_cameraImage coming soon 2440200 Extension €7.03
7
 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS 2109050 Valve for Pressure Washers AR-AR Farmer's Division Mirage - 120 TSS €2.41
9
 photo_cameraImage coming soon 2100030 Piston Guide €12.30
10
 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
11
 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 2122 Head + O-Ring for Pressure Washers AR Farmer's Event 131-141 €19.40
15
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
16
 Holder Seal for Pressure Washer AR BC Serie 1 - 2 2020041 Holder Seal for Pressure Washer AR BC Serie 1 - 2 €1.40
17
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
18
 photo_cameraImage coming soon 2560480 Bushing €1.40
20
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2100280 Headphones €5.13
2
 photo_cameraImage coming soon 1682270 Switch €6.38
3
 AR Capacitor Box for AR 111 2100060 AR Capacitor Box for AR 111 €6.13
da 2 pz: €0.50
4
 Annovi Reverberi O-Ring for Pressure Washer 2590 390201 Annovi Reverberi O-Ring for Pressure Washer 2590 €0.87
6
 photo_cameraImage coming soon 1272600 Cable €25.01
7
 photo_cameraImage coming soon 2020570 screw €1.59
8
 photo_cameraImage coming soon 1262400 washer €1.73
9
 photo_cameraImage coming soon 2100110 Fairlead €5.09
11
 photo_cameraImage coming soon 2102180 Disk €12.09
13
 photo_cameraImage coming soon 2100980 Screw €4.53
14
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
15
 photo_cameraImage coming soon 2020850 Washer €5.08
16
 photo_cameraImage coming soon 1680250 Fan €7.11
17
 photo_cameraImage coming soon 44190 Engine €160.30
23
 photo_cameraImage coming soon 2102110 Conveyor €12.81
24
 photo_cameraImage coming soon 2020140 Ring €5.00
25
 Pump Bearing for Pressure Washer AR2590 2021570 Pump Bearing for Pressure Washer AR2590 €9.62
26
 photo_cameraImage coming soon 2021960 Fork €4.94
28
 O-Ring 62x2 for Pressure Washer AR BC 2590 850840 O-Ring 62x2 for Pressure Washer AR BC 2590 €2.34
30
 photo_cameraImage coming soon 1461470 junction €3.26
33
 TSS Pump Ass'y for Pressure Washer Black&Decker PW 1800 N WR 42089 TSS Pump Ass'y for Pressure Washer Black&Decker PW 1800 N WR €140.56
35
 photo_cameraImage coming soon 2440440 Extension €21.34
37
 photo_cameraImage coming soon 2101450 Flange €6.77
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 40664 Hose Pre-Assembly €99.48
2
 photo_cameraImage coming soon 2360150 Lever €3.04
6
 photo_cameraImage coming soon 2440500 Pin €8.89
7
 photo_cameraImage coming soon 2560720 Lives €4.72
8
 photo_cameraImage coming soon 2360230 Disk €12.57
11
 photo_cameraImage coming soon 2440510 Pin €24.60
12
 photo_cameraImage coming soon 391000 O-Ring €4.73
13
 photo_cameraImage coming soon 2440540 Junction €6.35
15
 photo_cameraImage coming soon 2440480 Stirrup €6.58
16
 photo_cameraImage coming soon 820510 O-ring €5.63
17
 photo_cameraImage coming soon 2360310 Junction €4.23
19
 photo_cameraImage coming soon 2360510 Protection €3.29
21
 photo_cameraImage coming soon 2440470 Handle €19.14
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
1
 Lance Head for Pressure Washer ARSG EVENT 131 N TSS 40359 Lance Head for Pressure Washer ARSG EVENT 131 N TSS €19.40
2
 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 40344 Rotopower Head for Pressure Washer Black&Decker PW 1300-1500 €28.07 Not available for order
3
 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND 1680220 O-Ring 8X2 for Pressure Washers AR DRIVE 100 TSS-Top Wash S 120 T-WIND €0.45
4
 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 40667 Hobby Line Lance with Spring for Pressure Washers AR Blue Clean 410 €16.78
6
 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 40417 Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 €12.42
7
 photo_cameraImage coming soon 40352 Tank €18.87
8
 photo_cameraImage coming soon 40350 Gun->40925+3082750+3780492 €36.26
9
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
11
 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker 2000770 O-Ring 8x2 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AR Farmer's Division Parts for Washer EVENT 141 N TSS RLW - 12488

Genuine Parts AR Farmer's Division for to repair Pressure Washer EVENT 141 N TSS RLW - 12488.

In the following tables, look for the spare part and its respective code.
EVENT 141 N TSS RLW - 12488

Pressure Washer EVENT 141 N TSS RLW - 12488

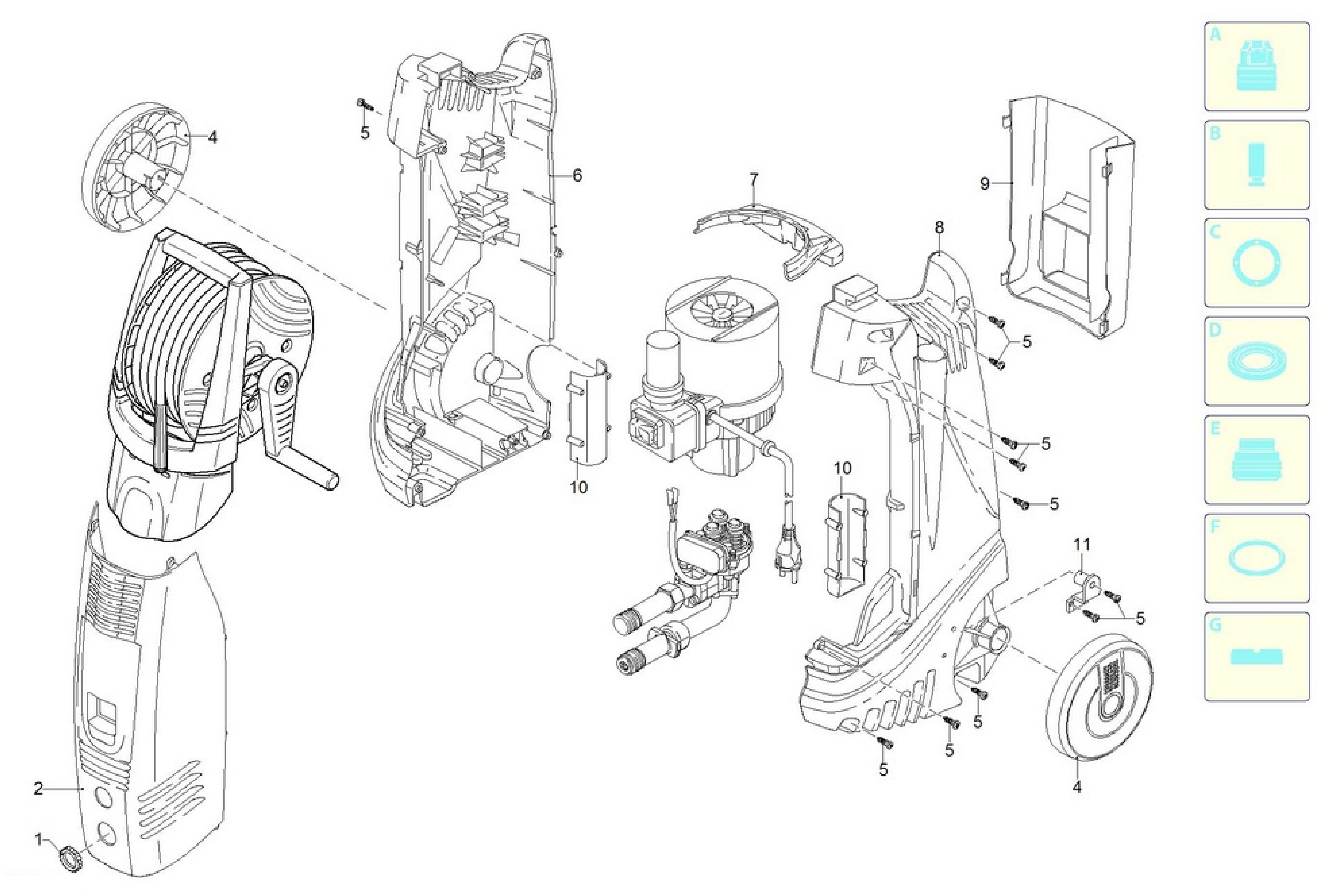

Casing 141 N TSS RLW - 12488 Pag.1
# Part Num. Description
1 2180740 Ring Nut
2 2440040 Yellow casing
4 2440070 Wheel
5 2100300 Screw
6 2440020 Black Casing
7 2440120 Stirrup
8 2440010 Black Casing
9 2440170 Holders Accessories
10 2440150 Holder
11 2440570 Guide

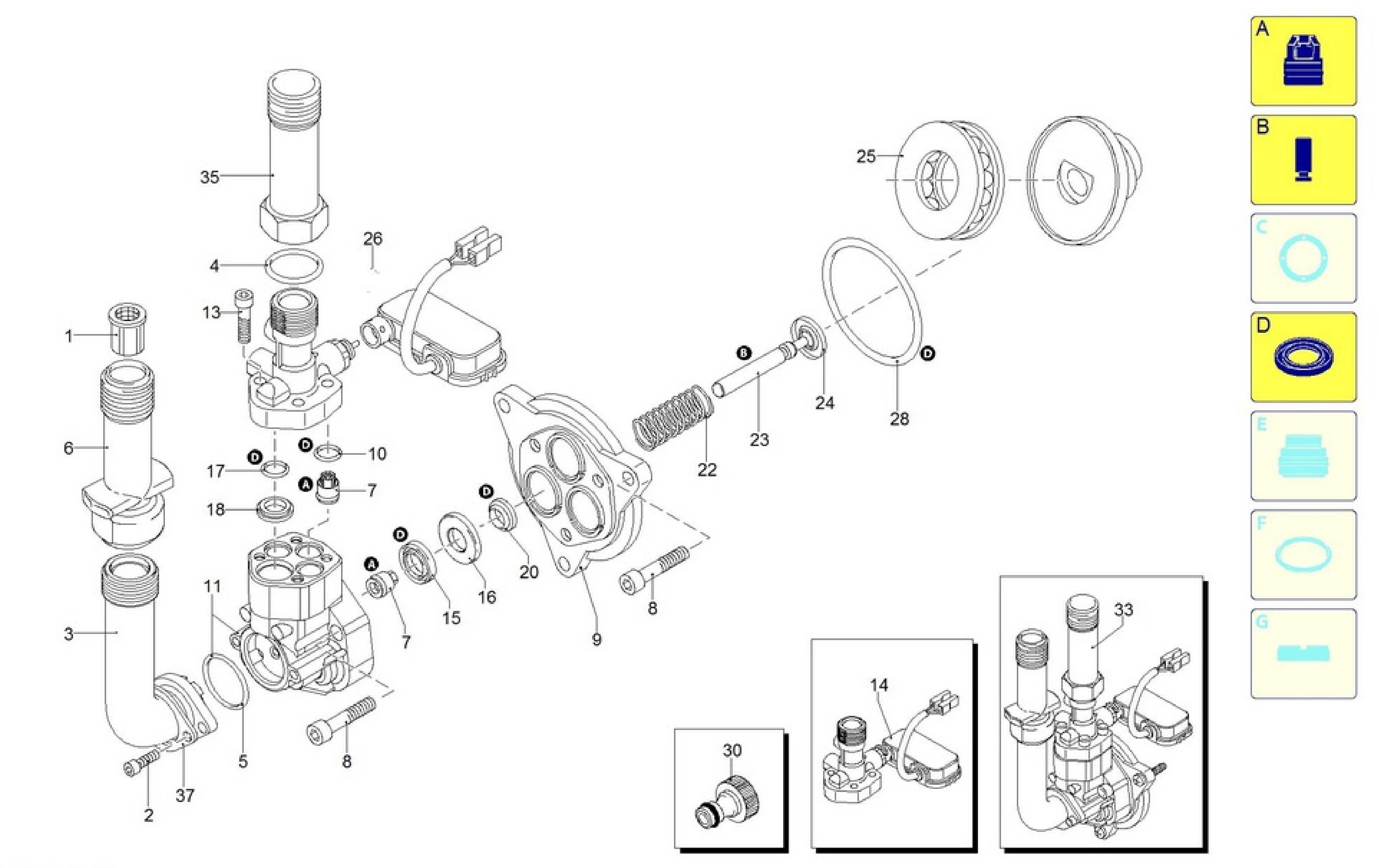

Pump 141 N TSS RLW - 12488 Pag.2
1 1340260 Filter
2 2101000 Screw
3 2100630 Junction
4 390180 O-Ring
5 550350 O-Ring
6 2440200 Extension
7 2109050 Valve
8 850850 Screw
9 2100030 Piston Guide
10 880840 O-Ring
11 2122 Head + OR
13 1260760 Screw
14 2256 Pre-Assembly Fitting
15 2200141 Watertight
16 2020041 Ring
17 394280 O-Ring
18 2560480 Bush
20 1683500 Oil Seal
22 2561120 Spring
23 2100130 Piston
24 2020140 Ring
25 2021570 Bearing
26 2021960 Fork
28 850840 O-Ring
30 1461470 Junction
33 42089 Pump Pre-Assembly TSS
35 2440440 Extension
37 2101450 Flange
A 2577 Valve Kit
B 2508 Piston Kit
D 2575 Kit Held

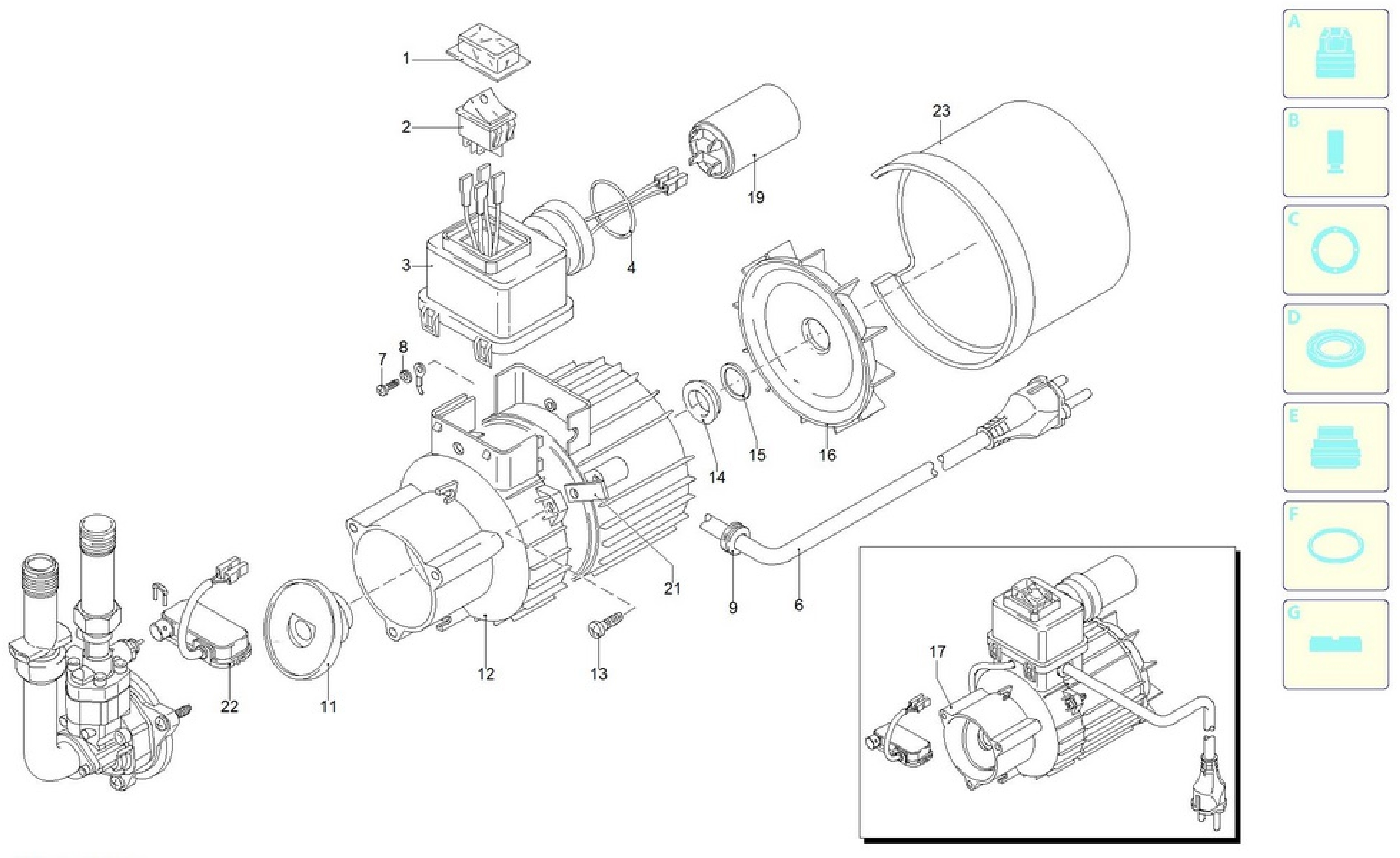

Motor 141 N TSS RLW - 12488 Pag.3
1 2100280 Cover
2 1682270 Switch
3 2100060 Capacitor Box
4 390201 O-Ring
6 1272600 Cable
7 2020570 Screw
8 1262400 Washer
9 2100110 Fairlead
11 2102180 Disk
12 2109270 Pre-Assembly Body Pump
13 2100980 Screw
14 1340350 Seal
15 2020850 Washer
16 1680250 Fan
17 44190 Engine
19 1680670 Capacitor
21 2440160 Plate
22 2029721 Pre-Assembly Box TSS
23 2102110 Conveyor

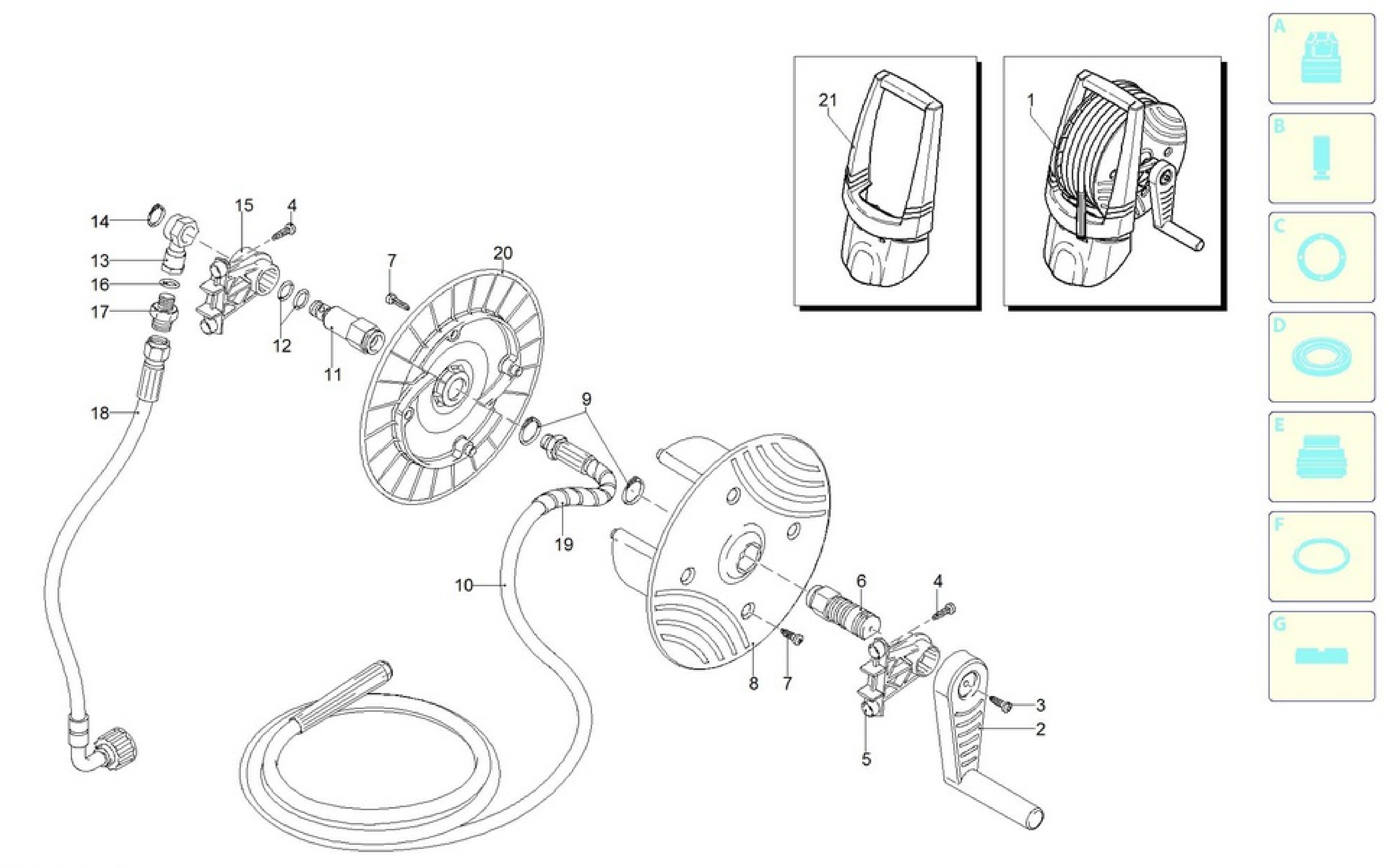

RLW 8M 141 N TSS RLW - 12488 Pag.4
1 40664 Hose Pre-Assembly
2 2360150 Lever
3 2100300 Screw
4 2100300 Screw
5 2440490 Stirrup
6 2440500 Pin
7 2560720 Screw
8 2360230 Disk
9 380420 Ring
10 2620550 High Pressure Hose
11 2440510 Pin
12 391000 O-Ring
13 2440540 Junction
14 2360320 Ring
15 2440480 Stirrup
16 820510 O-Ring
17 2360310 Junction
18 2860150 High Pressure Hose
19 2360510 Protection
20 2360460 Disk
21 2440470 Handle

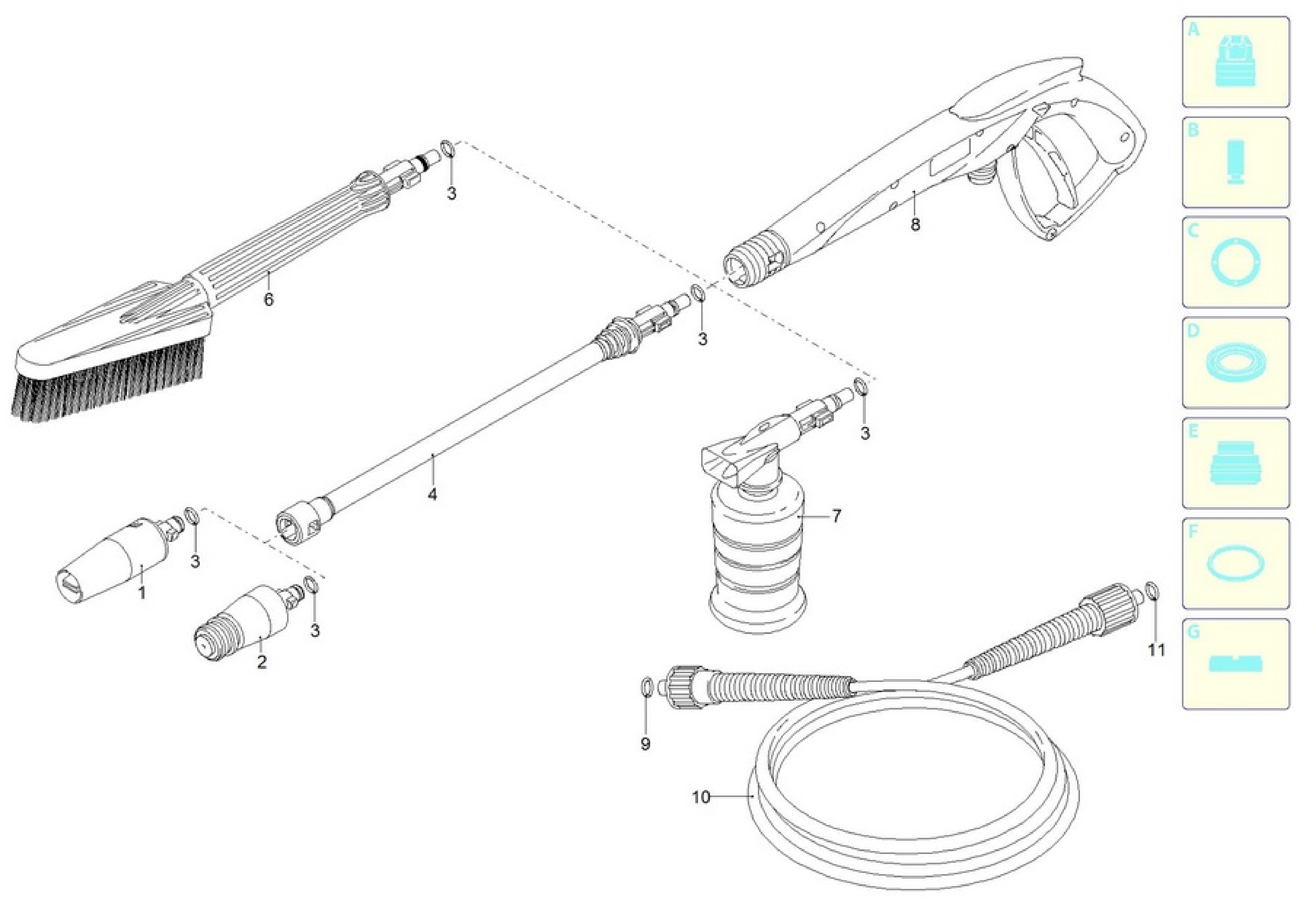

Accessories 141 N TSS RLW - 12488 Pag.5
1 40359 Head
2 40344 Head Rotopower
3 1680220 O-Ring
4 40667 Lance
6 40417 Fixed Brush
7 40352 Tank
8 40350 Gun->40925+3082750+3780492
9 600180 O-Ring
10 2620400
=
3020151		 High Pressure Hose
11 2000770 O-Ring
2000570 OR 10x2 Parker
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
EVENT 141 N TSS RLW - 12488
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram AR F. 141 N TSS RLW

Diagram AR F. 141 N TSS RLW

Download (581.12KB)

You might also like

O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Annovi Reverberi S.p.A. SKU: 2020041
Holder Seal for Pressure Washer AR BC Serie 1 - 2
Holder Seal for Pressure Washer AR BC Serie 1 - 2 Genuine part Annovi&Reverberi, Holder Seal for Pressure Washer AR BC Serie 1 - 2 - ARSG Mirage - HOT 120 - Event 131...
AVAILABLE €1.40
Details
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
Annovi Reverberi S.p.A. SKU: 1460702
High Pressure Hose for Pressure Washer ARSG Vip - 8.130
High Pressure Hose for Pressure Washer ARSG Vip - 8.130 Genuine part Annovi & Reverberi, High Pressure Hose for Pressure Washers ARSG Vip - 8.130 - Proliner S - S 1308 - Event - 141 N TSS...
Last items in stock €22.66
Details
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500
Annovi Reverberi S.p.A. SKU: 40417
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500
Fixed Brush for Pressure Washers Black & Decker PW 1300-1400-1500 Genuine parts Black & Decker, Fixed Brush for Pressure Washers PW 1300 B - 12610 - PW 1400 B - 12340 -  PW 1400 P - 12341 - 1500 WB - 12342 - 1500 WB - 2007 -...
Last items in stock €12.42
Details
Pump Bearing for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 2021570
Pump Bearing for Pressure Washer AR2590
Pump Bearing for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Pump Bearing for Pressure Washer Annovi & Reverberi AR BC - Model 50 Hz - Series 25 - 2590 - 24424. Parts For the Following Products: - AR BC - 50 Hz...
Last items in stock €9.62
Details
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Annovi Reverberi S.p.A. SKU: 1683500
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG Genuine Part for Annovi & Reverberi, Oil Seal mm 12x2x5/7" for Pressure Washers ARSG EVENT - EXTREME - MR CLEAN - NRG - PRO CLEAN...
AVAILABLE €2.54
Details
Lance Head for Pressure Washer ARSG EVENT 131 N TSS
Annovi Reverberi S.p.A. SKU: 40359
Lance Head for Pressure Washer ARSG EVENT 131 N TSS
Lance Head for Pressure Washer ARSG EVENT 131 N TSS Genuine part Annovi & Reverberi, Lance Head for Pressure Washers ARSG EVENT 131 N TSS - 141 N TSS RLW - AR 410 - AR 420-N - B&D PW 1800 W. Part for the following products: -...
Last items in stock €19.40
Details
AR O RING for Pressure Washer AR8880
Annovi Reverberi S.p.A. SKU: 550350
AR O-RING for Pressure Washer AR8880
AR O-RING for Pressure Washer AR8880 Genuine spare part Annovi Reverberi, O-RING for Pressure Washers AR8880 - AR8840 - AR8860 - AR1120. Part for the following products: -  Pressure Washer Annovi Reverberi 8880 - 22915 - ...
AVAILABLE €0.62
Details
Annovi Reverberi O-R for Pressure Washer 2590
Annovi Reverberi S.p.A. SKU: 390201
Annovi Reverberi O-Ring for Pressure Washer 2590
Annovi Reverberi O-Ring for Pressure Washer 2590 Genuine spare part Annovi Reverberi, O-R 39,34x2,62 for Pressure Washers AR2590 - AR111. Part for the following products: -  Pressure Washer Annovi Reverberi 2590 - 24424 - ...
AVAILABLE €0.87
Details
AR Capacitor Box for AR 111
Annovi Reverberi S.p.A. SKU: 2100060
AR Capacitor Box for AR 111
Annovi Reverberi Capacitor Box for Pressure Washer AR 111 Genuine spare part Annovi Reverberi, Capacitor Box for Pressure Washer AR 111. Part for the following products: -  Pressure Washer ARSG EVENT 131 N TSS - 12487...
AVAILABLE €6.13
Details
Comments (0)
