Annovi Reverberi RR15.20N Parts

SKU: RR15.20N - 23507
€156.94
VAT included

Annovi Reverberi RR15.20N Parts

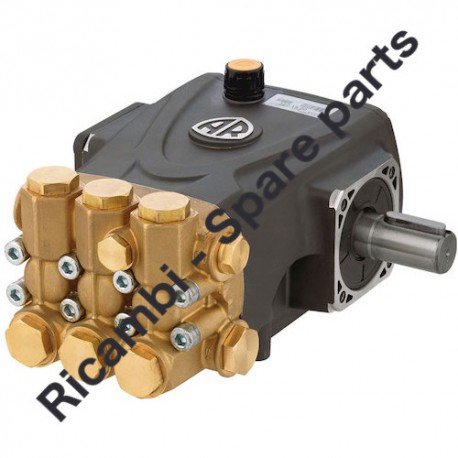

Distribution and sale of original Annovi Reverberi spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and fix problem for AR Industrial Division HP Pump / Serie 322 RR15.20N.
Annovi Reverberi RR 15.20 N Parts
  • Annovi Reverberi RR 15.20 N Parts
  • Annovi Reverberi RR 15.20 N Parts Drawing
Annovi Reverberi S.p.A.

Annovi Reverberi RR15.20N Parts

SKU: RR15.20N - 23507 Condition: New
€156.94
VAT included

Annovi Reverberi RR15.20N Parts

Distribution and sale of original Annovi Reverberi spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and fix problem for AR Industrial Division HP Pump / Serie 322 RR15.20N.
settings 50 spare parts

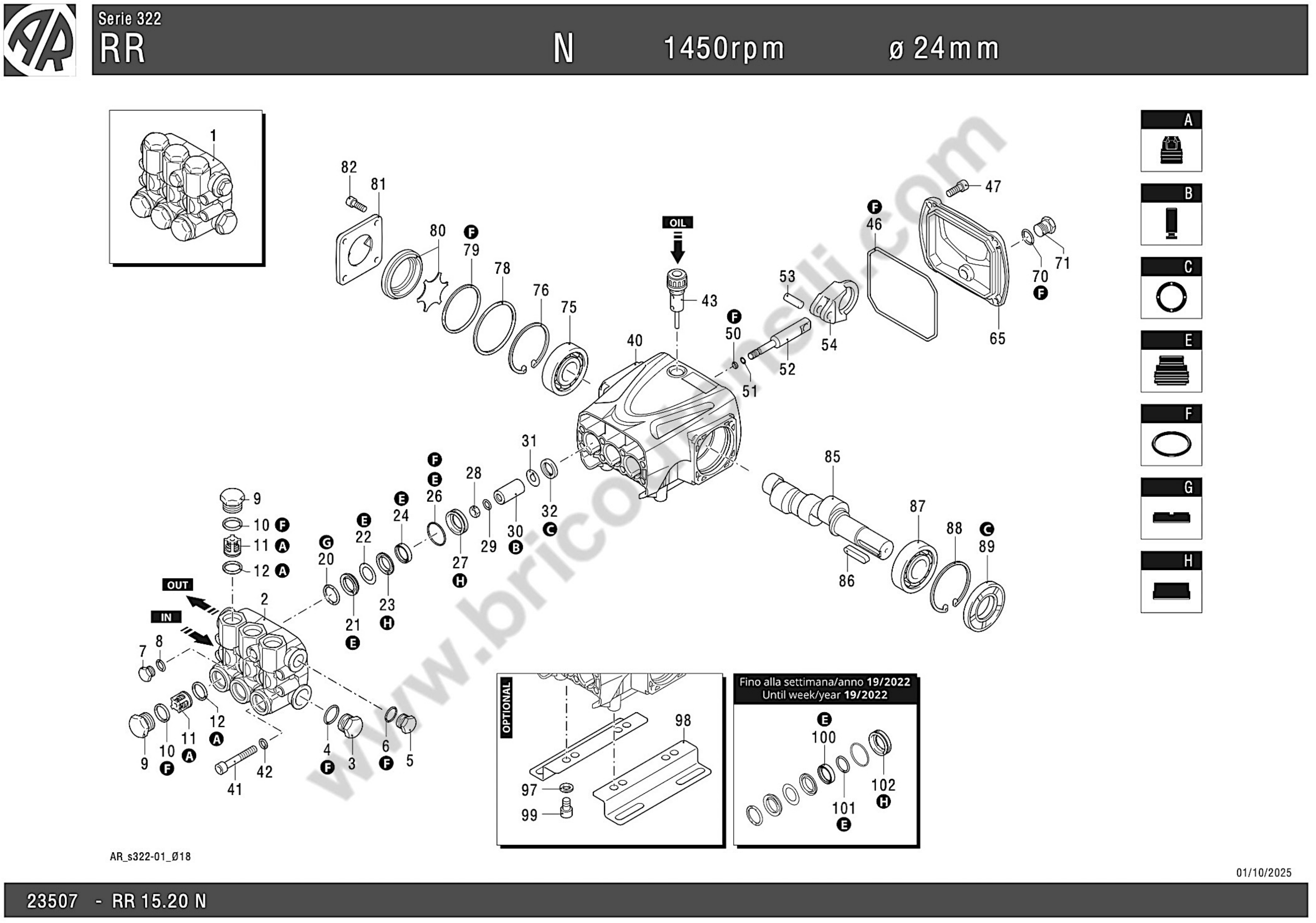

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
G
 AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
 photo_cameraImage coming soon 2746 Piston Kit €76.44
A
 photo_cameraImage coming soon 2864 Kit Valves €18.08
C
 photo_cameraImage coming soon 42547 SEALS KIT €14.20
H
 photo_cameraImage coming soon 42548 Piston guide kit >I XXXXX-17229999 €22.58
E
 photo_cameraImage coming soon 42549 SEALS KIT €26.89
F
 photo_cameraImage coming soon 42550 GASKET SET €9.71
H
 photo_cameraImage coming soon 47109 Piston guide kit I> XXXXX-18220001 €18.30
E
 photo_cameraImage coming soon 47110 Water seal kit I> XXXXX-18220001 €16.49
1
 photo_cameraImage coming soon 3229200 Head assembly €163.32
2
 photo_cameraImage coming soon 3220020 HEAD SA €121.05
3
 photo_cameraImage coming soon 820361 Stopper €4.41
4
 photo_cameraImage coming soon 180101 O-Ring €4.73
5
 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
6
 photo_cameraImage coming soon 740290 O-ring €2.67
7
 photo_cameraImage coming soon 880581 stopper €7.73
8
 photo_cameraImage coming soon 820510 O-ring €5.63
9
 photo_cameraImage coming soon 960090 Stopper €5.85
10
 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
11
 photo_cameraImage coming soon 1389051 Complete Valve €4.82
12
 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
20
 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
21
 photo_cameraImage coming soon 1780720 Tenuta Water €10.97
22
 photo_cameraImage coming soon 3200250 Ring €1.81
23
 photo_cameraImage coming soon 3220130 PISTON GUIDE €11.39
24
 O-R mm 18x25x5,5 for Pressure Washers 780-787-797-945-6670-7850 1260450 O-R mm 18x25x5,5 for Pressure Washers 780-787-797-945-6670-7850 €2.93
26
 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
27
 photo_cameraImage coming soon 3221030 Piston guide I> XXXXX-18220001 €13.26
28
 photo_cameraImage coming soon 1260110 Nut €1.65
30
 photo_cameraImage coming soon 1780080 Piston €25.49
32
 photo_cameraImage coming soon 1260460 oil seal €4.47
40
 photo_cameraImage coming soon 3220010 BODY PUMP SA €61.18
43
 photo_cameraImage coming soon 880130 Stopper €6.67
50
 photo_cameraImage coming soon 480480 O-ring €5.63
51
 photo_cameraImage coming soon 1080550 Ring €5.42
52
 photo_cameraImage coming soon 3220060 PISTON €19.84
53
 photo_cameraImage coming soon 3220070 PIN €2.86
54
 photo_cameraImage coming soon 3220040 CON ROD €9.30
65
 photo_cameraImage coming soon 3220030 COVER €17.03
70
 photo_cameraImage coming soon 820510 O-ring €5.63
71
 photo_cameraImage coming soon 880581 stopper €7.73
75
 photo_cameraImage coming soon 1981210 bearing €17.05
76
 photo_cameraImage coming soon 200390 RING €6.90
78
 photo_cameraImage coming soon 3220780 RING €5.05
80
 photo_cameraImage coming soon 3229603 PRE ASSEMBLY LEVEL €17.34
81
 photo_cameraImage coming soon 3200070 Support €6.38
82
 photo_cameraImage coming soon 1200430 Screw €4.64
85
 photo_cameraImage coming soon 3220310 Shaft €84.66
87
 photo_cameraImage coming soon 1981210 bearing €17.05
88
 photo_cameraImage coming soon 200390 RING €6.90
89
 photo_cameraImage coming soon 3220280 Ring €2.86
98
 photo_cameraImage coming soon 3200210 Foot €12.28
100
 photo_cameraImage coming soon 3200142 Gasket €2.03
102
 photo_cameraImage coming soon 3220120 PISTON GUIDE €13.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi RR 15.20 N Parts

Distribution and sale of original Annovi Reverberi spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and fix problem for AR Industrial Division HP Pump / Serie 322 RR15.20N.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi RR 15.20 N - 23507
RR 15.20 N - 23507
Pag.1
# Part Num Description
1 3229200 Head assembly
2 3220020 Head
3 820361 Plug
4 180101 O-ring
5 1980740 Plug
6 740290 O-ring
7 880581 Plug
8 820510 O-ring
9 960090 Plug
10 960160 O-ring
11 1389051 Complete valve
12 880830 O-ring
20 1780140 Ring
21 1780720 Water seal
22 3200250 Ring
23 3220130 Piston guide
24 1260450 Water seal
26 770260 O-ring
27 3221030 Piston guide
28 1260110 Nut
29 1260100 Washer
30 1780080 Piston
31 1260091 Plate
32 1260460 Oil seal
40 3220010 Pump body
41 800860 Screw
42 1381850 Washer
43 880130 Oil plug
46 651540 O-ring
47 3200220 Screw
50 480480 O-ring
51 1080550 Ring
52 3220060 Piston
53 3220070 Pin
54 3220040 Connecting-rod
65 3220030 Cover
70 820510 O-ring
71 880581 Plug
75 1981210 Bearing
76 200390 Ring
78 3220780 Ring
79 650560 O-ring
80 3229603 Oil level assembly
81 3200070 Support
82 1200430 Screw
85 3220310 Shaft
86 3200230 Key
87 1981210 Bearing
88 200390 Ring
89 3220280 Ring
97 1322640 Washer
98 3200210 Foot
99 850250 Screw Until week/year 19/22
100 3200142 Gasket Until week/year 19/22
101 3200260 Ring Until week/year 19/22
102 3220120 Piston guide
A 2864 Valve kit
B 2746 Piston kit
C 42547 Oil seal kit Until week/year 19/22
E 42549 Water seal kit
E 47110 Water seal kit
F 42550 Gasket kit
G 2745 Support ring kit Until week/year 19/22
H 42548 Piston guide kit
H 47109 Piston guide kit
