| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
A
|
|
42835 Valve kit | €119.33 | |
|
B
|
|
43444 Piston kit Ø 30 | €216.18 | |
|
C
|
|
43445 Oil seal kit | €15.44 | |
|
E
|
|
43446 Water seal kit Ø 30 | €133.16 | |
|
1
|
|
1949251 Pre-assembly of Ø 30 head | €628.09 | |
|
2
|
|
1943620 Head | €388.62 | |
|
3
|
|
2822550 1" G brass cap | €37.27 | |
|
4
|
|
390291 Ø 28.25 x 2.62 O-ring | €0.00 | Not available for order |
|
5
|
|
820361 Stopper | €4.41 | |
|
6
|
|
180101 O-Ring | €4.73 | |
|
9
|
|
1943630 Cap | €19.38 | |
|
10
|
|
390291 Ø 28.25 x 2.62 O-ring | €0.00 | Not available for order |
|
11
|
|
3669051 Complete delivery valve | €23.10 | |
|
12
|
|
3669050 Complete intake valve | €21.93 | |
|
20
|
|
1943650 O-ring Ø 30.2 x 40 x 4.2 O-ring | €0.12 | Not available for order |
|
21
|
|
1943660 30 x 40 x 6 O-ring | €14.49 | |
|
22
|
|
1943670 Ø 30 front piston guide | €19.38 | |
|
23
|
|
1943680 30 x 38 x 5.5 O-ring | €10.87 | |
|
24
|
|
3660500 Anti-extrusion ring | €6.77 | |
|
25
|
|
1943700 Ø 30 rear piston guide | €20.55 | |
|
26
|
|
1140490 Ø 37.82 x 1.78 O-ring | €0.00 | Not available for order |
|
27
|
|
1943730 Ring | €2.17 | |
|
40
|
|
1941330 Pump Housing | €98.04 | |
|
41
|
|
850260 M10 x 90 socket head cap screw | €3.50 | |
|
42
|
|
650530 washer | €2.03 | |
|
43
|
|
1140370 Stopper | €6.17 | |
|
44
|
|
1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division | €2.77 | |
|
45
|
|
740290 O-ring | €0.27 | |
|
46
|
|
1940410 O-Ring | €2.04 | |
|
47
|
|
1200430 Screw | €4.64 | |
|
50
|
|
1941640 Screw | €0.00 | Not available for order |
|
51
|
|
1340600 Washer | €0.00 | Not available for order |
|
52
|
|
1943610 Piston Ø 30 | €68.24 | |
|
53
|
|
1383190 Disk | €0.00 | Not available for order |
|
54
|
|
1940960 Piston | €21.93 | |
|
57
|
|
1940060 Plug | €4.16 | |
|
58
|
|
1943720 Aluminum connecting rod | €28.33 | |
|
65
|
|
1949010 Cover | €24.46 | |
|
66
|
|
1260430 Ring | €0.00 | |
|
67
|
|
1780690 Disk | €0.00 | |
|
68
|
|
1260250 Level Indicator | €1.69 | |
|
69
|
|
1140450 O-Ring | €4.25 | |
|
70
|
|
740290 O-ring | €0.27 | |
|
71
|
|
1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division | €2.77 | |
|
75
|
|
1140410 Bearing | €51.56 | |
|
76
|
|
1941380 O-Ring | €0.00 | Not available for order |
|
77
|
|
1949011 Cover | €23.69 | |
|
79
|
|
100410 O-Ring | €0.00 | Not available for order |
|
80
|
|
1941290 Ring | €2.30 | |
|
81
|
|
1941260 Disk | €0.00 | Not available for order |
|
82
|
|
1941270 Level Indicator | €1.66 | |
|
83
|
|
1941390 Thickness 0.05 Mm | €4.70 | |
|
83
|
|
1941400 Thickness 0.10 Mm | €5.34 | |
|
83
|
|
1941410 Thickness 0.19 Mm | €5.60 | |
|
83
|
|
1941420 Thickness 0.25 Mm | €6.17 | |
|
84
|
|
850370 screw | €2.26 | |
|
85
|
|
1943710 Shaft marked 15 | €132.10 | |
|
86
|
|
650250 Tongue | €5.75 | |
|
90
|
|
1941240 Support | €21.45 | |
|
91
|
|
820681 Ring | €2.13 | |
|
97
|
|
200231 Washer | €0.00 | Not available for order |
|
98
|
|
1940370 Foot | €14.17 | |
|
99
|
|
1940380 Screw | €0.00 | Not available for order |
Shipping and delivery information will be available shortly.

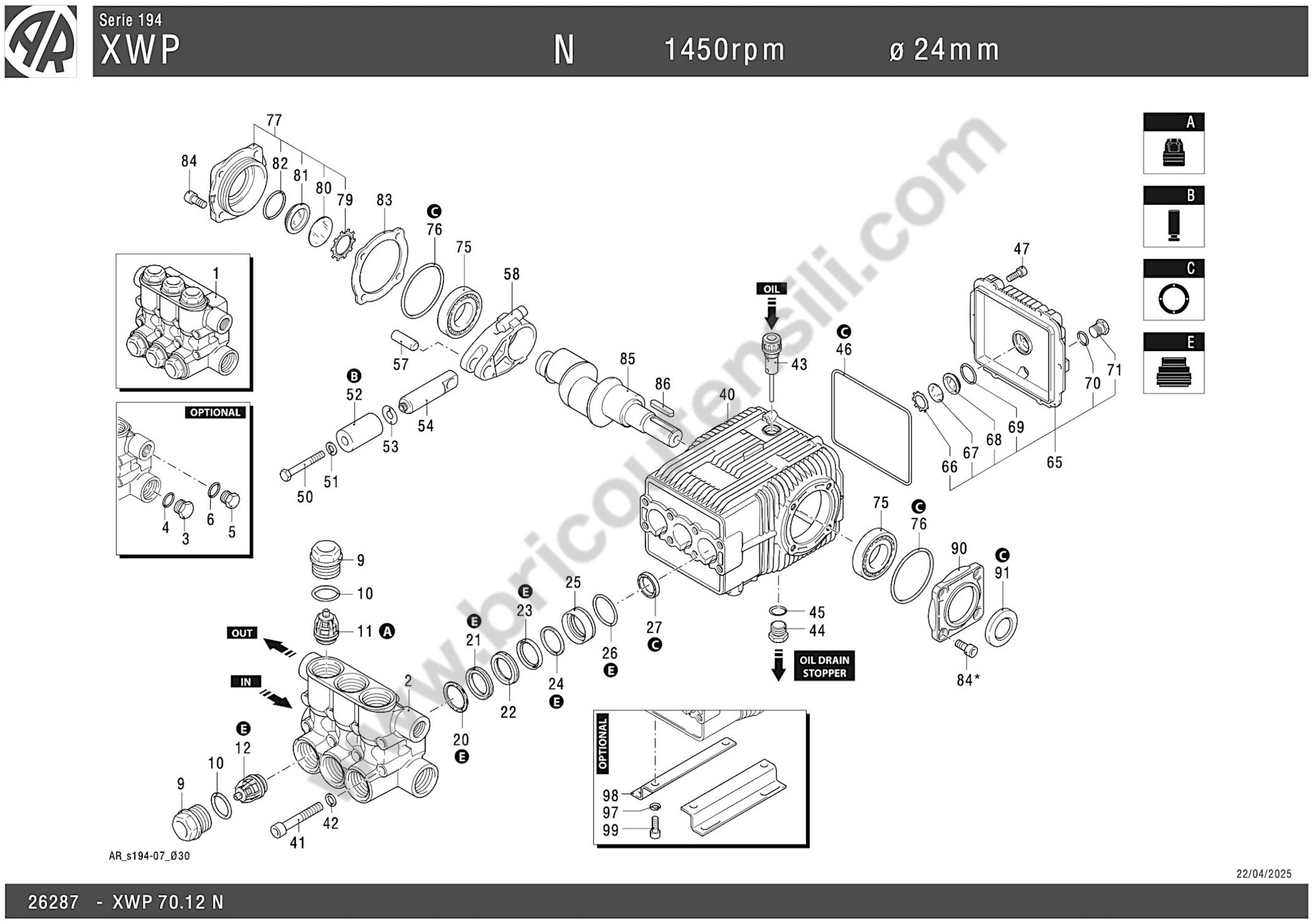

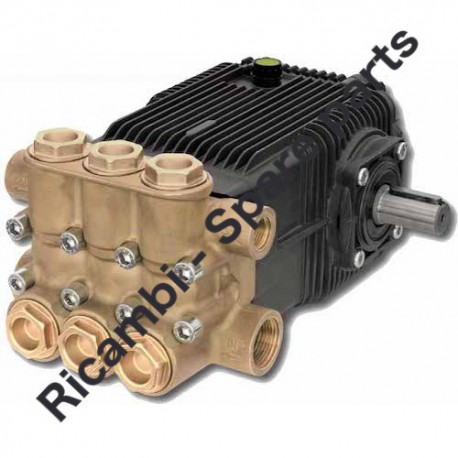

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump 26287 - XWP 70.12 N.
In the following tables, look for the spare part and its respective code.![]()
| Annovi Reverberi XWP 70.12 N - 26287 | ||
| # | Part Num | Description |
| 1 | 1949251 | Pre-assembly of Ø 30 head |
| 2 | 1943620 | Head |
| 3 | 2822550 | 1" G brass cap |
| 4 | 390291 | Ø 28.25 x 2.62 O-ring |
| 5 | 820361 | 1/2" G brass cap |
| 6 | 180101 | Ø 17.5 x 2 O-ring |
| 9 | 1943630 | Cap |
| 10 | 390291 | Ø 28.25 x 2.62 O-ring |
| 11 | 3669051 | Complete delivery valve |
| 12 | 3669050 | Complete intake valve |
| 20 | 1943650 | O-ring Ø 30.2 x 40 x 4.2 O-ring |
| 21 | 1943660 | 30 x 40 x 6 O-ring |
| 22 | 1943670 | Ø 30 front piston guide |
| 23 | 1943680 | 30 x 38 x 5.5 O-ring |
| 24 | 3660500 | Anti-extrusion ring |
| 25 | 1943700 | Ø 30 rear piston guide |
| 26 | 1140490 | Ø 37.82 x 1.78 O-ring |
| 27 | 1943730 | Anello tenuta |
| 40 | 1941330 | Valve body |
| 41 | 850260 | M10 x 90 socket head cap screw |
| 42 | 650530 | Washer |
| 43 | 1140370 | Oil plug with dipstick |
| 44 | 1980740 | Plug |
| 45 | 740290 | O-ring Ø 14x1.78 |
| 46 | 1940410 | O-ring Ø 132x3 |
| 47 | 1200430 | TCEI screw M6x16 |
| 50 | 1941640 | TE screw M6x60 |
| 51 | 1340600 | Washer |
| 52 | 1943610 | Piston Ø 30 |
| 53 | 1383190 | Disc |
| 54 | 1940960 | Guide piston |
| 57 | 1940060 | Pin |
| 58 | 1943720 | Aluminum connecting rod |
| 65 | 1949010 | Complete cover |
| 66 | 1260430 | O-ring |
| 67 | 1780690 | Disc |
| 68 | 1260250 | Level gauge |
| 69 | 1140450 | O-ring Ø 20.24x2.62 |
| 70 | 740290 | O-ring Ø 14x1.78 |
| 71 | 1980740 | 3/8" G brass cap |
| 75 | 1140410 | Bearing |
| 76 | 1941380 | O-ring Ø 66.34x2.62 |
| 77 | 1949011 | Complete cover |
| 79 | 100410 | O-ring Ø 34.6x2.62 |
| 80 | 1941290 | Ring |
| 81 | 1941260 | Disc |
| 82 | 1941270 | Level gauge |
| 83 | 1941390 | Thickness 0.05mm |
| 83 | 1941400 | Thickness 0.10mm |
| 83 | 1941410 | Thickness 0.19mm |
| 83 | 1941420 | Thickness 0.25mm |
| 84 | 850370 | TCEI screw M8x16 |
| 84 | 850370 | TCEI screw M8x16 |
| 85 | 1943710 | Shaft marked 15 |
| 86 | 650250 | Key |
| 90 | 1941240 | Support |
| 91 | 820681 | Seal ring |
| 97 | 200231 | Washer |
| 98 | 1940370 | Foot |
| 99 | 1940380 | TCEI screw 10x18 |
| A | 42835 | Valve kit |
| B | 43444 | Piston kit Ø 30 |
| C | 43445 | Oil seal kit |
| E | 43446 | Water seal kit Ø 30 |
