Annovi Reverberi XTS 10.15 N Spare Parts

SKU: XTS 10.15 N - 7413
€257.55
VAT included

Annovi Reverberi XTS 10.15 N 7413 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump Serie 132 XTS N 2800rpm ø 24mm - XTS 10.15 N - 7413.

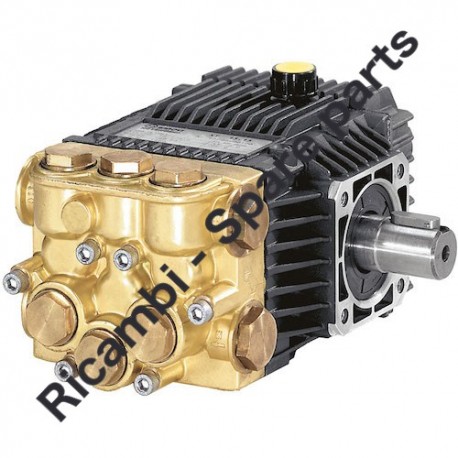

Annovi Reverberi 7413 XTS 10.15 N Spare Parts
  • Annovi Reverberi 7413 XTS 10.15 N Spare Parts

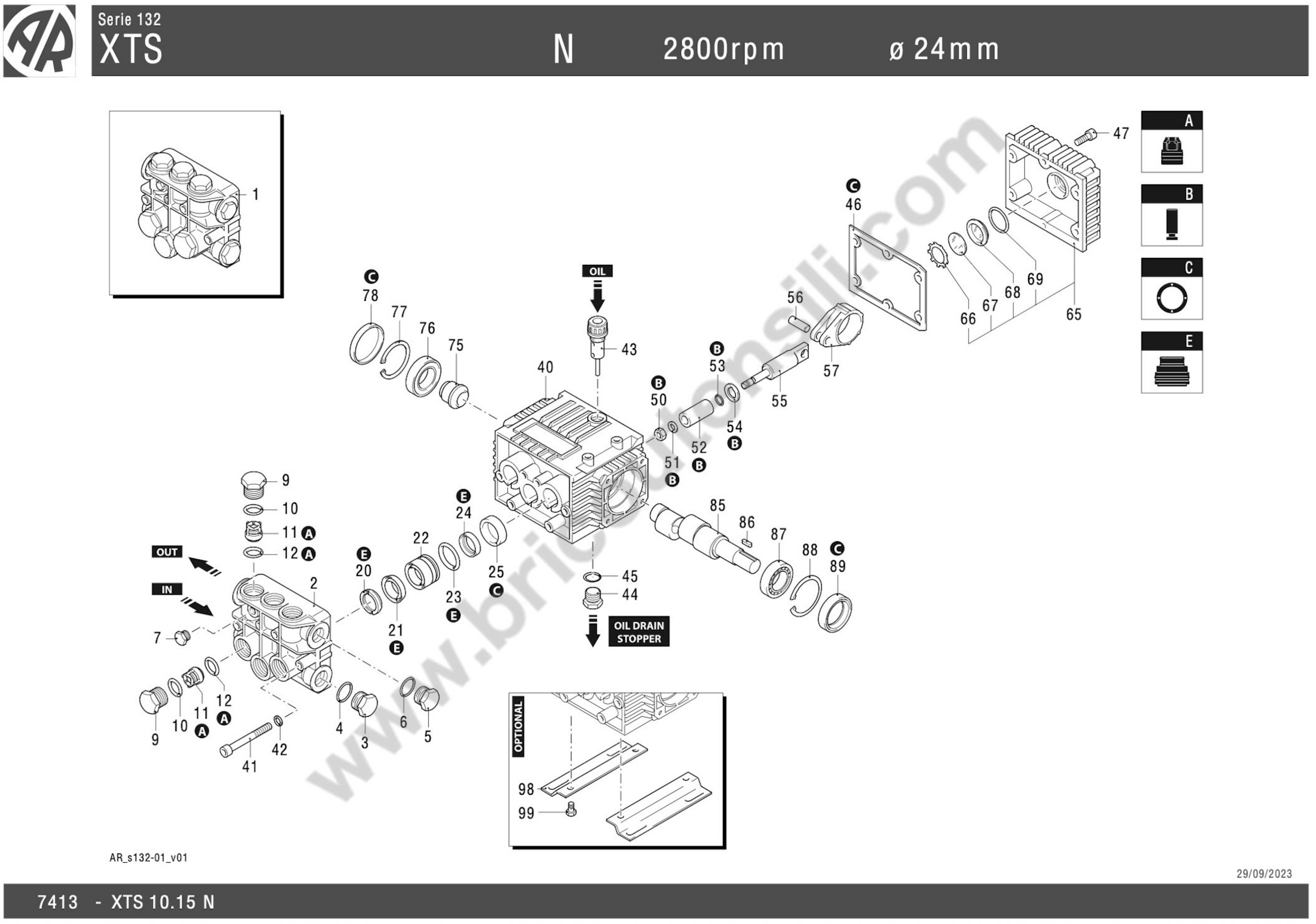

  • Annovi Reverberi 7413 XTS 10.15 N Spare Parts - Drawing

Annovi Reverberi XTS 10.15 N Spare Parts

SKU: XTS 10.15 N - 7413 Condition: New
€257.55
VAT included

Annovi Reverberi XTS 10.15 N 7413 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump Serie 132 XTS N 2800rpm ø 24mm - XTS 10.15 N - 7413.
settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

45 spare parts
Pos. Item Price Buy
A
photo_cameraImage coming soon 1864 Kit Valves €29.19
E
Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1866 Water Seal Kit for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €42.50
C
photo_cameraImage coming soon 1872 Kit Kept Oil €19.92
E
photo_cameraImage coming soon 2029 Water seal kit €96.74
B
photo_cameraImage coming soon 2628 Piston Kit €79.19
1
photo_cameraImage coming soon 1269221 Head assembly €231.09
2
photo_cameraImage coming soon 1320022 Head €132.10
3
photo_cameraImage coming soon 820361 Stopper €4.41
4
photo_cameraImage coming soon 180101 O-Ring €4.73
5
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
6
photo_cameraImage coming soon 740290 O-ring €2.67
7
photo_cameraImage coming soon 620301 Cork €2.46
9
Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1260162 Plug 1/2'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €8.28
10
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
11
Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 1269050 Complete Valve for Pressure Washers ARSG Blitz - 8.13 - 8.15 €4.43
12
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
21
photo_cameraImage coming soon 1271650 Water Seal €5.94
22
photo_cameraImage coming soon 1260151 Piston Guide €8.54
23
O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 1260420 O-Ring 26,70x1,78 for Pressure Washers AR 780-787-797-945-6670-7850 €0.38
24
photo_cameraImage coming soon 1260440 Watertight 3 €4.53
25
photo_cameraImage coming soon 1260460 oil seal €4.47
40
photo_cameraImage coming soon 1320010 Pump Housing €76.71
41
photo_cameraImage coming soon 1322730 Screw €1.53
43
photo_cameraImage coming soon 880130 Stopper €6.67
44
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
45
photo_cameraImage coming soon 740290 O-ring €2.67
46
photo_cameraImage coming soon 1260040 Oil Seal €3.64
50
photo_cameraImage coming soon 1260110 Nut €1.65
52
Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1260120 Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €23.59
53
photo_cameraImage coming soon 480480 O-ring €5.63
55
photo_cameraImage coming soon 1260070 Piston €20.01
56
photo_cameraImage coming soon 1260080 Plug €2.19
57
photo_cameraImage coming soon 1320140 Piston Rod €25.00
65
photo_cameraImage coming soon 1329010 Cover €21.44
68
photo_cameraImage coming soon 1260250 Level Indicator €1.69
69
photo_cameraImage coming soon 1140450 O-Ring €4.25
75
photo_cameraImage coming soon 1320330 Bushing €17.60
76
photo_cameraImage coming soon 1320370 Bearing €5.94
77
photo_cameraImage coming soon 1260790 Ring €1.36
78
photo_cameraImage coming soon 1266740 Oil Seal €3.95
85
photo_cameraImage coming soon 1321790 Shaft €84.48
87
photo_cameraImage coming soon 1320370 Bearing €5.94
88
photo_cameraImage coming soon 1260790 Ring €1.36
89
Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
98
photo_cameraImage coming soon 1263890 Foot €8.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi XTS 10.15 N 7413 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump Serie 132 XTS N 2800rpm ø 24mm - XTS 10.15 N - 7413.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 7413 - XTS 10.15 N
7413 - XTS 10.15 N
Serie 132 XTS N 2800rpm ø 24mm
# Part Num. Description Note
1 1269221 Head assembly Ø 15
2 1320022 Head
3 820361 Plug 1/2" G brass C=40Nm
4 180101 O-ring Ø 17,5x2 Lubricate with grease Molykote PG54
5 1980740 Plug 3/8" G brass C=20Nm
6 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
7 620301 Plug 1/8" G Screw with Loxeal 55-14
9 1260162 Plug C=34Nm
10 960160 O-ring Ø 17,86x2,62 Lubricate with grease Molykote PG54
11 1269050 Complete valve
12 880830 O-ring Ø 15,54x2,62
20 1520120 Ring support Ø 15
21 1271650 Water seal Ø 15 Lubricate with grease Molykote PG54
22 1260151 Piston guide Ø 15
23 1260420 O-ring Ø 26,70x1,78 Lubricate with grease Molykote PG54
24 1260440 Water seal Ø 15 Lubricate with grease Molykote PG54
25 1260460 Oil seal
40 1320010 Pump body
41 1322730 Screw TCEI M6x60 C=15Nm
42 1381550 Washer
43 880130 Oil plug with oil dipstick
44 1980740 Plug 3/8" G brass C=20Nm
45 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
46 1260040 Oil seal
47 1260760 Screw TCEI M5x20 C=5,4Nm
50 1260110 Nut M8 Screw with Loxeal 55-14 / C=12Nm
51 1260100 Washer
52 1260120 Piston Ø 15
53 480480 O-ring Ø 4,48x1,78
54 1260091 Plate
55 1260070 Piston guide
56 1260080 Pin
57 1320140 Connecting-rod bronze
65 1329010 Cover complete
66 1260430 Ring
67 1780690 Plate
68 1260250 Level gauge
69 1140450 O-ring Ø 20,24x2,62 Lubricate with grease Molykote PG54
75 1320330 Bushing
76 1320370 Bearing
77 1260790 Ring seeger Øi 52
78 1266740 Cover
85 1321790 Shaft C marked
86 1380520 Key
87 1320370 Bearing
88 1260790 Ring seeger Øi 52
89 1260750 Ring seal Assemble with tool [1941990]
98 1263890 Foot
99 1260470 Screw TE M8x10 C=24Nm
A 1864 Valve kit
B 2628 Piston kit Ø 15
C 1872 Oil seal kit
E 1866 Water seal kit Ø 15
E 2029 Water seal kit Ø 15 Viton
