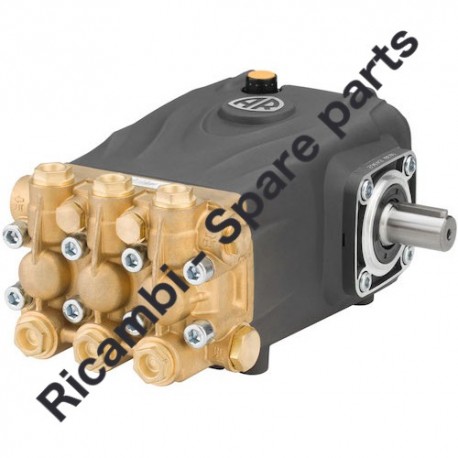

Annovi Reverberi RG 15.15 N - 24962 Spare Parts

SKU: RG 15.15 N 24962
€251.20
VAT included

Annovi Reverberi RG 15.15 N - 24962 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump / Serie 402 / RG 15.15 N 24962 - RG 15.28 NDX 26118.
Annovi Reverberi RG 15.15 N - 24962 Spare Parts
  • Annovi Reverberi RG 15.15 N - 24962 Spare Parts
  • Annovi Reverberi RG 15.15 N - 24962 - RG 15.28 NDX - Spare Parts Drawing

Annovi Reverberi RG 15.15 N - 24962 Spare Parts

SKU: RG 15.15 N 24962 Condition: New
€251.20
VAT included

Annovi Reverberi RG 15.15 N - 24962 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump / Serie 402 / RG 15.15 N 24962 - RG 15.28 NDX 26118.
settings 62 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

43 spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 2864 Kit Valves €18.08
photo_cameraImage coming soon 2872 Piston Kit €81.75
photo_cameraImage coming soon 42172 Kit Driving Pistons €90.02
photo_cameraImage coming soon 46848 Water seal kit €17.69
photo_cameraImage coming soon 47083 Oil seal kit €16.65
2
photo_cameraImage coming soon 4020020 Head €225.39
3
photo_cameraImage coming soon 820361 Stopper €4.41
4
photo_cameraImage coming soon 180101 O-Ring €4.73
5
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
6
photo_cameraImage coming soon 740290 O-ring €2.67
7
photo_cameraImage coming soon 880581 stopper €7.73
8
photo_cameraImage coming soon 820510 O-ring €5.63
9
photo_cameraImage coming soon 4020140 Plug €11.79
10
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
11
photo_cameraImage coming soon 1389051 Complete Valve €4.82
12
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
20
photo_cameraImage coming soon 960110 Ring €2.41
21
photo_cameraImage coming soon 1382740 Tenuta Water €16.70
23
photo_cameraImage coming soon 2980070 Piston Guide €17.48
25
photo_cameraImage coming soon 880330 Tenuta Water €8.14
26
photo_cameraImage coming soon 1942480 Piston Guide €13.76
28
photo_cameraImage coming soon 1940560 Ring €4.84
40
photo_cameraImage coming soon 4020010 Pump body €93.12
42
photo_cameraImage coming soon 650530 washer €2.03
43
photo_cameraImage coming soon 1140370 Stopper €6.17
46
photo_cameraImage coming soon 1940410 O-Ring €2.04
47
photo_cameraImage coming soon 1200430 Screw €4.64
52
photo_cameraImage coming soon 1941020 Piston €27.51
56
photo_cameraImage coming soon 1940960 Piston €21.93
57
photo_cameraImage coming soon 1940060 Plug €4.16
58
Annovi Pressure Washer AR1018 Conrod 2980010 Annovi Pressure Washer AR1018 Conrod €20.49
66
photo_cameraImage coming soon 4020030 Cover €21.30
75
photo_cameraImage coming soon 1140420 Bearing €15.00
79
photo_cameraImage coming soon 4020070 Plate €1.61
80
photo_cameraImage coming soon 4020160 Level gauge €6.33
82
photo_cameraImage coming soon 4020150 Cover €17.48
84
photo_cameraImage coming soon 850370 screw €2.26
85
photo_cameraImage coming soon 2980160 Shaft €128.26
87
photo_cameraImage coming soon 1941370 Bearing €10.97
88
photo_cameraImage coming soon 4020040 Cover €16.24
89
photo_cameraImage coming soon 820681 Ring €2.13
96
photo_cameraImage coming soon 2748 Foot kit €23.68
98
photo_cameraImage coming soon 1940370 Foot €14.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi Reverberi RG 15.15 N - 24962 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump / Serie 402 / RG 15.15 N 24962 - RG 15.28 NDX 26118.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi RG 15.15 N - 24962 Spare Parts
RG 15.15 N 24962 - RG 15.28 NDX 26118
Industrial Division HP Pump / Serie 402 / RG 15.15 N 24962 - RG 15.28 NDX 26118
# Part Num. Description Note
1 4029200 Head assembly Ø 18
2 4020020 Head Ø 18
3 820361 Plug 1/2" G brass C=40Nm
4 180101 O-ring Ø 17,5x2 Lubricate with grease Molykote PG54
5 1980740 Plug 3/8" G brass C=20Nm
6 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
7 880581 Plug 1/4" G brass Screw with Loxeal 55-14 / C=15Nm
8 820510 O-ring Ø 10,82x1,78
9 4020140 Plug Screw with Loxeal 55-14 / C=54Nm
10 960160 O-ring Ø 17,86x2,62 Lubricate with grease Molykote PG54
11 1389051 Complete valve
12 880830 O-ring Ø 15,54x2,62
20 960110 Ring support Ø 18
21 1382740 Water seal Ø 18 Lubricate with grease Molykote PG54
22 2340310 Ring anti-extrusion
23 2980070 Piston guide front Ø 18
25 880330 Water seal Ø 18
26 1942480 Piston guide rear Ø 18
27 820490 O-ring Ø 34,65x1,78
28 1940560 Ring seal
40 4020010 Pump body
41 2980100 Screw TCEI M10x70 C=53Nm
42 650530 Washer
43 1140370 Oil plug with oil dipstick
46 1940410 O-ring Ø 132x3
47 1200430 Screw TCEI M6x16 Screw with Loxeal 55-14 / C=10Nm
50 1941640 Screw TE M6x60 Screw with Loxeal 55-14 / C=7Nm
51 1340600 Washer
52 1941020 Piston Ø 18
53 1383190 Plate
56 1940960 Piston guide
57 1940060 Pin
58 2980010 Connecting-rod Lubricate with grease Molykote BR2 PLUS
65 4029001 Cover complete
66 4020030 Cover
70 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
71 1980740 Plug 3/8" G brass C=20Nm
75 1140420 Bearing
76 1941380 O-ring Ø 66,34x2,62
77 4029000 Cover complete
78 4020080 Ring
79 4020070 Plate
80 4020160 Level gauge
81 3680250 O-ring Ø 45,69x2,62
82 4020150 Cover
83 4020100 Shim 0.05mm
83 4020110 Shim 0.10mm
83 4020120 Shim 0.19mm
83 4020130 Shim 0.25mm
84 850370 Screw TCEI M8x16 C=24,5Nm
84* 850370 Screw TCEI M8x16 C=24,5Nm
85 2980160 Shaft 3 marked
86 3200230 Key
87 1941370 Bearing
88 4020040 Cover C=25Nm
89 820681 Ring seal Screw with Loxeal 55-14 / C=10Nm
96 2748 Foot kit
97 200231 Washer
98 1940370 Foot
99 1940380 Screw TCEI 10x18 C=50Nm
A 2864 Valve kit
B 2872 Piston kit Ø 18
C 47083 Oil seal kit
E 46848 Water seal kit Ø 18
H 42172 Piston guide kit Ø 18
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RG 15.15 N 24962
12 Items

Specific References

New

Download

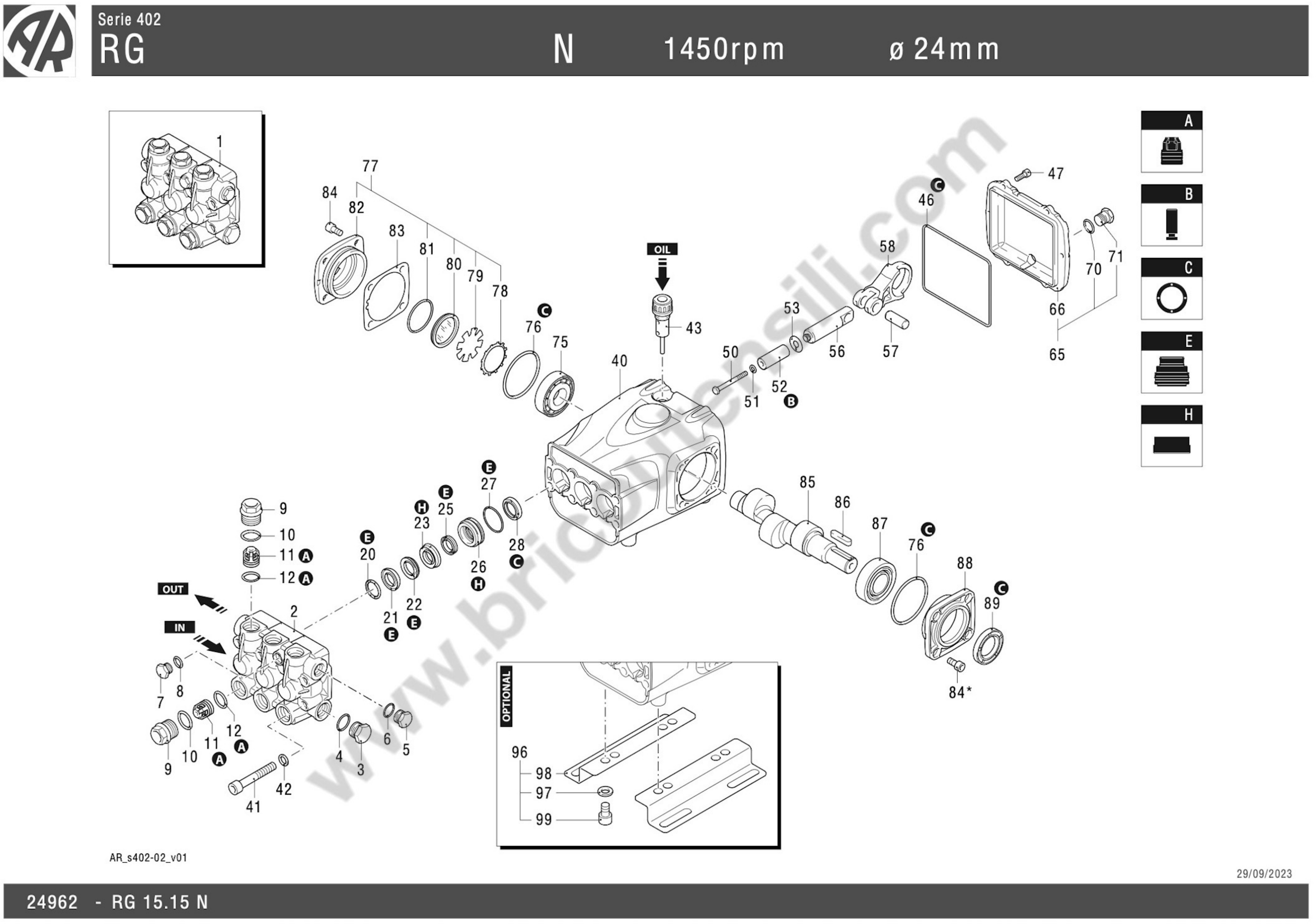

RG 15.15 N/RG 15.28 NDX Drawing

RG 15.15 N/RG 15.28 NDX Drawing

Download (296.35KB)
