Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C

SKU: AR500bp Twin C/C BlueFlex™ 32061
€162.31
VAT included

Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Low Pressure Pump AR 500 bp Twin C/C BlueFlex™ code. 32061.
Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C
  • Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C
  • Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C
Annovi Reverberi S.p.A.

Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C

SKU: AR500bp Twin C/C BlueFlex™ 32061 Condition: New
€162.31
VAT included

Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Low Pressure Pump AR 500 bp Twin C/C BlueFlex™ code. 32061.
settings 85 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
85 spare parts

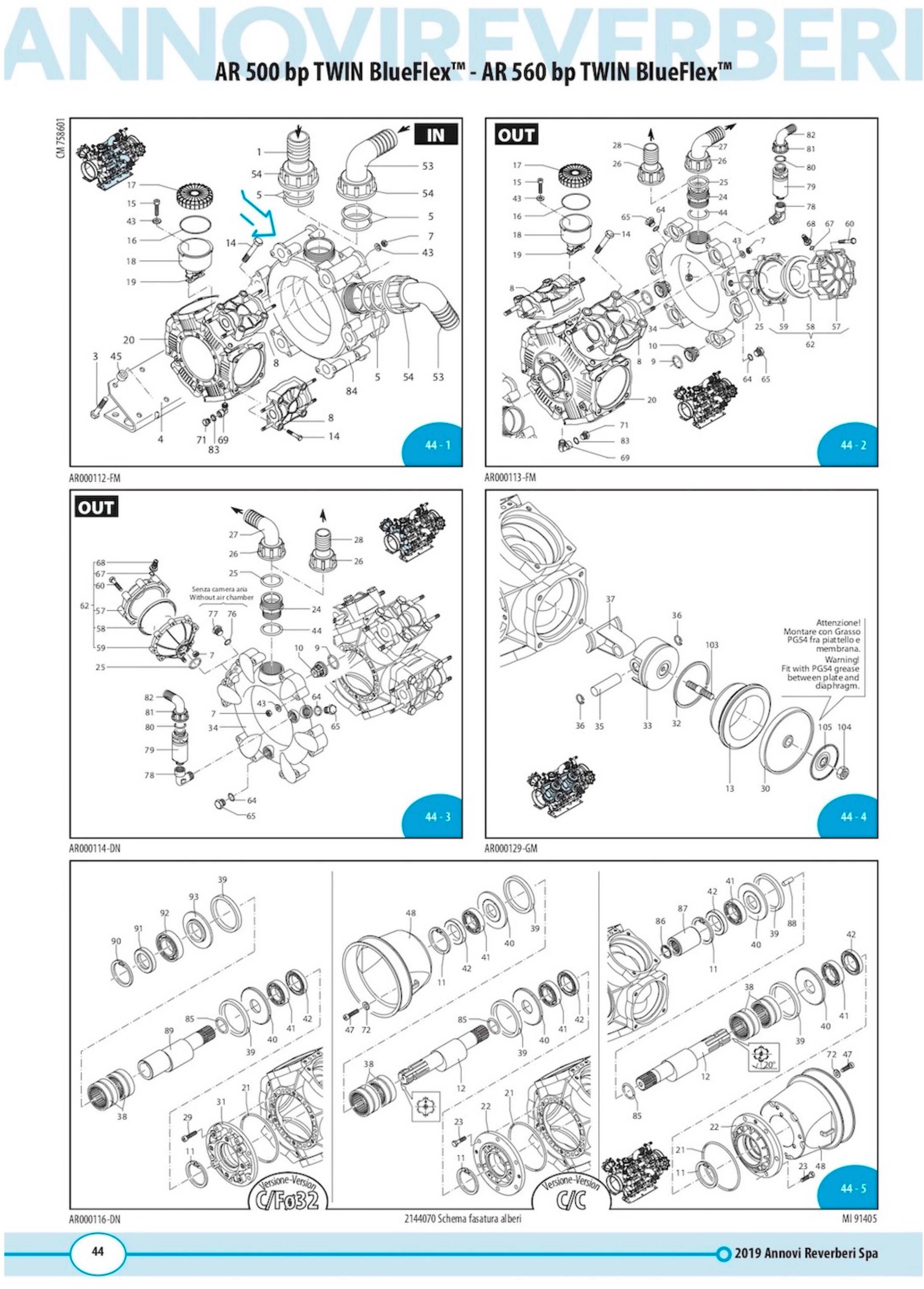

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 750730 Hose tail €13.36
1
 photo_cameraImage coming soon 750870 Hose tail €11.81
3
 photo_cameraImage coming soon 760190 Screw €5.74
4
 photo_cameraImage coming soon 750800 Foot €45.30
5
 photo_cameraImage coming soon 750740 O-ring €7.35
7
 photo_cameraImage coming soon 380242 Nut €4.49
8
 photo_cameraImage coming soon 751350 Head €43.93
9
 photo_cameraImage coming soon 680070 O-ring €4.73
10
 photo_cameraImage coming soon 759054 Valve €15.50
11
 photo_cameraImage coming soon 200390 RING €6.90
12
 photo_cameraImage coming soon 750820 Shaft €161.22
12
 AR 320 bp Twin C/C Pump Shaft 760131 AR 320 bp Twin C/C Pump Shaft €141.53
13
 photo_cameraImage coming soon 750110 Sleeve €27.10
13
 photo_cameraImage coming soon 750115 Sleeve €27.10
14
 photo_cameraImage coming soon 750061 Screw €6.46
15
 photo_cameraImage coming soon 680350 Screw €4.90
16
 photo_cameraImage coming soon 1980340 O-ring €2.26
17
 photo_cameraImage coming soon 751180 Plug €9.49
18
 photo_cameraImage coming soon 751170 Tank €24.48
19
 photo_cameraImage coming soon 750040 Gasket €4.67
20
 photo_cameraImage coming soon 751300 Pump body €194.82
21
 photo_cameraImage coming soon 851360 O-ring €5.15
22
 photo_cameraImage coming soon 680020 Support €26.62
23
 photo_cameraImage coming soon 160672 Screw €5.15
24
 photo_cameraImage coming soon 751130 Fitting €14.31
25
 photo_cameraImage coming soon 390290 O-ring €4.49
26
 photo_cameraImage coming soon 750670 Ring nut €7.88
27
 photo_cameraImage coming soon 3040160 Elbow €10.80
28
 photo_cameraImage coming soon 760940 Hose tail €13.00
29
 photo_cameraImage coming soon 650640 Screw €5.03
30
 photo_cameraImage coming soon 550081 Diaphragm €15.97
31
 photo_cameraImage coming soon 2420181 Support €31.38
32
 photo_cameraImage coming soon 500260 Piston ring €9.61
33
 photo_cameraImage coming soon 750122 Piston €25.07
34
 photo_cameraImage coming soon 751080 Line €138.62
35
 photo_cameraImage coming soon 160700 Pin €9.85
36
 photo_cameraImage coming soon 160691 Ring €4.85
37
 photo_cameraImage coming soon 750140 Connecting-rod €34.05
38
 photo_cameraImage coming soon 750090 Bearing €64.33
39
 photo_cameraImage coming soon 750130 Ring €17.70
40
 photo_cameraImage coming soon 540040 Plate €19.66
41
 photo_cameraImage coming soon 751280 Bearing €24.89
42
 photo_cameraImage coming soon 160740 Ring €10.86
43
 photo_cameraImage coming soon 380243 Washer €4.71
44
 photo_cameraImage coming soon 751140 O-ring €9.55
45
 photo_cameraImage coming soon 760180 Spacer €8.48
47
 photo_cameraImage coming soon 850251 Screw €4.73
48
 photo_cameraImage coming soon 1500470 Cardan protection €21.21
53
 photo_cameraImage coming soon 750720 Elbow €16.45
53
 photo_cameraImage coming soon 750850 Elbow €14.07
54
 photo_cameraImage coming soon 750710 Ring nut €12.29
57
 photo_cameraImage coming soon 620232 Semi air chamber €21.98
58
 photo_cameraImage coming soon 550194 Diaphragm €13.59
59
 photo_cameraImage coming soon 680180 Semi air chamber €30.49
60
 photo_cameraImage coming soon 621781 Screw €4.73
62
 photo_cameraImage coming soon 629230 Air chamber €51.01
64
 photo_cameraImage coming soon 180101 O-Ring €4.73
65
 Piston Pin for Hammers Hitachi DH28PD-DH28PC 330173 Piston Pin for Hammers Hitachi DH28PD-DH28PC €3.48
67
 photo_cameraImage coming soon 650542 Gasket €4.61
68
 photo_cameraImage coming soon 180020 Air valve €12.70
69
 photo_cameraImage coming soon 750370 Fitting €7.71
71
 photo_cameraImage coming soon 880581 stopper €7.73
72
 photo_cameraImage coming soon 390314 Washer €4.40
76
 photo_cameraImage coming soon 740290 O-ring €2.67
77
 photo_cameraImage coming soon 880530 Plug €6.28
78
 photo_cameraImage coming soon 881560 Fitting €12.11
79
 photo_cameraImage coming soon 1609000 Safety valve €20.52
80
 photo_cameraImage coming soon 880831 O-ring €5.03
81
 photo_cameraImage coming soon 550450 Walker €5.98
82
 photo_cameraImage coming soon 550460 Curve €6.31
83
 photo_cameraImage coming soon 880820 Washer €4.61
84
 photo_cameraImage coming soon 750810 Line €605.99
85
 photo_cameraImage coming soon 620030 O-ring €4.43
86
 photo_cameraImage coming soon 760260 Ring €4.37
87
 AR 320 bp Twin C/C Shaft Coupling 760151 AR 320 bp Twin C/C Shaft Coupling €59.56
88
 photo_cameraImage coming soon 760161 Hub pin €22.40
89
 photo_cameraImage coming soon 760470 Shaft €220.34
89
 photo_cameraImage coming soon 760480 Shaft €126.60
90
 photo_cameraImage coming soon 620330 Ring €6.93
91
 photo_cameraImage coming soon 1800090 Ring €10.50
92
 photo_cameraImage coming soon 230310 Bearing €16.57
93
 photo_cameraImage coming soon 760510 Plate €20.73
103
 photo_cameraImage coming soon 2240100 Hub pin €9.67
104
 photo_cameraImage coming soon 2240670 Nut €7.41
105
 photo_cameraImage coming soon 751530 Plate €12.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Annovi & Reverberi Parts for Low Pressure Pump AR 500 bp Twin C/C

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Low Pressure Pump AR 500 bp Twin C/C BlueFlex™ code. 32061.

In the following tables, look for the spare part and its respective code.
Low Pressure Pump AR 500 bp Twin C/C BlueFlex™ code. 32061
Low Pressure Pump AR 500 bp Twin C/C BlueFlex™ code. 32061 Pag.1
Position Code Description Note
1 750870 Hose tail Optional
1 750730 Hose tail Optional
3 760190 Screw Geomet C60
4 750800 Foot
5 750740 O-ring
7 380242 Nut Geomet C20
8 751350 Head
9 680070 O-ring
10 759054 Valve
11 200390 Ring
12 750820 Shaft AR 500 bp Twin
12 760131 Shaft AR 560 bp Twin
13 750110 Sleeve AR 500 bp Twin
13 750115 Sleeve AR 560 bp Twin
14 750061 Screw Geomet C60
15 680350 Screw C20
16 1980340 O-ring
17 751180 Plug AR 500 bp Twin
17 751183 Plug AR 560 bp Twin
18 751170 Tank
19 750040 Gasket
20 751300 Pump body
21 851360 O-ring
22 680020 Support
23 160672 Screw Geomet C35
24 751130 Fitting
25 390290 O-ring
26 750670 Ring nut
27 3040160 Elbow
28 760940 Hose tail Optional
29 650640 Screw Geomet C35
30 550081 Diaphragm BlueFlex™
31 2420181 Support
32 500260 Piston ring
33 750122 Piston
34 751080 Line
35 160700 Pin
36 160691 Ring
37 750140 Connecting-rod
38 750090 Bearing
39 750130 Ring
40 540040 Plate
41 751280 Bearing
42 160740 Ring
43 380243 Washer Geomet
44 751140 O-ring
45 760180 Spacer
47 850251 Screw Geomet C10
48 1500470 Cardan protection
53 750850 Elbow
53 750720 Elbow
54 750710 Ring nut
57 620232 Semi Air chamber Nera
58 550194 Diaphragm Blueflex™
59 680180 Semi air chamber
60 621781 Screw Geomet C20
62 629230 Air chamber
64 180101 O-ring
65 330173 Plug Geomet C20
67 650542 Gasket
68 180020 Air valve C3
69 750370 Fitting
71 880581 Plug C20
72 390314 Washer Geomet
76 740290 O-ring
77 880530 Plug
78 881560 Fitting
79 1609000 Safety valve 20 bar
80 880831 O-ring Viton
81 550450 Ring nut
82 550460 Elbow
83 880820 Washer
84 750810 Line
85 620030 O-ring
86 760260 Ring
87 760151 Coupling
88 760161 Hub pin
89 760470 Shaft AR 500 bp Twin
89 760480 Shaft AR 560 bp Twin
90 620330 Ring
91 1800090 Ring
92 230310 Bearing
93 760510 Plate
103 2240100 Hub pin C25
104 2240670 Nut C30
105 751530 Plate
Parts Kit Pag.2
Model Position Quantity
KIT 43190 30 6
Membrane BlueFlexTM
BlueFlexTM diaphragms
KIT 2114 9-12 12+12
Valvole
Valve

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AR500bp Twin C/C BlueFlex™ 32061
12 Items

Specific References

New

Download

Diagram AR 500 bp Twin

Diagram AR 500 bp Twin

Download (408.95KB)
