Ama Spare Parts for Brushcutter AGP 270

SKU: AMA AGP 270
€10.12
VAT included

Ama Spare Parts for Brushcutter AGP 270

Ama original spare parts for to replace broken parts for to fix Brushcutter AGP 270 - 60120 with Engine Kawasaki TJ027D.

Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270
  • Ama Spare Parts for Brushcutter AGP 270

Ama Spare Parts for Brushcutter AGP 270

SKU: AMA AGP 270 Condition: New
€10.12
VAT included

Ama Spare Parts for Brushcutter AGP 270

Ama original spare parts for to replace broken parts for to fix Brushcutter AGP 270 - 60120 with Engine Kawasaki TJ027D.

settings 52 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts
Pos. Item Price Buy
3
photo_cameraImage coming soon 10125 DADO M10X1.25 SX. (NUT M10X1.25 LEFT-HAND) €1.48
3
Lower Washer for Brushcutter Gear Boxe 10 Teeths 13532 Lower Washer for Brushcutter Gear Boxe 10 Teeths €11.48
3
Counterflange Toothed 10 Teeth for Brushcutter AMA AG1-AG2 280 13533 Counterflange Toothed 10 Teeth for Brushcutter AMA AG1-AG2 280 €5.60
3
photo_cameraImage coming soon 13580 SHAFT 7 SQUARE 5.4 €30.69
3
photo_cameraImage coming soon 13581 TUBE €17.92
3
Harness for Brushctters AMA 13599 Harness for Brushctters AMA €14.23
3
Gear Case Assy for Brushcutters AMA AG2 280-350-360U-450 13610 Gear Case Assy for Brushcutters AMA AG2 280-350-360U-450 €92.06
3
Clutch Drum Ass'y for Brushcutter AMA AG2-280 13888 Clutch Drum Ass'y for Brushcutter AMA AG2-280 €29.90
3
photo_cameraImage coming soon 13950 HANDLE ACCEL.DIAM.24 €24.92
3
Stone Guard Complete for Bruschcutter Kawasaki TOP 35 37944 Stone Guard Complete for Bruschcutter Kawasaki TOP 35 €20.01
3
photo_cameraImage coming soon 37945 COMPLETE HANDLE diam.24 €19.67
3
photo_cameraImage coming soon 55099 HOOK SUSPENDER €5.02
Pos. Item Price Buy
11011
photo_cameraImage coming soon 11011-2338 CASE-AIR FILTE €17.77
11013
photo_cameraImage coming soon 11013-2203 FILTER AIR X TJ27 €3.51
11061
photo_cameraImage coming soon 11061-2112 GASKET,MUFFLER €8.39
11061
photo_cameraImage coming soon 11061-2115 GASKET,CARBURE €2.86
11061C
photo_cameraImage coming soon 11061-2123 GASKET,INSULAT €3.51
11061A
photo_cameraImage coming soon 11061-2153 GASKET €6.91
11065
photo_cameraImage coming soon 11065-2106 CAP €12.62
13002
photo_cameraImage coming soon 13002-2058 PIN-PISTON TJ27 €13.72
13008
photo_cameraImage coming soon 13008-6046 RING-SET-PISTON TJ27 €17.37
13033
photo_cameraImage coming soon 13033-2057 BEARING-SMALL €7.10
13271B
photo_cameraImage coming soon 13271-2228 PLATE €2.86
14091
photo_cameraImage coming soon 14091-2110 COVER €31.42
16073
photo_cameraImage coming soon 16073-2218 FLANGE X TJ027 €11.30
16087
photo_cameraImage coming soon 16087-2059 VALVE-CHECK €7.86
21130
photo_cameraImage coming soon 21130-2070 CAP-SPARK PLUG €7.07
21171
photo_cameraImage coming soon 21171-2243 RECOIL X TJ27 €86.75
26011
photo_cameraImage coming soon 26011-2113 Wire-Lead €1.99
43028A
photo_cameraImage coming soon 43028-2093 DIAPHRAGM €31.42
92033
Snap Ring for Brushcutters Kawasaki 92033-2010 Snap Ring for Brushcutters Kawasaki €0.44
92145
photo_cameraImage coming soon 92145-2128 Starter Spring €7.25
Pos. Item Price Buy
13081
photo_cameraImage coming soon 13081-2232 CLUTCH CPL €39.52
13165
photo_cameraImage coming soon 13165-2100 Pawl €4.28
14069
photo_cameraImage coming soon 14069-2088 Breather €13.27
49019
photo_cameraImage coming soon 49019-2114 Filter Fuel €20.85
49060
photo_cameraImage coming soon 49060-2061 CAM,STARTER-RE €24.18
49080
photo_cameraImage coming soon 49080-2195 PULLEY-STARTING €10.78
51001
photo_cameraImage coming soon 51001-2319 TANK-COMP-FUEL €30.28
92033
photo_cameraImage coming soon 92033-2191 RING-SNAP TJ27 €1.47
92071
photo_cameraImage coming soon 92071-2142 Grommet €6.24
92081
photo_cameraImage coming soon 92081-2238 SPRING,RECOIL €19.86
92081A
photo_cameraImage coming soon 92081-2253 Brake spring €8.05
92190
photo_cameraImage coming soon 92190-2174 TUBE,3X6X90 TJ27/TH34 €2.86
92191
photo_cameraImage coming soon 92191-2102 Tube 3x5x182 €2.45
Page 5
Pos. Item Price Buy
15004
photo_cameraImage coming soon 15004-2044 CARBURATOR CPL. X TJ027E €97.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Brushcutter AGP 270

Ama original spare parts for to replace broken parts for to fix Brushcutter AGP 270 - 60120 with Engine Kawasaki TJ027D.

In the following table, look for the model of the Brushcutter and the respective parts of the code.

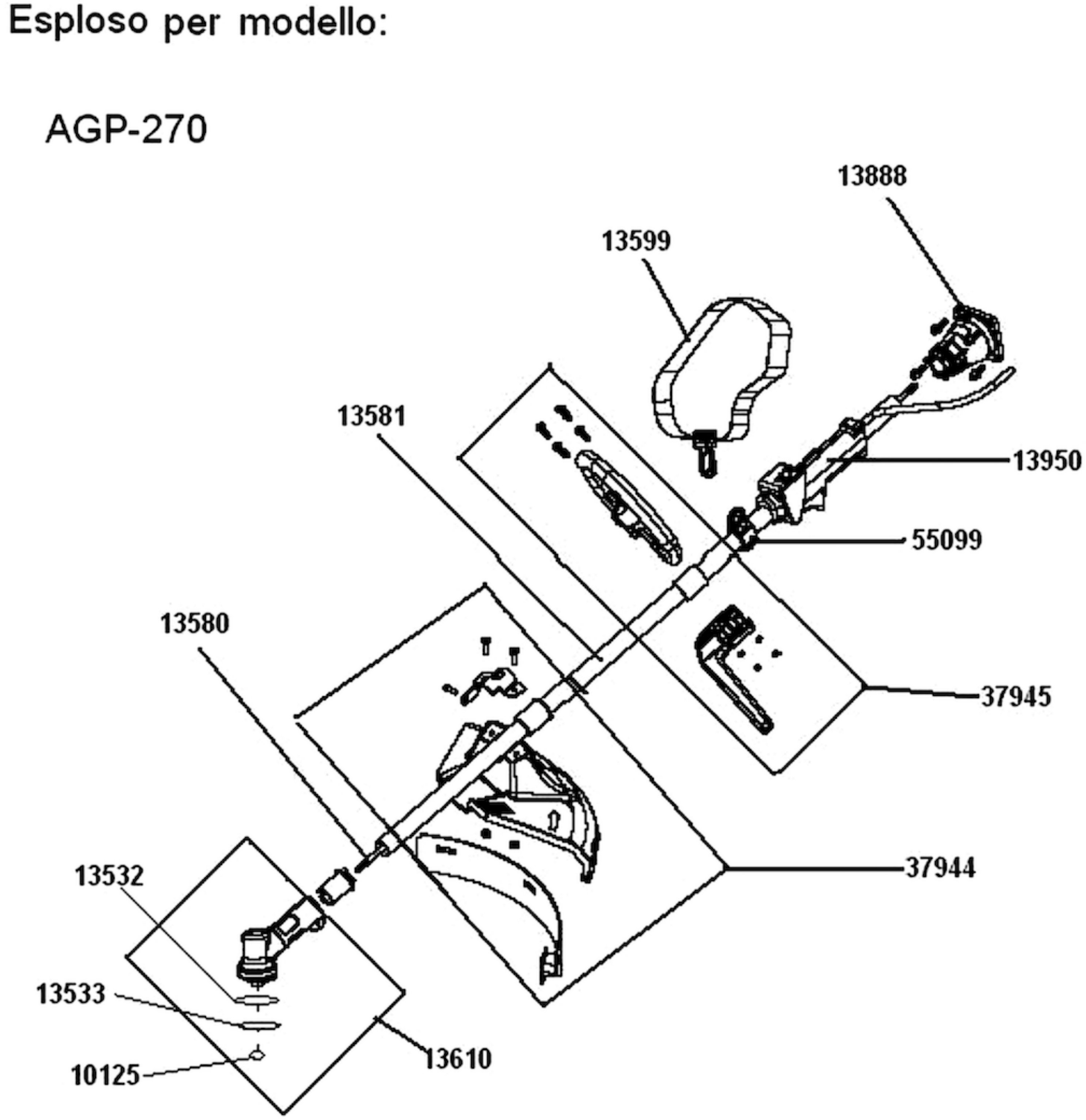

AMA AGP 270

Brushcutter AGP 270 - 60120 Pag.1
Pos. Codice Descrizione
3 13888 CLUTCH DRUM SMALL
3 13599 SUSPENDER
3 13581 TUBE
3 13580 RIGID INNER TRASMISSION 7 QUADRO 5,4
3 13532 FLANGE
3 13533 FLANGE
3 10125 HEX NUT M10SX
3 13610 GEAR BOXE
3 37944 SAFETY GUARD CPL
3 37945 HANDLE DIAM.24 CPL
3 55099 HOOK SUSPENDER
3 13950 HANDLE ACCEL.DIAM.24

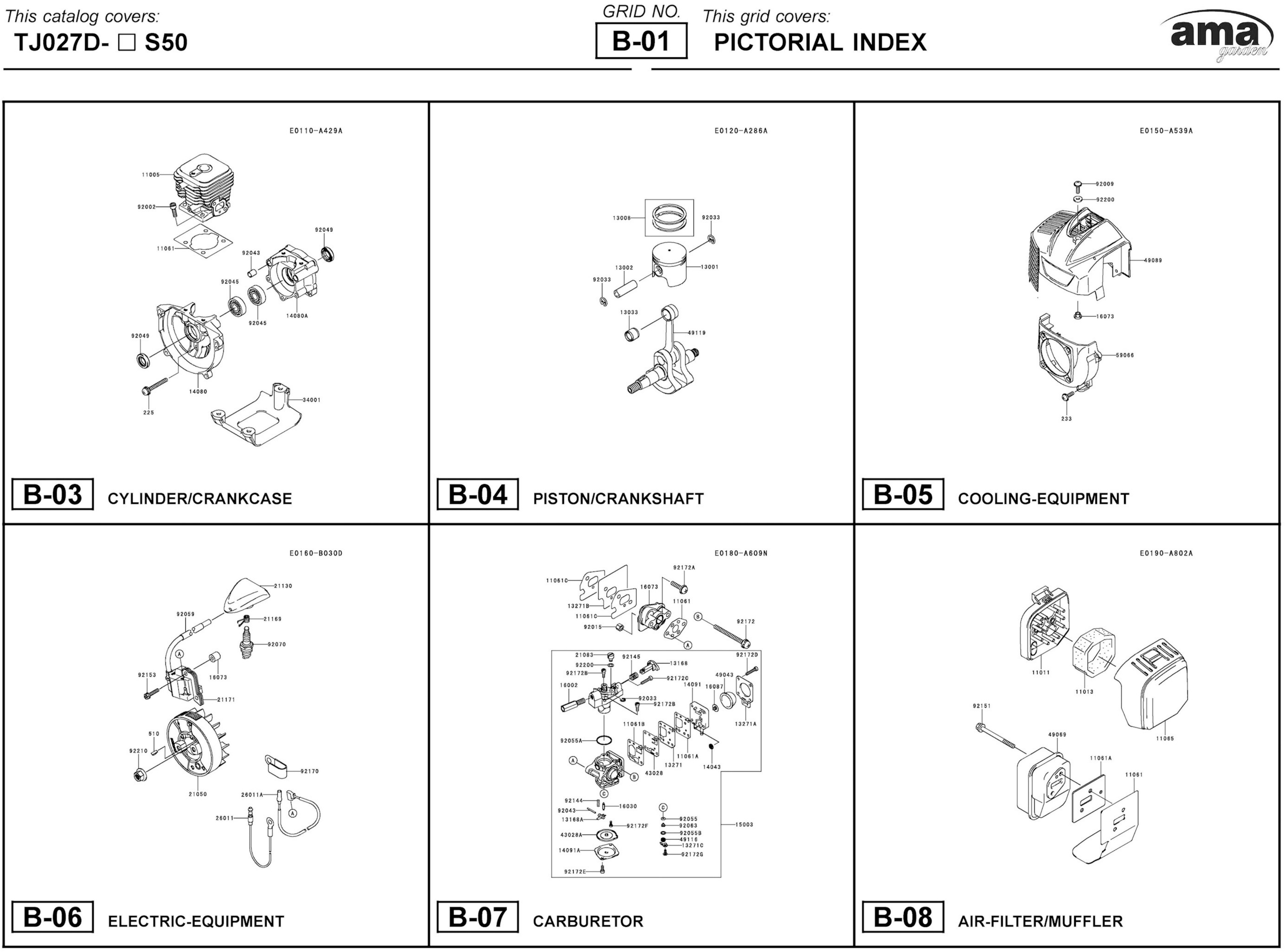

B03 Cylinder Pag.2
11005 11005-2155 CYLINDER-ENGINE TJ27
11061 11061-2113 GASKET,CYLINDE
B04 Piston/Crank Shaft Pag.3
13001 13001-2156 PISTON-ENGINE TJ27
13002 13002-2058 PIN-PISTON TJ27
13008 13008-6046 RING-SET-PISTON TJ27
13033 13033-2057 BEARING-SMALL
92033 92033-2191 RING-SNAP TJ27
B06 Recoil Pag.4
21130 21130-2070 CAP-SPARK PLUG
21169 21169-2051 TERMINAL
21171 21171-2243 RECOIL X TJ27
26011 26011-2113 WIRE-LEAD
B07 Carburator Pag.5
11061 11061-2115 GASKET,CARBURE
11061C 11061-2123 GASKET,INSULAT
13271B 13271-2228 PLATE
14091 14091-2110 COVER
15004 15004-2044 CARBURATOR CPL. X TJ027E
16073 16073-2218 FLANGE X TJ027
16087 16087-2059 VALVE-CHECK
43028A 43028-2093 DIAPHRAGM
B08 Filter/Silencer Pag.6
11011 11011-2338 CASE-AIR FILTE
11013 11013-2203 FILTER AIR X TJ27
11061 11061-2112 GASKET,MUFFLER
11061A 11061-2153 GASKET
11065 11065-2106 CAP

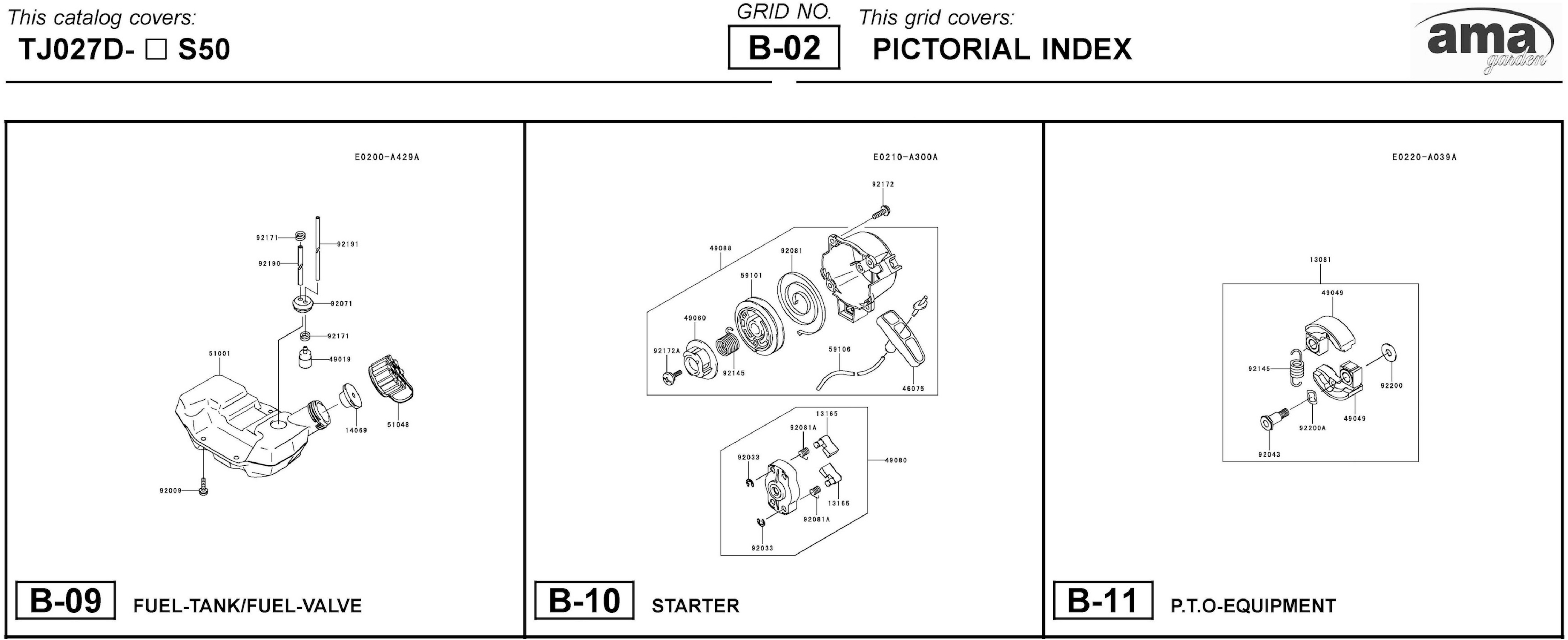

B9 Tank/Valve Pag.7
14069 14069-2088 VALVE TANK
49019 49019-2114 FILTER MIX TJ27/TJ35/TJ45
51001 51001-2319 TANK-COMP-FUEL
92071 92071-2142 RUBBER TANK X TH/TJ27-35-45
92190 92190-2174 TUBE,3X6X90 TJ27/TH34
92191 92191-2102 TUBE,3X5X182 TJ27/TJ35/TH34
Starter Pag.8
13165 13165-2100 PAWL
49060 49060-2061 CAM,STARTER-RE
49080 49080-2195 PULLEY-STARTIN
49088 49088-2530 STARTER-RECOIL
59101 59101-2115 KIT,REEL & CAM
92033 92033-2010 RING-SNAP
92081 92081-2238 SPRING
92081A 92081-2253 SPRING
92145 92145-2128 SPRING,RECOIL
B11 Clutch Pag.9
13081 13081-2232 CLUTCH CPL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
