A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RS421

SKU: Ama RS421 - 89501
€21.59
VAT included

Ama Spare Parts for Lawnmower RS421

We have the original AMA Garden Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Push-Lawnmower RS421 - 89501. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ama Spare Parts for Lawnmower RS421
  • Online only
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
  • Ama Spare Parts for Lawnmower RS421
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RS421

SKU: Ama RS421 - 89501 Condition: New
€21.59
VAT included

Ama Spare Parts for Lawnmower RS421

We have the original AMA Garden Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Push-Lawnmower RS421 - 89501. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 47 Spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

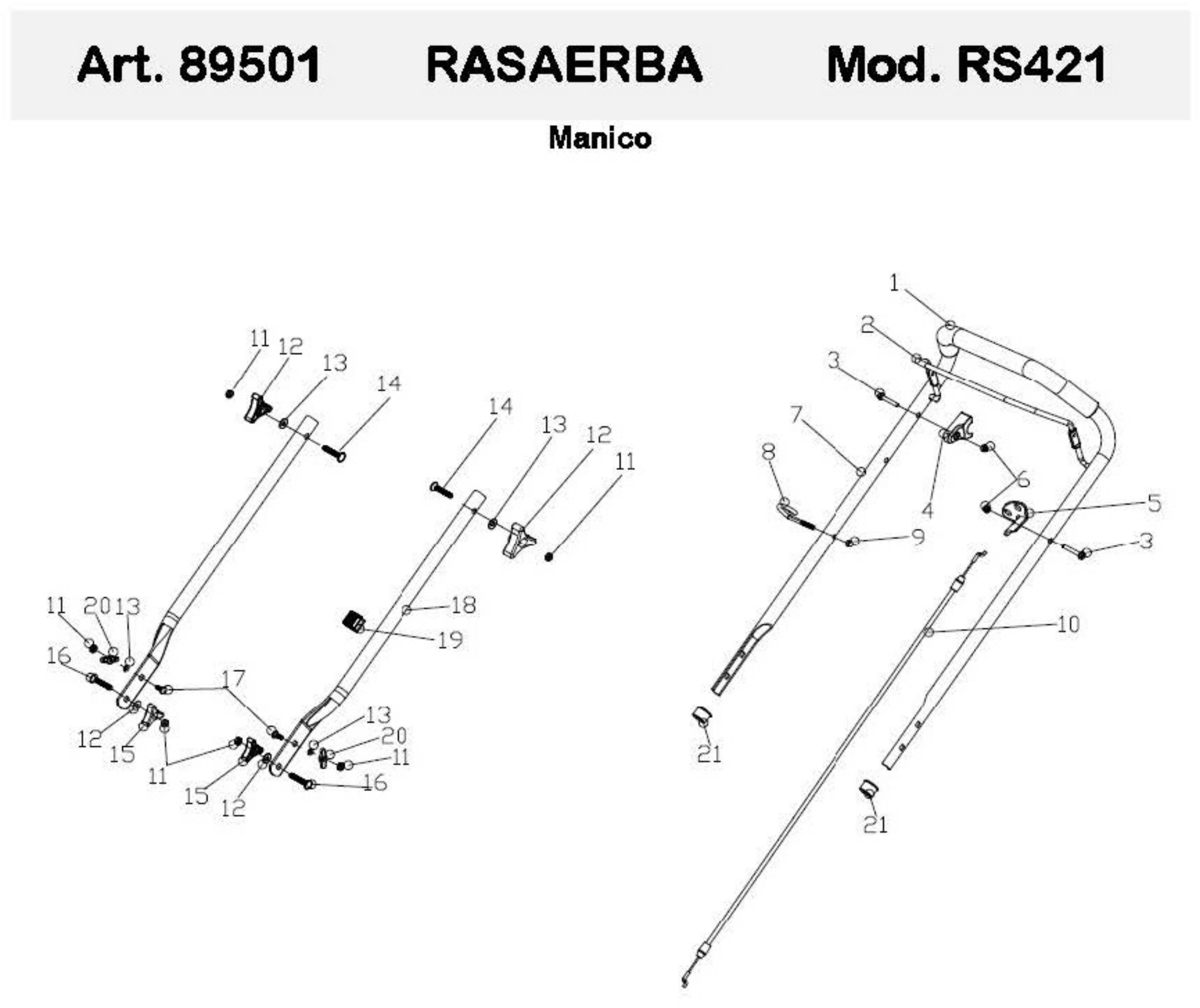

Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €4.99
2
 photo_cameraImage coming soon 84957 Stop lever €14.08
4
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €4.99
5
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70 Not available for order
7
 photo_cameraImage coming soon 84959 Upper handrail €20.06
8
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €4.99
9
 photo_cameraImage coming soon 88564 Cap nut €4.99 Not available for order
10
 Stop Cable for Self-Propelled Lawnmower AMA Playcut LT52H 84829 Stop Cable for Self-Propelled Lawnmower AMA Playcut LT52H €12.54
12
 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 84972 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.58
15
 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 84974 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.35
18
 photo_cameraImage coming soon 89476 Lower handrail €31.31
19
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €4.99
20
 photo_cameraImage coming soon 73845 Thin knob €3.14
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

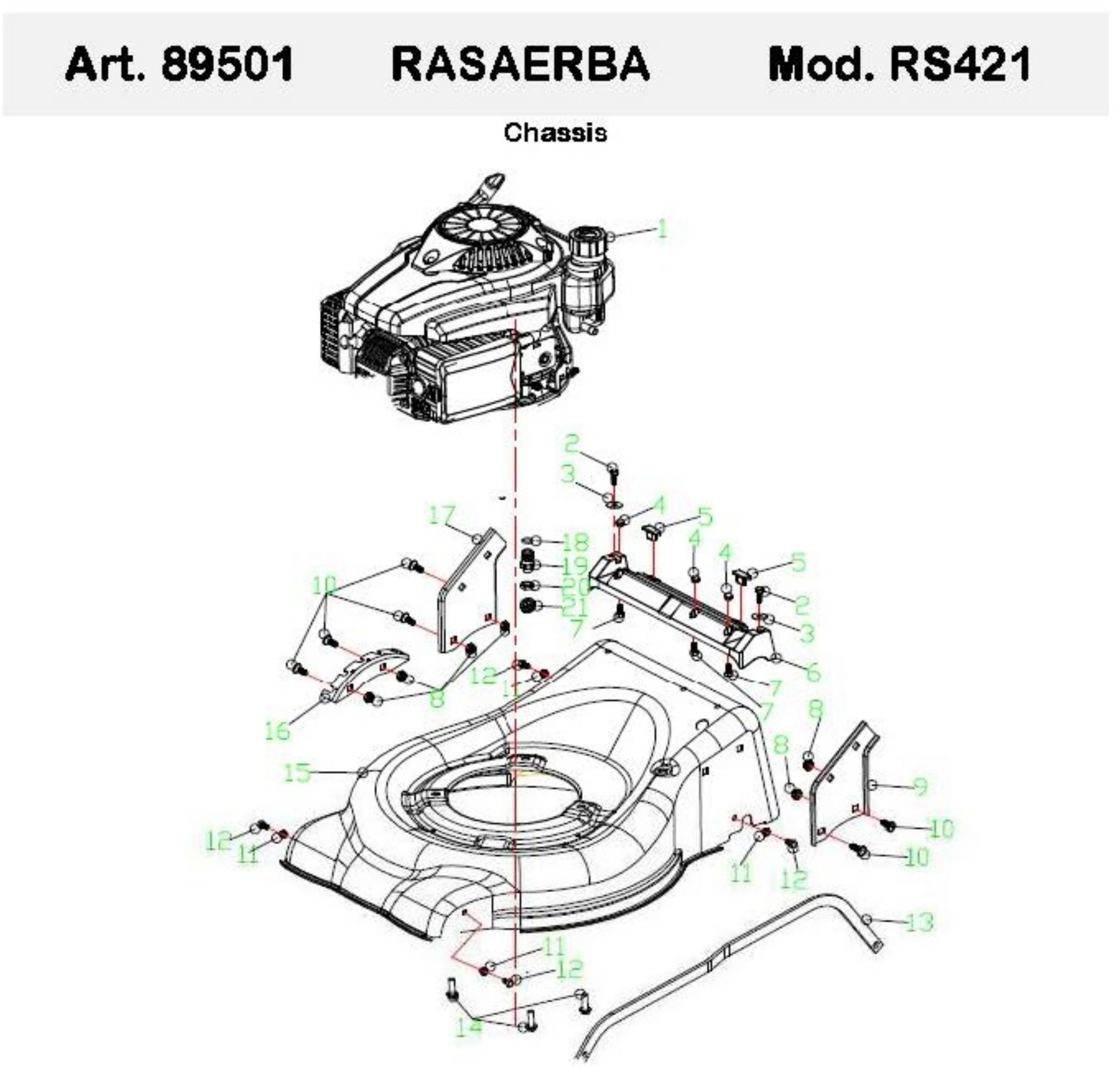

Esploso pagina 2
Pos. Item Price Buy
1
 Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden 55823 Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden €0.00 Not available for order
5
 photo_cameraImage coming soon 89514 Rear discharge base €3.79
6
 photo_cameraImage coming soon 89506 Rear discharge base €5.55
7
 photo_cameraImage coming soon 89507 Bolt €3.92
9
 photo_cameraImage coming soon 89504 Right bracket €9.85
13
 photo_cameraImage coming soon 89503 Height Adjustment Pull Rod €16.62
14
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €4.99 Not available for order
15
 photo_cameraImage coming soon 89525 Deck assy. €126.35
16
 photo_cameraImage coming soon 89518 Height adjustment board €7.74
17
 photo_cameraImage coming soon 89517 Right bracket €9.85
19
 photo_cameraImage coming soon 89447 Inlet €4.99
20
 photo_cameraImage coming soon 89448 Pipe connector nut €1.39
21
 photo_cameraImage coming soon 89515 Cable stopper €4.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

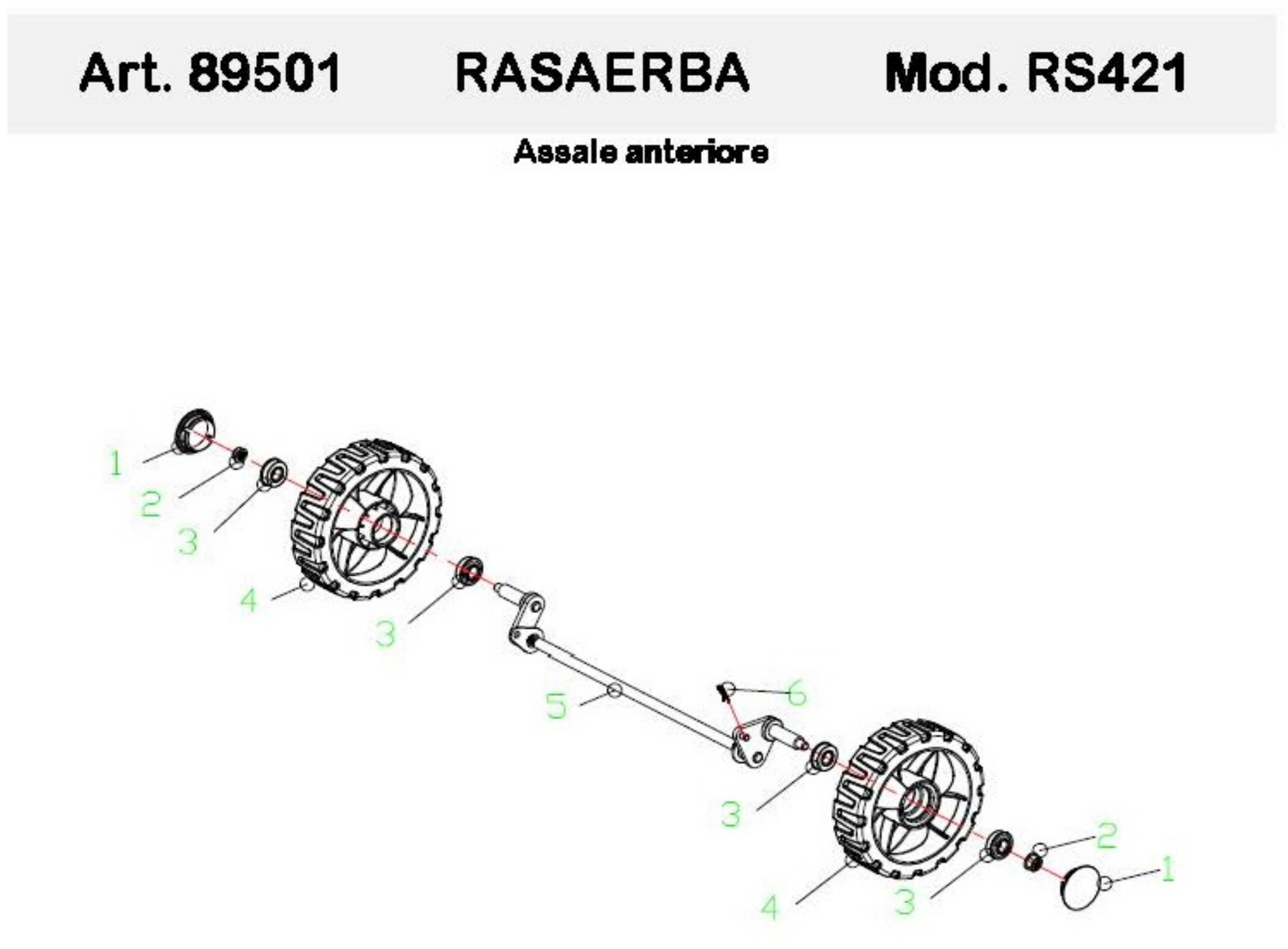

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89477 Outer cover of hub €3.79
2
 photo_cameraImage coming soon 89450 Self-locking nut €4.99
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
4
 photo_cameraImage coming soon 89519 Wheel assy. €13.99
5
 photo_cameraImage coming soon 89521 Front drive assy. €25.93
6
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €4.99 Not available for order
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

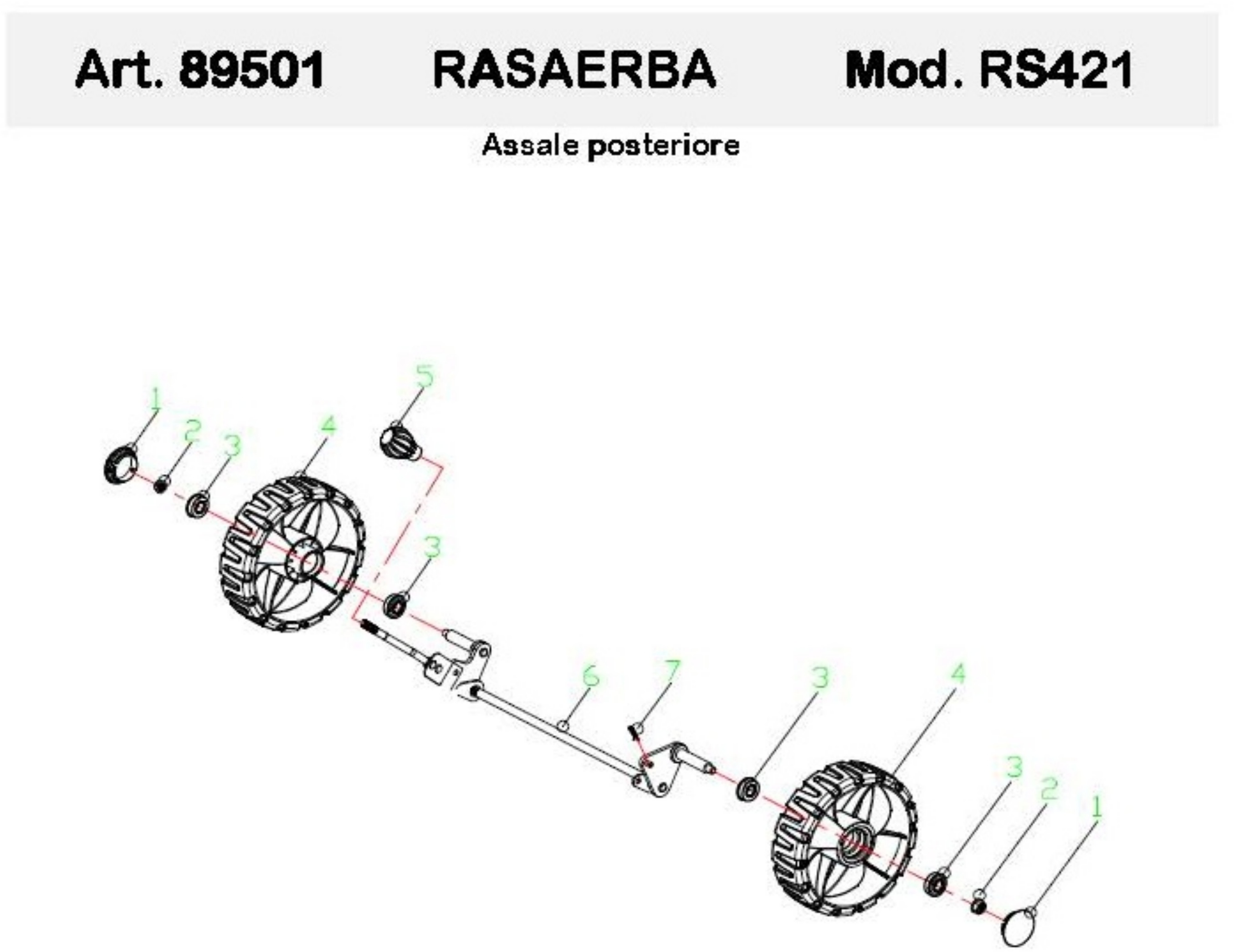

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89477 Outer cover of hub €3.79
2
 photo_cameraImage coming soon 89450 Self-locking nut €4.99
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
4
 photo_cameraImage coming soon 89478 Wheel assy. €15.49
5
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
6
 photo_cameraImage coming soon 89479 Rear drive assy. €37.85
7
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €4.99 Not available for order
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

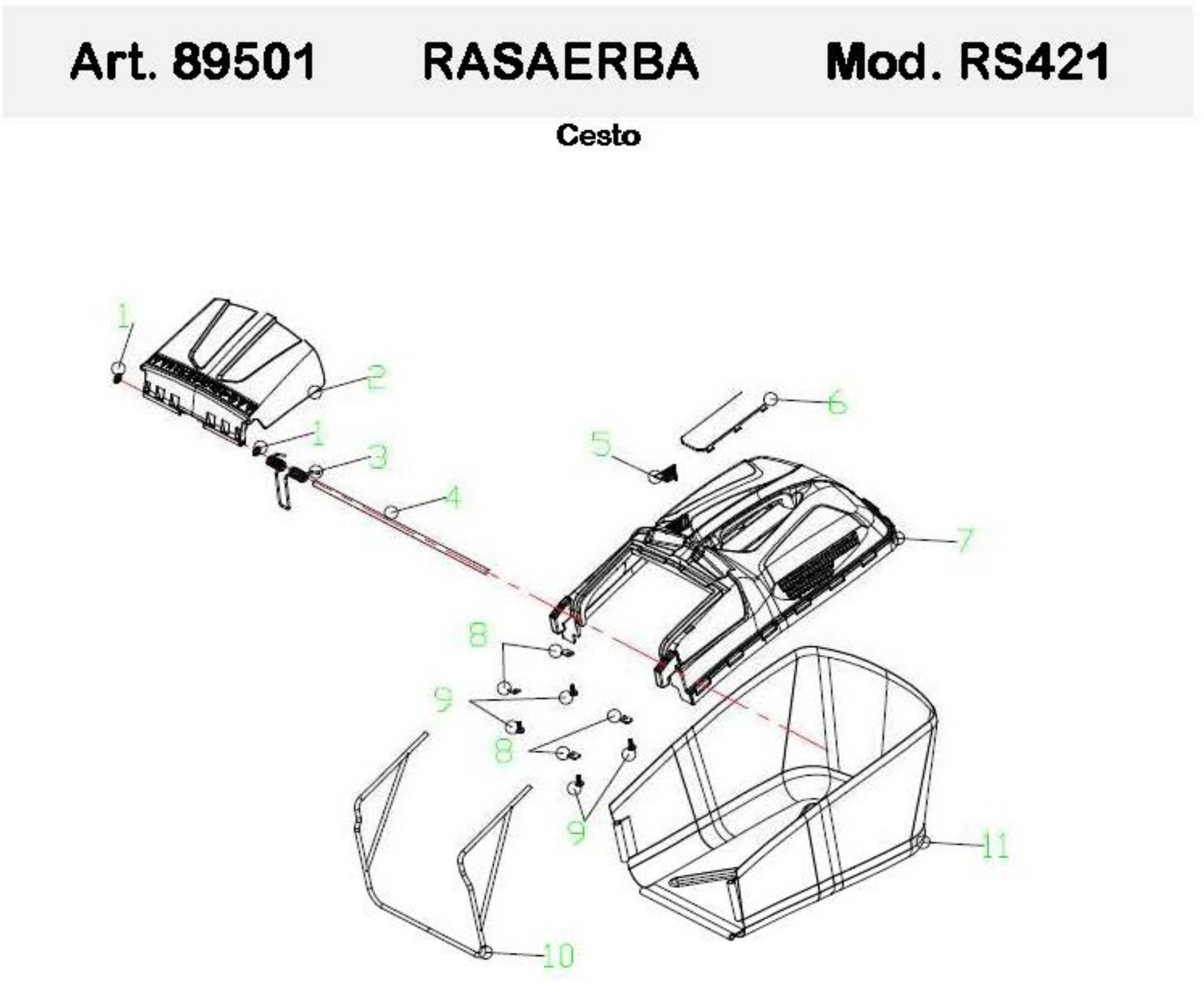

Esploso pagina 5
Pos. Item Price Buy
2
 photo_cameraImage coming soon 89516 Back €13.45
3
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.99
4
 photo_cameraImage coming soon 88116 Shaft for rear discharge cover €3.71
5
 photo_cameraImage coming soon 89499 Air-out board of fabric grass bag €4.69
6
 photo_cameraImage coming soon 89498 Protection board of grass bag €9.37
7
 photo_cameraImage coming soon 89524 Top of grass box €39.57
10
 photo_cameraImage coming soon 89488 Plastic top frame €20.01
11
 photo_cameraImage coming soon 89486 Fabric grass bag €34.90
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

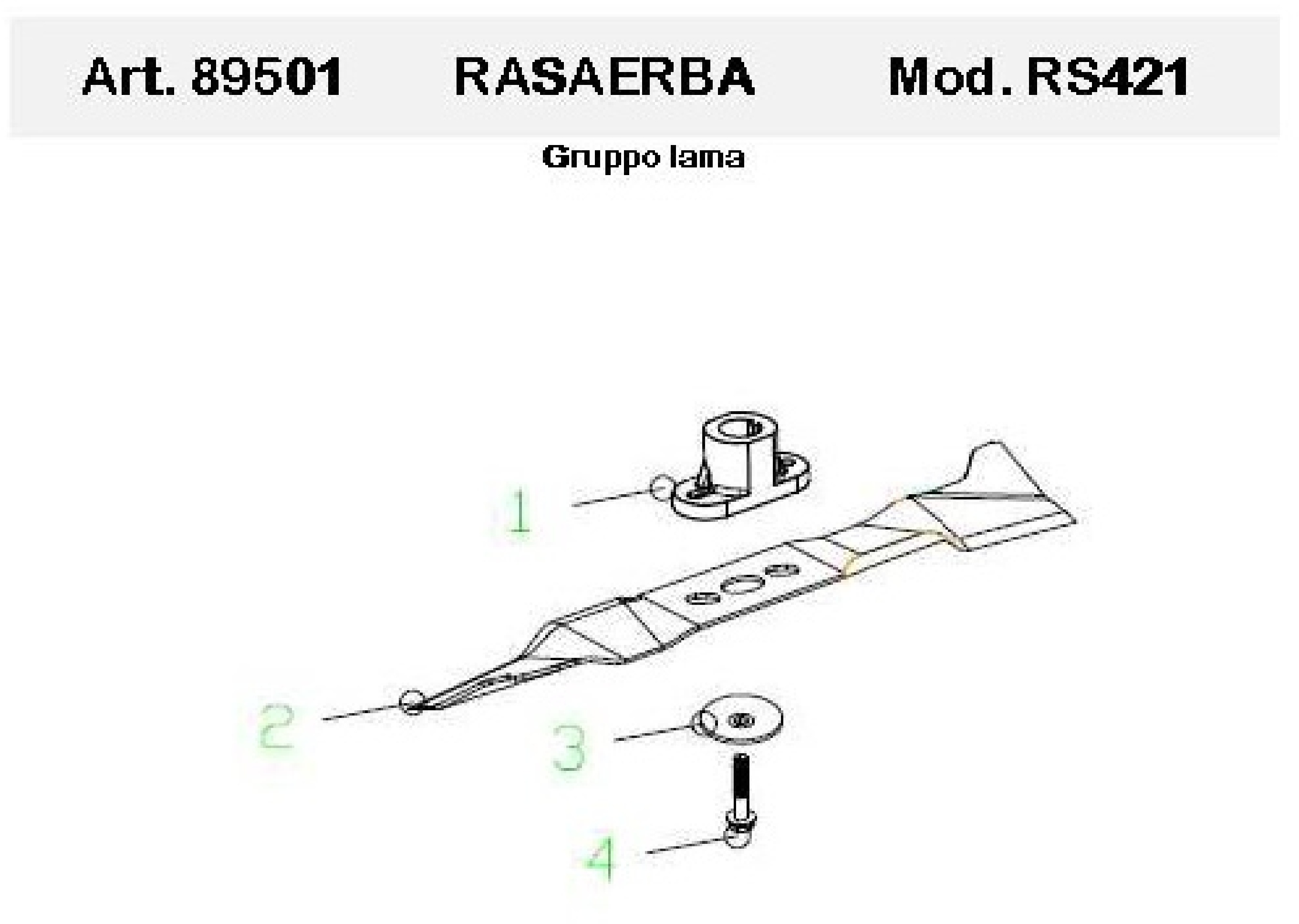

Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Lawnmower AMA RS421 89522 Blade Holder for Lawnmower AMA RS421 €18.26
2
 Blade cm 42 for Push Lawnmower AMA RS421 89523 Blade cm 42 for Push Lawnmower AMA RS421 €16.90
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02 Not available for order
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €1.40

Shipping and delivery information will be available shortly.

Ama Spare Parts for Lawnmower RS421

We have the original AMA Garden Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Push-Lawnmower RS421 - 89501. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
Push-Lawnmower RS421 - 89501

AMA Garden Push-Lawnmower RS421 - 89501
Handle Pag.1
# Part Num. Description
1 88566 Foam rubber Handle Grip
2 84957 Stop lever
4 89399 Lever guard
5 84822 Brake Cable Assy plate
7 84959 Upper handrail
8 88568 Rope Guide
9 88564 Cap nut
10 84829 Engine Stop cable
12 84972 Triangle knob
15 84974 Triangle knob
18 89476 Lower handrail
19 88247 Fastener
20 73845 Thin knob
21 89867 Handrail stopper
Chassis Pag.2
1 55823 Petrol engine
5 89514 Rear discharge base
6 89506 Rear discharge base
7 89507 Bolt
9 89504 Right bracket
13 89503 Height Adjustment Pull Rod
14 88628 Hexagon head bolts
15 89525 Deck assy.
16 89518 Height adjustment board
17 89517 Right bracket
19 89447 Inlet
20 89448 Pipe connector nut
21 89515 Cable stopper
Front Axle Pag.3
1 89477 Outer cover of hub
2 89450 Self-locking nut
3 73848 Wheel punch bearing
4 89519 Wheel assy.
5 89521 Front drive assy.
6 88625 R type pin
Back Axle Pag.4
1 89477 Outer cover of hub
2 89450 Self-locking nut
3 73848 Wheel punch bearing
4 89478 Wheel assy.
5 73201 Height adjustment ball
6 89479 Rear drive assy.
7 88625 R type pin
Bag Pag.5
2 89516 Back
3 84987 Cover spring
4 88116 Shaft for rear discharge cover
5 89499 Air-out board of fabric grass bag
6 89498 Protection board of grass bag
7 89524 Top of grass box
10 89488 Plastic top frame
11 89486 Fabric grass bag
Blade Pag.6
1 89522 Blade Boss
2 89523 Blade
3 73223 Blade washer
4 84815 Inch hex flange bolts

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama RS421 - 89501
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
Machine Type
Lawn Mowers
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Ama RS421

Diagram Ama RS421

Download (440.12KB)
