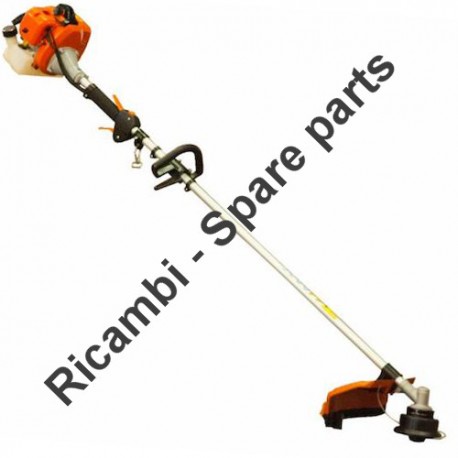

Ama Spare Parts for Brushcutter AG3 350

Name: Ama Spare Parts for Brushcutter AG3 350
Brand: A.M.A. S.p.A.
SKU: Ama AG3 350 – 84885
Availability: InStock

SKU: Ama AG3 350 – 84885

€5.90

VAT included

Ama Spare Parts for Brushcutter AG3 350

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter AG3 350–84885.

75 spare parts

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		88269 Gear Case Assy for Brushcutters AMA AG3 350-450-530	€70.35
5		88289 Gear Case Pinion Gear for Brushcutters AMA AG3 350-450-530	€11.35
13		88288 Safety Guard Cup for Brushcutters AMA AG3 350-450-530	€2.85
15	Image coming soon	88287 Gear	€15.27
16		88286 Gearbox Drive Shaft for Brushcutter AMA AG3 350	€10.20
19		88270 Upper Washer Cup for Brushcutter Gear Box Smooth Hole	€10.92
20		88271 Disc Holder for Brushcutter AMA AG3 350	€6.47
25		88293 AMA Brushcutter AG3 350 Clutch Drum	€25.64
26		88292 Clutch Drum for Brush Cutters AMA AG 3 350-450-530	€23.17
30	Image coming soon	88294 Linker	€22.11
31		38513 Pipe Holder Damper for Brushcutter AMA AG3 350	€6.08
35		88284 Damper Clamp B for Brushcutters AMA Series AG3	€5.51
36		88283 Damper Clamp A for Brushcutters AMA Series AG3	€6.31
37		88282 Holder Ass'y for Brushcutter AMA AG3 280	€5.60
42		88274 Drive Shaft Assembly for Brushcutters AMA AG3 280-350-450-530	€47.63
45		88275 Rigid Inner Transmission Shaft for Brushcutters AMA AG3 280-350-450-530	€18.50
51		88291 Front Handle Assy for Brushcutter AMA AG3 350	€22.29
52	Image coming soon	73814 Level Ass'y	€16.61
55		73815 Throttle Handle Box Right for Brushcutters AMA	€5.80
58	Image coming soon	73823 Stop Switch	€8.31
59		88280 Throttle Lock Lever for Brushcutters AMA AG3 280	€3.84
61		73817 Safety Lever Spring for Brushcutters AMA AG3 280	€2.50
62		73819 Throttle Safety Lever for Brushcutters AMA AG3 280-350-450	€4.87
63		88279 Throttle Lever Spring for Brushcutters AMA AG3	€3.95
64		73820 Throttle Lever for Brushcutters AMA AG3 280-350-450-530	€9.17
65	Image coming soon	73821 Cable Comp	€6.82
69		73822 Throttle Handle Box Left for Brushcutters AMA	€5.80
79		88276 Safety Guard Braket for Brushcutters AMA AG3 280	€6.05
81		88277 Safety Guard for Brushcutters AMA AG3 280	€12.28
86		88278 Stone Guard Flap for Brushcutters AMA AG3 280	€8.54

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
3		58919 Starter Pulley for Brushcutter AMA AG1 450	€9.17
5		64081 Starter Spring for Brushcutter AMA AG1 450	€8.56
10		55039 Recoil Starter for Brushcutter AMA AG3 350	€40.98
11	Image coming soon	88297 Stand	€4.40
12	Image coming soon	88298 Rubber Cover	€3.01
13	Image coming soon	88299 Gasket	€4.48
14	Image coming soon	58916 RECOIL TO 42 CC	€3.55
87		13730 Starter Pawl Spring for Brushcutter AMA AG1 350	€1.12

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
55		79333 Flange Gasket for Brushcutters AMA AG3 350–350U	€4.29
56	Image coming soon	79334 Admitting Pipe	€6.38
58	Image coming soon	79337 Carburator	€32.92
59	Image coming soon	13754 Choker Handle	€3.59
62		13751 Air Filter Holder with Lever for Brushcutters AMA	€12.28
66		13715 Air Filter for Brushcutters AMA	€4.92
67		79339 Cleaner Outside Cover for Brushcutter AMA AG2 450 E2	€4.97
68		55134 Air Filter Cover Knob for Brushctters AMA	€3.01
69		13569 Gasoline Filter for Brushcutters AMA AG3 280-350-450	€4.43
71		13568 Tank Rubber for Brushcutters AMA AG3 350-AG3 280	€2.72
74	Image coming soon	79340 Fuel Tank	€15.78
81		13758 Fuel Tank Cap for Brushcutters AMA	€6.99
82		88301 Tank Damper for Brushcutter AMA AG3 350	€3.10

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
24	Image coming soon	76282 Magneto Rotor Comp	€31.61
28	Image coming soon	76283 Ignition Coil Comp	€33.02
33	Image coming soon	79343 FLYWHEEL X 45 CC EURO 2	€29.92
35		13733 Clutch Bolt for Brush Cutters AMA AG3 350 - AG3 450	€2.62
36	Image coming soon	88302 Clutch	€13.19
50		79328 AMA AG3 350 Muffler Gasket	€19.68
51	Image coming soon	79329 Muffler	€63.21
83	Image coming soon	79341 Inlet	€5.52

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
16	Image coming soon	88303 Crankcase	€14.92
19		88304 Crankshaft Complete for Brushcutter AMA AG3 350	€48.74
22	Image coming soon	88305 Crankcase	€18.41
37		79309 Piston Pin Needle Bearing for Brushcutters AMA AG2-3 350-AG2-3 350	€3.58
38		79311 Seeger for Piston Pin Brushcutters AMA AG3 350-AG3 350U	€0.37
39		79312 Piston for Brushcutters AMA AG3 350-AG3 350U	€13.81
40		13786 Piston Pin for Brushcutters AMA AG2-3 350-AG2-3 350U	€6.05
41		79314 Piston Rings for Brushcutters AMA AG3 350-AG3 350U	€12.12
42		79317 Cylinder Gasket for Brushcutters AMA AG3 350-AG3 350U	€2.32
43		79318 Cylinder for Brushcutters AMA AG3 350-AG3 350U	€43.01
45	Image coming soon	79319 Guide Cover Ass' y	€8.14
47	Image coming soon	10660 Spark plug	€5.90
49	Image coming soon	79327 Cover	€7.69
89	Image coming soon	88306 Front Cover	€2.78
91	Image coming soon	88307 Back Cover	€2.80
92	Image coming soon	88308 Gasket	€1.57

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Brushcutter AG3 350

AMA Garden Original spare parts

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter AG3 350–84885.

In the following table, look for the model of the Brushcutter and the respective parts of the code.

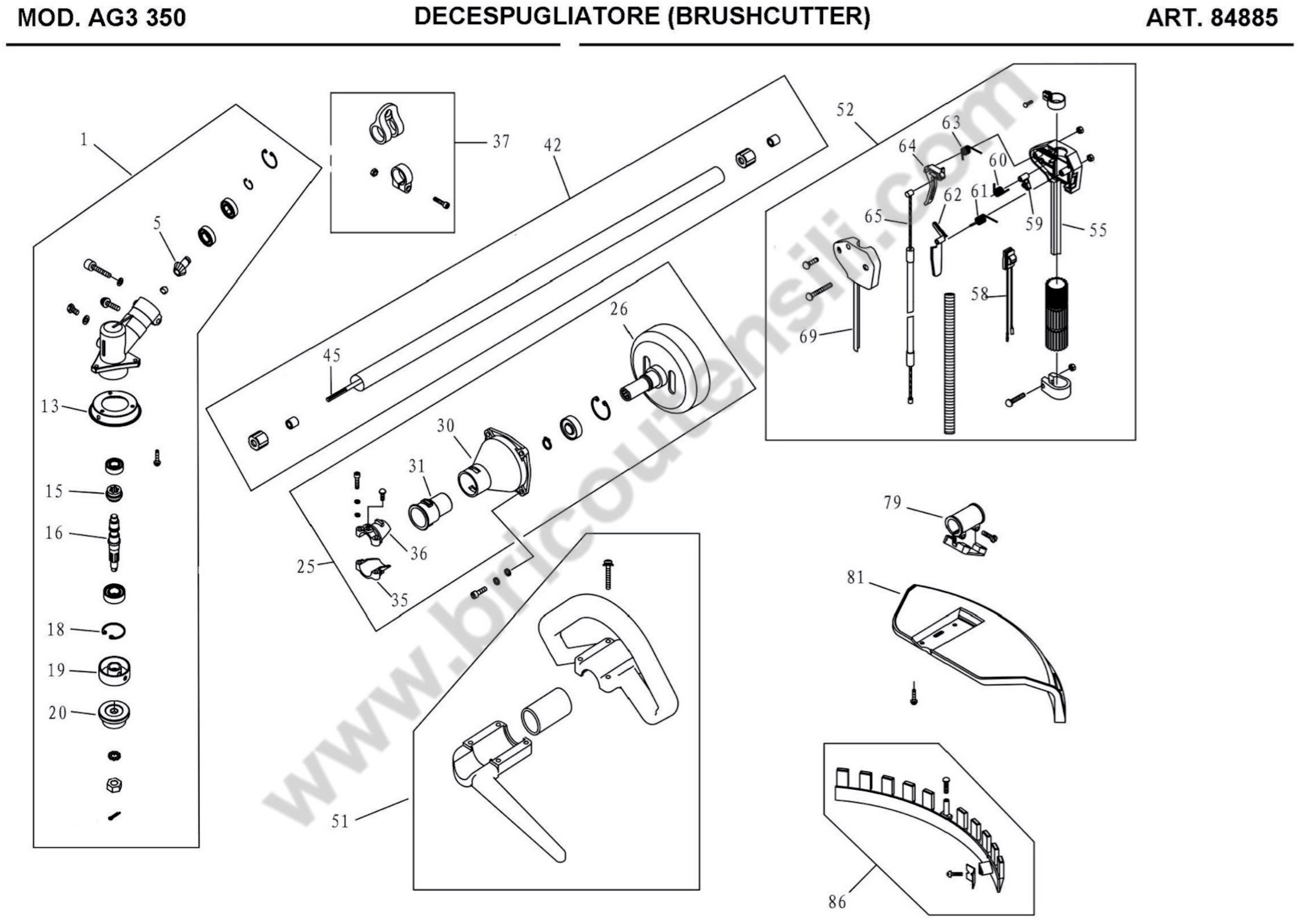

AMA Garden Brushcutter AG3 350–84885 Pag.1
#	Part Num.	Description
1	88269	Gear Care Ass'y
5	88289	Pinion
13	88288	Safety Guard
15	88287	Gear
16	88286	Gear Shaft
19	88270	Holder A
20	88271	Holder B
25	88293	Clutch Comp
26	88292	Clutch Drum Comp
30	88294	Linker
31	38513	Rubber Cover
35	88284	Clamp B
36	88283	Clamp A
37	88282	Holder Ass'y
42	88274	Drive Shaft Assy
45	88275	Drive Shaft
51	88291	Handle Ass'y
52	73814	Level Ass'y
55	73815	Box,Right
58	73823	Stop Switch
59	88280	Tine
60	73816	Spring
61	73817	Spring
62	73819	Safety Lever
63	88279	Spring
64	73820	Throttle Lever
65	73821	Cable Comp
69	73822	Box,Left
79	88276	Bracket
81	88277	Safety Guard
86	88278	Guard Ass'y

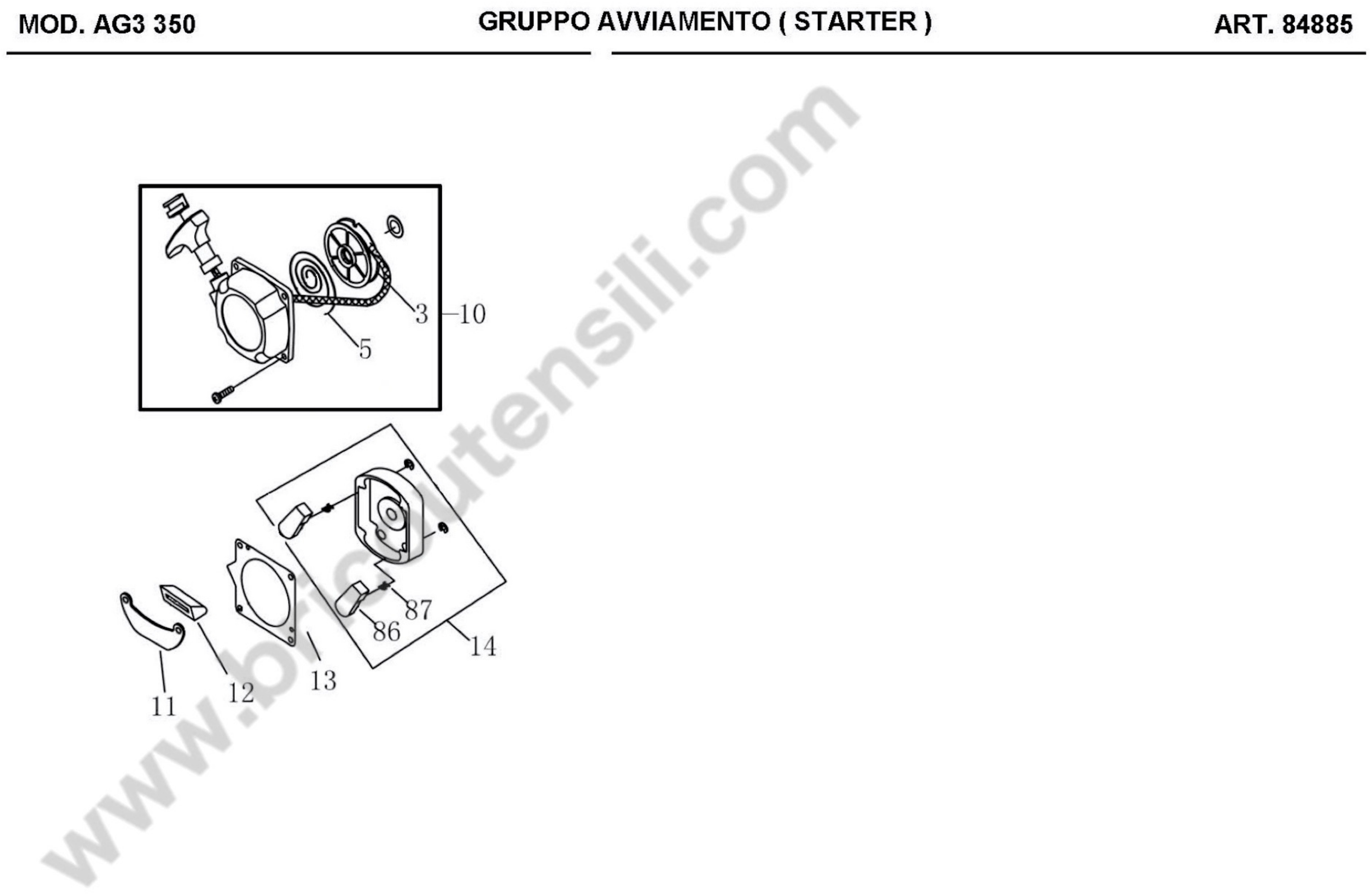

Pag.2
3	58919	Start Rope Reel
5	64081	Recoil Spring
10	55039	Starter
11	88297	Stand
12	88298	Rubber Cover
13	88299	Gasket
14	58916	Start Reel
86	88300	Start Claw
87	13730	Start Spring

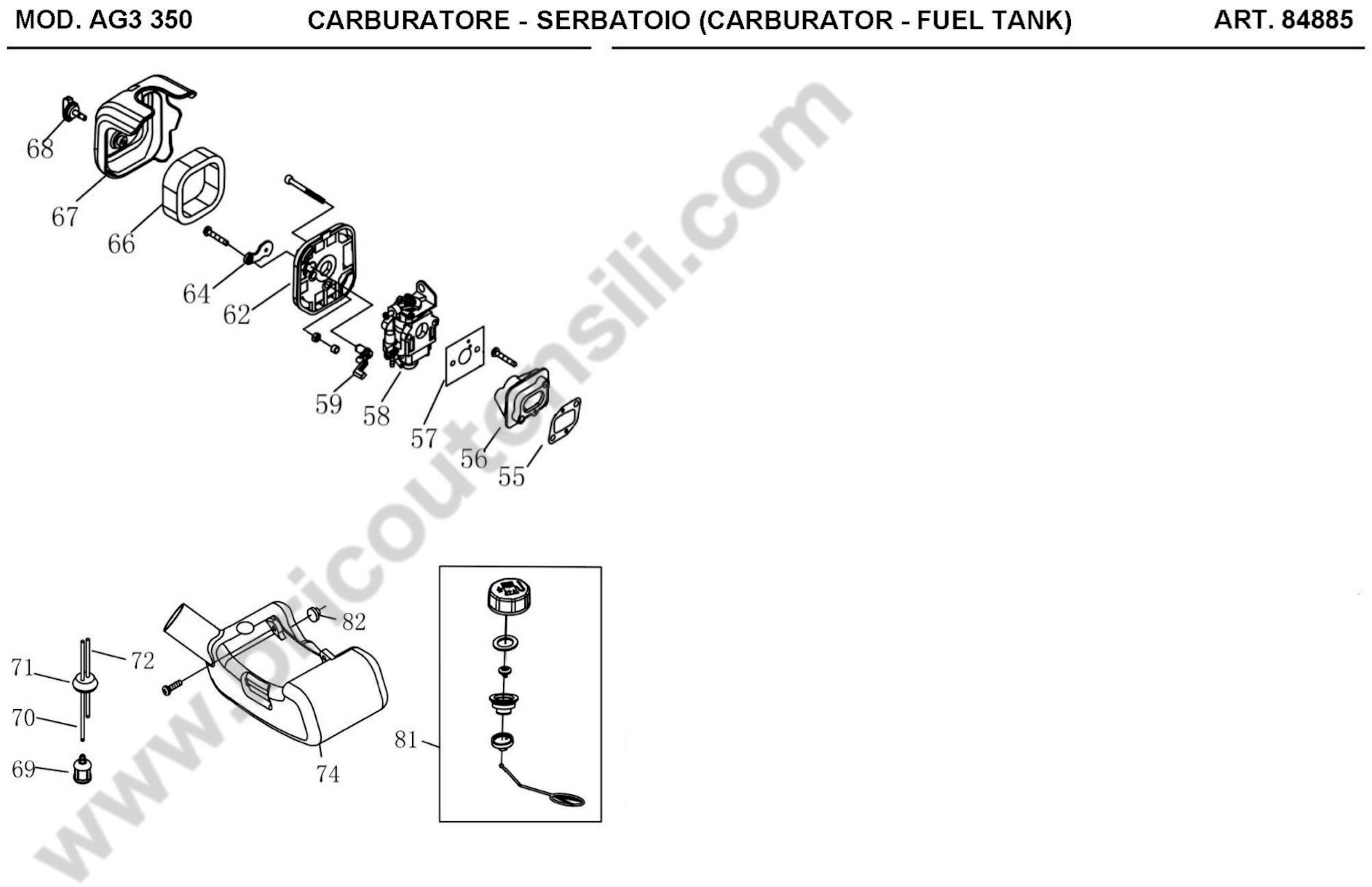

Pag.3
55	79333	Gasket
56	79334	Admitting Pipe
57	79335	Gasket
58	79337	Carburator
59	13754	Choker Handle
62	13751	Cleaner Inside Cover
64	13753	Choker
66	13715	Filter Net
67	79339	Cleaner Outside Cover
68	55134	Screw
69	13569	Cleaner Cover
70		Fuel Pipe 3x1x85
71	13568	Plug
72		Fuel Pipe 3x1x75
74	79340	Fuel Tank
81	13758	Lid Ass'y
82	88301	Tank Damper

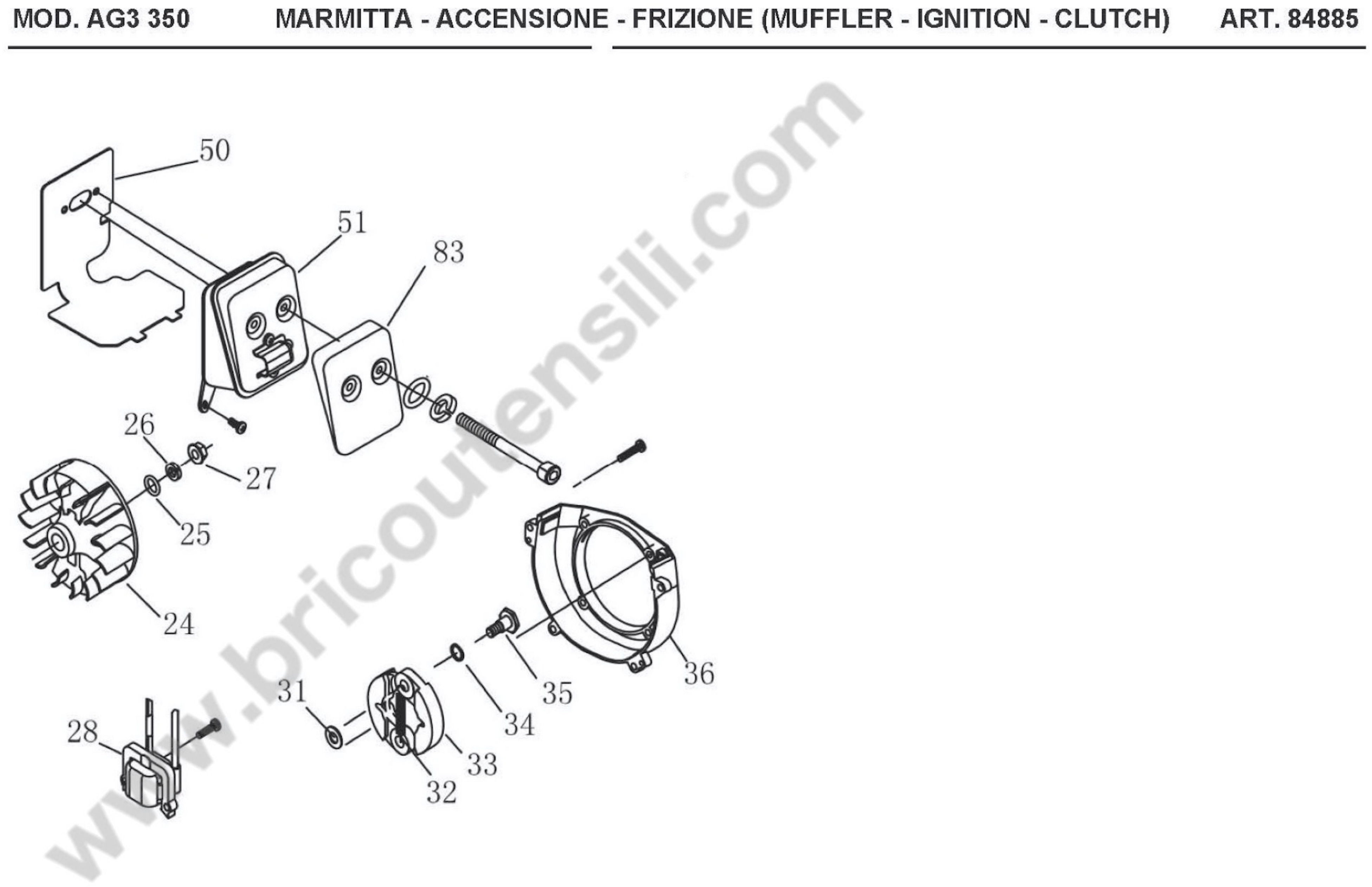

Pag.4
24	76282	Magneto Rotor Comp
27		Nut M8
28	76283	Ignition Coil Comp
31	76284	Washer B
32	79342	Spring
33	79343	Clutch Ass'y
34	13789	Washer
35	13733	Screw Pin
36	88302	Clutch
50	79328	Muffler Gasket
51	79329	Muffler
83	79341	Inlet

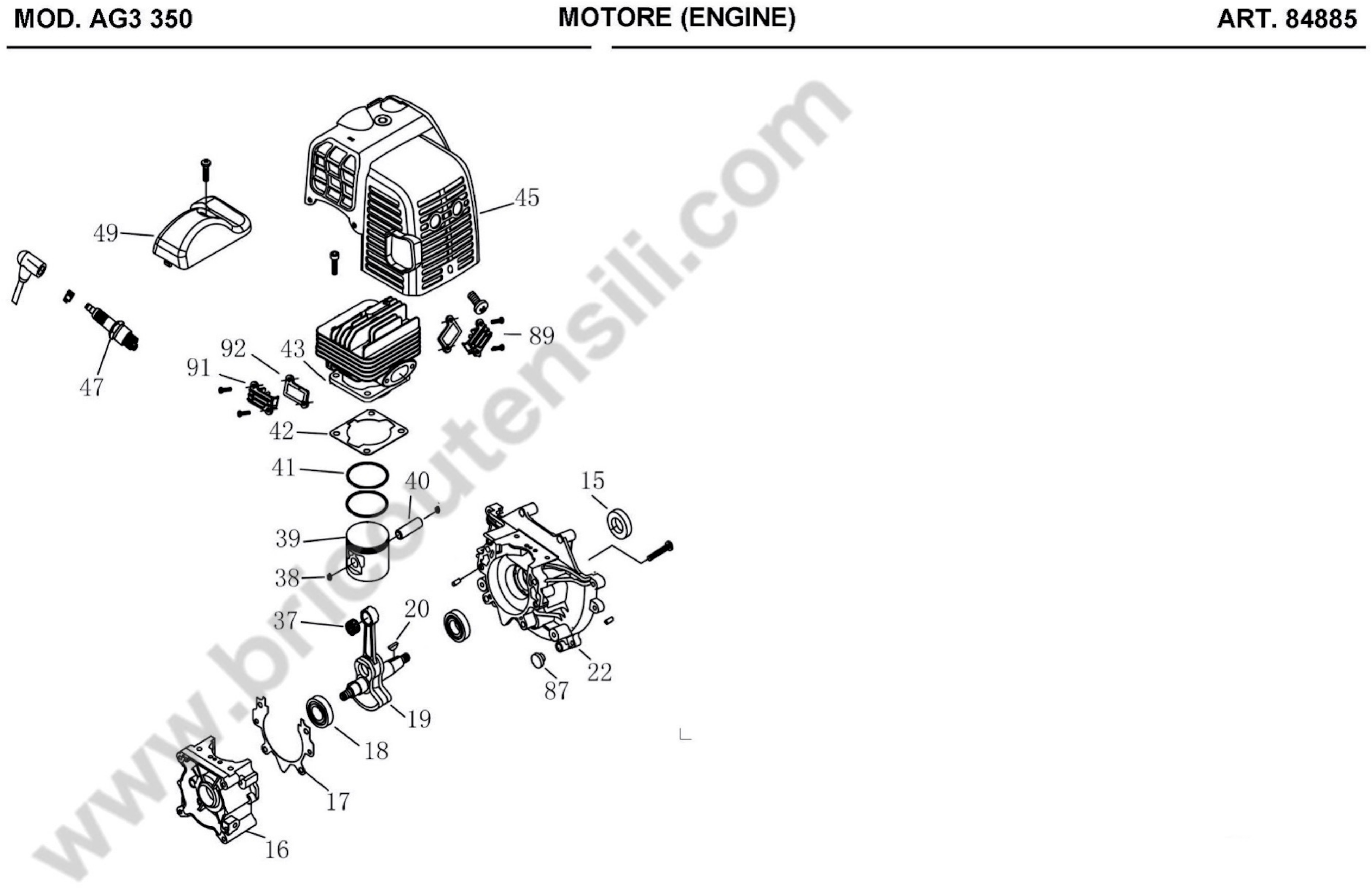

Pag.5
16	88303	Crankcase
17	13783	Gasket
18		Bearing 6201/P6
19	88304	Crank Shaft
20	88264	Key 3x5x13
22	88305	Crankcase
37	79309	Needle Bearing
38	79311	CIRCLIP
39	79312	Piston
40	13786	Piston Pin
41	79314	Piston Rings
42	79317	Cylinder Gasket
43	79318	Cylinder
45	79319	Guide Cover Ass' y
47	10660	Spark Plug
49	79327	Cover
87	13730	Rubber
89	88306	Front Cover
91	88307	Back Cover
92	88308	Gasket

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Ama AG3 350 – 84885

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Ama AG3 350 Parts Diagram

Download (967.73KB)

A.M.A. S.p.A. SKU: 79318

Cylinder for Brushcutters AMA AG3 350-AG3 350U

Cylinder for Brushcutters AMA AG3 350-AG3 350U Genuine replacement part AMA, Cylinder for Brushcutters AG3 350 - AG3 350U. Body entirely in Aluminium Die Polished aluminum cylinder Part for the following article: - BRUSHCUTTER...
