Ama Spare Parts for Brushcutter AG3 280–84880

Name: Ama Spare Parts for Brushcutter AG3 280–84880
Brand: A.M.A. S.p.A.
SKU: Ama AG3 280 – 84880
Availability: InStock

SKU: Ama AG3 280 – 84880

€5.90

VAT included

Ama Spare Parts for Brushcutter AG3 280–84880

We are AMA Garden original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter AG3 280–84880.

74 spare parts

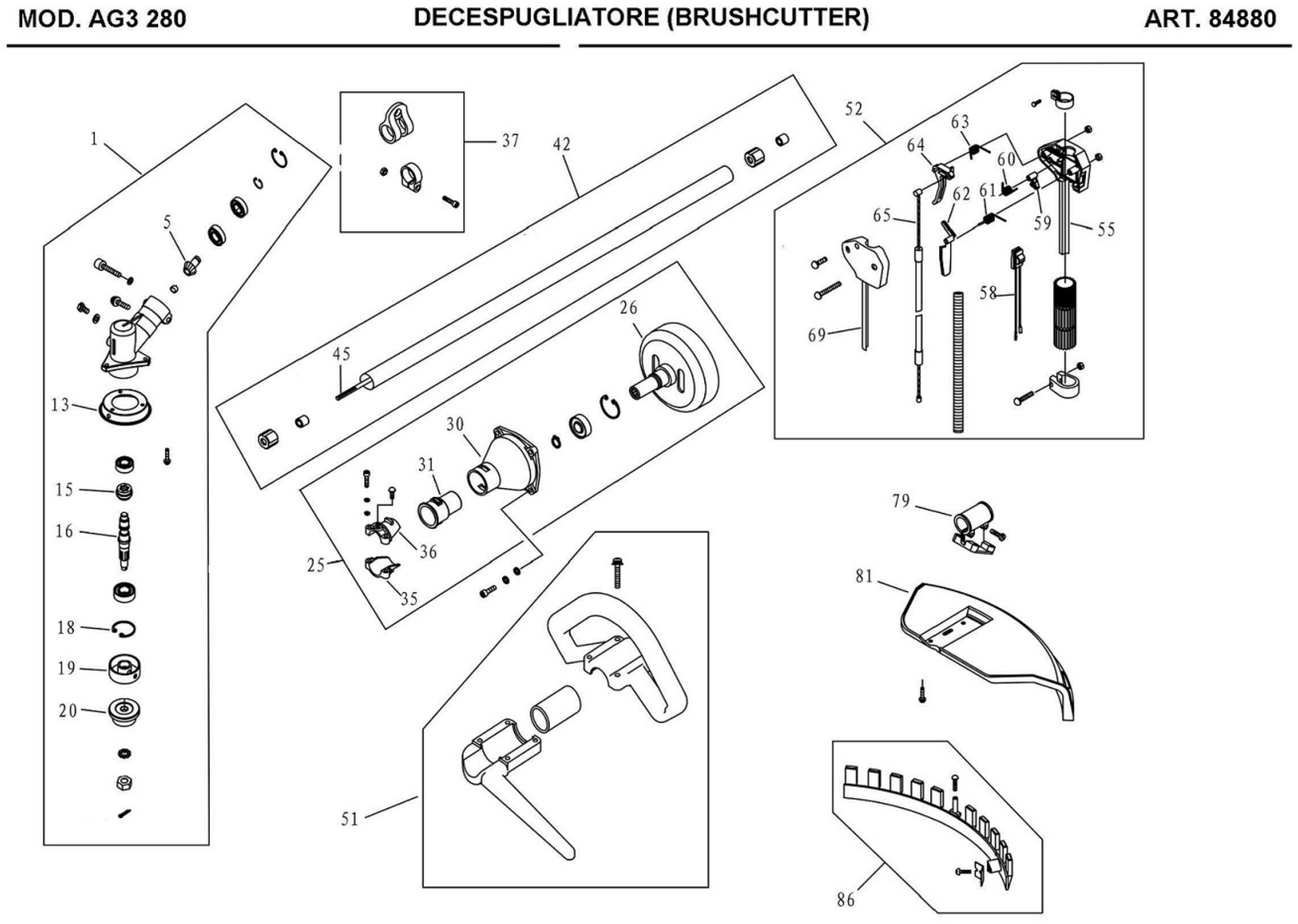

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		88269 Gear Case Assy for Brushcutters AMA AG3 350-450-530	€70.35
5		88289 Gear Case Pinion Gear for Brushcutters AMA AG3 350-450-530	€11.35
13		88288 Safety Guard Cup for Brushcutters AMA AG3 350-450-530	€2.85
15	Image coming soon	88287 Gear	€15.27
16	Image coming soon	88260 Crank Case	€15.10
16		88286 Gearbox Drive Shaft for Brushcutter AMA AG3 350	€10.20
18	Image coming soon	RSOF31 Bearing 6001/P5	€2.79
19	Image coming soon	79911 Crank Shaft	€60.29
19		88270 Upper Washer Cup for Brushcutter Gear Box Smooth Hole	€10.92
20		88271 Disc Holder for Brushcutter AMA AG3 350	€6.47
25	Image coming soon	88272 Clutch Comp	€49.59
26	Image coming soon	88273 Clutch Drum Comp	€13.21
30	Image coming soon	88290 Linker	€14.27
31		38513 Pipe Holder Damper for Brushcutter AMA AG3 350	€6.08
35		13720 Clutch Bolt for Brush Cutters AMA AG 260 TR - AG2 280	€3.28
35		88284 Damper Clamp B for Brushcutters AMA Series AG3	€5.51
36	Image coming soon	88256 Fan Cover	€13.06
36		88283 Damper Clamp A for Brushcutters AMA Series AG3	€6.31
37		88265 Piston Pin Needle Bearing for Brushcutter AMA AG2 265	€5.51
37		88282 Holder Ass'y for Brushcutter AMA AG3 280	€5.60
42		76211 Cylinder Gasket for Brushcutters AMA AG2 265-AG3 280	€3.48
42		88274 Drive Shaft Assembly for Brushcutters AMA AG3 280-350-450-530	€47.63
45		88267 AMA AG2 265 Cylinder Cover	€15.48
45		88275 Rigid Inner Transmission Shaft for Brushcutters AMA AG3 280-350-450-530	€18.50
51		88291 Front Handle Assy for Brushcutter AMA AG3 350	€22.29
52	Image coming soon	73814 Level Ass'y	€16.61
52	Image coming soon	88268 Cover	€5.61
55		73815 Throttle Handle Box Right for Brushcutters AMA	€5.80
58	Image coming soon	73823 Stop Switch	€8.31
58		88252 AMA AG3 280 Thermal Flange Gasket	€5.45
59	Image coming soon	76218 Admitting Pipe	€7.76
59		88280 Throttle Lock Lever for Brushcutters AMA AG3 280	€3.84
60		88253 AMA AG3 280 Carburetor Gasket	€2.67
61		73817 Safety Lever Spring for Brushcutters AMA AG3 280	€2.50
61	Image coming soon	88524 Carburator	€43.29
62	Image coming soon	13754 Choker Handle	€3.59
62		73819 Throttle Safety Lever for Brushcutters AMA AG3 280-350-450	€4.87
63		88279 Throttle Lever Spring for Brushcutters AMA AG3	€3.95
64		73820 Throttle Lever for Brushcutters AMA AG3 280-350-450-530	€9.17
65	Image coming soon	73821 Cable Comp	€6.82
65	Image coming soon	79360 AIR FILTER HOLDER	€3.97
69		13715 Air Filter for Brushcutters AMA	€4.92
69		73822 Throttle Handle Box Left for Brushcutters AMA	€5.80
79	Image coming soon	88251 Fuel Tank	€18.08
79		88276 Safety Guard Braket for Brushcutters AMA AG3 280	€6.05
81		88277 Safety Guard for Brushcutters AMA AG3 280	€12.28
86		13758 Fuel Tank Cap for Brushcutters AMA	€6.99
86		88278 Stone Guard Flap for Brushcutters AMA AG3 280	€8.54

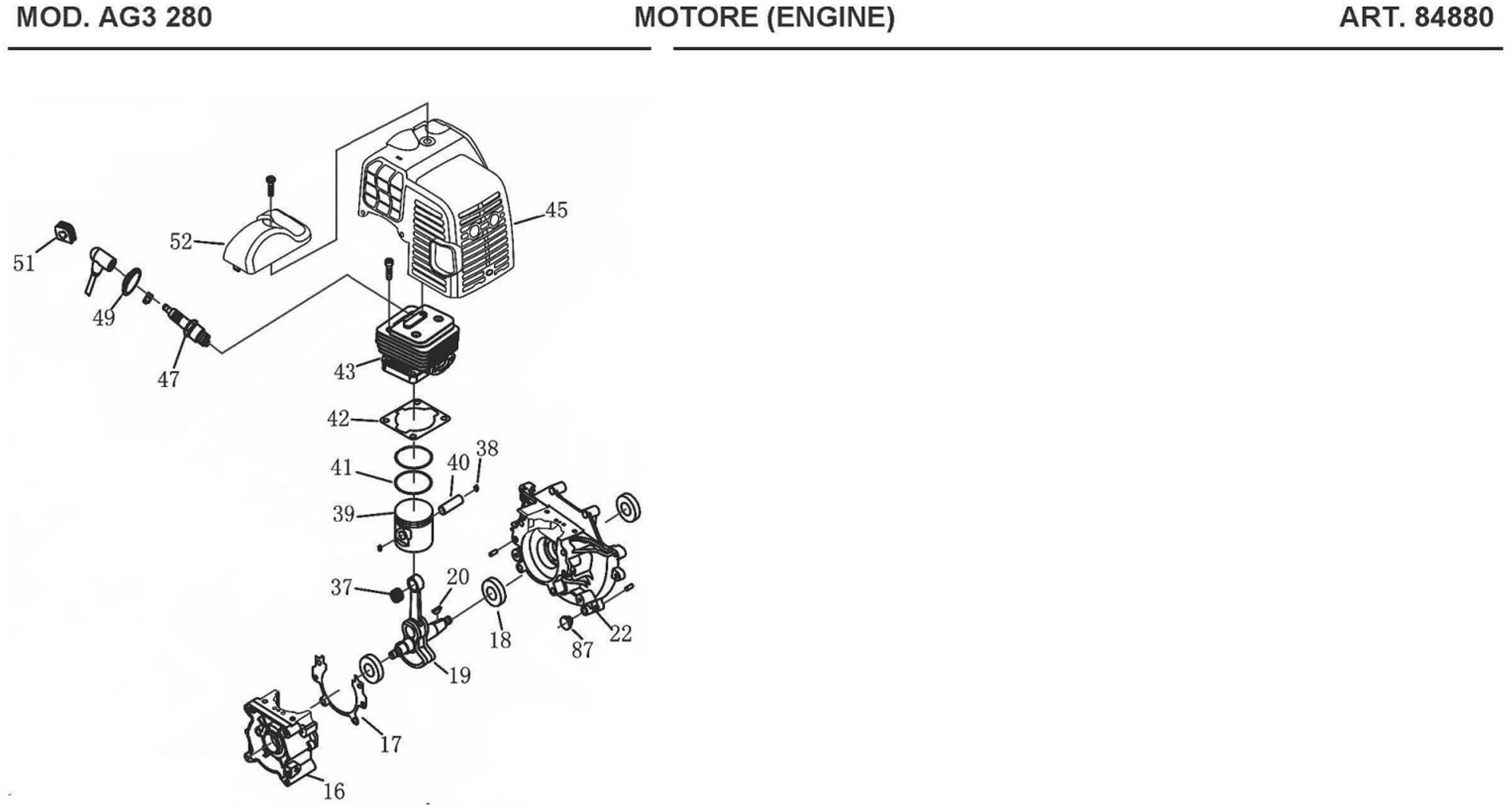

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
17		88263 Crank Case Gasket for Brushcutter AMA AG3 280	€2.95
22	Image coming soon	88261 Crank Case	€18.05
39		88266 AMA AG3 280 Piston	€10.00
40	Image coming soon	RSOF20 Piston Pin	€4.69
41		RSOF18 Piston Rings for Brushcutters AMA AG2 265-AG3 280	€7.83
43		76212 AMA AG3 280 Cylinder	€35.31
47	Image coming soon	10660 Spark plug	€5.90

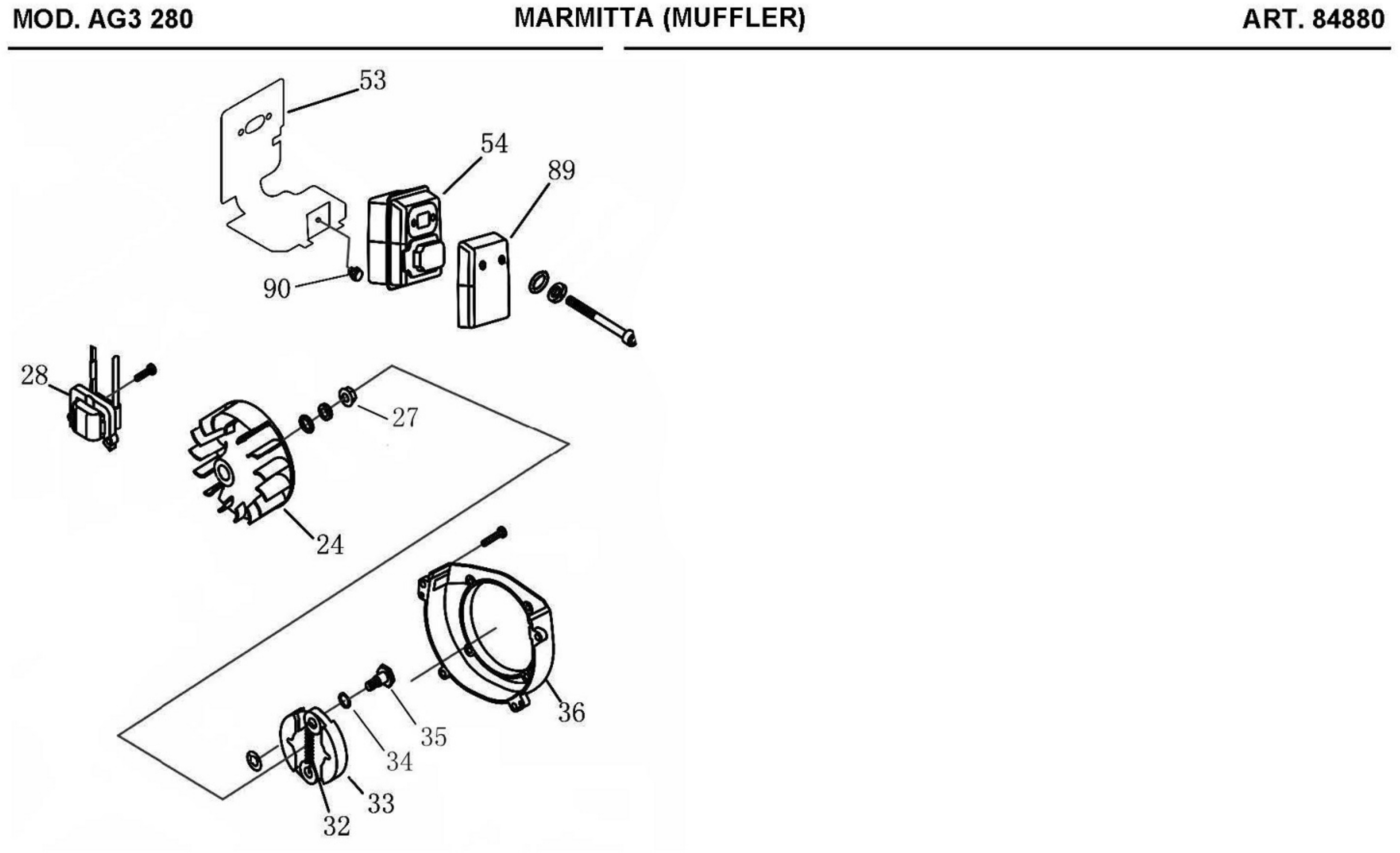

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
24	Image coming soon	88254 Magneto Rotor Comp	€20.68
28		88255 Ignition Coil for Brushcutters AMA AG2 265-AG3 280	€34.77
32	Image coming soon	13722 Spring	€6.08
33		13721 Clutch Assy for Brush Cutters AMA AG 260 TR - AG2 280	€21.42
53		88257 Muffler Gasket for Brushcutter AMA AG2 265	€13.65
54	Image coming soon	88258 Plug	€24.49
89	Image coming soon	88259 Inlet	€8.41

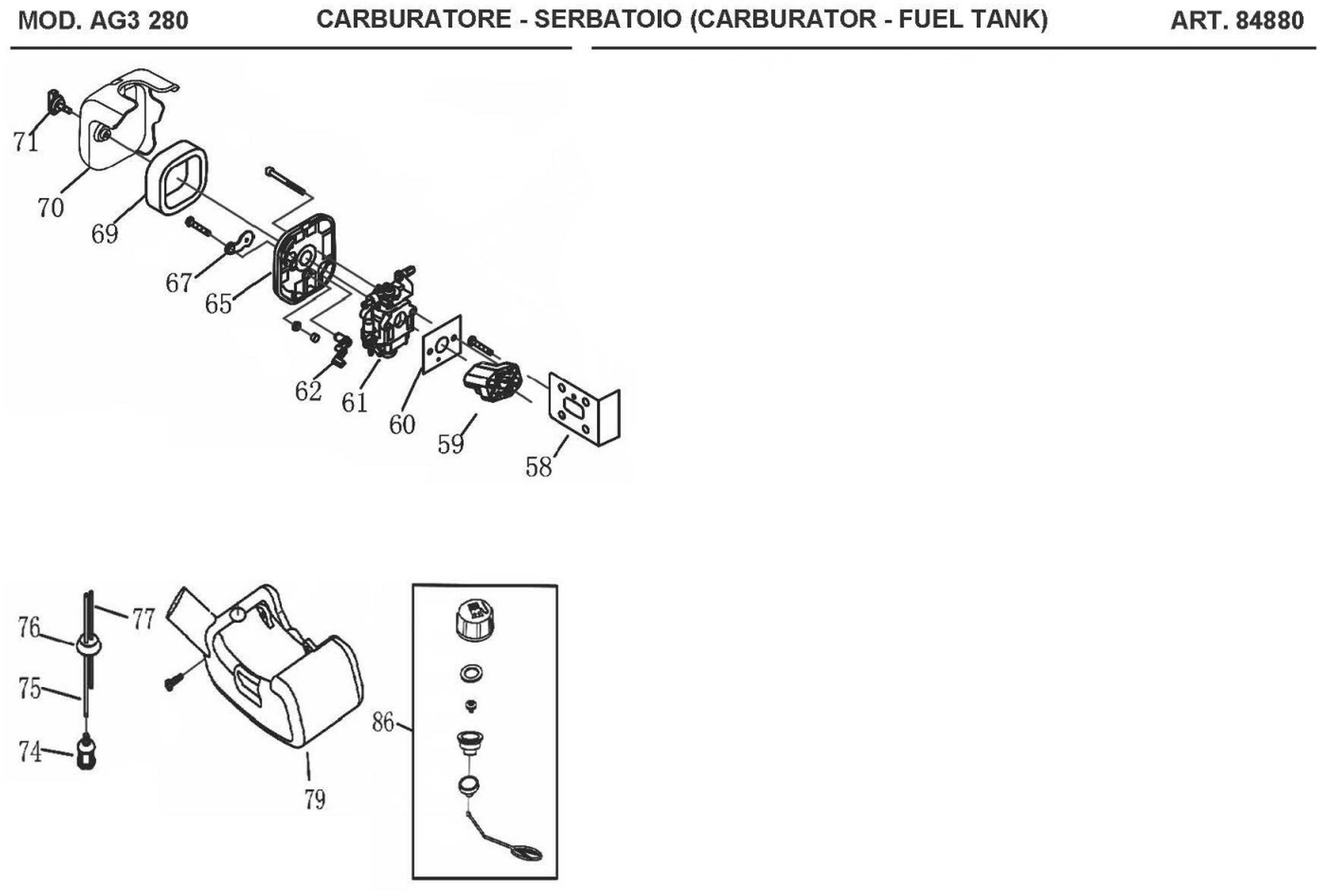

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
70		13749 Cleaner Outside Cover for Brushcutter AMA AG2 265	€5.88
71	Image coming soon	13748 Screw	€3.81
74		13569 Gasoline Filter for Brushcutters AMA AG3 280-350-450	€4.43
76		13568 Tank Rubber for Brushcutters AMA AG3 350-AG3 280	€2.72

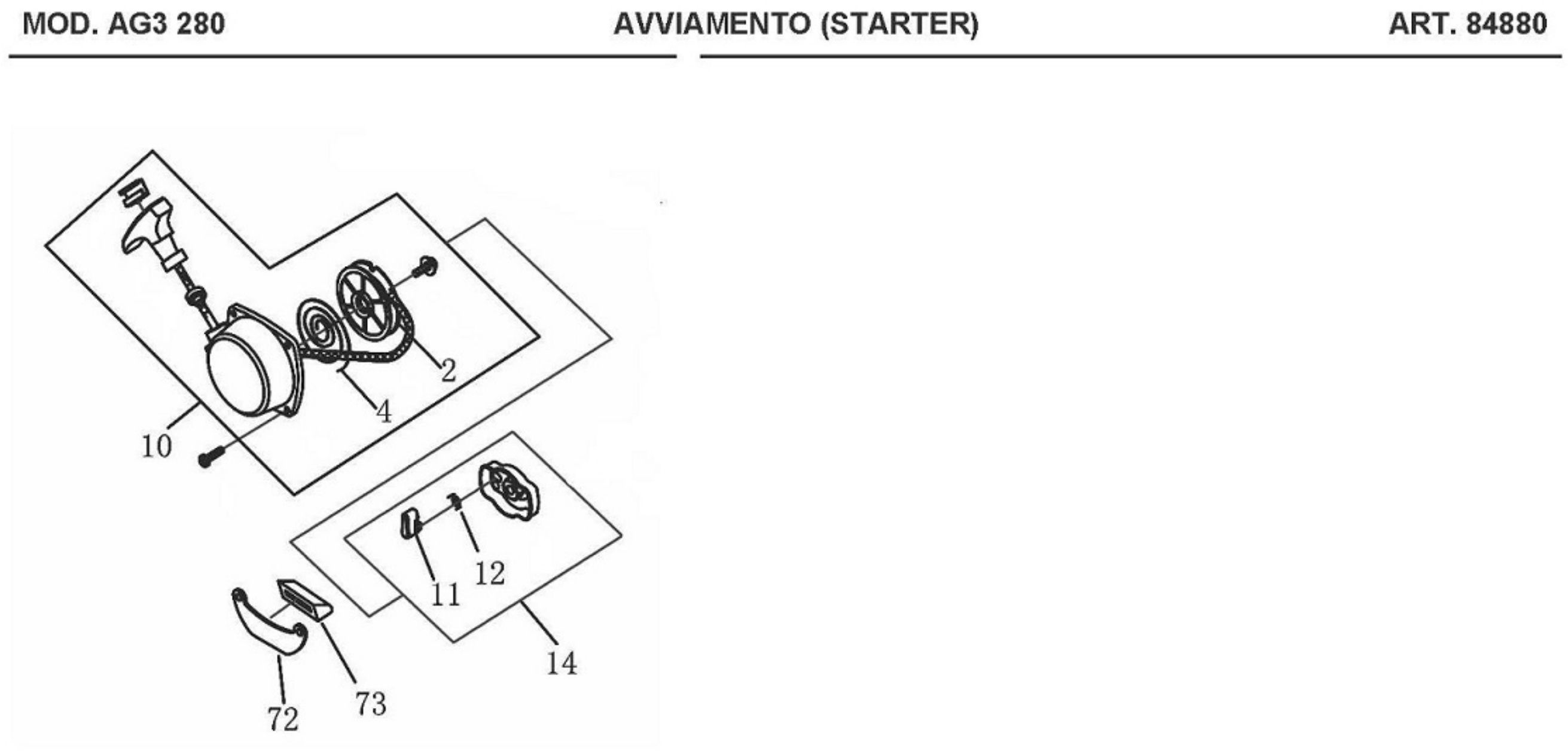

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
2		13559 Starter Pulley for Brushcutter AMA AG2 280	€5.60
4		13558 Recoil Spring for Brushcutter AMA AG 260 TR	€9.17
10		55034 Recoil Starter for Brushcutter AMA AG3 280-AG 260 TR	€15.34
11		13557 Starter Pawl for Brushcutters AMA AG2 265-280	€1.95
12		13556 Starter Pawl Spring for Brushcutters AMA AG2 265-280	€1.95
14		88248 Starter Cup for Brushcutter AMA AG2 265	€5.53
72	Image coming soon	88249 Stand	€5.36
73	Image coming soon	88250 Rubber Cover	€2.24

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Brushcutter AG3 280–84880

We are AMA Garden original spare parts Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter AG3 280–84880.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
.

Brushcutter AG3 280–84880.
#	Part Num.	Description
1	88269	Gear Care Ass'y
5	88289	Pinion
13	88288	Safety Guard
15	88287	Gear
16	88286	Gear Shaft
19	88270	Holder A
20	88271	Holder B
25	88272	Clutch Comp
26	88273	Clutch Drum Comp
30	88290	Linker
31	38513	Rubber Damper
35	88284	Clamp B
36	88283	Clamp A
37	88282	Holder Ass'y
42	88274	Pipe Comp
45	88275	Drive Shaft
51	88291	Handle Ass'y
52	73814	Level Ass'y
55	73815	Box,Right
58	73823	Stop Switch
59	88280	Tine
60	73816	Spring
61	73817	Spring
62	73819	Safety Lever
63	88279	Spring
64	73820	Throttle Lever
65	73821	Cable Comp
69	73822	Box,Left
79	88276	Bracket
81	88277	Safety Guard
86	88278	Guard Ass'y
2	13559	Start Rope Reel
4	13558	Recoil Spring
10	55034	Starter Assy
11	13557	Start Pole
12	13556	Spring
14	88248	Starter Cup
72	88249	Stand
73	88250	Rubber Cover
58	88252	Gasket
59	76218	Admitting Pipe
60	88253	Carburetor Gasket
61	88524	Carburator
62	13754	Choker Handle
65	79360	Cleaner Inside Cover
67	13753	Choker
69	13715	Filter Net
70	13749	Cleaner Outside Cover
71	13748	Screw
74	13569	Fuel Filter
76	13568	Hose Tank Grommet
79	88251	Fuel Tank
86	13758	Fuel Tank Cap Ass'y
24	88254	Magneto Rotor Comp
28	88255	Ignition Coil Comp
32	13722	Spring
33	13721	Clutch Ass'y
34	13789	Washer
35	13720	Clutch Screw Pin
36	88256	Fan Cover
53	88257	Cap
54	88258	Plug
89	88259	Inlet
16	88260	Crank Case
17	88263	Crank Case Gasket
18	RSOF31	Bearing 6001/P5
19	79911	Crank Shaft
20	88264	Key 3x5x13
22	88261	Crank Case
37	88265	Bearing
38	13764	Ring
39	88266	Piston
40	RSOF20	Piston Pin
41	RSOF18	Piston Rings
42	76211	Cylinder Gasket
43	76212	Cylinder
45	88267	Guide Cover Ass'y
47	10660	Spark Plug
49	13821	Plug Cap
51	88262	Plug
52	88268	Cover
