A.M.A. S.p.A.

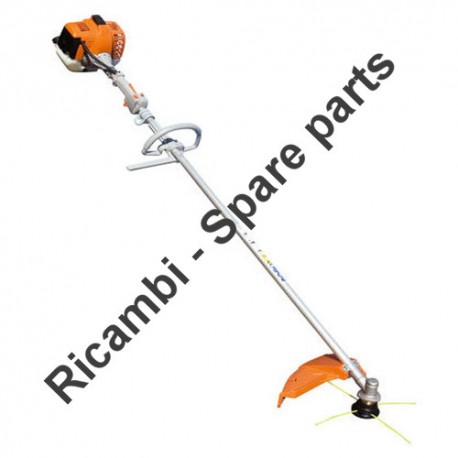

Ama Spare Parts for Brushcutter AG2 275

SKU: Ama AG2 275 – 75571
€1.47
VAT included

Ama Spare Parts for Brushcutter AG2 275

Distribution and Sale at attractive prices of AMA Garden Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter AG2 275 – 75571.
Ama Spare Parts for Brushcutter AG2 275
  • Ama Spare Parts for Brushcutter AG2 275
  • Ama Spare Parts for Brushcutter AG2 275
A.M.A. S.p.A.

Ama Spare Parts for Brushcutter AG2 275

SKU: Ama AG2 275 – 75571 Condition: New
€1.47
VAT included

Ama Spare Parts for Brushcutter AG2 275

Distribution and Sale at attractive prices of AMA Garden Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter AG2 275 – 75571.
settings 104 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

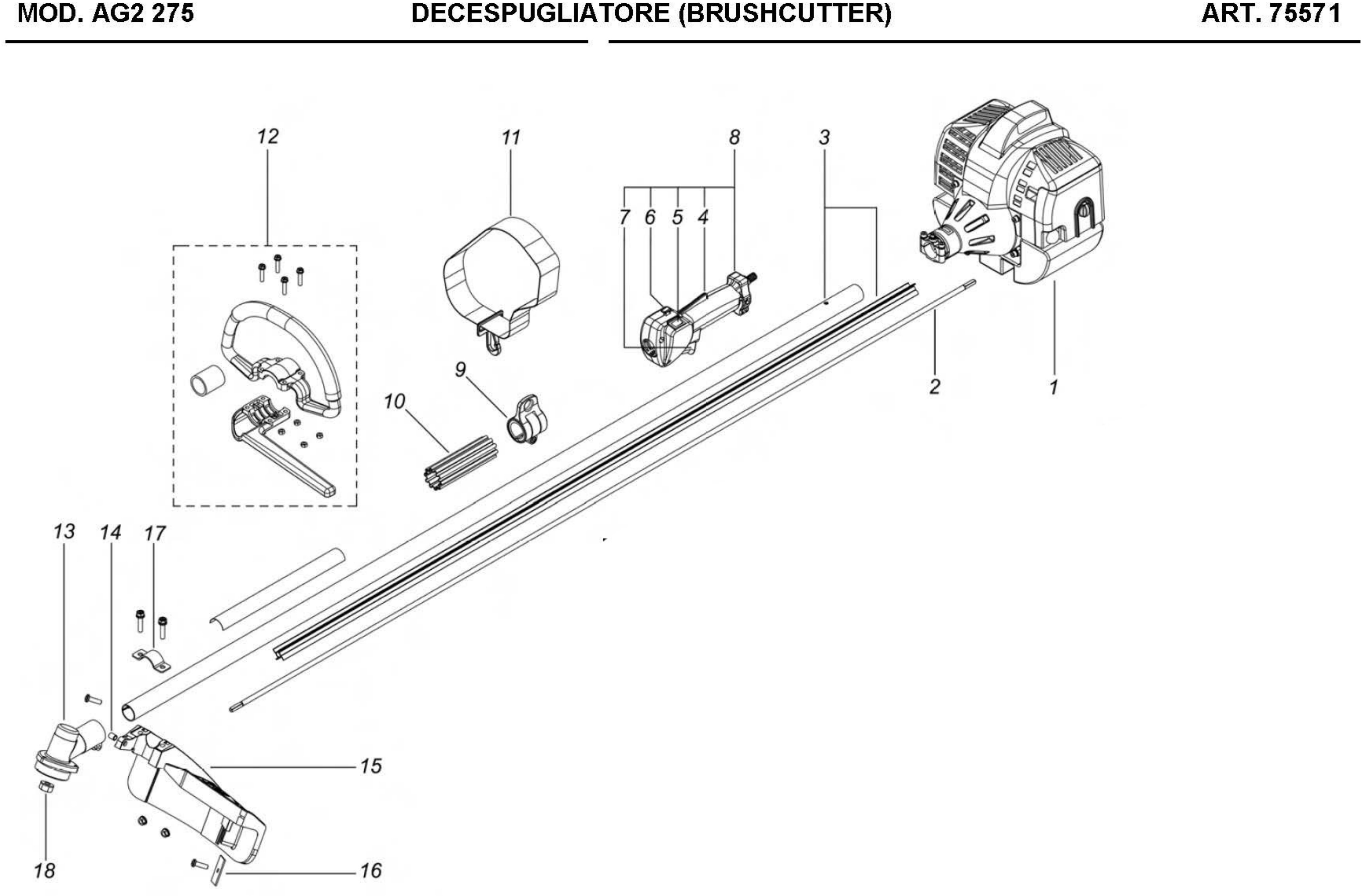

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 79026 SHROUD-ENGINE €14.77
3
 Drive Shaft for Brushcutters AMA AG2 275 79025 Drive Shaft for Brushcutters AMA AG2 275 €31.15
3
 photo_cameraImage coming soon 79028 TAND €5.52
4
 Lock Lever for Brushcutter AMA AG2 275 13924-06 Lock Lever for Brushcutter AMA AG2 275 €2.72
4
 photo_cameraImage coming soon 79029 INSULATOR PLATE €2.70
5
 Switch 0/1 for Brushcutter AMA AG2 275 13936 Switch 0/1 for Brushcutter AMA AG2 275 €9.16
7
 photo_cameraImage coming soon 79032 CRANKCASE B €7.18
8
 Handle Throttle Ass'y for Brushcutter AMA AG2 275 73254 Handle Throttle Ass'y for Brushcutter AMA AG2 275 €32.15
8
 photo_cameraImage coming soon 79032 CRANKCASE B €7.18
9
 Harness Hook D. mm 26 for Brushctters AMA 73291 Harness Hook D. mm 26 for Brushctters AMA €4.16
9
 photo_cameraImage coming soon 79033 CYLINDER-ENGINE €44.67
10
 Handle Spacer for Brushcutter AMA AG2 275 55795 Handle Spacer for Brushcutter AMA AG2 275 €2.72
10
 Cylinder Gasket for Brushcutter AMA AG2 275 79034 Cylinder Gasket for Brushcutter AMA AG2 275 €2.04
11
 Harness for Brushctters AMA 13599 Harness for Brushctters AMA €14.23
11
 Piston Ring for Brushcutter AMA AG2 275 79035 Piston Ring for Brushcutter AMA AG2 275 €4.06
12
 photo_cameraImage coming soon 75533 COMPLETE HANDLE D.26 GR. €18.24
12
 Piston for Brushcutter AMA AG2 275 79036 Piston for Brushcutter AMA AG2 275 €11.35
13
 photo_cameraImage coming soon 55788 COPPIA CONICA CPL. (GEARCASE ASSY) €50.99
13
 Piston Pin for Brushcutter AMA AG2 275 79037 Piston Pin for Brushcutter AMA AG2 275 €2.34
15
 Safety Guard for Brushcutter AMA AG2 275 55785 Safety Guard for Brushcutter AMA AG2 275 €9.91
15
 Needle Bearing-Small End for Brushcutter AMA AG2 275 79039 Needle Bearing-Small End for Brushcutter AMA AG2 275 €2.62
16
 Line Cut Plate for Brushcutter AMA AG2 360 13574 Line Cut Plate for Brushcutter AMA AG2 360 €1.68
16
 AMA Spacer for AG2 275 79040 AMA Spacer for AG2 275 €0.53
17
 photo_cameraImage coming soon 79041 CRANKSHAFT-ASSY €35.82
18
 photo_cameraImage coming soon 10125 DADO M10X1.25 SX. (NUT M10X1.25 LEFT-HAND) €1.48
21
 photo_cameraImage coming soon 79046 FLYWHEEL €18.44
22
 Ignition Coil Insulator for Brushcutters AMA AG2 275-AG2 360 79047 Ignition Coil Insulator for Brushcutters AMA AG2 275-AG2 360 €3.47
23
 photo_cameraImage coming soon 79048 PIN €1.32
25
 photo_cameraImage coming soon 79050 CLUTCH-ASSY €10.37
27
 Clutch Set Complete for Brushcutter AMA AG2 275 79052 Clutch Set Complete for Brushcutter AMA AG2 275 €24.37
28
 Gasket Cylinder Insulator for Brushcutter AMA AG2 275 79053 Gasket Cylinder Insulator for Brushcutter AMA AG2 275 €2.53
29
 Insulator Flange for Brushcutters AMA AG2 275-360 79054 Insulator Flange for Brushcutters AMA AG2 275-360 €10.72
30
 Insulator Carburetor Flange Gasket for Brushcutters AMA AG2 275-360 79055 Insulator Carburetor Flange Gasket for Brushcutters AMA AG2 275-360 €2.34
32
 Carburetor Gasket for Brushcutters AMA AG2 275-360 79057 Carburetor Gasket for Brushcutters AMA AG2 275-360 €4.24
33
 photo_cameraImage coming soon 79058 CASE-AIR FILTER €5.26
34
 Element-Air Filter for Brushcutter AMA AG2 275 79059 Element-Air Filter for Brushcutter AMA AG2 275 €2.64
35
 photo_cameraImage coming soon 79060 CAP €5.59
37
 photo_cameraImage coming soon 79062 PULLEY-STARTING €6.79
38
 Recoil Starter Assy for Brushcutter AMA AG2 360 79063 Recoil Starter Assy for Brushcutter AMA AG2 360 €19.40 Not available for order
39
 AMA AG2 275 Muffler Gasket 79064 AMA AG2 275 Muffler Gasket €5.14
40
 photo_cameraImage coming soon 79065 MUFFLER €15.55
41
 photo_cameraImage coming soon 79066 MUFFLER-COVER €5.26
43
 photo_cameraImage coming soon 79068 CLUTCH CASE €17.26
44
 photo_cameraImage coming soon 79069 ADAPTER-UPPER €4.40
45
 photo_cameraImage coming soon 79070 ADAPTER-LOWER €3.55
46
 Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U 79071 Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U €6.05
47
 Fuel Tank Cap for Brushcutter AMA AG2 360 79072 Fuel Tank Cap for Brushcutter AMA AG2 360 €4.16
48
 Primer for Brushcutters AMA AG2 275-AG2 360 79073 Primer for Brushcutters AMA AG2 275-AG2 360 €5.58
50
 Fuel Filter for Brushcutters AMA AG2 275 - AG2 360 79075 Fuel Filter for Brushcutters AMA AG2 275 - AG2 360 €4.66
51
 Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360 79076 Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360 €6.69
52
 Primer Pump Hose Kit for Brushcutter AMA AG2 360 79077 Primer Pump Hose Kit for Brushcutter AMA AG2 360 €6.83
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

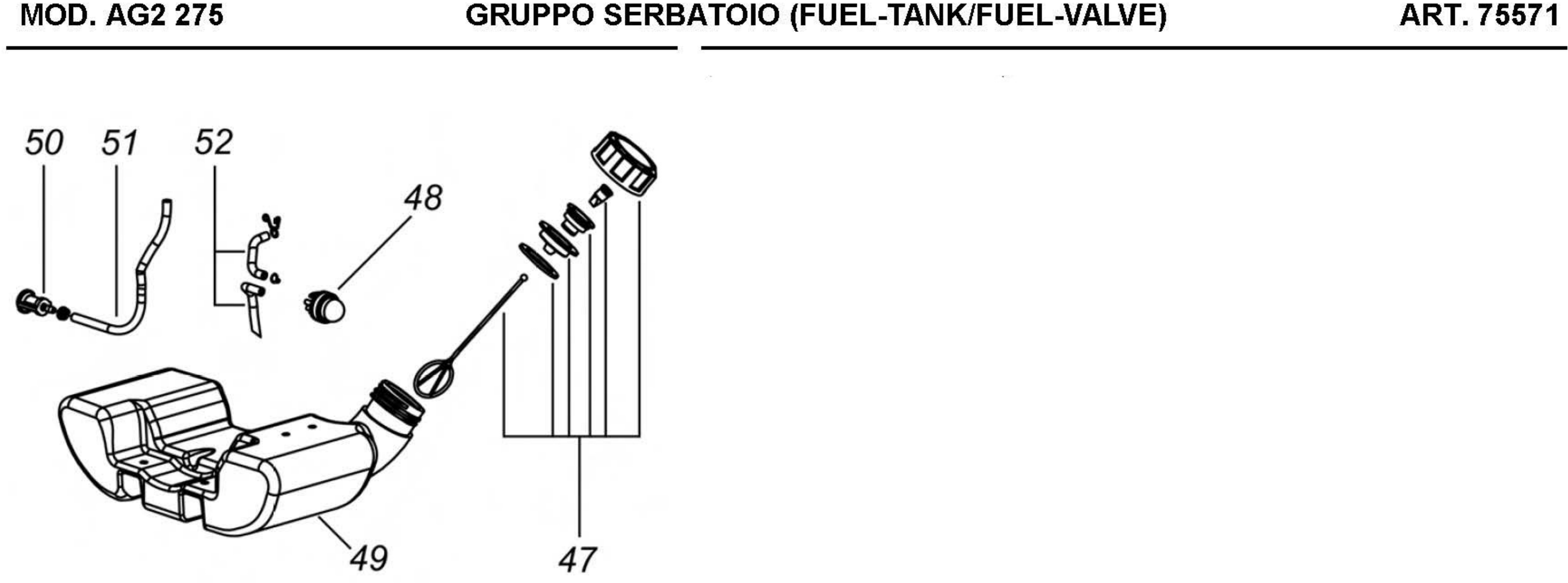

Esploso pagina 2
Pos. Item Price Buy
47
 Fuel Tank Cap for Brushcutter AMA AG2 360 79072 Fuel Tank Cap for Brushcutter AMA AG2 360 €4.16
48
 Primer for Brushcutters AMA AG2 275-AG2 360 79073 Primer for Brushcutters AMA AG2 275-AG2 360 €5.58
50
 Fuel Filter for Brushcutters AMA AG2 275 - AG2 360 79075 Fuel Filter for Brushcutters AMA AG2 275 - AG2 360 €4.66
51
 Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360 79076 Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360 €6.69
52
 Primer Pump Hose Kit for Brushcutter AMA AG2 360 79077 Primer Pump Hose Kit for Brushcutter AMA AG2 360 €6.83
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

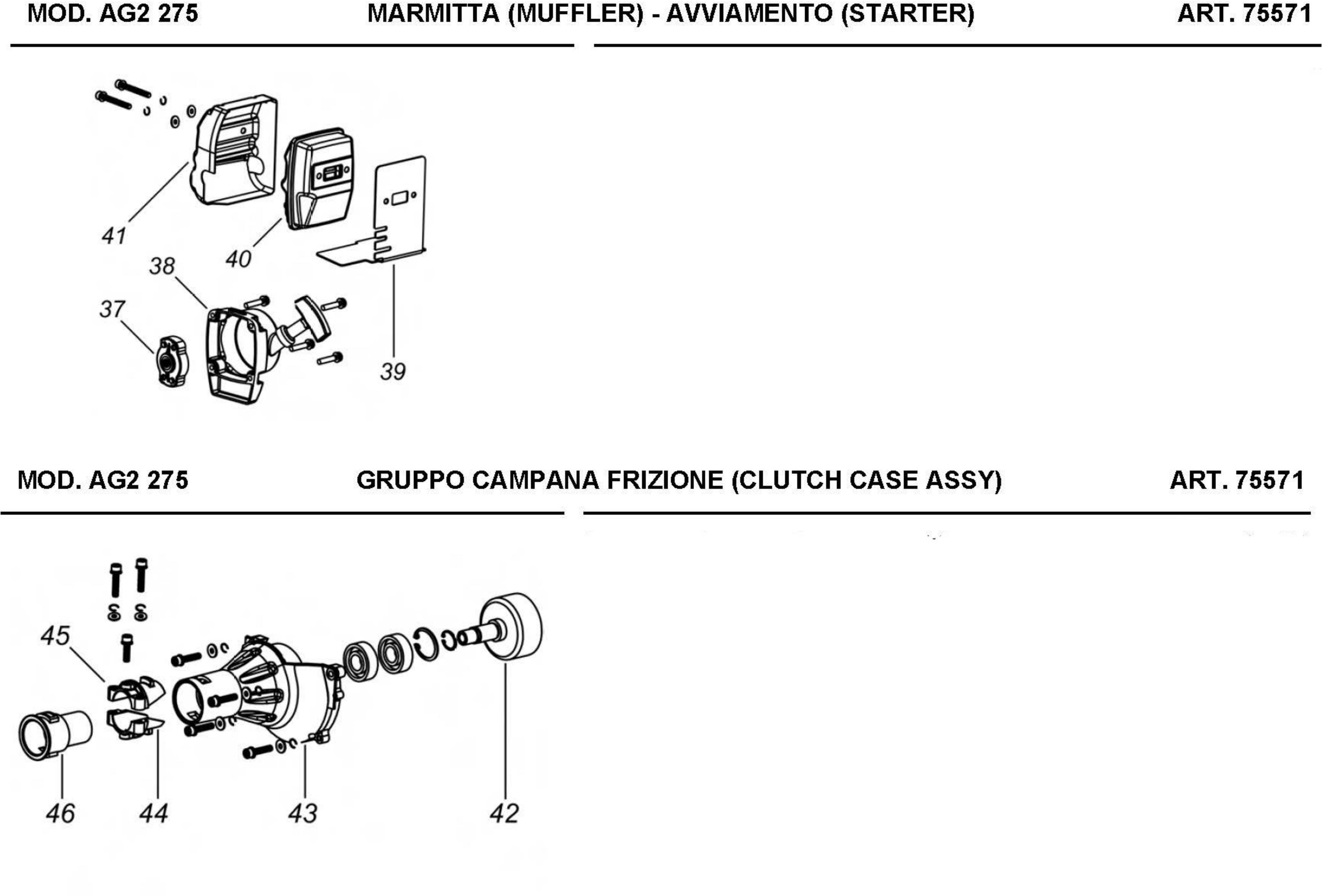

Esploso pagina 3
Pos. Item Price Buy
37
 photo_cameraImage coming soon 79062 PULLEY-STARTING €6.79
38
 Recoil Starter Assy for Brushcutter AMA AG2 360 79063 Recoil Starter Assy for Brushcutter AMA AG2 360 €19.40 Not available for order
39
 AMA AG2 275 Muffler Gasket 79064 AMA AG2 275 Muffler Gasket €5.14
40
 photo_cameraImage coming soon 79065 MUFFLER €15.55
41
 photo_cameraImage coming soon 79066 MUFFLER-COVER €5.26
43
 photo_cameraImage coming soon 79068 CLUTCH CASE €17.26
44
 photo_cameraImage coming soon 79069 ADAPTER-UPPER €4.40
45
 photo_cameraImage coming soon 79070 ADAPTER-LOWER €3.55
46
 Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U 79071 Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U €6.05
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

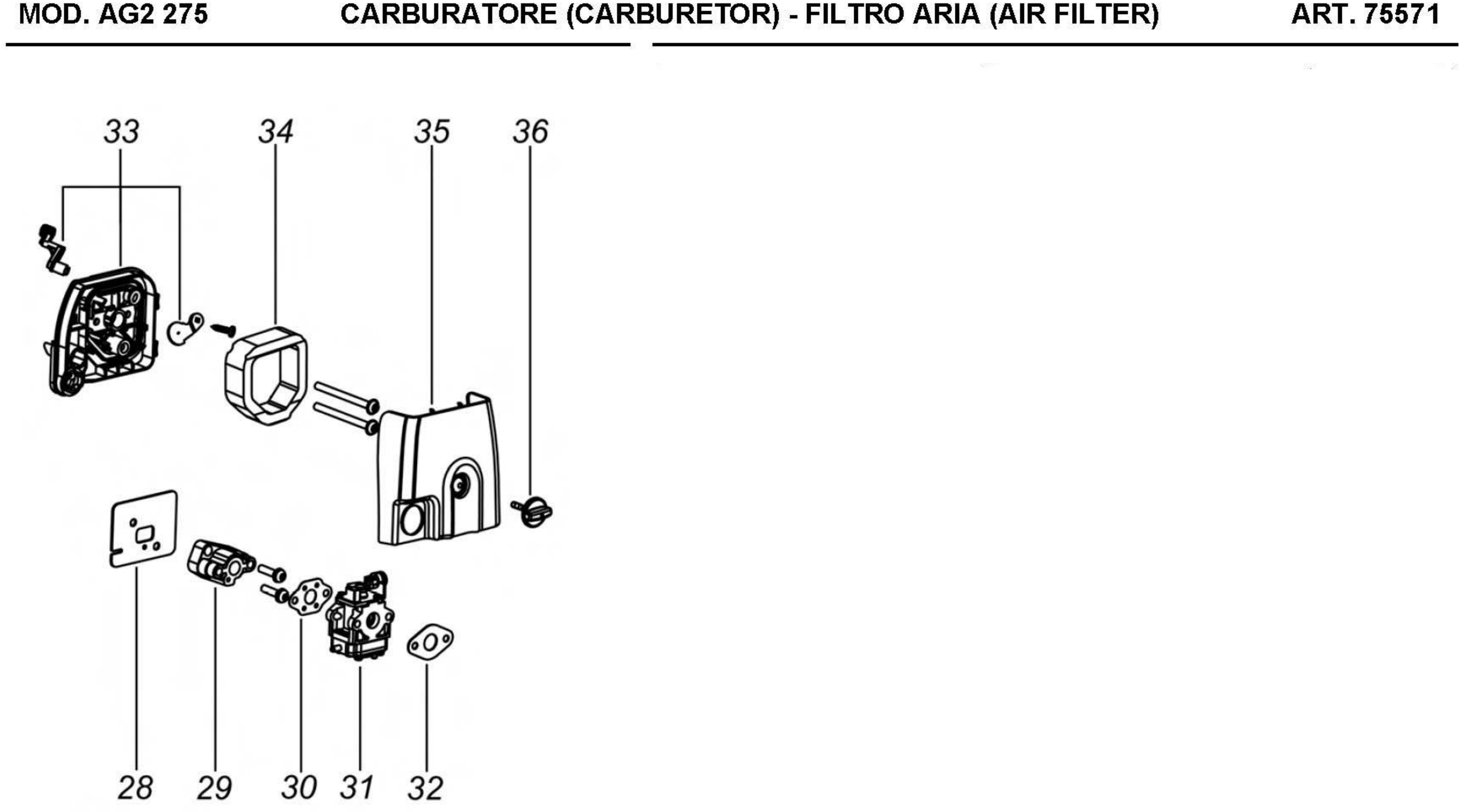

Esploso pagina 4
Pos. Item Price Buy
28
 Gasket Cylinder Insulator for Brushcutter AMA AG2 275 79053 Gasket Cylinder Insulator for Brushcutter AMA AG2 275 €2.53
29
 Insulator Flange for Brushcutters AMA AG2 275-360 79054 Insulator Flange for Brushcutters AMA AG2 275-360 €10.72
30
 Insulator Carburetor Flange Gasket for Brushcutters AMA AG2 275-360 79055 Insulator Carburetor Flange Gasket for Brushcutters AMA AG2 275-360 €2.34
32
 Carburetor Gasket for Brushcutters AMA AG2 275-360 79057 Carburetor Gasket for Brushcutters AMA AG2 275-360 €4.24
33
 photo_cameraImage coming soon 79058 CASE-AIR FILTER €5.26
34
 Element-Air Filter for Brushcutter AMA AG2 275 79059 Element-Air Filter for Brushcutter AMA AG2 275 €2.64
35
 photo_cameraImage coming soon 79060 CAP €5.59
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

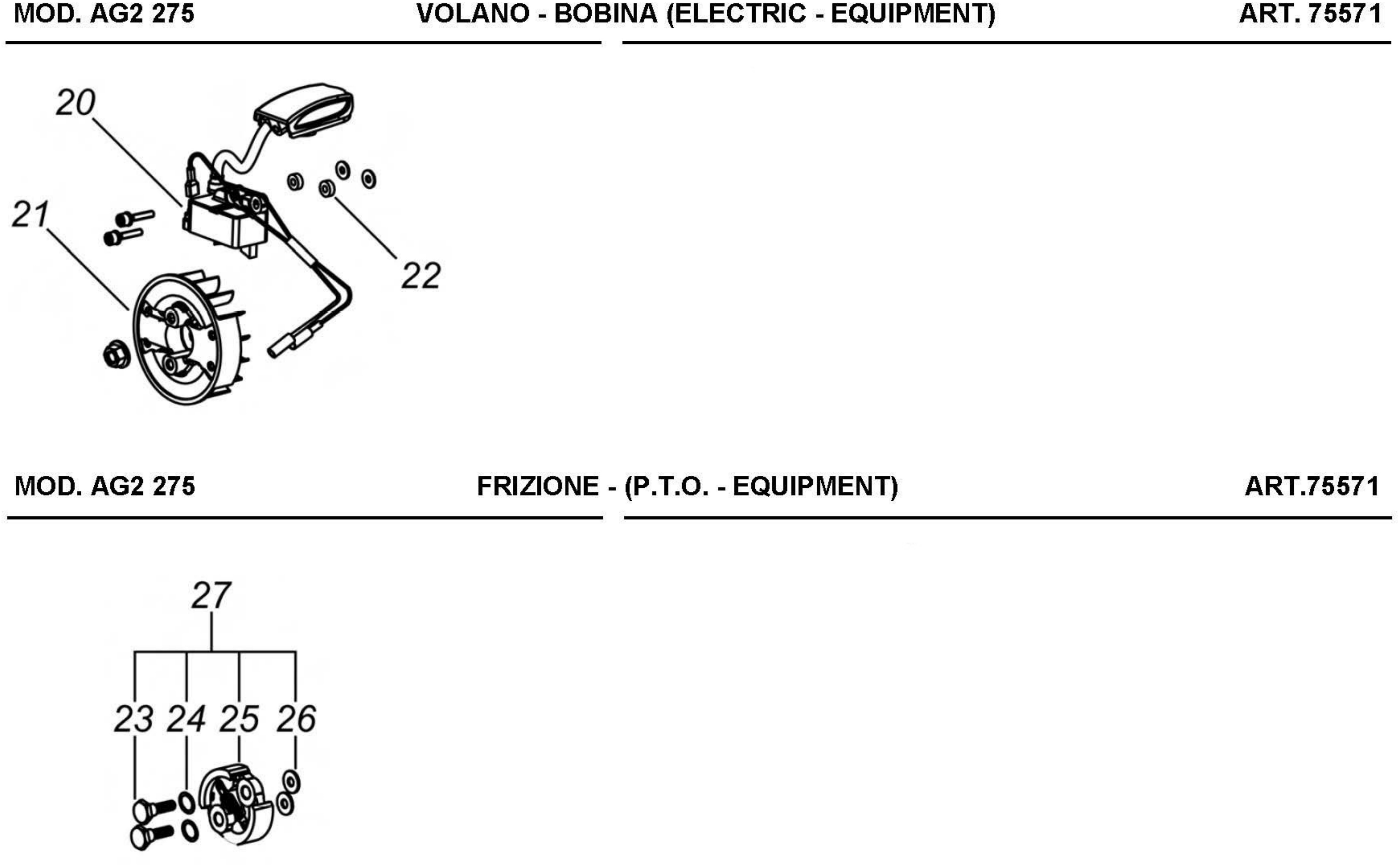

Esploso pagina 5
Pos. Item Price Buy
21
 photo_cameraImage coming soon 79046 FLYWHEEL €18.44
22
 Ignition Coil Insulator for Brushcutters AMA AG2 275-AG2 360 79047 Ignition Coil Insulator for Brushcutters AMA AG2 275-AG2 360 €3.47
23
 photo_cameraImage coming soon 79048 PIN €1.32
25
 photo_cameraImage coming soon 79050 CLUTCH-ASSY €10.37
27
 Clutch Set Complete for Brushcutter AMA AG2 275 79052 Clutch Set Complete for Brushcutter AMA AG2 275 €24.37
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

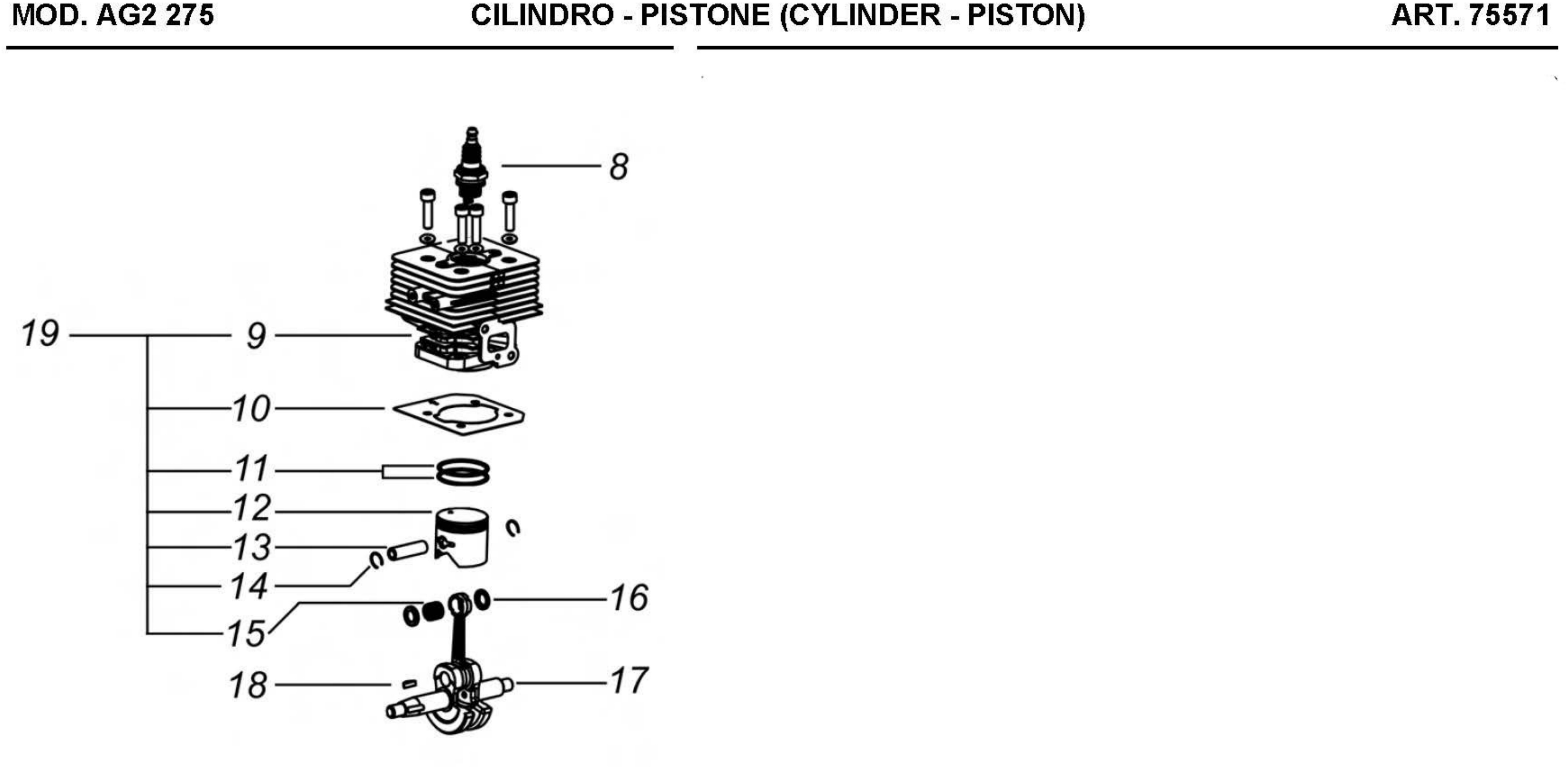

Esploso pagina 6
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

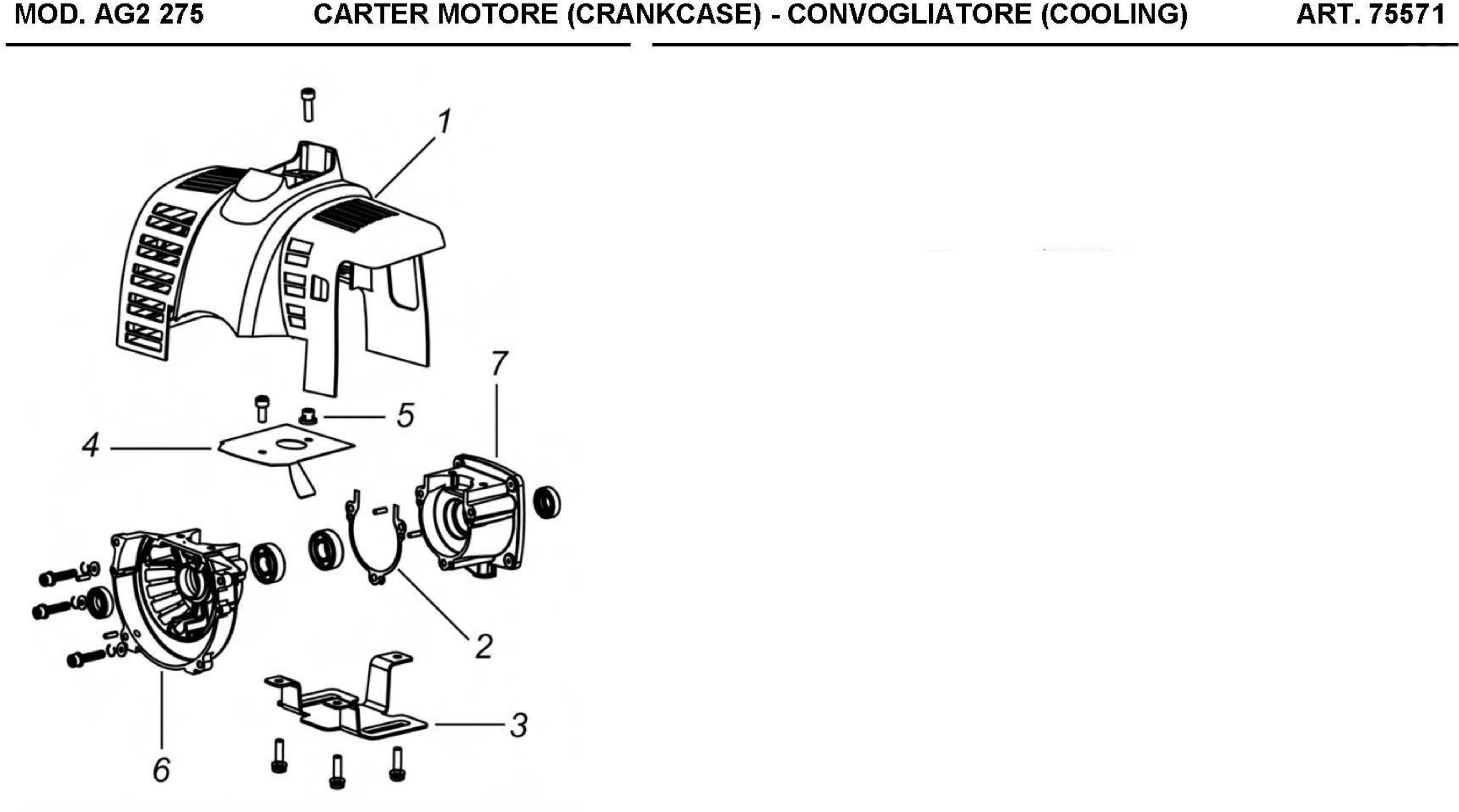

Esploso pagina 7
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Brushcutter AG2 275

Distribution and Sale at attractive prices of AMA Garden Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter AG2 275 – 75571.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Ama AG2 275 – 75571

Brushcutter AG2 275–75571
# Part Num. Description
1 55797 MOTORE CPL. (ENIGINE)
2 55783 ALBERO TRASM. (DRIVESHAFT)
3 79025 TUBO CPL. DI ESTRUSO (DRIVESHAFT TUBEASSY)
4 13924-06 LEVA DISINNESTO (LOCK LEVER)
5 13936 INTERRUTTORE 0-1 (SWITCH 0-1)
6 13925 PULSANTE SEMIACCEL. (PUSH BUTTON)
7 13923-06 LEVA ACCELERATORE ( LEVER,THROTTLE)
8 73254 IMPUGNATURA ACCEL. CPL. (HANDLE,THROTTLE ASSY)
9 73291 GANCIO BRETELLA (HARNESS HOOK)
10 55795 DISTANZIALE (SPACER)
11 13599 BRETELLA (HARNESS)
12 75533 IMPUGNATURA CPL. (LOOP HANDLE ASSY)
13 55788 COPPIA CONICA CPL. (GEARCASE ASSY)
14 55794 BOCCOLA (SPACER)
15 55785 PARASASSI (DEBRIS SHIELD)
16 13574 LAMA TAGLIAFILO (LINE CUT PLATE)
17 P02005 FASCETTA (BRACKET)
18 10125 DADO M10X1.25 SX. (NUT M10X1.25 LEFT-HAND)
1 79026 CARTER COPRIMOTORE (SHROUD-ENGINE)
2 79027 GUARNIZIONE CARTE MOTORE (GASKET)
3 79028 PROTEZIONE SERBATOIO (STAND)
4 79029 PIASTRA PARACALORE (INSULATOR PLATE)
5 79030 BOCCOLA-ISOLATORE (INSULATOR)
6 79031 CARTER MOTORE A (CRANKCASE A)
7 79032 CARTER MOTORE B (CRANKCASE B)
8 79032 CANDELA (PLUG-SPARK)
9 79033 CILINDRO (CYLINDER-ENGINE)
10 79034 GUARNIZIONE CILINDRO (GASKET,CYLINDER)
11 79035 SEGMENTO (RING-PISTON)
12 79036 PISTONE (PISTON-ENGINE)
13 79037 SPINOTTO (PIN-PISTON)
14 79038 FERMO SPINOTTO (RING-SNAP)
15 79039 GABBIA RULLI (BEARING-SMALL END)
16 79040 ANELLO DISTANZIALE (SPACER)
17 79041 ALBERO MOTORE CPL. (CRANKSHAFT-ASSY)
18 79042 CHIAVETTA (KEY-WOODRUFF)
19 79043 CYLINDER + PISTON SET COMPLETE
20 79045 BOBINA CPL. (COIL-ASSY-IGNITION)
21 79046 VOLANO (FLYWHEEL)
22 79047 ISOLANTE (INSULATOR)
23 79048 VITE FRIZIONE (PIN)
24 79049 RONDELLA (WASHER)
25 79050 FRIZIONE CPL. (CLUTCH-ASSY)
26 79051 RONDELLA (WASHER)
27 79052 KIT FRIZIONE CPL.
28 79053 GUARNIZIONE (GASKET CYLINDER-INSULATOR)
29 79054 FLANGIA TERMICA (INSULATOR)
30 79055 GUARNIZIONE (GASKET,CARBURETOR-INSULATOR)
31 79056 CARBURATORE (CARBURETOR-ASSY)
32 79057 GUARNIZIONE (GASKET CARBURETOR-INSULATOR)
33 79058 SEDE FILTRO ARIA (CASE-AIR FILTER)
34 79059 FILTRO ARIA (ELEMENT-AIR FILTER)
35 79060 COPERCHIO FILTRO ARIA (CAP)
36 79061 VITE COPERCHIO (BOLT)
37 79062 ROTORE AVV.TO CPL. (PULLEY-STARTING)
38 79063 AVVIAMENTO CPL. (STARTER-RECOIL) - DISCONTINUED
39 79064 GUARNIZIONE MARMITTA (GASKET,MUFFLER)
40 79065 MARMITTA (MUFFLER)
41 79066 COPRI-MARMITTA (MUFFLER-COVER)
42 79067 CAMPANA FRIZIONE (CLUTCH DRUM)
43 79068 CARTER CAMPANA (CLUTCH CASE)
44 79069 SUPPORTO ANTIV. SUP. (ADAPTER-UPPER)
45 79070 SUPPORTO ANTIV. INF. (ADAPTER-LOWER)
46 79071 GOMMA ANTIVIBRANTE (BUFFER)
47 79072 TAPPO SERBATOIO CPL. (CAP-TANK,ASSY)
48 79073 POMPETTA (PRIMER)
49 79074 SERBATOIO MIX. (TANK-COMP-FUEL)
50 79075 FILTRO PESCA MIX. (FILTER-FUEL)
51 79076 TUBO PESCA MIX. (TUBE)
52 79077 KIT TUBI POMPETTA (PRIMER-TUBE)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama AG2 275 – 75571
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Ama AG2 275

Diagram Ama AG2 275

Download (888.66KB)

You might also like

Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U
A.M.A. S.p.A. SKU: 79071
Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U
Rubber Damper for Brushcutters Shaft AMA AG2 275-AG2 360U Genuine part AMA, Rubber Damper cylindrical for brushcutters shaft series AMA AG2 275–75571 - AG2 360U-75597. Part for the following article : - Brushcutter AMA AG2 275–75571 -...
AVAILABLE €6.05
Details
Drive Shaft for Brushcutters AMA AG2 275
A.M.A. S.p.A. SKU: 79025
Drive Shaft for Brushcutters AMA AG2 275
Drive Shaft for Brushcutters AMA AG2 275 Genuine part AMA, Drive Shaft Assy for Brushcutters AMA AG2 275-75571. Part for the following products: - Brushcutter AMA AG2 275-75571 - Code: 79025
AVAILABLE €31.15
Details
Lock Lever for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 13924-06
Lock Lever for Brushcutter AMA AG2 275
Lock Lever for Brushcutter AMA AG2 275 Genuine spare part AMA, Lock Lever for Brushcutters AMA AGP 271 - 63770 - AG2 275–75571 - AG1 280 - 13570 - AG1 350 - AG2-350...
AVAILABLE €2.72
Details
Switch 0/1 for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 13936
Switch 0/1 for Brushcutter AMA AG2 275
Switch 0/1 for Brushcutter AMA AG2 275 Genuine spare part AMA, Switch 0/1 for Brushcutters AMA AGP 271 - 63770 - AG2 275–75571 - AG1 280 - 13570 - AG1 350 - AG2-350 - AG1...
AVAILABLE €9.16
Details
Handle Spacer for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 55795
Handle Spacer for Brushcutter AMA AG2 275
Handle Spacer  for Brushcutter AMA AG2 275 Genuine part AMA, Handle Spacer for Brushcutter AMA AG2 275-75571 Part for the following products: - Brushcutter AMA AG2 275-75571 - Code: 55795
AVAILABLE €2.72
Details
Line Cut Plate for Brushcutter AMA AG2 360
A.M.A. S.p.A. SKU: 13574
Line Cut Plate for Brushcutter AMA AG2 360
Line Cut Plate for Brushcutter AMA AG2 360 Original spare AMA, Line Cut Plate for Brushcutter AG2 360 - 75596 - AG2 360U-75597 - AG2 275–75571 Parts for the following products: - Brushcutter AMA AG2 360-75596...
AVAILABLE €1.68
Details
Safety Guard for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 55785
Safety Guard for Brushcutter AMA AG2 275
Safety Guard for Brushcutter AMA AG2 275 Genuine part AMA, Safety Guard for Brushcutter AMA AG2 275-75571. Part for the following products: - Brushcutter AMA AG2 275-75571 - Code: 55785
Last items in stock €9.91
Details
Insulator Flange for Brushcutters AMA AG2 275-360
A.M.A. S.p.A. SKU: 79054
Insulator Flange for Brushcutters AMA AG2 275-360
Insulator Flange for Brushcutters AMA AG2 275-360 Genuine parts AMA, Insulator Inlet Carburetor Flange for Brushcutter AG2 275–75571 - AG2 360-75596 - AG2 360U-75597 Parts for the following...
Last items in stock €10.72
Details
Carburetor Gasket for Brushcutters AMA AG2 275-360
A.M.A. S.p.A. SKU: 79057
Carburetor Gasket for Brushcutters AMA AG2 275-360
Carburetor Gasket for Brushcutters AMA AG2 275-360 Genuine parts AMA, Carburetor Gasket for Brushcutter AG2 275–75571 - AG2 360-75596 - AG2 360U-75597 Parts for the following products: - Brushcutter AMA...
AVAILABLE €4.24
Details
Fuel Filter for Brushcutters AMA AG2 275 - AG2 360
A.M.A. S.p.A. SKU: 79075
Fuel Filter for Brushcutters AMA AG2 275 - AG2 360
Fuel Filter for Brushcutters AMA AG2 275 - AG2 360 Original replacement part AMA, Fuel Filter for Brushcutters AG2 275–75571 -  AG2 360-75596. Parts for the following products: -  Brushcutter AMA AG2 275 – 75571 -  Brushcutter AMA...
AVAILABLE €4.66
Details
Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360
A.M.A. S.p.A. SKU: 79076
Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360
Fuel Filter Tube for Brushcutters AMA AG2 275 - AG2 360 Original spare AMA, Fuel Filter Tube for Brushcutters AG2 275–75571 -  AG2 360-75596 Parts for the following products: -  Brushcutter AMA AG2 275 – 75571 -  Brushcutter AMA AG2...
on 7/10 Business Days Approx €6.69
Details
Primer for Brushcutters AMA AG2 275-AG2 360
A.M.A. S.p.A. SKU: 79073
Primer for Brushcutters AMA AG2 275-AG2 360
Primer for Brushcutters AMA AG2 275-AG2 360 Genuine part AMA, Gasoline Primer for Brushcutters AMA AG2 275–75571 - AG2 360-75596 - AG2 360U-75597 Part for the following products: -  Brushcutter AMA AG2 275 – 75571 -  Brushcutter AMA...
AVAILABLE €5.58
Details
Harness Hook D. mm 26 for Brushctters AMA
A.M.A. S.p.A. SKU: 73291
Harness Hook D. mm 26 for Brushctters AMA
Harness Hook D. mm 26 for Brushctters AMA Original replacement part AMA, Harness Hook D. mm 26 for Brushctters AG2 275 - AG2-350 - AG2 360 - AG2-350U - AG2 360U. Part for the following products: - Brushcutter AMA AG2 275 – 75571 -...
AVAILABLE €4.16
Details
Fuel Tank Cap for Brushcutter AMA AG2 360
A.M.A. S.p.A. SKU: 79072
Fuel Tank Cap for Brushcutter AMA AG2 360
Fuel Tank Cap for Brushcutter AMA AG2 360 Original replacement part AMA, Fuel Tank Cap Assembly for Brushcutters AG2 275 – 75571 - AG2 360 - 75596 - AG2 360U - 75597. Part for the following products: -  Brushcutter AMA AG2 275 – 75571...
AVAILABLE €4.16
Details
Clutch Set Complete for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79052
Clutch Set Complete for Brushcutter AMA AG2 275
Clutch Set Complete for Brushcutter AMA AG2 275 Genuine replacement part AMA, Clutch Set Complete for Brushcutters AMA AG2 275–75571 - Engine Unit Multicutter MC 280 – 79100. Part for the following products: - Brushcutter AMA AG2...
Last items in stock €24.37
Details
Harness for Brushctters AMA
A.M.A. S.p.A. SKU: 13599
Harness for Brushctters AMA
Harness for Brushctters AMA Original replacement part AMA, Harness for Brushctters AG2 275 - AG2-350 - AG2 360 - AG2-350U - AG2 360U. Part for the following products: - Brushcutter AMA AGP 270 - Brushcutter AMA AGP 271 - Brushcutter...
Last items in stock €14.23
Details
Cylinder Gasket for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79034
Cylinder Gasket for Brushcutter AMA AG2 275
Cylinder Gasket for Brushcutter AMA AG2 275 Genuine part AMA, Cylinder Gasket for Brushcutter AG2 275 - 75571 - Engine Unit Multicutter MC 280 - 79100. Part for the following products: - Brushcutter AMA AG2 275-75571 -...
AVAILABLE €2.04
Details
Piston Ring for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79035
Piston Ring for Brushcutter AMA AG2 275
Piston Ring for Brushcutter AMA AG2 275 Genuine part AMA, Piston Ring for Brushcutter AG2 275 - 75571 - Engine Unit Multicutter MC 280 - 79100. Part for the following products: - Brushcutter AMA AG2 275-75571 - Engine Unit Multicutter...
AVAILABLE €4.06
Details
Piston for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79036
Piston for Brushcutter AMA AG2 275
Piston for Brushcutter AMA AG2 275 Genuine part AMA, Piston for Brushcutter AG2 275 - 75571 - Engine Unit Multicutter MC 280 - 79100. Part for the following products: - Brushcutter AMA AG2 275-75571 - Engine Unit Multicutter MC 280 -...
AVAILABLE €11.35
Details
Needle Bearing-Small End for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79039
Needle Bearing-Small End for Brushcutter AMA AG2 275
Needle Bearing-Small End for Brushcutter AMA AG2 275 Genuine part AMA, Needle Bearing-Small End for Brushcutter AG2 275 - 75571 - Engine Unit Multicutter MC 280 - 79100. Part for the following products: - Brushcutter AMA AG2 275-75571...
AVAILABLE €2.62
Details
Recoil Starter Assy for Brushcutter AMA AG2 360
A.M.A. S.p.A. SKU: 79063
Recoil Starter Assy for Brushcutter AMA AG2 360
Recoil Starter Assy for Brushcutter AMA AG2 360 Original spare part AMA, Recoil Starter Assembly for Brushcutters AG2 360 - AG2 360U - Unità Motorizzata Multicutter MC 280. Parts for the following products: - Brushcutter AG2 360-75596...
Available in 7/10 days €19.40
Details
Piston Pin for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79037
Piston Pin for Brushcutter AMA AG2 275
Piston Pin for Brushcutter AMA AG2 275 Genuine replacement part AMA, Piston Pin for Brushcutter AG2 275 - 75571 - Engine Unit Multicutter MC 280 - 79100. Part for the following products: - Brushcutter AMA AG2 275-75571 - Engine Unit...
AVAILABLE €2.34
Details
Handle Throttle Ass'y for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 73254
Handle Throttle Ass'y for Brushcutter AMA AG2 275
Handle Throttle Ass'y for Brushcutter AMA AG2 275 Genuine replacement part AMA, Handle Throttle Assembly for Brushcutters AMA AG2 275 - AG2-350. Part for the following products: -  Brushcutter AMA AG2 275 – 75571 -  Brushcutter AMA...
AVAILABLE €32.15
Details
Primer Pump Hose Kit for Brushcutter AMA AG2 360
A.M.A. S.p.A. SKU: 79077
Primer Pump Hose Kit for Brushcutter AMA AG2 360
Primer Pump Hose Kit for Brushcutter AMA AG2 360 Original replacement part AMA, Primer Pump Hose Kit, for Brushcutters AG2 360 - AG2 360U - MULTICUTTER MC 350. Part for the following products: -  Brushcutter AG2 360-75596 -...
AVAILABLE €6.83
Details
AMA Spacer for AG2 275
A.M.A. S.p.A. SKU: 79040
AMA Spacer for AG2 275
AMA Spacer for Brushcutter AG2 275 Genuine replacement part AMA, Spacer for Crankshaft for Brushcutter AG2 275 - MC 280. Parts for the following products: -  Brushcutter AMA AG2 275 – 75571 -  Brushcutter AMA MC 280...
Last items in stock €0.53
Details
AMA AG2 275 Muffler Gasket
A.M.A. S.p.A. SKU: 79064
AMA AG2 275 Muffler Gasket
AMA Brushcutter AG2 275 Muffler Gasket Genuine replacement part AMA Garden, Muffler Gasket for Brushcutter AG2 275 - Multicutter MC 280. Part for the following products: -  Brushcutter AMA AG2 275 – 75571 - ...
Last items in stock €5.14
Details
Comments (0)
