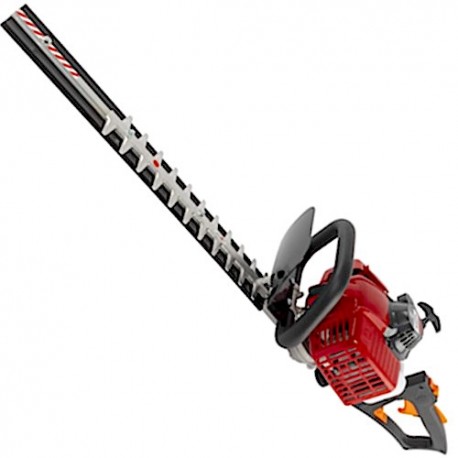

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R

SKU: Ama AG5 – HT60R - 98850
€1.20
VAT included

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R

Repair, replace and maintain your AMA AG5 – HT60R hedge trimmer - 98850 only with original spare parts. Choose to rely on expert hands, buy specific and original AMA spare parts at reduced prices. Enter a new reality, we offer you the possibility to choose and purchase every single part of the Hedge Trimmer comfortably with just a few clicks.
Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R
  • Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R
  • Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R - Drawing
  • Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R - Drawing - 1

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R

SKU: Ama AG5 – HT60R - 98850 Condition: New
€1.20
VAT included

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R

Repair, replace and maintain your AMA AG5 – HT60R hedge trimmer - 98850 only with original spare parts. Choose to rely on expert hands, buy specific and original AMA spare parts at reduced prices. Enter a new reality, we offer you the possibility to choose and purchase every single part of the Hedge Trimmer comfortably with just a few clicks.
settings 53 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 92593 Guide Cover €5.32
4
photo_cameraImage coming soon M5X12 Screw M5X12 €1.94
6
photo_cameraImage coming soon 92597 Cylinder €15.17
7
photo_cameraImage coming soon 92614 Gasket €3.29
8
photo_cameraImage coming soon 92617 Piston ring €4.66
10
photo_cameraImage coming soon 92619 Piston pin €3.29
11
photo_cameraImage coming soon 92622 Piston €20.25
15
photo_cameraImage coming soon 6001-P6 Bearing 6001-P6 €21.33
18
photo_cameraImage coming soon 13554 Oil-Seal  €2.30
19
photo_cameraImage coming soon 92627 Clutch €8.09
23
photo_cameraImage coming soon M5x12 Screw M5X12 €1.94
24
photo_cameraImage coming soon 92629 Ignition coil comp. €34.71
27
photo_cameraImage coming soon 92629 Ignition coil comp. €34.71
31
AMA Recoil Starter Cup for NG3 HT60R 92633 AMA Recoil Starter Cup for NG3 HT60R €3.60
33
AMA Starter for Hedgetrimmer NG3 HT60R 92634 AMA Starter for Hedgetrimmer NG3 HT60R €10.46
37
photo_cameraImage coming soon 88258 Plug €24.49
38
photo_cameraImage coming soon 92638 Muffler Gasket €4.69
40
photo_cameraImage coming soon 76218 Admitting Pipe €7.76
42
Gasket Carburetor for Brusch Cutter AMA AG2-280-AG2-265 RSOF47 Gasket Carburetor for Brusch Cutter AMA AG2-280-AG2-265 €0.69
43
photo_cameraImage coming soon 92639 Carburetor €29.77
44
photo_cameraImage coming soon 92641 Inside cover €3.29
46
Air Filter for Brushcutters AMA 13715 Air Filter for Brushcutters AMA €4.92
47
photo_cameraImage coming soon 92642 Outside cover €4.57
48
photo_cameraImage coming soon 92643 Screw €3.74
49
photo_cameraImage coming soon 90054 Fuel tube  €4.84
50
Tank Rubber for Brushcutters AMA AG3 350-AG3 280 13568 Tank Rubber for Brushcutters AMA AG3 350-AG3 280 €2.72
51
photo_cameraImage coming soon 88342 Fuel Pipe €5.11
52
photo_cameraImage coming soon 92644 Cleaner cover €3.85
53
photo_cameraImage coming soon 92645 Fuel tank €6.27
55
Fuel Tank Cap for Brushcutters AMA 13758 Fuel Tank Cap for Brushcutters AMA €6.99
62
Spark Plug NGK CMR6A 56432 Spark Plug NGK CMR6A €9.47
64
photo_cameraImage coming soon 92647 Spring €3.09
65
photo_cameraImage coming soon 92648 Cap €3.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 79436 Complete Blade Ass’y €226.51
2
photo_cameraImage coming soon 64110 BLADE GUIDE AG1 HT €31.62
3
Blade Protection for Hedge Trimmers AMA AG1HT60 – AG1HT75 64107 Blade Protection for Hedge Trimmers AMA AG1HT60 – AG1HT75 €18.55
4
photo_cameraImage coming soon 64106 Nut €3.44
5
Upper Blade for Hedge Trimmer AMA AG1HT60 64104 Upper Blade for Hedge Trimmer AMA AG1HT60 €54.29
6
Lower Blade for Hedge Trimmer AMA AG1HT60 64102 Lower Blade for Hedge Trimmer AMA AG1HT60 €54.29
7
photo_cameraImage coming soon 64136 Blade Stand €17.44
8
photo_cameraImage coming soon 64101 SCREW M6X23 SPECIAL NEW CODE 55291 €3.87
10
photo_cameraImage coming soon 79437 Gear Box Ass’y €142.15
11
AMA AG1-HT60R Support Plate 84884 AMA AG1-HT60R Support Plate €27.47
13
photo_cameraImage coming soon 64099 BLADE SCREW AG1 HT €1.52
14
photo_cameraImage coming soon 98897 Cluth Drum (Reverse) €14.08
15
photo_cameraImage coming soon 64109 Set off €13.69
16
Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75 64092 Conrod Ass'y for Hedge Trimmer AMA AG1HT60 – AG1HT75 €44.47
17
photo_cameraImage coming soon 90458 Gear €14.08
18
Gear Case Cover for Hedge Trimmer AMA AG1-HT60R 79398 Gear Case Cover for Hedge Trimmer AMA AG1-HT60R €30.79
19
AMA AG1 HT Throttle Cable 55031 AMA AG1 HT Throttle Cable €13.83
20
photo_cameraImage coming soon 61413 Safety lever €29.29
21
photo_cameraImage coming soon 55024 KIT FRONT HANDLE AG1-HT €47.89
22
photo_cameraImage coming soon 55002 Nut €3.74
23
photo_cameraImage coming soon 55003 Plate €4.23
26
Blades Set Ass'y 60 cm for Hedge Trimmer AMA AG1-HT60R 55021 Blades Set Ass'y 60 cm for Hedge Trimmer AMA AG1-HT60R €137.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Petrol Hedgetrimmer AG5 – HT60R

Repair, replace and maintain your AMA AG5 – HT60R hedge trimmer - 98850 only with original spare parts. Choose to rely on expert hands, buy specific and original AMA spare parts at reduced prices. Enter a new reality, we offer you the possibility to choose and purchase every single part of the Hedge Trimmer comfortably with just a few clicks.

In the following table, look for the model of the Trimmer and the respective parts of the code.
AMA AG5 – HT60R - 98850

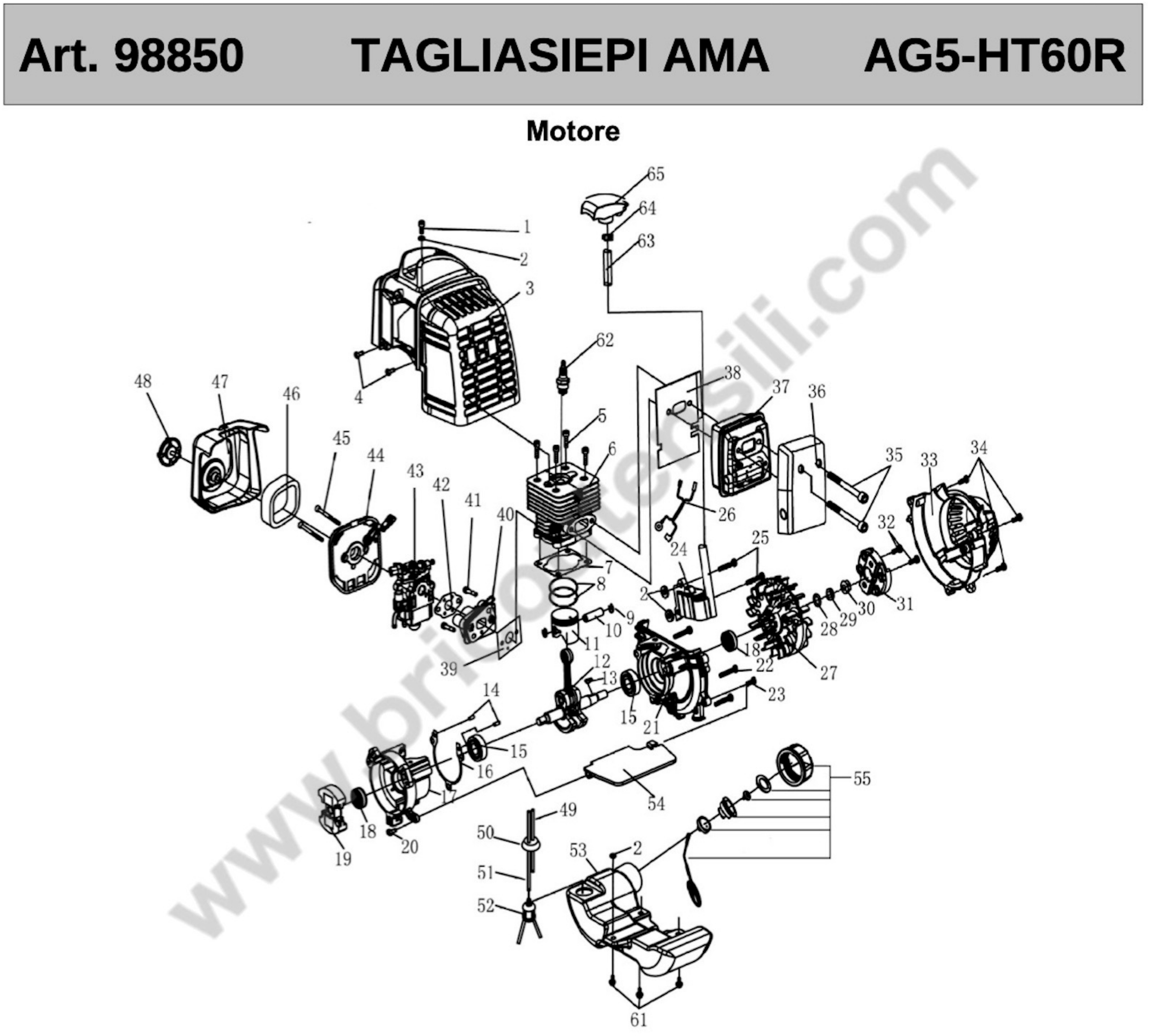

Hedgetrimmer AMA (AG5 – HT60R) - 98850 Pag.1
Pos. Codice Description
1 M5x18 Screw M5x18
2 Standard Gasket
3 92593 Guide Cover
4 M5x12 Screw M5x12
5 M5x16 Screw M5x16
6 92597 Cylinder
7 92614 Gasket
8 92617 Piston ring
9 RSOF21 Piston pin circlip
10 92619 Piston pin
11 92622 Piston
12 Crank shaft comp.
13 88264 Key
14 PB4x8 Pin B4x8
15 6001-P6 Bearing 6001-P6
16 Crank case gasket
17 Front half Crank Case
18 13554 Oil Seal
19 92627 Clutch
20 M5x20 Screw M5x20
21 Rear half crank case
22 M5x20 Screw M5x20
23 M5x12 Screw M5x12
24 92629 Ignition coil comp.
25 M4x20 Screw M4x20
26 Wire lead assy
27 92629 Fly Wheel
28 R8 Washer 8
29 R8 Washer 8
30 N8 Nut 8
31 92633 Start reel
32 M6x16 Screw M6x16
33 92634 Starter comp.
34 M5x18 Screw M5x18
35 M5x55 Screw M5x55 -12.9
36 Muffler cover
37 88258 Muffler
38 92638 Muffler Gasket
39 64091 Gasket
40 76218 Admitting pipe
41 M5x30 Screw M5x30
42 RSOF47 Gasket
43 92639 Carburetor
44 92641 Inside cover
45 M5x55 Screw M5x55
46 13715 Filter net
47 92642 Outside cover
48 92643 Screw
49 90054 Fuel pipe 90mm
50 13568 Fuel pipe plug
51 88342 Fuel pipe 160mm
52 92644 Cleaner cover
53 92645 Fuel tank
54 Gasket
55 13758 Fuel tank lid
61 Standard Screw M5x16
62 56432 SPARK Plug
63 6x70 pipe
64 92647 Spring
65 92648 Cap

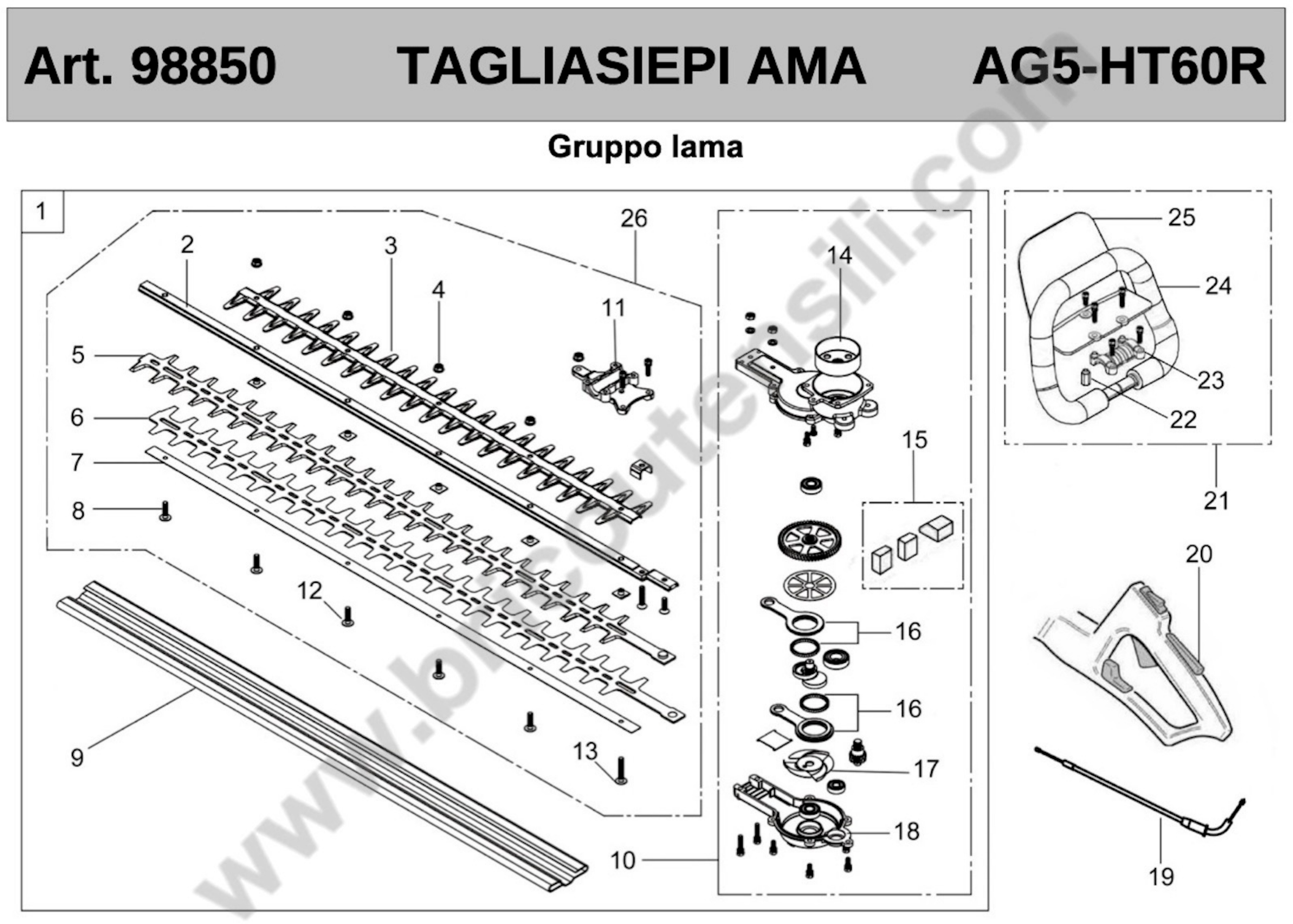

Hedgetrimmer AMA (AG5 – HT60R) - 98850 Pag.2
1 79436 Complete Blade Ass’y
2 64110 Plate, Upper
3 64107 Blade Guard
4 64106 Flange Nut
5 64104 Upper Blade
6 64102 Lower Blade
7 64136 Blade Stand
8 64101 Screw
9 73162 Blade Cover 75 cm.
10 79437 Gear Box Ass’y
11 84884 Front handle Support Plate
12 64100 Screw
13 64099 Screw
14 98897 Cluth Drum (Reverse)
15 64109 Felt Pads Set
16 64092 Connecting Rod Ass’y
17 90458 Fan
18 79398 Case Cover
19 55031 Throttle Cable
20 61413 Throttle Handle Ass’y
21 55024 Front Handle Ass’y
22 55002 Column
23 55003 Fixing Block
24 13808 Front Handle
25 62121 Handguard Black
26 55021 Blade set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
