A.M.A. S.p.A.

Ama Spare Parts for Chainsaw AMX 50.20

SKU: Ama AMX 50.20 - 92609
€3.97
VAT included

Ama Spare Parts for Chainsaw AMX 50.20

We are AMA Garden original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Petrol Chainsaw AMX 50.20 - 92609.
Ama Spare Parts for Chainsaw AMX 50.20
  • Ama Spare Parts for Chainsaw AMX 50.20
  • Ama Spare Parts for Chainsaw AMX 50.20 - Diagram
  • Ama Spare Parts for Chainsaw AMX 50.20 - Diagram - 1
A.M.A. S.p.A.

Ama Spare Parts for Chainsaw AMX 50.20

SKU: Ama AMX 50.20 - 92609 Condition: New
€3.97
VAT included

Ama Spare Parts for Chainsaw AMX 50.20

We are AMA Garden original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Petrol Chainsaw AMX 50.20 - 92609.
settings 85 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
85 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
AMA Chain Bar 20" - 500 mm 76336 AMA Chain Bar 20" - 500 mm €38.69
photo_cameraImage coming soon 78631 Saw Chain €24.47
6
 Primer Pump for Chainsaws AMA NTH 26.10 - NTH 26.10C 63833 Primer Pump for Chainsaws AMA NTH 26.10 - NTH 26.10C €5.72
9
 photo_cameraImage coming soon 95134 Throttle trigger €3.57
10
 Upper Damper for Chainsaws AMA NBG 45.16-45.18 57513 Upper Damper for Chainsaws AMA NBG 45.16-45.18 €7.44
11
 Handle Anti-vibration Safety Screw for Chainsaw AMA NTH 26.10 63788 Handle Anti-vibration Safety Screw for Chainsaw AMA NTH 26.10 €2.32
12
 photo_cameraImage coming soon 57496 Dust cover €1.22
13
 photo_cameraImage coming soon 95135 Rear handle €24.96
14
 Scavenge Nozzle for Chainsaws AMA NBG 45.16 79422 Scavenge Nozzle for Chainsaws AMA NBG 45.16 €5.43
15
 Primer Pump Line for Chainsaw AMA NBG 45.16 79415 Primer Pump Line for Chainsaw AMA NBG 45.16 €4.05
16
 Fuel Intake Filter for Chainsaws AMA NTH 26.10 - NTH 26.10C 57507 Fuel Intake Filter for Chainsaws AMA NTH 26.10 - NTH 26.10C €4.01
18
 Gasoline Hose for Chainsaws AMA NBG 45.16-18 - 50.20 57506 Gasoline Hose for Chainsaws AMA NBG 45.16-18 - 50.20 €4.74
19
 Gasoline Tank Balancer for Chainsaws AMA 63771 Gasoline Tank Balancer for Chainsaws AMA €4.16
20
 Gasoline Tank Balancer Grommet for Chainsaws AMA 63885 Gasoline Tank Balancer Grommet for Chainsaws AMA €3.94
21
 photo_cameraImage coming soon 88190 Shock rubber €1.68
22
 photo_cameraImage coming soon 95136 Oil tank cap assembly €4.76
27
 photo_cameraImage coming soon 95138 Starter assembly €19.02
28
 photo_cameraImage coming soon 95139 Start coil spring €3.10
29
 photo_cameraImage coming soon 95140 Start plate €4.05
30
 photo_cameraImage coming soon 95141 Easy start-coil spring €4.53
31
 photo_cameraImage coming soon 95142 Easy start-coil spring cover €2.62
34
 photo_cameraImage coming soon 95143 Starter handle €3.57
41
 photo_cameraImage coming soon 95146 Oil tank cap assembly €4.76
44
 photo_cameraImage coming soon 60339 Chain shield €3.73
45
 Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18 58212 Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18 €3.58
46
 Conical Damper Spring Base for Chainsaws AMA NBG45.16 - NBC45.18 64074 Conical Damper Spring Base for Chainsaws AMA NBG45.16 - NBC45.18 €1.55
50
 photo_cameraImage coming soon 95150 Front handle guard €14.86
62
 photo_cameraImage coming soon 88185 Choke rod fixation root €2.30
63
 photo_cameraImage coming soon 95159 Choke knob €3.57
64
 AMA AMX 45.16 Clutch Cover Ass'y 95160 AMA AMX 45.16 Clutch Cover Ass'y €34.30
71
 photo_cameraImage coming soon 95164 Secondary pull-rod €4.76
75
 Brake Spring for Chainsaws AMA NBG 45.16 - 45.18 64046 Brake Spring for Chainsaws AMA NBG 45.16 - 45.18 €4.08
89
 photo_cameraImage coming soon 88176 Dust cover €1.22
90
 photo_cameraImage coming soon 89415 20'' Oregon bar €75.89
91
 photo_cameraImage coming soon ORE7932376 Oregon Saw chain 72E €46.69
92
 photo_cameraImage coming soon 84868 Chain cover €5.65
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon 95179 Rotator €18.05
3
 Woodruf mm 3×3.5×10 for Flywheel Chainsaw AMA NTH 26.10 63818 Woodruf mm 3×3.5×10 for Flywheel Chainsaw AMA NTH 26.10 €1.28
5
 AMA AMX 45.16 Ignition Coil Ass'y 95180 AMA AMX 45.16 Ignition Coil Ass'y €33.15
6
 photo_cameraImage coming soon 90456 Suction jet €3.17
7
 Hose Clip for Chainsaws AMA NTH 26.10 - NTH 26.10C 63813 Hose Clip for Chainsaws AMA NTH 26.10 - NTH 26.10C €1.26
10
 Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45 58216 Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45 €3.61
11
 Conrod Needle Bearing for Chainsaws AMA NBG45.16 58213 Conrod Needle Bearing for Chainsaws AMA NBG45.16 €7.21
12
 AMA BG 45 Piston Clip 57876 AMA BG 45 Piston Clip €1.14
13
 photo_cameraImage coming soon 79664 Piston pin €1.75
14
 photo_cameraImage coming soon 95198 Piston €12.13
15
 AMA NBG 50.20 Piston Ring 79599 AMA NBG 50.20 Piston Ring €8.75
16
 Cylinder Gasket for Chainsaws AMA NBG 45.16 - NBG 45.18 57499 Cylinder Gasket for Chainsaws AMA NBG 45.16 - NBG 45.18 €4.00
17
 photo_cameraImage coming soon 95199 Cylinder €38.03
22
 photo_cameraImage coming soon 95184 Muffler €14.27
23
 Muffler Gasket for Chainsaws AMA NBG 45.16-45.18 57518 Muffler Gasket for Chainsaws AMA NBG 45.16-45.18 €3.61
24
 photo_cameraImage coming soon 64078 Muffler connecting screw €4.04
25
 photo_cameraImage coming soon 12207 Spark plug (LD L8RTF) €3.86
27
 Thermal Flange Gasket for Chainsaw AMA NBG45.16 57497 Thermal Flange Gasket for Chainsaw AMA NBG45.16 €3.44
28
 photo_cameraImage coming soon 57498 Air intake tube €8.47
30
 photo_cameraImage coming soon 64068 Air intake tube support €1.43
31
 photo_cameraImage coming soon 58223 1 €2.63
33
 photo_cameraImage coming soon 88180 Hold coil €1.22
34
 photo_cameraImage coming soon 95185 Air cleaner foam €3.81
35
 photo_cameraImage coming soon 95186 Air filter lock nut €3.57
36
 photo_cameraImage coming soon 95187 Air filter cover €3.57
37
 AMA AMX 45.16 Air Filter 95188 AMA AMX 45.16 Air Filter €4.63
40
 photo_cameraImage coming soon 88183 Cushion of air intake socket €1.22
41
 photo_cameraImage coming soon 95189 Air filter base €5.24
42
 photo_cameraImage coming soon 57511 Carburetor €83.18
46
 Spiked Bumper for Chainsaws AMA NTH 26.10 - NTH 26.10C 64075 Spiked Bumper for Chainsaws AMA NTH 26.10 - NTH 26.10C €5.60
51
 Oil Pump for Chainsaws AMA NBG45-50 57523 Oil Pump for Chainsaws AMA NBG45-50 €22.90
52
 AMA NBG 45.16 Oil Pipe 57524 AMA NBG 45.16 Oil Pipe €3.32
53
 Oil Filter Pipe for Chainsaws AMA NBG 45.16 - NBG 45.18 73824 Oil Filter Pipe for Chainsaws AMA NBG 45.16 - NBG 45.18 €4.86
54
 Oil Filter for Chainsaw AMA 57633 Oil Filter for Chainsaw AMA €3.87
56
 Worm Screw for Chainsaws AMA NBG 45.16-45.18 55072 Worm Screw for Chainsaws AMA NBG 45.16-45.18 €7.03
57
 Needle Bearing mm 12×15×14.5 for Chainsaws AMA NBG45.16 - NBC45.18 57532 Needle Bearing mm 12×15×14.5 for Chainsaws AMA NBG45.16 - NBC45.18 €5.74
58
 Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18 57795 Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18 €21.57
59
 Clutch Drum for Chainsaws AMA NBG 45.16 - NBG 45.18 88189 Clutch Drum for Chainsaws AMA NBG 45.16 - NBG 45.18 €14.36
60
 Clutch Washer for Chainsaws AMA NBG 45.16-45.18 57531 Clutch Washer for Chainsaws AMA NBG 45.16-45.18 €2.14
61
 Clutch Ass'y for Chainsaws AMA NBG 45.16 - NBG 45.18 57529 Clutch Ass'y for Chainsaws AMA NBG 45.16 - NBG 45.18 €17.24
62
 Clutch Spring for Chainsaws AMA NBG 45.16-45.18 57530 Clutch Spring for Chainsaws AMA NBG 45.16-45.18 €2.72
65
 photo_cameraImage coming soon 58197 Cover plate €6.31
67
 Oil Pump Screw Sponge for Chainsaws AMA NTH 26.10 - NTH 26.10C 63862 Oil Pump Screw Sponge for Chainsaws AMA NTH 26.10 - NTH 26.10C €1.85
68
 Oil Seal 15x28x4,5 for Chainsaw AMA NBG45.16 88178 Oil Seal 15x28x4,5 for Chainsaw AMA NBG45.16 €3.17
69
 Right Lower Damper for Chainsaws AMA NBG 45.16-45.18 64073 Right Lower Damper for Chainsaws AMA NBG 45.16-45.18 €4.16
72
 photo_cameraImage coming soon 57893 Right shock block €36.92
73
 photo_cameraImage coming soon 88179 Left shock block €1.22
83
 photo_cameraImage coming soon 88177 Oil seal 15×35×4.5 €3.57
85
 photo_cameraImage coming soon 88181 Oil shield €2.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Chainsaw AMX 50.20

We are AMA Garden original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Petrol Chainsaw AMX 50.20 - 92609.

Open PDF diagram in this page to check parts you need for your chainsaw AMA.
Ama AMX 26.10 - 92604

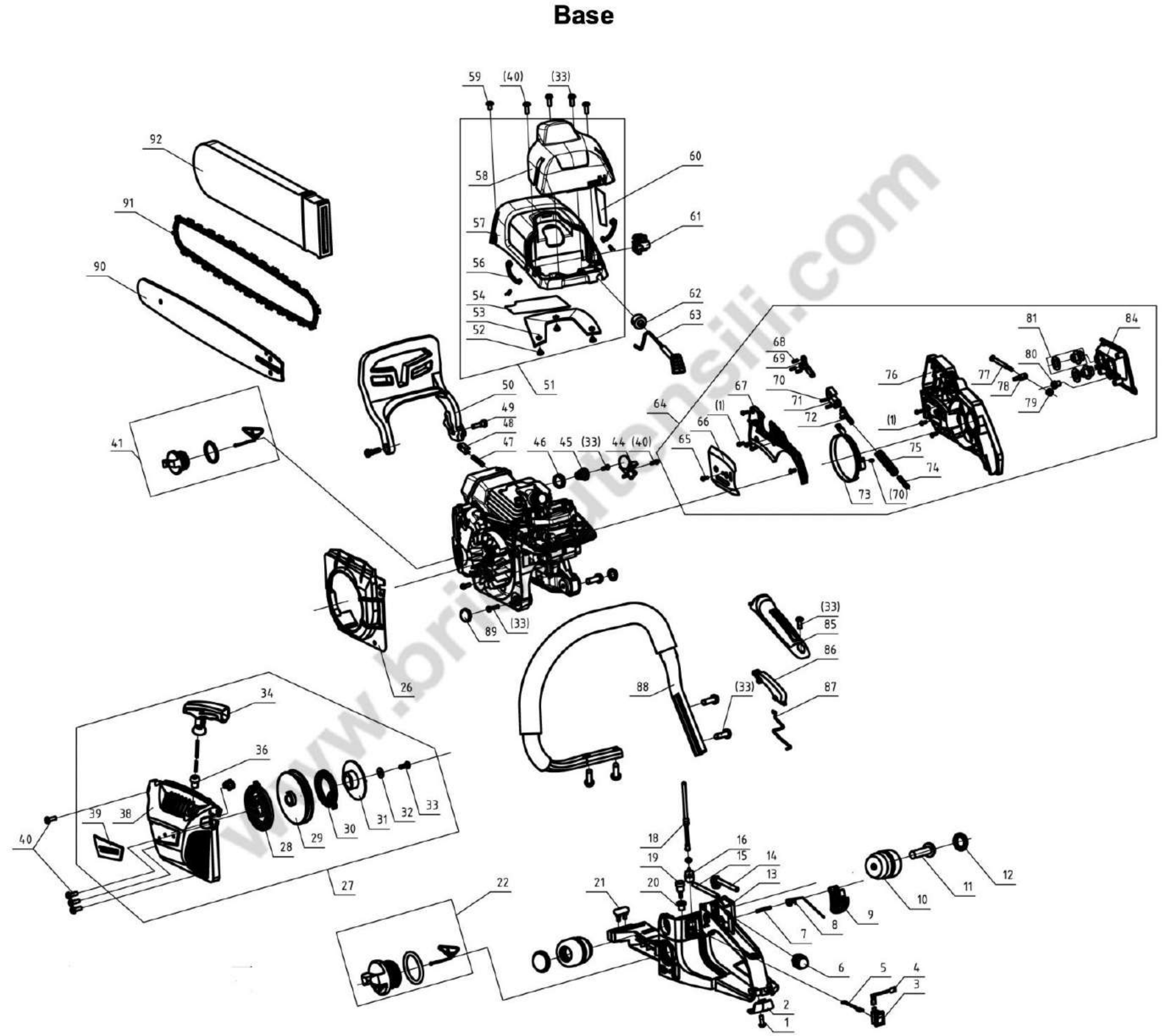

Chainsaw AMX 50.20 - Base Pag.1
# Part Num. Description
1 Standard Tapping screw ST4×10
2 95107 Bottom cover
3 95108 Switch
4 Standard Extinction conductor
5 Standard Ground lead
6 63833 Primer bulb
7 Standard Pin 3×25
8 95109 Throttle trigger spring
9 95134 Throttle trigger
10 57513 Shock rubber gland
11 63788 Rear handle fixing screw
12 57496 Dust cover
13 95135 Rear handle
14 79422 Oil nozzle
15 79415 Primer Pump line (2.5x5x155)
16 57507 Fuel filter
18 57506 Fuel tube
19 63771 Balancer
20 63885 Balancer seat
21 88190 Shock rubber
22 95136 Oil tank cap assembly
26 95137 Flow guiding cover
27 95138 Starter assembly
28 95139 Start coil spring
29 95140 Start plate
30 95141 Easy start-coil spring
31 95142 Easy start-coil spring cover
32 Standard Plate washer 5
33 Standard Tapping screw ST5×16
34 95143 Starter handle
36 64060 Eyelet
38 95144 Start housing
39 95145 Start cover nameplate
40 Standard Screw M5×16 (GB/T2672)
41 95146 Oil tank cap assembly
44 60339 Chain catcher
45 58212 Anti-vibration spring
46 64074 Spring base
47 95147 Return spring
48 95148 Return spring cover
49 95149 Front handle guard screw
50 95150 Front handle guard
51 95151 Cylinder shield assembly
52 Standard Tapping screw ST3.5×6 (GB/T845)
53 95152 Top cover air guide sheet
54 95153 Aluminium septum for crankcase
56 95154 Clip
57 95155 Cylinder shield
58 95156 Air filter cover
59 Standard Screw M5×10
60 95157 Aluminium septum for cylinder shield
61 95158 Idle adjusting guide set
62 88185 Throttle lever retaining bracket
63 95159 Choke knob
64 95160 Clutch cover assembly
65 Standard Screw M4×8
66 95161 Tensioner cover plate
67 95162 Brake spring cover
68 Standard Pin 3.05×9
69 95163 Main level
70 Standard Pin 3×9
71 95164 Secondary pull-rod
72 95165 Brake control rod
73 95166 Brake strap
74 88196 Secondary brake spring
75 64046 Brake spring
76 95167 Clutch cover
77 95168 Tensioner screw
78 95169 Tensioner block
79 95170 Passive bevel gear
80 95171 Drive bevel gear
81 95172 Lengthen nut combination
82 Standard Plate washer 11
83 Standard M8 flang nut
84 95173 Nut plate
85 95174 Rear handle cover
86 95175 Throttle trigger lock-out
87 95176 Throttle rod
88 95177 Front handle
89 88176 Small dust cover
90 89415 20'' Oregon bar
76336 20'' ama bar
91 ORE7932376 Oregon Saw chain 72E
78631 AMA Saw chain 72E
92 84868 Guide bar cover 20''

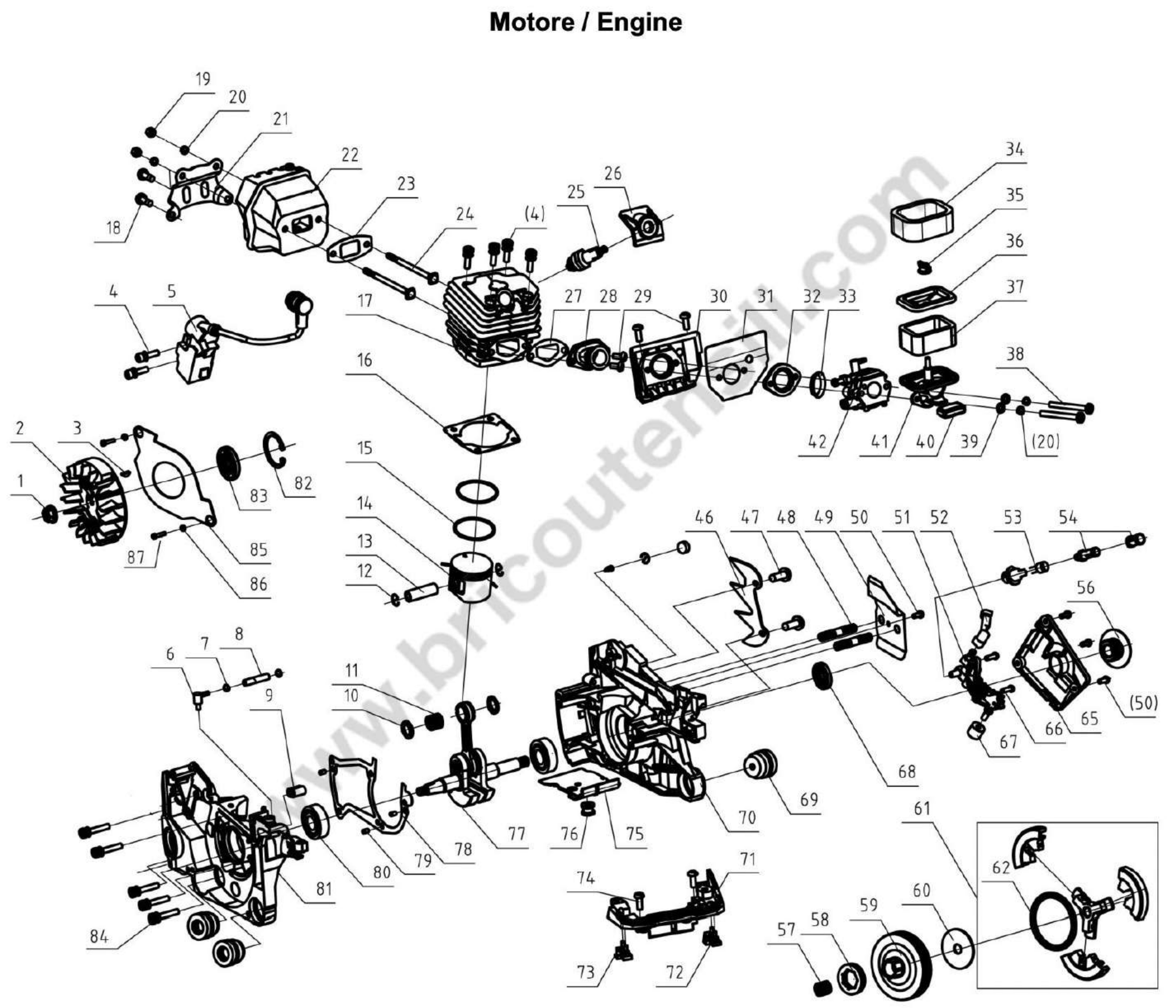

Chainsaw AMX 50.20 - Engine Pag.2
# Part Num. Description
1 95178 Nut M8×1
2 95179 Rotator
3 63818 Semi-circle key
4 Standard Screw M5×20
5 95180 Ignition coil
6 90456 Pressure nozzle
7 63813 Circlip
8 90409 Pressure tube
9 95181 Idle adjusting guide set
10 58216 Needle bearing ring
11 58213 Needle bearing φ11×φ15×12.5
12 57876 Circlip
13 79664 Piston pin
14 95198 Piston
15 79599 Piston ring ( 1 pc )
16 57499 Cylinder gasket
17 95199 Cylinder
18 Standard Screw M5×12
19 Standard Nut M5
20 Standard Lock washer 5
21 95183 Muffler cover
22 95184 Muffler
23 57518 Muffler gasket
24 64078 Muffler connecting screw
25 12207 Spark plug
26 A45.1106.0101 Spark plug cap
27 57497 Air intake tube sealing plate
28 57498 Intake pipe
29 Standard Screw M5×12
30 64068 Carburettor supporting frame
31 58223 Sealing plate of air intake support
33 88180 Support ring
34 95185 Air cleaner foam
35 95186 Air filter lock nut
36 95187 Air filter cover
37 95188 Air filter
38 Standard Screw M5×50
39 Standard Plate washer 5
40 88183 Cushion of air intake socket
41 95189 Air filter base
42 57511 Carburettor
46 64075 Spiked bumper
47 Standard Screw M5×12
48 Standard Double-screw bolt M8X45-8.8
49 95190 Tensioner cover
50 Standard Screw M4×10
51 57523 Oil pump
52 57524 Oil pipe nozzle
53 73824 Oil tube
54 57633 Oil filter
56 55072 Worm
57 57532 Needle bearing φ12×φ15×14.5
58 57795 Sprocket 0.325 . 7
59 88189 Clutch drum
60 57531 Washer for clutch
61 57529 Clutch
62 57530 Clutch spring
65 58197 Cover plate
66 Standard Screw M4×14
67 63862 Sponge transition coil
68 88178 Oil sealing
69 64073 Cushion socket
70 95191 Right crankcase
71 95192 Top cover support
72 57893 Right shock block
73 88179 Left shock block
74 Standard Screw M5×16
75 95193 Dust cover
76 95194 Rubber gasket
77 95195 Crankshaft
78 95196 Crankcase gasket
79 Standard Pin 5×10
80 Standard Bearing
81 95197 Left crankcase
82 Standard Ring 35
83 88177 Oil sealing
84 Standard Screw M5×25
85 88181 Oil seal damper
86 Standard Lock washer 4
87 Standard Screw M4×8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama AMX 50.20 - 92609
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS

Specific References

New

Download

Diagram AMA AMX 50.20

Diagram AMA AMX 50.20

Download (310.13KB)

You might also like

Oil Filter for Chainsaw AMA
A.M.A. S.p.A. SKU: 57633
Oil Filter for Chainsaw AMA
Oil Filter for Chainsaw AMA Original spare AMA, Oil Filter small for Chainsaws AMA. Parts for the following products: - Chainsaw NTH 26.10 - Chainsaw NTH 26.10C - Chainsaw NBG 45.16 - code 79975 - Chainsaw NBG 45.18 - code 79971 -...
AVAILABLE €3.87
Details
Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18 Sale
A.M.A. S.p.A. SKU: 58212
Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18
Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18 Genuine part AMA, Conical Damper Spring for Chainsaws AMA BG 45 - NBG 45.16 - 45.18 NBG - NBG 50.20. Parts for the following products: - Chainsaw AMA BG 45 – 55070-55080 -...
AVAILABLE €3.58
Details
Clutch Washer for Chainsaws AMA NBG 45.16-45.18 Sale
A.M.A. S.p.A. SKU: 57531
Clutch Washer for Chainsaws AMA NBG 45.16-45.18
Clutch Washer for Chainsaws AMA NBG 45.16-45.18 Original spare part AMA, Clutch Washer for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972 - BG 45 – 55070-55080 Part for the following products: - Chainsaw...
AVAILABLE €2.14
Details
Upper Damper for Chainsaws AMA NBG 45.16-45.18
A.M.A. S.p.A. SKU: 57513
Upper Damper for Chainsaws AMA NBG 45.16-45.18
Upper Damper for Chainsaws AMA NBG 45.16-45.18 Original parts AMA, Upper Damper for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - BG 45 – 55070-55080 - NBG 50.20 – 79972 Parts for the following products: - Chainsaw AMA...
AVAILABLE €7.44
Details
Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45 Sale
A.M.A. S.p.A. SKU: 58216
Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45
Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45 Genuine part AMA, Piston Pin Needle Bearing Washer for Chainsaws AMA BG 45 - NBG 45.16 - NBG 45.18 - NBG 50.20.  Part for the following products: - Chainsaw AMA BG 45 –...
AVAILABLE €3.61
Details
Clutch Drum for Chainsaws AMA NBG 45.16 - NBG 45.18
A.M.A. S.p.A. SKU: 88189
Clutch Drum for Chainsaws AMA NBG 45.16 - NBG 45.18
Clutch Drum for Chainsaws AMA NBG 45.16 - NBG 45.18 Original replacement part AMA, Clutch Drum for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972. Part for the following products: -  Chainsaw AMA NBG...
AVAILABLE €14.36
Details
Clutch Ass'y for Chainsaws AMA NBG 45.16 - NBG 45.18
A.M.A. S.p.A. SKU: 57529
Clutch Ass'y for Chainsaws AMA NBG 45.16 - NBG 45.18
Clutch Complete for Chainsaws AMA NBG 45.16 - NBG 45.18 Original replacement part AMA, Clutch Complete for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972. Part for the following products: -  Chainsaw Ama...
Last items in stock €17.24
Details
Clutch Spring for Chainsaws AMA NBG 45.16-45.18
A.M.A. S.p.A. SKU: 57530
Clutch Spring for Chainsaws AMA NBG 45.16-45.18
Clutch Spring for Chainsaws AMA NBG 45.16-45.18 Original spare part AMA, Clutch Spring for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972 - BG 45 – 55070-55080. Parts for the following products: -...
AVAILABLE €2.72
Details
Scavenge Nozzle for Chainsaws AMA NBG 45.16
A.M.A. S.p.A. SKU: 79422
Scavenge Nozzle for Chainsaws AMA NBG 45.16
Scavenge Nozzle for Chainsaws AMA NBG 45.16 Original part AMA, Scavenge Nozzle for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972. Part for the following products: -  Chainsaw AMA NBG 45.16 – code 79975...
AVAILABLE €5.43
Details
Oil Filter Pipe for Chainsaws AMA NBG 45.16 - NBG 45.18
A.M.A. S.p.A. SKU: 73824
Oil Filter Pipe for Chainsaws AMA NBG 45.16 - NBG 45.18
Oil Filter Pipe for Chainsaws AMA NBG 45.16 - NBG 45.18 Original replacement part AMA, Oil Filter Pipe for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972. Part for the following products: -  Chainsaw AMA...
AVAILABLE €4.86
Details
Oil Seal 15x28x4,5 for Chainsaw AMA NBG45.16
A.M.A. S.p.A. SKU: 88178
Oil Seal 15x28x4,5 for Chainsaw AMA NBG45.16
Oil Seal 15x28x4,5 for Chainsaws AMA NBG45.16 - NBC45.18 Genuine part AMA, Oil Seal 15x28x4,5 for Chainsaws AMA BG 45 - NBG 45.16 - 45.18 NBG - NBG 50.20. Parts for the following products: - Chainsaw AMA BG 45 – 55070-55080 -...
AVAILABLE €3.17
Details
Conrod Needle Bearing for Chainsaws AMA NBG45.16
A.M.A. S.p.A. SKU: 58213
Conrod Needle Bearing for Chainsaws AMA NBG45.16
Conrod Needle Bearing for Chainsaws AMA NBG45.16 - NBC45.18 Genuine part AMA, Conrod Needle Bearing for Chainsaws AMA BG 45 - NBG 45.16 - 45.18 NBG - NBG 50.20. Parts for the following products: - Chainsaw AMA BG 45 – 55070-55080 -...
on 7/10 Business Days Approx. €7.21
Details
Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18
A.M.A. S.p.A. SKU: 57795
Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18
Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18 Original replacement part AMA, Sprocket 325.7 for Chainsaws NBG 45.16 – code 79975 - NBG 45.18 – code 79971 - NBG 50.20 – 79972. Part for the following products: -  Chainsaw Ama...
AVAILABLE €21.57
Details
Primer Pump Line for Chainsaw AMA NBG 45.16
A.M.A. S.p.A. SKU: 79415
Primer Pump Line for Chainsaw AMA NBG 45.16
Primer Pump Line for Chainsaws AMA NBG 45.16 - NBG 45.18 Original replacement part AMA, Primer Pump Line for Chainsaws NBG 45.16 - NBG 45.18 - NBG 50.20 – NBG 38.14 - NBG 38.16. Part for the following products: -  Chainsaw Ama BG 45...
AVAILABLE €4.05
Details
AMA AMX 45.16 Ignition Coil Ass'y
A.M.A. S.p.A. SKU: 95180
AMA AMX 45.16 Ignition Coil Ass'y
AMA AMX 45.16 Ignition Coil Ass'y Genuine part AMA, Ignition Coil Ass'y for Chainsaws AMX 45.16 - AMX 45.18 - AMX 50.20. Part for the following products: -  Chainsaw AMX 45.16 - 92607...
AVAILABLE €33.15
Details
AMA AMX 45.16 Clutch Cover Ass'y
A.M.A. S.p.A. SKU: 95160
AMA AMX 45.16 Clutch Cover Ass'y
AMA AMX 45.16 Clutch Cover Ass'y Genuine part AMA, Clutch Cover Ass'y for Chainsaws AMX 45.16 - AMX 45.18 - AMX 50.20. Part for the following products: -  Chainsaw AMX 45.16 - 92607...
AVAILABLE €34.30
Details
Piston Ring for Brushcutter AMA AG2 275
A.M.A. S.p.A. SKU: 79599
AMA NBG 50.20 Piston Ring
AMA Chainsaw NBG 50.20 Piston Ring Genuine part AMA, Piston Ring for Chainsaws NBG 50.20 - AMX 50.20. Part for the following products: -  Chainsaw NBG 50.20 – 79972 -  Chainsaw AMX 50.20 - 92609 -...
Last items in stock €8.75
Details
AMA AMX 45.16 Air Filter
A.M.A. S.p.A. SKU: 95188
AMA AMX 45.16 Air Filter
AMA Chainsaw AMX 45.16 Air Filter Genuine part AMA, Paper Air Filter for Chainsaws AMX 45.16 - AMX 45.18 - AMX 50.20. Part for the following products: -  Chainsaw AMX 45.16 - 92607 - ...
AVAILABLE €4.63
Details
Comments (0)
