at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter AG5-280 code - 92710.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
.

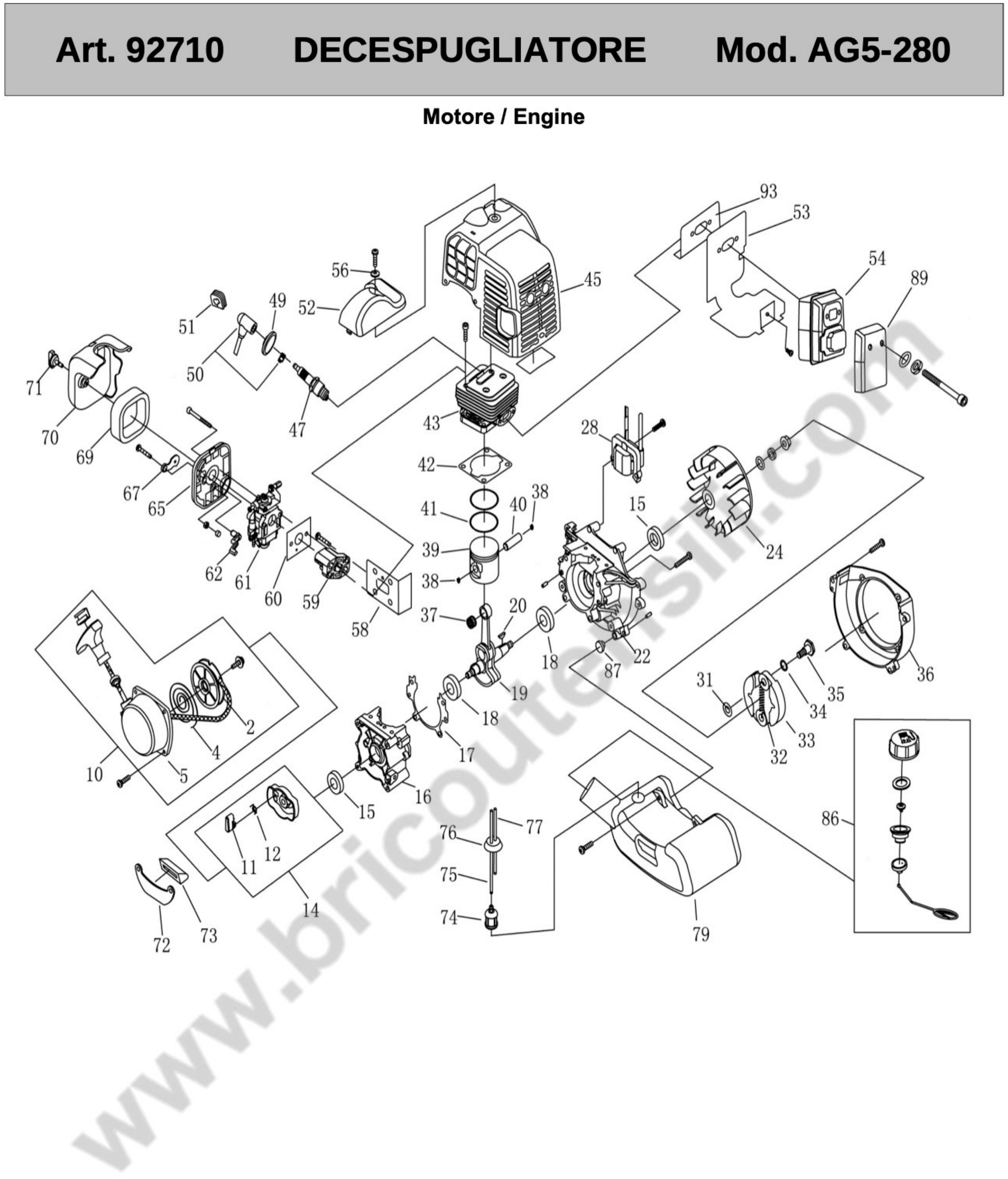

| Brushcutter AG5-280 code - 92710 Pag.1 | ||
| # | Part Num. | Description |
| 2 | 13559 | Start rope reel |
| 4 | 13558 | Recoil spring |
| 10 | 98824 | Starter |
| 11 | 13557 | Starter Pawl |
| 12 | 13556 | Spring |
| 14 | 88248 | Starter reel ass'y |
| 15 | 13554 | Oil-seal |
| 16 | 88260 | Crank case |
| 17 | 88263 | Crank case Gasket |
| 18 | 210101-8 | Beraing 6001/P6 |
| 19 | 79911 | Crank shaft |
| 20 | 88264 | Key 3x5x13 |
| 22 | 88261 | Crank Case |
| 24 | 88254 | Magneto rotor cpl. |
| 28 | 88255 | Ignition coil ass'y |
| 31 | 13746 | Washer |
| 32 | 13722 | Spring |
| 33 | 13721 | Clutch Ass'y |
| 34 | 13745 | Spring |
| 35 | 13720 | Screw pin |
| 36 | 98843 | Fan Cover |
| 37 | 88265 | Bearing |
| 38 | RSOF21 | Ring |
| 39 | 88266 | Piston |
| 40 | RSOF20 | Piston pin |
| 41 | RSOF18 | Piston Rings |
| 42 | 76211 | Gasket |
| 43 | 76212 | Cylinder |
| 45 | 98844 | Guide cover ass'y |
| 47 | 10660 | Spark Plug |
| 49 | 13821 | Plug Cap |
| 50 | F03062 | Cap |
| 51 | 88262 | Plug |
| 52 | 98845 | Cover |
| 53 | 88257 | Gasket |
| 54 | 88258 | Muffler |
| 58 | 88252 | Gasket |
| 59 | 76218 | Admitting pipe |
| 60 | 88253 | Gasket |
| 61 | 88524 | Carburetor |
| 62 | 98819 | Choker handle |
| 65 | 92731 | Cleaner inside cover |
| 67 | 88311 | Choker |
| 69 | 13715 | Filter net |
| 70 | 98818 | Cleaner outside cover |
| 71 | 98813 | Screw |
| 72 | 88249 | Stand |
| 73 | 88250 | Rubber cover |
| 74 | 13569 | Fuel Filter |
| 75 | 90167 | Fuel pipe 3x1x140 |
| 76 | 88556 | Plug |
| 77 | 90054 | Fuel pipe 2,5x1,25x85 |
| 79 | 88251 | Fuel tank |
| 86 | 92733 | Lid ass'y |
| 87 | 88301 | Tank Damper |
| 89 | 88259 | Cover |
| 83 | 79341 | Cover |
| 89 | 88259 | Front Cover |
| 91 | 88307 | Back Cover |
| 92 | 88308 | Gasket |

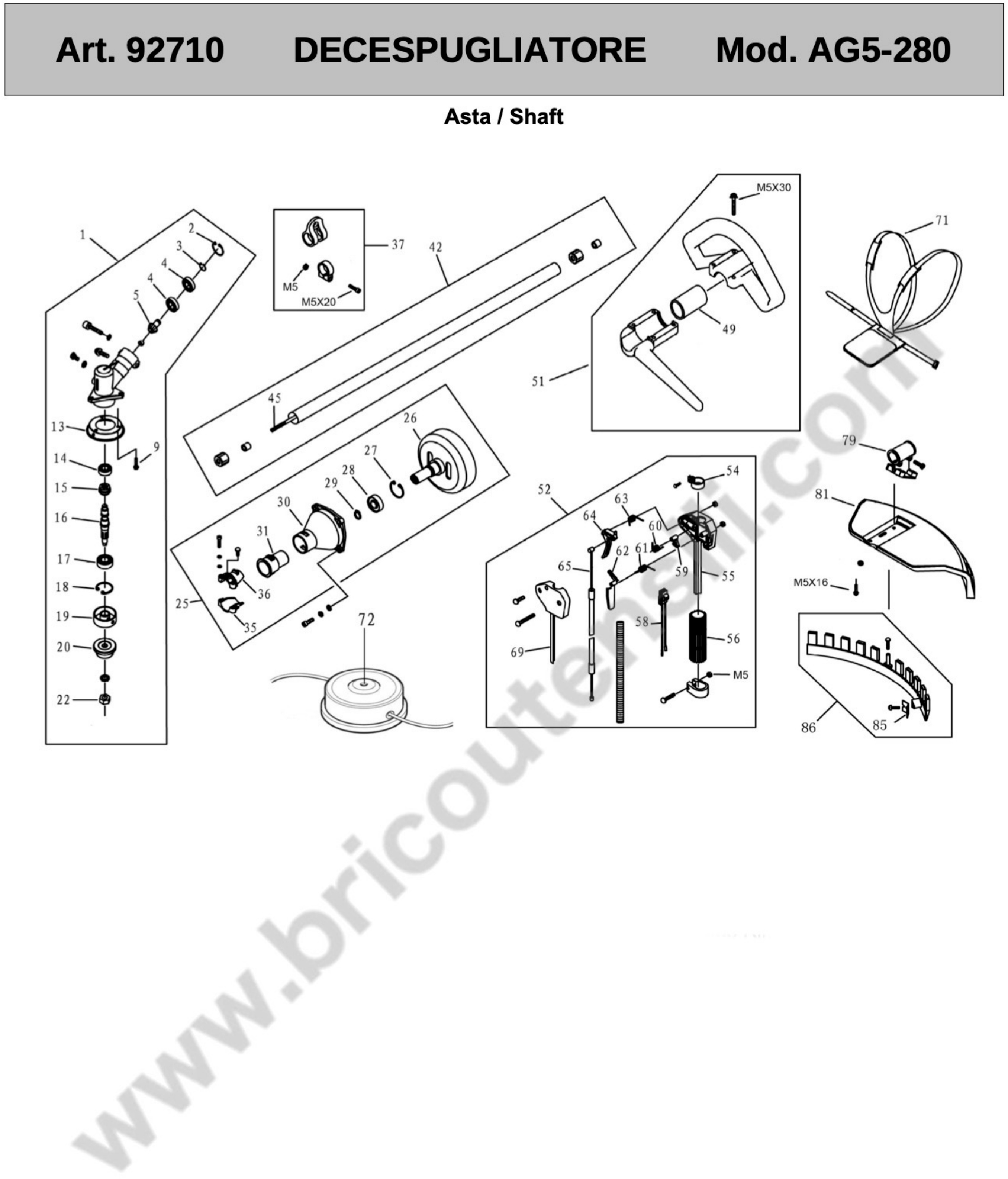

| Brushcutter AG5-280 code - 92710 Pag.2 | ||
| 1 | 88269 | Gear Case Ass’y |
| 2 | R26 | Stop Ring R26 |
| 3 | R10 | Stop Ring R10 |
| 4 | 16214 | Bearing 6000-2RS/P5 |
| 5 | 88289 | Pinion |
| 9 | M5X12 | Screw M5X12 |
| 10 | M6X12 | Bolt M6X12 |
| 13 | 88288 | Safety Guard |
| 14 | 16253 | Bearing 6000/P5 |
| 15 | 88287 | Gear |
| 16 | 88286 | Gear Shaft |
| 17 | 15805 | Bearing 6002-2RS/P5 |
| 18 | R32 | Stop Ring R32 |
| 19 | 88270 | Holder A |
| 20 | 88271 | Holder B |
| 22 | 10125 | Left Nut |
| 25 | 88272 | Clutch Comp. |
| 26 | 88273 | Clutch Drum Comp. |
| 27 | Standard | Stop Ring 35 |
| 28 | 14929 | Bearing 6202-2RS/P6 |
| 29 | E15 | Stop Ring E15 |
| 30 | 88290 | Linker |
| 31 | 38514 | Rubber Cover |
| 35 | 88284 | Clamp B |
| 36 | 88283 | Clamp A |
| 37 | 88282 | Holder Ass’y |
| 42 | 88274 | Pipe Comp. |
| 45 | 88275 | Drive Shaft |
| 49 | 92569 | Rubber cover |
| 51 | 88291 | Handle Ass’y |
| 52 | 73814 | Lever Ass’y |
| 55 | 73815 | Box , Right |
| 56 | Rubber Cover | |
| 58 | 92713 | Stop switch |
| 59 | 88280 | Tine |
| 60 | 73816 | Spring |
| 61 | 73817 | Spring |
| 62 | 92714 | Safety Lever |
| 63 | 73818 | Spring |
| 64 | 92716 | Throttle Lever |
| 65 | 73821 | Cable conp. |
| 69 | 73822 | Box,Left |
| 71 | 88558 | Harness Ass’y |
| 72 | 88557 | Nylon Cutter Head |
| 79 | 92755 | Bracket |
| 81 | 92756 | Safety Guard |
| 85 | 79951 | Blade |
| 86 | 92711 | Guard Ass’y |
