A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-52X

SKU: Ama NRT-52X - 92635
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-52X

Ama original spare parts for to fix of engine or chassis parts or to repair damaged components of Self-Propelled Lawnmower MVG TX (196CC) STAGE V - Cod. 92599 - NRT-52X - 92635.

Fix Your Lawnmower NRT-52X. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Ama Spare Parts for Lawnmower NRT-52X
  • Online only
  • Ama Spare Parts for Lawnmower NRT-52X
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 1
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 2
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 3
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 4
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 5
  • Ama Spare Parts for Lawnmower NRT-52X - Diagram - 6
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-52X

SKU: Ama NRT-52X - 92635 Condition: New
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-52X

Ama original spare parts for to fix of engine or chassis parts or to repair damaged components of Self-Propelled Lawnmower MVG TX (196CC) STAGE V - Cod. 92599 - NRT-52X - 92635.

Fix Your Lawnmower NRT-52X. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 132 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
132 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

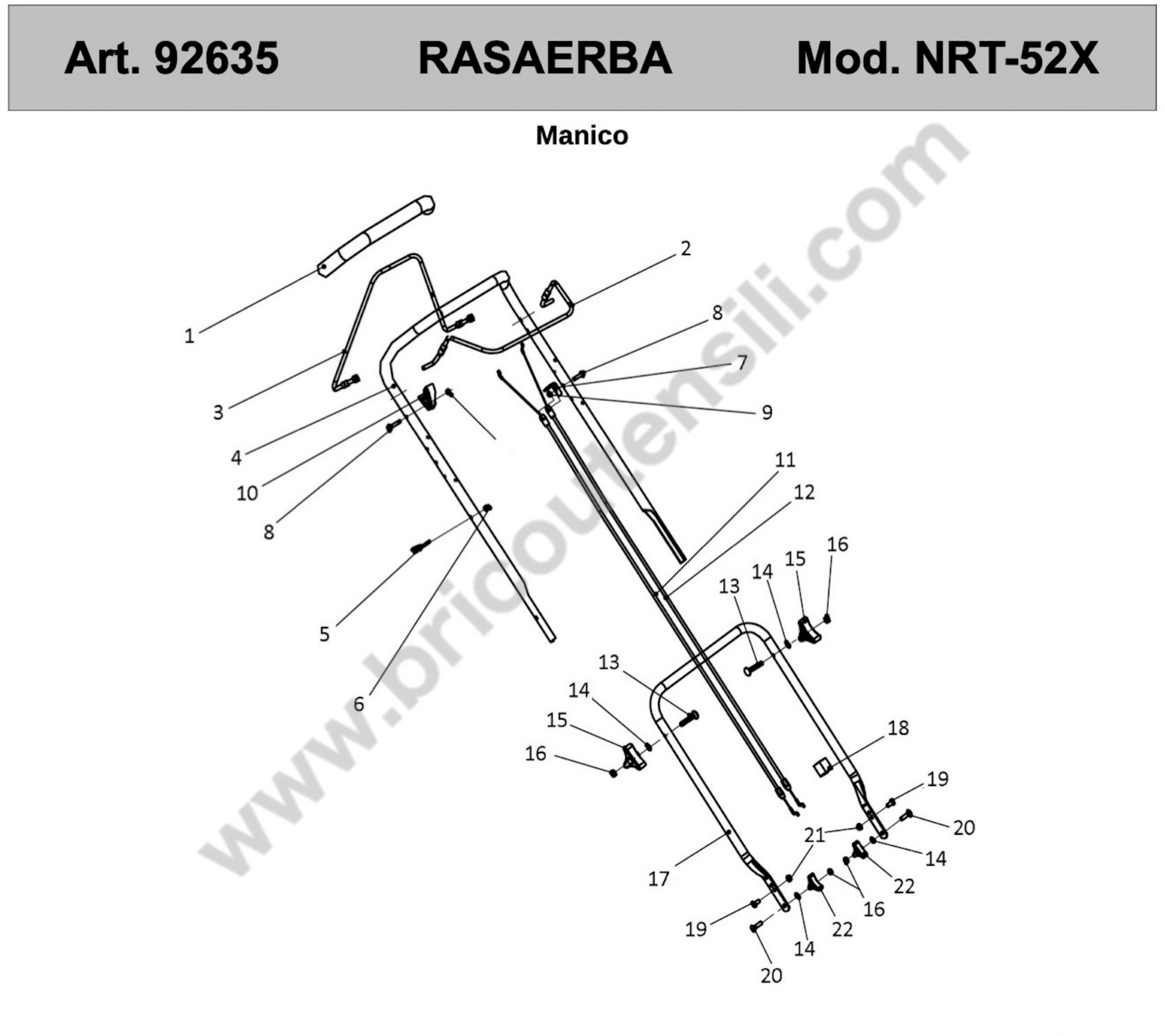

Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
2
 photo_cameraImage coming soon 89398 Stop lever €14.50
3
 photo_cameraImage coming soon 92562 Self-propelled Lever €12.40
4
 photo_cameraImage coming soon 84959 Upper handrail €39.04
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
11
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
12
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
15
 Handle Knob for Lawnmower AMA NRS-421 92504 Handle Knob for Lawnmower AMA NRS-421 €3.55
17
 photo_cameraImage coming soon 84973 Lower handrail €36.06
18
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
20
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
22
 photo_cameraImage coming soon 92503 Triangle knob €2.11
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

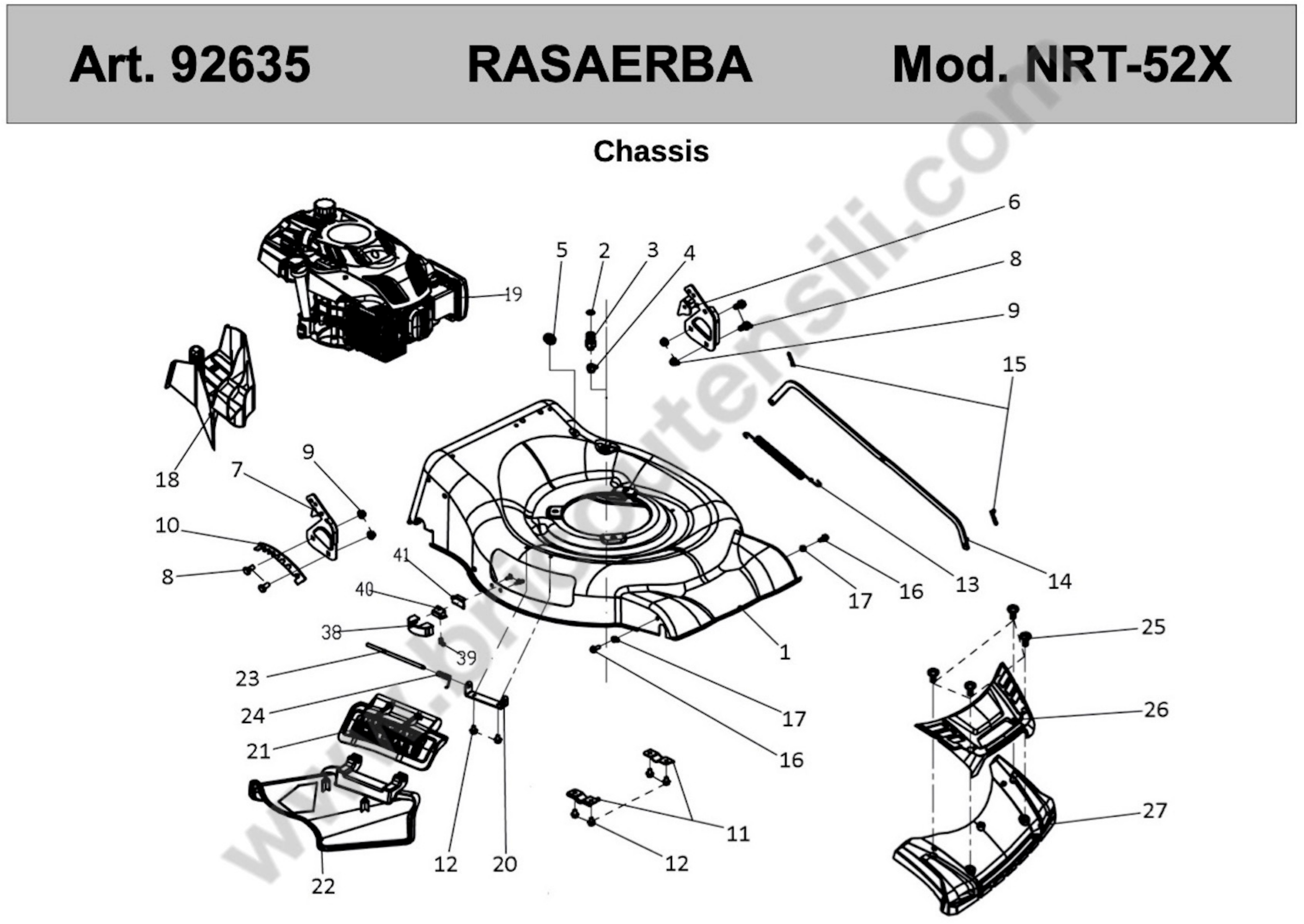

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92565 Deck welding assy. €202.27
4
 photo_cameraImage coming soon 90504 Pipe connector nut €3.83
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 88360 Left handle bracket €13.40
7
 photo_cameraImage coming soon 88361 Rigth handle bracket €13.40
10
 photo_cameraImage coming soon 88362 Height adjustment board €6.96
11
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 84977 Height Adjustment Pull Rod €4.47
15
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
18
 AMA NRT-52X Mulching Plug 88244 AMA NRT-52X Mulching Plug €12.87
21
 photo_cameraImage coming soon 92540 Mulching board €4.79
22
 photo_cameraImage coming soon 92508 Side discharge cover €6.91
23
 photo_cameraImage coming soon 88418 Mulch Shaft €1.97
24
 photo_cameraImage coming soon 84981 Mulch board spring €3.47
26
 photo_cameraImage coming soon 92544 Front mask €5.05
27
 photo_cameraImage coming soon 90263 Front mask €17.05
38
 photo_cameraImage coming soon 92550 Control board upper cover €3.59
39
 photo_cameraImage coming soon 92555 Cover spring €3.34
40
 photo_cameraImage coming soon 92547 Rear discharge cover €10.58
41
 photo_cameraImage coming soon 92554 Gasket €3.34
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

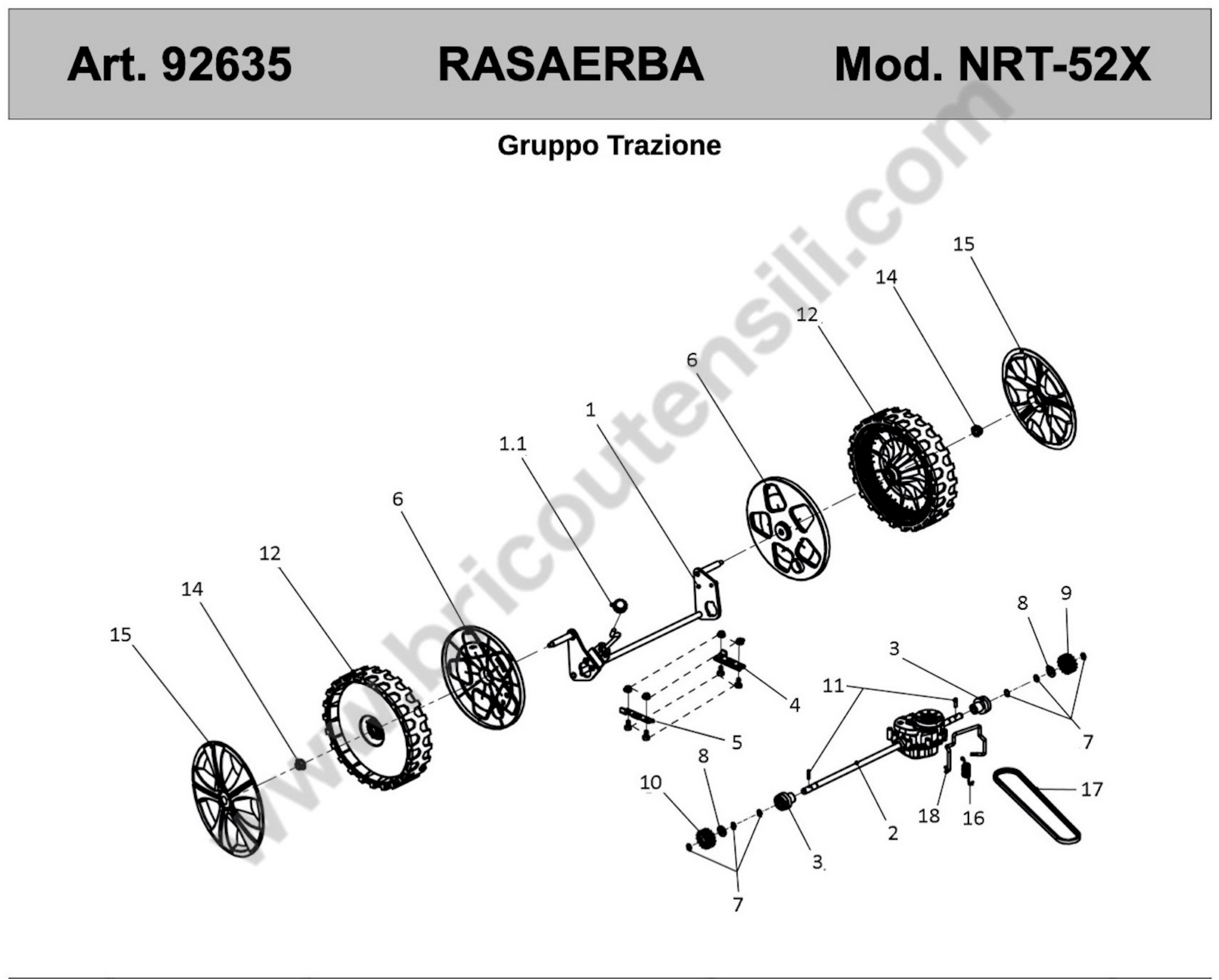

Esploso pagina 3
Pos. Item Price Buy
1
 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 84982 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 €55.29
1.1
 photo_cameraImage coming soon 92545 Height adjustment ball €3.97
2
 Self-Propelled Ass'y for Lawnmower AMA NRT-521 92538 Self-Propelled Ass'y for Lawnmower AMA NRT-521 €128.12
3
 photo_cameraImage coming soon 92529 Rear wheel axle sleeve €3.83
4
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
5
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
6
 photo_cameraImage coming soon 92549 Inner cover of hub €4.82
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
8
 Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
10
 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
11
 Ratchet Pin for Lawnmower AMA NRT-521 90304 Ratchet Pin for Lawnmower AMA NRT-521 €0.72
12
 AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
15
 photo_cameraImage coming soon 92532 Outer cover of hub €5.08
16
 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 84986 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 €2.57
17
 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-521 88443 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-521 €17.48
18
 photo_cameraImage coming soon 92557 Brake spring €4.79
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY

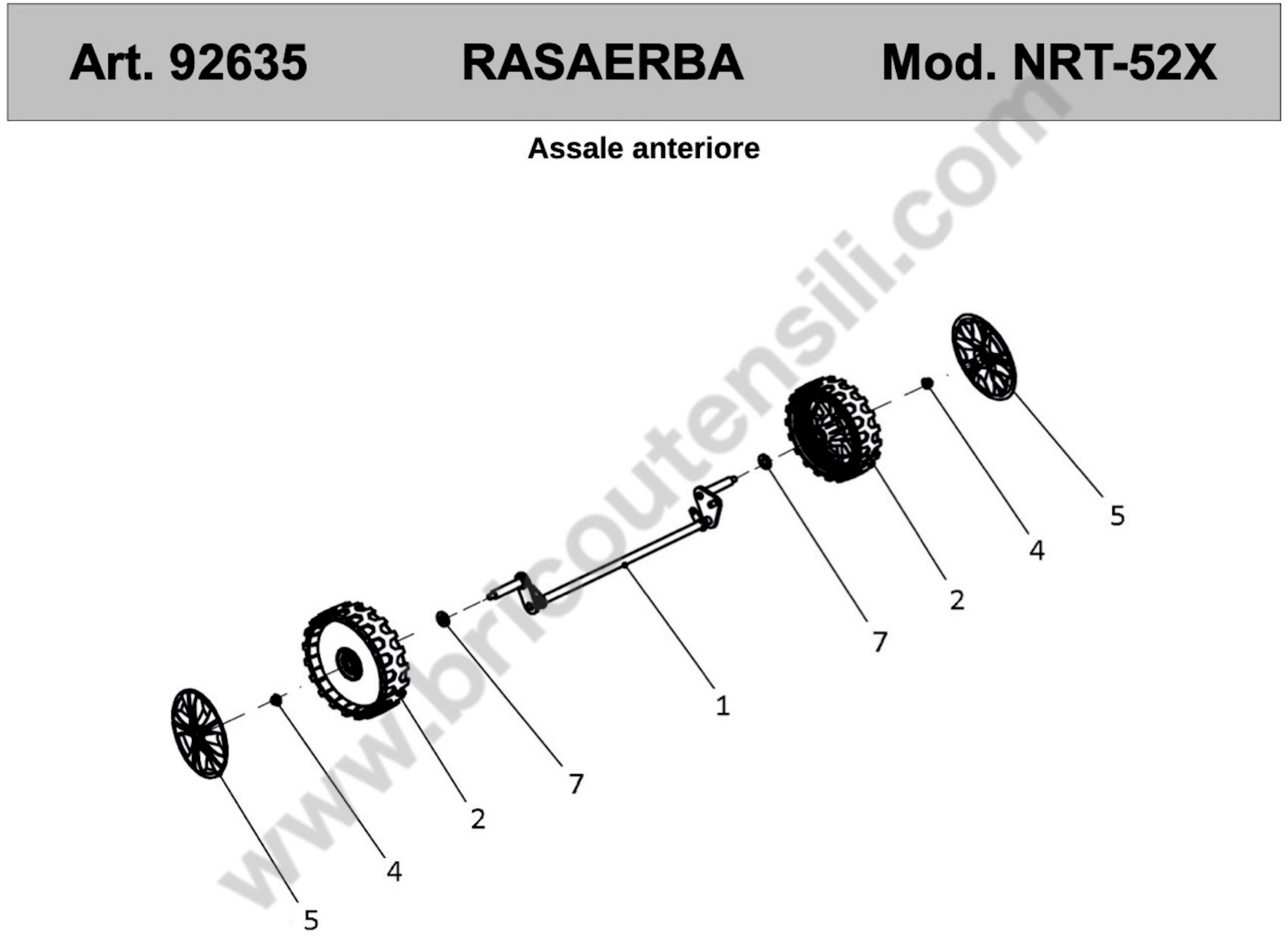

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92567 Front drive assy. €24.64
2
 photo_cameraImage coming soon 89885 Wheel assy €17.48
5
 AMA NRS-461 Wheel Hubcap 92530 AMA NRS-461 Wheel Hubcap €5.00
7
 photo_cameraImage coming soon 92552 Resilient washer €2.78
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY

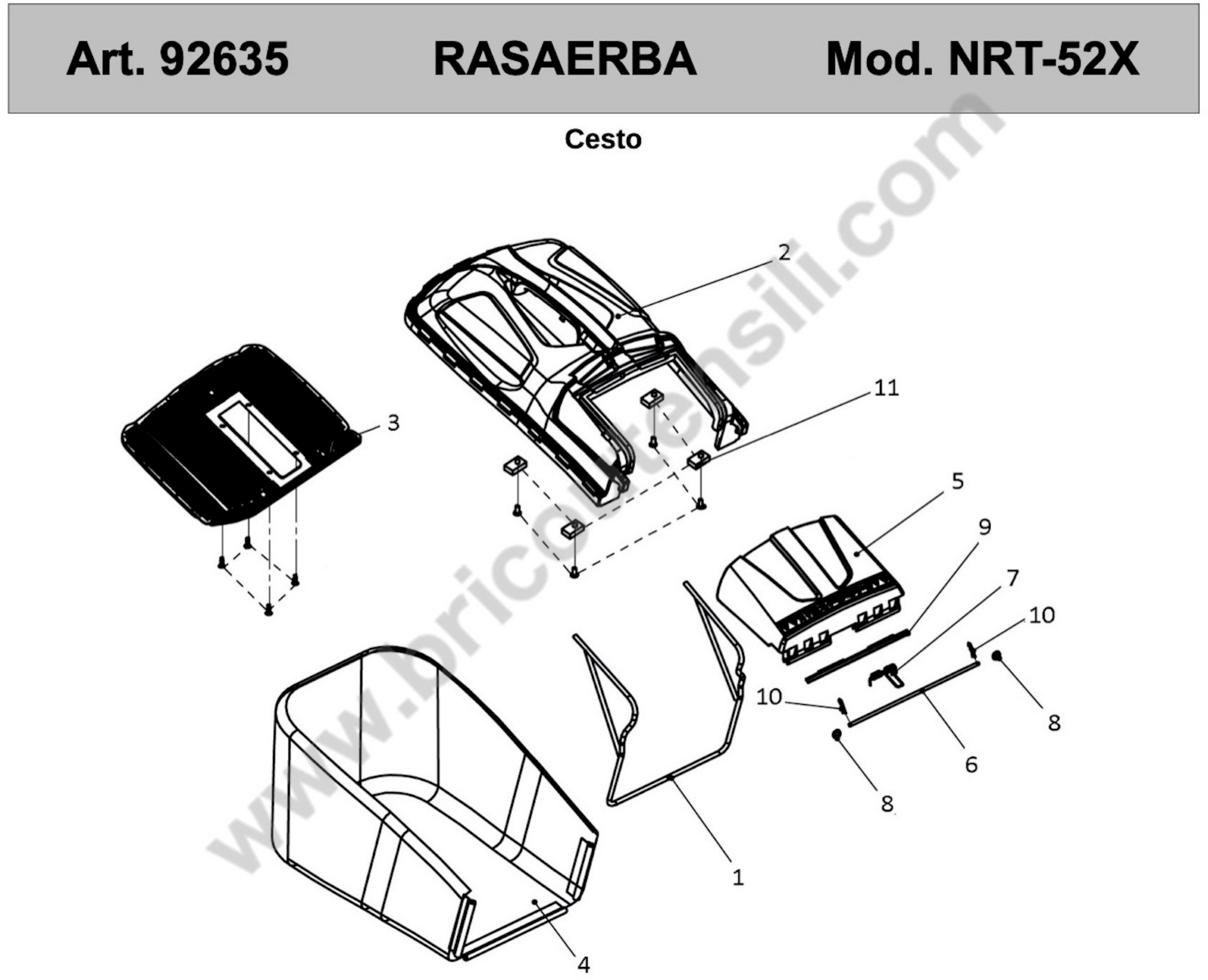

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92556 Fabric metal frame €11.28
2
 photo_cameraImage coming soon 92507 Top of grass box €20.96
3
 photo_cameraImage coming soon 92551 Filter plate €6.20
4
 photo_cameraImage coming soon 92527 Fabric grass bag €46.03
5
 photo_cameraImage coming soon 92548 Rear discharge cover €8.50
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 photo_cameraImage coming soon 89883 Rear discharge cover dust proof €3.92
10
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY

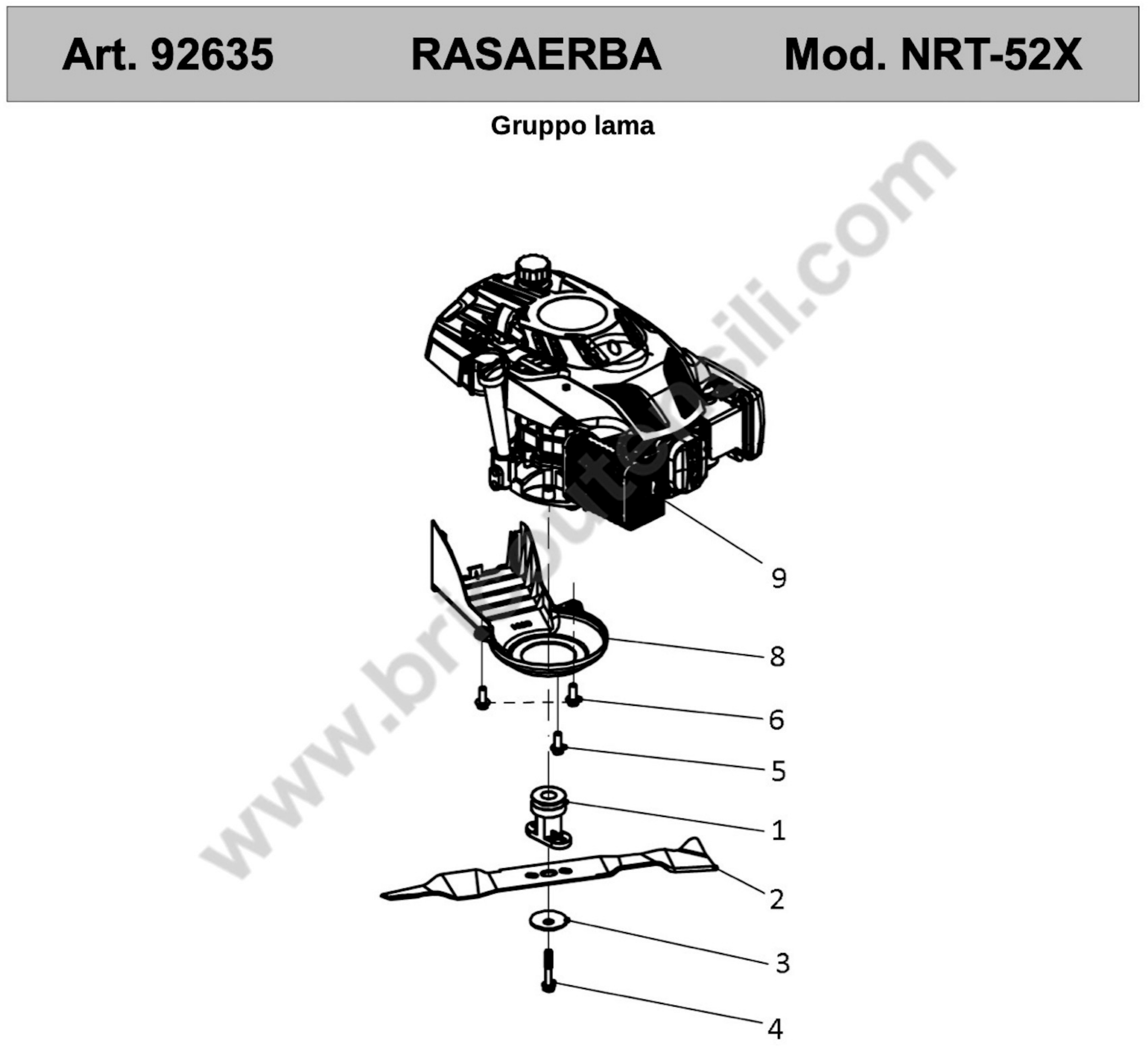

Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 84935 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 €32.44
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
8
 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 84989 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 €17.92
9
 photo_cameraImage coming soon 92599 Petrol engine MVGTX (196CC) STAGE V - Cod. 92599 €335.05
Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY

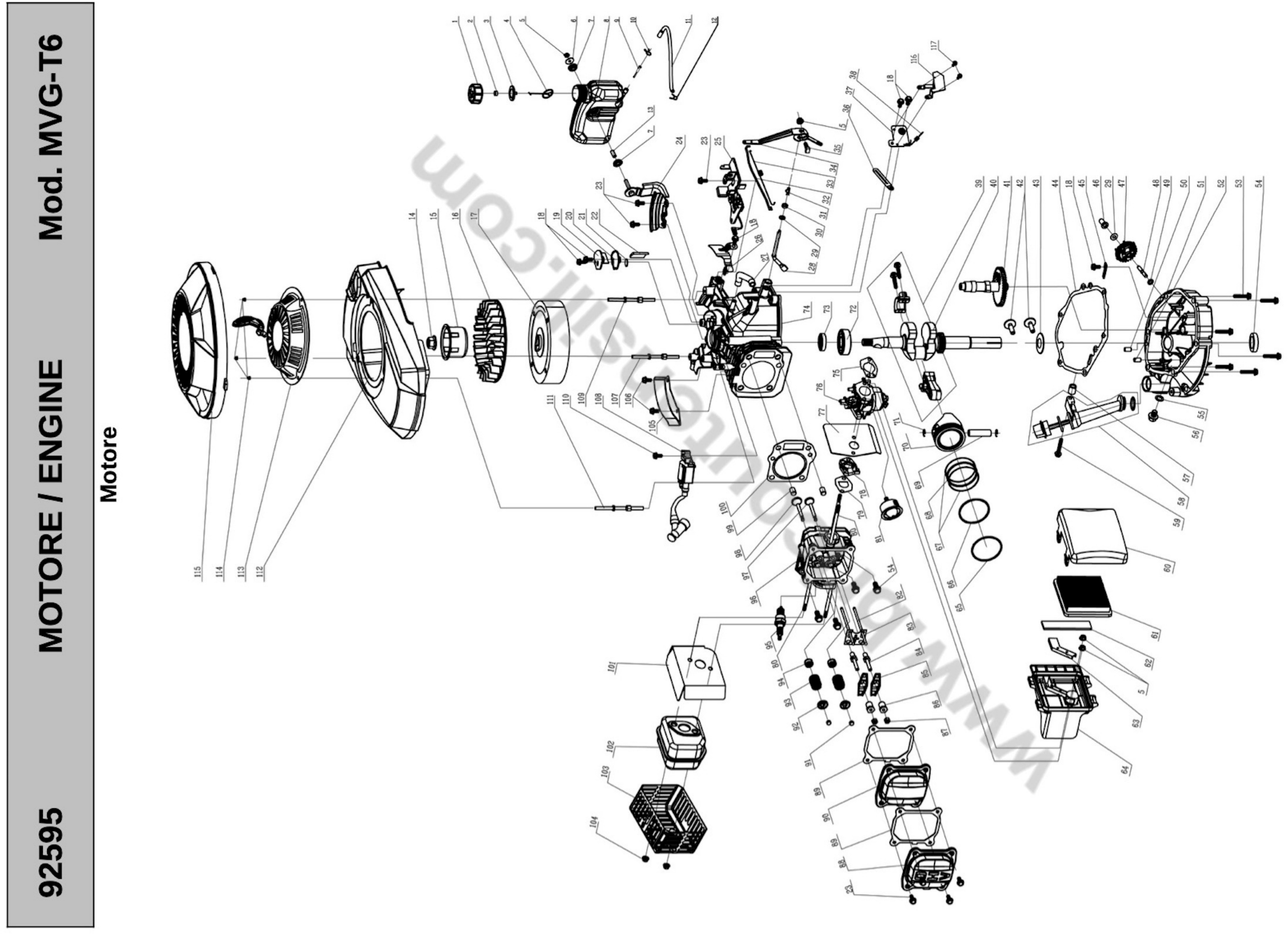

Esploso pagina 7
Pos. Item Price Buy
1
 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV RMG25170110000 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV €10.50
2
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
3
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
4
 photo_cameraImage coming soon 92486 Connect cable of fuel cap €3.83
8
 photo_cameraImage coming soon RMG25180230000 Fuel tank body €17.85
9
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
14
 photo_cameraImage coming soon RMG60140050000 Hex flange nuts €2.60
16
 photo_cameraImage coming soon RMGP70B07040000 Fan €22.03
17
 photo_cameraImage coming soon 92467 Flywheel assy €40.07
18
 photo_cameraImage coming soon 88621 Hex Flange Face Bolt €1.22
19
 photo_cameraImage coming soon RMGV510000000 Respirator Cover Plate €5.93
20
 photo_cameraImage coming soon RMGV510020000 Paper Gasket for Respirator Cover €1.31
29
 photo_cameraImage coming soon RMG60200490000 Gasket €5.01
30
 photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
32
 photo_cameraImage coming soon RMGV510103000 Handspike of Valve €2.11
33
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
34
 photo_cameraImage coming soon RMGV510004000 Speed Regulator Rocker €5.18
37
 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 RMGP70B01060000 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 €6.83
38
 photo_cameraImage coming soon RMG60410640000 Throttle control spring €3.45
39
 photo_cameraImage coming soon 92476 Connecting rod assy. €16.88
41
 photo_cameraImage coming soon 92477 Camshaft assy. €44.35
43
 photo_cameraImage coming soon RMGV510009000 Gear Gasket €3.79
44
 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 RMGV510007000 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 €7.03
45
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
46
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
47
 photo_cameraImage coming soon 92478 Rate-limiting gear assy. €3.24
48
 photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.95
51
 photo_cameraImage coming soon RMGV510008000 Crankcase Cover €54.47
54
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
57
 photo_cameraImage coming soon 92511 Lubricating Gauge Assy €8.67
60
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
61
 Air Cleaner for Self Propeller Lawnmover AMA LT 52H RMGP65040104000 Air Cleaner for Self Propeller Lawnmover AMA LT 52H €16.63
62
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
63
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
64
 Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
69
 photo_cameraImage coming soon RMGH140002000 Piston Pin €4.88
71
 photo_cameraImage coming soon RMGH140003000 Circlip of Piston Pin €3.89
75
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
76
 photo_cameraImage coming soon RMG75410610000 Carburetor €47.28
77
 photo_cameraImage coming soon 92482 Intake pipe paper pad II €3.96
78
 photo_cameraImage coming soon RMGP70B03040000 Air Inlet Pipe €3.55
81
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
82
 photo_cameraImage coming soon RMGP70B08020000 Push rod €5.47
83
 photo_cameraImage coming soon RMGP70B08030000 Guide Board of Handspike €3.08
85
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
86
 photo_cameraImage coming soon 92513 Valve adjustment nut €4.42
87
 photo_cameraImage coming soon 92514 And nuts €4.42
89
 photo_cameraImage coming soon 92483 Respirator head gasket €3.61
91
 photo_cameraImage coming soon RMGP65081100000 Valve Plate €4.78
92
 photo_cameraImage coming soon 92517 Spring Coil of Exhaust Valve €3.83
93
 photo_cameraImage coming soon RMGP70B08080000 Spring of Valve €1.62
95
 photo_cameraImage coming soon 79567 Spark plug €5.22
97
 photo_cameraImage coming soon RMGP70B08070000 Exhaust Valve €8.57
98
 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 RMGP70B08060000 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 €8.23
99
 photo_cameraImage coming soon RMG60280020000 Spacing pin €4.58
100
 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 RMGP70B02040000 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 €12.27
101
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
103
 photo_cameraImage coming soon 92523 Muffler cover assy. €12.52
108
 AMA Engine MVG-T680 Ignition Coil RMG75370032000 AMA Engine MVG-T680 Ignition Coil €31.90
112
 photo_cameraImage coming soon RMG25190250000 The transparent cover €12.01
113
 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 RMG65070100000 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 €32.93
115
 photo_cameraImage coming soon RMG25190210086 The transparent cover €3.83
117
 photo_cameraImage coming soon 92524 Single speed control panel €3.83

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower NRT-52X

Fix Your Self-Propelled Lawnmower MVG TX (196CC) STAGE V - Cod. 92599 - NRT-52X - 92635. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Engine Lawnmower and the respective parts of the code.
Ama NRT-52X - 92635

Self-Propelled Lawnmower NRT-52X - Cod. 92635
Handle Pag.1
# Part Num. Description
1 88566 Foam Rubber Handle Grip
2 89398 Stop lever
3 92562 Self-propelled Lever
4 84959 Upper handrail
5 88568 Rope Guide
6 88564 Cap nut
7 84822 Brake Cable Assy plate
10 89399 Plastic stopper
11 84836 Selfpropelled cable
12 84971 Brake cable
15 92504 Triangle knob
17 84973 Lower handrail
18 88247 Fastener
20 88571 Half round head square neck bolts
22 92503 Triangle knob
Deck Pag.2
1 92565 Deck welding assy.
3 89447 Inlet
4 90504 Pipe connector nut
5 89515 Cable stopper
6 88360 Left handle bracket
7 88361 Rigth handle bracket
10 88362 Height adjustment board
11 84976 Rear drive bracket
13 73221 Pull Spring for Pull Rod
14 84977 Height Adjustment Pull Rod
15 88625 R type pin
18 88244 Mulching plug
20 92558 Bracket plate for defelctor
21 92540 Mulching board
22 92508 Side discharge cover
23 88418 Mulch Shaft
24 84981 Mulch board spring
26 92544 Front mask
27 90263 Front mask
38 92550 Fixed block holder
39 92555 Limit block spring
40 92547 The side row overlays
41 92554 The side row covers
Traction Pag.3
1 84982 Rear drive assy.
1.1 92545 Height adjustment ball
2 92538 Selfpropelled assy.
3 92529 Bush
4 84976 Displacement pressure plate
5 84976 Displacement pressure plate
6 92549 Inner cover of hub
7 79423 Spring washer
8 89889 Selfpropelled ratchet washer
9 89919 Ratchet Wheel L
10 89920 Ratchet Wheel R
11 90304 Ratchet pin
12 89887 Wheel assy.
15 92532 Outer cover of hub
16 84986 Selfpropelled spring
17 88443 V-belt
18 92557 Brake spring
Front Axle Pag.4
1 92567 Front drive assy.
2 89885 Wheel assy
4 89450 Self-locking nut
5 92530 Outer cover of hub
7 92552 Resilient washer
Grass Box Pag.5
1 92556 Fabric metal frame
2 92507 Top of grass box
3 92551 Filter net of grass bag
4 92527 Fabric grass bag
5 92548 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
9 89883 Rear disch. cover dust proof board
10 88625 R type pin
11 90513 Blade washer
Blade Pag.6
1 84844 Blade Adapter Assy
2 84935 Blade
3 73223 Blade washer
4 84815 Inch hex flange bolts
5 88628 Hexagon head bolts
8 84989 Belt cover
9 92599 Petrol engine
Engine MVG TX (196CC) STAGE V - Cod. 92599 Pag.7
1 RMG25170110000 Fuel tank cap
2 RMGP65050106000 Fuel tank cap sponge
3 RMGP65050102000 Fuel Tank Cap seal gasket
4 92486 Connect cable of fuel cap
5 Standard Hex flange nuts
6 RMG60190310000 The oil tank mount big washer
7 RMG25310030000 Tank damping rubber pad
8 RMG25180230000 Fuel tank body
9 RMGP65050500000 Filtering Net Duct of Fuel
10 RMG60230020000 Fuel pipe lock clamp I
11 RMG25160020000 Fuel pipe
12 RMG60230010000 Fuel pipe lock clamp II
13 RMG60240250000 Fuel tank mounting bushing
14 RMG60140050000 Hex flange nuts
15 RMG75210020000 Starter hub
16 RMGP70B07040000 Fan
17 92467 Flywheel assy
18 88621 Bolt
19 RMGV510000000 Respirator Cover Plate
20 RMGV510020000 Respirator head gasket
21 RMGV510010000 Respirator valve plate
22 RMG75150010000 Oil filter
23 Standard Bolt
24 RMG75330060000 Main bracket of fuel tank
25 92475 Detent assy.
26 RMG75030070000 wind shield
27 92492 Waste pipe
28 RMGP65010105000 Rate-limiting rocker arm shaft
29 RMG60200490000 Gasket
30 RMGP65010112000 Oil seal
31 Standard R type pin
32 RMGV510103000 Handspike of Valve
33 RMGP65010601000 Valve spring
34 RMGV510004000 Throttle rocker arm
35 92496 Bolt
36 Standard Clip
37 RMGP70B01060000 Single phrase throttle assy.
38 RMG60410640000 Throttle control spring
39 92476 Connecting rod assy.
40 92495 Crankshaft assy.
41 92477 Camshaft assy.
42 RMGP65080300000 Pin
43 RMGV510009000 Clockwise gear gasket
44 RMGV510007000 Respirator head gasket
45 RMGP65010206000 Rate-limiting gear shaft
46 RMGP65010202000 Sliding Sleeve
47 92478 Rate-limiting gear assy.
48 RMGV410001000 Rate-limiting gear shaft
49 RMG60200060000 Gasket
50 RMG60280030000 Spacing pin
51 RMGV510008000 Crank box cover
52 RMG60280050000 Spacing pin
53 Standard Locking bolt
54 RMGP65010210000 Oil seal
55 92498 Oil drain bolt gasket
56 92497 Oil drain bolt
57 92511 Lubricating Gauge Assy
58 92499 Distance Sleeve of Lub. Setting
59 Standard Bolt
60 RMGP65040101000 Air Filter Upper Cover
61 RMGP65040104000 Paper filter
62 RMGP65040106000 Coarse sponge filter
63 RMGP65040103000 Exhaust Gas Cover Board
64 RMGP65040102002 Air filter base assy.(II)
65 RMG75130110000 Piston Ring II
66 RMG75130120000 Piston Ring II
67 RMG75090050000 Guide Rail
68 RMG75000060000 Bushing Ring
69 RMGH140002000 Piston pin
70 RMG75120070000 Piston
71 RMGH140003000 Washer
72 RMG60010140000 Rolling bearing
73 92494 Oil seal
74 RMG75500140000 Crankshaft box assy.
75 RMGP65030500000 Empty filter paper pad
76 RMG75410610000 Carburetor
77 92482 Intake pipe paper pad II
78 RMGP70B03040000 Air Inlet Pipe
79 RMGP70B03020000 Intake pipe paper pad I
80 60080030000 Dual-head bolts
81 RMGP65051000001 Prime button II
82 RMGP70B08020000 Push rod
83 RMGP70B08030000 Push rod director plate
84 92512 Valve rocker arm support bolts
85 RMGP65080200000 Rocker of Valve
86 92513 Valve adjustment nut
87 92514 And nuts
88 92515 Cylinder head cover II
89 92483 Respirator head gasket
90 92516 Cylinder head cover I
91 RMGP65081100000 Top Cover of Exhaust Valve
92 92517 Spring Coil of Exhaust Valve
93 RMGP70B08080000 valve spring
94 92518 Oil seal assy
95 79567 Spark plug
96 RMGP70B02010000 Cylinder head assy.
97 RMGP70B08070000 Exhaust Valve
98 RMGP70B08060000 Intake Valve
99 RMG60280020000 Spacing pin
100 RMGP70B02040000 Cylinder head gasket
101 RMGP65060200000 Muffler insulating pad
102 92485 Muffler assy.
103 92523 Muffler cover assy.
104 Standard Self-locking nut
105 92519 wind shield
106 Standard Bolt
107 RMG60080290000 Double-head bolts I
108 RMG75370032000 Ignition assy.
109 RMG60080210000 Double-head bolts II
110 Standard Bolt
111 RMG60080300000 Double-head bolts III
112 RMG25190250000 The transparent cover
113 RMG65070100000 Pull starter assy.
114 88564 Cap nut
115 RMG25190210086 The transparent cover
116 Standard Bolt
117 92524 Single speed control panel
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama NRT-52X - 92635
5 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Ama NRT-52

Diagram Ama NRT-52

Download (1.45MB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: -...
Last items in stock €32.44
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €0.54
Details
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65040104000
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
Air Cleaner for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Air Cleaner for Engine AMA MVG - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self...
Last items in stock €16.63
Details
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGV510007000
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Crank Case Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod....
Last items in stock €7.03
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €2.64
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Last items in stock €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €55.29
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
A.M.A. S.p.A. SKU: 89871
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 Genuine replacement part AMA, Rear Wheel Axle Sleeve for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products:...
AVAILABLE €1.54
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €0.34
Details
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGP70B02040000
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Cylinder Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod. 90260 -...
on 7/10 Business Days Approx €12.27
Details
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
A.M.A. S.p.A. SKU: RMG25170110000
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV Genuine replacement part AMA Garden, Fuel Tank Cap Assy for Engine AMA Garden MVG-T6 OHV 146 cc Part for the following products: -  Engine...
Last items in stock €10.50
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €11.90
Details
Handle Knob for Lawnmower AMA NRS-421
A.M.A. S.p.A. SKU: 92504
Handle Knob for Lawnmower AMA NRS-421
Handle Knob for Lawnmower AMA NRS-421 Genuine part AMA, Handle Knob for Lawnmowers AMA NRS-421 - NRS-461 - Rasaerba NRS-461T - NRT-461B. Part for the following products: -  Lawnmower AMA GARDEN NRS-421 -  Lawnmower AMA GARDEN NRS-461...
AVAILABLE €3.55
Details
Self-Propelled Ass'y for Lawnmower AMA NRT-521 - NRT-522 - NRT-52X
A.M.A. S.p.A. SKU: 92538
Self-Propelled Ass'y for Lawnmower AMA NRT-521
Self-Propelled Ass'y for Lawnmower AMA NRT-521 Genuine replacement part AMA, Self-Propelled Assy for Self-Propelled Lawnmower NRT-521 - NRT-522 - NRT-52X. Part for the following products:...
Last items in stock €128.12
Details
AMA NRT-52X Mulching Plug
A.M.A. S.p.A. SKU: 88244
AMA NRT-52X Mulching Plug
AMA Lawnmower NRT-52X Mulching Plug Original spare part AMA Garden, Mulching Plug for Lawmower NRT-52X - RT522 - RT522B. Parts for the following products: -  Lawnmower NRT-52X - 92635 - ...
Last items in stock €12.87
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
AMA NRS-461 Wheel Hubcap
A.M.A. S.p.A. SKU: 92530
AMA NRS-461 Wheel Hubcap
AMA Lawnmower NRS-461 Wheel Hubcap Original AMA Garden, Grey Front Wheel Hubcap for Lawnmower NRS-461 - NRS-461T - NRT-461. Parts for the following products: -  Lawnmower Ama NRS-461 - 90830 - ...
AVAILABLE €5.00
Details
AMA Engine MVG-T680 Ignition Coil
A.M.A. S.p.A. SKU: RMG75370032000
AMA Engine MVG-T680 Ignition Coil
AMA Engine MVG-T680 Ignition Coil Original AMA Garden, Ignition Coil Assy for Engine MVG-T680. Parts for the following products: -  Engine MVG - T680 - 90260 -  Lawnmower NRT-535 - 92630...
Last items in stock €31.90
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €5.50
Details
Comments (0)
