Ama Spare Parts for Lawnmower NRT-535

SKU: Ama NRT-535 - 92630
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-535

Ama original spare parts for to fix of engine or chassis parts or to repair damaged components of Self-Propelled Lawnmower MVG TX - NRT-535 - 92630.

Fix Your Lawnmower NRT-535. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Ama Spare Parts for Lawnmower NRT-535
  • Online only
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
  • Ama Spare Parts for Lawnmower NRT-535
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-535

SKU: Ama NRT-535 - 92630 Condition: New
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-535

Ama original spare parts for to fix of engine or chassis parts or to repair damaged components of Self-Propelled Lawnmower MVG TX - NRT-535 - 92630.

Fix Your Lawnmower NRT-535. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 195 Spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
195 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

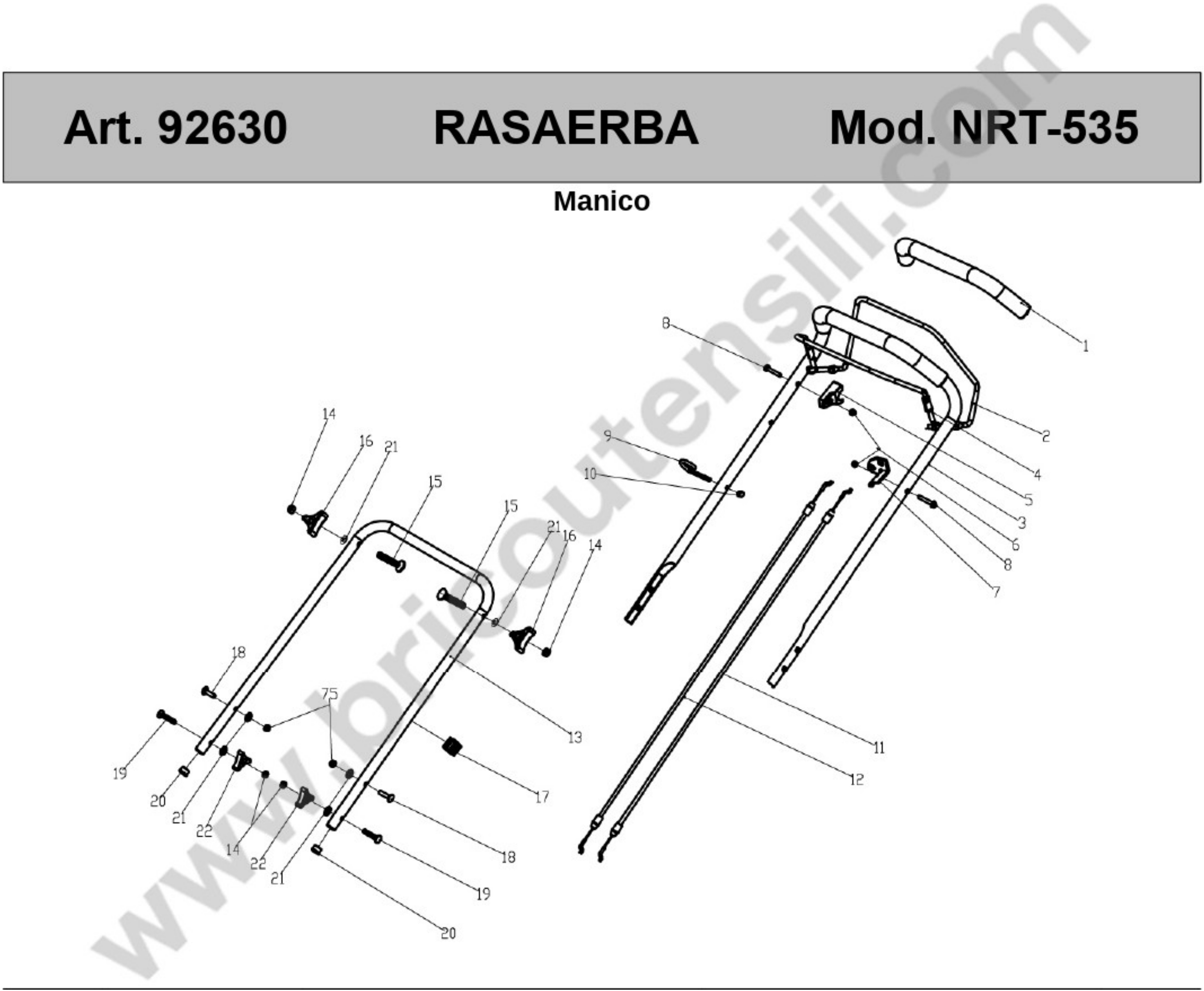

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €4.99
2
 photo_cameraImage coming soon 92562 Self-propelled Lever €9.96
3
 photo_cameraImage coming soon 89925 Upper handrail €55.96
4
 photo_cameraImage coming soon 89398 Stop lever €9.96 Not available for order
5
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €4.99
6
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70 Not available for order
8
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
9
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €4.99
10
 photo_cameraImage coming soon 88564 Cap nut €4.99 Not available for order
11
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H on Demand Only Call Us Before €9.96
12
 photo_cameraImage coming soon RMG70810220000 Brake cable €12.42
13
 photo_cameraImage coming soon 89926 Lower handrail €16.60
14
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
15
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €4.95
16
 Handle Knob for Lawnmower AMA NRS-421 92504 Handle Knob for Lawnmower AMA NRS-421 €4.99
17
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €4.99
18
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
19
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
20
 photo_cameraImage coming soon 89867 Handrail stopper €0.00 Not available for order
21
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
22
 photo_cameraImage coming soon 92503 Triangle knob €4.99

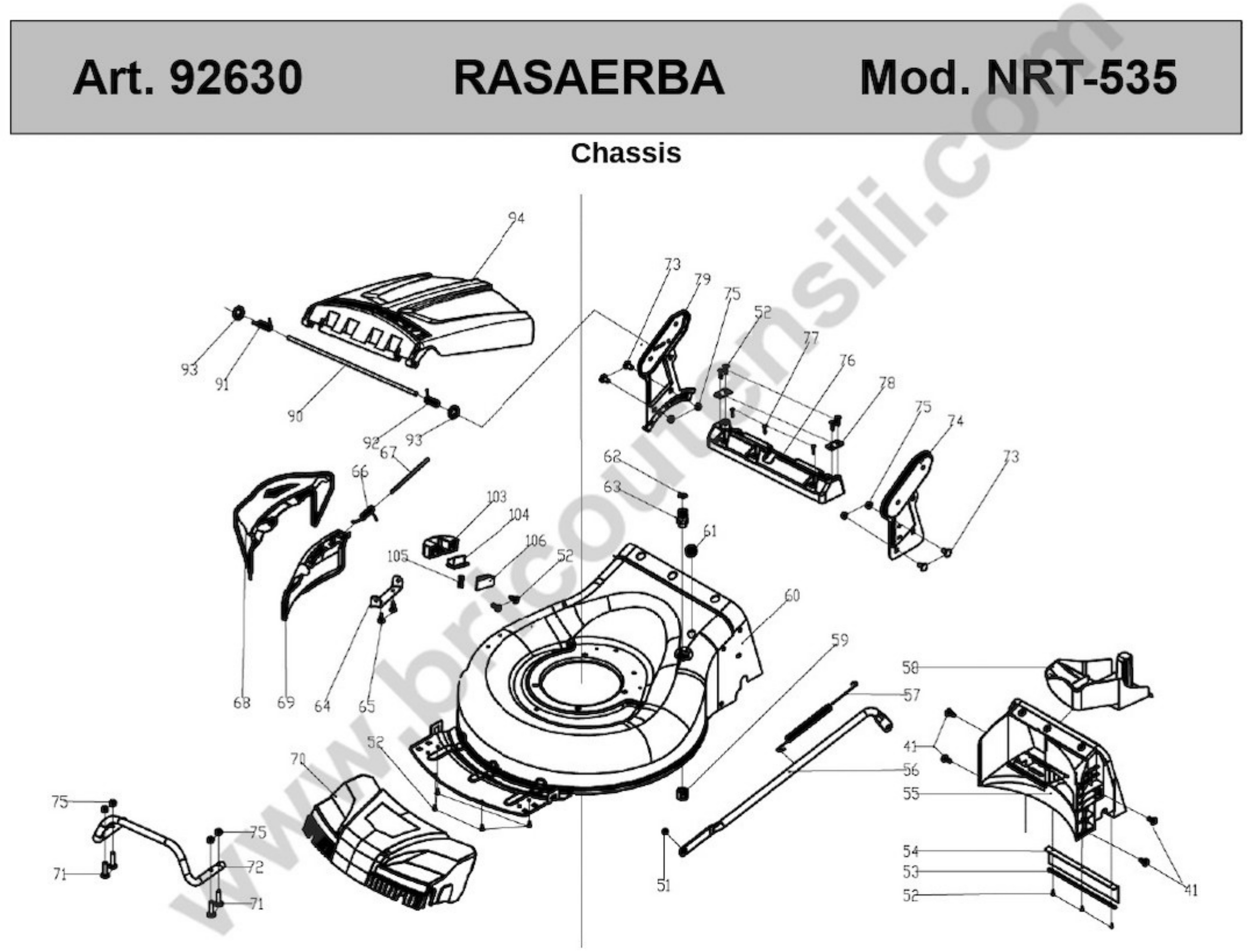

Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
41
 photo_cameraImage coming soon 90621 Phillips flat head self tapping screw €0.12 Not available for order
51
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
52
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
53
 photo_cameraImage coming soon 89921 Baseplate for rubber dust shield €11.03
54
 photo_cameraImage coming soon 89882 Rubber dust proof board €0.12 Not available for order
55
 photo_cameraImage coming soon 89870 Rear baffer €35.46
56
 photo_cameraImage coming soon 55633 Height Adjustment Pull Rod €0.12 Not available for order
57
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €3.23
58
 photo_cameraImage coming soon 89862 Mulching plug €19.91
59
 photo_cameraImage coming soon 90504 Pipe connector nut €4.99 Not available for order
60
 photo_cameraImage coming soon 55634 Deck assy €0.12 Not available for order
61
 photo_cameraImage coming soon 89515 Cable stopper €4.99
62
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
63
 Inlet 89447 Inlet €4.99
64
 photo_cameraImage coming soon 55635 Bracket plate for defelctor €0.12 Not available for order
65
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
66
 photo_cameraImage coming soon 89899 Mulch board spring €3.72
67
 photo_cameraImage coming soon 88583 Mulch Shaft €4.99
68
 photo_cameraImage coming soon 55636 Side discharge cover €9.36
69
 photo_cameraImage coming soon 55637 Mulching board €0.12 Not available for order
70
 photo_cameraImage coming soon 89863 Deck front mask €24.19
71
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
72
 photo_cameraImage coming soon 89922 Front bumper €0.12 Not available for order
73
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
74
 photo_cameraImage coming soon 89908 Left bracket €0.12 Not available for order
75
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
76
 photo_cameraImage coming soon 55638 Rubber dust proof board €0.12 Not available for order
77
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
78
 photo_cameraImage coming soon 55639 Bracket plate €0.12 Not available for order
79
 photo_cameraImage coming soon 89904 Right bracket €0.12 Not available for order
90
 photo_cameraImage coming soon 90593 Shaft for rear discharge cover €4.57
91
 AMA RTT531 Cover Spring 90493 AMA RTT531 Cover Spring €3.76
92
 AMA RTT531B Cover Spring 90492 AMA RTT531B Cover Spring €3.76
93
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
94
 photo_cameraImage coming soon 55640 Rear discharge cover €0.12 Not available for order
103
 photo_cameraImage coming soon 92550 Control board upper cover €4.99 Not available for order
104
 photo_cameraImage coming soon 92547 Rear discharge cover €9.96
105
 photo_cameraImage coming soon 92555 Cover spring €4.99
106
 photo_cameraImage coming soon 92554 Gasket €4.99

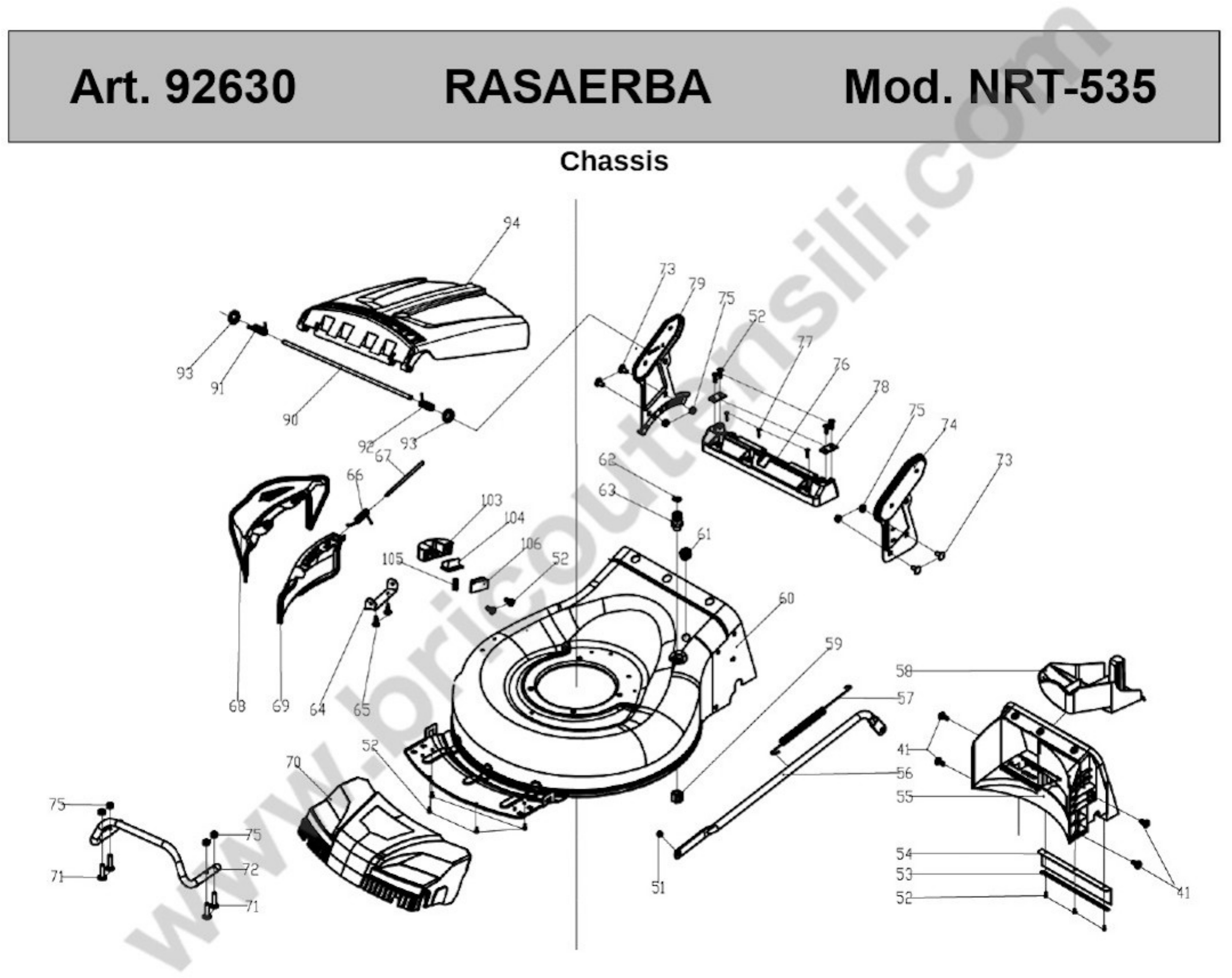

Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
23
 photo_cameraImage coming soon 89450 Self-locking nut €4.99
24
 photo_cameraImage coming soon 55631 Outer cover of hub €0.12 Not available for order
25
 Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B 90489 Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B €29.90
26
 photo_cameraImage coming soon 55632 height adjustment handle €0.12 Not available for order
27
 photo_cameraImage coming soon 89872 Inner cover of hub €6.05
28
 photo_cameraImage coming soon 88633 Gasket €0.00 Not available for order
29
 photo_cameraImage coming soon 89932 Rear drive assy. €37.48
30
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €4.99 Not available for order
31
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €4.97
32
 photo_cameraImage coming soon 89890 Selfpropelled ratchet washer €0.00 Not available for order
33
 photo_cameraImage coming soon 90386 Ratchet Wheel L €17.51
34
 Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 89871 Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 €1.54
35
 photo_cameraImage coming soon 92529 Rear wheel axle sleeve €4.99
36
 Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B 90488 Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B €4.95
37
 photo_cameraImage coming soon 90487 Selfpropelled assy. €80.12
38
 photo_cameraImage coming soon 90387 Ratchet Wheel R €17.49
39
 photo_cameraImage coming soon 84938 Rear drive right bracket €4.99
40
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
42
 Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B 89897 Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B €17.48
43
 photo_cameraImage coming soon 90314 Brake spring €9.49
44
 Self-Propelled Spring for Lawnmower AMA NRT-535 RMG60410670000 Self-Propelled Spring for Lawnmower AMA NRT-535 €4.69
45
 photo_cameraImage coming soon 84939 Rear drive left bracket €3.08

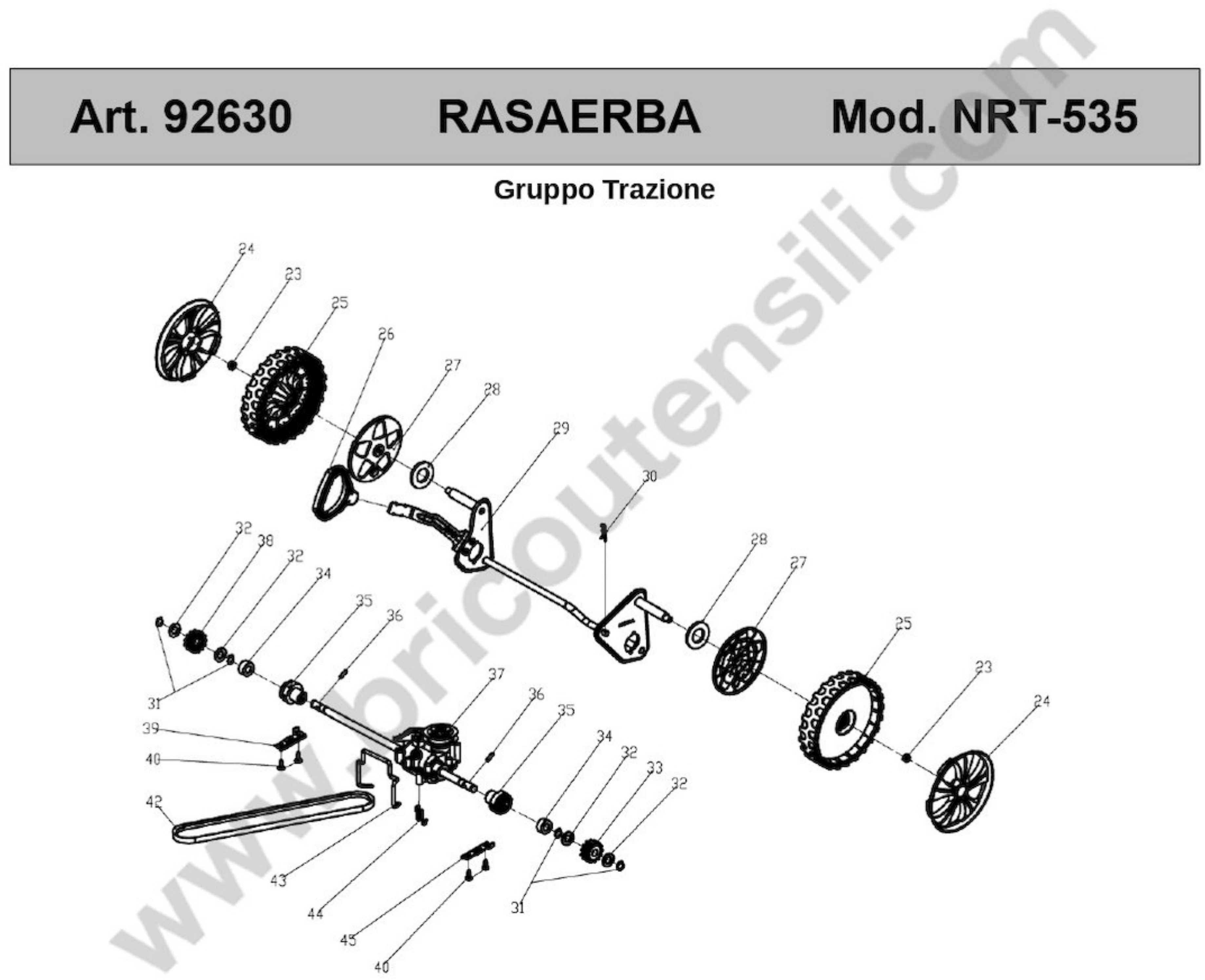

Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
82
 photo_cameraImage coming soon 92531 Outer cover of hub €4.54
83
 photo_cameraImage coming soon 90592 Wheel assy. €20.17
84
 photo_cameraImage coming soon 89873 Inner cover of hub €6.05
85
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
86
 photo_cameraImage coming soon 89930 Front drive assy. €37.48
87
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
88
 photo_cameraImage coming soon 89924 Left pedestal for front drive €5.38
89
 photo_cameraImage coming soon 89923 Right pedestal for front drive €5.38

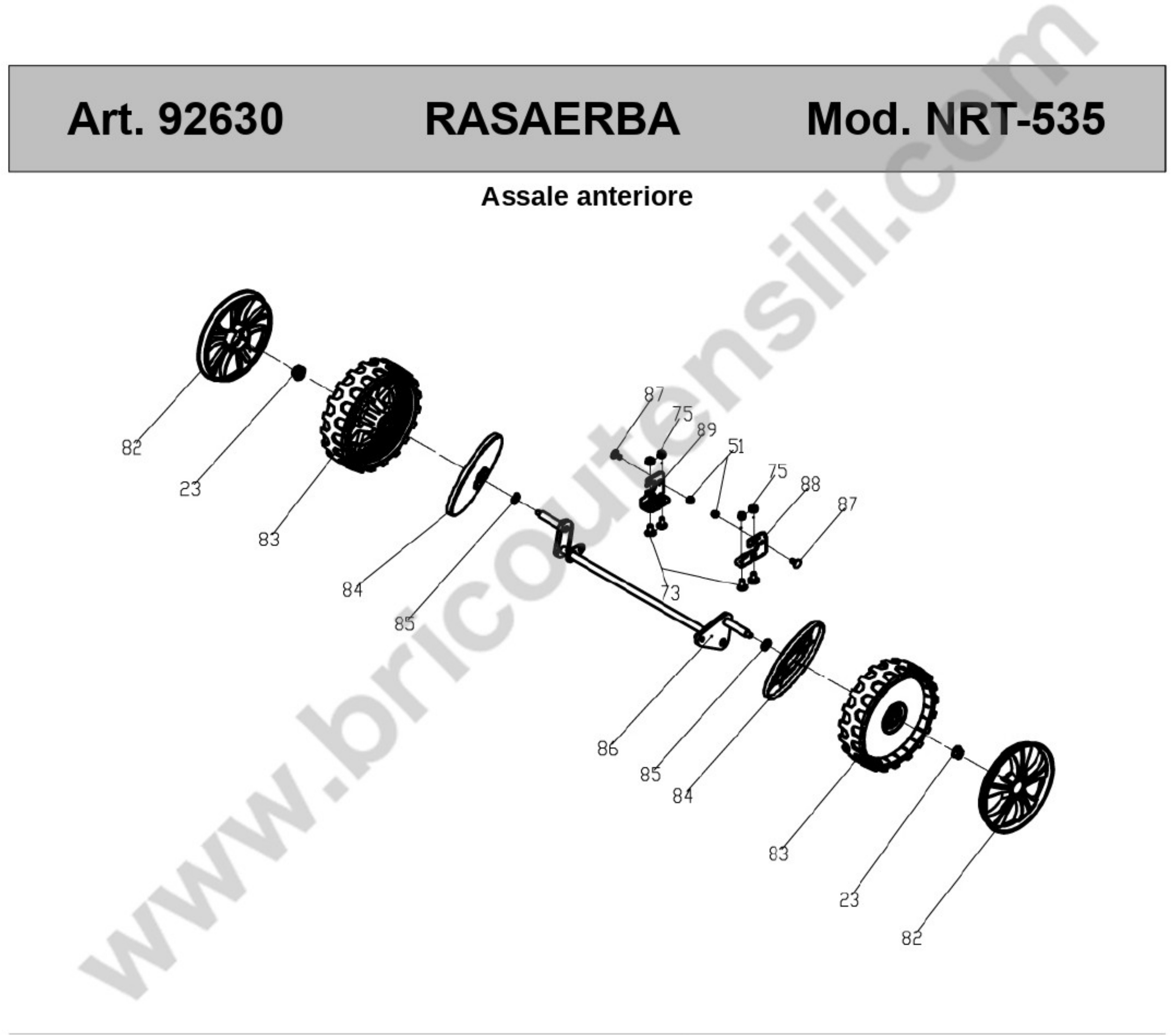

Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
95
 photo_cameraImage coming soon 55641 Top of grass box €0.12 Not available for order
96
 photo_cameraImage coming soon 89499 Air-out board of fabric grass bag €4.69
97
 photo_cameraImage coming soon 90528 Handle cover €4.66
98
 photo_cameraImage coming soon 90529 Plastic top frame €0.12 Not available for order
99
 photo_cameraImage coming soon 55642 Fabric grass bag €43.29
100
 photo_cameraImage coming soon 55643 Rubber dust proof board €0.12 Not available for order
101
 photo_cameraImage coming soon 55644 Rubber dust proof board €0.12 Not available for order
102
 photo_cameraImage coming soon 90513 Blade washer €0.12 Not available for order

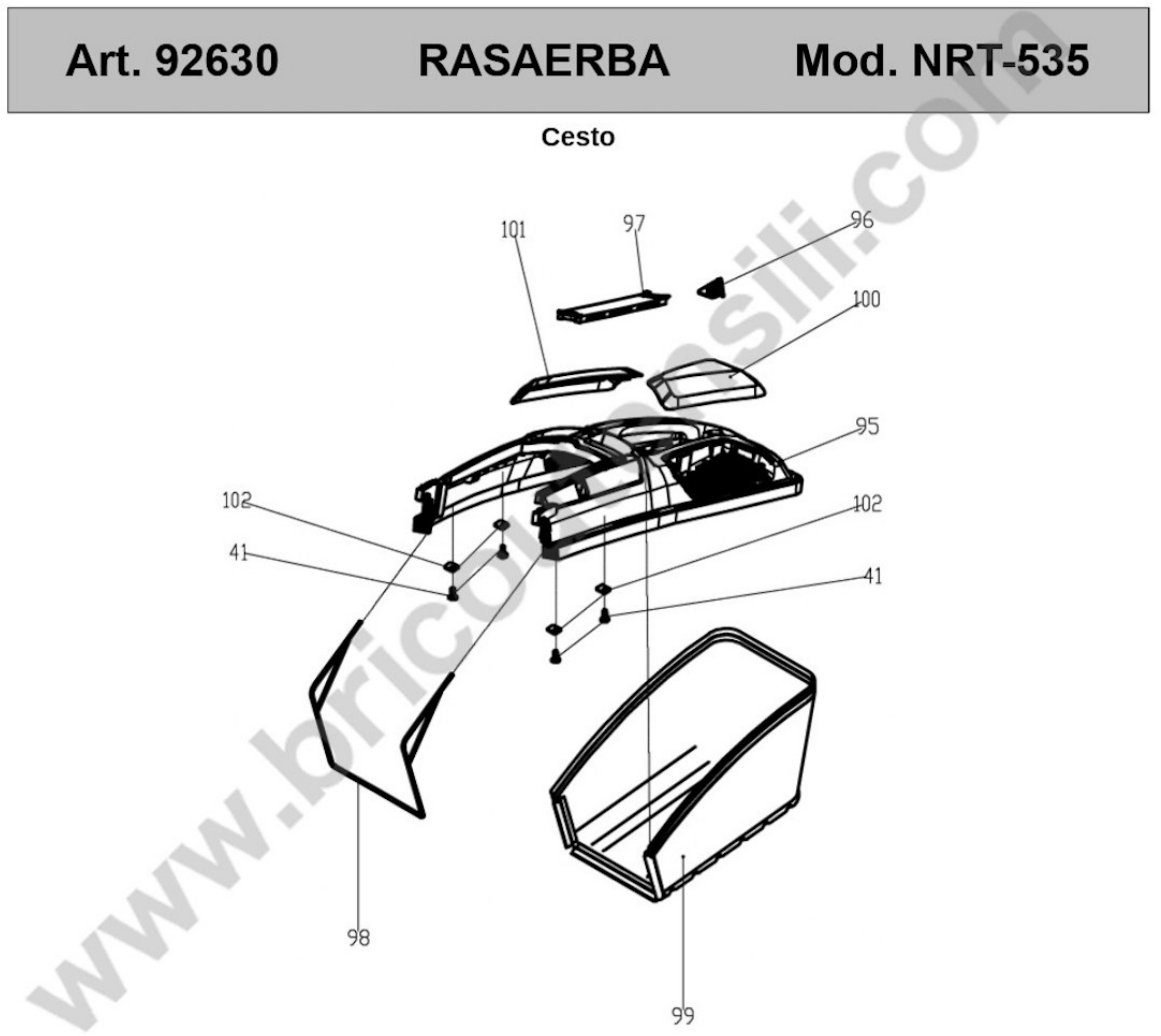

Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
46
 photo_cameraImage coming soon 89892 Blade bolt €6.80
47
 photo_cameraImage coming soon 90308 Blade washer €4.94
48
 Blade 53 cm for Self-Propelled Lawnmowers RTT531 - RTT531B 90416 Blade 53 cm for Self-Propelled Lawnmowers RTT531 - RTT531B €35.94
49
 Blade Boss for Self-Propelled Lawnmowers RTT531 - RTT531B 90417 Blade Boss for Self-Propelled Lawnmowers RTT531 - RTT531B €23.80
50
 AMA RTT531 Belt Cover 89880 AMA RTT531 Belt Cover €15.99
80
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €4.99 Not available for order
81
 photo_cameraImage coming soon 92599 Petrol engine MVGTX (196CC) STAGE V - Cod. 92599 €335.05

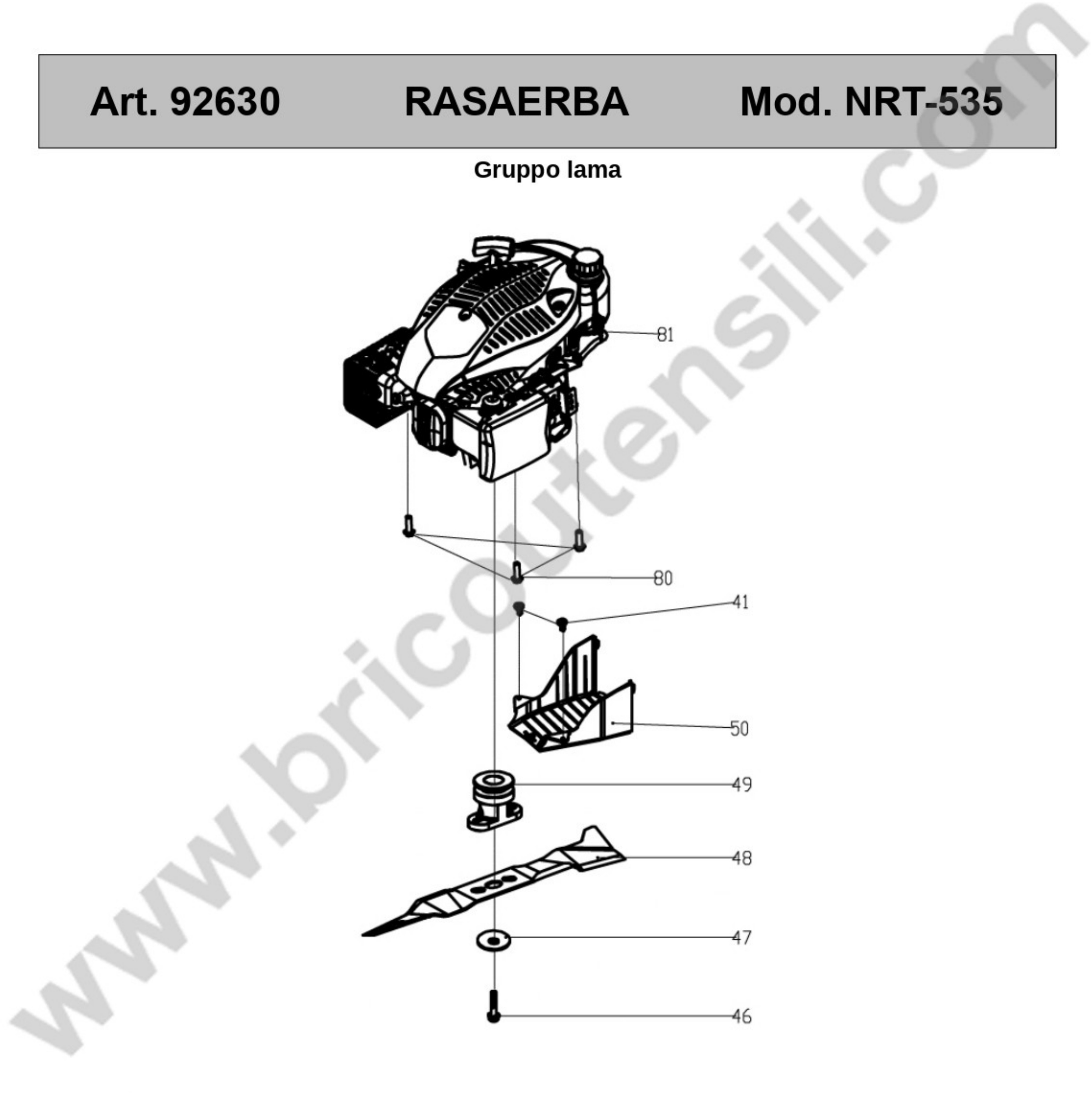

Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV RMG25170110000 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV €4.99
2
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €4.99
3
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €4.99
4
 photo_cameraImage coming soon 92486 Connect cable of fuel cap €3.83
5
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
6
 photo_cameraImage coming soon RMG60190310000 W asher €0.12 Not available for order
7
 photo_cameraImage coming soon RMG25310030000 Cushion Blocking €0.12 Not available for order
8
 photo_cameraImage coming soon RMG25180230000 Fuel tank body €9.96
9
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €4.99
10
 photo_cameraImage coming soon RMG60230020000 Fuel pipe lock clamp I €0.12 Not available for order
11
 photo_cameraImage coming soon RMG25160020000 Fuel pipe €0.12 Not available for order
12
 photo_cameraImage coming soon RMG60230010000 Fuel pipe lock clamp II €0.12 Not available for order
13
 photo_cameraImage coming soon RMG60240250000 Bush €9.96
14
 photo_cameraImage coming soon RMG60140050000 Hex flange nuts €2.60
15
 photo_cameraImage coming soon RMG75210020000 Starter hub €0.12 Not available for order
16
 photo_cameraImage coming soon RMGP70B07040000 Fan €22.03
17
 photo_cameraImage coming soon 92467 Flywheel assy €40.07
18
 photo_cameraImage coming soon 88621 Hex Flange Face Bolt €4.99
19
 photo_cameraImage coming soon RMGV510000000 Respirator Cover Plate €5.93
20
 photo_cameraImage coming soon RMGV510020000 Paper Gasket for Respirator Cover €1.31
21
 photo_cameraImage coming soon RMGV510010000 Valve Element of Respirator Cover €0.00 Not available for order
22
 photo_cameraImage coming soon RMG75150010000 Oil filter €0.12 Not available for order
23
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
24
 photo_cameraImage coming soon RMG75330060000 Main bracket of fuel tank €0.12 Not available for order
25
 photo_cameraImage coming soon 92475 Detent assy. €0.12 Not available for order
26
 photo_cameraImage coming soon RMG75030070000 Wind shield €0.12 Not available for order
27
 photo_cameraImage coming soon 92492 Waste pipe €0.12 Not available for order
28
 photo_cameraImage coming soon RMGP65010105000 Speed Regulator Rocker Spindle €4.99 Not available for order
29
 photo_cameraImage coming soon RMG60200490000 Gasket €4.99
30
 photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
31
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
32
 photo_cameraImage coming soon RMGV510103000 Handspike of Valve €2.11
33
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €4.99
34
 photo_cameraImage coming soon RMGV510004000 Speed Regulator Rocker €5.18
35
 photo_cameraImage coming soon 92496 Bolt €0.12 Not available for order
36
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
37
 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 RMGP70B01060000 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 €4.99 Not available for order
38
 photo_cameraImage coming soon RMG60410640000 Throttle control spring €3.45
39
 photo_cameraImage coming soon 92476 Connecting rod assy. €16.88
40
 photo_cameraImage coming soon 92495 Crankshaft assy. €0.12 Not available for order
41
 photo_cameraImage coming soon 92477 Camshaft assy. €44.35
42
 photo_cameraImage coming soon RMGP65080300000 Tappet-Valve €0.12 Not available for order
43
 photo_cameraImage coming soon RMGV510009000 Gear Gasket €3.79
44
 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 RMGV510007000 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 €7.03
45
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
46
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.99
47
 photo_cameraImage coming soon 92478 Rate-limiting gear assy. €4.99
48
 photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.99 Not available for order
49
 photo_cameraImage coming soon RMG60200060000 Gasket €0.12 Not available for order
50
 photo_cameraImage coming soon RMG60280030000 Spacing pin €0.12 Not available for order
51
 photo_cameraImage coming soon RMGV510008000 Crankcase Cover €54.47
52
 photo_cameraImage coming soon RMG60280050000 Spacing pin €0.12 Not available for order
54
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €4.99
55
 photo_cameraImage coming soon 92498 Oil drain bolt gasket €0.12 Not available for order
56
 photo_cameraImage coming soon 92497 Oil drain bolt €0.12 Not available for order
57
 photo_cameraImage coming soon 92511 Lubricating Gauge Assy €8.67
58
 photo_cameraImage coming soon 92499 Distance Sleeve of Lub. Setting €0.12 Not available for order
59
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
60
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
61
 Air Cleaner for Self Propeller Lawnmover AMA LT 52H RMGP65040104000 Air Cleaner for Self Propeller Lawnmover AMA LT 52H €6.50
62
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
63
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
64
 Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
65
 photo_cameraImage coming soon RMG75130110000 Piston Ring II €0.12 Not available for order
66
 photo_cameraImage coming soon RMG75130120000 Piston Ring II €0.12 Not available for order
67
 photo_cameraImage coming soon RMG75090050000 Guide Rail €0.12 Not available for order
68
 photo_cameraImage coming soon RMG75000060000 Bushing Ring €0.12 Not available for order
69
 photo_cameraImage coming soon RMGH140002000 Piston Pin €4.88
70
 photo_cameraImage coming soon RMG75120070000 Piston €0.12 Not available for order
71
 photo_cameraImage coming soon RMGH140003000 Circlip of Piston Pin €3.89
72
 photo_cameraImage coming soon RMG60010140000 Rolling bearing €0.12 Not available for order
73
 photo_cameraImage coming soon 92494 Oil seal €0.12 Not available for order
74
 photo_cameraImage coming soon RMG75500140000 Crankshaft box assy. €0.12 Not available for order
75
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €4.99
76
 photo_cameraImage coming soon RMG75410610000 Carburetor €47.28
77
 photo_cameraImage coming soon 92482 Intake pipe paper pad II €3.96
78
 photo_cameraImage coming soon RMGP70B03040000 Air Inlet Pipe €3.55
79
 photo_cameraImage coming soon RMGP70B03020000 Intake pipe paper pad I €0.00 Not available for order
80
 photo_cameraImage coming soon 60080030000 Dual-head bolts €0.12 Not available for order
81
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €4.99
82
 photo_cameraImage coming soon RMGP70B08020000 Push rod €5.47
83
 photo_cameraImage coming soon RMGP70B08030000 Guide Board of Handspike €3.08
84
 photo_cameraImage coming soon 92512 Valve rocker arm support bolts €0.12 Not available for order
85
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
86
 photo_cameraImage coming soon 92513 Valve adjustment nut €4.42
87
 photo_cameraImage coming soon 92514 And nuts €4.42
88
 photo_cameraImage coming soon 92515 Cylinder head cover II €0.12 Not available for order
89
 photo_cameraImage coming soon 92483 Respirator head gasket €3.61
90
 photo_cameraImage coming soon 92516 Cylinder head cover I €0.12 Not available for order
91
 photo_cameraImage coming soon RMGP65081100000 Valve Plate €4.99
92
 photo_cameraImage coming soon 92517 Spring Coil of Exhaust Valve €4.99 Not available for order
93
 photo_cameraImage coming soon RMGP70B08080000 Spring of Valve €4.99
94
 photo_cameraImage coming soon 92518 Oil seal assy €0.12 Not available for order
95
 photo_cameraImage coming soon 79567 Spark plug €5.22
96
 photo_cameraImage coming soon RMGP70B02010000 Testa Cpl.  €0.12 Not available for order
97
 photo_cameraImage coming soon RMGP70B08070000 Exhaust Valve €8.57
98
 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 RMGP70B08060000 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 €8.23
99
 photo_cameraImage coming soon RMG60280020000 Spacing pin €6.48 Not available for order
100
 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 RMGP70B02040000 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 €12.27
101
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €4.99
102
 photo_cameraImage coming soon 92485 Muffler assy. €0.12 Not available for order
103
 photo_cameraImage coming soon 92523 Muffler cover assy. €12.52
104
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
105
 photo_cameraImage coming soon 92519 wind shield €0.12 Not available for order
106
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
107
 photo_cameraImage coming soon RMG60080290000 Double-head bolts I €0.12 Not available for order
108
 AMA Engine MVG-T680 Ignition Coil RMG75370032000 AMA Engine MVG-T680 Ignition Coil €31.90 Not available for order
109
 photo_cameraImage coming soon RMG60080210000 Double-head bolts II €0.12 Not available for order
110
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
111
 photo_cameraImage coming soon RMG60080300000 Double-head bolts III €0.12 Not available for order
112
 photo_cameraImage coming soon RMG25190250000 The transparent cover €9.96
113
 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 RMG65070100000 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 €18.50
114
 photo_cameraImage coming soon 88564 Cap nut €4.99 Not available for order
115
 photo_cameraImage coming soon RMG25190210086 The transparent cover €4.99
116
 photo_cameraImage coming soon Standard Screw M5×16 €0.12 Not available for order
117
 photo_cameraImage coming soon 92524 Single speed control panel €3.83

Shipping and delivery information will be available shortly.

Ama Spare Parts for Lawnmower NRT-535

Fix Your Self-Propelled Lawnmower MVGTX (196CC) STAGE V - Cod. 92599 - NRT-535 - 92630.. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Engine Lawnmower and the respective parts of the code.
Ama NRT-535 - 92630

SELF PROPELLED LAWNMOWER NRT-535 code 92630
# Part Num. Description
HANDLE Pag.1
1 88566 Foam Rubber Handle Grip
2 92562 Self-propelled Lever
3 89925 Upper handrail
4 89398 Stop lever
5 89399 Lever guard
6 Standard Hex lock nut
7 84822 Brake Cable Assy plate
8 Standard Bolt
9 88568 Rope Guide
10 88564 Cap nut
11 84836 Selfpropelled cable
12 RMG70810220000 Brake cable
13 89926 Lower handrail
14 Standard Hexagon nut
15 89893 Heterotypic carriage bolts
16 92504 Triangle knob
17 88247 Fastener
18 Standard Half round head square neck bolts
19 Standard Heterotypic carriage bolts
20 89867 Handrail stopper
21 Standard Flat Gasket
22 92503 Triangle knob
DEC Pag.2
51 Standard Self-locking nut
52 Standard Phillips flat head self tapping screw
53 89921 Baseplate for rubber dust shield
54 89882 Rubber dust proof board
55 89870 Rear baffer
56 55633 Height Adjustment Pull Rod
57 73221 Pull Spring for Pull Rod
58 89862 Mulching plug
59 90504 Inlet
60 55634 Deck assy
61 89515 Cable stopper
62 Standard O ring
63 89447 Inlet
64 55635 Bracket plate for defelctor
65 Standard Self tapping screw
66 89899 Mulch board spring
67 88583 Mulch Shaft
68 55636 Side discharge cover
69 55637 Mulching board
70 89863 Deck front mask
71 Standard Half round head square neck bolts
72 89922 Front bumper
73 Standard Half round head square neck bolts
74 89908 Left bracket
75 Standard Hex lock nut
76 55638 Rubber dust proof board
77 Standard Cross recessed count. Head screws
78 55639 Bracket plate
79 89904 Right bracket
90 90593 Shaft for rear discharge cover
91 90493 Left Cover spring
92 90492 Right Cover spring
93 Standard Lock washer
94 55640 Rear discharge cover
103 92550 Control board upper cover
104 92547 Block
105 92555 Cover spring
106 92554 Gasket
GEAR BOX Pag.3
23 89450 Self-locking nut
24 55631 Outer cover of hub
25 90489 Wheel assy
26 55632 height adjustment handle
27 89872 Inner cover of hub
28 88633 Gasket
29 89932 Rear drive assy.
30 88625 R type pin
31 79423 Spring washer
32 89890 Selfpropelled ratchet washer
33 90386 Ratchet Wheel R
34 89871 Rear wheel axle sleeve
35 92529 Rear wheel axle sleeve
36 90488 Bratchet pin
37 90487 Selfpropelled assy.
38 90387 Ratchet Wheel L
39 84938 Rear plate R
40 Standard Phillips flat head self tapping screw
41 90621 Phillips flat head self tapping screw
42 89897 V-Belt
43 90314 Brake spring
44 RMG60410670000 Self-propelled Spring
45 84939 Rear plate L
FRONT AXLE Pag.4
82 92531 Outer cover of hub
83 90592 Wheel assy
84 89873 Inner cover of hub
85 Standard Gasket
86 89930 Welding front drive assy.
87 Standard Half round head square neck bolts
88 89924 Left pedestal for front drive
89 89923 Right pedestal for front drive
GRASS CATCH Pag.5
95 55641 Top of grass box
96 89499 Air-out board of grass bag cover
97 90528 Handle cover
98 90529 Plastic top frame
99 55642 Fabric grass bag
100 55643 Rubber dust proof board
101 55644 Rubber dust proof board
102 90513 Washer
BLADE Pag.6
46 89892 Blade bolt
47 90308 Blade washer
48 90416 Blade
49 90417 Blade Adapter
50 89880 Belt cover
80 88628 Hexagon head bolts
81 92599 Petrol engine MVGTX (196CC) STAGE V - Cod. 92599
ENGINE MODEL MVGTX (196CC) STAGE V - Cod. 92599 Pag.7
1 RMG25170110000 Fuel tank cap
2 RMGP65050106000 Fuel tank cap sponge
3 RMGP65050102000 Fuel Tank Cap seal gasket
4 92486 Connect cable of fuel cap
5 Standard Hex flange nuts
6 RMG60190310000 The oil tank mount big washer
7 RMG25310030000 Tank damping rubber pad
8 RMG25180230000 Fuel tank body
9 RMGP65050500000 Filtering Net Duct of Fuel
10 RMG60230020000 Fuel pipe lock clamp I
11 RMG25160020000 Fuel pipe
12 RMG60230010000 Fuel pipe lock clamp II
13 RMG60240250000 Fuel tank mounting bushing
14 RMG60140050000 Hex flange nuts
15 RMG75210020000 Starter hub
16 RMGP70B07040000 Fan
17 92467 Flywheel assy
18 88621 Bolt
19 RMGV510000000 Respirator Cover Plate
20 RMGV510020000 Respirator head gasket
21 RMGV510010000 Respirator valve plate
22 RMG75150010000 Oil filter
23 Standard Bolt
24 RMG75330060000 Main bracket of fuel tank
25 92475 Detent assy.
26 RMG75030070000 wind shield
27 92492 Waste pipe
28 RMGP65010105000 Rate-limiting rocker arm shaft
29 RMG60200490000 Gasket
30 RMGP65010112000 Oil seal
31 Standard R type pin
32 RMGV510103000 Handspike of Valve
33 RMGP65010601000 Valve spring
34 RMGV510004000 Throttle rocker arm
35 92496 Bolt
36 Standard Clip
37 RMGP70B01060000 Single phrase throttle assy.
38 RMG60410640000 Throttle control spring
39 92476 Connecting rod assy.
40 92495 Crankshaft assy.
41 92477 Camshaft assy.
42 RMGP65080300000 Pin
43 RMGV510009000 Clockwise gear gasket
44 RMGV510007000 Crank case gasket
45 RMGP65010206000 Rate-limiting gear shaft
46 RMGP65010202000 Sliding Sleeve
47 92478 Rate-limiting gear assy.
48 RMGV410001000 Rate-limiting gear shaft
49 RMG60200060000 Gasket
50 RMG60280030000 Spacing pin
51 RMGV510008000 Crank box cover
52 RMG60280050000 Spacing pin
53 Standard Locking bolt
54 RMGP65010210000 Oil seal
55 92498 Oil drain bolt gasket
56 92497 Oil drain bolt
57 92511 Lubricating Gauge Assy
58 92499 Distance Sleeve of Lub. Setting
59 Standard Bolt
60 RMGP65040101000 Air Filter Upper Cover
61 RMGP65040104000 Paper filter
62 RMGP65040106000 Coarse sponge filter
63 RMGP65040103000 Exhaust Gas Cover Board
64 RMGP65040102002 Air filter base assy.(II)
65 RMG75130110000 Piston Ring II
66 RMG75130120000 Piston Ring II
67 RMG75090050000 Guide Rail
68 RMG75000060000 Bushing Ring
69 RMGH140002000 Piston pin
70 RMG75120070000 Piston
71 RMGH140003000 Washer
72 RMG60010140000 Rolling bearing
73 92494 Oil seal
74 RMG75500140000 Crankshaft box assy.
75 RMGP65030500000 Empty filter paper pad
76 RMG75410610000 Carburetor
77 92482 Intake pipe paper pad II
78 RMGP70B03040000 Air Inlet Pipe
79 RMGP70B03020000 Intake pipe paper pad I
80 60080030000 Dual-head bolts
81 RMGP65051000001 Prime button II
82 RMGP70B08020000 Push rod
83 RMGP70B08030000 Push rod director plate
84 92512 Valve rocker arm support bolts
85 RMGP65080200000 Rocker of Valve
86 92513 Valve adjustment nut
87 92514 And nuts
88 92515 Cylinder head cover II
89 92483 Respirator head gasket
90 92516 Cylinder head cover I
91 RMGP65081100000 Top Cover of Exhaust Valve
92 92517 Spring Coil of Exhaust Valve
93 RMGP70B08080000 valve spring
94 92518 Oil seal assy
95 79567 Spark plug
96 RMGP70B02010000 Cylinder head assy.
97 RMGP70B08070000 Exhaust Valve
98 RMGP70B08060000 Intake Valve
99 RMG60280020000 Spacing pin
100 RMGP70B02040000 Cylinder head gasket
101 RMGP65060200000 Muffler insulating pad
102 92485 Muffler assy.
103 92523 Muffler cover assy.
104 Standard Self-locking nut
105 92519 wind shield
106 Standard Bolt
107 RMG60080290000 Double-head bolts I
108 RMG75370032000 Ignition assy.
109 RMG60080210000 Double-head bolts II
110 Standard Bolt
111 RMG60080300000 Double-head bolts III
112 RMG25190250000 The transparent cover
113 RMG65070100000 Pull starter assy.
114 88564 Cap nut
115 RMG25190210086 The transparent cover
116 Standard Bolt
117 92524 Single speed control panel
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama NRT-535 - 92630
6 Items

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Lawn Mowers
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Ama NRT-535

Drawing Ama NRT-535

Download (853.02KB)

You might also like

Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84989
Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522
Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H. Part for the following products: - Self-Propelled Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €9.96
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: - Self-Propelled Lawnmower AMA RT521 -...
on Demand Only Call Us Before €21.25
Details
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84815
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Blade Special Bolt for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: - Lawnmower AMA RS461 - Lawnmower AMA RS421 -...
AVAILABLE €1.45
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
Out-of-Stock €4.99
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
AVAILABLE €18.31
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled Lawnmover AMA LT 52H Art. 84878 -...
on Demand Only Call Us Before €9.96
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
Out-of-Stock €5.02
Details
Drive Group Right Gear for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 89920
Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522
Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 Genuine part AMA, Ratchet Wheel Right Side Gear for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled Lawnmower NRT-521 - 90860 -...
Usually Ships in: 7/10 Business Days Approx. €10.50
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.99
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €4.99
Details
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65040104000
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
Air Cleaner for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Air Cleaner for Engine AMA MVG - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover AMA LT 52H...
Usually Ships in: 7/10 Business Days Approx. €6.50
Details
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGV510007000
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Crank Case Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod....
AVAILABLE €7.03
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €4.99
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
AVAILABLE €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
on 7/10 Business Days Approx €27.79
Details
Engine Stop Cable for Self-Propelled Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 84830
Engine Stop Cable for Self-Propelled Lawnmower AMA RT522
Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 Genuine spare part AMA, Engine Stop Cable for Self-Propelled Lawnmowers RT522 - RT522B - RTE 521 - RTT531 - RTT531B - NRT-522 - RTM 521. Part for the following products: -...
AVAILABLE €17.48
Details
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 88443
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-521
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-521 Genuine replacement part AMA, Traction V-Belt for Self-Propelled Lawnmower NRT-521 90860 - NRT-522 90865. Part for the following products: -  Self-Propelled Lawnmower NRT-521 -...
on 7/10 Business Days Approx €10.50
Details
Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 89919
Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521
Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 Genuine replacement part AMA, Ratchet Wheel Left Sidet for Self-Propelled Lawnmower NRT-521 90860 - NRT-522 90865. Part for the following products: -  Self-Propelled...
Usually Ships in: 7/10 Business Days Approx. €10.50
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
AVAILABLE €3.23
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
AVAILABLE €4.95
Details
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
A.M.A. S.p.A. SKU: 89871
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 Genuine replacement part AMA, Rear Wheel Axle Sleeve for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products:...
AVAILABLE €1.54
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €4.97
Details
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGP70B02040000
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Cylinder Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod. 90260 -...
on 7/10 Business Days Approx €12.27
Details
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
A.M.A. S.p.A. SKU: RMG25170110000
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV Genuine replacement part AMA Garden, Fuel Tank Cap Assy for Engine AMA Garden MVG-T6 OHV 146 cc Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €4.99
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €4.99
Details
Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B
A.M.A. S.p.A. SKU: 90489
Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B
Rear Wheel Assembly for Self-Propelled Lawnmowers RTT531 - RTT531B Genuine replacement part AMA, Rear Wheel Assembly for Self-Propelled Lawnmowers RTT531 89530 - RTT531B 89545. Parts for the following products: -  Self-Propelled...
Usually Ships in: 7/10 Business Days Approx. €29.90
Details
Self-Propelled Spring for Lawnmower AMA NRT-535
A.M.A. S.p.A. SKU: RMG60410670000
Self-Propelled Spring for Lawnmower AMA NRT-535
Self-Propelled Spring for Lawnmower AMA NRT-535 Genuine part AMA, Self-Propelled for Self-Propelled Lawnmower AMA NRT-535 - 92630. Part for the following products: -  Self-Propelled Lawnmower AMA NRT-535 - 92630 - Code: RMG60410670000
AVAILABLE €4.69
Details
Handle Knob for Lawnmower AMA NRS-421
A.M.A. S.p.A. SKU: 92504
Handle Knob for Lawnmower AMA NRS-421
Handle Knob for Lawnmower AMA NRS-421 Genuine part AMA, Handle Knob for Lawnmowers AMA NRS-421 - NRS-461 - Rasaerba NRS-461T - NRT-461B. Part for the following products: -  Lawnmower AMA GARDEN NRS-421 -  Lawnmower AMA GARDEN NRS-461...
AVAILABLE €4.99
Details
AMA RTT531 Cover Spring
A.M.A. S.p.A. SKU: 90493
AMA RTT531 Cover Spring
AMA Lawnmower RTT531 Cover Spring Genuine replacement part AMA Garden, Cover Spring SX for Self-Propelled Lawnmowers RTT531 - RTT531B - NRT-535. Parts for the following products: -  Self-Propelled...
AVAILABLE €3.76
Details
AMA RTT531B Cover Spring
A.M.A. S.p.A. SKU: 90492
AMA RTT531B Cover Spring
AMA Lawnmower RTT531B Cover Spring Genuine replacement part AMA Garden, Cover Spring DX for Self-Propelled Lawnmowers RTT531 - RTT531B - NRT-535. Parts for the following products: -  Self-Propelled...
AVAILABLE €3.76
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
AVAILABLE €4.99
Details
AMA RTT531 Belt Cover
A.M.A. S.p.A. SKU: 89880
AMA RTT531 Belt Cover
AMA Lawnmower RTT531 Belt Cover Original spare parts AMA Garden, Belt Cover for Lawnmower RTT531 - RTT531B - NRT535. Parts for the following products: -  Lawnmower RTT531 - 89530 -  Lawnmower RTT531B - 89545 -  Lawnmower NRT-535 -...
AVAILABLE €15.99
Details
AMA Engine MVG-T680 Ignition Coil
A.M.A. S.p.A. SKU: RMG75370032000
AMA Engine MVG-T680 Ignition Coil
AMA Engine MVG-T680 Ignition Coil Original AMA Garden, Ignition Coil Assy for Engine MVG-T680. Parts for the following products: -  Engine MVG - T680 - 90260 -  Lawnmower NRT-535 - 92630 -  Lawnmower NRT-52X - 92635 - Code :...
Out-of-Stock €31.90
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €4.99
Details
Comments (0)
No customer reviews for the moment.
