A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-465

SKU: Ama NRT-465 4 in1 - 92620
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-465

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Self-Propelled Lawnmower Mod. NRT-465 - 92620.
Ama Spare Parts for Lawnmower NRT-465
  • Online only
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
  • Ama Spare Parts for Lawnmower NRT-465
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-465

SKU: Ama NRT-465 4 in1 - 92620 Condition: New
€11.90
VAT included

Ama Spare Parts for Lawnmower NRT-465

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Self-Propelled Lawnmower Mod. NRT-465 - 92620.
settings 188 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
143 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

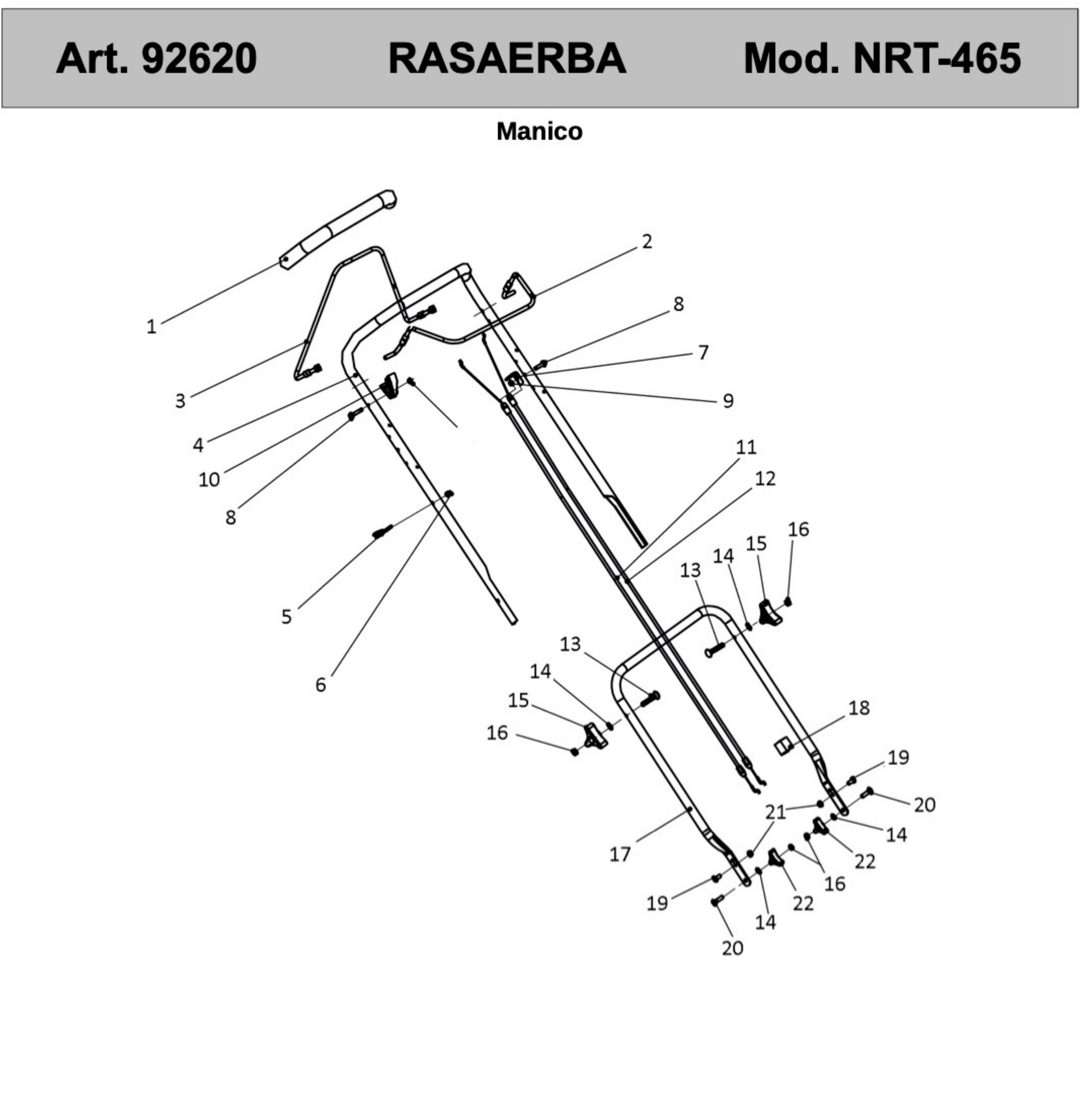

Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
2
 photo_cameraImage coming soon 89398 Stop lever €14.50
3
 photo_cameraImage coming soon 92562 Self-propelled Lever €12.40
4
 photo_cameraImage coming soon 84959 Upper handrail €39.04
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
11
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
13
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
15
 Handle Knob for Lawnmower AMA NRS-421 92504 Handle Knob for Lawnmower AMA NRS-421 €3.55
17
 photo_cameraImage coming soon 84973 Lower handrail €36.06
18
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
20
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
22
 photo_cameraImage coming soon 92503 Triangle knob €2.11
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

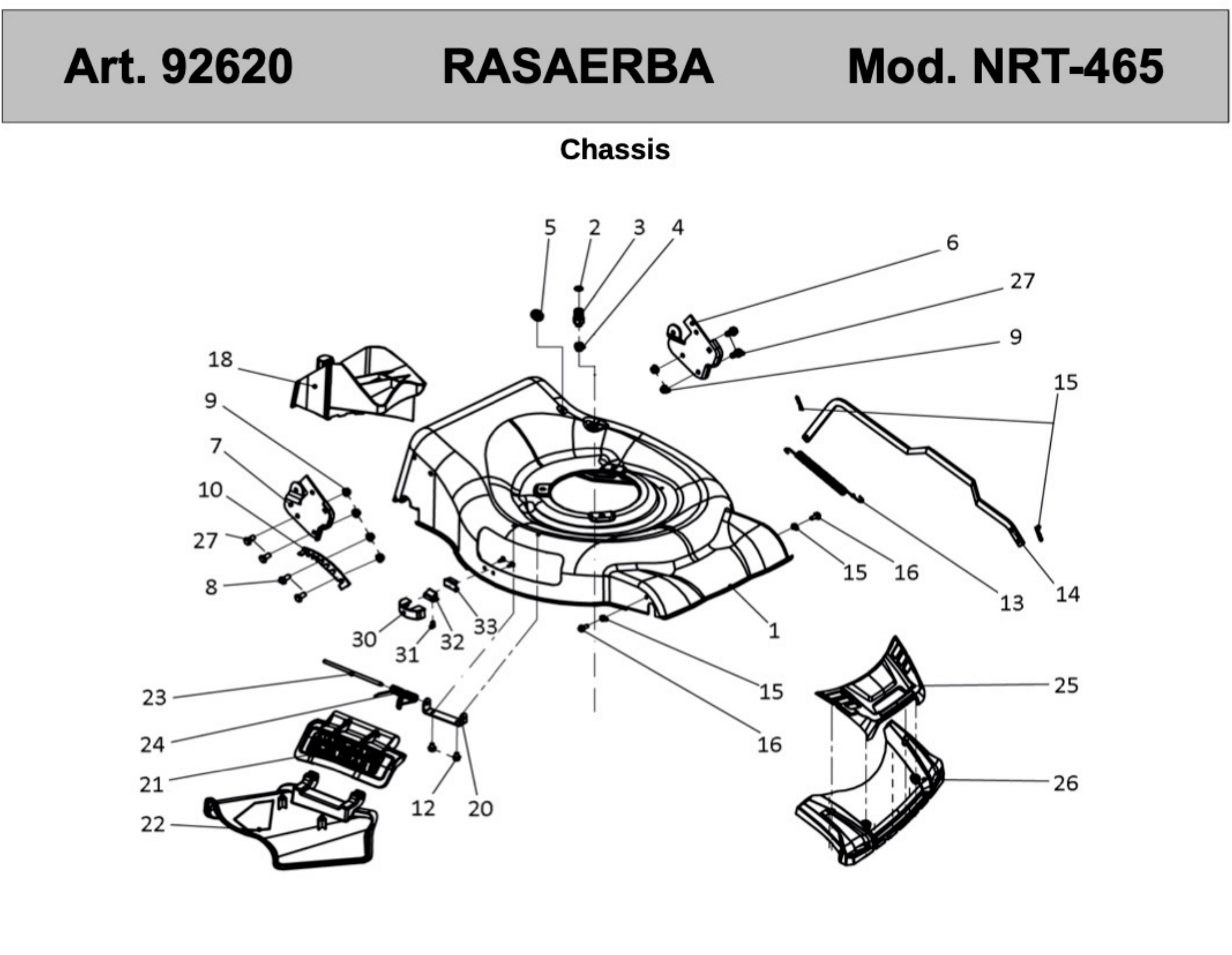

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92564 Deck welding assy. €173.86
4
 photo_cameraImage coming soon 90504 Pipe connector nut €3.83
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 88572 Left handle bracket €13.50
7
 photo_cameraImage coming soon 88573 Right handle bracket €13.39
10
 photo_cameraImage coming soon 88574 Height adjustment board €7.00
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 89390 Height Adjustment Pull Rod €4.50
15
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
18
 Mulching Cap for Lawnmower AMA RS461 84842 Mulching Cap for Lawnmower AMA RS461 €13.81
21
 photo_cameraImage coming soon 92541 Mulching board €4.82
22
 AMA NRS-461T Side Deflector 92509 AMA NRS-461T Side Deflector €13.99
23
 photo_cameraImage coming soon 88583 Mulch Shaft €1.99
24
 photo_cameraImage coming soon 88584 Mulch board spring €2.98
25
 photo_cameraImage coming soon 92543 Front mask €3.83
26
 photo_cameraImage coming soon 92542 Front mask €7.43
30
 photo_cameraImage coming soon 92550 Control board upper cover €3.59
31
 photo_cameraImage coming soon 92555 Cover spring €3.34
32
 photo_cameraImage coming soon 92547 Rear discharge cover €10.58
33
 photo_cameraImage coming soon 92554 Gasket €3.34
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

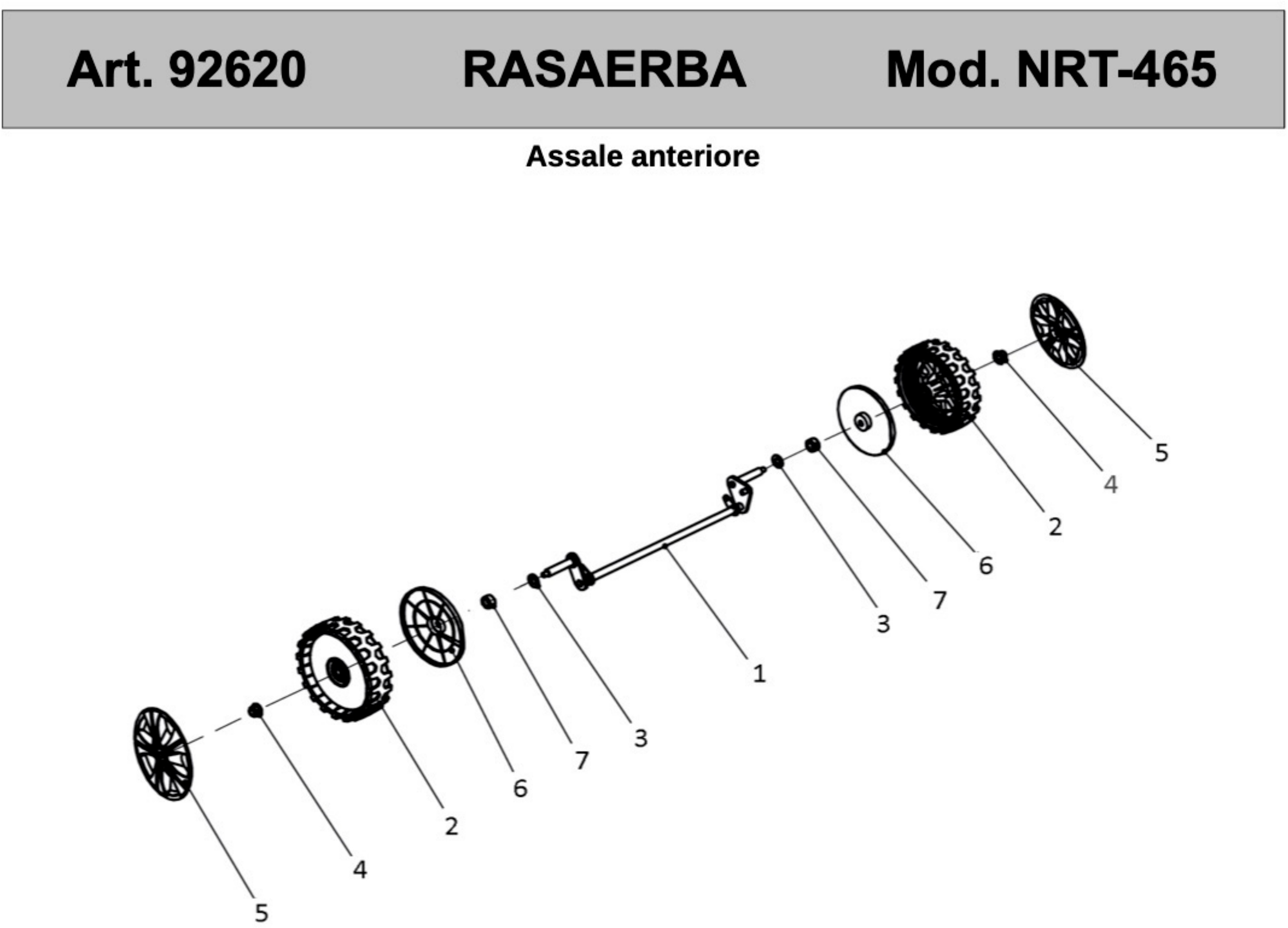

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 88581 Front drive assy. €35.60
2
 photo_cameraImage coming soon 89885 Wheel assy €17.48
3
 photo_cameraImage coming soon 92552 Resilient washer €2.78
5
 AMA NRS-461 Wheel Hubcap 92530 AMA NRS-461 Wheel Hubcap €5.00
6
 photo_cameraImage coming soon 89875 Inner cover of hub €5.91
7
 photo_cameraImage coming soon 90261 Front bracket fastener €6.70
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY

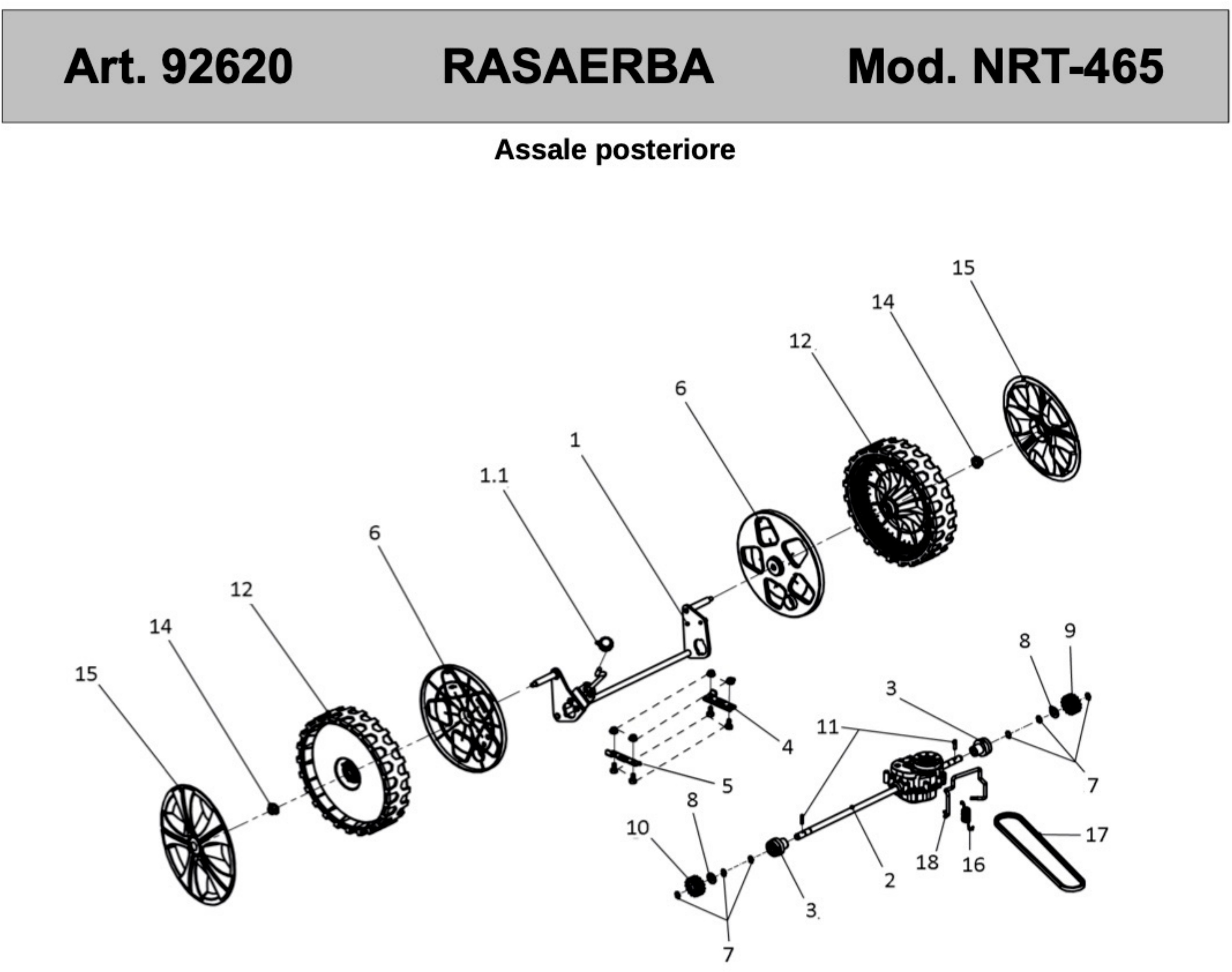

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89451 Rear drive assy. €53.46
1.1
 photo_cameraImage coming soon 92545 Height adjustment ball €3.97
2
 photo_cameraImage coming soon 90365 Selfpropelled assy €127.64
3
 photo_cameraImage coming soon 92529 Rear wheel axle sleeve €3.83
4
 photo_cameraImage coming soon 92560 Rear drive left bracket €3.10
5
 photo_cameraImage coming soon 84938 Rear drive right bracket €3.08
6
 photo_cameraImage coming soon 92549 Inner cover of hub €4.82
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
8
 Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
10
 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
11
 Ratchet Pin for Lawnmower AMA NRT-521 90304 Ratchet Pin for Lawnmower AMA NRT-521 €0.72
12
 AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
15
 photo_cameraImage coming soon 92532 Outer cover of hub €5.08
16
 AMA NRT-461 Traction Spring 92537 AMA NRT-461 Traction Spring €3.81
17
 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 84845 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 €11.02
18
 photo_cameraImage coming soon 90314 Brake spring €9.49
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY

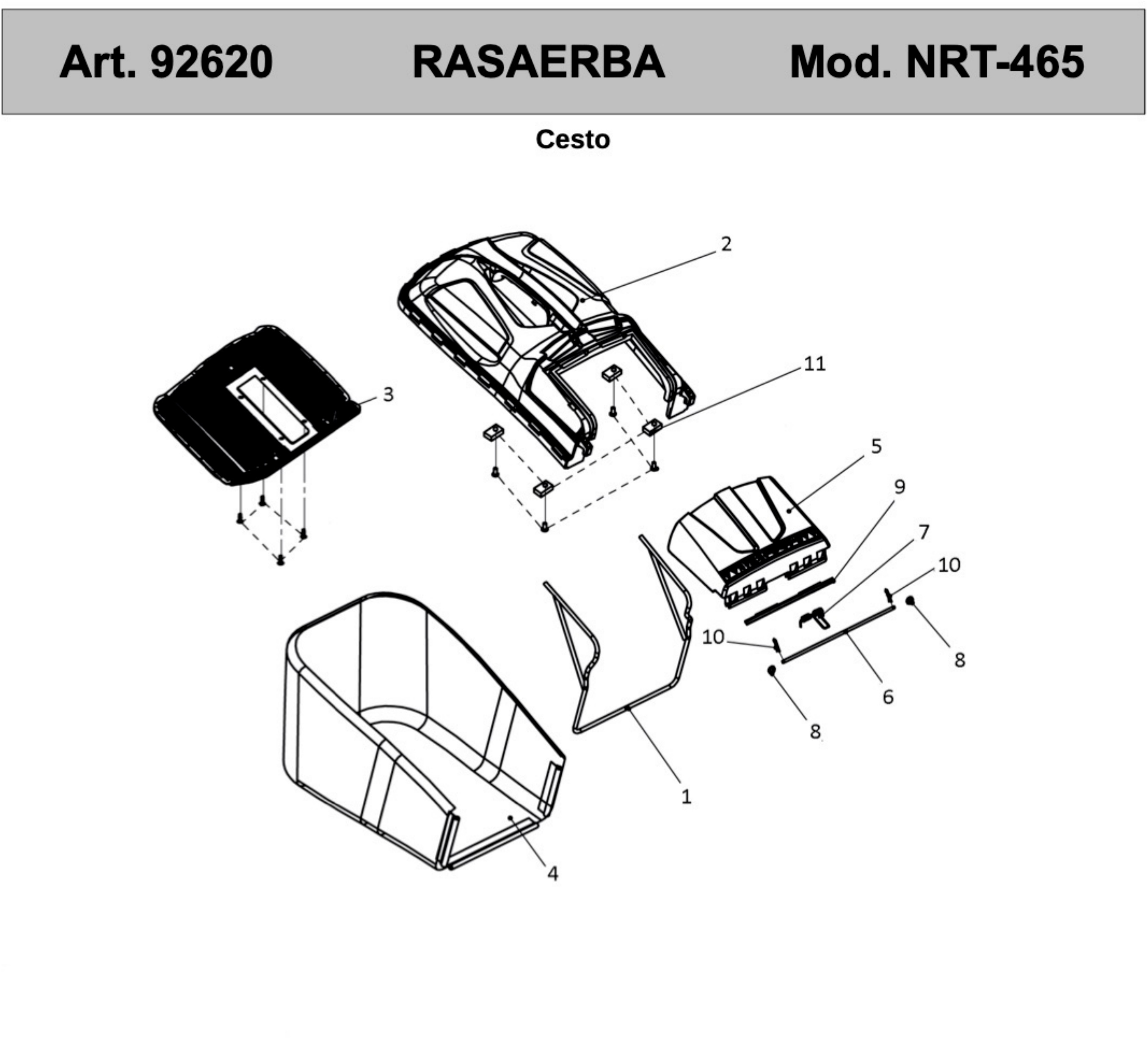

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92556 Fabric metal frame €11.28
2
 photo_cameraImage coming soon 92507 Top of grass box €20.96
3
 photo_cameraImage coming soon 92551 Filter plate €6.20
4
 photo_cameraImage coming soon 92527 Fabric grass bag €46.03
5
 photo_cameraImage coming soon 92548 Rear discharge cover €8.50
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 photo_cameraImage coming soon 88575 Rear discharge cover dust proof €3.93
10
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY

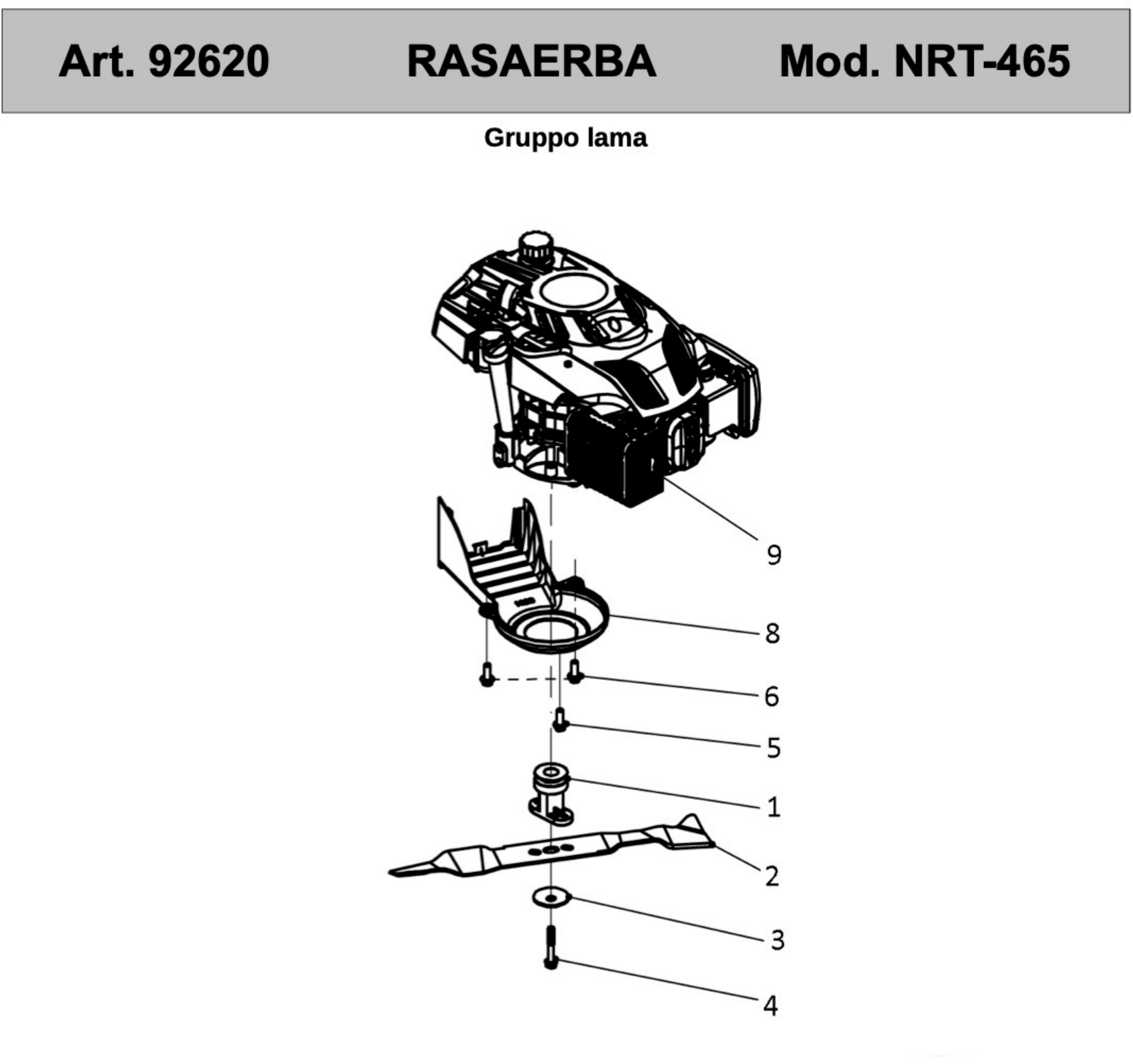

Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade cm 46 for Push Lawnmower AMA RS461 84843 Blade cm 46 for Push Lawnmower AMA RS461 €30.06
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
8
 AMA NRT-461 Belt Cover 84846 AMA NRT-461 Belt Cover €11.22
9
 photo_cameraImage coming soon 92595 Petrol Engine €265.38
Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY

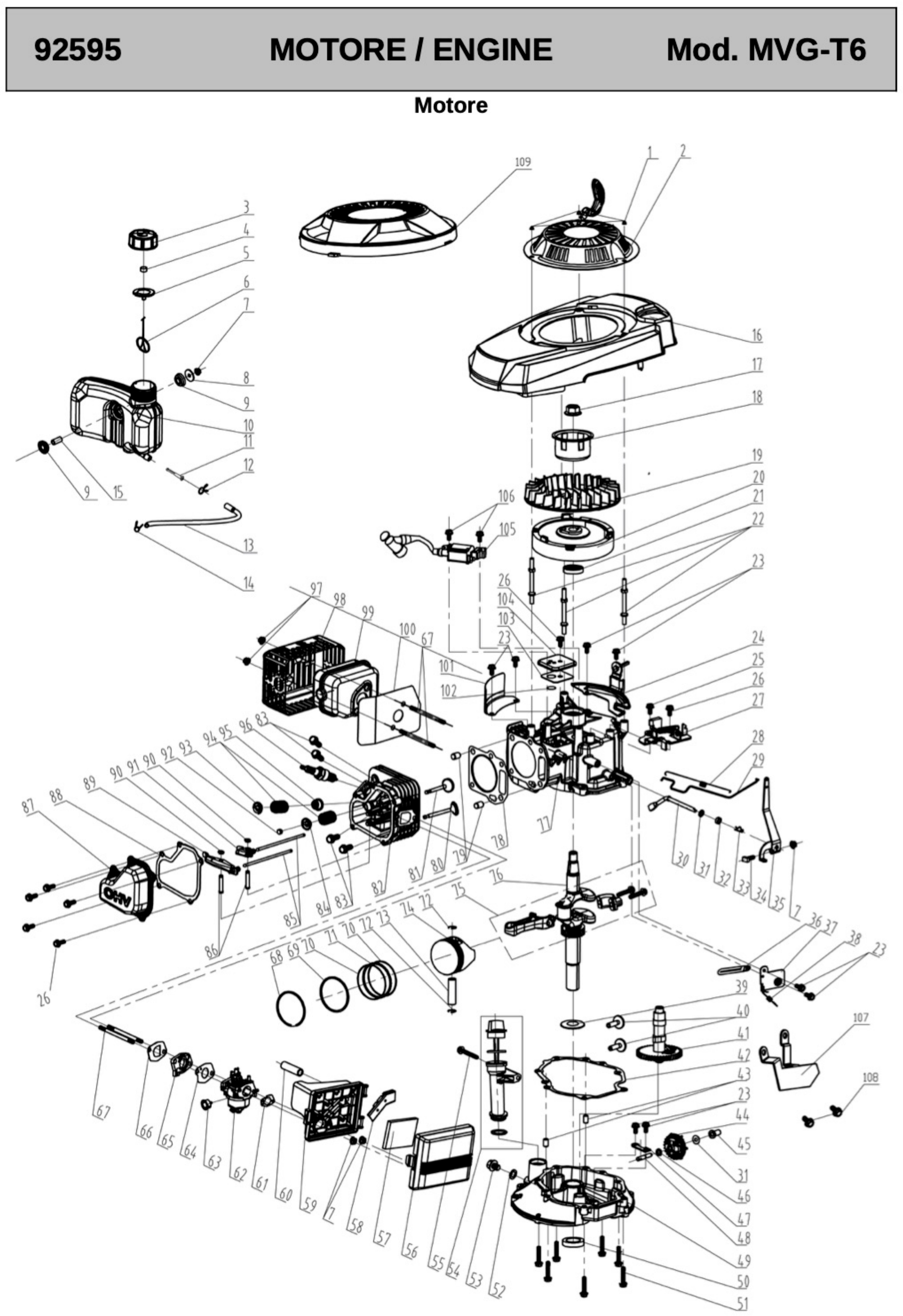

Esploso pagina 7
Pos. Item Price Buy
2
 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 RMG65070100000 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 €32.93
3
 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV RMG25170110000 Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV €10.50
4
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
5
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
6
 photo_cameraImage coming soon 92486 Connect cable of fuel cap €3.83
10
 photo_cameraImage coming soon RMG25180230000 Fuel tank body €17.85
11
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
12
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
13
 photo_cameraImage coming soon RMGP70B05050000 Fuel pipe €10.72
16
 photo_cameraImage coming soon RMG25190250000 The transparent cover €12.01
17
 photo_cameraImage coming soon RMG60140050000 Hex flange nuts €2.60
18
 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
19
 photo_cameraImage coming soon RMG25040110000 Fan €18.38
20
 photo_cameraImage coming soon RMG75390240000 Flywheel assy €13.65
23
 photo_cameraImage coming soon 88621 Hex Flange Face Bolt €1.22
27
 photo_cameraImage coming soon RMG75380900000 Detent ass’y €15.01
28
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
31
 photo_cameraImage coming soon RMG60200490000 Gasket €5.01
32
 photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
35
 photo_cameraImage coming soon RMGP65010603003 Speed Regulator Rocker €6.46
37
 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 RMGP70B01060000 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 €6.83
39
 photo_cameraImage coming soon RMGV510009000 Gear Gasket €3.79
42
 photo_cameraImage coming soon RMGP65020400000 Respirator head gasket €10.92
44
 photo_cameraImage coming soon 92478 Rate-limiting gear assy. €3.24
45
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
48
 photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.95
49
 photo_cameraImage coming soon RMG75240120000 Crank box cover €14.25
50
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
54
 AMA Engine MVG-T6 Oil Filler Cap RMG25200130050 AMA Engine MVG-T6 Oil Filler Cap €11.50
56
 AMA Engine MVG-T6 Air Filter Cover RMG25120060000 AMA Engine MVG-T6 Air Filter Cover €5.25
57
 AMA MVG-T6 OHV Foam Filter RMG25300120000 AMA MVG-T6 OHV Foam Filter €10.91
58
 AMA MVG-T6 OHV Vent Groove Cover Plate RMG25020050000 AMA MVG-T6 OHV Vent Groove Cover Plate €2.17
61
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
62
 photo_cameraImage coming soon RMG75410410000 Carburetor €48.52
63
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
64
 photo_cameraImage coming soon RMG75730030000 Carburetor paper pad Ⅱ €3.34
65
 photo_cameraImage coming soon RMG25090010000 Air Inlet Pipe €3.78
66
 photo_cameraImage coming soon RMG75730020000 Carburetor paper pad Ⅰ €3.34
68
 photo_cameraImage coming soon RMG75130130000 Piston Ring I €5.57
69
 photo_cameraImage coming soon RMG75130140000 Piston Ring II €4.82
70
 photo_cameraImage coming soon RMG75090060000 Guide Rail €3.83
71
 photo_cameraImage coming soon RMG75000070000 Bushing Ring €3.59
73
 photo_cameraImage coming soon RMG60400020000 Piston Pin circlip €3.10
74
 photo_cameraImage coming soon RMG75120090000 Piston €19.97
75
 photo_cameraImage coming soon RMG75460070000 Connecting rod assy. €16.63
76
 photo_cameraImage coming soon RMG75510750000 Crankshaft assy. €62.17
78
 photo_cameraImage coming soon RMGP65020400000 Respirator head gasket €10.92
79
 photo_cameraImage coming soon RMG60280020000 Spacing pin €4.58
80
 photo_cameraImage coming soon RMG75190040000 Exhaust Valve €25.47
81
 photo_cameraImage coming soon RMG75170040000 IntakeValve €25.47
82
 photo_cameraImage coming soon RMG75490090000 Cylinder head assy. €68.38
84
 photo_cameraImage coming soon 92517 Spring Coil of Exhaust Valve €3.83
85
 AMA Engine MVG-T6 Push Rod RMG75350030000 AMA Engine MVG-T6 Push Rod €7.10
86
 photo_cameraImage coming soon RMG75290050000 Valve rocker shaft €3.83
87
 photo_cameraImage coming soon RMG75080040000 Cylinder head cover €8.08
88
 photo_cameraImage coming soon RMG75720300000 Cylinder head gasket €3.83
89
 photo_cameraImage coming soon RMG75230031000 xhaust valve rocker combinatio €5.08
90
 photo_cameraImage coming soon RMG60240240000 Washer €3.59
91
 AMA Engine MVG-T6 Rocker Arm RMG75230030000 AMA Engine MVG-T6 Rocker Arm €12.88
92
 photo_cameraImage coming soon RMGP65081100000 Valve Plate €4.78
93
 photo_cameraImage coming soon RMG75180010000 Spring Coil of Intake Valve €3.59
94
 photo_cameraImage coming soon RMGP70B08080000 Spring of Valve €1.62
95
 photo_cameraImage coming soon RMGP65020600000 Oil Seal €5.38
98
 photo_cameraImage coming soon 92523 Muffler cover assy. €12.52
99
 photo_cameraImage coming soon RMG75540030000 Muffler assy. €20.96
100
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
105
 photo_cameraImage coming soon RMG75370070000 Ignition assy. €26.43
107
 photo_cameraImage coming soon 92524 Single speed control panel €3.83
109
 photo_cameraImage coming soon RMG25190210086 The transparent cover €3.83

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower NRT-465

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Self-Propelled Lawnmower Mod. NRT-465 - 92620.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama NRT-465 4 in1 - 92620

Self-Propelled Lawnmower Mod. NRT-465 - 92620 pag.1
# Part Num. Description
1 88566 Foam Rubber handle grip
2 89398 Stop lever
3 92562 Self-propelled Lever
4 84959 Upper handrail
5 88568 Rope Guide
7 84822 Brake Cable Assy plate
10 89399 Plastic stopper
11 84971 Brake cable
12 84836 Selfpropelled cable
13 89893 Heterotypic carriage bolts
15 92504 Triangle knob
17 84973 Lower handrail
18 88247 Fastener
20 88571 Half round head square neck bolts
22 92503 Triangle knob
Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.2
1 92564 Deck welding assy.
3 89447 Inlet
4 90504 Pipe connector nut
5 89515 Cable stopper
6 88572 Left handle bracket
7 88573 Right handle bracket
10 88574 Height adjustment board
13 73221 Pull Spring for Pull Rod
14 89390 Height Adjustment Pull Rod
15 88625 R type pin
18 84842 Mulching cap
20 92558 Bracket plate for defelctor
21 92541 Mulching board
22 92509 Side discharge cover
23 88583 Mulch Shaft
24 88584 Mulch board spring
25 92543 Front mask
26 92542 Front mask
30 92550 Fixed block holder
31 92555 Limit block spring
32 92547 The side row overlays
33 92554 The side row covers
Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.3
1 88581 Front drive assy.
2 89885 Wheel assy.
3 92552 Resilient washer
4 89450 Self-locking nut
5 92530 Outer cover of hub
6 89875 Inner cover of hub
7 90261 Front bracket fastener
Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.4
1 89451 Rear drive assy
1.1 92545 Height adjustment ball
2 90365 Selfpropelled assy
3 92529 Bush
4 92560 Rear Plate L
5 84938 Rear Plate R
6 92549 Inner cover of hub
7 79423 Spring washer
8 89889 Selfpropelled ratchet washer
9 89919 Ratchet Wheel L
10 89920 Ratchet Wheel R
11 90304 Ratchet pin
12 89887 Wheel assy.
14 89450 Self-locking nut
15 92532 Outer cover of hub
16 92537 Selfpropelled spring
17 84845 V-belt
18 90314 Brake spring
Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.5
1 92556 Fabric metal frame
2 92507 Top of grass box
3 92551 Filter net of grass bag
4 92527 Fabric grass bag
5 92548 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
9 88575 Rear discharge cover dust proof board
10 88625 R type pin
11 90513 Blade washer
Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.6
1 84844 Blade Adapter Assy
2 84843 Double-edge blade
3 73223 Blade washer
4 84815 Inch hex flange bolts
5 88628 Hex flange bolts
8 84846 Belt cover
9 92595 Petrol Engine
Petrol Engine MVG-T6 OHV 146 cc - 92595 Pag.7
1 88564 Cap nut
2 RMG65070100000 Pull starter assy.
3 RMG25170110000 Fuel tank cap
4 RMGP65050106000 Fuel tank cap sponge
5 RMGP65050102000 Fuel Tank Cap seal gasket
6 92486 Connect cable of fuel cap
7 Standard Hex flange nuts
8 RMG60190310000 The oil tank mount big washer
9 RMG25310030000 Fuel Tank Cap seal gasket
10 RMG25180230000 Fuel tank body
11 RMGP65050500000 Filtering Net Duct of Fuel
12 RMGP65050600000 Fuel pipe lock clamp I
13 RMGP70B05050000 Fuel pipe
14 92489 Fuel pipe lock clamp II
15 RMG60240250000 Fuel tank mounting bushing
16 RMG25190250000 The transparent cover
17 RMG60140050000 Hex flange nuts
18 RMGP65070200000 Starter hub
19 RMG25040110000 Fan
20 RMG75390240000 Flywheel assy
21 RMGP65010109000 Oil seal
22 RMG60080230000 Dual-head bolts
23 88621 Bolt
24 RMG75330070000 Main bracket of fuel tank
25 Standard Bolt
26 Standard Bolt
27 RMG75380900000 Detent ass’y
28 RMGP65010601000 Valve spring
29 RMG75160060000 Handspike of Valve
30 RMGP65010105000 Rate-limiting rocker arm shaft
31 RMG60200490000 Gasket
32 RMGP65010112000 Oil seal
33 Standard R type pin
34 92496 Bolt
35 RMGP65010603003 Throttle rocker arm
36 Standard Clip
37 RMGP70B01060000 Single phrase throttle assy.
38 RMGP65010606004 Throttle control spring
39 RMGV510009000 Clockwise gear gasket
40 RMGP65080300000 Pin
41 RMG75470020000 Camshaft assy.
42 RMGP65020400000 Respirator head gasket
43 RMG60280030000 Spacing pin
44 92478 Rate-limiting gear assy.
45 RMGP65010202000 Sliding Sleeve
46 RMG60200060000 Gasket
47 RMG75280020000 Rate-limiting gear shaft clamp
48 RMGV410001000 Rate-limiting gear shaft
49 RMG75240120000 Crank box cover
50 RMGP65010210000 Oil seal 25x38x7
51 Standard Bolt
52 92498 Oil drain bolt gasket
53 92497 Oil drain bolt
54 RMG25200130050 Lubricating Gauge Assy
55 Standard Bolt
56 RMG25120060000 Air Filter Cover
57 RMG25300120000 Foam filter
58 RMG25020050000 Vent groove cover plate
59 RMG25110100000 An air filter base.
60 RMG25030070000 Waste pipe
61 RMGP65030500000 Air filter paper pad
62 RMG75410410000 Carburetor
63 RMGP65051000001 Primer button II
64 RMG75730030000 Carburetor paper pad Ⅱ
65 RMG25090010000 Air Inlet Pipe
66 RMG75730020000 Carburetor paper pad Ⅰ
67 RMG60080030000 Dual-head bolts
68 RMG75130130000 Piston Ring I
69 RMG75130140000 Piston Ring II
70 RMG75090060000 Guide Rail
71 RMG75000070000 Bushing Ring
72 RMG60310010000 Piston pin
73 RMG60400020000 Piston Pin circlip
74 RMG75120090000 Piston
75 RMG75460070000 Connecting rod assy.
76 RMG75510750000 Crankshaft assy.
77 RMG75500160000 Crankshaft box assy.
78 RMGP65020400000 Cylinder head gasket
79 RMG60280020000 Spacing pin
80 RMG75190040000 Exhaust Valve
81 RMG75170040000 IntakeValve
82 RMG75490090000 Cylinder head assy.
83 Standard Locking bolt
84 92517 Spring Coil of Exhaust Valve
85 RMG75350030000 Push rod
86 RMG75290050000 Valve rocker shaft
87 RMG75080040000 Cylinder head cover
88 RMG75720300000 Cylinder head gasket
89 RMG75230031000 xhaust valve rocker combinatio
90 RMG60240240000 Washer
91 RMG75230030000 ir intake door rocker combinatio
92 RMGP65081100000 Top Cover of Exhaust Valve
93 RMG75180010000 Spring Coil of Intake Valve
94 RMGP70B08080000 valve spring
95 RMGP65020600000 Oil seal assy
96 75140010000 Spark plug
97 Standard Self-locking nut
98 92523 Muffler cover assy.
99 RMG75540030000 Muffler assy.
100 RMGP65060200000 Muffler insulating pad
101 RMG75030110000 Wind shield
102 RMGV510010000 Respirator valve plate
103 RMG75720310000 Respirator head gasket
104 RMG75400030000 Valve rocker shaft
105 RMG75370070000 Ignition assy.
106 Standard Bolt
107 92524 Single speed control panel
108 Standard Bolt
109 RMG25190210086 The transparent cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama NRT-465 4 in1 - 92620
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Ama NRT-465

Diagram Ama NRT-465

Download (877.8KB)

You might also like

Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €0.54
Details
M8X25/8.8 Engine Bolt for Lawnmowers AMA
A.M.A. S.p.A. SKU: 88628
M8X25/8.8 Engine Bolt for Lawnmowers AMA
M8X25/8.8 Engine Bolt for Lawnmowers AMA Genuine replacement part AMA, M8X25/8.8 Engine Bolt for Lawnmower AMA RS421 - RS461 - RT521 - NRS-421 - NRS-461 - NRS-461T - NRT-461 - NRT-461B. Part for the following products: - Lawnmower...
Last items in stock €0.89
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €2.64
Details
Mulching Cap for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84842
Mulching Cap for Lawnmower AMA RS461
Mulching Cap for Lawnmower AMA RS461 Genuine replacement part AMA, Mulching Cap for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H - RT461B....
Last items in stock €13.81
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €0.34
Details
Oil Seal MM 23x38x7 for Self Propelled Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
Details
Brake Cable for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84971
Brake Cable for Lawnmower AMA RS461
Brake Cable for Lawnmower AMA RS461 Genuine replacement part AMA, Brake Cable for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H...
Last items in stock €11.15
Details
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
A.M.A. S.p.A. SKU: RMG25170110000
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV
Fuel Tank Cap Assy for Engine AMA MVG-T6 OHV Genuine replacement part AMA Garden, Fuel Tank Cap Assy for Engine AMA Garden MVG-T6 OHV 146 cc Part for the following products: -  Engine...
Last items in stock €10.50
Details
Ratchet Pin for Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 90304
Ratchet Pin for Lawnmower AMA NRT-521
Ratchet Pin for Lawnmower AMA NRT-521 Genuine part AMA, Ratchet Pin for Self-Propelled Lawnmower AMA RTE 521 - RTV 521 - NRT-461 - NRT-522 Part for the following products: -  Self-Propelled Lawnmower NRT-521 - 90860 -  Self-Propelled...
on 7/10 Business Days Approx €0.72
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €11.90
Details
Handle Knob for Lawnmower AMA NRS-421
A.M.A. S.p.A. SKU: 92504
Handle Knob for Lawnmower AMA NRS-421
Handle Knob for Lawnmower AMA NRS-421 Genuine part AMA, Handle Knob for Lawnmowers AMA NRS-421 - NRS-461 - Rasaerba NRS-461T - NRT-461B. Part for the following products: -  Lawnmower AMA GARDEN NRS-421 -  Lawnmower AMA GARDEN NRS-461...
AVAILABLE €3.55
Details
AMA MVG-T6 OHV Foam Filter
A.M.A. S.p.A. SKU: RMG25300120000
AMA MVG-T6 OHV Foam Filter
AMA MVG-T6 OHV Foam Filter Genuine replacement part AMA Garden, Foam Filter (H10) for Engine AMA Garden MVG-T6 OHV 146 cc Part for the following products: -  Engine MVG-T6 OHV 146 cc - 92595 -  Lawnmower...
Last items in stock €10.91
Details
AMA MVG-T6 OHV Vent Groove Cover Plate
A.M.A. S.p.A. SKU: RMG25020050000
AMA MVG-T6 OHV Vent Groove Cover Plate
AMA MVG-T6 OHV Vent Groove Cover Plate Genuine replacement part AMA Garden, Air Cleaner Vent Groove Cover Plate for Engine AMA Garden MVG-T6 OHV 146 cc Part for the following products: -  Engine MVG-T6 OHV...
on 7/10 Business Days Approx €2.17
Details
AMA NRT-461 Traction Spring
A.M.A. S.p.A. SKU: 92537
AMA NRT-461 Traction Spring
AMA Lawnmower NRT-461 Traction Spring Genuine replacement part AMA, Traction Spring for Self-Propelled Lawnmower NRT-461 - NRT-461B - NRT-465 4 in1. Part for the following products: -  Self-Propelled...
AVAILABLE €3.81
Details
AMA RTT521 Rear Wheel
A.M.A. S.p.A. SKU: 89887
AMA RTT521 Rear Wheel
AMA Lawnmower RTT521 Rear Wheel Genuine replacement part AMA Garden, Rear Wheel Ass'y for Self-Propelled Lawnmowers RT521 - RT522 - RT522B. Parts for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €22.55
Details
AMA NRT-461 Belt Cover
A.M.A. S.p.A. SKU: 84846
AMA NRT-461 Belt Cover
AMA Lawnmower NRT-461 Belt Cover Original spare part AMA Garden, Belt Cover for Lawmower NRT-461 - NRT-461B - LT 46E. Parts for the following products: -  Lawnmower NRT-461 - 90839 - ...
Last items in stock €11.22
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
AMA NRS-461T Side Deflector
A.M.A. S.p.A. SKU: 92509
AMA NRS-461T Side Deflector
AMA Lawnmower NRS-461T Side Deflector Original spare parts AMA Garden, Side deflector for Lawnmower NRS-461T - NRT-461. Parts for the following products: -  Lawnmower NRS-461T - 90835 - ...
Last items in stock €13.99
Details
AMA NRS-461 Wheel Hubcap
A.M.A. S.p.A. SKU: 92530
AMA NRS-461 Wheel Hubcap
AMA Lawnmower NRS-461 Wheel Hubcap Original AMA Garden, Grey Front Wheel Hubcap for Lawnmower NRS-461 - NRS-461T - NRT-461. Parts for the following products: -  Lawnmower Ama NRS-461 - 90830 - ...
AVAILABLE €5.00
Details
AMA Engine MVG-T6 Push Rod
A.M.A. S.p.A. SKU: RMG75350030000
AMA Engine MVG-T6 Push Rod
AMA Engine MVG-T6 Push Rod Original AMA Garden, Push Rod for Engine MVG-T6 - Lawnmower NRT-465. Parts for the following products: -  Lawnmower NRT-465 4 in1 - 92620 -  Engine MVG-T6 OHV -...
Last items in stock €7.10
Details
AMA Lawnmower LS-465 Rocker Arm
A.M.A. S.p.A. SKU: RMG75230030000
AMA Engine MVG-T6 Rocker Arm
AMA Engine MVG-T6 Rocker Arm Original AMA Garden, Rocker Arm for Engine MVG-T6 - Lawnmower NRT-465. Parts for the following products: -  Lawnmower NRT-465 4 in1 - 92620 -  Engine MVG-T6...
Last items in stock €12.88
Details
AMA Engine MVG-T6 Oil Filler Cap
A.M.A. S.p.A. SKU: RMG25200130050
AMA Engine MVG-T6 Oil Filler Cap
AMA Engine MVG-T6 Oil Filler Cap Original AMA Garden, Oil Filler Cap Assembly for Engine MVG-T6 - Lawnmower NRT-465. Parts for the following products: -  Lawnmower NRT-465 4 in1 - 92620...
Last items in stock €11.50
Details
AMA Air Filter Cover for Lawnmower NRT-465
A.M.A. S.p.A. SKU: RMG25120060000
AMA Engine MVG-T6 Air Filter Cover
AMA Engine MVG-T6 Air Filter Cover Original AMA Garden, Air Filter Cover for Engine MVG-T6 - Lawnmower NRT-465. Parts for the following products: -  Lawnmower NRT-465 4 in1 - 92620...
AVAILABLE €5.25
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €5.50
Details
Comments (0)
