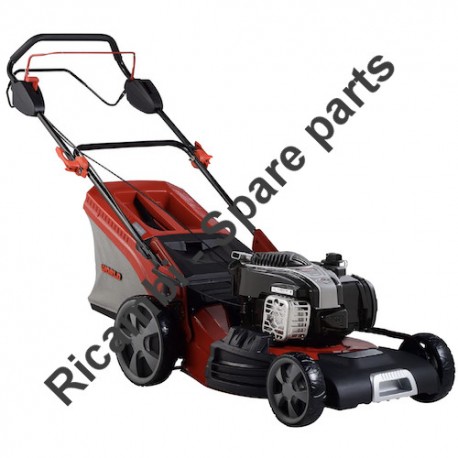

Ama Spare Parts for Petrol Lawnmower RTW48B

SKU: Ama RTW48B – 89700
€6.17
VAT included

Ama Spare Parts for Petrol Lawnmower RTW48B

Buy at the best price original spare parts and accessories for self-propelled petrol lawn mower AMA RTW48B - 89700.
Repair or replace all the components of the lawnmower in total safety and professionalism like a real mechanic, in this page open diagram file PDF AMA RTW48B petrol lawnmower to view all the components of the lawnmower.
Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
  • Ama Spare Parts for Petrol Lawnmower RTW48B
A.M.A. S.p.A.

Ama Spare Parts for Petrol Lawnmower RTW48B

SKU: Ama RTW48B – 89700 Condition: New
€6.17
VAT included

Ama Spare Parts for Petrol Lawnmower RTW48B

Buy at the best price original spare parts and accessories for self-propelled petrol lawn mower AMA RTW48B - 89700.
Repair or replace all the components of the lawnmower in total safety and professionalism like a real mechanic, in this page open diagram file PDF AMA RTW48B petrol lawnmower to view all the components of the lawnmower.
settings 31 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
13
 photo_cameraImage coming soon 89675 Support interno / Inner adjust tooth plate €4.99
19
 photo_cameraImage coming soon 89684 Grip / Grip €1.32
22
 photo_cameraImage coming soon 89687 Plate fastening / Adjust plate €1.57
23
 photo_cameraImage coming soon 89688 Pomello fastening / Quick fix assembly €3.88
27
 photo_cameraImage coming soon 89693 Cover inf. (sx) / Cover-left-bottom €4.84
41
 photo_cameraImage coming soon 89696 Cable trazione / Clutch Cable €33.25
42
 photo_cameraImage coming soon 89698 Cable freno Motor / Brake cable €32.09
43
 photo_cameraImage coming soon 89699 Cable Throttle / Throttle cable €23.53
44
 photo_cameraImage coming soon 89704 Pomello / Knob €2.00
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
71
 photo_cameraImage coming soon 89726 Deflector Exhaust lat. / Side discharge €25.02
76
 photo_cameraImage coming soon 89734 Asta Cover / Side rod €1.57
84
 photo_cameraImage coming soon 89743 Belt trazione / V-Belt A730 €14.96
85
 photo_cameraImage coming soon 89746 Cap mulching / Mulching plug €17.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
110
 photo_cameraImage coming soon 89759 Assale post. cpl. / Rear axle assembly €39.01
111
 photo_cameraImage coming soon 89761 Trazione cpl. / GT gear box €112.41
114
 photo_cameraImage coming soon 89766 Leva reg. altezza taglio / Rear Handle €7.84
124
 photo_cameraImage coming soon 89774 Wheel anteriore / 8" Front wheel €31.65
125
 photo_cameraImage coming soon 89775 Wheel posteriore / 11" Rear wheel €53.47
134
 photo_cameraImage coming soon 89784 Gear trazione (dx) / Tooth gear-R €6.72
138
 photo_cameraImage coming soon 89789 Copriruota post. / Wheel cap €4.84
139
 photo_cameraImage coming soon 89790 Bearing Wheel / Bearing €4.84
140
 photo_cameraImage coming soon 89791 Copriruota ant. / Wheel cap €4.84
150
 photo_cameraImage coming soon 89795 Copriruota interno / Dust cap €5.95
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
166
 photo_cameraImage coming soon 89820 Boccola / Bushing €6.57
167
 photo_cameraImage coming soon 89821 Blade 48 cm. / Blade €40.62 Not available for order
168
 photo_cameraImage coming soon 89823 Washer Blade / Washer €4.28
169
 photo_cameraImage coming soon 89824 Screw Blade / Engine bolt €5.63
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
170
 photo_cameraImage coming soon 89825 Cover cesto / Grass Catcher cover-upper €48.96
171
 photo_cameraImage coming soon 89826 Coperchietto / Grass Catcher cover-small €3.03
172
 photo_cameraImage coming soon 89827 Coprimaniglia / Handle seat €5.59
174
 photo_cameraImage coming soon 89829 Tela cesto / Nylon bag €52.96

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Petrol Lawnmower RTW48B

Buy at the best price original spare parts and accessories for self-propelled petrol lawn mower AMA RTW48B - 89700.
Repair or replace all the components of the lawnmower in total safety and professionalism like a real mechanic, in this page open diagram file PDF AMA RTW48B petrol lawnmower to view all the components of the lawnmower. Select the desired spare parts from the add to cart menu.
Fast shipping in the world, safety payment.

In the following table, look for the model of the Petrol Lawnmower and the respective parts of the code.
Ama RTW48B – 89700
MANICO & COMANDI - HANDLEBAR & CONSOLE Pag.1
# Part Num. Description
10 89672 Manico inferiore / Lower handle
11 89673 Manico superiore / Upper handle
12 89674 Spugnetta manico / Handle grip
13 89675 Supporto interno / Inner adjust tooth plate
14 89676 Supporto esterno / Outer adjust tooth plate
15 89677 Supporto manettino / Throttle Bracket
16 89680 Leva "STOP" / Blade control handle
17 89681 Distanziale / Spacer
18 89683 Leva acceleratore / Throttle handle
19 89684 Impugnatura / Grip
20 89685 Leva trazione / Clutch handle
21 89686 Guida corda avv.to / Hook
22 89687 Piastra fissaggio / Adjust plate
23 89688 Pomello fissaggio / Quick fix assembly
24 89689 Anello di fissaggio / Star shape lock
25 89690 Coperchio inf. (dx) / Cover-right-bottom
26 89691 Coperchio sup. (dx) / Cover-right-upper
27 89693 Coperchio inf. (sx) / Cover-left-bottom
28 89694 Coperchio sup. (sx) / Cover-left-upper
29 Vite M5X50 / Screw M550
30 Dado M5 / Nut M5
31 Rondella 5 / Washer 5
32 Dado M5 / Nut M5
33 Bullone M6X35 / Bolt M6*35
34 Rondella 6 / Washer 6
35 Bullone M6X20 / Bolt M6*20
36 Dado M6 / Nut M6
37 Molla tazza 6 / Spring 6
38 Rondella 8 / Washer 8
39 Dado M8 / Nut M8
40 Vite autofil. / Self-tapping screw ST3.5*25
41 89696 Cavo trazione / Clutch Cable
42 89698 Cavo freno motore / Brake cable
43 89699 Cavo acceleratore / Throttle cable
44 89704 Pomello / Knob
45 89705 Spina / Pin 2*12
46 89706 Molla / Spring
47 89707 Sede molla / Spring seat
48 89708 Perno / Pin
49 89709 Fermacavi / Cable clips
CHASSIS COMPLETO - MOWER DECK ASSEMBLY Pag.2
38 Rondella 8 / Washer 8
39 Dado M8 / Nut M8
60 89712 Supp. manico (dx) / Right bracket
61 89714 Supp. manico (sx) / Left bracket
62 89716 Deflettore post. / Rear Cover
63 89717 Coperchio post. / Rear Cover seat
64 89719 Asta deflettore / Rear Cover rod
65 89720 Molla deflettore (dx) / Spring-R
66 Spina / Pin 2*16
67 89721 Molla deflettore (sx) / Spring-L
68 89722 Musetto / Front Cover
69 89724 Maniglia / Handle-FC
70 89725 Porta etichetta / Label plate
71 89726 Deflettore scarico lat. / Side discharge
72 89728 Convogliatore post. / Rear plate
73 89730 Supporto coperchio / Side plate
74 89732 Supporto asta / Side fix plate
75 89733 Molla coperchio / Side spring
76 89734 Asta coperchio / Side rod
77 89735 Coperchio scarico lat. / Side cover
78 89737 Supp. coperchio / Comb
79 89739 Coperchietto sup. / Small plate
80 89741 Coperchietto post. / Small cover
81 Rivetto / Core pulling rivets
82 Rondella 5 / Flat washer 5
83 Vite autofil. / Self-tapping screw
84 89743 Cinghia trazione / V-Belt A730
85 89746 Tappo mulching / Mulching plug
86 89748 Bandella post. / Rear guard
87 0 Spina / Pin
88 89749 Carter copricinghia / Belt pulley cover
89 Bullone M8X20 / Bolt M8*20
90 89751 Rivetto / Core pulling rivets
91 89752 Rivetto / Core pulling rivets
92 Vite autofil. / Self-tapping screw
93 89753 Spessore / Spacer
94 89754 Rondella in gomma / Rubber strip
96 89755 Portagomma lavaggio / Wash pot
97 89756 O-Ring / O-Ring 11.2*2.65
98 Seeger 15 / E-clip 15
99 89757 Chassis / Deck
GRUPPO TRAZIONE CPL.- DRIVE ASSEMBLY Pag.3
38 Rondella 8 / Washer 8
39 Dado M8 / Nut M8
87 Spina / Pin
110 89759 Assale post. cpl. / Rear axle assembly
111 89761 Trazione cpl. / GT gear box
112 89764 Maniglia / Handle
113 89765 Pulsante / Botton
114 89766 Leva reg. altezza taglio / Rear Handle
115 89768 Molla pulsante / Spring
116 Spina / Pin 2*20
117 Bullone M6X20 / Bolt M6*20
118 Rondella 6 / Washer 6
119 Rondella 6 / Washer 6
120 89769 Sede cuscinetto / Bear seat
121 89770 Rondella / Wash
122 89771 Spina / Pin 5*2
123 89772 Assale anteriore cpl. / Front axle assembly
124 89774 Ruota anteriore / 8" Front wheel
125 89775 Ruota posteriore / 11" Rear wheel
126 89776 Asta alzapiatto / Pull rod
127 89778 Indicatore altezza / Height adjust. pointer
128 0 Rivetto / Core pulling rivets 5*10
129 89779 Supporto cuscinetto / Bear fix plate
130 89780 Blocchetto inferiore / Bear plate-lower
131 89781 Blocchetto superiore / Bear plate upper
132 89782 Distanziale / Spacer
133 89783 Ingranaggio trazione (sx) / Tooth gear-L
134 89784 Ingranaggio trazione (dx) / Tooth gear-R
135 89785 Molla trazione / Gearbox tension spring
136 89788 Spina trazione / Pin
137 0 Bullone M8X16 / Bolt M8*16
138 89789 Copriruota post. / Wheel cap
139 89790 Cuscinetto ruota / Bearing
140 89791 Copriruota ant. / Wheel cap
141 89792 Rondella ruota / Washer 12
142 89793 Rondella ruota / Washer 12
143 Bullone M8X35 / Bolt M8*35
146 Seeger 9 / E-Clip 9
147 Bullone M6X60 / Bolt M6*60
148 Vite autofilettante / Self-tapping screw
150 89795 Copriruota interno / Dust cap
GRUPPO LAMA - BLADE ASSEMBLY Pag.4
165 89818 Portalama / Blade adaptor pulley
166 89820 Boccola / Bushing
167 89821 Lama 48 cm. / Blade
168 89823 Rondella lama / Washer
169 89824 Vite lama / Engine bolt
CESTO RACCOLTA - GRASS CATCHER ASSEMBLY Pag.5
170 89825 Coperchio cesto / Grass Catcher cover-upper
171 89826 Coperchietto / Grass Catcher cover-small
172 89827 Coprimaniglia / Handle seat
173 89828 Spioncino / Observation cover
174 89829 Tela cesto / Nylon bag
175 89830 Telaio cesto / Grass Catcher frame
176 Etichetta / World label plate
177 Fascetta cesto / Frame clips
178 Bullone M4X16 / Bolt M4*16
179 Rondella 4 / Washer 4
180 Dado autobloccante M4 / Lock nut M4
181 Vite autofil. / Self-tapping screw ST4.2*13
182 Vite autofil. / Self-tapping screw ST3.5*9.5

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama RTW48B – 89700
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA RTW48B

Diagram AMA RTW48B

Download (406.64KB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Belt for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84818
Belt for Self-Propelled Lawnmower AMA LT 52H
Belt for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, V-Belt for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - Self-Propelled...
AVAILABLE €4.80
Details
Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84989
Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522
Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H. Part for the following products: - Self-Propelled Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €17.92
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: - Self-Propelled Lawnmower AMA RT521 -...
Last items in stock €32.44
Details
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84815
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Blade Special Bolt for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: - Lawnmower AMA RS461 - Lawnmower AMA RS421 -...
AVAILABLE €1.31
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €4.99
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €9.97
Details
Side Discharge Cover for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88246
Side Discharge Cover for Lawnmower AMA RT521-RT522
Side Discharge Cover for Lawnmower AMA RT521-RT522 Genuine part AMA, Side Discharge Cover for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: - Self-Propelled...
Last items in stock €15.67
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €4.99
Details
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84972
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Upper Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.58
Details
Outer Cover of Hub for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 89876
Outer Cover of Hub for Lawnmower AMA RT521
Outer Cover of Hub for Lawnmower AMA RT521 Genuine replacement part AMA, Outer Cover of Hub for Lawnmowers RT521 - RT522 - RTE521 - RTV521 - RT522B. Part for the following products:...
AVAILABLE €5.15
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €4.99
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Last items in stock €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €55.29
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
AVAILABLE €3.23
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Comments (0)
