A.M.A. S.p.A.

Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO

SKU: Ama LT 46H TEKNICO - 84877
€11.18
VAT included

Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO

We have the original AMA Garden parts and tool repair help you need to get your tools running like new again.

Fix Your Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Online only
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO
A.M.A. S.p.A.

Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO

SKU: Ama LT 46H TEKNICO - 84877 Condition: New
€11.18
VAT included

Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO

We have the original AMA Garden parts and tool repair help you need to get your tools running like new again.

Fix Your Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 156 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
125 spare parts
Esploso pagina 1
Pos. Item Price Buy
3
 Gear Box Bush for Lawnmower AMA RT521-RT522 84984 Gear Box Bush for Lawnmower AMA RT521-RT522 €7.83 Not available for order
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
16
 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €1.12
17
 photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

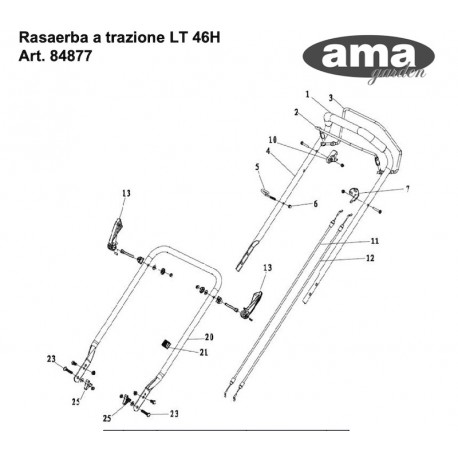

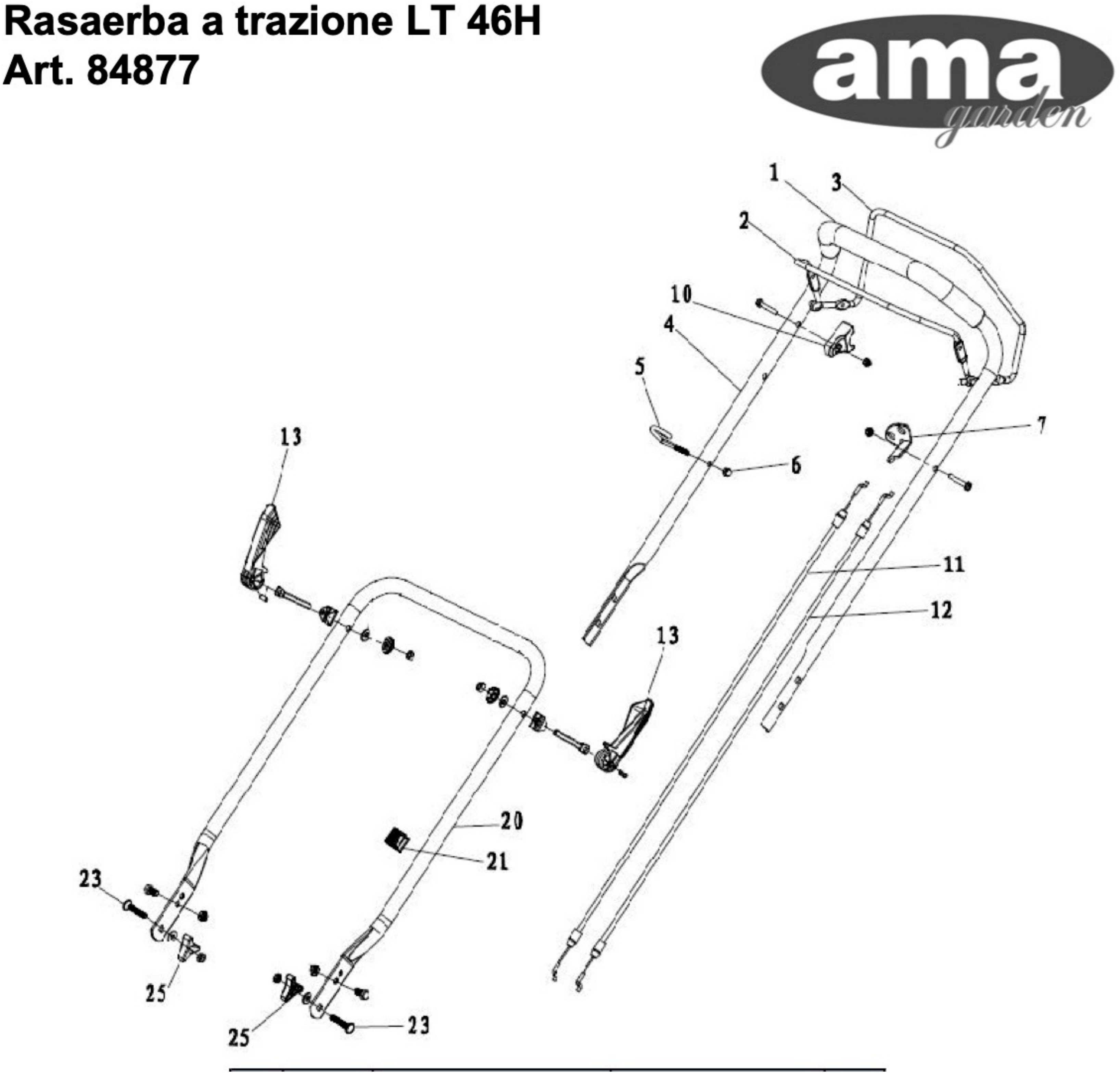

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84998 Foam Pipe €10.86
2
 photo_cameraImage coming soon 84957 Stop lever €14.08
3
 photo_cameraImage coming soon 84958 Self-propelled Lever €14.35
4
 photo_cameraImage coming soon 84959 Upper handrail €39.04
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 photo_cameraImage coming soon 84970 Plastic stopper €5.43
11
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
13
 photo_cameraImage coming soon 88234 Quick Fix Knob €3.63
20
 photo_cameraImage coming soon 84973 Lower handrail €36.06
21
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
23
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
25
 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 84974 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

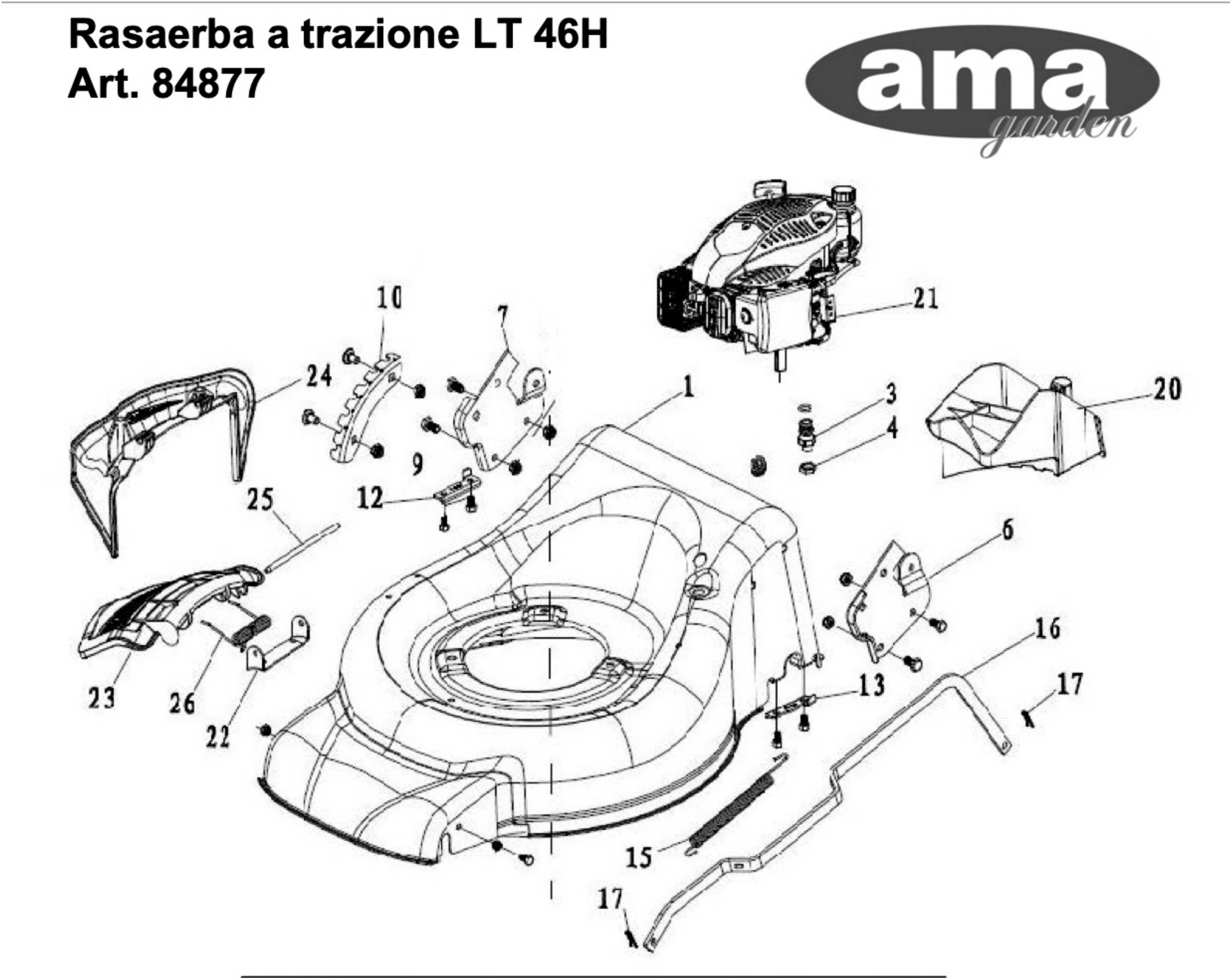

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89446 Deck Welding Assy. €176.79
4
 photo_cameraImage coming soon 89448 Pipe connector nut €1.39
6
 photo_cameraImage coming soon 88572 Left handle bracket €13.50
7
 photo_cameraImage coming soon 88573 Right handle bracket €13.39
10
 photo_cameraImage coming soon 88574 Height adjustment board €7.00
12
 photo_cameraImage coming soon 84938 Rear drive right bracket €3.08
13
 photo_cameraImage coming soon 84939 Rear drive left bracket €3.08
15
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
16
 photo_cameraImage coming soon 89390 Height Adjustment Pull Rod €4.50
17
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
20
 Mulching Cap for Lawnmower AMA RS461 84842 Mulching Cap for Lawnmower AMA RS461 €13.81
23
 photo_cameraImage coming soon 84849 1 €22.44
24
 photo_cameraImage coming soon 84850 Side Discharge Cover €14.60
25
 photo_cameraImage coming soon 88583 Mulch Shaft €1.99
26
 photo_cameraImage coming soon 88584 Mulch board spring €2.98
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

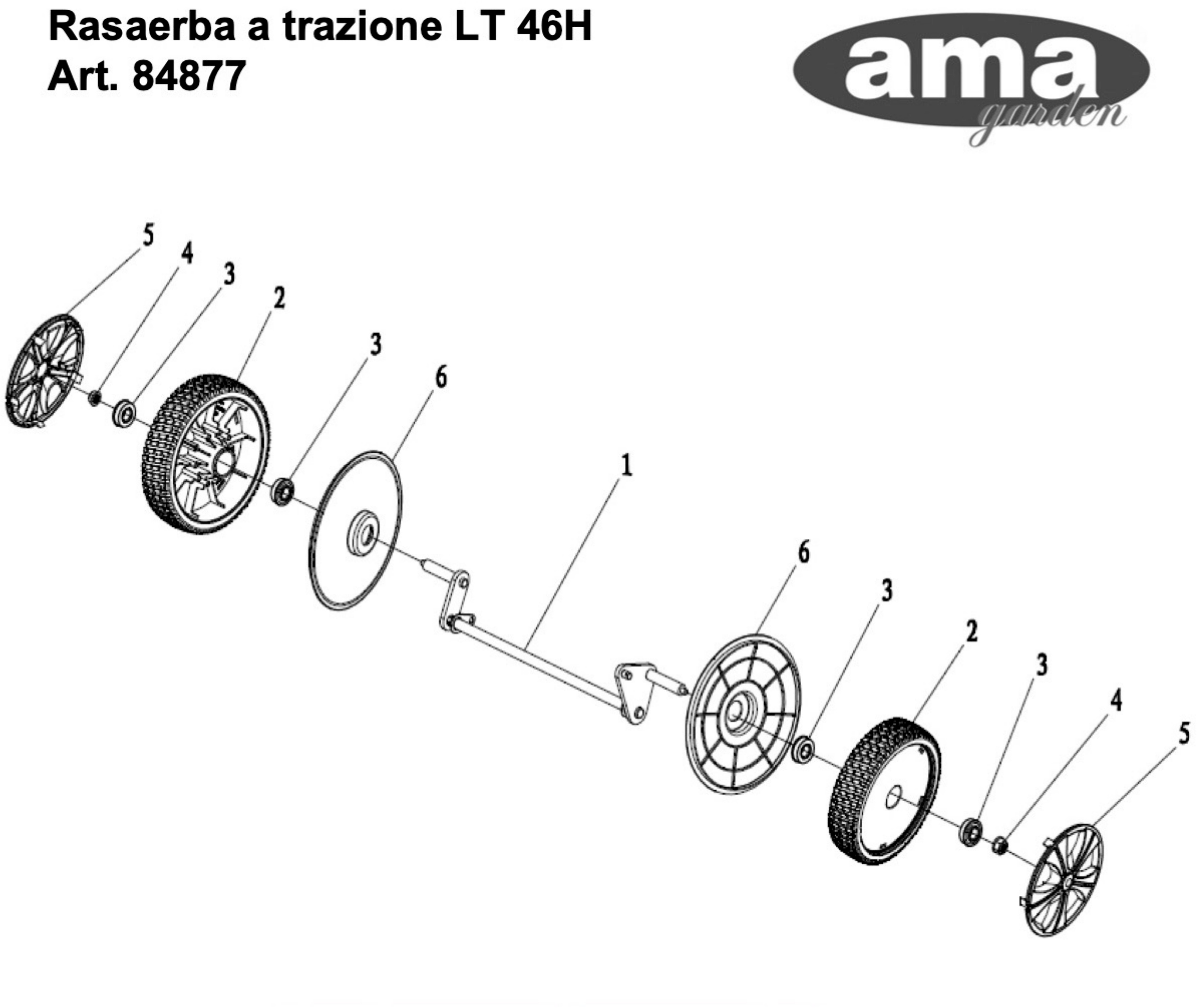

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 88581 Front drive assy. €35.60
2
 Front Wheel for Self-Propelled Lawnmower AMA LT 52H 76158 Front Wheel for Self-Propelled Lawnmower AMA LT 52H €17.09
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
5
 photo_cameraImage coming soon 76157 Outer Cover Of Hub €2.90
6
 photo_cameraImage coming soon 88580 Inner Cover Of Hub €2.90
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

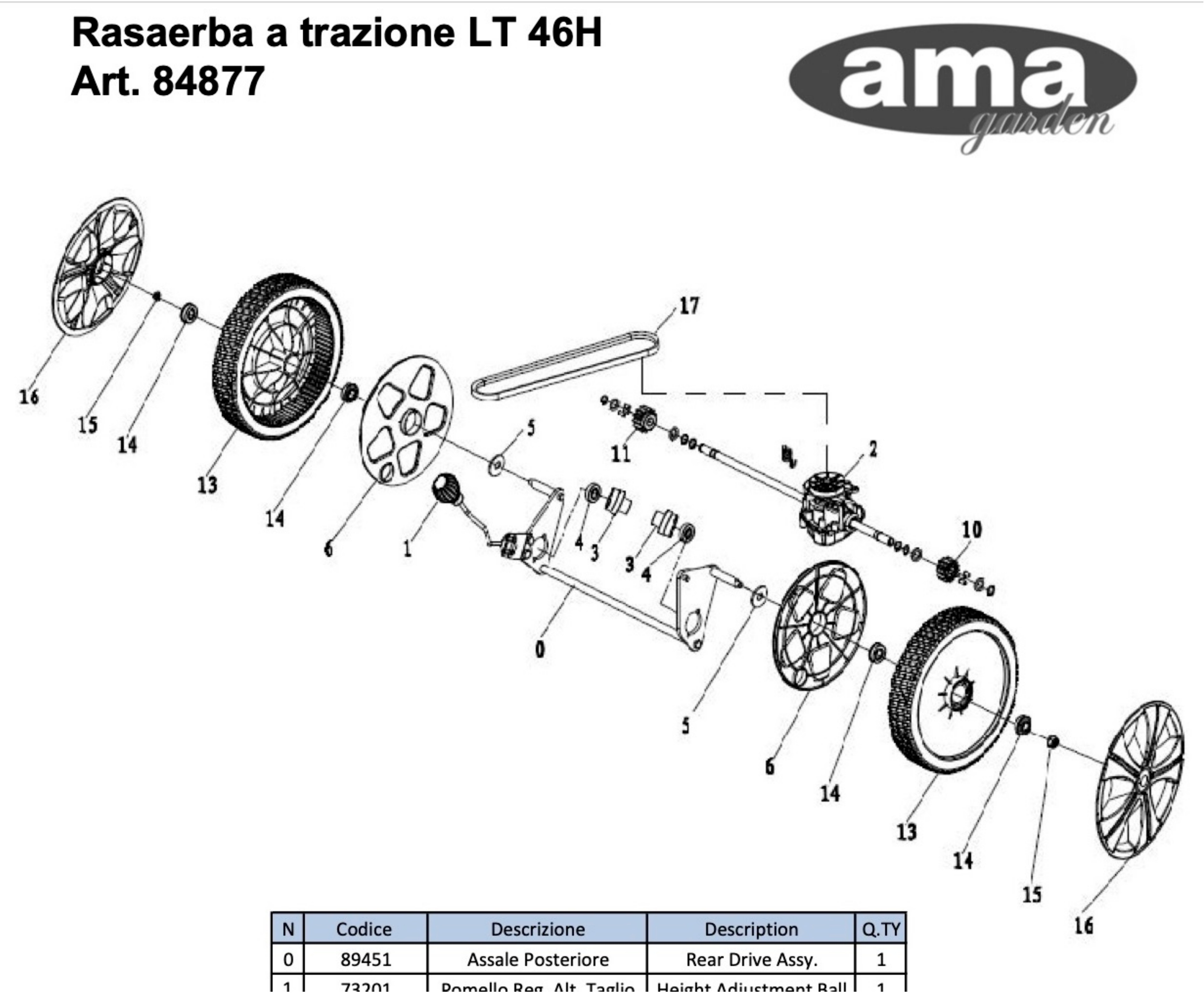

Esploso pagina 4
Pos. Item Price Buy
photo_cameraImage coming soon 89451 Rear drive assy. €53.46
1
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
2
 photo_cameraImage coming soon 89455 Selfpropelled Assy. €123.92
3
 Gear Box Bush for Lawnmower AMA RT521-RT522 84984 Gear Box Bush for Lawnmower AMA RT521-RT522 €7.83 Not available for order
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
6
 photo_cameraImage coming soon 76154 Inner Cover Of Hub €4.58
10
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H 84824 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H €16.75
14
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
16
 photo_cameraImage coming soon 73847 Outer Cover of Hub €6.07
17
 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 84845 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 €11.02
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

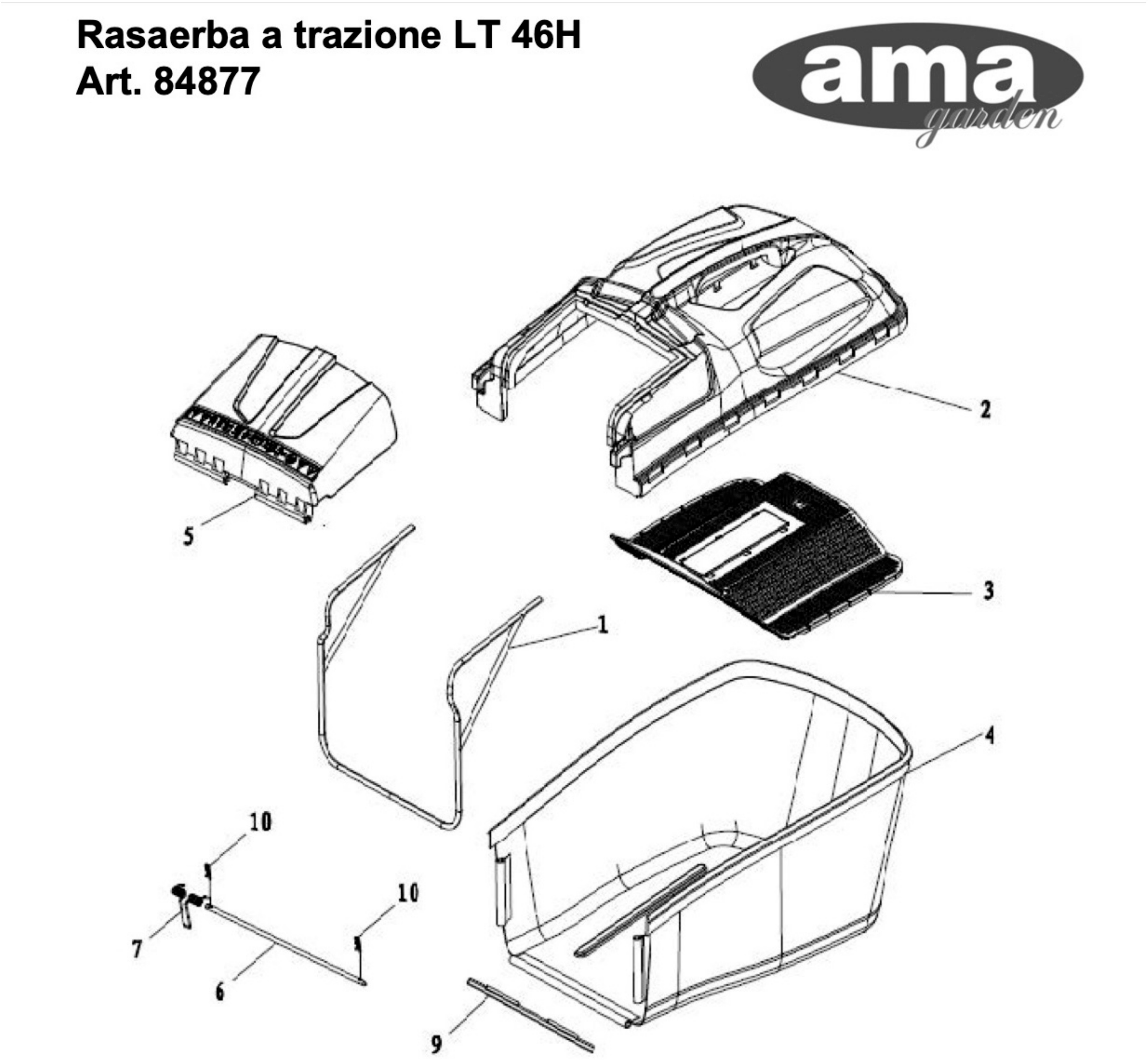

Esploso pagina 5
Pos. Item Price Buy
3
 AMA RS461 Grass Bag Filter 84839 AMA RS461 Grass Bag Filter €15.45
4
 photo_cameraImage coming soon 84841 Fabric grass bag €46.93
5
 photo_cameraImage coming soon 84837 Rear discharge cover €22.95
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 photo_cameraImage coming soon 88575 Rear discharge cover dust proof €3.93
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade cm 46 for Push Lawnmower AMA RS461 84843 Blade cm 46 for Push Lawnmower AMA RS461 €30.06
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
8
 AMA NRT-461 Belt Cover 84846 AMA NRT-461 Belt Cover €11.22
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
2
 photo_cameraImage coming soon RMGP65070100000 Starter-Rewind €31.99
5
 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
7
 photo_cameraImage coming soon RMGP65070301000 Flywheel €50.11
9
 photo_cameraImage coming soon RMGP65070403000 Bush €9.17
11
 Ignition Coil for Engines AMA MVG T375 - T475 - T575 RMGP65070302000 Ignition Coil for Engines AMA MVG T375 - T475 - T575 €35.81
12
 photo_cameraImage coming soon RMGP65060300000 Muffler Cover Assy €19.79
13
 photo_cameraImage coming soon RMGP65060000000 Muffler Assy €25.27
14
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
15
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
16
 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €1.12
17
 photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
18
 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €1.12
19
 Carburator Complete for Engine AMA MVG - T475 RMGP65030100003 Carburator Complete for Engine AMA MVG - T475 €61.16
20
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
21
 Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
22
 Air Cleaner for Self Propeller Lawnmover AMA LT 52H RMGP65040104000 Air Cleaner for Self Propeller Lawnmover AMA LT 52H €16.63
23
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
24
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
25
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
27
 photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
28
 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
29
 photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
30
 photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
31
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
32
 photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
33
 photo_cameraImage coming soon RMGP65080800000 Spring of Valve €2.20
34
 photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
36
 photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
37
 photo_cameraImage coming soon RMGP65080700000 Exhaust Valve €10.34
38
 Inlet Valve for Engine AMA MVG T375 - T475 RMGP65080600000 Inlet Valve for Engine AMA MVG T375 - T475 €11.37
39
 photo_cameraImage coming soon RMGP65080400000 Handspike €3.54
40
 photo_cameraImage coming soon RMGP65020600000 Oil Seal €5.38
41
 photo_cameraImage coming soon RMGP65081100000 Valve Plate €4.78
42
 photo_cameraImage coming soon RMGP65081000000 Keeper Valve €3.83
50
 Conrod Complete for Engines AMA MVG - T375 - T475 RMGP65010402000 Conrod Complete for Engines AMA MVG - T375 - T475 €21.42
51
 Crankshaft Complete for Engine AMA MVG - T475 RMGP65010301000 Crankshaft Complete for Engine AMA MVG - T475 €114.39
53
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
55
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
56
 photo_cameraImage coming soon RMGP65010301001 Detent €25.30
57
 photo_cameraImage coming soon RMGP65010101000 Seal Gasket €5.97
58
 photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
59
 photo_cameraImage coming soon 26638 Oil-Seal 25x38x7 €5.64
60
 photo_cameraImage coming soon RMGP65010501000 Lubrificating Gauge €8.31
64
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
65
 photo_cameraImage coming soon RMGP65010603301 Handspike of Valve €3.36
66
 photo_cameraImage coming soon RMGP65010603003 Speed Regulator Rocker €6.46
70
 Camshaft Complete for Engine AMA MVG - T375 - T475 RMGP65080100000 Camshaft Complete for Engine AMA MVG - T375 - T475 €30.83
71
 photo_cameraImage coming soon RMGP65010205000 Shaft Governor €1.48
73
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
74
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
75
 photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
76
 Fuel Tank for Engine AMA MVG - T475 RMGP65050103000 Fuel Tank for Engine AMA MVG - T475 €26.38
77
 photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €7.74
78
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
79
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
80
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
82
 photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42
83
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

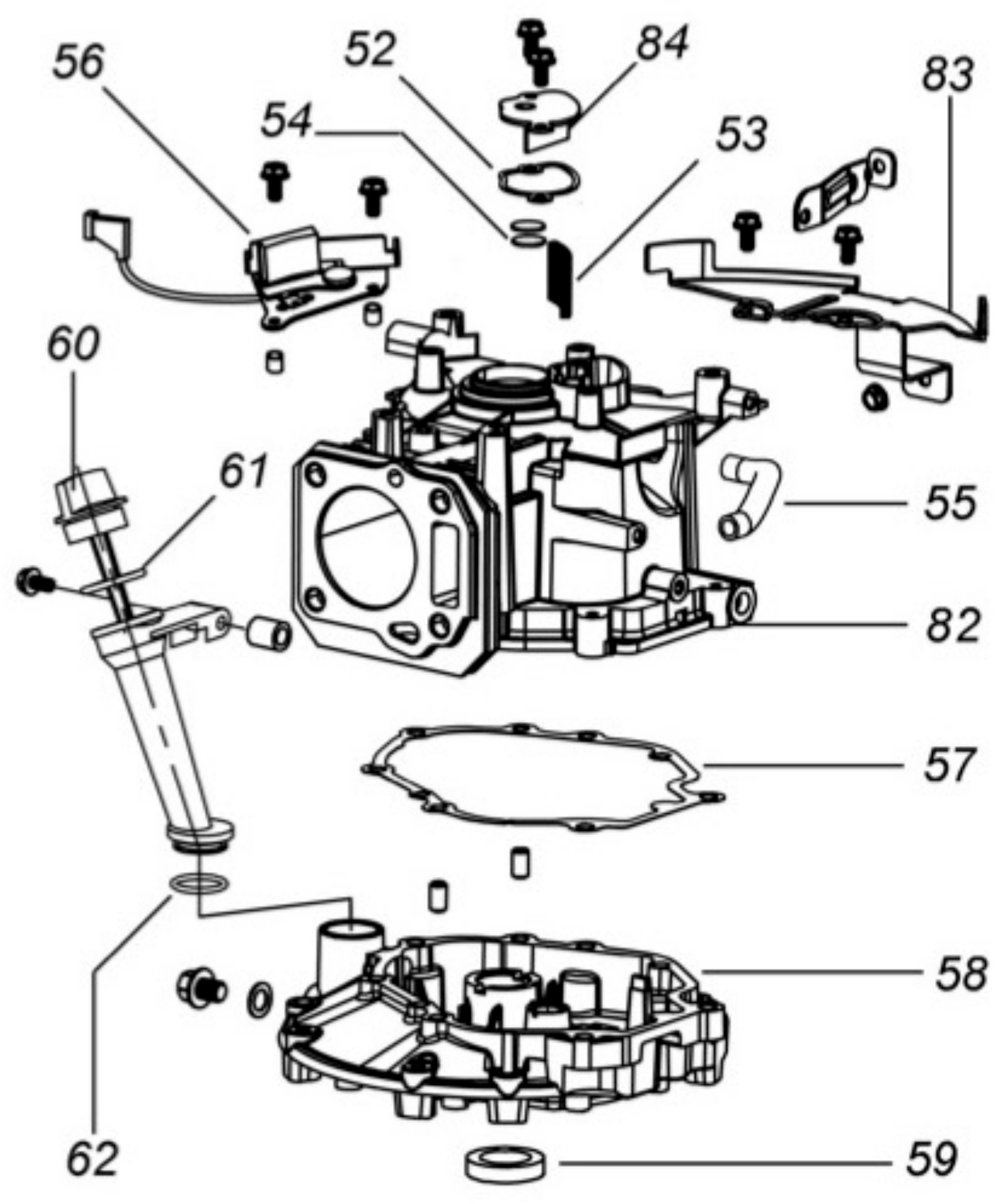

Esploso pagina 8
Pos. Item Price Buy
53
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
55
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
56
 photo_cameraImage coming soon RMGP65010301001 Detent €25.30
57
 photo_cameraImage coming soon RMGP65010101000 Seal Gasket €5.97
58
 photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
59
 photo_cameraImage coming soon 26638 Oil-Seal 25x38x7 €5.64
60
 photo_cameraImage coming soon RMGP65010501000 Lubrificating Gauge €8.31
82
 photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Self-Propelled Lawnmower LT 46H TEKNICO

Fix Your Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama LT 46H TEKNICO - 84877

Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.1
# Part Num. Description
1 84998 Foam Pipe
2 84957 Stop Lever
3 84958 Self-Propelled Lever
4 84959 Upper Handrail
5 88568 Rope Guide
6 88564 Cap Nut
7 84822 Brake Cable Assy plate
10 84970 Plastic Stopper
11 84971 Brake Cable
12 84836 Self Propelled Cable
13 88234 Quick Fix Knob
20 84973 Lower Handrail
21 88247 Fastener
23 88571 Head Square Neck Bolts
25 84974 Triangle Knob
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.2
1 89446 Deck Welding Assy.
3 89447 Inlet
4 89448 Pipe Connector Nut
6 88572 Right Handle Bracket
7 88573 Left Handle Bracket
10 88574 Height Adjustment Board
12 84938 Rear Drive right Bracket
13 84939 Rear Drive Left Bracket
15 73221 Pull Spring For Pull Rod
16 89390 Height Adjustment Pull Rod
17 88625 R Type Pin
20 84842 Mulching Plug
21 T342250 Petrol Engine
22 89449 Bracket Plate For Defelctor
23 84849 Mulching Board
24 84850 Side Discharge Cover
25 88583 Mulch Shaft
26 88584 Mulch Board Spring
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.3
1 88581 Front Drive Assy.
2 76158 Wheel Assy.
3 73848 Wheel Punch Bearing
4 89450 Self-Locking Nut
5 76157 Outer Cover Of Hub
6 88580 Inner Cover Of Hub
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.4
0 89451 Rear Drive Assy.
1 73201 Height Adjustment Ball
2 89455 Selfpropelled Assy.
3 84984 Bush
4 84985 Bearing
5 88633 Gasket
6 76154 Inner Cover Of Hub
10 84824 Ratchet Wheel L
11 84825 Ratchet Wheel R
13 73849 Wheel Assy.
14 73848 Wheel Punch Bearing
15 89450 Self-Locking Nut
16 73847 Outer Cover of Hub
17 84845 V Belt
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.5
1 84840 Frame
2 84838 Grass Catcher Cover Substituted by --> 92584
3 84839 Filter Plate
4 84841 Fabric Grass Bag
5 84837 Rear Discharge Cover
6 88419 Shaft For Rear Discharge Cover
7 84987 Cover Spring
9 88575 Cover Dust Proof Board
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.6
1 84844 Blade Adapter Assy
2 84843 Double-Edge Blade
3 73223 Blade Washer
4 84815 Inch Hex Flange Bolts
8 84846 Belt Cover
Self-Propelled Lawnmower LT 46H TEKNICO Art. 84877 pag.7
1 RMGP65070601001 Engine Cover
2 RMGP65070100000 Starter-Rewind
3 RMGP65070401000 Cover-Blover Housing
4 Nut Flywheel
5 RMGP65070200000 Cup-Flywheel
6 RMGP65070402000 Fan
7 RMGP65070301000 Flywheel
9 RMGP65070403000 Bushing Ring
11 RMGP65070302000 Coil-Assy-Ignition
12 RMGP65060300000 Muffler Cover
13 RMGP65060000000 Muffler
14 RMGP65060200000 Gasket
15 RMGP65051000001 Primer
16 RMGP65030200000 Gasket
17 RMGP65030400000 Insulator
18 RMGP65030300000 Gasket
19 RMGP65030100003 Carburetor Assy
20 RMGP65030500000 Gasket
21 RMGP65040102002 Case-Air Filter
22 RMGP65040104000 Element-Air Filter
23 RMGP65040106000 Pre-Filter Element
24 RMGP65040101000 Air-Filter Cover
25 RMGP65040103000 Exhaust Gas Cover
27 RMGP65020100000 Cylinder Head Cover
28 RMGP65020300000 Gasket Head Cover
29 RMGP65080204000 Combined Nut
30 RMGP65080203000 Adjust Nut of Valve
31 RMGP65080200000 Rocker of Valve
32 RMGP65080900000 Keeper Valve
33 RMGP65080800000 Spring-Valve
34 RMGP65080202000 Rocker Support
35 RMGP65080500000 Guide Board
36 RMGP65020100000 Cylinder Head Assy
37 RMGP65080700000 Outlet Valve
38 RMGP65080600000 Inlet Valve
39 RMGP65080400000 Rod Push
40 RMGP65020600000 Oil Seal
41 RMGP65081100000 Valve Plate
42 RMGP65081000000 Keeper Valve
43 RMGP65010401200 Piston Ring1
44 RMGP65010401300 Piston Ring2
45 RMGP65010401500 Guide Rail
46 RMGP65010401400 Bushing Ring
47 RMGP65010401600 Piston-Pin
48 RMGP65010401700 Circlip of Piston-Pin
49 RMGP65010401100 Piston
50 RMGP65010402000 Connecting Road Assy
51 RMGP65010301000 Crankshaft Assy
52 RMGP65010109000 Gasket
53 RMGP65010104000 Valve Elemant
54 RMGP65010108000 Filterring Net
55 RMGP65050600000 Waste Pipe
56 RMGP65010301001 Detent
57 RMGP65010101000 Seal Gasket
58 RMGP65010201000 Crankcase Cover
59 26638 Oil-Seal 25x38x7
60 RMGP65010501000 Lubrificating Gauge
61 Seal Washer
62 O Type Ring
64 RMGP65010601000 Spring Governor Link
65 RMGP65010603301 Link-Mechanical Gov
66 RMGP65010603003 Lever Governor Control
67 RMGP65010606004 Spring-Governor
68 RMGP65080300000 Tappet-Valve
69 Oil-Seal 6x11x4
70 RMGP65080100000 Camshaft
71 RMGP65010205000 Shaft Governor
72 RMGP65010105000 Rocker Spindle
73 RMGP65010206000 Governor Assy
74 RMGP65010202000 Sliding Sleeve
75 RMGP70B010600000 Speed Governor
76 RMGP65050103000 Fuel Tank
77 RMGP65050101000 Fuel Tank Cap
78 RMGP65050106000 Sponge
79 RMGP65050102000 Seal Gasket
80 RMGP65050500000 Filtering Net
81 Line-Fuel
82 RMGP65010107000 Respirator Cover
83 RMGP65060200000 Bracket Fuel Tank
84 RMGP65010103000 Crankcase Assy
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama LT 46H TEKNICO - 84877
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing Ama LT 46H TEKNICO

Drawing Ama LT 46H TEKNICO

Download (1.29MB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP65070200000
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Recoil starter Rotor for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €11.35
Details
Tank Cap for Engines AMA MVG
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €7.72
Details
Recoil Starter for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV47B100000
Recoil Starter for Engine AMA MVG - T375
Recoil Starter for Engine AMA MVG - T375 Genuine part AMA, Recoil Starter Assy for Engines AMA MVG - T375 - 88603. Part for the following products: -  Engines AMA MVG - T375 - 88603 - ...
Last items in stock €32.93
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
Details
Primer for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65051000001
Primer for Self-Propelled Lawnmower AMA LT 52H
Primer for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Primer for Self-Propelled Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Usually Ships in: 7/10 Business Days Approx. €6.55
Details
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010104000
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Lubricate Filtering Net for Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT...
AVAILABLE €0.61
Details
Carburator Complete for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV43A100000
Carburetor Ass'y for Engine AMA MVG - T375
Carburetor Ass'y for Engine AMA MVG - T375 Genuine replacement part AMA, Carburetor Complete for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG -...
AVAILABLE €54.07
Details
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 73849 - 99690
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Rear Wheel 10.5'' for Self-Propelled Lawnmowers AMA LT 52H Part for the following products: -  Self-Propelled Lawnmower AMA LT...
Last items in stock €24.29
Details
Tank Cap Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €1.23
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €0.54
Details
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84972
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Upper Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.58
Details
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65040104000
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
Air Cleaner for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Air Cleaner for Engine AMA MVG - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self...
Last items in stock €16.63
Details
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
Details
Camshaft Complete for Engine AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65080100000
Camshaft Complete for Engine AMA MVG - T375 - T475
Camshaft Complete for Engine AMA MVG - T375 - T475 Genuine spare part AMA, Camshaft Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled...
Last items in stock €30.83
Details
Ignition Coil for Engines AMA MVG T375 - T475 - T575
A.M.A. S.p.A. SKU: RMGP65070302000
Ignition Coil for Engines AMA MVG T375 - T475 - T575
Ignition Coil for Engines AMA MVG T375 - T475 - T575 Genuine replacement part AMA, Ignition Coil Cpl. for Engines AMA MVG T375 - T475 - T575 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Engine...
Last items in stock €35.81
Details
Air Filter (Sponge for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV440001000
Air Filter (Sponge for Engine AMA MVG - T375
Air Filter (Sponge for Engine AMA MVG - T375 Genuine replacement part AMA, Air Filter (Sponge) for Engine AMA MVG - T375 - 88603. Part for the following products: - Engine AMA MVG - T375 - 88603 - Code : RMGV440001000
AVAILABLE €7.03
Details
Muffler Heat Insulation Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €5.60
Details
Air Fiter Carburator Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products:...
Last items in stock €6.59
Details
Conrod Complete for Engines AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65010402000
Conrod Complete for Engines AMA MVG - T375 - T475
Conrod Complete for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Conrod Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover...
Last items in stock €21.42
Details
Blade cm 46 for Push Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84843
Blade cm 46 for Push Lawnmower AMA RS461
Blade cm 46 for Push Lawnmower AMA RS461 Genuine replacement part AMA, Blade cm 46 for Push Lawnmower AMA RS461. Parts for the following products: -  Push Lawnmower AMA RS461 - Code: 84843
Last items in stock €30.06
Details
Speed Controller Ass'y for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGP65010203000
Speed Controller Ass'y for Engine AMA MVG - T375
Speed Controller Ass'y for Engine AMA MVG - T375 Genuine spare part AMA, Speed Controller Ass'y for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG - T375 - 88603...
Last items in stock €17.95
Details
Tank Cap Sponge Filter for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
Details
Air Cleaner Case for Engines AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65040102002
Air Cleaner Case for Engines AMA MVG - T375 - T475
Air Cleaner Case for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Air Cleaner Case for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following products: -...
AVAILABLE €21.06
Details
Speed Governor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
Details
Front Wheel for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 76158
Front Wheel for Self-Propelled Lawnmower AMA LT 52H
Front Wheel for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Front Wheel for Self-Propelled Lawnmowers LT 52H - Playcut LT52H - RT521 - RT522 - LT 46E -  LTS 461H....
Last items in stock €17.09
Details
Mulching Cap for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84842
Mulching Cap for Lawnmower AMA RS461
Mulching Cap for Lawnmower AMA RS461 Genuine replacement part AMA, Mulching Cap for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H - RT461B....
Last items in stock €13.81
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Fuel Tank Filter for Engine AMA MVG - T100
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €1.03
Details
Gear Box Bush for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84984
Gear Box Bush for Lawnmower AMA RT521-RT522
Gear Box Bush for Lawnmower AMA RT521-RT522 Genuine part AMA, Gear Box Bush for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Out of Stock €7.83
Details
Sliding Sleeve for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
Details
Inlet Valve for Engine AMA MVG T375 - T475
A.M.A. S.p.A. SKU: RMGP65080600000
Inlet Valve for Engine AMA MVG T375 - T475
Inlet Valve for Engine AMA MVG T375 - T475 Genuine part AMA, Inlet Valve for Engine AMA MVG T375 - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover AMA LT 52H Art....
on 7/10 Business Days Approx €11.37
Details
Brake Cable for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84971
Brake Cable for Lawnmower AMA RS461
Brake Cable for Lawnmower AMA RS461 Genuine replacement part AMA, Brake Cable for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H...
Last items in stock €11.15
Details
Fuel Tank for Engine AMA MVG - T475
A.M.A. S.p.A. SKU: RMGP65050103000
Fuel Tank for Engine AMA MVG - T475
Fuel Tank for Engine AMA MVG - T475 Genuine spare part AMA, Fuel Tank for Engines AMA MVG - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following...
Last items in stock €26.38
Details
AMA RS461 Grass Bag Filter
A.M.A. S.p.A. SKU: 84839
AMA RS461 Grass Bag Filter
AMA Lawnmower RS461 Grass Bag Filter Original spare part AMA Garden, Inner Grass Bag Filter for Lawmower RS461 - RT461B - RS461T. Parts for the following products: -  Lawnmower RS461 - 89502...
Last items in stock €15.45
Details
AMA NRT-461 Belt Cover
A.M.A. S.p.A. SKU: 84846
AMA NRT-461 Belt Cover
AMA Lawnmower NRT-461 Belt Cover Original spare part AMA Garden, Belt Cover for Lawmower NRT-461 - NRT-461B - LT 46E. Parts for the following products: -  Lawnmower NRT-461 - 90839 - ...
Last items in stock €11.22
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
AMA Lawnmower LT 52H Seal Gasket
A.M.A. S.p.A. SKU: RMGP6501010100
AMA Lawnmower LT 52H Seal Gasket
AMA Seal Gasket for Lawnmower LT 52H Original spare parts AMA, Engine Crankcase Gasket for Petrol Lawnmower LT 52H - Playcut LS 46 - LTS 461H. Parts for the following products: -  Lawnmower Ama LT 52H - 84878 -  Engine Ama...
AVAILABLE €6.17
Details
Comments (0)
