Ama Spare Parts for Push Lawnmower LSE42

SKU: Ama LSE42 - 84882
€31.60
VAT included

Ama Spare Parts for Push Lawnmower LSE42

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Push Lawnmower LSE42 - 84882.
Ama Spare Parts for Push Lawnmower LSE42
  • Online only
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42
  • Ama Spare Parts for Push Lawnmower LSE42

Ama Spare Parts for Push Lawnmower LSE42

SKU: Ama LSE42 - 84882 Condition: New
€31.60
VAT included

Ama Spare Parts for Push Lawnmower LSE42

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Push Lawnmower LSE42 - 84882.
settings 112 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

93 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 84948 Handle Sponge - Out of Stock €7.63
2
photo_cameraImage coming soon 84927 Upper handrail €30.68
3
photo_cameraImage coming soon 84897 Stop lever €10.44
5
AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
8
photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
photo_cameraImage coming soon 84898 Brake cable €19.15
14
Handle Knob for Lawnmower AMA Playcut LS 46 73196 Handle Knob for Lawnmower AMA Playcut LS 46 €4.45
18
Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden 55823 Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden €199.43
2
photo_cameraImage coming soon 84933 Deck welding assy. €131.93
3
photo_cameraImage coming soon 84934 Rear baffer €39.70
4
photo_cameraImage coming soon 84937 Guide board €3.00
6
photo_cameraImage coming soon 84938 Rear drive right bracket €3.08
7
photo_cameraImage coming soon 84939 Rear drive left bracket €3.08
8
photo_cameraImage coming soon 84945 Height Adjustment Pull Rod €11.29
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 84954 Front drive assy. €32.71
2
photo_cameraImage coming soon 84955 Wheel assy. €11.29
5
photo_cameraImage coming soon 73219 WHEEL COVER €3.51
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 84946 Rear drive assy. €42.38
3
photo_cameraImage coming soon 73201 Height adjustment ball €3.49
7
photo_cameraImage coming soon 73218 WHEEL 7" €17.90
9
photo_cameraImage coming soon 73219 WHEEL COVER €3.51
10
photo_cameraImage coming soon 84904 Rear wheel axle sleeve €6.43
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 88112 Fabric grass bag €39.70
2
photo_cameraImage coming soon 88113 Fabric metal frame €26.92
3
photo_cameraImage coming soon 88114 Rear discharge cover €11.29
4
photo_cameraImage coming soon 88115 Cover spring €2.04
5
photo_cameraImage coming soon 88116 Shaft for rear discharge cover €3.71
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon 84947 Washer for Blade Adapter €3.62
3
photo_cameraImage coming soon 84823 Blade Adapter €15.10
4
photo_cameraImage coming soon 84931 Double-edge blade €20.95
5
Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
6
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Recoil Starter for Engine AMA MVG - T100 RMGPV6BA100000 Recoil Starter for Engine AMA MVG - T100 €28.62
3
photo_cameraImage coming soon RMGPV6B0001000 Cover-Blover Housing €19.40
5
photo_cameraImage coming soon RMGP65070403000 Bush €9.17
6
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
7
photo_cameraImage coming soon RMGPV6B0003000 Fan €16.29
8
Flywheel for Engine AMA MVG - T100 RMGPV6CA100000 Flywheel for Engine AMA MVG - T100 €44.55
9
Ignition Coil Complete for Engine AMA MVG - T100 RMGPV6CB001000 Ignition Coil Complete for Engine AMA MVG - T100 €36.03
10
photo_cameraImage coming soon RMGPV68A100000 Brake Assy €15.94
13
photo_cameraImage coming soon RMGPV6AA100000 Muffler €21.63
15
Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
16
Carburetor Gasket for Engine AMA MVG - T100 RMGPV690001000 Carburetor Gasket for Engine AMA MVG - T100 €3.48
17
photo_cameraImage coming soon RMGPV690002000 Insulator €1.65
18
photo_cameraImage coming soon RMGPV690003000 Gasket €1.56
19
Carburator Complete for Engine AMA MVG - T100 RMGPV690005000 Carburator Complete for Engine AMA MVG - T100 €48.19
20
photo_cameraImage coming soon RMGPV690004000 Gasket €1.56
21
photo_cameraImage coming soon RMGPV690007000 Case-Air Filter €6.08
22
Air Cleaner for Engine AMA MVG - T100 RMGPV690008000 Air Cleaner for Engine AMA MVG - T100 €5.60
23
Pre-Filter Element for Engine AMA MVG T100 RMGPV690012000 Pre-Filter Element for Engine AMA MVG T100 €3.74
24
photo_cameraImage coming soon RMGPV690006000 Air-Filter Cover €6.88
25
photo_cameraImage coming soon RMGPV690011000 Exhaust Gas Cover €6.08
26
photo_cameraImage coming soon RMGPV690010000 Waste Pipe €1.83
27
photo_cameraImage coming soon RMGPV610004000 Cylinder Head Cover €6.28
28
photo_cameraImage coming soon RMGPV610002000 Gasket Head Cover €3.01
29
photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
30
photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
31
photo_cameraImage coming soon RMGPV660002000 Rocker of Valve €1.83
32
photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
33
photo_cameraImage coming soon RMGPV660001000 Spring-Valve €1.83
34
photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
37
photo_cameraImage coming soon RMGPV420002000 Outlet Valve €9.88
38
photo_cameraImage coming soon RMGPV420001000 Inlet Valve €8.46
39
photo_cameraImage coming soon RMGPV66B100000 Rod Push €3.24
44
photo_cameraImage coming soon RMGPV950001000 Piston €23.23
45
photo_cameraImage coming soon RMGPV650006000 Piston-Pin €4.87
46
photo_cameraImage coming soon RMGPV650007000 Circlip of Piston-Pin €4.87
47
photo_cameraImage coming soon RMGPV65A100000 Connecting Road Assy €21.63
49
photo_cameraImage coming soon RMGPV62A100000 Crankcase Assy €105.67
50
photo_cameraImage coming soon RMGPV6B0007000 Blower Plate €7.92
51
photo_cameraImage coming soon RMGP70B010105001 Respirator Cover €4.27
53
photo_cameraImage coming soon RMGP70B010106000 Valve Elemant €1.57
54
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
57
photo_cameraImage coming soon RMGPV630001000 Seal Gasket €5.85
58
photo_cameraImage coming soon RMGPV63A100000 Crankcase Cover €62.25
60
photo_cameraImage coming soon RMGPV63B100000 Lubrificating Gauge €7.49
61
photo_cameraImage coming soon RMGPV630003000 Seal Washer €7.49
63
photo_cameraImage coming soon RMGPV610001000 Gasket Cylinder Head €8.24
64
photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
66
photo_cameraImage coming soon RMGPV670004000 Lever Governor Control €3.79
70
photo_cameraImage coming soon RMGPV66A100000 Camshaft €18.48
71
photo_cameraImage coming soon RMGPV670001000 Shaft Governor €1.27
72
photo_cameraImage coming soon RMGPV670003000 Rocker Spindle €2.14
73
photo_cameraImage coming soon RMGPV67A100000 Governor Assy €5.42
74
Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
75
photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
76
photo_cameraImage coming soon RMGPV6D0001000 Fuel Tank €13.72
77
Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
77
photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €7.74
78
Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
79
Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
80
Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Push Lawnmower LSE42

AMA Garden Original spare part

s at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Push Lawnmower LSE42 - 84882.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama LSE42 - 84882

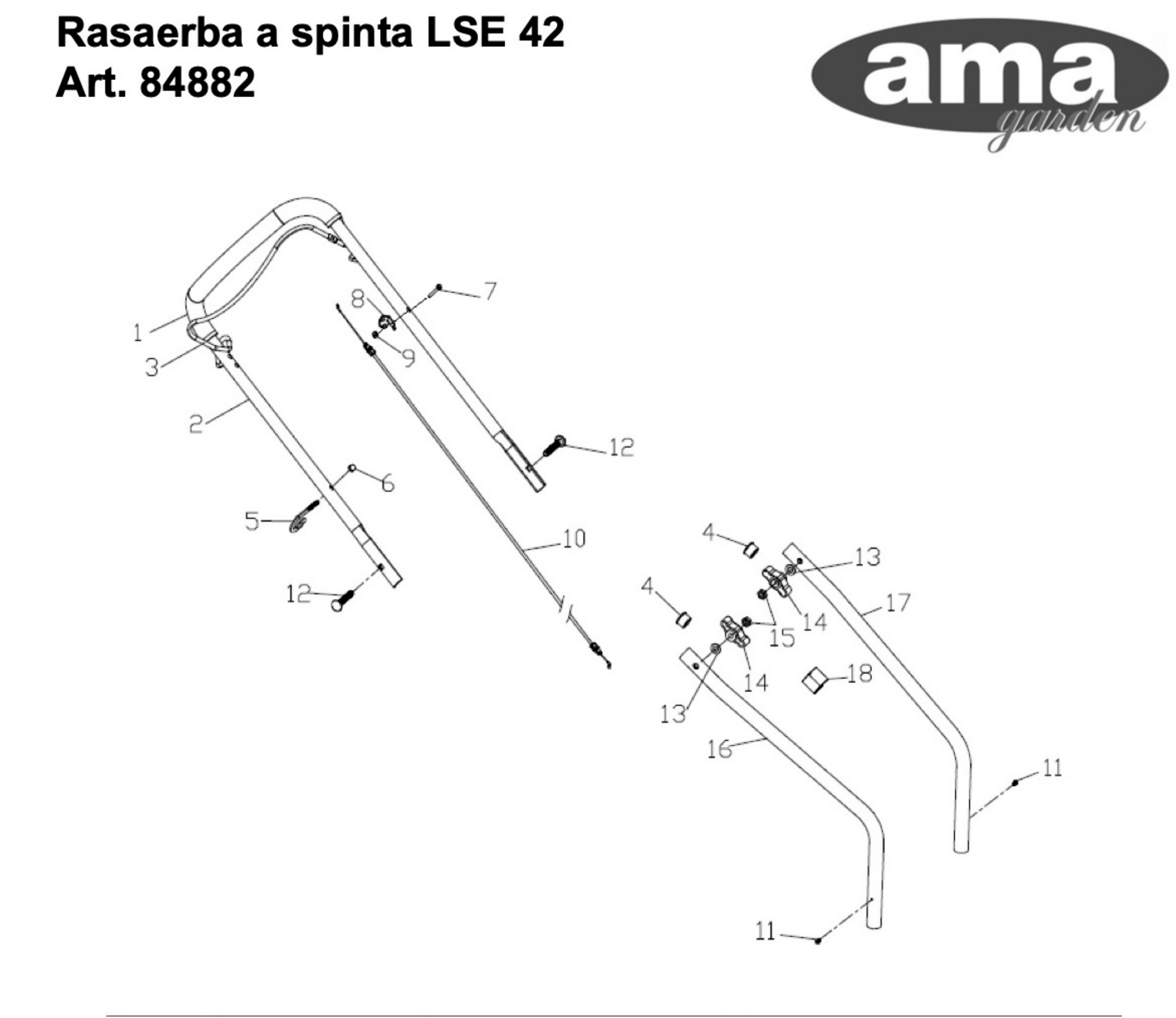

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.1
# Part Num. Description
1 84948 Foam pipe - Out of StocK
2 84927 Upper handrail
3 84897 Stop lever
4 Handrail stopper
5 88568 Rope Guide
8 84822 Brake Cable Assy plate
10 84898 Brake cable
14 73196 Knob
16 84949 Right lower handrail
17 84930 Left lower handrail
18 88247 Fastener

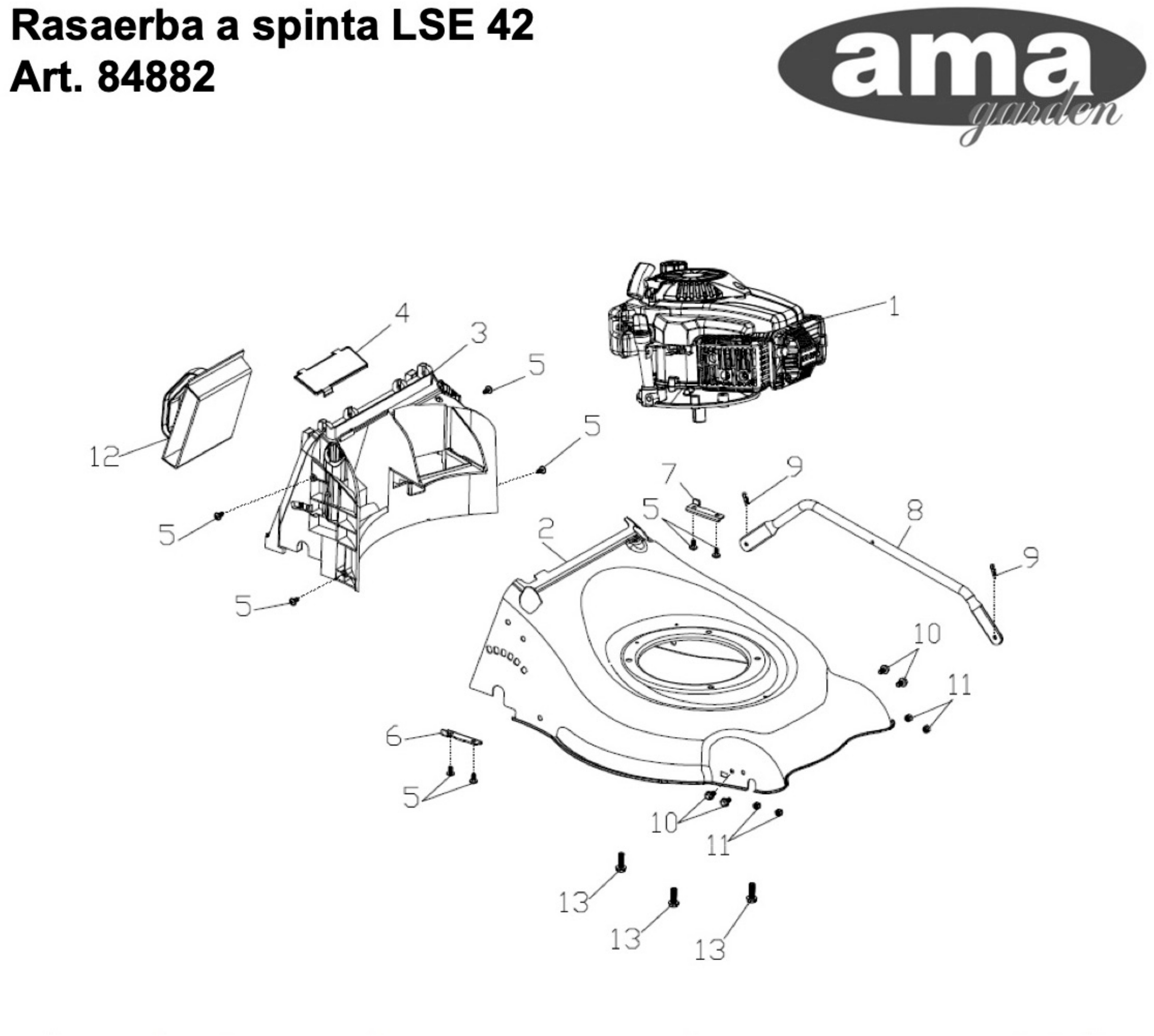

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.2
1 55823 Petrol engine
2 84933 Deck welding assy.
3 84934 Rear baffer
4 84937 Guide board
6 84938 Rear drive right bracket
7 84939 Rear drive left bracket
8 84945 Height Adjustment Pull Rod
12 84953 Mulching plug

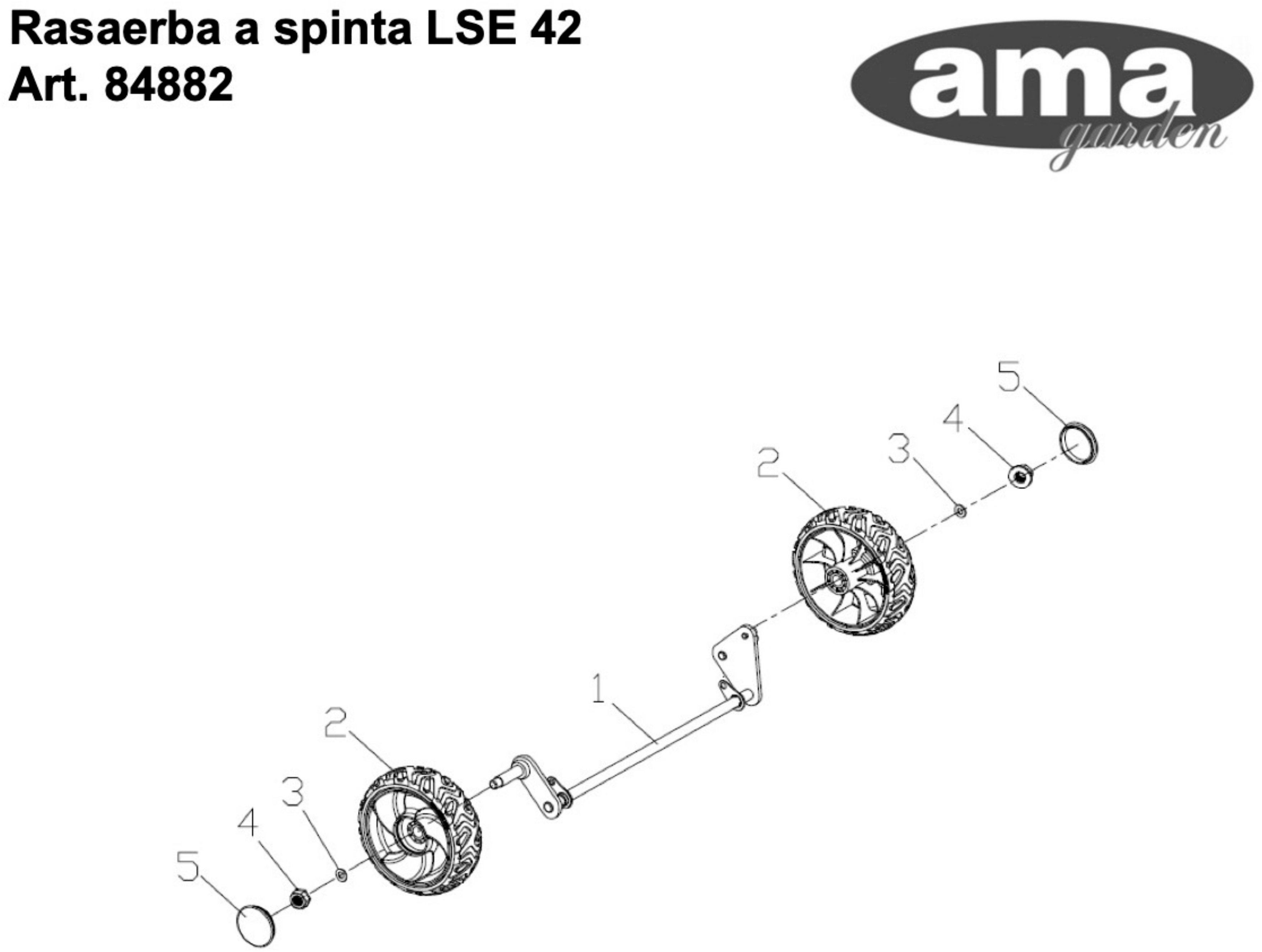

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.3
1 84954 Front drive assy.
2 84955 Wheel assy.
5 73219 Outer cover of hub

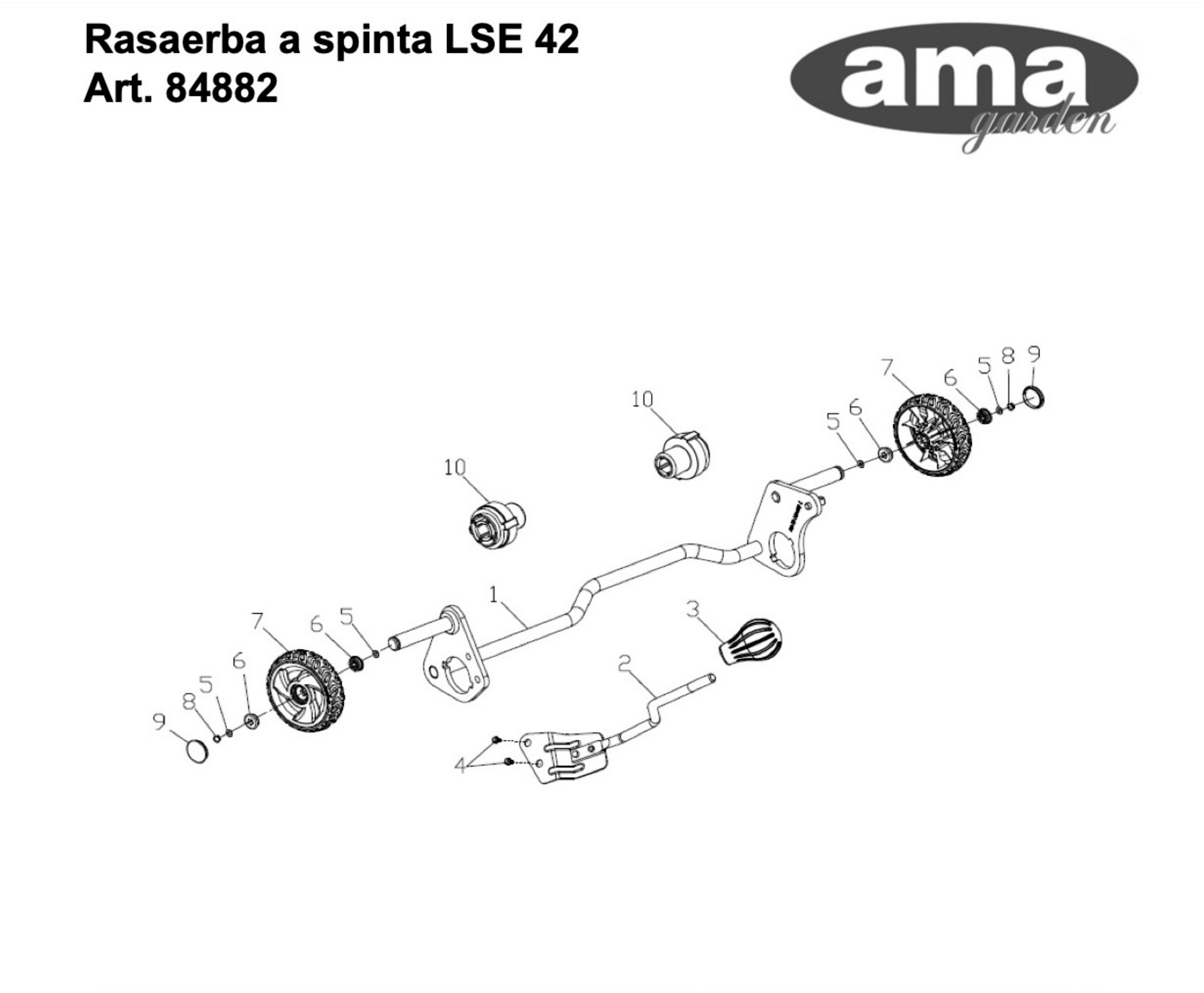

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.4
1 84946 Rear drive assy.
3 73201 Height adjustment ball
6 73217 Wheel axle sleeve
7 73218 Wheel assy.
9 73219 Outer cover of hub
10 84904 Rear wheel axle sleeve

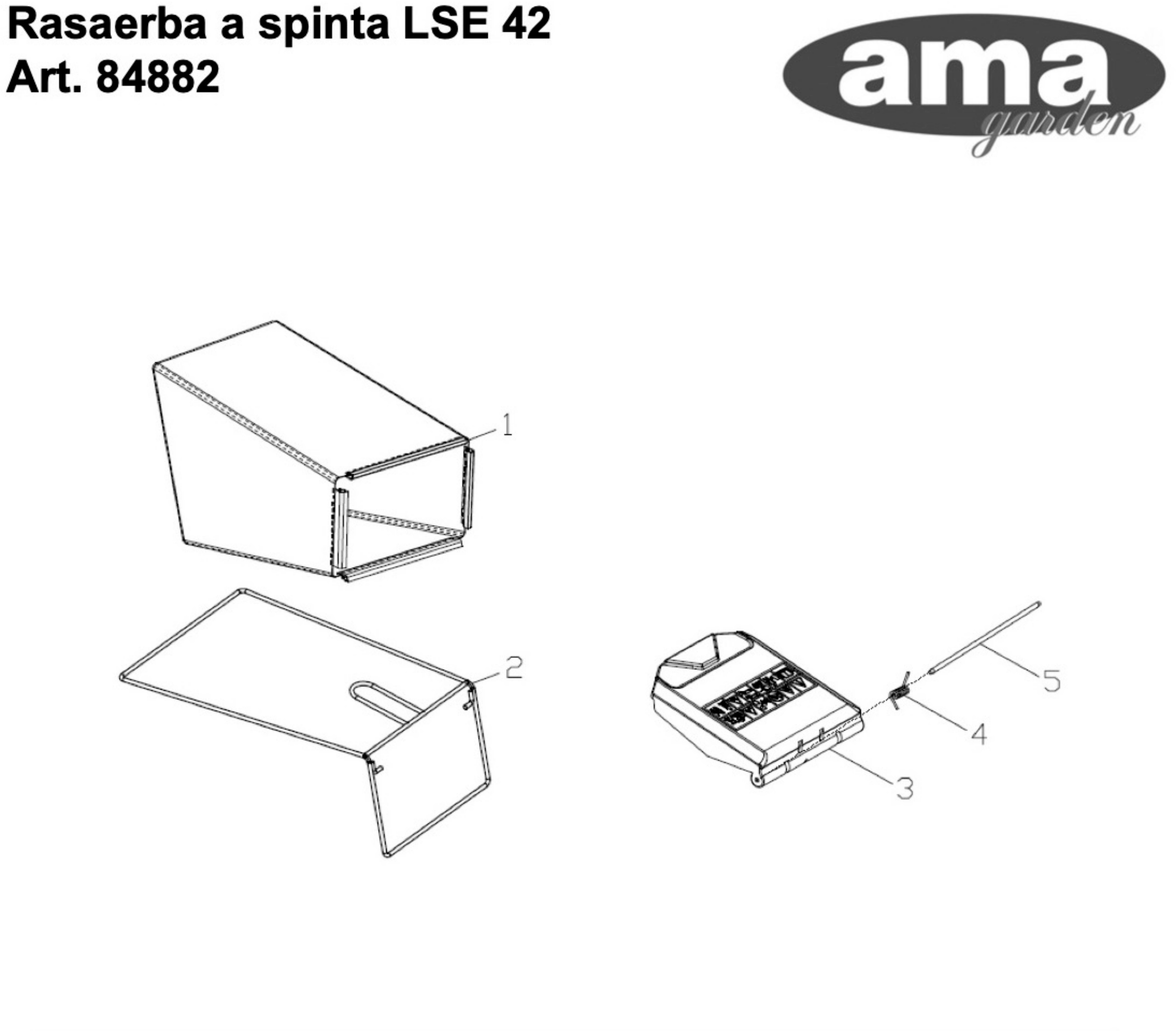

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.5
1 88112 Fabric grass bag
2 88113 Fabric metal frame
3 88114 Rear discharge cover
4 88115 Cover spring
5 88116 Shaft for rear discharge cover

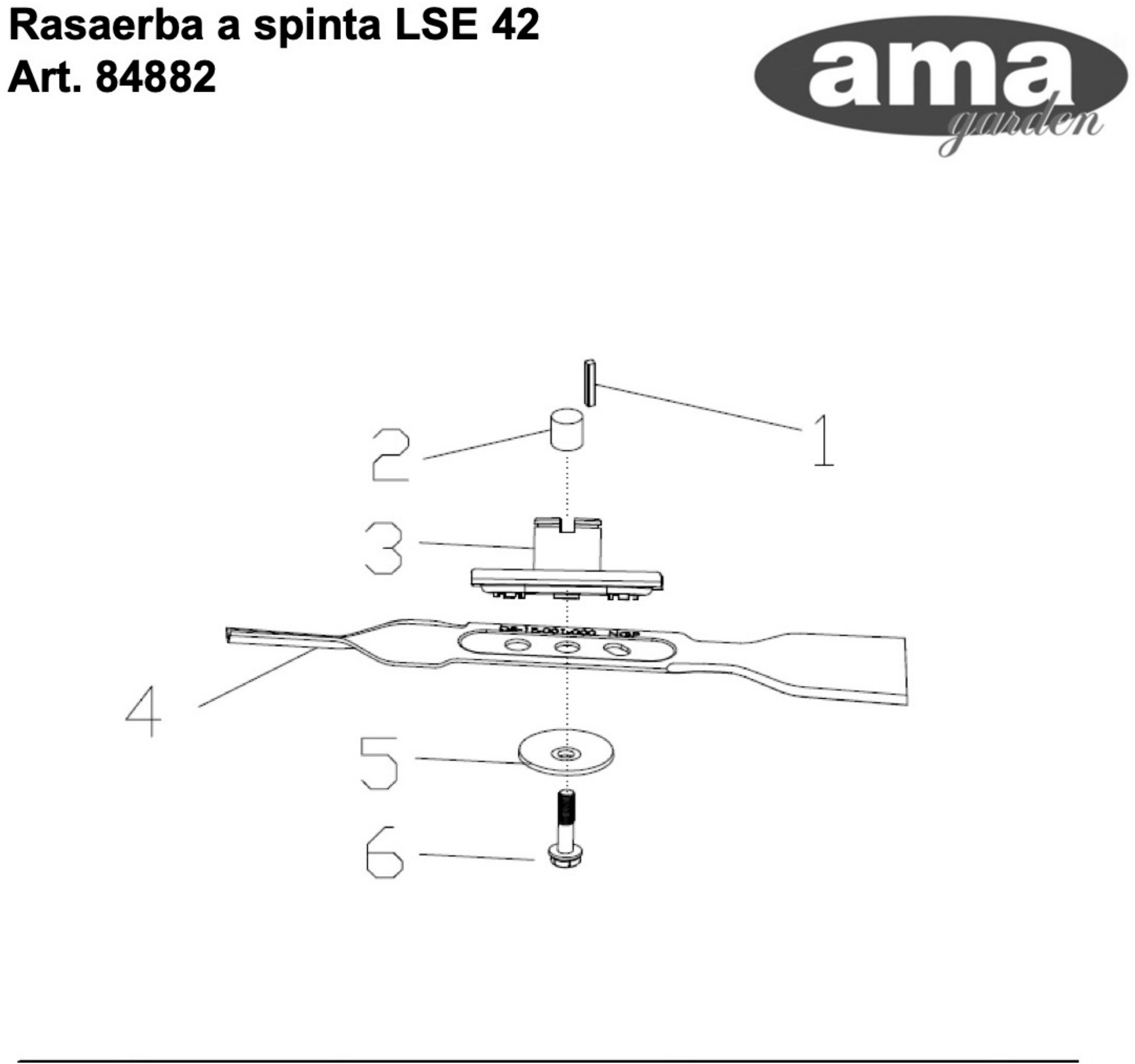

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 pag.6
1 84826 Long Key for Crankshaft
2 84947 Washer for Blade Adapter
3 84823 Blade Adapter
4 84931 Double-edge blade
5 73223 Blade washer
6 84815 Inch hex flange bolts

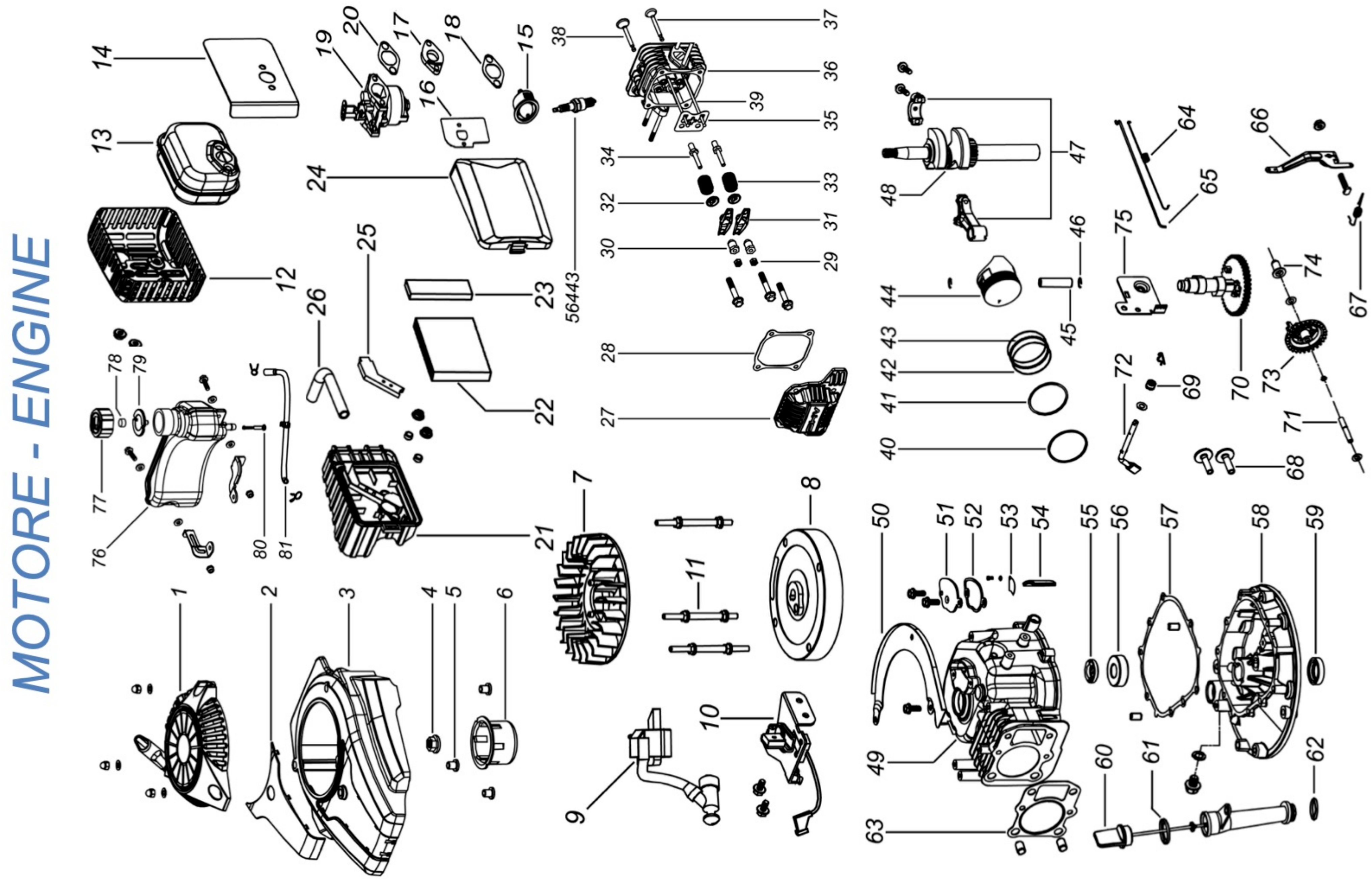

LSE42-PUSH-LAWNMOWER-LSE42-code-84882 ENGINE T100 Pag.7
1 RMGPV6BA100000 Starter-Rewind
2 RMGPV6B0002000 Decorative Plate
3 RMGPV6B0001000 Cover-Blover Housing
4 Nut Flywheel
5 RMGP65070403000 Bush
6 RMGP65070200000 Cup-Flywheel
7 RMGPV6B0003000 Fan
8 RMGPV6CA100000 Flywheel
9 RMGPV6CB001000 Coil-Assy-Ignition
10 RMGPV68A100000 Brake Assy
12 RMGPV6AB100000 Muffler Cover
13 RMGPV6AA100000 Muffler
14 RMGPV6A0001000 Gasket
15 RMGP65051000001 Primer
16 RMGPV690001000 Gasket
17 RMGPV690002000 Insulator
18 RMGPV690003000 Gasket
19 RMGPV690005000 Carburetor Assy
20 RMGPV690004000 Gasket
21 RMGPV690007000 Case-Air Filter
22 RMGPV690008000 Element-Air Filter
23 RMGPV690012000 Pre-Filter Element
24 RMGPV690006000 Air-Filter Cover
25 RMGPV690011000 Exhaust Gas Cover
26 RMGPV690010000 Waste Pipe
27 RMGPV610004000 Cylinder Head Cover
28 RMGPV610002000 Gasket Head Cover
29 RMGP65080204000 Combined Nut
30 RMGP65080203000 Adjust Nut of Valve
31 RMGPV660002000 Rocker of Valve
32 RMGP65080900000 Keeper Valve
33 RMGPV660001000 Spring-Valve
34 RMGP65080202000 Rocker Support
35 RMGPV660003000 Guide Board
36 RMGPV61A100000 Cylinder Head Assy
37 RMGPV420002000 Outlet Valve
38 RMGPV420001000 Inlet Valve
39 RMGPV66B100000 Rod Push
40 RMGPV650002000 Piston Ring1
41 RMGPV650003000 Piston Ring2
42 RMGPV650004000 Guide Rail
43 RMGPV650005000 Bushing Ring
44 RMGPV950001000 Piston
45 RMGPV650006000 Piston-Pin
46 RMGPV650007000 Circlip of Piston-Pin
47 RMGPV65A100000 Connecting Road Assy
48 RMGPV64A100000 Crankshaft Assy
49 RMGPV62A100000 Crankcase Assy
50 RMGPV6B0007000 Blower Plate
51 RMGP70B010105001 Respirator Cover
52 RMGP65010109000 Gasket
53 RMGP70B010106000 Valve Elemant
54 RMGP65010104000 Filterring Net
55 Oil-Seal 17x30x6
56 Ball Bearing 6203/P5
57 RMGPV630001000 eSeal Gasket
58 RMGPV63A100000 Crankcase Cover
59 Oil-Seal 22x35x7
60 RMGPV63B100000 Lubrificating Gauge
61 RMGPV630003000 Seal Washer
63 RMGPV610001000 Gasket Cylinder Head
64 RMGP65010601000 Spring Governor Link
65 RMGPV670007000 Link-Mechanical Gov
66 RMGPV670004000 Lever Governor Control
67 RMGPV670006000 Spring-Governor
68 RMGP65080300000 Tappet-Valve
69 Oil-Seal 6x11x4
70 RMGPV66A100000 Camshaft
71 RMGPV670001000 Shaft Governor
72 RMGPV670003000 Rocker Spindle
73 RMGPV67A100000 Governor Assy
74 RMGP65010202000 Sliding Sleeve
75 RMGP70B010600000 Speed Governor
76 RMGPV6D0001000 Fuel Tank
77 RMGP65050101000 Fuel Tank Cap black
77 RMG251700500140 Fuel Tank Cap orange
78 RMGP65050106000 Sponge
79 RMGP65050102000 Seal Gasket
80 RMGP65050500000 Filtering Net
81 Line-Fuel
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama LSE42 - 84882
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing Ama LSE42

Drawing Ama LSE42

Download (905.63KB)

You might also like

A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
A.M.A. S.p.A. SKU: 89523
Blade cm 42 for Push Lawnmower AMA RS421 Genuine replacement part AMA, Blade cm 42 for Push Lawnmower AMA RS421 - 89501. Parts for the following products: -  Push Lawnmower AMA RS421 - 89501...
Last items in stock €33.30
A.M.A. S.p.A. SKU: RMGPV6BA100000
Recoil Starter for Engine AMA MVG - T100 Genuine part AMA, Recoil Starter Assy for Engines AMA MVG - T100 - 55823 Part for the following products: -  Engine AMA MVG - T100 - 55823 - ...
Last items in stock €28.62
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
A.M.A. S.p.A. SKU: 89522
Blade Holder for Lawnmower AMA RS421 Genuine part AMA, Blade Holder for Push Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Push Lawnmower AMA RS421 - 89501 -  Push  Lawnmower AMA NRS-421 - 90876 - Code: 89522
AVAILABLE €18.26
A.M.A. S.p.A. SKU: RMGPV690005000
Carburator Complete for Engine AMA MVG - T100 Genuine part AMA, Carburator Complete for Engines AMA MVG - T100 - 55823 Part for the following products: -  Engine AMA MVG - T100 - 55823 -  Push Lawnmower LSE 42 - 84882 - Code :...
Last items in stock €48.19
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
A.M.A. S.p.A. SKU: RMG251700500140
Tank Cap (Big) for Engines AMA MVG Genuine part AMA, Tank Cap (Big) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €6.83
A.M.A. S.p.A. SKU: 88628
M8X25/8.8 Engine Bolt for Lawnmowers AMA Genuine replacement part AMA, M8X25/8.8 Engine Bolt for Lawnmower AMA RS421 - RS461 - RT521 - NRS-421 - NRS-461 - NRS-461T - NRT-461 - NRT-461B. Part for the following products: - Lawnmower...
Last items in stock €0.89
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €2.64
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €1.03
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
A.M.A. S.p.A. SKU: 73196
Handle Knob for Lawnmower AMA Playcut LS 46 Genuine replacement part AMA, Handle Knob for Push Lawnmowers Playcut LS 46 - Playcut LT52H - LSE42. Part for the following products: -  Lawnmower Playcut LS 46 - 73127 -  Rasaerba Playcut...
AVAILABLE €4.45
A.M.A. S.p.A. SKU: RMGPV690001000
Carburetor Gasket for Engine AMA MVG - T100 Genuine part AMA, Carburetor Gasket for Engines AMA MVG - T100 - 55823 Part for the following products: -  Engine AMA MVG - T100 - 55823 -  Push Lawnmower LSE 42 - 84882 - Code :...
Last items in stock €3.48
A.M.A. S.p.A. SKU: 88568
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Comments (0)
