We are AMA Garden original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw AMX 26.10 - 92604.

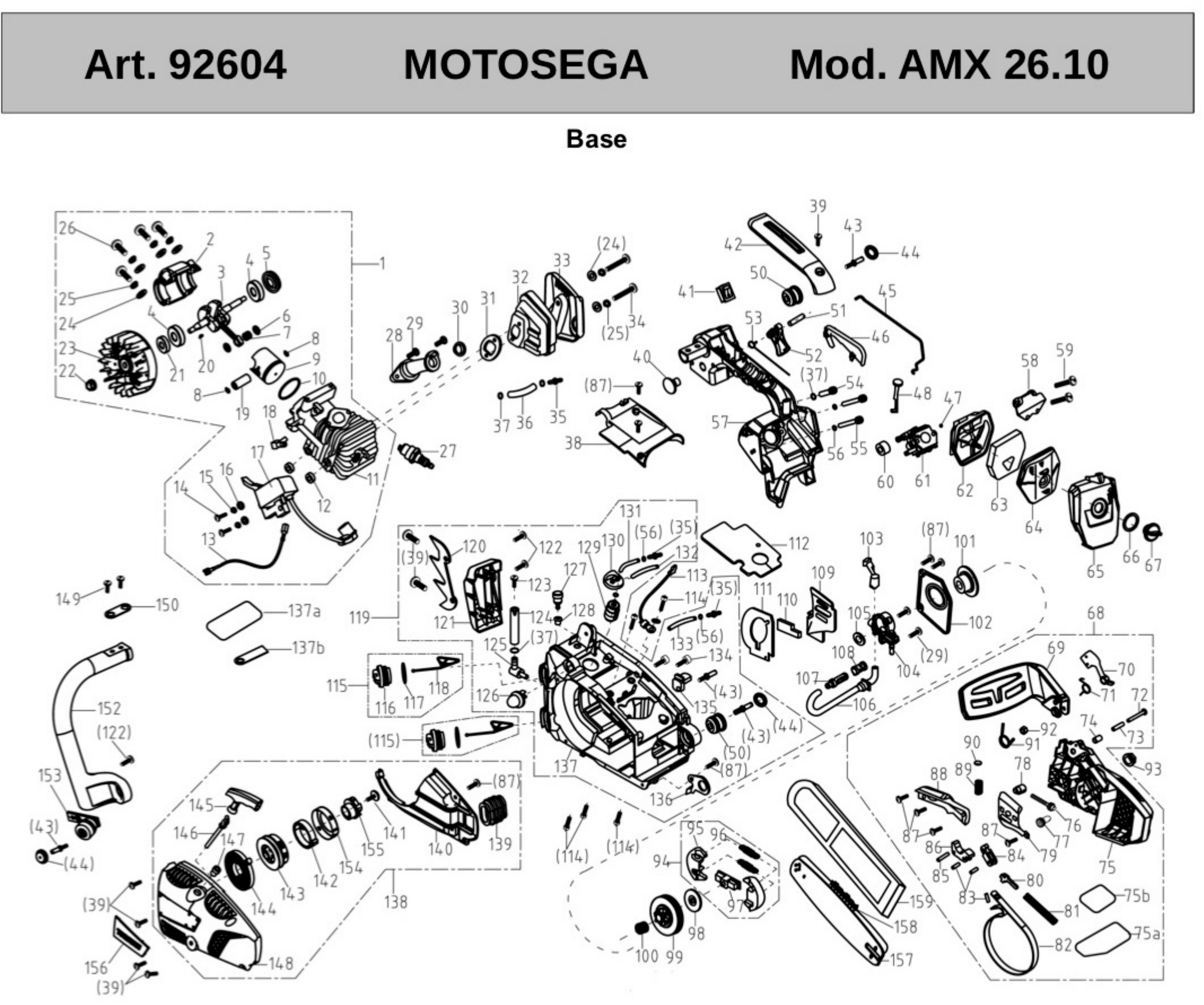

In the following table, look for the model of the Chainsaw and the respective parts of the code.![]()
| Motosega AMX 26.10 | ||
| # | Part Num. | Description |
| 1 | 92789 | Engine |
| 2 | 92790 | Crankcase |
| 3 | 92791 | Crankshaft components |
| 4 | 63806 | Bearing 6001 |
| 5 | 63807 | Oil seal 12×28×6 |
| 6 | 63801 | Needle bearing washer |
| 7 | 92793 | Needle bearing 8×11×9 |
| 8 | 63803 | Piston pin circlip |
| 9 | 63804 | Piston |
| 10 | 63805 | Piston ring |
| 11 | 92794 | Cylinder |
| 12 | 63821 | Igniter washer |
| 13 | Standard | Flameout wire 0.5×410 |
| 14 | Standard | Bolt, hexagon hole M4×18 |
| 15 | Standard | Spring Washer 4 |
| 16 | Standard | Washer 4 |
| 17 | 89815 | Ignition Coil assembly - NEW 98905 |
| 18 | 63812 | Elbow |
| 19 | 63802 | Piston pin |
| 20 | 63818 | Key 3×3.5×10 |
| 21 | 63808 | Oil seal 12×22×5 |
| 22 | 63820 | Nut M8×1 |
| 23 | 89816 | Rotor assembly |
| 24 | Standard | Washer 5 |
| 25 | Standard | Spring washer 5 |
| 26 | Standard | Bolt, hexagon hole M5×22 |
| 27 | 12207 | Spark plug (LD L8RTF) |
| 28 | 63786 | Air intake tube |
| 29 | Standard | Screw M4×14 |
| 30 | 84917 | Supporting bead |
| 31 | 63825 | Muffler gasket |
| 32 | 88216 | Muffler assembly |
| 33 | 92795 | Muffler cover |
| 34 | Standard | Bolt, hexagon hole M5×50 |
| 35 | 63879 | Joint |
| 36 | 63814 | Pressure pipe 2.5×6×48 |
| 37 | 63813 | Clip |
| 38 | 92796 | Top cover |
| 39 | Standard | Tapping screw ST4.2×16 |
| 40 | 63852 | Stopper |
| 41 | 63847 | Engine switch |
| 42 | 92797 | Rear handle cover |
| 43 | 63788 | Bolt |
| 44 | 63844 | Cap |
| 45 | 63858 | Throttle rod |
| 46 | 92798 | Trigger control rack |
| 47 | Hollow rivet | |
| 48 | 92799 | Choke |
| 50 | 63842 | Damper |
| 51 | 63856 | Trigger roller 5×25 |
| 52 | 95110 | Throttle trigger |
| 53 | 57803 | Trigger torsion rod spring |
| 54 | 63797 | Carburettor pressure pipe |
| 55 | 63857 | Fuel output pipe |
| 56 | 88204 | Fuel tube circlip |
| 57 | 95111 | Rear handle |
| 58 | 63866 | Air cleaner plate |
| 59 | 63794 | Screw M5×45 |
| 60 | 63862 | Seal |
| 61 | 63863 | Carburetor |
| 62 | 63865 | Air cleaner base |
| 63 | 63867 | Cleaner |
| 64 | 63868 | Cleaner cover |
| 65 | 95112 | Air filter cover |
| 95113 | Knob | |
| 68 | 95114 | Brake assembly |
| 69 | 95115 | Front handle guard |
| 70 | 64030 | Weight |
| 71 | 64031 | Weight torsion rod spring |
| 72 | 64036 | Screw M5×32 |
| 75 | 95116 | Clutch cover |
| 75a | Heat isolation film for clutch cover | |
| 75b | Rectangular heat isolation film | |
| 76 | 88207 | Passively conical gear |
| 77 | 57808 | Active conical gear |
| 78 | 88206 | Tension block |
| 79 | 64049 | Tension block plate |
| 80 | 64044 | Brake control rod |
| 81 | 64046 | Brake spring |
| 82 | 64045 | Brake strap |
| 83 | 58122 | Pin 3×9 |
| 84 | 95117 | Secondary pull-rod |
| 85 | Standard | Roller 3×14 |
| 86 | 95118 | Main lever |
| 87 | Standard | Tapping screw ST4.2×12 |
| 88 | 95119 | Spring cover |
| 89 | 95120 | Spring |
| 90 | 95121 | Spring base |
| 91 | 64038 | Returned torsion rod spring |
| 92 | Standard | Locknut M5 |
| 93 | 73839 | Nut M8 |
| 94 | 63882 | Clutch assembly |
| 98 | 63837 | Clutch washer |
| 99 | 63836 | Clutch drum(3/8) |
| 100 | 63835 | Needle bearing 10×13×13 |
| 101 | 55079 | Worm SCREW |
| 102 | 63834 | Oil pump cover |
| 103 | 63875 | Oil outgoing pipe |
| 104 | 57570 | Oil pump |
| 105 | 63829 | Reduce attrition washer 10×18×1.5 |
| 106 | 63831 | Oil pipe |
| 107 | 57633 | Oil filter |
| 108 | 57633 | Oil filter screen |
| 109 | 63830 | Plate |
| 110 | 88202 | Dustproof sponge block |
| 111 | 88203 | Dustproof sponge piece |
| 112 | 63893 | Heat insulation mat |
| 113 | Standard | Ground wire 0.5×175 |
| 114 | Standard | Bolt, hexagon hole M5×16 |
| 115 | 95122 | Cap assembly |
| 117 | 63890 | Cap gasket 20×30×2 |
| 119 | Base components | |
| 120 | 64075 | Spiked bumper |
| 121 | 95123 | Spiked bumper case |
| 122 | Standard | Tapping screw ST4.8×13 |
| 123 | Standard | Tapping screw ST4.2×13 |
| 124 | Ventilated tube 3.5×6.5×65 | |
| 125 | 90456 | Suction jet |
| 126 | 63833 | Primer bulb |
| 127 | 63771 | Balancer |
| 128 | 63885 | Balancer root |
| 129 | 57507 | Fuel filter |
| 131 | 63883 | Fuel pipe set |
| 134 | 76204 | Screw ST4.2×13 |
| 135 | 63877 | Chain catcher |
| 136 | 63845 | Attachment device |
| 137 | 95124 | Base |
| 137a | Heat isolation film for base | |
| 137b | 88215 | Heat isolation plate for base |
| 138 | 95125 | Starter assembly |
| 139 | 64053 | Air conduct pipe |
| 140 | 64051 | Bossing |
| 141 | Standard | Tapping screw ST4.8×13 |
| 142 | 95126 | Coil spring I |
| 143 | 95127 | Rope sheave |
| 144 | 95128 | Coil spring II |
| 145 | 95129 | Handle |
| 147 | 64060 | Jacket |
| 148 | 95130 | Starter cover |
| 149 | Standard | Tapping screw ST4.8×16 |
| 150 | 63896 | Front handle washer |
| 152 | 95131 | front handle |
| 153 | 63842 | Front handle absorber |
| 154 | 95132 | Gland |
| 155 | 95133 | Ratchet wheel |
| 156 | Scutcheon | |
| 157 | 84928 | 10'' Oregon bar |
| 157 | 73116 | Sprocket Nose Bar 10" 3/8" with "AMA" logo |
| 158 | 71522 | Saw chain (3/8) |
| 158 | ORE7932140 | Saw chain (3/8) |
| 159 | 62006 | Guide bar cover |
