Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

SKU: Ama MVG - T680 - 90260
€18.28
VAT included

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Engine MVG - T680 ART. 90260.
Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260
  • Online only
  • Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260
  • Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

SKU: Ama MVG - T680 - 90260 Condition: New
€18.28
VAT included

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Engine MVG - T680 ART. 90260.
settings 71 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

71 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon RMG25190120000 Engine Cover €13.77
3
photo_cameraImage coming soon RMG20740100014 Pull starter assy. €3.27
4
photo_cameraImage coming soon RMG25010170000 Blower Housing €12.90
5
photo_cameraImage coming soon RMG60140050000 Hex flange nuts €2.60
6
photo_cameraImage coming soon RMGP70B07010000 Starter hub €10.62
7
photo_cameraImage coming soon RMGP70B07040000 Fan €22.03
8
photo_cameraImage coming soon RMG75390160000 Flywheel assy €31.31
10
photo_cameraImage coming soon RMGV510000000 Respirator Cover Plate €5.93
11
photo_cameraImage coming soon RMGV510020000 Paper Gasket for Respirator Cover €1.31
12
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
16
Fuel Tank Cap Assy for Engine AMA MVG - T680 RMG25170100014 Fuel Tank Cap Assy for Engine AMA MVG - T680 €10.50
18
photo_cameraImage coming soon RMG60440330000 Fuel Tank Cap seal gasket €2.81
19
photo_cameraImage coming soon RMG25180210000 Fuel tank body €16.70
22
Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
23
photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
24
photo_cameraImage coming soon RMGP70B05050000 Fuel pipe €10.72
27
photo_cameraImage coming soon RMG25250090000 Flywheel Tooth Ring €13.40
28
photo_cameraImage coming soon RMG30040280000 Charging coil €15.43
29
photo_cameraImage coming soon RMG25010190000 Wind shield €3.82
34
photo_cameraImage coming soon 90472 Motor €41.41
35
photo_cameraImage coming soon RMG60360100000 Oil seal €4.75
41
AMA Engine MVG-T680 Ignition Coil RMG75370032000 AMA Engine MVG-T680 Ignition Coil €31.90
45
photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
47
photo_cameraImage coming soon RMGV510103000 Handspike of Valve €2.11
48
photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
49
photo_cameraImage coming soon RMGV510004000 Speed Regulator Rocker €5.18
51
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 RMGP70B01060000 Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 €6.83
52
photo_cameraImage coming soon RMG60410640000 Throttle control spring €3.45
54
photo_cameraImage coming soon RMG75530090000 Muffler cover assy. €15.37
55
photo_cameraImage coming soon RMG75540120000 Muffler assy. €20.12
56
photo_cameraImage coming soon RMG75740080000 Gasket of Muffler €2.70
57
photo_cameraImage coming soon 79567 Spark plug €5.22
59
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 RMGP70B02040000 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 €12.27
60
photo_cameraImage coming soon RMG60280020000 Spacing pin €4.58
61
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 RMGP70B08060000 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 €8.23
62
photo_cameraImage coming soon RMGP70B08070000 Exhaust Valve €8.57
65
photo_cameraImage coming soon RMGP70B08020000 Push rod €5.47
66
photo_cameraImage coming soon RMGP70B08030000 Guide Board of Handspike €3.08
67
photo_cameraImage coming soon RMGP65020600000 Oil Seal €5.38
68
photo_cameraImage coming soon RMGP70B08080000 Spring of Valve €1.62
69
photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
71
photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
72
photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
73
photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
74
photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
75
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
76
photo_cameraImage coming soon RMGP70B02020000 Cylinder head cover I €8.00
77
photo_cameraImage coming soon RMGP70B02030000 Cylinder head cover II €5.68
80
photo_cameraImage coming soon RMGP70B03040000 Air Inlet Pipe €3.55
82
photo_cameraImage coming soon RMG75410500000 Carburetor assy. €50.01
83
Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
84
photo_cameraImage coming soon RMG75560050000 Fan Holder II €2.51
87
photo_cameraImage coming soon RMG25110090000 Air filter base assy.(II) €3.92
89
Air Cleaner for Self Propeller Lawnmover AMA LT 52H RMGP65040104000 Air Cleaner for Self Propeller Lawnmover AMA LT 52H €16.63
90
Recoil Starter for Engines AMA MVG - T475 - T575 - T675 RMG65070100000 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 €32.93
91
photo_cameraImage coming soon RMG25120050000 Air Filter Upper Cover €2.90
93
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
97
photo_cameraImage coming soon RMGV510006000 Piston €16.27
98
photo_cameraImage coming soon RMGH140003000 Circlip of Piston Pin €3.89
99
photo_cameraImage coming soon RMGH140002000 Piston Pin €4.88
104
photo_cameraImage coming soon RMGP65010500000 Lubricating Setting €18.47
107
photo_cameraImage coming soon RMGV510009000 Gear Gasket €3.79
108
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 RMGV510007000 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 €7.03
110
photo_cameraImage coming soon RMGV510008000 Crankcase Cover €54.47
116
photo_cameraImage coming soon RMGP70B01020500 Rate-limiting gear shaft €2.14
117
Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
118
photo_cameraImage coming soon RMG60200490000 Gasket €5.01
119
Speed Controller Ass'y for Engine AMA MVG - T375 RMGP65010203000 Speed Controller Ass'y for Engine AMA MVG - T375 €17.95
120
photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.95
122
photo_cameraImage coming soon RMG30070420000 Fan operator II €18.64
126
Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €1.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower Engine MVG - T680 - 90260

AMA Garden service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Engine MVG - T680 ART. 90260.

In the following table, look for the model of the Engine and the respective parts of the code.
Contact us to know availability.

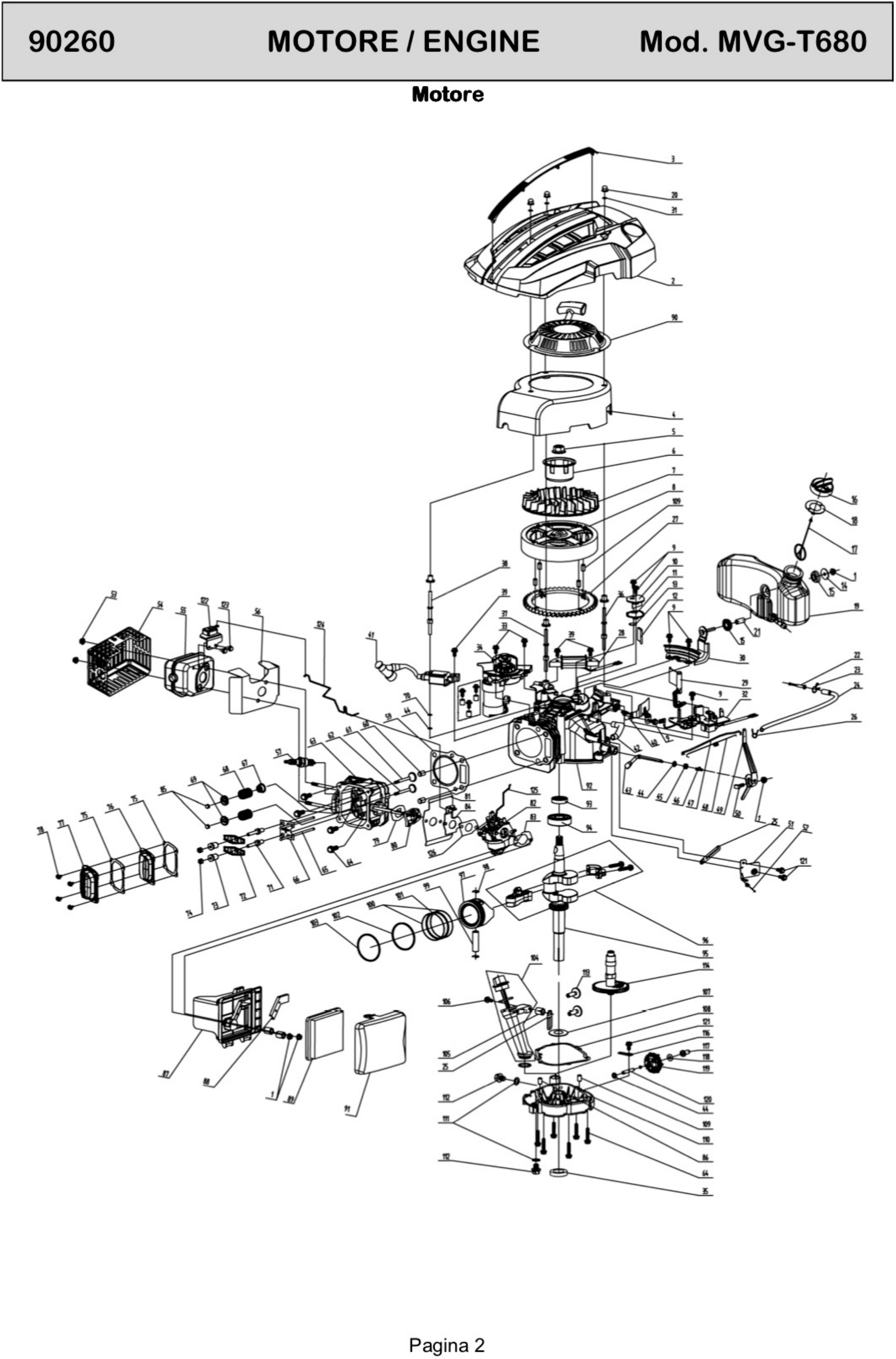

Ama  MVG - T680 - 90260

ENGINE Model MVG-T680 ART. 90260
# Part Num. Description
1 Standard Hex flange nuts
2 RMG25190120000 Engine Cover
3 RMG20740100014 Pull starter assy.
4 RMG25010170000 Blower Housing
5 RMG60140050000 Hex flange nuts
6 RMGP70B07010000 Starter hub
7 RMGP70B07040000 Fan
8 RMG75390160000 Flywheel assy
9 Standard Bolt
10 RMGV510000000 Respirator Cover Plate
11 RMGV510020000 Respirator head gasket
12 RMGP65010104000 Oil filter net
13 RMGV510010000 Respirator valve plate
14 RMG60190310000 W asher
15 RMG25310030000 Cushion Blocking
16 RMG25170100014 Fuel tank cap
17 RMG25250080000 Rope
18 RMG60440330000 Fuel Tank Cap seal gasket
19 RMG25180210000 Fuel tank body
20 Standard M6 nut
21 RMG60240250000 Bush
22 RMGP65050500000 Filtering Net
23 RMGP65050600000 Fuel pipe lock clamp I
24 RMGP70B05050000 Fuel pipe
25 Standard Clip
26 RMG60230010000 Fuel pipe lock clamp II
27 RMG25250090000 Flywheel Tooth Ring
28 RMG30040280000 Charging coil
29 RMG25010190000 Wind shield
30 RMG75330060000 Main bracket of fuel tank
32 RMG75380200000 Detent assy.
33 Standard Bolt M6 X 25
34 90472 Motor
35 RMG60360100000 Oil seal
36 RMG60080230000 Double-head bolts III
37 RMG60080240000 Double-head bolts I
38 RMG60080220000 Double-head bolts II
39 Standard Bolt
40 RMG75030070000 Wind shield
41 RMG75370032000 Ignition assy.
42 RMG25030050000 Waste pipe
43 RMGP65010105000 Rate-limiting rocker arm shaft
44 RMG60200060000 Gasket
45 RMGP65010112000 Oil seal
46 Standard R type pin
47 RMGV510103000 Handspike of Valve
48 RMGP65010601000 Valve spring
49 RMGV510004000 Throttle rocker arm
50 RMG60060730000 Bolt
51 RMGP70B01060000 Throttle assy.
52 RMG60410640000 Throttle control spring
53 Standard Self-locking nut
54 RMG75530090000 Muffler cover assy.
55 RMG75540120000 Muffler assy.
56 RMG75740080000 Gasket of Muffler
57 79567 Spark plug
59 RMGP70B02040000 Cylinder head gasket
60 RMG60280020000 Spacing pin
61 RMGP70B08060000 IntakeValve
62 RMGP70B08070000 Exhaust Valve
63 RMGP70B02010000 Cyclinder head assy.
64 Standard Locking bolt
65 RMGP70B08020000 Push rod
66 RMGP70B08030000 Push rod director plate
67 RMGP65020600000 Oil seal assy
68 RMGP70B08080000 Valve spring
69 RMGP65080900000 Spring Coil of Exhaust Valve
70 Standard Flat busher
71 RMGP65080202000 Valve rocker arm bolts
72 RMGP65080200000 Rocker of Valve
73 RMGP65080203000 Valve adjustment nut
74 RMGP65080204000 And nuts
75 RMGP65020300000 Cylinder head gasket
76 RMGP70B02020000 Cylinder head cover I
77 RMGP70B02030000 Cylinder head cover II
78 Standard Bolt
79 RMGP70B03020000 Intake pipe paper pad I
80 RMGP70B03040000 Air Inlet Pipe
81 RMGP70B03030000 Intake pipe paper pad II
82 RMG75410500000 Carburetor assy.
83 RMGP65030500000 Steel Gasket
84 RMG75560050000 Fan Holder II
85 RMG75200020000 Top Cover of Exhaust Valve
86 Standard Spacing pin
87 RMG25110090000 Air filter base assy.(II)
88 RMG25020040000 Exhaust Gas Cover Board
89 RMGP65040104000 Paper filter
90 RMG65070100000 Pull starter assy.
91 RMG25120050000 Air Filter Upper Cover
92 RMG75500100000 Crankshaft box
93 RMGP65010210000 Oil seal 25X38X7
94 Standard Rolling bearing
95 RMG75510690000 Crankshaft assy.
96 RMG75460060000 Connecting rod assy.
97 RMGV510006000 Piston
98 RMGH140003000 W asher
99 RMGH140002000 Piston pin
100 RMGP70B01030700 Guide Rail
101 RMGP70B01030600 Bushing Ring
102 RMGP70B01030500 Piston Ring II
103 RMGP70B01030400 Piston Ring I
104 RMGP65010500000 Lubricating Gauge Assy
105 RMG25080020000 Distance Sleeve
106 Standard Bolt
107 RMGV510009000 Clockwise gear gasket
108 RMGV510007000 Joint box packing
109 Standard Spacing pin
110 RMGV510008000 Crank box cover
111 RMG60200150000 Oil drain bolt gasket
112 RMG60061020000 Oil drain bolt
113 RMGP65080300000 Pin
114 RMG75470080000 Camshaft assy.
116 RMGP70B01020500 Rate-limiting gear shaft
117 RMGP65010202000 Sliding Sleeve
118 RMG60200490000 Gasket
119 RMGP65010203000 Rate-limiting gear assy.
120 RMGV410001000 Rate-limiting gear shaft
121 Standard Bolt
122 RMG30070420000 Fan operator II
123 Standard Bolt
124 RMG75760140000 Thermostat operator
125 RMG75760130000 Fan operator
126 RMGP65030300000 Paper filter
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama MVG - T680 - 90260
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Ama MVG - T680

Drawing Ama MVG - T680

Download (279.22KB)

You might also like

A.M.A. S.p.A. SKU: RMG65070100000
Recoil Starter for Engines AMA MVG - T475 - T575 - T675 Genuine part AMA, Recoil starter Assy for Engines AMA MVG - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA...
Last items in stock €32.93
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €7.72
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €1.23
A.M.A. S.p.A. SKU: RMGP65040104000
Air Cleaner for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Air Cleaner for Engine AMA MVG - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self...
Last items in stock €16.63
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €5.60
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products:...
Last items in stock €6.59
A.M.A. S.p.A. SKU: RMGV510007000
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Crank Case Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod....
Last items in stock €7.03
A.M.A. S.p.A. SKU: RMGP70B08060000
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 Genuine replacement part AMA, Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine AMA MVG - T675 -...
AVAILABLE €8.23
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €1.03
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
A.M.A. S.p.A. SKU: RMG25170100014
Fuel Tank Cap Assy for Engine AMA MVG - T680 Genuine replacement part AMA Garden, Fuel Tank Cap Assy for Engine AMA Garden MVG - T680. Part for the following products: - ...
Last items in stock €10.50
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
A.M.A. S.p.A. SKU: RMGP70B02040000
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Cylinder Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod. 90260 -...
on 7/10 Business Days Approx €12.27
A.M.A. S.p.A. SKU: RMG75370032000
AMA Engine MVG-T680 Ignition Coil Original AMA Garden, Ignition Coil Assy for Engine MVG-T680. Parts for the following products: -  Engine MVG - T680 - 90260 -  Lawnmower NRT-535 - 92630...
Last items in stock €31.90
Comments (0)
