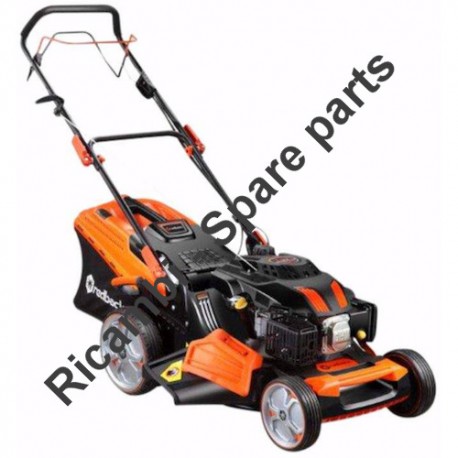

Ama Spare Parts for Lawnmower Redback RB501

SKU: Ama RB501 - 90550
€0.34
VAT included

Ama Spare Parts for Lawnmower Redback RB501

Ama genuine spare parts or replacements parts for to fix Lawnmower Redback RB501 - 90550.
Ama Spare Parts for Lawnmower Redback RB501
  • Online only
  • Ama Spare Parts for Lawnmower Redback RB501
  • Ama Spare Parts for Lawnmower Redback RB501

Ama Spare Parts for Lawnmower Redback RB501

SKU: Ama RB501 - 90550 Condition: New
€0.34
VAT included

Ama Spare Parts for Lawnmower Redback RB501

Ama genuine spare parts or replacements parts for to fix Lawnmower Redback RB501 - 90550.
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Only Demand Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

40 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 89892 Blade bolt €6.80
2
photo_cameraImage coming soon 90308 Blade washer €4.94
3
photo_cameraImage coming soon 90746 The blade assembly €23.47
4
photo_cameraImage coming soon 90748 Blade Adapter Assy €19.75
6
photo_cameraImage coming soon 90740 Belt cover €12.62
20
M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
21
Four-Stroke Engine Model Mvg 475 For Lawnmower AMA Garden RMG380264000 Four-Stroke Engine Model Mvg 475 For Lawnmower AMA Garden €239.67
26
photo_cameraImage coming soon 90504 Pipe connector nut €3.83
27
photo_cameraImage coming soon 89515 Cable stopper €2.52
29
photo_cameraImage coming soon 90733 Mulching plug €6.71
31
Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
39
photo_cameraImage coming soon 90732 Mulching board €5.86
40
photo_cameraImage coming soon 90729 Side discharge cover €14.75
41
photo_cameraImage coming soon 90738 Outer cover of hub €5.51
42
photo_cameraImage coming soon 90742 Wheel core €16.16
44
photo_cameraImage coming soon 90736 Inner cover of hub €4.90
47
photo_cameraImage coming soon 90743 V- belt €5.61
49
Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 84986 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 €2.57
50
Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
51
photo_cameraImage coming soon 90386 Ratchet Wheel L €17.51
52
Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
54
photo_cameraImage coming soon 90284 Rear wheel axle sleeve €4.47
55
Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B 90488 Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B €4.95
56
photo_cameraImage coming soon 90750 Selfpropelled assy. €103.04
59
photo_cameraImage coming soon 90387 Ratchet Wheel R €17.49
61
photo_cameraImage coming soon 90737 Outer cover of hub €7.05
62
photo_cameraImage coming soon 90741 Wheel core €32.92
63
photo_cameraImage coming soon 90735 Inner cover of hub €6.22
70
photo_cameraImage coming soon 90727 Fabric grass bag €46.55
71
photo_cameraImage coming soon 90745 Cover spring €2.03
74
photo_cameraImage coming soon 90744 Cover spring €2.03
77
photo_cameraImage coming soon 90728 Top of grass box €26.44
80
Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
83
AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
86
AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
88
photo_cameraImage coming soon 90734 Quick fix knob €3.71
91
photo_cameraImage coming soon 88236 Quick Fix Handle €1.61
94
photo_cameraImage coming soon 90719 Triangle knob €3.71
100
Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
101
photo_cameraImage coming soon 90749 Selfpropelled cable €5.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower Redback RB501

Ama genuine spare parts or replacements parts for to fix Lawnmower Redback RB501 - 90550.

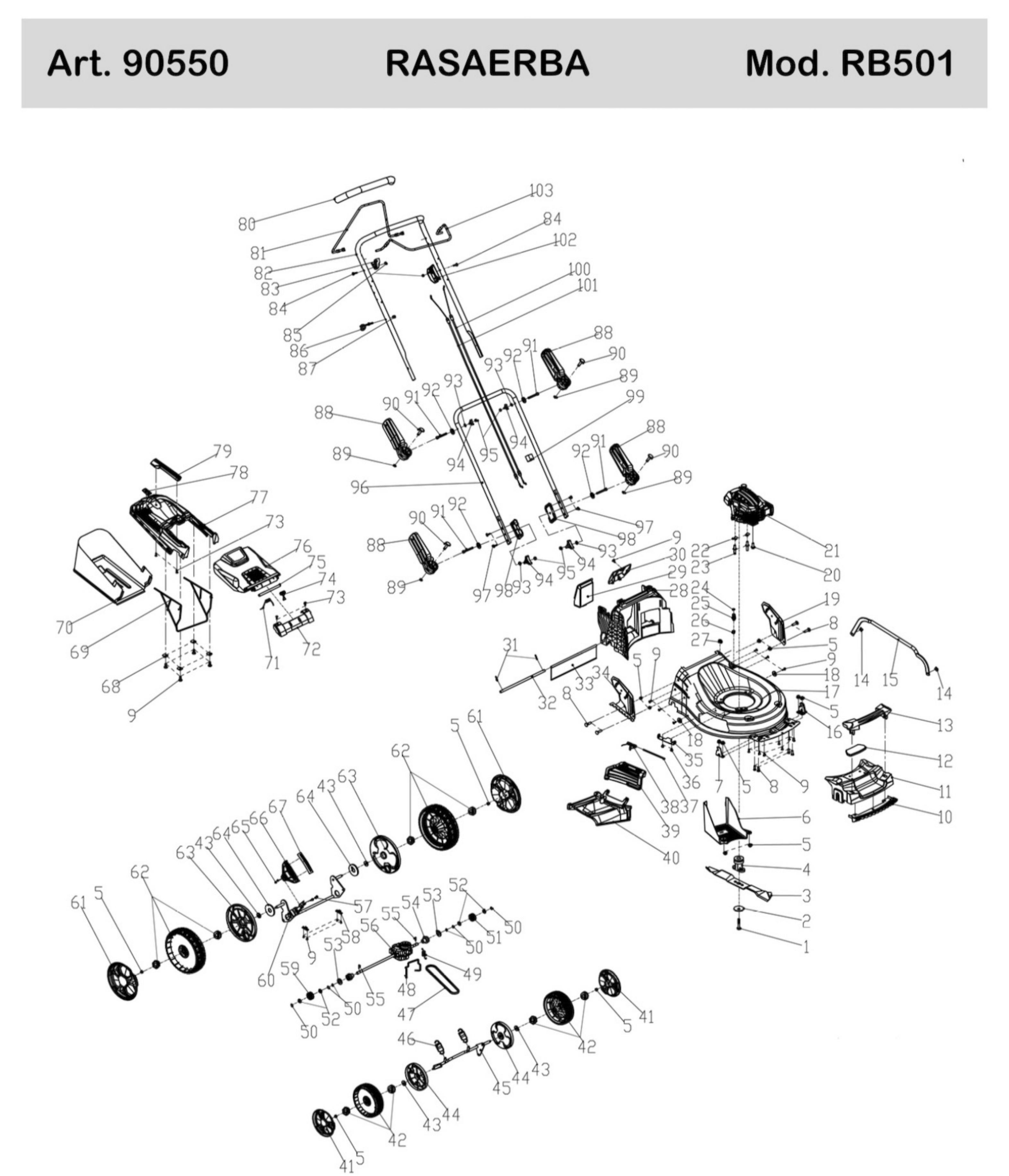

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Lawnmower Redback RB501 - 90550

Lawnmower Redback RB501
# Part Num. Description
1 89892 Blade bolt
2 90308 Blade washer
3 90746 The blade assembly
4 90748 Blade Adapter Assy
5 89450 Self-locking nut
6 90740 Belt cover
7 Precursor Left bracket
8 Standard Head square neck bolts
9 90512 Self tapping screw
10 Deck front mask
11 Front mask
12 Face twist before hand
13 Face twist before hand
14 Type D ring
15 Height Adjustment Pull Rod
16 Precursor Left bracket
17 Deck welding assy.
18 Standard Flat Gasket
19 Precursor right bracket
20 88628 Hexagon head bolts
21 RMG380264000 Petrol engine
22 Square gasket
23 Dual-head bolts
24 O ring
25 89447 Inlet
26 90504 Inlet
27 89515 Cable stopper
28 Rear baffer
29 90733 Mulching plug
30 Rear baffer
31 88625 R type pin
32 Shaft for rear discharge cover
33 Rubber dust proof board
34 Right bracket
35 Bracket plate for defelctor
36 Self tapping screw
37 Mulch Shaft
38 Mulch board spring
39 90732 Mulching board
40 90729 Side discharge cover
41 90738 Outer cover of hub
42 90742 Wheel core
Wheel punch bearing
43 Resilient washer
44 90736 Inner cover of hub
45 Front drive assy.
46 Precursor tension spring
47 90743 V- belt
48 Brake spring
49 84986 Selfpropelled spring
50 79423 Spring washer
51 90386 Ratchet Wheel L
52 89889 Selfpropelled ratchet washer
53 Standard Flat Gasket
54 90284 Rear wheel axle sleeve
55 90488 Ratchet pin
56 90750 Selfpropelled assy.
57 Bolt
58 Rear plate
59 90387 Ratchet Wheel L
60 Rear drive assy.
61 90737 Outer cover of hub
62 90741 Wheel core
Wheel punch bearing
63 90735 Inner cover of hub
64 Gasket
65 Standard Hex flange lock nuts
66 Height adjustment handle
67 Twist the lid
68 90513 W asher
69 Bracket plate for defelctor
70 90727 Fabric grass bag
71 90745 Cover spring
72 Rear discharge base
73 Standard Tapping screw
74 90744 Cover spring
75 Shaft for rear discharge cover
76 Rear discharge cover
77 90728 Top of grass box
78 Air-out board
79 Top of grass box
80 88566 Foam Ruber Handle Grip
81 Self-propelled Lever
82 Upper handrail
83 89399 Lever guard
84 Standard Round head Hexagon bolt
85 Standard Self-locking nut
86 88568 Rope Guide
87 88564 Cap nut
88 90734 Quick fix knob
89 Standard W asher
90 Standard Type pin
91 88236 Quick Fix Handle
92 Large flat washer
93 Standard Flat Gasket
94 90719 Triangle knob
95 Standard Hexagon nut
96 Lower handrail
97 Round head Hexagon bolt
98 The armrest gear bracket
99 90266 Fastener
100 84971 Brake cable
101 90749 Selfpropelled cable
102 Control board upper cover
103 Stop lever
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama RB501 - 90550
4 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA RB501

Diagram AMA RB501

Download (319.5KB)
