A.M.A. S.p.A.

Ama Spare Parts for Lawnmower LTS521H

SKU: Ama LTS521H - 84865
€4.82
VAT included

Ama Spare Parts for Lawnmower LTS521H

Ama original spare parts to replace worn components or repair damaged parts of the Self-Propelled Lawnmower LTS521H - 84865.

Fix Your Self-Propelled Lawnmower LTS521H. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ama Spare Parts for Lawnmower LTS521H
  • Online only
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
  • Ama Spare Parts for Lawnmower LTS521H
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower LTS521H

SKU: Ama LTS521H - 84865 Condition: New
€4.82
VAT included

Ama Spare Parts for Lawnmower LTS521H

Ama original spare parts to replace worn components or repair damaged parts of the Self-Propelled Lawnmower LTS521H - 84865.

Fix Your Self-Propelled Lawnmower LTS521H. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 148 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
117 spare parts
Esploso pagina 1
Pos. Item Price Buy
16
 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €1.12
17
 photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
18
 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €1.12
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

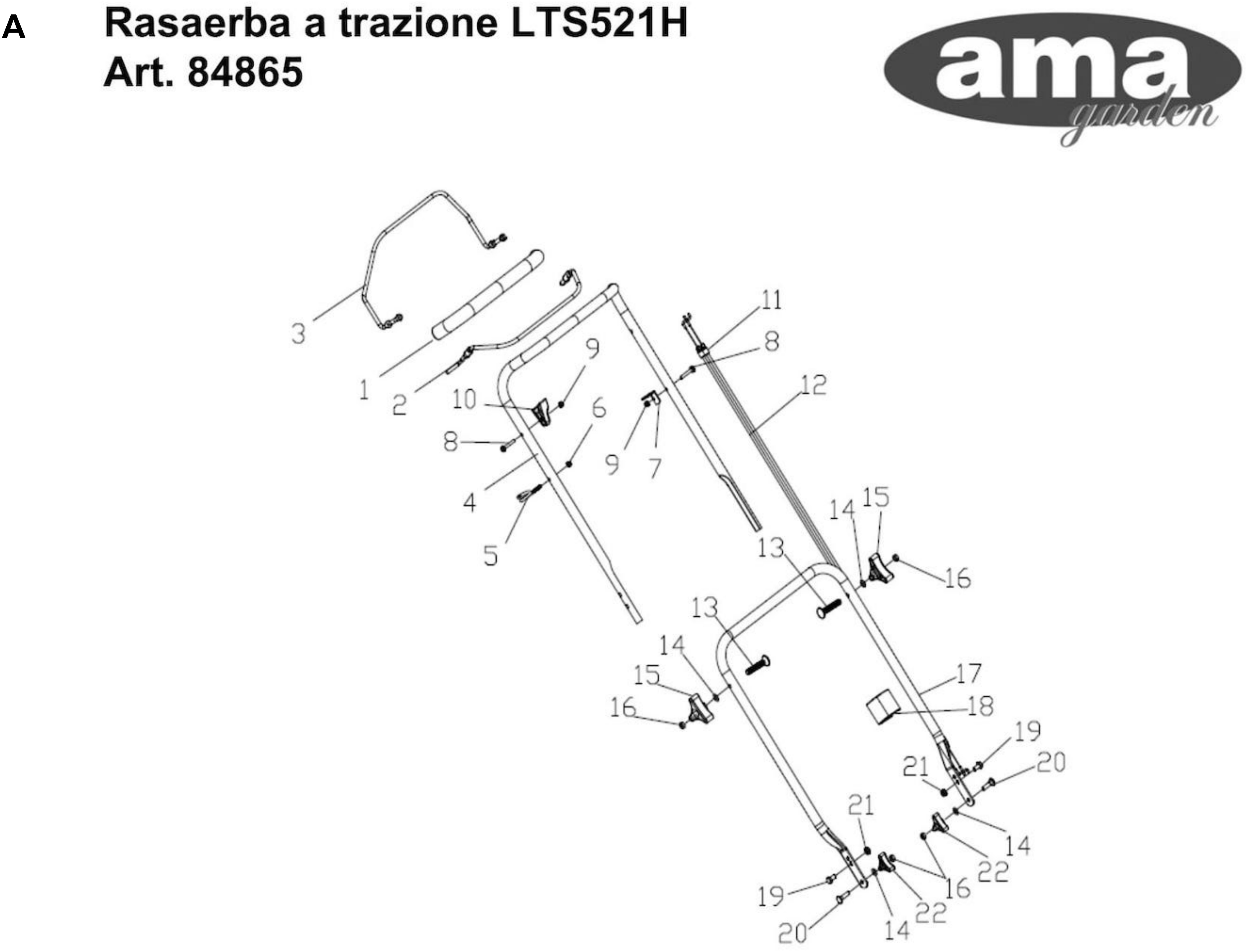

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84998 Foam Pipe €10.86
2
 photo_cameraImage coming soon 84957 Stop lever €14.08
3
 photo_cameraImage coming soon 84958 Self-propelled Lever €14.35
4
 photo_cameraImage coming soon 84959 Upper handrail €39.04
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 photo_cameraImage coming soon 84970 Plastic stopper €5.43
11
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
15
 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 84972 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.58
17
 photo_cameraImage coming soon 84973 Lower handrail €36.06
18
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
22
 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 84974 Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

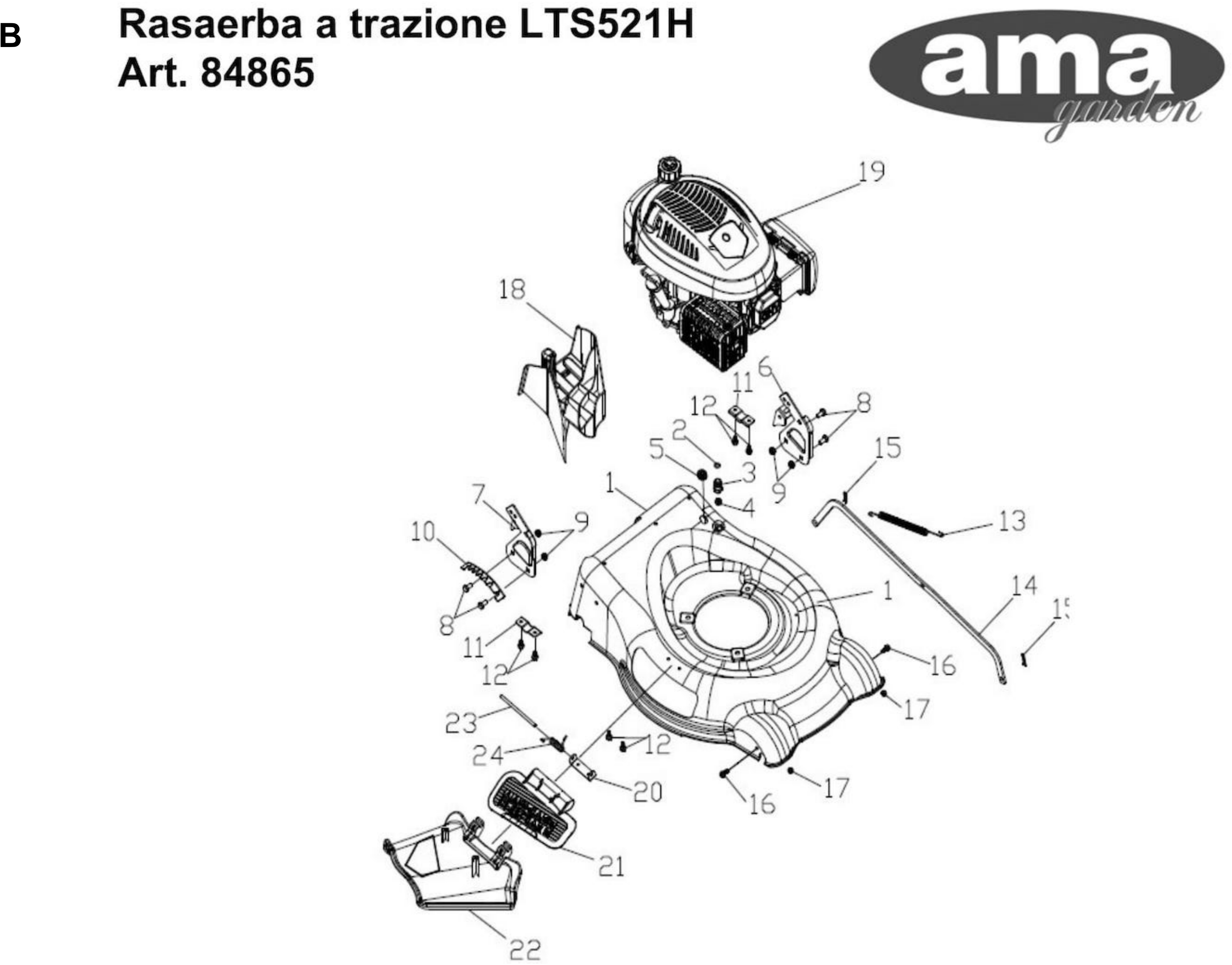

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84975 Deck welding assy. €199.32
6
 photo_cameraImage coming soon 88360 Left handle bracket €13.40
7
 photo_cameraImage coming soon 88361 Rigth handle bracket €13.40
10
 photo_cameraImage coming soon 88362 Height adjustment board €6.96
11
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 84977 Height Adjustment Pull Rod €4.47
19
 photo_cameraImage coming soon 55824 Petrol Engine €212.60
21
 photo_cameraImage coming soon 84979 Mulching board €23.59
23
 photo_cameraImage coming soon 88418 Mulch Shaft €1.97
24
 photo_cameraImage coming soon 84981 Mulch board spring €3.47
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

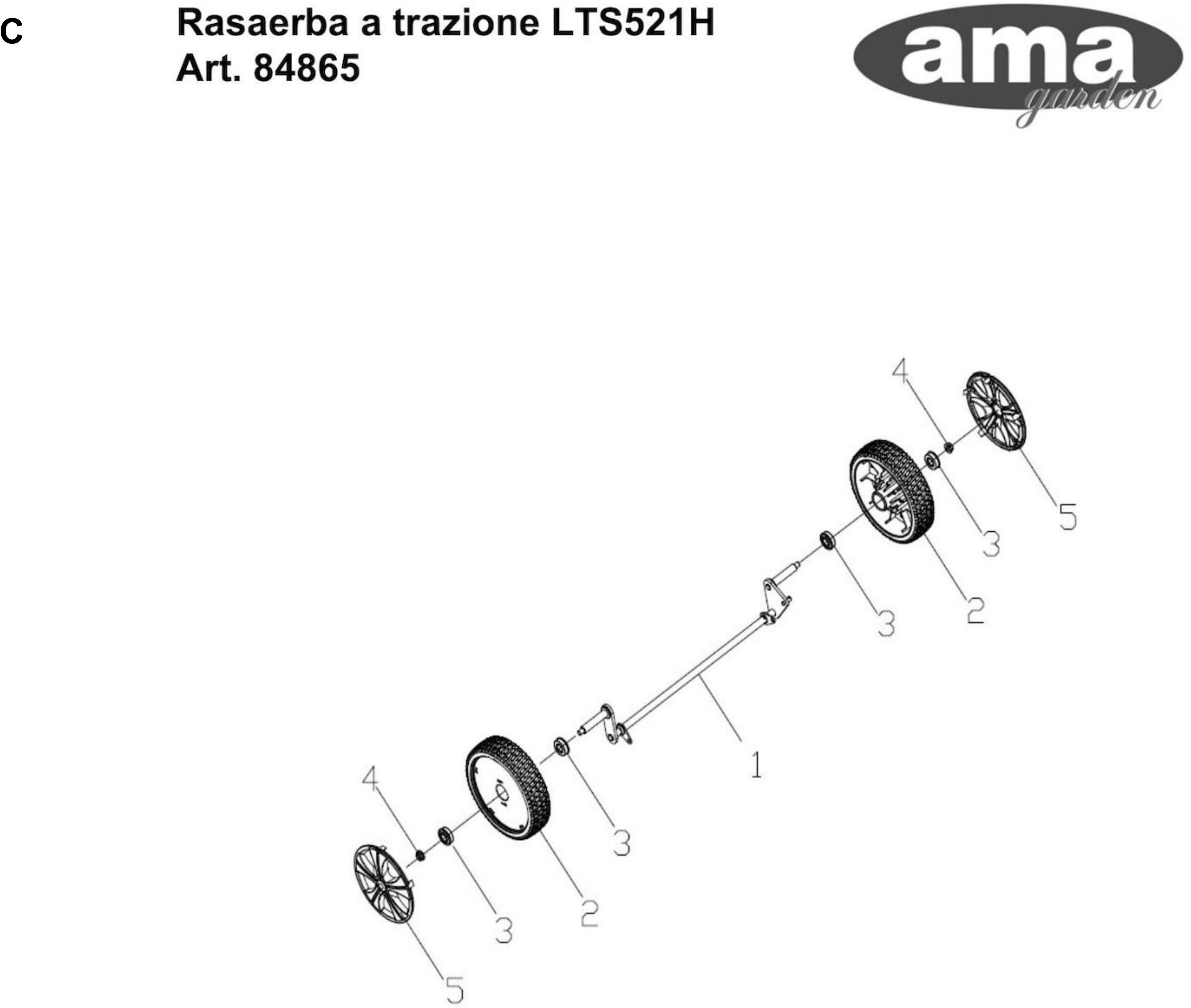

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84990 Front drive assy. €36.39
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
5
 photo_cameraImage coming soon 76157 Outer Cover Of Hub €2.90
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

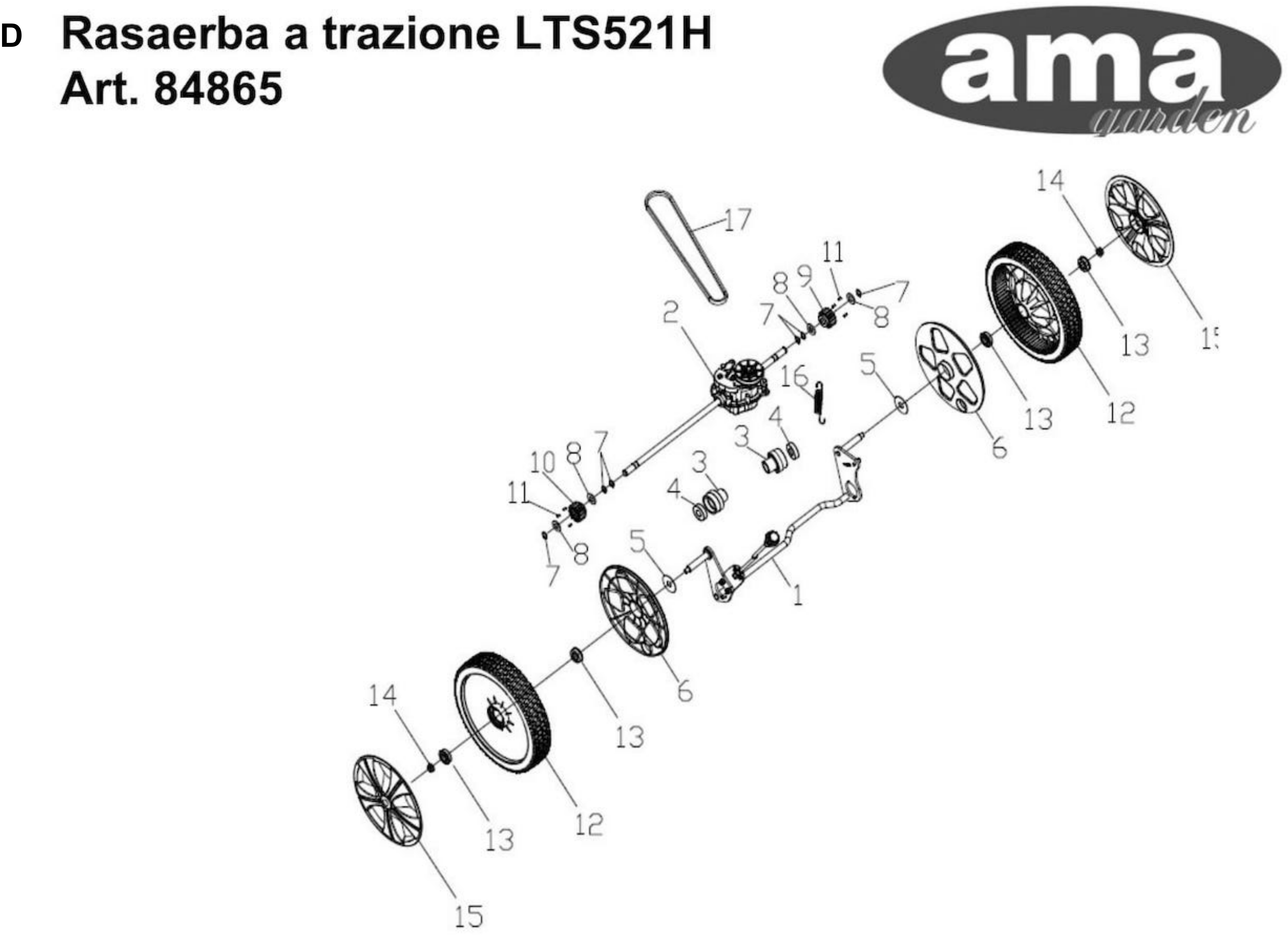

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
1
 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 84982 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 €55.29
2
 AMA LT 52H Trasmission 84983 AMA LT 52H Trasmission €89.90
3
 Gear Box Bush for Lawnmower AMA RT521-RT522 84984 Gear Box Bush for Lawnmower AMA RT521-RT522 €7.83 Not available for order
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
6
 photo_cameraImage coming soon 76154 Inner Cover Of Hub €4.58
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H 84824 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H €16.75
13
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
15
 photo_cameraImage coming soon 73847 Outer Cover of Hub €6.07
16
 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 84986 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 €2.57
17
 Belt for Self-Propelled Lawnmower AMA LT 52H 84818 Belt for Self-Propelled Lawnmower AMA LT 52H €4.80
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

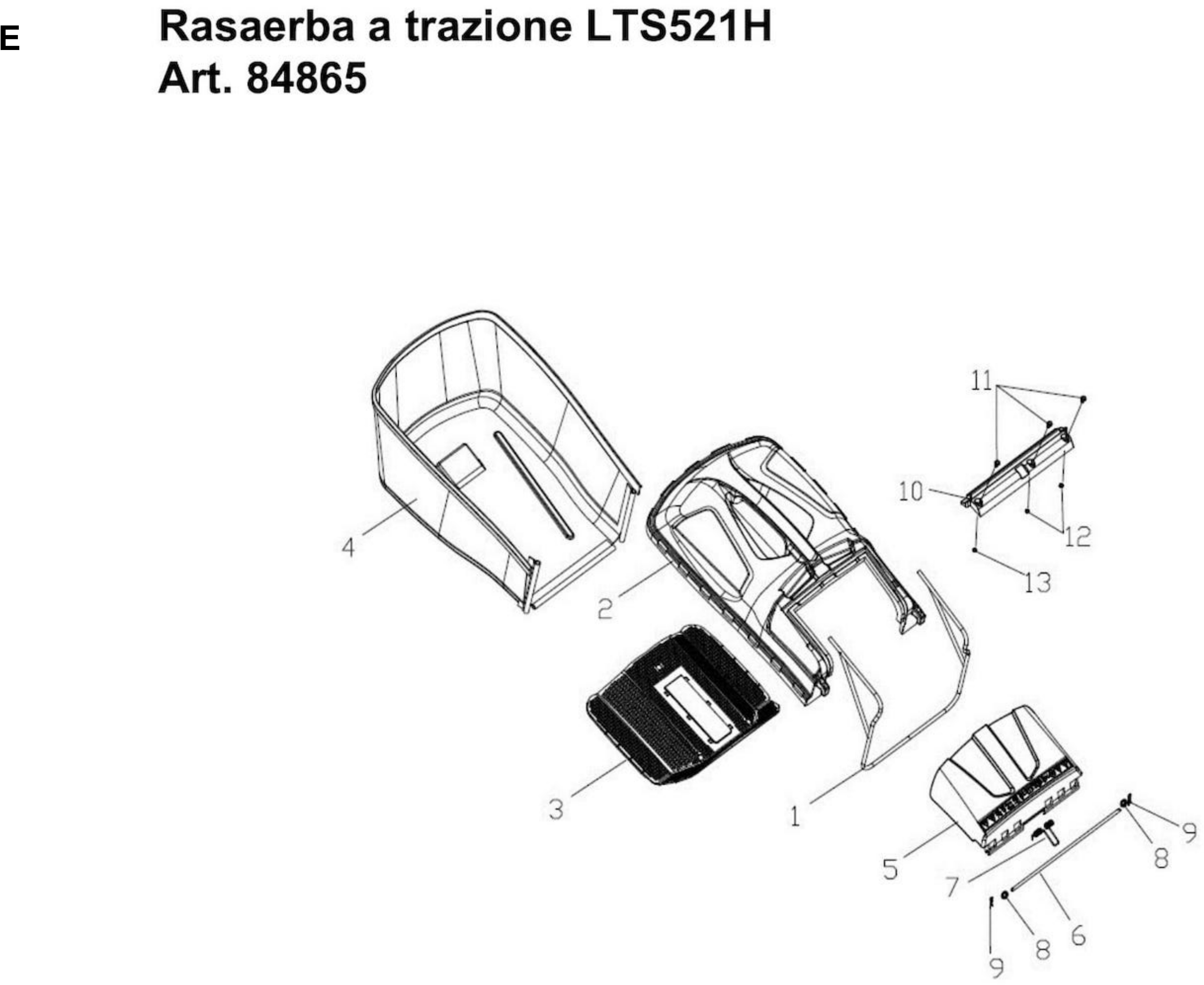

Esploso pagina 5
Pos. Item Price Buy
3
 AMA RS461 Grass Bag Filter 84839 AMA RS461 Grass Bag Filter €15.45
4
 photo_cameraImage coming soon 84841 Fabric grass bag €46.93
5
 photo_cameraImage coming soon 84837 Rear discharge cover €22.95
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

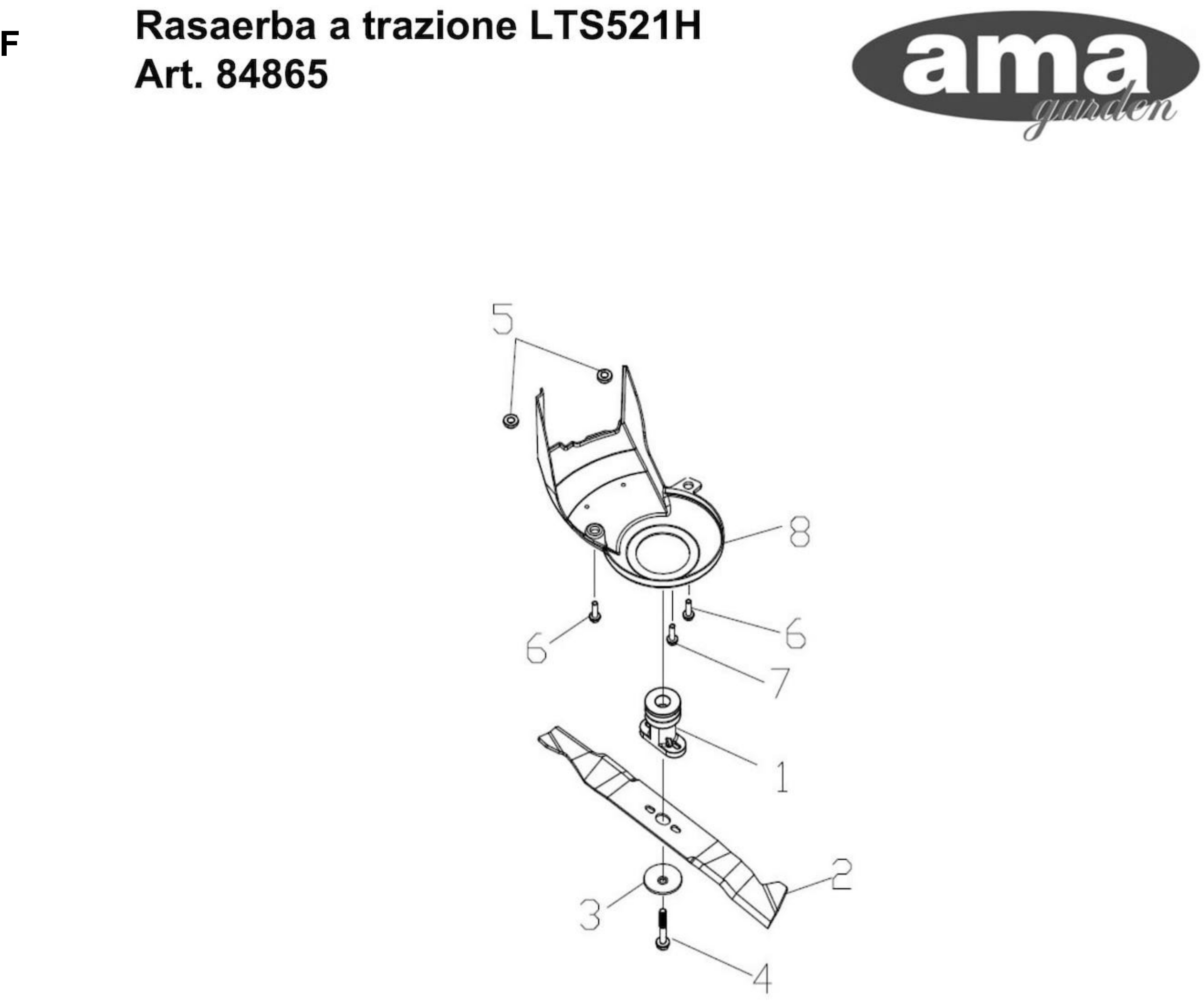

Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 84935 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 €32.44
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 84988 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 €4.34
8
 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 84989 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 €17.92
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

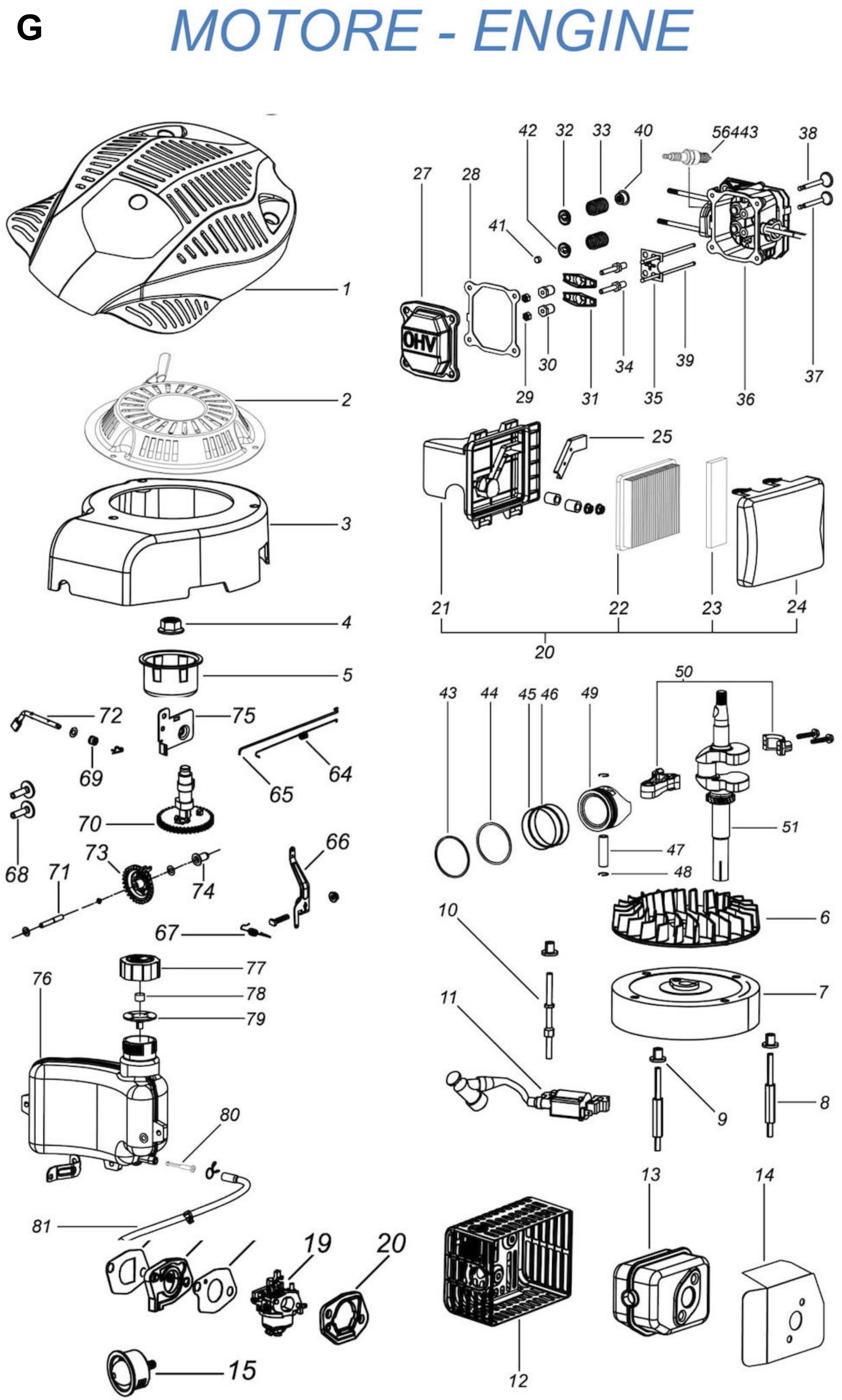

Esploso pagina 7
Pos. Item Price Buy
2
 photo_cameraImage coming soon RMGP65070100000 Starter-Rewind €31.99
5
 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
7
 photo_cameraImage coming soon RMGP65070301000 Flywheel €50.11
9
 photo_cameraImage coming soon RMGP65070403000 Bush €9.17
11
 Ignition Coil for Engines AMA MVG T375 - T475 - T575 RMGP65070302000 Ignition Coil for Engines AMA MVG T375 - T475 - T575 €35.81
12
 photo_cameraImage coming soon RMGP65060300000 Muffler Cover Assy €19.79
13
 photo_cameraImage coming soon RMGP65060000000 Muffler Assy €25.27
14
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
15
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
16
 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €1.12
17
 photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
18
 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €1.12
19
 Carburator Complete for Engine AMA MVG - T475 RMGP65030100003 Carburator Complete for Engine AMA MVG - T475 €61.16
20
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
21
 Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
22
 Air Cleaner for Self Propeller Lawnmover AMA LT 52H RMGP65040104000 Air Cleaner for Self Propeller Lawnmover AMA LT 52H €16.63
23
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
24
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
25
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
27
 photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
28
 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
29
 photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
30
 photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
31
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
32
 photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
33
 photo_cameraImage coming soon RMGP65080800000 Spring of Valve €2.20
34
 photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
36
 photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
37
 photo_cameraImage coming soon RMGP65080700000 Exhaust Valve €10.34
38
 Inlet Valve for Engine AMA MVG T375 - T475 RMGP65080600000 Inlet Valve for Engine AMA MVG T375 - T475 €11.37
39
 photo_cameraImage coming soon RMGP65080400000 Handspike €3.54
40
 photo_cameraImage coming soon RMGP65020600000 Oil Seal €5.38
41
 photo_cameraImage coming soon RMGP65081100000 Valve Plate €4.78
42
 photo_cameraImage coming soon RMGP65081000000 Keeper Valve €3.83
50
 Conrod Complete for Engines AMA MVG - T375 - T475 RMGP65010402000 Conrod Complete for Engines AMA MVG - T375 - T475 €21.42
51
 Crankshaft Complete for Engine AMA MVG - T475 RMGP65010301000 Crankshaft Complete for Engine AMA MVG - T475 €114.39
53
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
55
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
56
 photo_cameraImage coming soon RMGP65010301001 Detent €25.30
57
 photo_cameraImage coming soon RMGP65010101000 Seal Gasket €5.97
58
 photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
59
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
60
 photo_cameraImage coming soon RMGP65010501000 Lubrificating Gauge €8.31
64
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
65
 photo_cameraImage coming soon RMGP65010603301 Handspike of Valve €3.36
66
 photo_cameraImage coming soon RMGP65010603003 Speed Regulator Rocker €6.46
70
 Camshaft Complete for Engine AMA MVG - T375 - T475 RMGP65080100000 Camshaft Complete for Engine AMA MVG - T375 - T475 €30.83
71
 photo_cameraImage coming soon RMGP65010205000 Shaft Governor €1.48
73
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
74
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
75
 photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
76
 Fuel Tank for Engine AMA MVG - T475 RMGP65050103000 Fuel Tank for Engine AMA MVG - T475 €26.38
77
 photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €7.74
78
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
79
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
80
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
82
 photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42
83
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

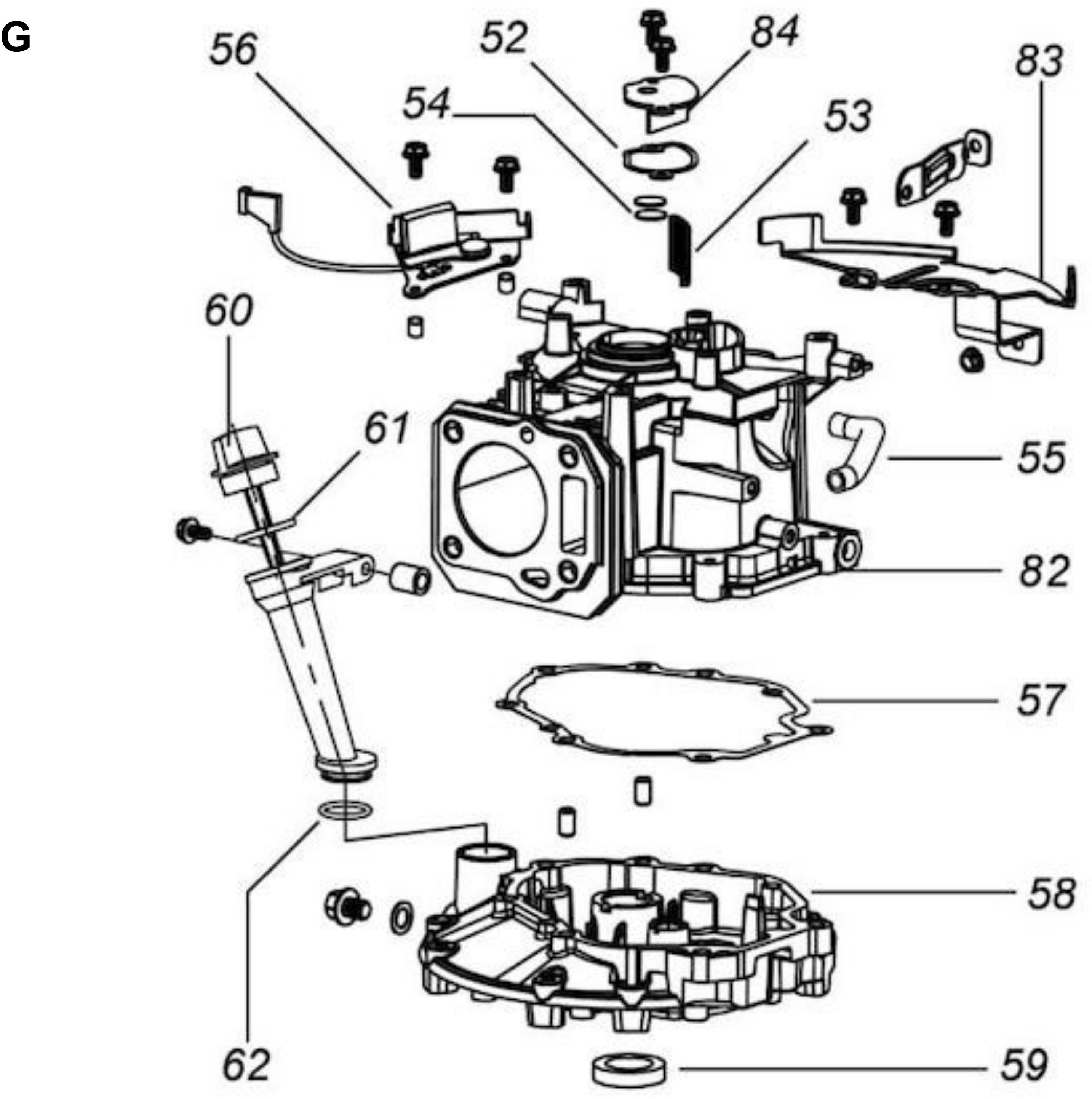

Esploso pagina 8
Pos. Item Price Buy
53
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
55
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
56
 photo_cameraImage coming soon RMGP65010301001 Detent €25.30
57
 photo_cameraImage coming soon RMGP65010101000 Seal Gasket €5.97
58
 photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
59
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
60
 photo_cameraImage coming soon RMGP65010501000 Lubrificating Gauge €8.31
82
 photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower LTS521H

Fix Your Self-Propelled Lawnmower LTS521H - 84865. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama LTS521H - 84865

Self-Propelled Lawnmower LTS521H - 84865
A Pag.1
# Part Num. Description
1 84998 Foam pipe
2 84957 Stop lever
3 84958 Self-propelled Lever
4 84959 Upper handrail
5 88229 Rope Guide
7 84822 Brake Cable Assy plate
10 84970 Plastic stopper
11 84971 Brake cable
12 84836 Selfpropelled cable
15 84972 Triangle knob
17 84973 Lower handrail
18 88247 Fastener
22 84974 Triangle knob
B Pag.2
1 84975 Deck welding assy.
6 88360 Left handle bracket
7 88361 Right handle bracket
10 88362 Height adjustment board
11 84976 Rear drive bracket
13 73221 Pull Spring for Pull Rod
14 84977 Height Adjustment Pull Rod
18 88363 Mulching plug
19 55824 Petrol engine
20 88364 Bracket plate for defelctor
21 84979 Mulching board
22 88417 Side discharge cover
23 88418 Mulch Shaft
24 84981 Mulch board spring
C Pag.3
1 84990 Front drive assy.
2 76758 Wheel assy.
3 73848 Wheel punch bearing
5 76157 Outer cover of hub
D Pag.4
1 84982 Rear drive assy.
1 73201 Reight adjustment ball
2 84983 Trasmission
3 84984 Bush
4 84985 Bearing
6 76154 Inner cover of hub
9 84824 Ratchet Wheel L
10 24825 Ratchet Wheel R
11 84817 Bratchet pin
12 73849 Wheel assy.
13 73848 Wheel punch bearing
15 73847 Outer cover of hub
16 84986 Selfpropelled spring
17 84818 V-belt
E Pag.5
1 84840 Frame
2 84838 TGrass Catcher Cover Substituted by --> 92584
3 84839 Filter plate
4 84841 Fabric grass bag
5 84837 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
10 88420 Rear discharge cover dust
F Pag.6
1 84844 Blade Adapter Assy
2 84935 Blade
3 73223 Blade washer
4 84815 Inch hex flange bolts
5 84988 Chassis bushing
8 84989 Belt cover
G Pag.7
1 RMGP65070601001 Engine Cover
2 RMGP65070100000 Starter-Rewind
3 RMGP65070401000 Cover-Blover Housing
4 Nut Flywheel
5 RMGP65070200000 Cup-Flywheel
6 RMGP65070402000 Fan
7 RMGP65070301000 Flywheel
9 RMGP65070403000 Bushing Ring
11 RMGP65070302000 Coil-Assy-Ignition
12 RMGP65060300000 Muffler Cover
13 RMGP65060000000 Muffler
14 RMGP65060200000 Gasket
15 RMGP65051000001 Primer
16 RMGP65030200000 Gasket
17 RMGP65030400000 Insulator
18 RMGP65030300000 Gasket
19 RMGP65030100003 Carburetor Assy
20 RMGP65030500000 Gasket
21 RMGP65040102002 Case-Air Filter
22 RMGP65040104000 Element-Air Filter
23 RMGP65040106000 Pre-Filter Element
24 RMGP65040101000 Air-Filter Cover
25 RMGP65040103000 Exhaust Gas Cover
27 RMGP65020100000 Cylinder Head Cover
28 RMGP65020300000 Gasket Head Cover
29 RMGP65080204000 Combined Nut
30 RMGP65080203000 Adjust Nut of Valve
31 RMGP65080200000 Rocker of Valve
32 RMGP65080900000 Keeper Valve
33 RMGP65080800000 Spring-Valve
34 RMGP65080202000 Rocker Support
35 RMGP65080500000 Guide Board
36 RMGP65020100000 Cylinder Head Assy
37 RMGP65080700000 Outlet Valve
38 RMGP65080600000 Inlet Valve
39 RMGP65080400000 Rod Push
40 RMGP65020600000 Oil Seal
41 RMGP65081100000 Valve Plate
42 RMGP65081000000 Keeper Valve
43 RMGP65010401200 Piston Ring1
44 RMGP65010401300 Piston Ring2
45 RMGP65010401500 Guide Rail
46 RMGP65010401400 Bushing Ring
47 RMGP65010401600 Piston-Pin
48 RMGP65010401700 Circlip of Piston-Pin
49 RMGP65010401100 Piston
50 RMGP65010402000 Connecting Road Assy
51 RMGP65010301000 Crankshaft Assy
52 RMGP65010109000 Gasket
53 RMGP65010104000 Valve Elemant
54 RMGP65010108000 Filterring Net
55 RMGP65050600000 Waste Pipe
56 RMGP65010301001 Detent
57 RMGP65010101000 Seal Gasket
58 RMGP65010201000 Crankcase Cover
59 RMGP65010210000 Oil-Seal 25x38x7
60 RMGP65010501000 Lubrificating Gauge
61 Seal Washer
62 O Type Ring
64 RMGP65010601000 Spring Governor Link
65 RMGP65010603301 Link-Mechanical Gov
66 RMGP65010603003 Lever Governor Control
67 RMGP65010606004 Spring-Governor
68 RMGP65080300000 Tappet-Valve
69 Oil-Seal 6x11x4
70 RMGP65080100000 Camshaft
71 RMGP65010205000 Shaft Governor
72 RMGP65010105000 Rocker Spindle
73 RMGP65010206000 Governor Assy
74 RMGP65010202000 Sliding Sleeve
75 RMGP70B010600000 Speed Governor
76 RMGP65050103000 Fuel Tank
77 RMGP65050101000 Fuel Tank Cap - BLACK RDY0019
78 RMGP65050106000 Sponge
79 RMGP65050102000 Seal Gasket
80 RMGP65050500000 Filtering Net
81 Line-Fuel
82 RMGP65010107000 Respirator Cover
83 RMGP65060200000 Bracket Fuel Tank
84 RMGP65010103000 Crankcase Assy
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama LTS521H - 84865
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA LTS521H

Diagram AMA LTS521H

Download (1.27MB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: -...
Last items in stock €32.44
Details
Recoil Starter for Engines AMA MVG - T475 - T575 - T675
A.M.A. S.p.A. SKU: RMG65070100000
Recoil Starter for Engines AMA MVG - T475 - T575 - T675
Recoil Starter for Engines AMA MVG - T475 - T575 - T675 Genuine part AMA, Recoil starter Assy for Engines AMA MVG - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA...
Last items in stock €32.93
Details
Tank Cap for Engines AMA MVG
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €7.72
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
Details
Primer for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65051000001
Primer for Self-Propelled Lawnmower AMA LT 52H
Primer for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Primer for Self-Propelled Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Usually Ships in: 7/10 Business Days Approx. €6.55
Details
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010104000
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Lubricate Filtering Net for Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT...
AVAILABLE €0.61
Details
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 73849 - 99690
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H
Rear Wheel 10.5'' for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Rear Wheel 10.5'' for Self-Propelled Lawnmowers AMA LT 52H Part for the following products: -  Self-Propelled Lawnmower AMA LT...
Last items in stock €24.29
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Side Discharge Cover for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88246
Side Discharge Cover for Lawnmower AMA RT521-RT522
Side Discharge Cover for Lawnmower AMA RT521-RT522 Genuine part AMA, Side Discharge Cover for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: - Self-Propelled...
Last items in stock €15.67
Details
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84972
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Upper Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.58
Details
Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84974
Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522
Lower Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Lower Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.35
Details
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65040104000
Air Cleaner for Self Propeller Lawnmover AMA LT 52H
Air Cleaner for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Air Cleaner for Engine AMA MVG - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self...
Last items in stock €16.63
Details
Tank Cap Sponge Filter for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
Details
Air Cleaner Case for Engines AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65040102002
Air Cleaner Case for Engines AMA MVG - T375 - T475
Air Cleaner Case for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Air Cleaner Case for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following products: -...
AVAILABLE €21.06
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Last items in stock €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €55.29
Details
Speed Governor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
Details
Trasmission Assy for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84983-ASSY
Trasmission Assy for Self-Propelled Lawnmower AMA LT 52H
Trasmission Assy for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Self-Propelled Trasmission Assy for Self-Propelled Lawnmowers LT 52H - 84878 - LTS521H - 84865. Part for the following...
Out-of-Stock €211.53
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Fuel Tank Filter for Engine AMA MVG - T100
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €1.03
Details
Gear Box Bush for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84984
Gear Box Bush for Lawnmower AMA RT521-RT522
Gear Box Bush for Lawnmower AMA RT521-RT522 Genuine part AMA, Gear Box Bush for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Out of Stock €7.83
Details
Sliding Sleeve for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
Details
Oil Seal MM 23x38x7 for Self Propelled Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
Details
Inlet Valve for Engine AMA MVG T375 - T475
A.M.A. S.p.A. SKU: RMGP65080600000
Inlet Valve for Engine AMA MVG T375 - T475
Inlet Valve for Engine AMA MVG T375 - T475 Genuine part AMA, Inlet Valve for Engine AMA MVG T375 - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover AMA LT 52H Art....
on 7/10 Business Days Approx €11.37
Details
Brake Cable for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84971
Brake Cable for Lawnmower AMA RS461
Brake Cable for Lawnmower AMA RS461 Genuine replacement part AMA, Brake Cable for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H...
Last items in stock €11.15
Details
Fuel Tank for Engine AMA MVG - T475
A.M.A. S.p.A. SKU: RMGP65050103000
Fuel Tank for Engine AMA MVG - T475
Fuel Tank for Engine AMA MVG - T475 Genuine spare part AMA, Fuel Tank for Engines AMA MVG - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following...
Last items in stock €26.38
Details
AMA RS461 Grass Bag Filter
A.M.A. S.p.A. SKU: 84839
AMA RS461 Grass Bag Filter
AMA Lawnmower RS461 Grass Bag Filter Original spare part AMA Garden, Inner Grass Bag Filter for Lawmower RS461 - RT461B - RS461T. Parts for the following products: -  Lawnmower RS461 - 89502...
Last items in stock €15.45
Details
AMA Lawnmower LT 52H Seal Gasket
A.M.A. S.p.A. SKU: RMGP6501010100
AMA Lawnmower LT 52H Seal Gasket
AMA Seal Gasket for Lawnmower LT 52H Original spare parts AMA, Engine Crankcase Gasket for Petrol Lawnmower LT 52H - Playcut LS 46 - LTS 461H. Parts for the following products: -  Lawnmower Ama LT 52H - 84878 -  Engine Ama...
AVAILABLE €6.17
Details
Comments (0)
