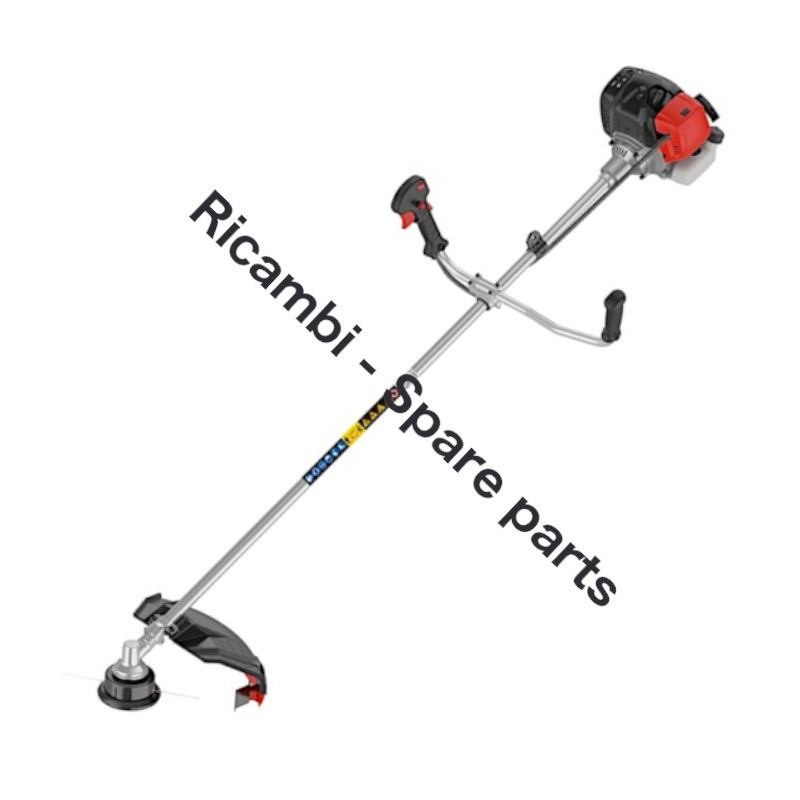

Ama Parts for Brushcutter PLAYCUT NBC450D

Name: Ama Parts for Brushcutter PLAYCUT NBC450D
Brand: A.M.A. S.p.A.
SKU: Ama PLAYCUT NBC450D 98807
Availability: InStock

SKU: Ama PLAYCUT NBC450D 98807

€0.10

VAT included

Ama Spare Parts for Brushcutter PLAYCUT NBC450D - code - 98807

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter PLAYCUT NBC450D - code - 98807.

Ama Parts for Brushcutter PLAYCUT NBC450D

Online only
New
Out-of-Stock

Ama Parts for Brushcutter PLAYCUT NBC450D

SKU: Ama PLAYCUT NBC450D 98807 Condition: New

€0.10

VAT included

Ama Spare Parts for Brushcutter PLAYCUT NBC450D - code - 98807

36 Spare parts

2 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS

MORE INFO:: [email protected]

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

36 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	99820 Screw axes	€2.56
3	Image coming soon	97395 Starter Assy	€4.48
6	Image coming soon	99838 FLYWHEEL COVER	€4.32
9	Image coming soon	97433 Double layer flywheel	€13.43
12	Image coming soon	97391 Ignition coil	€16.59
18	Image coming soon	79810 Oil seal TC12x22x7	€4.99
20	Image coming soon	99841 Crankcase gasket	€4.00
22	Image coming soon	97452 Piston pin check ring	€4.48
23	Image coming soon	97451 Piston pin	€4.48
24	Image coming soon	100378 Piston	€4.64
25	Image coming soon	97449 Piston ring	€4.48
27	Image coming soon	100379 Cylinder (overhead)	€14.40
28	Image coming soon	99844 Muffler gasket	€4.17
29	Image coming soon	99835 Muffler	€18.39
40	Image coming soon	10660 Spark plug	€3.66
44	Image coming soon	97428 Carburetor	€17.95
45	Image coming soon	97392 Fan	€4.48
46	Image coming soon	97432 Starter assy	€8.95
47	Image coming soon	99809 Chock lever	€2.42
48	Image coming soon	97457 Inner cover of air filter	€2.32
49	Image coming soon	99815 Anti-spray separator	€2.39
50	Image coming soon	99812 Chock valve	€2.42
53	Image coming soon	97497 Air filter sponge	€5.20
54	Image coming soon	97456 Outer cover of air filter	€4.00
55.3		97434 FUEL TANK CAP	€4.48
55	Image coming soon	99946 Fuel tank assy	€9.10
55.2		AMA97439 Fuel pipe set NB350	€4.48

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	99813 Transission support assy	€14.40
4	Image coming soon	99850 Aluminum working shaft assy Ø26	€11.04
6	Image coming soon	99794 Hard shaft Ø8x1540	€8.80
8	Image coming soon	99803 Belt connecter	€2.32
19	Image coming soon	99816 Protection guard fixed board	€2.24
22	Image coming soon	99798 Cutting head plastic safety guard	€4.40
25	Image coming soon	99799 Nylon line knife support	€2.23
26	Image coming soon	99849 Nylon line knife	€2.56
29	Image coming soon	99737 Gear box M assy	€18.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Brushcutter PLAYCUT NBC450D - code - 98807

In the following table, look for the model of the Brushcutter and the respective parts of the code.

Ama Brushcutter-PLAYCUT-98807 (NBC450D)
Engine
#	Part Num.	Description
1	99820	Screw axes
2	99826	Wave washer
3	97395	Clutch
4	99827	Washer B
5	80700026-14	M5x20 screw Discontinued
6	99838	Flywheel cover
7	80700185-01	Pin Ø 4x10 Discontinued
8	80700052-11	M8 nut Discontinued
9	97433	Double layer flywheel
10	80700026-24	M5x30 screw Discontinued
11	99828	Front-half crankcase
12	97391	Ignition coil
13	80700179-02	Oil seal TC15x30x7 Discontinued
14	80700205-01	Bearing 6202 Discontinued
15	99833	Crankshaft & connecting rod set
16	99793	Half-round key 3x13x5
17	99708	Needle bearing KBK10x13x15.5
18	79810	Oil seal TC12x22x7
19	80700186-01	Pin Ø 5x10 Discontinued
20	99841	Crankcase gasket
21	99829	Back-half crankcase
22	97452	Piston pin check ring
23	97451	Piston pin
24	100378	Piston
25	97449	Piston ring
26	97496	Cylinder gasket
27	100379	Cylinder (overhead)
28	99844	Muffler gasket
29	99835	Muffler
30	xxxxx	Muffler steel cover
31	80700026-09	M5x16 screw Discontinued
32	80700136-03	Flat washer 6 Discontinued
33	80700046-15	M6x60 screw Discontinued
34	80700028-02	M5x14 screw Discontinued
35	80700135-01	Flat washer 5 Discontinued
36	97466	Engine cover
37	97467	Air guide plate
38	80700074-02	ST3x9-H-C screw Discontinued
39	80700026-17	M5x25 screw Discontinued
40	10660	Spark plug
41	97494	Inlet pipe gasket
42	97455	Inlet pipe
43	100546	Carburetor gasket
44	97428	Carburetor
45	97392	Easy starter drive plate
46	97432	Starter assy
47	99809	Chock lever
48	97457	Inner cover of air filter
49	99815	Anti-spray separator
50	99812	Chock valve
51	80700101-01	Spring washer 5 Discontinued
52	80700023-22	M5x55 screw Discontinued
53	97497	Air filter sponge
54	97456	Outer cover of air filter
55	99946	Fuel tank assy
55.2	AMA97439	Fuel pipe set
55.3	97434	Fuel tank cap set 1
Pag.2
Shaft
#	Part Num.	Description
1	99813	Transission support assy
4	99850	Aluminum shaft assy Ø26x1495
6	99794	Hard shaft Ø8x1540
8	99803	Belt connecter
11	99806	Left handle assy
12	99808	Right handle assy
14	99818	Handle fix seat-up part
15	99817	Handle fix seat
16	99804	Rubber sleeve for handle fix seat
17	99819	Handle fix seat-down part
19	99816	26 plastic prot. guard fixed board
22	99798	Cutting head plastic safety guard
23	99848	Down plate of plastic safety guard
25	99799	Nylon line knife support
26	99849	Nylon line knife
28	99846	Nylon head
29	99737	Gear box M assy 1
