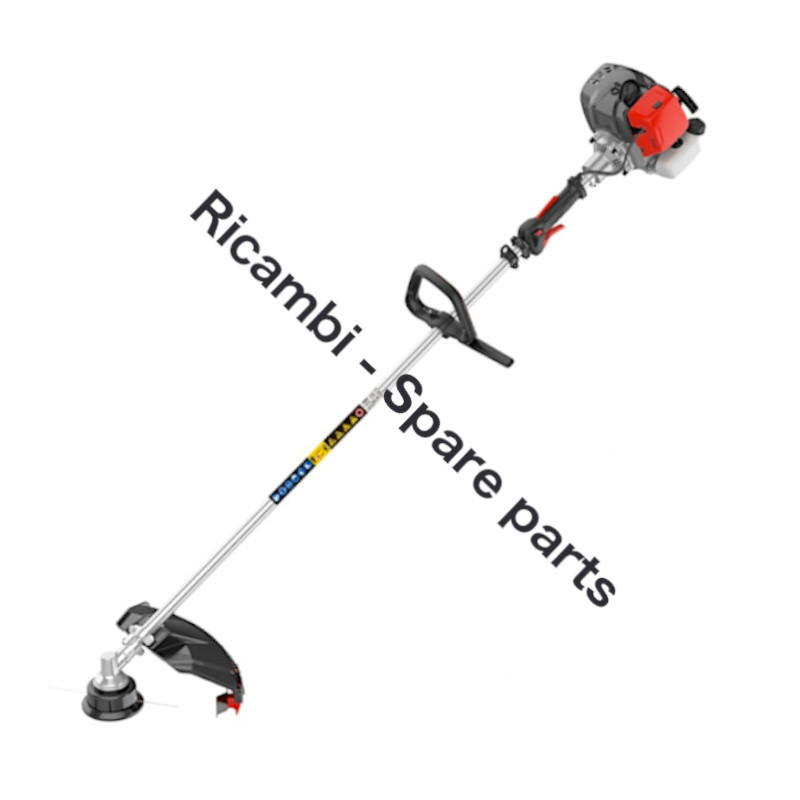

Ama Parts for Brushcutter PLAYCUT NBC450

Name: Ama Parts for Brushcutter PLAYCUT NBC450
Brand: A.M.A. S.p.A.
SKU: Ama PLAYCUT NBC450 98963
Availability: InStock

SKU: Ama PLAYCUT NBC450 98963

€0.10

VAT included

Ama Spare Parts for Brushcutter PLAYCUT NBC450 - code - 98963

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter PLAYCUT NBC450 - code - 98963.

Ama Parts for Brushcutter PLAYCUT NBC450

Online only
New
Out-of-Stock

Ama Parts for Brushcutter PLAYCUT NBC450

SKU: Ama PLAYCUT NBC450 98963 Condition: New

€0.10

VAT included

Ama Spare Parts for Brushcutter PLAYCUT NBC450 - code - 98963

24 Spare parts

2 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS

MORE INFO:: [email protected]

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

24 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	99820 Screw axes	€2.56
3	Image coming soon	97395 Complete Starter	€4.48
18	Image coming soon	79810 Oil seal TC12x22x7	€4.99
40	Image coming soon	10660 Spark plug	€3.66
45	Image coming soon	97392 Fan	€4.48
47	Image coming soon	99809 Chock lever	€2.42
48	Image coming soon	97457 Inner cover of air filter	€2.32
49	Image coming soon	99815 Anti-spray separator	€2.39
50	Image coming soon	99812 Chock valve	€2.42	Not available for order
53	Image coming soon	97497 Air filter sponge	€5.20
54	Image coming soon	97456 Outer cover of air filter	€4.00	Not available for order
55.3		97434 FUEL TANK CAP	€4.48
55.2		97439 Ignition Coil for Power Generator Yamato G 3300	€4.48

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	99813 Transission support assy	€14.40
4	Image coming soon	99850 Aluminum working shaft assy Ø26	€11.04	Not available for order
6	Image coming soon	99794 Hard shaft Ø8x1540	€8.80	Not available for order
7	Image coming soon	99736 K stype loop handle	€6.41
8	Image coming soon	99803 Belt connecter	€2.32
11	Image coming soon	99734 Front handle S set	€9.99
13	Image coming soon	99816 Protection guard fixed board	€2.24
15	Image coming soon	99798 Cutting head plastic safety guard	€4.40
18	Image coming soon	99799 Nylon line knife support	€2.23
19	Image coming soon	99849 Nylon line knife	€2.56
21	Image coming soon	99737 Gear box M assy	€18.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

For the following items, it is strongly recommended that you contact us by email or phone before purchasing.

Our customer service team is at your complete disposal to provide dedicated assistance and all the information you need for these products.

99826
99827
99828
99833
99793
99708
99829
97496
97466
97467
97494
97455
100546
99848
99846

Ama Spare Parts for Brushcutter PLAYCUT NBC450 - code - 98963

In the following table, look for the model of the Brushcutter and the respective parts of the code.

Ama Brushcutter-PLAYCUT-98963 (NBC450)
Engine
#	Part Num.	Description
1	99820	Screw axes
2	99826	Wave washer
3	97395	Clutch
4	99827	Washer B
5	80700026-14	M5x20 screw Discontinued
6	99838	Flywheel cover
7	80700185-01	Pin Ø 4x10 Discontinued
8	80700052-11	M8 nut Discontinued
9	97433	Double layer flywheel
10	80700026-24	M5x30 screw Discontinued
11	99828	Front-half crankcase
12	97391	Ignition coil
13	80700179-02	Oil seal TC15x30x7 Discontinued
14	80700205-01	Bearing 6202 Discontinued
15	99833	Crankshaft & connecting rod set
16	99793	Half-round key 3x13x5
17	99708	Needle bearing KBK10x13x15.5
18	79810	Oil seal TC12x22x7
19	80700186-01	Pin Ø 5x10 Discontinued
20	99841	Crankcase gasket
21	99829	Back-half crankcase
22	97452	Piston pin check ring
23	97451	Piston pin
24	100378	Piston
25	97449	Piston ring
26	97496	Cylinder gasket
27	100379	Cylinder (overhead)
28	99844	Muffler gasket
29	99835	Muffler
30	100545	Muffler steel cover
31	80700026-09	M5x16 screw Discontinued
32	80700136-03	Flat washer 6 Discontinued
33	80700046-15	M6x60 screw Discontinued
34	80700028-02	M5x14 screw Discontinued
35	80700135-01	Flat washer 5 Discontinued
36	97466	Engine cover
37	97467	Air guide plate
38	80700074-02	ST3x9-H-C screw Discontinued
39	80700026-17	M5x25 screw Discontinued
40	10660	Spark plug
41	97494	Inlet pipe gasket
42	97455	Inlet pipe
43	100546	Carburetor gasket
44	97428	Carburetor
45	97392	Easy starter drive plate
46	97432	Starter assy
47	99809	Chock lever
48	97457	Inner cover of air filter
49	99815	Anti-spray separator
50	99812	Chock valve
51	80700101-01	Spring washer 5 Discontinued
52	80700023-22	M5x55 screw Discontinued
53	97497	Air filter sponge
54	97456	Outer cover of air filter
55	99946	Fuel tank assy
55.2	97439	Fuel pipe set
55.3	97434	Fuel tank cap set 1
Pag.2
Shaft
#	Part Num.	Description
1	99813	Transission support assy
2	80700048-10	M6x30 screw Discontinued
3	80700026-02	M5x12 screw Discontinued
4	99850	Aluminum working shaft assy Ø26
6	99794	Hard shaft Ø8x1540
7	99736	K stype loop handle
8	99803	Belt connecter
9	80700015-09	M5 nut Discontinued
10	80700024-19	M5x16 screw Discontinued
11	99734	Front handle S set
12	80700048-04	M6x25 screw Discontinued
13	99816	Protection guard fixed board
14	80700079-03	ST4.8x20-H-F screw Discontinued
15	99798	Cutting head plastic safety guard
16	99848	Down plate of plastic safety guard
17	80700075-01	ST4.2x10-H-F screw Discontinued
18	99799	Nylon line knife support
19	99849	Nylon line knife
20	80700075-06	ST4.2x16-H-F screw Discontinued
21	99737	Gear box M assy
22	99846	Nylon head 1

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
