A.M.A. S.p.A.

Ama Spare Parts for Lawnmower TRX-481H

SKU: Ama TRX-481H - 92660
€3.93
VAT included

Ama Spare Parts for Lawnmower TRX-481H

We are Dealers of AMA original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Lawnmower TRX-481H - 92660.
Ama Spare Parts for Lawnmower TRX-481H
  • Online only
  • Ama Spare Parts for Lawnmower TRX-481H
  • Ama Spare Parts for Lawnmower TRX-481H
  • Ama Spare Parts for Lawnmower TRX-481H
  • Ama Spare Parts for Lawnmower TRX-481H
  • Ama Spare Parts for Lawnmower TRX-481H
  • Ama Spare Parts for Lawnmower TRX-481H
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower TRX-481H

SKU: Ama TRX-481H - 92660 Condition: New
€3.93
VAT included

Ama Spare Parts for Lawnmower TRX-481H

We are Dealers of AMA original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Lawnmower TRX-481H - 92660.
settings 88 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
88 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

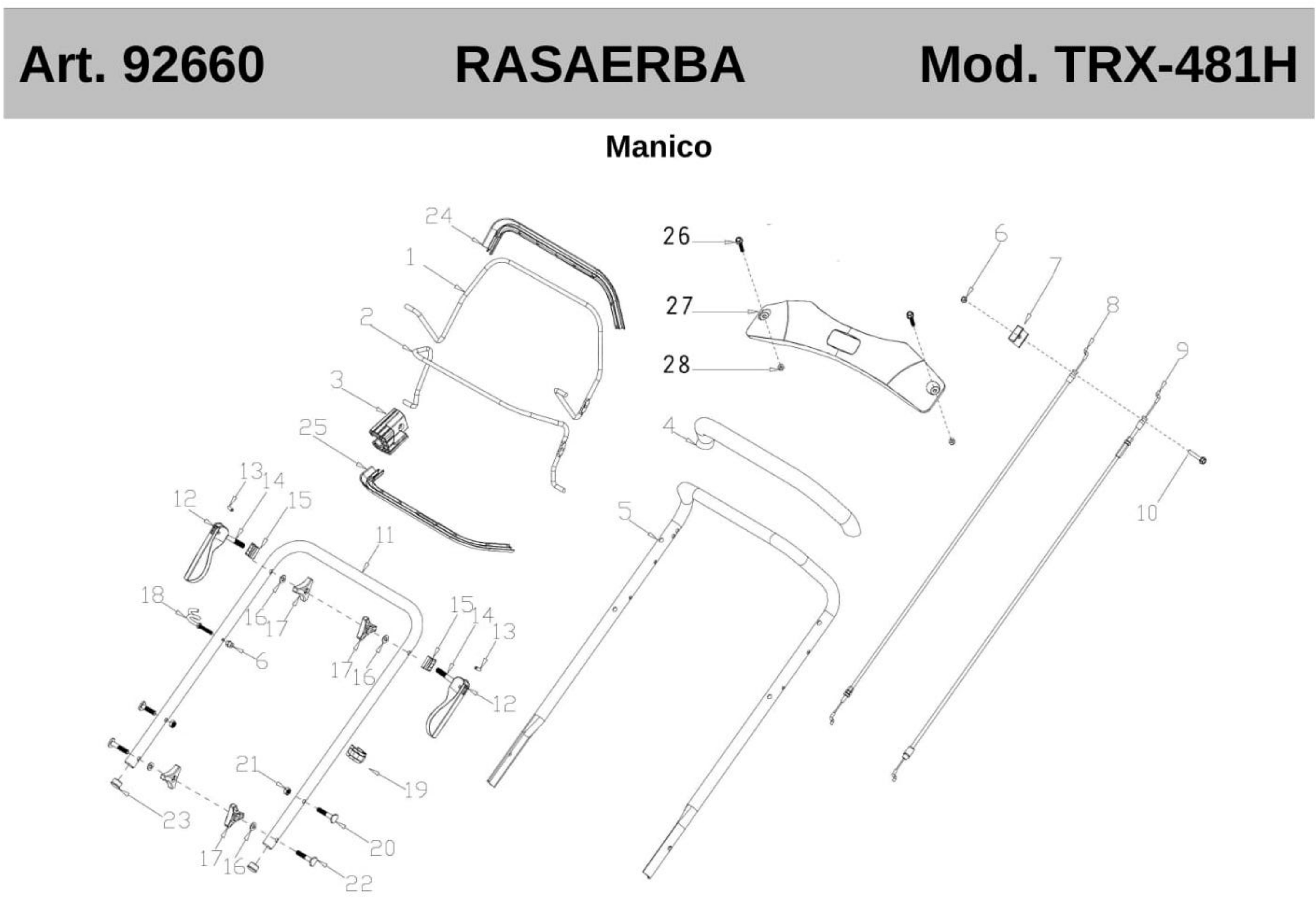

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon TRX-0081 Clutch Lever €7.26
2
 photo_cameraImage coming soon TRX-0080 Brake Lever €6.91
3
 photo_cameraImage coming soon TRX-0125 Limiting Stopper €4.44
4
 photo_cameraImage coming soon TRX-0073 Foam Pipe €5.58
5
 photo_cameraImage coming soon TRX-0075 Upper handrail €20.82
7
 photo_cameraImage coming soon TRX-0083 Cable Fixing Clamp €3.67
8
 AMA TRX-510DL Brake Cable TRX-0170 AMA TRX-510DL Brake Cable €13.65
9
 Clatch Cable for Lawnmower AMA TRX-461 TRX-0086 Clatch Cable for Lawnmower AMA TRX-461 €16.65
11
 photo_cameraImage coming soon TRX-0088 Lower handrail €24.89
12
 AMA TRX-465 Control Handle TRX-0076 AMA TRX-465 Control Handle €4.77
13
 photo_cameraImage coming soon TRX-0032 Pin €3.67
14
 photo_cameraImage coming soon TRX-0078 Handle Pin €3.67
15
 photo_cameraImage coming soon TRX-0077 Lever seat €16.67
17
 photo_cameraImage coming soon TRX-0089 Knob €4.25
18
 photo_cameraImage coming soon TRX-0093 Rope Guide €3.93
19
 photo_cameraImage coming soon TRX-0091 Cable Support €3.17
20
 photo_cameraImage coming soon TRX-0014 Bolt €1.99
22
 photo_cameraImage coming soon TRX-0015 Bolt €1.99
23
 photo_cameraImage coming soon TRX-0092 Handle Plug €3.17
24
 photo_cameraImage coming soon TRX-0094 Plastic decoration €3.81
25
 photo_cameraImage coming soon TRX-0095 Plastic decoration €3.81
27
 photo_cameraImage coming soon TRX-0090 Simple panel €6.28
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

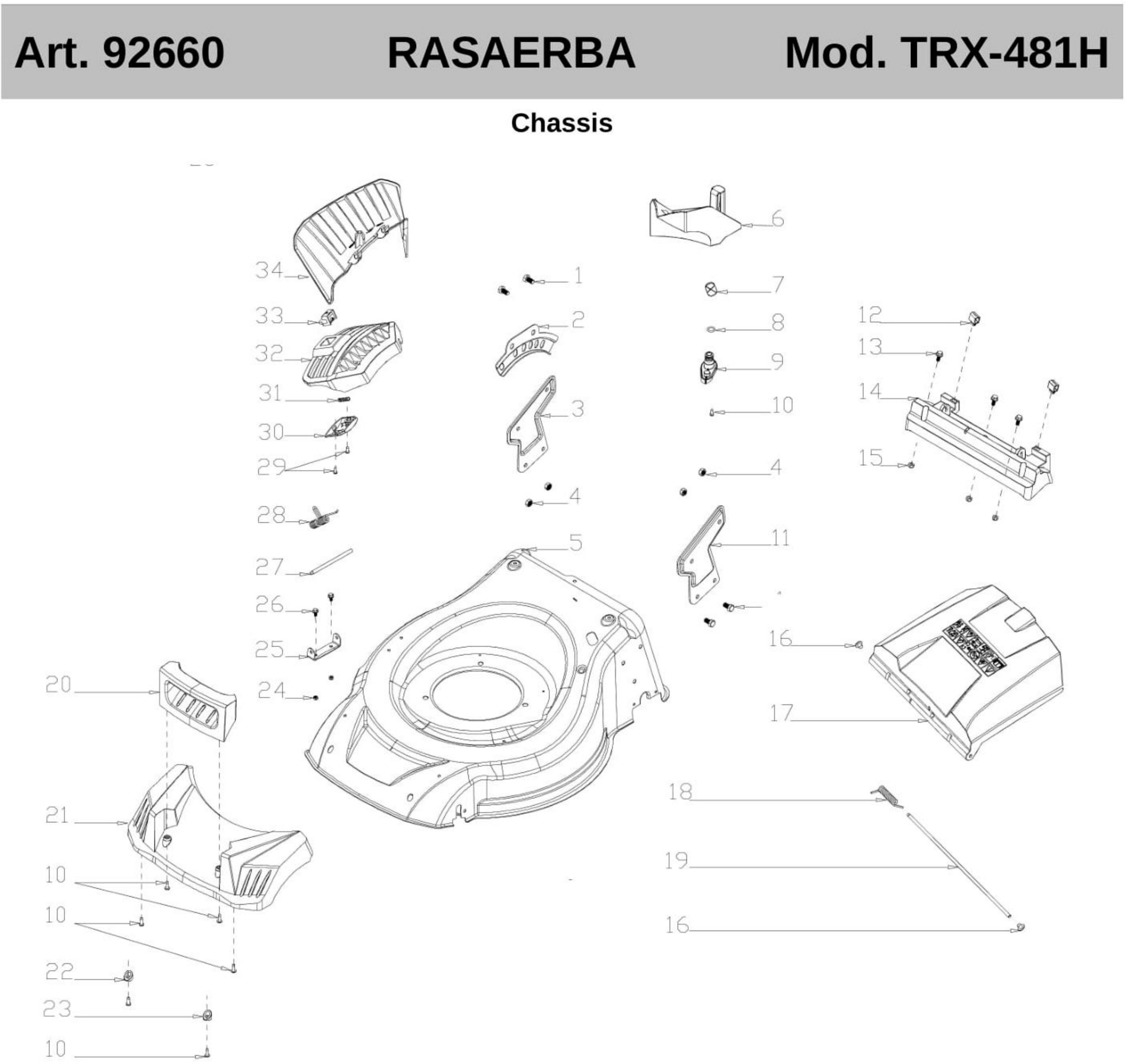

Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon TRX-0109 Height Adjustment Plate €2.96
3
 photo_cameraImage coming soon TRX-0134 Right Bracket €10.71
5
 photo_cameraImage coming soon TRX-0126 Deck €10.35
6
 AMA TRX-481H Mulching Plug TRX-0145 AMA TRX-481H Mulching Plug €13.38
7
 photo_cameraImage coming soon TRX-0152 Cable Sleeve €3.56
9
 photo_cameraImage coming soon TRX-0169 Washing Linker €3.09
10
 photo_cameraImage coming soon TRX-0026 Screw €1.99
11
 photo_cameraImage coming soon TRX-0135 Left Bracket €10.71
12
 photo_cameraImage coming soon TRX-0071 Rear Cover Support €3.17
14
 photo_cameraImage coming soon TRX-0133 Rear Cover Pedestal €6.53
16
 photo_cameraImage coming soon TRX-0072 Plug €2.91
17
 photo_cameraImage coming soon TRX-0144 Rear Cover €11.80
18
 photo_cameraImage coming soon TRX-0122 Rear Cover Spring €3.67
19
 photo_cameraImage coming soon TRX-0121 Rear Cover Shaft €3.93
20
 photo_cameraImage coming soon TRX-0129 Front handle €6.28
21
 photo_cameraImage coming soon TRX-0128 Front part €10.48
22
 photo_cameraImage coming soon TRX-0154 Washer L €3.31
23
 photo_cameraImage coming soon TRX-0153 Washer R €2.83
25
 photo_cameraImage coming soon TRX-0130 Side Discharge Bracket €3.81
27
 photo_cameraImage coming soon TRX-0057 Side Discharge Cover Shaft €3.93
28
 AMA TRX-510DL Side Discharge Cover Spring TRX-0058 AMA TRX-510DL Side Discharge Cover Spring €5.19
29
 photo_cameraImage coming soon TRX-0025 Screw €1.99
30
 photo_cameraImage coming soon TRX-0061 Cover Plate €10.41
31
 AMA TRX-461 Spring TRX-0062 AMA TRX-461 Spring €10.40
32
 AMA TRX-481H Side Discharge Cover TRX-0131 AMA TRX-481H Side Discharge Cover €7.93
33
 photo_cameraImage coming soon TRX-0060 Lock €16.67
34
 AMA TRX-481H Side Baffle TRX-0132 AMA TRX-481H Side Baffle €8.03
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

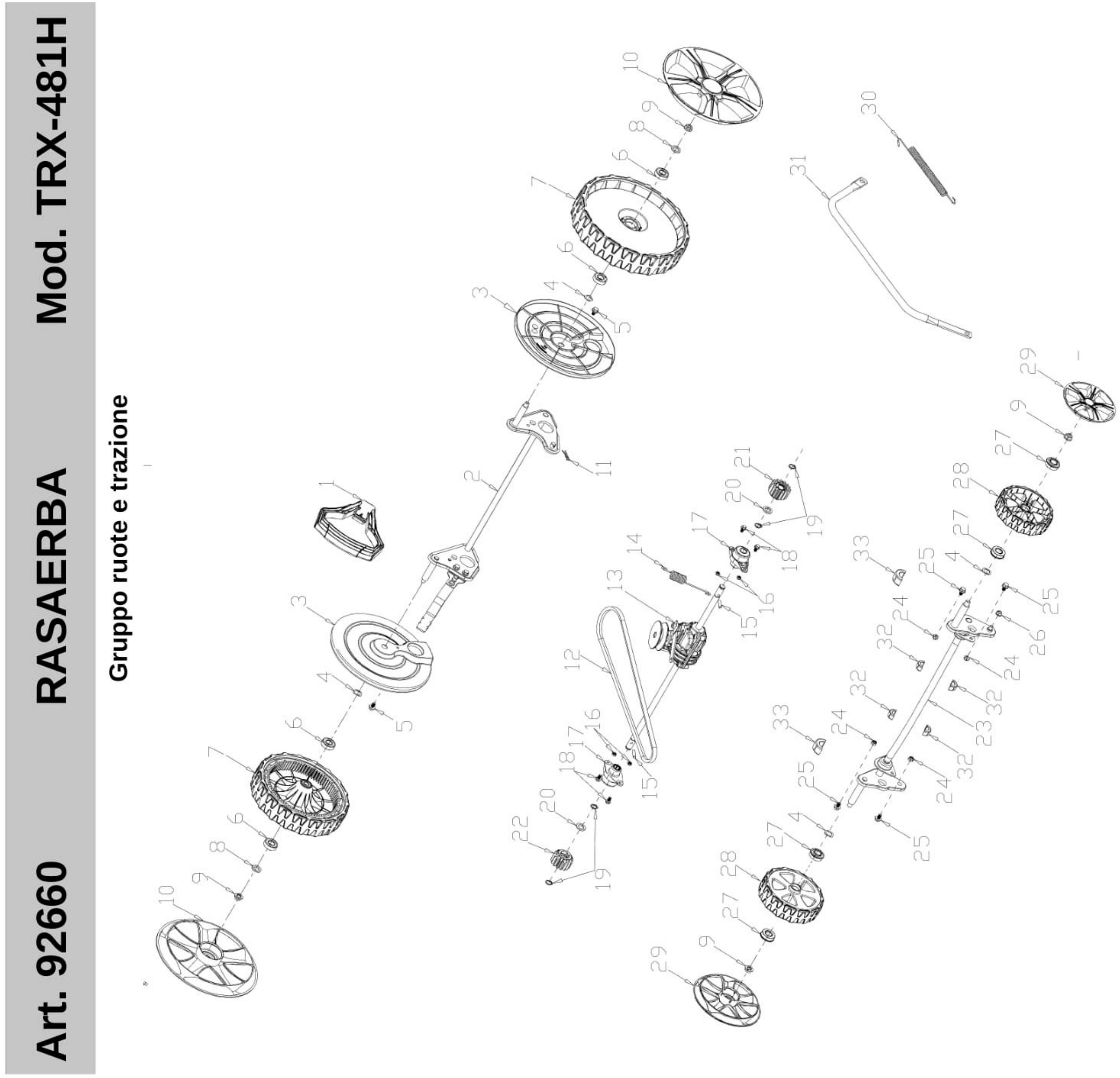

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon TRX-0137 Height Adjustment Handle €11.36
2
 photo_cameraImage coming soon TRX-0099 Rear Wheel Shaft Assy €29.70
3
 photo_cameraImage coming soon TRX-0101 Inner Wheel Cover €4.19
6
 photo_cameraImage coming soon TRX-0001 Ball Bearing €3.93
7
 photo_cameraImage coming soon TRX-0113 10" Wheel €23.69
10
 photo_cameraImage coming soon TRX-0117 10" Outer wheel cover €5.05
12
 photo_cameraImage coming soon TRX-0037 Belt Li686 €7.22
13
 photo_cameraImage coming soon TRX-0104 Gear box €66.96
14
 AMA TRX-461 Self-Propelled Spring TRX-0102 AMA TRX-461 Self-Propelled Spring €4.94
15
 photo_cameraImage coming soon TRX-0103 Pin €3.80
17-1
 photo_cameraImage coming soon TRX-0003 Ball Bearing €6.78
17
 photo_cameraImage coming soon TRX-0110 Shaft Sleeve €3.31
19
 photo_cameraImage coming soon TRX-0033 Lock Ring €3.41
20
 photo_cameraImage coming soon TRX-0030 Flat Washer €1.99
21
 AMA TRX-461 Left Gear TRX-0158 AMA TRX-461 Left Gear €15.04
22
 AMA TRX-461 Right Gear TRX-0159 AMA TRX-461 Right Gear €15.04
23
 photo_cameraImage coming soon TRX-0174 Front Wheel Shaft €21.32
27
 photo_cameraImage coming soon TRX-0002 Bearing €3.93
28
 photo_cameraImage coming soon TRX-0047 7" Wheel €17.37
29
 photo_cameraImage coming soon TRX-0049 7" outer wheel cover €3.81
30
 AMA TRX-510DL Adjustment Spring TRX-0108 AMA TRX-510DL Adjustment Spring €5.90
31
 photo_cameraImage coming soon TRX-0136 Height Adjustment Connecting Rod €8.37
32
 photo_cameraImage coming soon TRX-0100 Shaft Sleeve €3.41
33
 photo_cameraImage coming soon TRX-0124 Front axle bush €3.56
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY

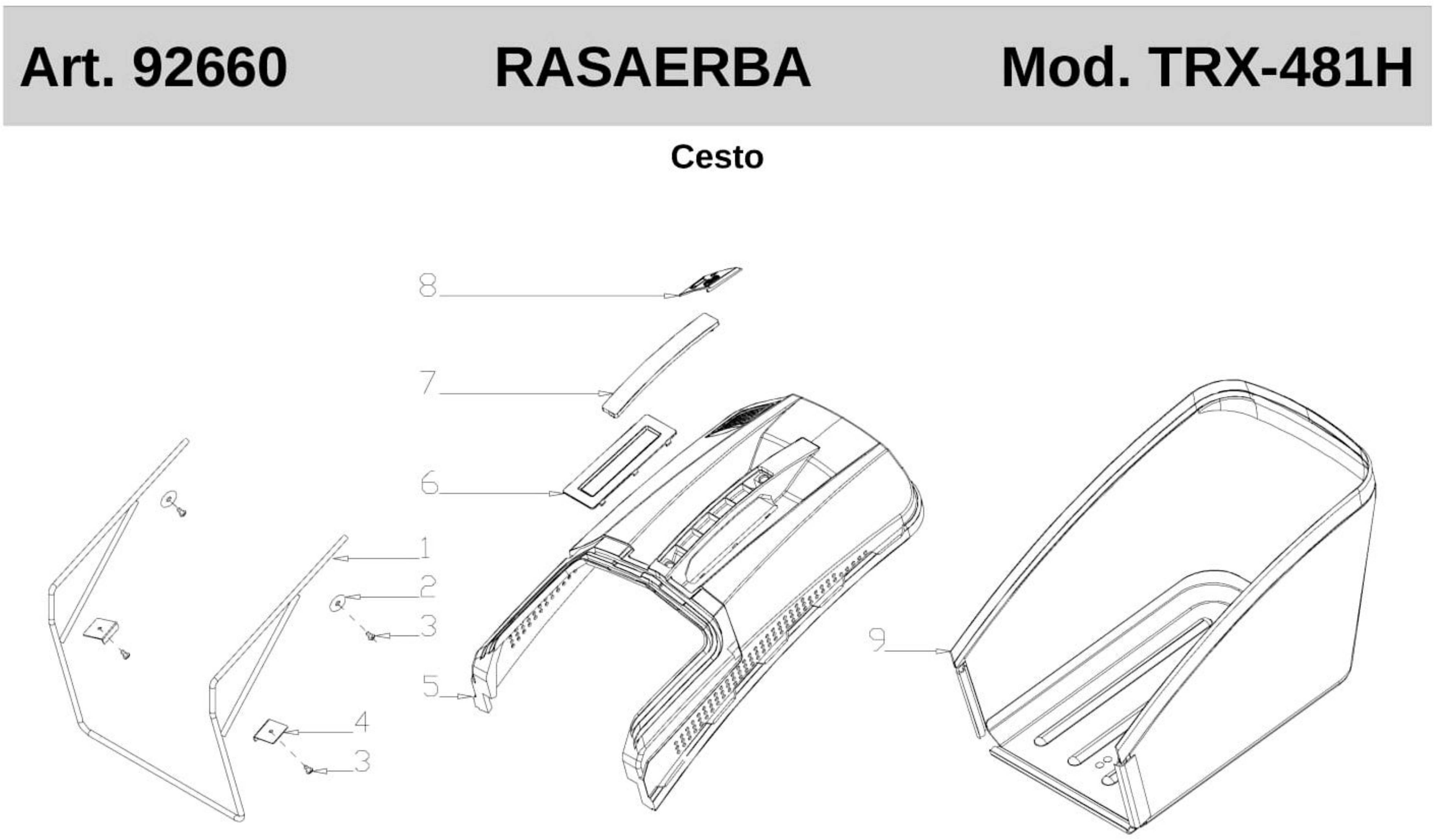

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon TRX-0142 Metal Bracket €13.95
4
 photo_cameraImage coming soon TRX-0143 Fixed plate €3.41
5
 photo_cameraImage coming soon TRX-0139 Plastic Cover €26.65
7
 photo_cameraImage coming soon TRX-0141 Hand Decoration Cover €3.67
8
 photo_cameraImage coming soon TRX-0140 Indicated Board €3.41
9
 photo_cameraImage coming soon TRX-0044 Fabric bag €38.21
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY

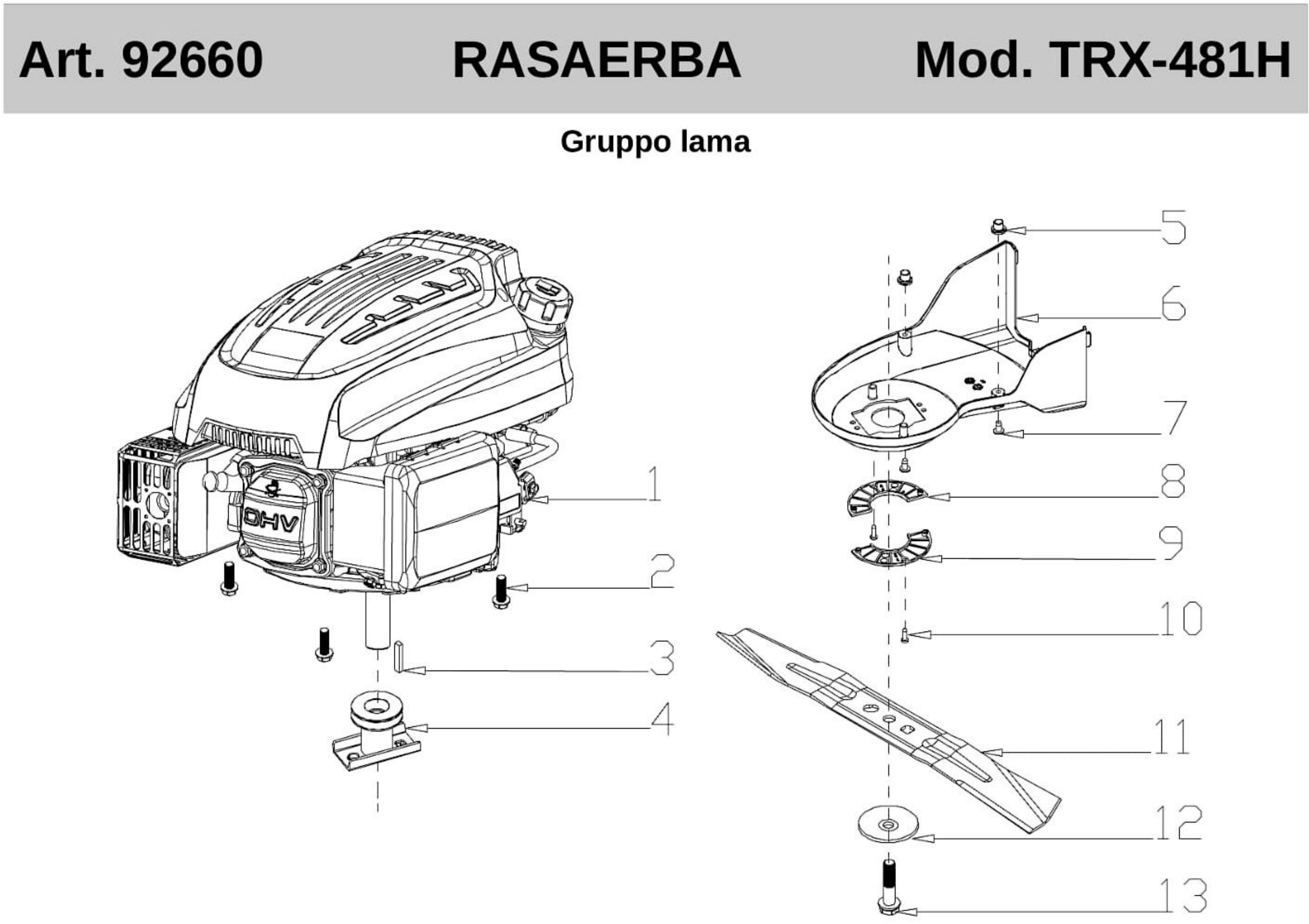

Esploso pagina 5
Pos. Item Price Buy
3
 AMA TRX-481H Woodruff Key TRX-0041 AMA TRX-481H Woodruff Key €2.05
4
 AMA Blade Boss for TRX-481H TRX-0106 AMA Blade Boss for TRX-481H €14.74
5
 AMA Lawnmower TRX-510DL Screw Cap TRX-0045 AMA Lawnmower TRX-510DL Screw Cap €1.23
6
 photo_cameraImage coming soon TRX-0127 Belt Cover €8.37
8
 AMA TRX-461 Belt Cover Plate 1 TRX-0051 AMA TRX-461 Belt Cover Plate 1 €5.84
9
 photo_cameraImage coming soon TRX-0052 Belt Cover Plate2 €5.31
11
 Blade for Lawnmower AMA TRX-481H TRX-0138 Blade for Lawnmower AMA TRX-481H €31.83
12
 AMA TRX-510DL Washer TRX-0119 AMA TRX-510DL Washer €4.95
13
 Blade Bolt for Self-Propelled TRX Series TRX-0004 Blade Bolt for Self-Propelled TRX Series €5.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower TRX-481H

We are Dealers of AMA original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Lawnmower TRX-481H - 92660.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Lawnmower TRX-481H - 92660

AMA GArden Lawnmower TRX-481H - 92660
Handle Pag.1
#
Part Num.
Description
1
TRX-0081
Clutch Lever
2
TRX-0080
Brake Lever
3
TRX-0125
Limiting Stopper
4
TRX-0073
Foam Pipe
5
TRX-0075
Upper handrail
6
Standard
Nut
7
TRX-0083
Cable Fixing Clamp
8
 TRX-0170 Brake Cable
9
10
Standard
Bolt
11
TRX-0088
Lower handrail
12
13
TRX-0032
Pin
14
TRX-0078
Handle Pin
15
TRX-0077
Lever seat
16
Standard
Flat Washer
17
TRX-0089
Knob
18
TRX-0093
Rope Guide
19
TRX-0091
Cable Support
20
TRX-0014
Bolt
21
Standard
Nut
22
TRX-0015
Bolt
23
TRX-0092
Handle Plug
24
TRX-0094
Plastic decoration
25
TRX-0095
Plastic decoration
26
Standard
Bolt
27
TRX-0090
Simple panel
28
Standard
Nut
Chassis Pag.2
1
Standard
Bolt
2
TRX-0109
Height Adjustment Plate
3
TRX-0134
Right Bracket
4
Standard
Nut
5
TRX-0126
Deck
6
7
TRX-0152
Cable Sleeve
8
TRX-0039
Seal Ring
9
TRX-0169
Washing Linker
10
TRX-0026
Screw / Nut
11
TRX-0135
Left Bracket
12
TRX-0071
Rear Cover Support
13
Standard
Bolt M6X14
14
TRX-0133
Rear Cover Pedestal
15
Standard
Nut
16
TRX-0072
Plug
17
TRX-0144
Rear Cover
18
TRX-0122
Rear Cover Spring
19
TRX-0121
Rear Cover Shaft
20
TRX-0129
Front handle
21
TRX-0128
Front part
22
TRX-0154
Washer L
23
TRX-0153
Washer R
24
Standard
Nut
25
TRX-0130
Side Discharge Bracket
26
Standard
Bolt
27
TRX-0057
Side Discharge Cover Shaft
28
29
TRX-0025
Screw
30
TRX-0061
Cover Plate
31
32
33
TRX-0060
Lock
34
Traction Pag.3
1
TRX-0137
Height Adjustment Handle
2
TRX-0099
Rear Wheel Shaft Assy
3
TRX-0101
10” Inner Wheel Cover
4
Standard
Spring Washer
5
Standard
Screw
6
TRX-0001
Ball Bearing
7
TRX-0113
10" Wheel
8
Standard
Flat Washer
9
Standard
Nut
10
TRX-0117
10" Outer wheel cover
11
Standard
Split Pin
12
 TRX-0037 Belt Li686
13
TRX-0104
Gear box
14
15
TRX-0103
Pin
16
Standard
Nut
17
TRX-0110
Shaft Sleeve
17-1
TRX-0003
Ball Bearing
18
Standard
Bolt
19
TRX-0033
Lock Ring
20
TRX-0030
Flat Washer
21
22
23
TRX-0174
Front Wheel Shaft
24
Standard
Nut
25
Standard
Bolt
26
Standard
Nut
27
TRX-0002
Bearing
28
TRX-0047
7" Wheel
29
TRX-0049
7" outer wheel cover
30
 TRX-0108 Height Adjustment Spring
31
TRX-0136
Height Adjustment Connecting Rod
32
TRX-0100
Shaft Sleeve
33
TRX-0124
Front axle bush
Grass Bag Pag.4
1
TRX-0142
Metal Bracket
2
Standard
Flat Washer
3
Standard
Screw
4
TRX-0143
Fixed plate
5
TRX-0139
Plastic Cover
6
TRX-0120
Cover Plate
7
TRX-0141
Hand Decoration Cover
8
TRX-0140
Indicated Board
9
TRX-0044
Fabric bag
Blade Pag.5
1
1001
Engine HONDA GCV170
2
TRX-0023
Bolt 3/8-16UNC
3
 TRX-0041 Flat Key
4
5
6
TRX-0127
Belt Cover
7
Standard
Screw
8
9
TRX-0052
Belt Cover Plate2
10
Standard
Screw
11
 TRX-0138 19" Blade
12
13
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

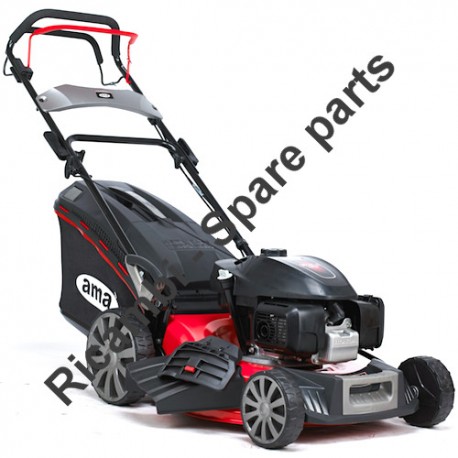

Ama TRX-481H - 92660
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA TRX-481H

Diagram AMA TRX-481H

Download (572.01KB)

You might also like

Clatch Cable for Lawnmower AMA TRX-461
A.M.A. S.p.A. SKU: TRX-0086
Clatch Cable for Lawnmower AMA TRX-461
Clatch Cable for Lawnmower AMA TRX-461 Genuine replacement part AMA, Clatch Cable for Self-Propelled Lawnmowers TRX-531H - TRX-461 - TRX-461B - TRX-501 - TRX-510DL Part for the following products: -  Lawnmower TRX-531H - 92651 -...
on 7/10 Business Days Approx €16.65
Details
AMA TRX-481H V-Belt
A.M.A. S.p.A. SKU: TRX-0037
AMA TRX-481H V-Belt
AMA TRX-481H V-Belt Genuine replacement part AMA, V-Belt (Z686LI708LD) for Lawnmower AMA Garden TRX-481H - 92660 Part for the following products: -  Lawnmower AMA Garden TRX-481H...
on 7/10 Business Days Approx €31.83
Details
AMA TRX-461 Left Gear
A.M.A. S.p.A. SKU: TRX-0158
AMA TRX-461 Left Gear
AMA TRX-461 Left Gear Genuine replacement part AMA, Left Gear for Self-Propelled Lawnmowers TRX-461 - TRX-465 Part for the following products: -  Ama Garden Lawnmower TRX-461 -  Ama Garden Lawnmower TRX-465 -...
Last items in stock €15.04
Details
AMA TRX-461 Right Gear
A.M.A. S.p.A. SKU: TRX-0159
AMA TRX-461 Right Gear
AMA TRX-461 Right Gear Genuine replacement part AMA, Right Gear for Self-Propelled Lawnmowers TRX-461 - TRX-465 Part for the following products: -  Ama Garden Lawnmower TRX-461 -  Ama Garden Lawnmower...
Last items in stock €15.04
Details
AMA TRX-461 Self-Propelled Spring
A.M.A. S.p.A. SKU: TRX-0102
AMA TRX-461 Self-Propelled Spring
AMA Self-Propelled Spring for Lawnmower TRX-461 Genuine replacement part AMA, Self-Propelled Spring for Self-Propelled Lawnmower TRX-465 - 98802. Parts for the following products: - Self-Propelled Lawnmower TRX-465 - 98802...
Usually Ships in: 7/10 Business Days Approx. €4.94
Details
AMA TRX-461 Spring
A.M.A. S.p.A. SKU: TRX-0062
AMA TRX-461 Spring
AMA Spring for Lawnmower TRX-461 Genuine replacement part AMA, Spring for Self-Propelled Lawnmower TRX-465 - 98802. Parts for the following products: - Self-Propelled Lawnmower TRX-465 - 98802 - Self-Propelled Lawnmower TRX-461 -...
Usually Ships in: 7/10 Business Days Approx. €10.40
Details
AMA TRX-461 Belt Cover Plate 1
A.M.A. S.p.A. SKU: TRX-0051
AMA TRX-461 Belt Cover Plate 1
AMA TRX-461 Belt Cover Plate 1 Genuine replacement part AMA, Belt Cover Plate 1 for Self-Propelled Lawnmowers TRX-461. Part for the following products: -  Ama Garden Lawnmower TRX-461 - 92601 - Ama Garden Lawnmower...
AVAILABLE €5.84
Details
Blade Bolt for Self-Propelled TRX Series
A.M.A. S.p.A. SKU: TRX-0004
Blade Bolt for Self-Propelled TRX Series
Blade Bolt for Self-Propelled TRX Series Genuine part AMA, Blade Inch Hex Flange Bolt for Self-Propelled Lawnmowers TRX Series. Parts for the following products: - Ama TRX-510DL - 98800 - Ama TRX-461 - 92601 - Ama TRX-465 - 98802...
Usually Shipped on: 7/10 Business Days Approx. €5.29
Details
AMA TRX-465 Control Handle
A.M.A. S.p.A. SKU: TRX-0076
AMA TRX-465 Control Handle
AMA Lawnmower TRX-465 Control Handle Original replacement part AMA, Control Handle for Petrol Lawnmower TRX-465 - TRX-510DL. Part for the following products: -  Lawnmower TRX-465 - 98802 - ...
AVAILABLE €4.77
Details
AMA Blade Boss for TRX-481H
A.M.A. S.p.A. SKU: TRX-0106
AMA Blade Boss for TRX-481H
AMA Blade Boss for Lawnmower TRX-481H Genuine replacement part AMA, Blade Boss for Lawnmower AMA TRX-481H - TRX-531H. Part for the following products: -  Lawnmower AMA TRX-481H - 92660 -  Lawnmower...
Last items in stock €14.74
Details
AMA TRX-510DL Side Discharge Cover Spring
A.M.A. S.p.A. SKU: TRX-0058
AMA TRX-510DL Side Discharge Cover Spring
AMA Lawnmower TRX-510DL Side Discharge Cover Spring Genuine replacement part AMA, Side Discharge Cover Spring for Lawnmowers TRX-510DL - TRX-461 - TRX-501. Part for the following Items: -  Lawnmower...
Last items in stock €5.19
Details
AMA TRX-481H Side Baffle
A.M.A. S.p.A. SKU: TRX-0132
AMA TRX-481H Side Baffle
AMA Lawnmower TRX-481H Side Baffle Genuine part AMA, Side Baffle for Lawnmower TRX-481H - TRX-531H - TRX-531B. Part for the following items: -  Lawnmower TRX-481H - 92660 -  Lawnmower TRX-531H - 92661 -  Lawnmower...
Last items in stock €8.03
Details
AMA Lawnmower TRX-510DL Screw Cap
A.M.A. S.p.A. SKU: TRX-0045
AMA Lawnmower TRX-510DL Screw Cap
AMA Lawnmower TRX-510DL Screw Cap Genuine part AMA, Belt cover Screw Cap for Traction Lawnmower TRX-481H - TRX-531H. Part for the following items: -  Lawnmower TRX-510DL - 98800 -  Lawnmower TRX-461 - 92601...
Last items in stock €1.23
Details
AMA TRX-510DL Washer
A.M.A. S.p.A. SKU: TRX-0119
AMA TRX-510DL Washer
AMA TRX-510DL Blade Washer Genuine replacement part AMA, Blade Washer for Lawnmower Rasaerba AMA TRX-510DL - AMA TRX-461 - AMA TRX-501. Part for the following products: - Ama TRX-510DL - 98800 - Ama TRX-461 - 92601 - Ama TRX-501...
AVAILABLE €4.95
Details
AMA TRX-481H Mulching Plug
A.M.A. S.p.A. SKU: TRX-0145
AMA TRX-481H Mulching Plug
AMA Lawnmower TRX-481H Mulching Plug Genuine replacement part AMA, Mulching Plug for Lawnmower TRX-481H - TRX-531H - TRX-531B. Part for the following products: -  Lawnmower TRX-481H - 92660 -  Lawnmower TRX-531H -...
Last items in stock €13.38
Details
AMA TRX-481H Side Discharge Cover
A.M.A. S.p.A. SKU: TRX-0131
AMA TRX-481H Side Discharge Cover
AMA Lawnmower TRX-481H Side Discharge Cover Genuine replacement part AMA, Side Discharge Cover for Lawnmower TRX-481H - TRX-531H - TRX-531B. Part for the following products: -  Lawnmower TRX-481H - 92660 - ...
AVAILABLE €7.93
Details
AMA TRX-510DL Brake Cable
A.M.A. S.p.A. SKU: TRX-0170
AMA TRX-510DL Brake Cable
AMA Lawnmower TRX-510DL Brake Cable Original spare parts AMA Garden, Brake Cable for Lawnmower TRX-510DL - TRX-461 - TRX-465. Parts for the following products: -  Lawnmower Ama TRX-510DL - 98800 - ...
Last items in stock €13.65
Details
AMA TRX-510DL Adjustment Spring
A.M.A. S.p.A. SKU: TRX-0108
AMA TRX-510DL Adjustment Spring
AMA Lawnmower TRX-510DL Adjustment Spring Original AMA Garden, Height Adjustment Spring for Lawnmower TRX-510DL - TRX-461. Parts for the following products: -  Lawnmower Ama TRX-510DL - 98800 - ...
AVAILABLE €5.90
Details
Comments (0)
