Ama Spare Parts for Lawnmower TRX-461B

SKU: Ama TRX-461B - 92650
€3.93
VAT included

Ama Spare Parts for Lawnmower TRX-461B

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo Lawnmower TRX-461B - 92650.
Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B
  • Ama Spare Parts for Lawnmower TRX-461B

Ama Spare Parts for Lawnmower TRX-461B

SKU: Ama TRX-461B - 92650 Condition: New
€3.93
VAT included

Ama Spare Parts for Lawnmower TRX-461B

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo Lawnmower TRX-461B - 92650.
settings 83 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

83 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon TRX-0097 Height Adjustment Handle €2.83
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon TRX-0079 Brake Lever €9.60
3
photo_cameraImage coming soon TRX-0125 Limiting Stopper €4.44
4
photo_cameraImage coming soon TRX-0073 Foam Pipe €5.58
5
photo_cameraImage coming soon TRX-0074 Upper handrail €20.82
7
photo_cameraImage coming soon TRX-0083 Cable Fixing Clamp €3.67
8
photo_cameraImage coming soon TRX-0084 Brake Cable €13.25
9
Clatch Cable for Lawnmower AMA TRX-461 TRX-0086 Clatch Cable for Lawnmower AMA TRX-461 €16.65
11
photo_cameraImage coming soon TRX-0088 Lower handrail €24.89
12
AMA TRX-465 Control Handle TRX-0076 AMA TRX-465 Control Handle €4.77
13
photo_cameraImage coming soon TRX-0032 Pin €3.67
14
photo_cameraImage coming soon TRX-0078 Handle Pin €3.67
15
photo_cameraImage coming soon TRX-0077 Lever seat €16.67
17
photo_cameraImage coming soon TRX-0089 Knob €4.25
18
photo_cameraImage coming soon TRX-0093 Rope Guide €3.93
19
photo_cameraImage coming soon TRX-0091 Cable Support €3.17
20
photo_cameraImage coming soon TRX-0014 Bolt €1.99
22
photo_cameraImage coming soon TRX-0015 Bolt €1.99
23
photo_cameraImage coming soon TRX-0092 Handle Plug €3.17
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon TRX-0109 Height Adjustment Plate €2.96
3
photo_cameraImage coming soon TRX-0065 Right Bracket €7.01
5
photo_cameraImage coming soon TRX-0050 DECK €117.22
6
photo_cameraImage coming soon TRX-0123 Mulching Plug €12.44
7
photo_cameraImage coming soon TRX-0068 Cable Sleeve €3.21
9
photo_cameraImage coming soon TRX-0067 Washing Linker €3.21
10
photo_cameraImage coming soon TRX-0022 Screw / Nut €1.99
11
photo_cameraImage coming soon TRX-0066 Left Bracket €7.76
12
photo_cameraImage coming soon TRX-0071 Rear Cover Support €3.17
14
photo_cameraImage coming soon TRX-0064 Rear Cover Pedestal €6.53
16
photo_cameraImage coming soon TRX-0072 Plug €2.91
17
photo_cameraImage coming soon TRX-0144 Rear Cover €11.80
18
photo_cameraImage coming soon TRX-0122 Rear Cover Spring €3.67
19
photo_cameraImage coming soon TRX-0121 Rear Cover Shaft €3.93
21
photo_cameraImage coming soon TRX-0025 Screw €1.99
22
photo_cameraImage coming soon TRX-0054 Front part €11.34
23
photo_cameraImage coming soon TRX-0026 Screw €1.99
24
photo_cameraImage coming soon TRX-0069 Washer R €2.83
25
photo_cameraImage coming soon TRX-0070 Washer L €2.83
29
photo_cameraImage coming soon TRX-0057 Side Discharge Cover Shaft €3.93
30
AMA TRX-510DL Side Discharge Cover Spring TRX-0058 AMA TRX-510DL Side Discharge Cover Spring €5.19
31
photo_cameraImage coming soon TRX-0025 Screw €1.99
32
photo_cameraImage coming soon TRX-0061 Cover Plate €10.41
33
AMA TRX-461 Spring TRX-0062 AMA TRX-461 Spring €10.40
34
photo_cameraImage coming soon TRX-0059 Side Discharge Cover €3.66
35
photo_cameraImage coming soon TRX-0060 Lock €16.67
36
photo_cameraImage coming soon TRX-0063 Side-Discharge Guiding Board €6.90
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon TRX-0097 Height Adjustment Handle €2.83
2
photo_cameraImage coming soon TRX-0099 Rear Wheel Shaft Assy €29.70
3
photo_cameraImage coming soon TRX-0101 Inner Wheel Cover €4.19
6
photo_cameraImage coming soon TRX-0001 Ball Bearing €3.93
7
photo_cameraImage coming soon TRX-0113 10" Wheel €23.69
10
photo_cameraImage coming soon TRX-0116 10" outer wheel cover €3.81
12
photo_cameraImage coming soon TRX-0036 Belt Li650 €7.88
13
photo_cameraImage coming soon TRX-0104 Gear box €66.96
14
AMA TRX-461 Self-Propelled Spring TRX-0102 AMA TRX-461 Self-Propelled Spring €4.94
15
photo_cameraImage coming soon TRX-0103 Pin €3.80
17-1
photo_cameraImage coming soon TRX-0003 Ball Bearing €6.78
17
photo_cameraImage coming soon TRX-0110 Shaft Sleeve €3.31
19
photo_cameraImage coming soon TRX-0033 Lock Ring €3.41
20
photo_cameraImage coming soon TRX-0030 Flat Washer €1.99
21
AMA TRX-461 Left Gear TRX-0158 AMA TRX-461 Left Gear €15.04
22
AMA TRX-461 Right Gear TRX-0159 AMA TRX-461 Right Gear €15.04
23
photo_cameraImage coming soon TRX-0098 Front Wheel Shaft €22.30
27
photo_cameraImage coming soon TRX-0002 Bearing €3.93
28
photo_cameraImage coming soon TRX-0046 7" Wheel €16.04
29
photo_cameraImage coming soon TRX-0048 7" outer wheel cover €3.81
30
AMA TRX-510DL Adjustment Spring TRX-0108 AMA TRX-510DL Adjustment Spring €5.90
31
photo_cameraImage coming soon TRX-0096 Height Adjustment Connecting Rod €8.37
32
photo_cameraImage coming soon TRX-0100 Shaft Sleeve €3.41
33
photo_cameraImage coming soon TRX-0124 Front axle bush €3.56
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon TRX-0142 Metal Bracket €13.95
4
photo_cameraImage coming soon TRX-0143 Fixed plate €3.41
5
photo_cameraImage coming soon TRX-0139 Plastic Cover €26.65
7
photo_cameraImage coming soon TRX-0141 Hand Decoration Cover €3.67
8
photo_cameraImage coming soon TRX-0140 Indicated Board €3.41
9
photo_cameraImage coming soon TRX-0044 Fabric bag €38.21
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
AMA TRX-510DL Woodruff Key TRX-0040 AMA TRX-510DL Woodruff Key €4.95
4
Blade Boss for Lawnmower AMA TRX-461 TRX-0107 Blade Boss for Lawnmower AMA TRX-461 €18.60
5
AMA Lawnmower TRX-510DL Screw Cap TRX-0045 AMA Lawnmower TRX-510DL Screw Cap €1.23
6
AMA TRX-461B Belt Cover TRX-0053 AMA TRX-461B Belt Cover €14.31
8
AMA TRX-461 Belt Cover Plate 1 TRX-0051 AMA TRX-461 Belt Cover Plate 1 €5.84
9
photo_cameraImage coming soon TRX-0052 Belt Cover Plate2 €5.31
11
photo_cameraImage coming soon TRX-0118 18"Blade €27.78
12
AMA TRX-510DL Washer TRX-0119 AMA TRX-510DL Washer €4.95
13
Blade Bolt for Self-Propelled TRX Series TRX-0004 Blade Bolt for Self-Propelled TRX Series €5.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower TRX-461B

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues fo Lawnmower TRX-461B - 92650.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama TRX-461B - 92650

AMA Garden Lawnmower TRX-461B - 92650

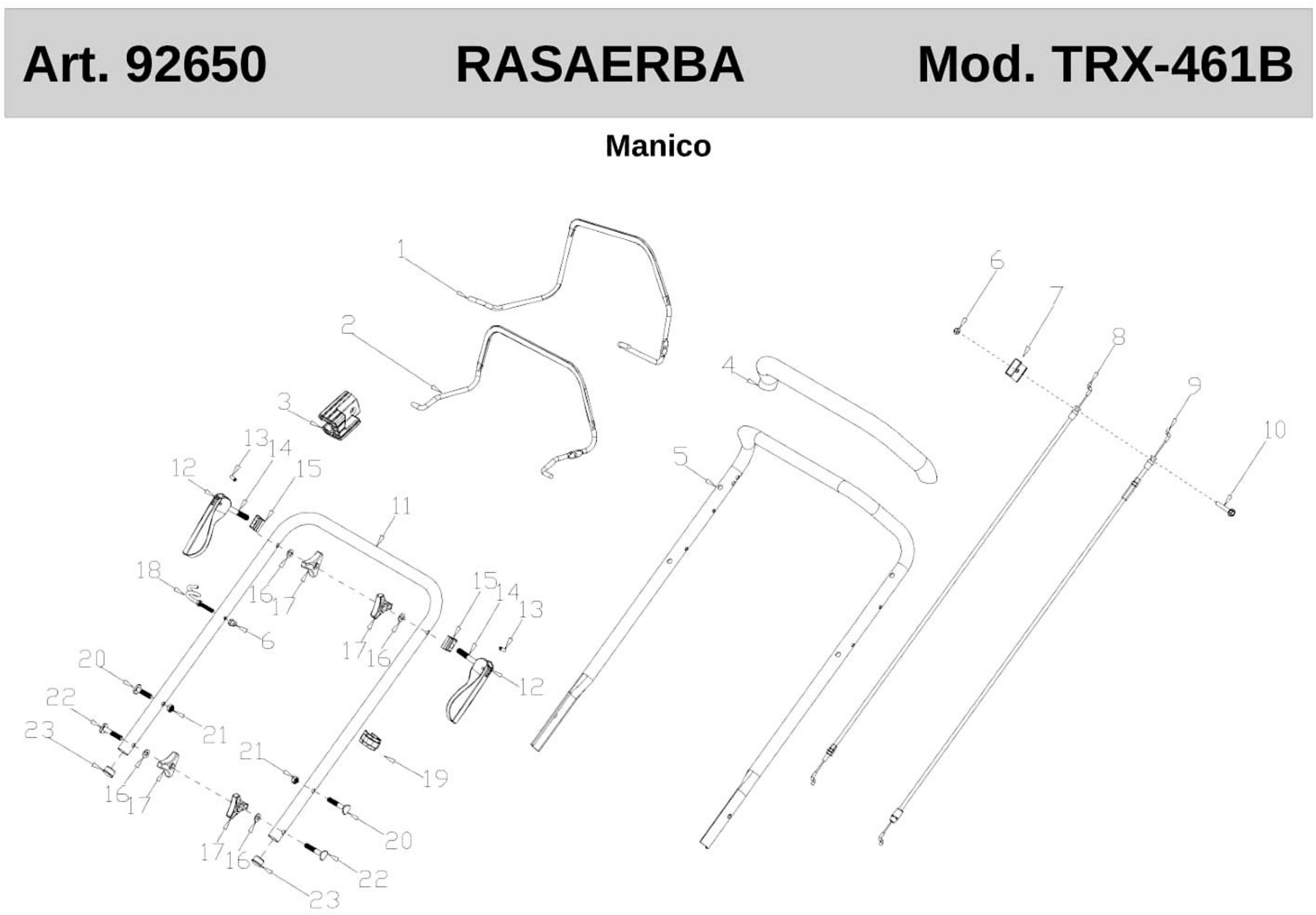

Handle Pag.1
# Part Num. Description
1 TRX-0082 Clutch Lever - DISCONTINUED
2 TRX-0079 Brake Lever
3 TRX-0125 Limiting Stopper
4 TRX-0073 Foam Pipe
5 TRX-0074 Upper handrail
6 Standard Nut
7 TRX-0083 Cable Fixing Clamp
8 TRX-0084 Brake Cable
9 TRX-0086 Clutch Cable
10 Standard Bolt
11 TRX-0088 Lower handrail
12 TRX-0076 Control Handle
13 TRX-0032 Pin
14 TRX-0078 Handle Pin
15 TRX-0077 Lever seat
16 Standard Flat Washer
17 TRX-0089 Knob
18 TRX-0093 Rope Guide
19 TRX-0091 Cable Support
20 TRX-0014 Bolt
21 Standard Nut
22 TRX-0015 Bolt
23 TRX-0092 Handle Plug

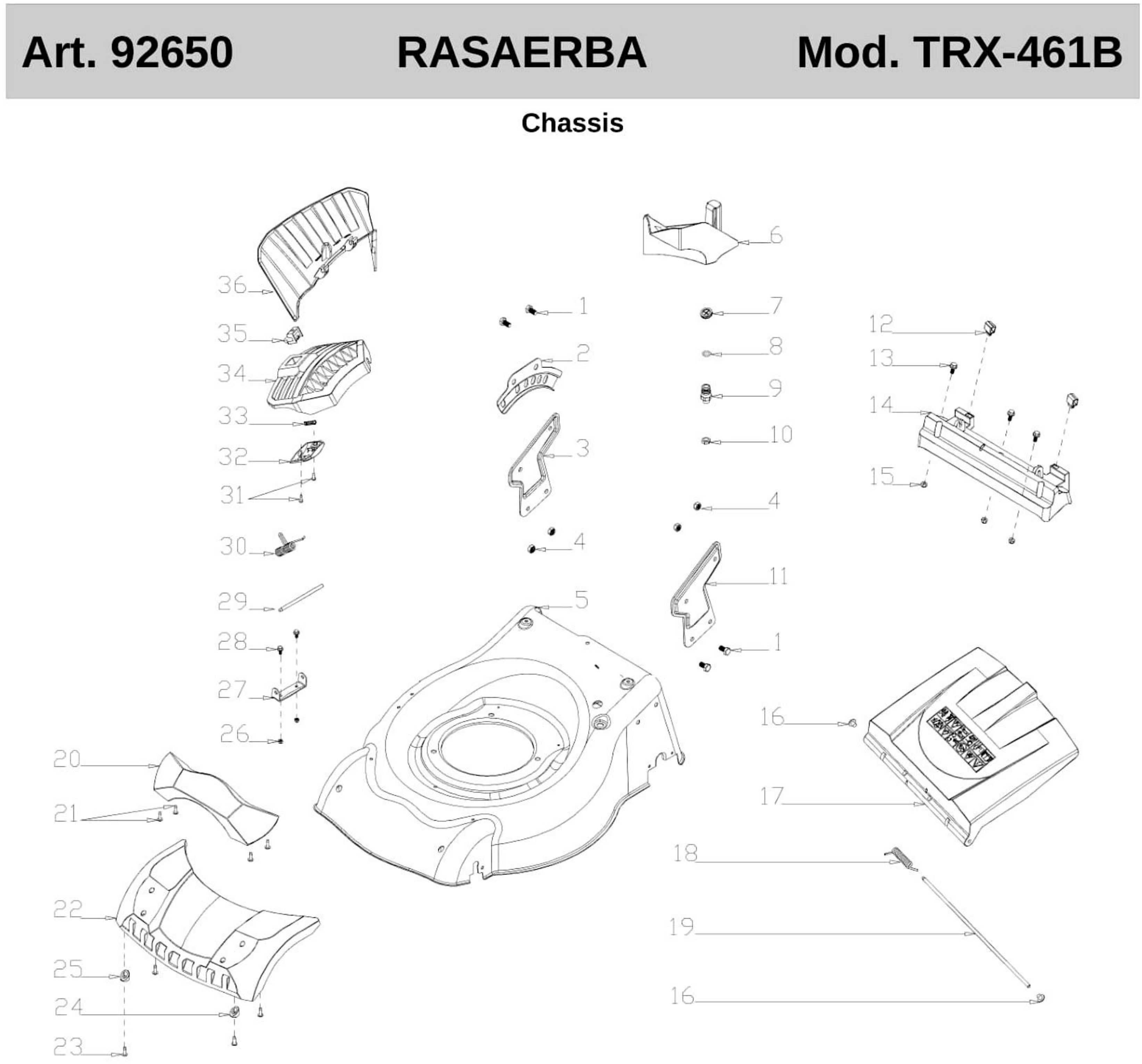

Chassis Pag.2
1 Standard Bolt
2 TRX-0109 Height Adjustment Plate
3 TRX-0065 Right Bracket
4 Standard Nut
5 TRX-0050 DECK
6 TRX-0123 Mulching Plug
7 TRX-0068 Cable Sleeve
8 TRX-0039 Seal Ring
9 TRX-0067 Washing Linker
10 TRX-0022 Screw / Nut
11 TRX-0066 Left Bracket
12 TRX-0071 Rear Cover Support
13 Standard Bolt M6X14
14 TRX-0064 Rear Cover Pedestal
15 Standard Nut
16 TRX-0072 Plug
17 TRX-0144 Rear Cover
18 TRX-0122 Rear Cover Spring
19 TRX-0121 Rear Cover Shaft
20 TRX-0055 Front handle
21 TRX-0025 Screw
22 TRX-0054 Front part
23 TRX-0026 Screw
24 TRX-0069 Washer R
25 TRX-0070 Washer L
26 Standard Nut
27 TRX-0056 Side Discharge Bracket
28 Standard Bolt
29 TRX-0057 Side Discharge Cover Shaft
30 TRX-0058 Side Discharge Cover Spring
31 TRX-0025 Screw
32 TRX-0061 Cover Plate
33 TRX-0062 Spring
34 TRX-0059 Side Discharge Cover
35 TRX-0060 Lock
36 TRX-0063 Side-Discharge Guiding Board
Traction Pag.3
1 TRX-0097 Height Adjustment Handle
2 TRX-0099 Rear Wheel Shaft Assy
3 TRX-0101 Inner Wheel Cover
4 Standard Spring Washer
5 Standard Screw
6 TRX-0001 Ball Bearing
7 TRX-0113 10" Wheel
8 Standard Flat Washer
9 Standard Nut
10 TRX-0116 10" outer wheel cover
11 Standard Split Pin
12 TRX-0036 Belt Li650
13 TRX-0104 Gear box
14 TRX-0102 Self-Propelled Spring
15 TRX-0103 Pin
16 Standard Nut
17 TRX-0110 Shaft Sleeve
17-1 TRX-0003 Ball Bearing
18 Standard Bolt
19 TRX-0033 Lock Ring
20 TRX-0030 Flat Washer
21 TRX-0158 Left Gear
22 TRX-0159 Right Gear
23 TRX-0098 Front Wheel Shaft
24 Standard Nut
25 Standard Bolt
26 Standard Nut
27 TRX-0002 Bearing
28 TRX-0046 7" Wheel
29 TRX-0048 7" outer wheel cover
30 TRX-0108 Height Adjustment Spring
31 TRX-0096 Height Adjustment Connecting Rod
32 TRX-0100 Shaft Sleeve
33 TRX-0124 Front axle bush

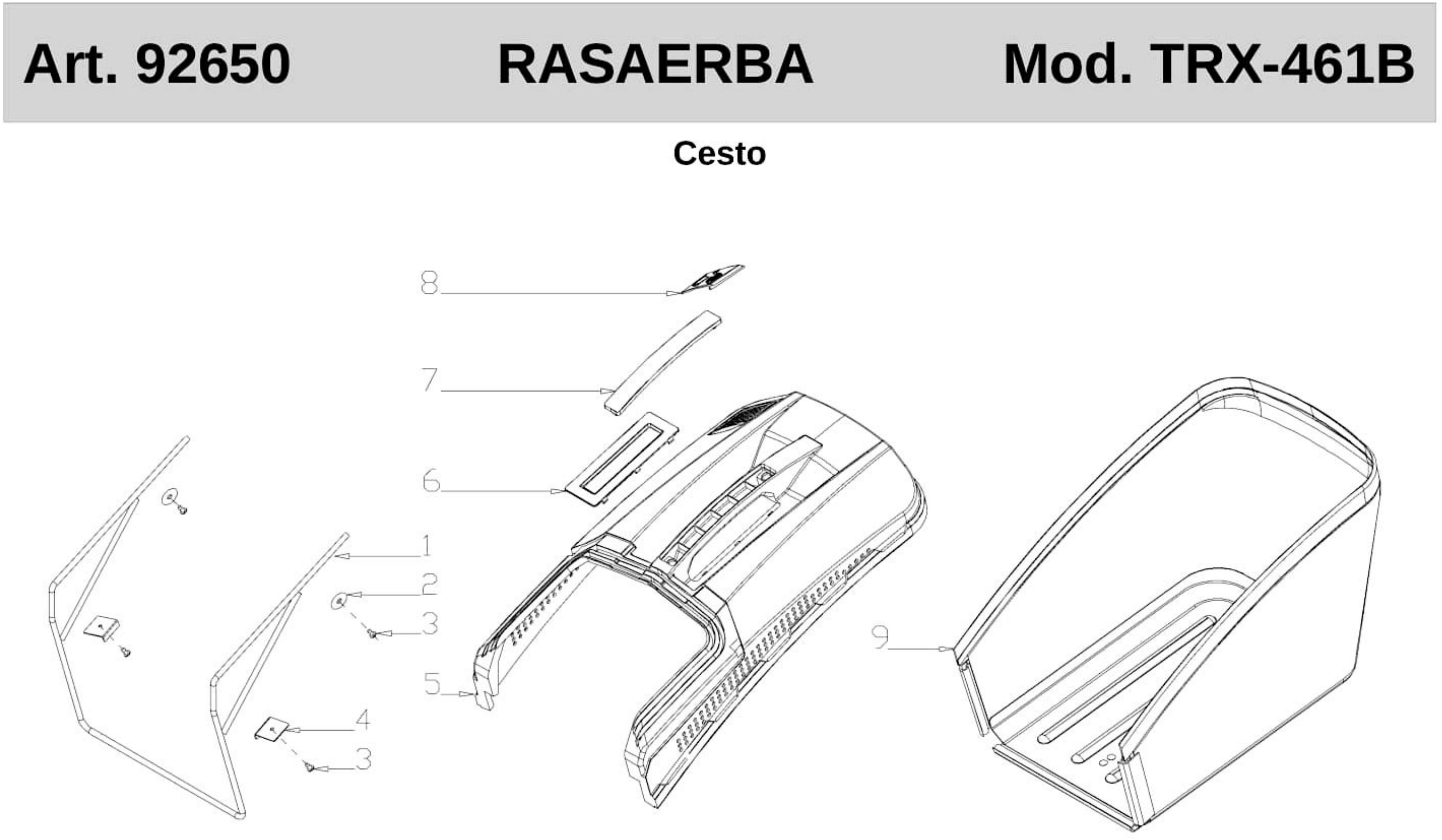

Bag Pag.4
1 TRX-0142 Metal Bracket
2 Standard Flat Washer
3 Standard Screw
4 TRX-0143 Fixed plate
5 TRX-0139 Plastic Cover
6 TRX-0120 Cover Plate
7 TRX-0141 Hand Decoration Cover
8 TRX-0140 Indicated Board
9 TRX-0044 Fabric bag

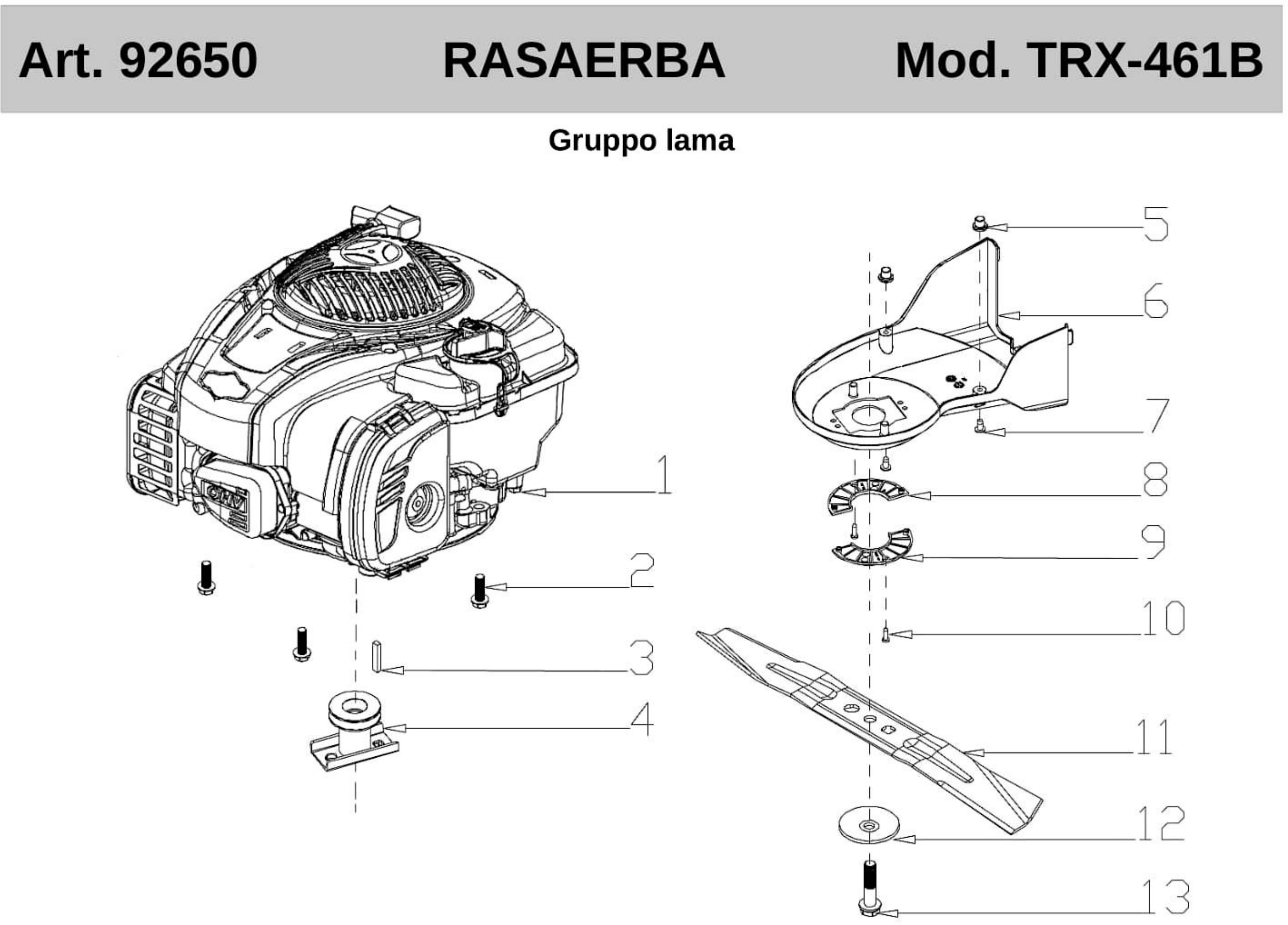

Blade Pag.5
1 1001 Engine BS 450E
2 TRX-0023 Bolt 3/8-16UNC
3 TRX-0040 Flat Key
4 TRX-0107 Blade Boss
5 TRX-0045 Screw Cap
6 TRX-0053 Belt Cover
7 Standard Screw
8 TRX-0051 Belt Cover Plate1
9 TRX-0052 Belt Cover Plate2
10 Standard Screw
11 TRX-0118 18"Blade
12 TRX-0119 Blade Washer
13 TRX-0004 Blade Bolt
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama TRX-461B - 92650
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA TRX-461B

Diagram AMA TRX-461B

Download (574.86KB)

You might also like

A.M.A. S.p.A. SKU: TRX-0107
Blade Boss for Lawnmower AMA TRX-461 Genuine replacement part AMA, Blade Boss for Self-Propelled Lawnmowers TRX-531B - TRX-461 - TRX-461B - TRX-501 - TRX-531B - TRX-510DL Part for the following products: -  Lawnmower TRX-531B - 92651...
Last items in stock €18.60
A.M.A. S.p.A. SKU: TRX-0086
Clatch Cable for Lawnmower AMA TRX-461 Genuine replacement part AMA, Clatch Cable for Self-Propelled Lawnmowers TRX-531H - TRX-461 - TRX-461B - TRX-501 - TRX-510DL Part for the following products: -  Lawnmower TRX-531H - 92651 -...
on 7/10 Business Days Approx €16.65
A.M.A. S.p.A. SKU: TRX-0158
AMA TRX-461 Left Gear Genuine replacement part AMA, Left Gear for Self-Propelled Lawnmowers TRX-461 - TRX-465 Part for the following products: -  Ama Garden Lawnmower TRX-461 -  Ama Garden Lawnmower TRX-465 -...
Last items in stock €15.04
A.M.A. S.p.A. SKU: TRX-0159
AMA TRX-461 Right Gear Genuine replacement part AMA, Right Gear for Self-Propelled Lawnmowers TRX-461 - TRX-465 Part for the following products: -  Ama Garden Lawnmower TRX-461 -  Ama Garden Lawnmower...
Last items in stock €15.04
A.M.A. S.p.A. SKU: TRX-0102
AMA Self-Propelled Spring for Lawnmower TRX-461 Genuine replacement part AMA, Self-Propelled Spring for Self-Propelled Lawnmower TRX-465 - 98802. Parts for the following products: - Self-Propelled Lawnmower TRX-465 - 98802...
Usually Ships in: 7/10 Business Days Approx. €4.94
A.M.A. S.p.A. SKU: TRX-0062
AMA Spring for Lawnmower TRX-461 Genuine replacement part AMA, Spring for Self-Propelled Lawnmower TRX-465 - 98802. Parts for the following products: - Self-Propelled Lawnmower TRX-465 - 98802 - Self-Propelled Lawnmower TRX-461 -...
Usually Ships in: 7/10 Business Days Approx. €10.40
A.M.A. S.p.A. SKU: TRX-0051
AMA TRX-461 Belt Cover Plate 1 Genuine replacement part AMA, Belt Cover Plate 1 for Self-Propelled Lawnmowers TRX-461. Part for the following products: -  Ama Garden Lawnmower TRX-461 - 92601 - Ama Garden Lawnmower...
AVAILABLE €5.84
A.M.A. S.p.A. SKU: TRX-0004
Blade Bolt for Self-Propelled TRX Series Genuine part AMA, Blade Inch Hex Flange Bolt for Self-Propelled Lawnmowers TRX Series. Parts for the following products: - Ama TRX-510DL - 98800 - Ama TRX-461 - 92601 - Ama TRX-465 - 98802...
Usually Shipped on: 7/10 Business Days Approx. €5.29
A.M.A. S.p.A. SKU: TRX-0076
AMA Lawnmower TRX-465 Control Handle Original replacement part AMA, Control Handle for Petrol Lawnmower TRX-465 - TRX-510DL. Part for the following products: -  Lawnmower TRX-465 - 98802 - ...
AVAILABLE €4.77
A.M.A. S.p.A. SKU: TRX-0058
AMA Lawnmower TRX-510DL Side Discharge Cover Spring Genuine replacement part AMA, Side Discharge Cover Spring for Lawnmowers TRX-510DL - TRX-461 - TRX-501. Part for the following Items: -  Lawnmower...
Last items in stock €5.19
A.M.A. S.p.A. SKU: TRX-0040
AMA Lawnmower TRX-510DL Woodruff Key Genuine part AMA, Blade Boss Woodruff Key for Traction Lawnmower TRX-510DL - TRX-461. Part for the following items: -  Lawnmower TRX-510DL - 98800 -  Lawnmower TRX-461 - 92601 -  Lawnmower...
AVAILABLE €4.95
A.M.A. S.p.A. SKU: TRX-0045
AMA Lawnmower TRX-510DL Screw Cap Genuine part AMA, Belt cover Screw Cap for Traction Lawnmower TRX-481H - TRX-531H. Part for the following items: -  Lawnmower TRX-510DL - 98800 -  Lawnmower TRX-461 - 92601...
Last items in stock €1.23
A.M.A. S.p.A. SKU: TRX-0119
AMA TRX-510DL Blade Washer Genuine replacement part AMA, Blade Washer for Lawnmower Rasaerba AMA TRX-510DL - AMA TRX-461 - AMA TRX-501. Part for the following products: - Ama TRX-510DL - 98800 - Ama TRX-461 - 92601 - Ama TRX-501...
AVAILABLE €4.95
A.M.A. S.p.A. SKU: TRX-0053
AMA Lawnmower TRX-461B Belt Cover Genuine replacement part AMA, Belt Cover for Lawnmower TRX-461 - TRX-461B. Part for the following products: -  Lawnmower TRX-461 - 92601 -  Lawnmower TRX-461B - 92650 - Code: TRX-0053
AVAILABLE €14.31
A.M.A. S.p.A. SKU: TRX-0170
AMA Lawnmower TRX-510DL Brake Cable Original spare parts AMA Garden, Brake Cable for Lawnmower TRX-510DL - TRX-461 - TRX-465. Parts for the following products: -  Lawnmower Ama TRX-510DL - 98800 - ...
Last items in stock €13.65
A.M.A. S.p.A. SKU: TRX-0108
AMA Lawnmower TRX-510DL Adjustment Spring Original AMA Garden, Height Adjustment Spring for Lawnmower TRX-510DL - TRX-461. Parts for the following products: -  Lawnmower Ama TRX-510DL - 98800 - ...
AVAILABLE €5.90
Comments (0)
