A.M.A. S.p.A.

Ama Spare Parts for Self-Propelled Lawnmower LT 46E

SKU: Ama LT 46E - 84899
€3.59
VAT included

Ama Spare Parts for Self-Propelled Lawnmower LT 46E

We have the original AMA Garden parts and tool repair help you need to get your tools running like new again.

Fix Your Self-Propelled Lawnmower LT 46E - 84899. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Online only
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
  • Ama Spare Parts for Self-Propelled Lawnmower LT 46E
A.M.A. S.p.A.

Ama Spare Parts for Self-Propelled Lawnmower LT 46E

SKU: Ama LT 46E - 84899 Condition: New
€3.59
VAT included

Ama Spare Parts for Self-Propelled Lawnmower LT 46E

We have the original AMA Garden parts and tool repair help you need to get your tools running like new again.

Fix Your Self-Propelled Lawnmower LT 46E - 84899. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 121 Spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
121 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

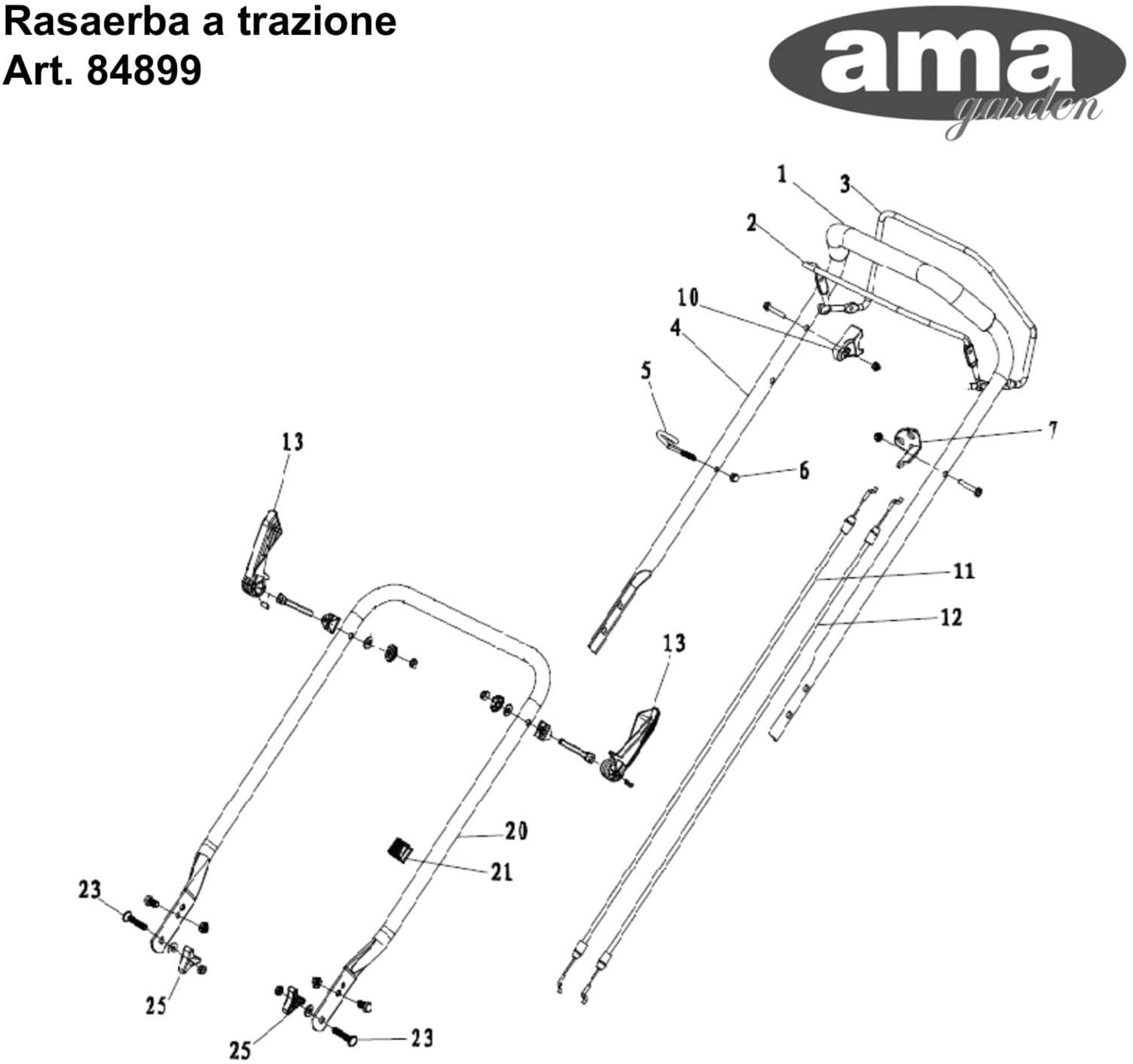

Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €4.99
2
 photo_cameraImage coming soon 84957 Stop lever €14.08
3
 photo_cameraImage coming soon 84958 Self-propelled Lever €14.35
4
 photo_cameraImage coming soon 84959 Upper handrail €20.06
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €4.99
6
 photo_cameraImage coming soon 88564 Cap nut €4.99 Not available for order
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70 Not available for order
10
 photo_cameraImage coming soon 84970 Plastic stopper €5.43
11
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €4.99
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €9.96
13
 photo_cameraImage coming soon 88234 Quick Fix Knob €3.63
20
 photo_cameraImage coming soon 84973 Lower handrail €18.51
21
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €4.99
23
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €4.99
25
 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 84972 Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 €3.58
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

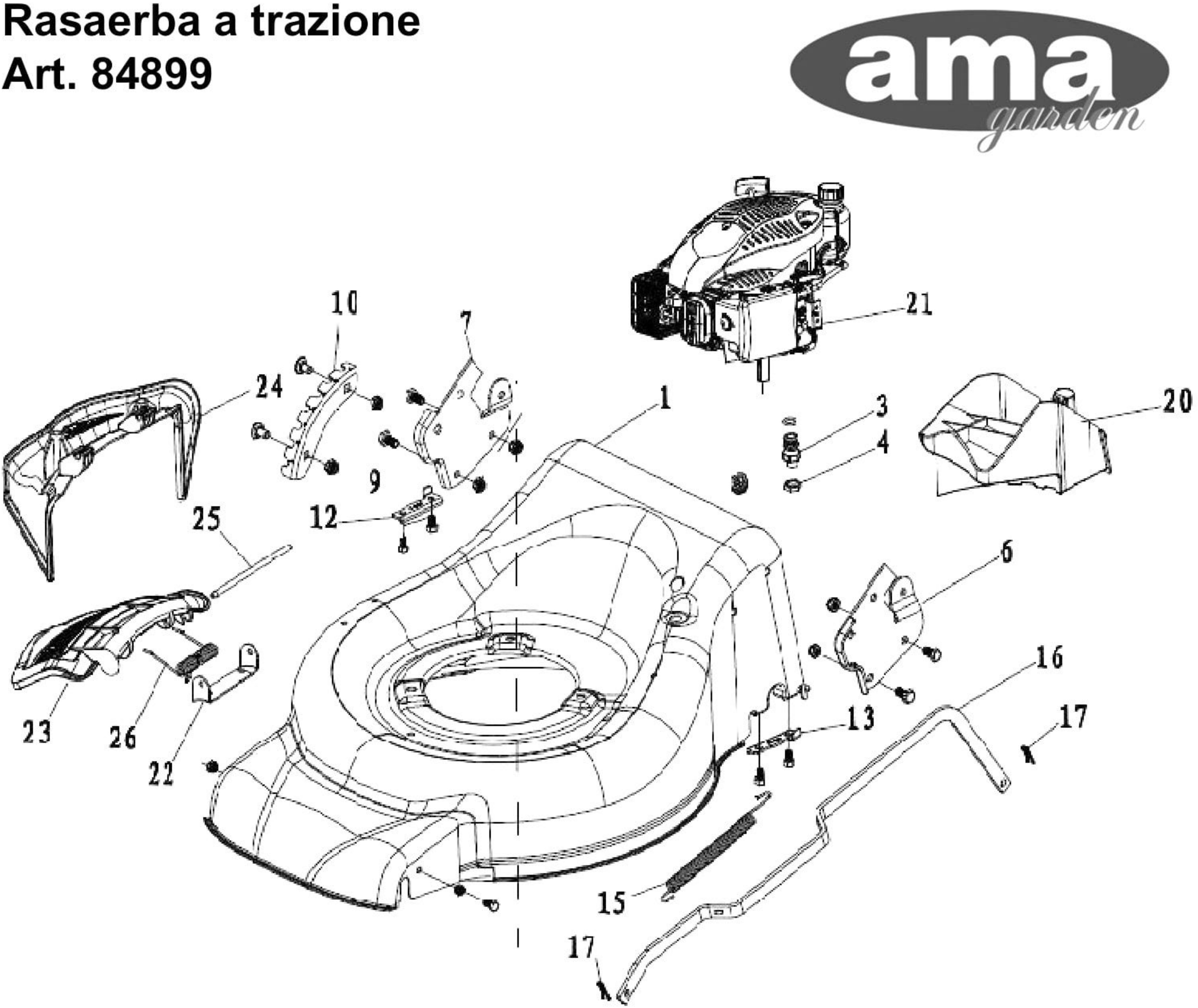

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89446 Deck Welding Assy. €176.79
3
 photo_cameraImage coming soon 89447 Inlet €4.99
4
 photo_cameraImage coming soon 89448 Pipe connector nut €1.39
6
 photo_cameraImage coming soon 88572 Left handle bracket €13.50
7
 photo_cameraImage coming soon 88573 Right handle bracket €9.96
10
 photo_cameraImage coming soon 88574 Height adjustment board €7.00
12
 photo_cameraImage coming soon 84938 Rear drive right bracket €4.99
13
 photo_cameraImage coming soon 84939 Rear drive left bracket €3.08
15
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €3.23
16
 photo_cameraImage coming soon 89389 Height adjustment board €7.79
17
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €4.99 Not available for order
20
 Mulching Cap for Lawnmower AMA RS461 84842 Mulching Cap for Lawnmower AMA RS461 €9.96
23
 photo_cameraImage coming soon 84849 1 €22.44
24
 photo_cameraImage coming soon 84850 Side Discharge Cover €14.60
25
 photo_cameraImage coming soon 88583 Mulch Shaft €4.99
26
 Mulch board spring 88584 Mulch board spring €4.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

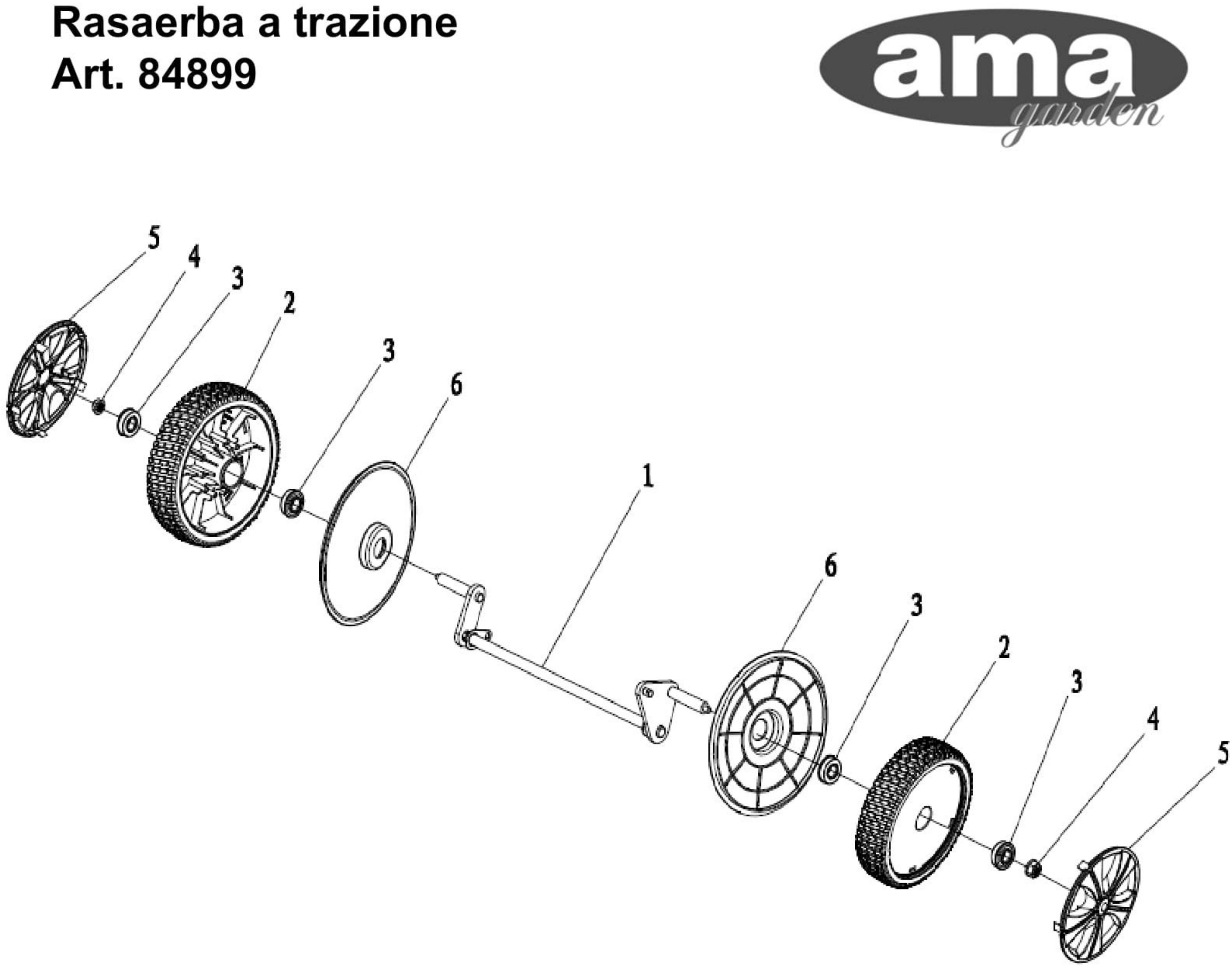

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 88581 Front drive assy. €35.60
2
 Front Wheel for Self-Propelled Lawnmower AMA LT 52H 76158 Front Wheel for Self-Propelled Lawnmower AMA LT 52H €17.09
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
4
 photo_cameraImage coming soon 89450 Self-locking nut €4.99
5
 photo_cameraImage coming soon 76157 Outer Cover Of Hub €2.90
6
 photo_cameraImage coming soon 88580 Inner Cover Of Hub €2.90
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

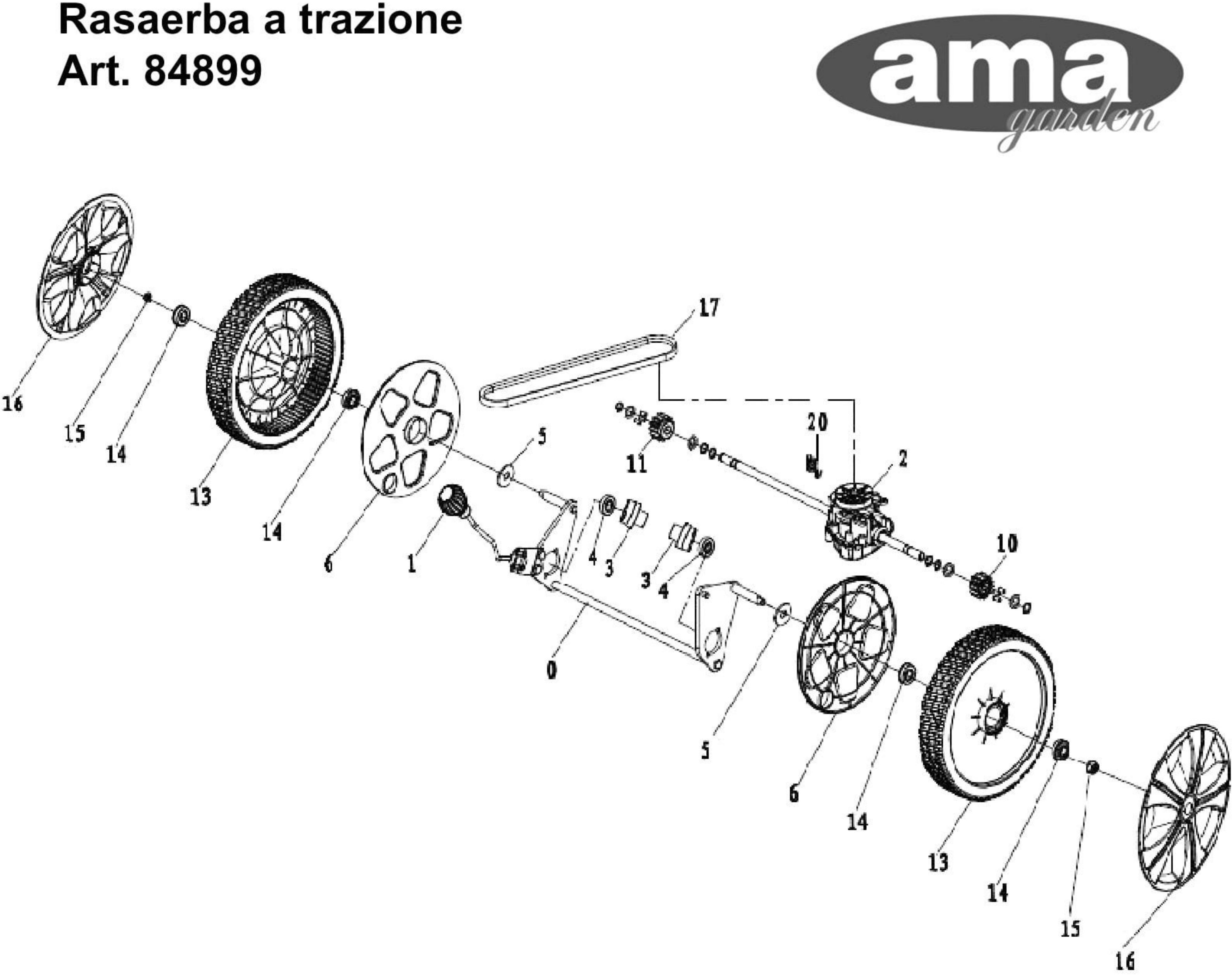

Esploso pagina 4
Pos. Item Price Buy
photo_cameraImage coming soon 89393 Rear drive assy. €53.10
1
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
2
 photo_cameraImage coming soon 89452 Selfpropelled Assy. €117.22
3
 Gear Box Bush for Lawnmower AMA RT521-RT522 84984 Gear Box Bush for Lawnmower AMA RT521-RT522 €7.83 Not available for order
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
6
 photo_cameraImage coming soon 89453 Inner Cover Of Hub €6.20
10
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H 84824 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA LT 52H €16.75
13
 photo_cameraImage coming soon 89392 Wheel assy. €23.75
14
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
15
 photo_cameraImage coming soon 89450 Self-locking nut €4.99
16
 photo_cameraImage coming soon 89454 Outer Cover of Hub €6.20
17
 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 84845 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 €11.02
20
 photo_cameraImage coming soon 89457 Spring €2.56
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

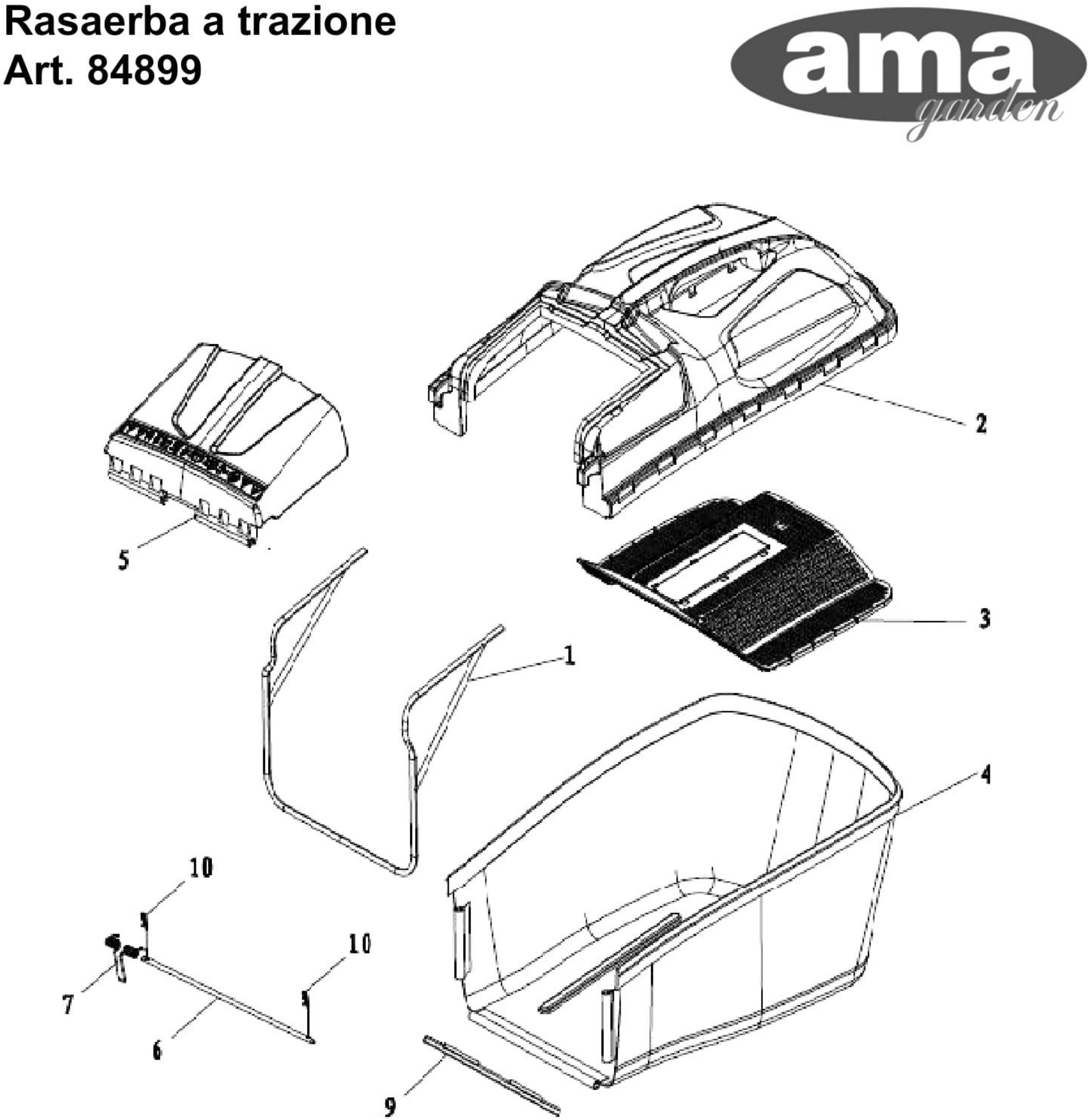

Esploso pagina 5
Pos. Item Price Buy
3
 AMA RS461 Grass Bag Filter 84839 AMA RS461 Grass Bag Filter €15.45
4
 photo_cameraImage coming soon 84841 Fabric grass bag €46.93
5
 photo_cameraImage coming soon 84837 Rear discharge cover €22.95
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.99
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.99
9
 photo_cameraImage coming soon 88575 Rear discharge cover dust proof €4.99
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €18.31
2
 Blade cm 46 for Push Lawnmower AMA RS461 84843 Blade cm 46 for Push Lawnmower AMA RS461 €18.13
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02 Not available for order
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €1.40
8
 AMA NRT-461 Belt Cover 84846 AMA NRT-461 Belt Cover €11.22
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
2
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €4.99
3
 photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
7
 photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.99 Not available for order
9
 Speed Controller Ass'y for Engine AMA MVG - T375 RMGP65010203000 Speed Controller Ass'y for Engine AMA MVG - T375 €17.95
11
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.99
12
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
16
 Camshaft Complete for Engine AMA MVG - T375 - T475 RMGP65080100000 Camshaft Complete for Engine AMA MVG - T375 - T475 €30.83
17
 photo_cameraImage coming soon RMGV41B100000 Crankshaft Assy €72.79
18
 Conrod Complete for Engines AMA MVG - T375 - T475 RMGP65010402000 Conrod Complete for Engines AMA MVG - T375 - T475 €21.42
21
 photo_cameraImage coming soon RMGV41D100000 Crankcase Assy €145.39
23
 photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
25
 photo_cameraImage coming soon RMGP65010603003 Speed Regulator Rocker €4.99
27
 photo_cameraImage coming soon RMGP65010603301 Handspike of Valve €3.36
28
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €4.99
30
 photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
31
 photo_cameraImage coming soon RMGP65010105000 Speed Regulator Rocker Spindle €4.99 Not available for order
32
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.99
34
 photo_cameraImage coming soon RMGV450003000 Middle Bracket of Fuel Tank €111.06
35
 photo_cameraImage coming soon RMGV470001000 Back Guide Board €6.78
40
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €4.99
45
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €4.99
46
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €4.99
47
 photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €0.00 Not available for order
48
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €4.90
51
 photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42
52
 photo_cameraImage coming soon RMGV47A100000 Flywheel Assy €44.11
54
 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €4.99
57
 Recoil Starter for Engine AMA MVG - T375 RMGV47B100000 Recoil Starter for Engine AMA MVG - T375 €32.93
58
 photo_cameraImage coming soon RMGP65070403000 Bush €9.17
61
 Ignition Coil for Engines AMA MVG T375 - T475 - T575 RMGP65070302000 Ignition Coil for Engines AMA MVG T375 - T475 - T575 €35.81
64
 photo_cameraImage coming soon RMGV41F100000 Detent Assy €11.16
67
 photo_cameraImage coming soon RMGP65060300000 Muffler Cover Assy €19.79
68
 photo_cameraImage coming soon RMGP65060000000 Muffler Assy €25.27
69
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €4.99
72
 Inlet Valve for Engine AMA MVG T375 - T475 RMGP65080600000 Inlet Valve for Engine AMA MVG T375 - T475 €11.37
73
 photo_cameraImage coming soon RMGP65080700000 Exhaust Valve €10.34
77
 photo_cameraImage coming soon RMGP65080800000 Spring of Valve €2.20
78
 photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
79
 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
80
 photo_cameraImage coming soon RMGP65020100001 Cylinder Head Cover I €8.49
81
 photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
83
 photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
84
 photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
85
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
86
 photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
88
 photo_cameraImage coming soon RMGP65080400000 Handspike €3.54
91
 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €2.00
92
 photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
93
 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €2.00
94
 Carburetor Ass'y for Engine AMA MVG - T375 RMGV43A100000 Carburetor Ass'y for Engine AMA MVG - T375 €54.07
95
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €4.99
96
 Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
97
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
99
 Air Filter (Sponge for Engine AMA MVG - T375 RMGV440001000 Air Filter (Sponge for Engine AMA MVG - T375 €7.03
100
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
101
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
102
 Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €4.99
103
 photo_cameraImage coming soon RMGV410002000 Piston Ring I €6.41
104
 photo_cameraImage coming soon RMGV410003000 Piston Ring II €6.41
107
 photo_cameraImage coming soon RMGV410006000 Piston Pin €5.42
108
 photo_cameraImage coming soon RMGV410007000 Piston €15.54
110
 photo_cameraImage coming soon RMGP65010500000 Lubricating Setting €18.47

Shipping and delivery information will be available shortly.

Ama Spare Parts for Self-Propelled Lawnmower LT 46E

We have the original AMA Garden parts and tool repair help you need to get your tools running like new again.

Fix Your Self-Propelled Lawnmower LT 46E - 84899. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama LT 46E - 84899

AMA GARDEN Self-Propelled Lawnmower LT 46E - 84899
Upper Handle LT 46E - 84899 Pag.1
# Part Num. Description
1 88566 Foam Rubber Handle Grip
2 84957 Stop Lever
3 84958 Self-Propelled Lever
4 84959 Upper Handle
5 88568 Rope Guide
6 88564 Cap Nut
7 84822 Brake Cable Assy plate
10 84970 Plastic Stopper
11 84971 Brake Cable
12 84836 Self Propelled Cable
13 88234 Quick Fix Knob
20 84973 Lower Handrail
21 88247 Fastener
23 88571 Head Square Bolts
25 84972 Triangle Knob
Chassis Pag.2
1 89446 Deck Welding Assy.
3 89447 Inlet
4 89448 Pipe Connector Nut
6 88572 Right Handle Bracket
7 88573 Left Handle Bracket
10 88574 Height Adjustment Board
12 84938 Rear Drive right Bracket
13 84939 Rear Drive Left Bracket
15 73221 Pull Spring For Pull Rod
16 89389 Height Adjustment Pull Rod
17 88625 R Type Pin
20 84842 Mulching Cap
21 T375 Petrol Engine
22 89449 Bracket Plate For Defelctor
23 84849 Mulching Board
24 84850 Side Discharge Cover
25 88583 Mulch Shaft
26 88584 Mulch Board Spring
Front Axle Pag.3
1 88581 Front Drive Assy.
2 76158 7" Front Wheel Assy.
3 73848 Wheel Punch Bearing
4 89450 Self-Locking Nut
5 76157 Outer Cover Of Hub
6 88580 Inner Cover Of Hub
Rear Axle Pag.4
0 89393 Rear Drive Assy.
1 73201 Height Adjustment Ball
2 89452 Selfpropelled Assy.
3 84984 Bush
4 84985 Bearing
5 88633 Gasket
6 89453 Inner Cover Of Hub
10 84824 Ratchet Wheel L
11 84825 Ratchet Wheel R
13 89392 Wheel Assy.
14 73848 Wheel Punch Bearing
15 89450 Self-Locking Nut
16 89454 Outer Cover of Hub
17 84845 V Belt
20 89457 Spring
Grass Box Pag.5
1 84840 Frame
2 84838 Grass Catcher Cover Substituted by --> 9258
3 84839 Filter Plate
4 84841 Fabric Grass Bag
5 84837 Rear Discharge Cover
6 88419 Shaft For Rear Discharge Cover
7 84987 Cover Spring
9 88575 Cover Dust Proof Board
Blade Pag.6
1 84844 Blade Adapter Assy
2 84843 Double-Edge Blade
3 73223 Blade Washer
4 84815 Inch Hex Flange Bolts
8 84846 Belt Cover
Engine Pag.7
2 RMGP65010210000 Oil Seal 25 x 38 x 7
3 RMGP65010201000 Crankcase Cover
7 RMGV410001000 Gear Shaft of speed limit
9 RMGP65010203000 Gear Shaft Assy
11 RMGP65010202000 Sliding Sleeve
12 RMGP65010206000 Gear Shaft Hold-down Plate
14 RMGV410008000 Seal Gasket of Crankcase
15 RMGP65080300000 Pin
16 RMGP65080100000 Camshaft Assy
17 RMGV41B100000 Crankshaft Assy
18 RMGP65010402000 Connecting Rod Assy
19 Ball Bearing 6205
20 Oil Seal 22 x 35 x 7
21 RMGV41D100000 Crankcase Assy
22 RMGP650106060004 Speed Regulator Pull Spring
23 RMGP70B010600000 Speed Regulator
25 RMGP65010603003 Speed Regulator Rocker
27 RMGP65010603301 Handspike of Valve
28 RMGP65010601000 Spring of Valve
30 RMGP65010112000 Oil Seal 6 x 11 x 4
31 RMGP65010105000 Speed Regulator Rocker Spindle
32 RMGP65050600000 Waste Pipe
33 RMGV450002000 Front Bracket of Fuel Tank
35 RMGV470001000 Back Guide Board
34 RMGV450003000 Middle Bracket of Fuel Tank
38 Oil Pipe
40 RMGP65050500000 Filtering Net
44 RMGV450006000 Fuel Tank
45 RMGP65050102000 Seal Gasket of Fuel Tank Cap
46 RMGP65050106000 Sponge of Fuel Tank Cap
47 RMGP65050101000 Fuel Tank Cap - RDY0019 - Before 2014
48 RMGP65010104000 Lubricate Filtering Net
49 RMGP65010108000 Valve Element of Respirator Cover
50 RMGP65010109000 Gasket of Respirator Cover
51 RMGP65010107000 Respirator Cover Plate Assy
52 RMGV47A100000 Flywheel Assy
53 RMGP65070402000 Fan
54 RMGP65070200000 Start-up Hub
55 Nut M14 x 1.5
56 RMGP65070401000 Blower Housing
57 RMGV47B100000 Recoil Start Assy
58 RMGP65070403000 Blower Housing Bush
61 RMGP65070302000 Ignition Assy
64 RMGV41F100000 Detent Assy
67 RMGP65060300000 Muffler Cover Assy
68 RMGP65060000000 Muffler Assy
69 RMGP65060200000 Heat Insulation Gasket of Muffler
70 RMGV42A100000 Gasket of Cylinder Head
72 RMGP65080600000 Intake Valve
73 RMGP65080700000 Exhaust Valve
74 RMGP70B010205000 Cylinder Head Assy
77 RMGP65080800000 Spring of Valve
78 RMGP65080900000 Spring Coil of Intake Valve
79 RMGP65020300000 Gasket of Cylinder Head Cover
80 RMGP65020100001 Cylinder Head Cover I
81 RMGP65020100000 Cylinder Head Cover II
83 RMGP65080204000 Combined Nut
84 RMGP65080203000 Adjust Nut of Valve
85 RMGP65080200000 Rocker of Valve
86 RMGP65080202000 Rocker Support Bolt of Valve
87 RMGP65080500000 Guide Board of Handspike
88 RMGP65080400000 Handspike
91 RMGP65030200000 Paper Gasket I of Carburetor
92 RMGP65030400000 Air Inlet Pipe
93 RMGP65030300000 Paper Gasket II of Carburetor
94 RMGV43A100000 Carburetor Assy
95 RMGP65030500000 Steel Gasket
96 RMGP65040102002 Air Filter Pedestal
97 RMGP65040103000 Exhaust Gas Cover Board
99 RMGV440001000 Air Filter Element
100 RMGP65040106000 Sponge Filter Element
101 RMGP65040101000 Air Filter Upper Cover
102 RMGP65051000001 Primer Button
103 RMGV410002000 Piston Ring I
104 RMGV410003000 Piston Ring II
105 RMGV410004000 Guide Rail
106 RMGV410005000 Bushing Ring
107 RMGV410006000 Piston Pin
108 RMGV410007000 Piston
109 RMGP65010401700 Circlip of Piston Pin
110 RMGP65010500000 Lubricating Setting
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama LT 46E - 84899
6 Items

Data sheet

Machine Type
Lawn Mowers
SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA LT 46E

Diagram AMA LT 46E

Download (1.21MB)

You might also like

Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP65070200000
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Recoil starter Rotor for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
AVAILABLE €4.99
Details
Tank Cap for Engines AMA MVG
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T375 -  Engine...
Details
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84815
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Blade Special Bolt for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: - Lawnmower AMA RS461 - Lawnmower AMA RS421 -...
AVAILABLE €1.40
Details
Recoil Starter for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV47B100000
Recoil Starter for Engine AMA MVG - T375
Recoil Starter for Engine AMA MVG - T375 Genuine part AMA, Recoil Starter Assy for Engines AMA MVG - T375 - 88603. Part for the following products: -  Engines AMA MVG - T375 - 88603 -  Self-Propelled Lawnmower LT 46E - 84899 - Code...
Usually Ships in: 7/10 Business Days Approx. €32.93
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
Out-of-Stock €4.99
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
AVAILABLE €18.31
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled Lawnmover AMA LT 52H Art. 84878 -...
on Demand Only Call Us Before €9.96
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
Out-of-Stock €5.02
Details
Primer for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65051000001
Primer for Self-Propelled Lawnmower AMA LT 52H
Primer for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Primer for Self-Propelled Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Usually Ships in: 7/10 Business Days Approx. €4.99
Details
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010104000
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Lubricate Filtering Net for Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT...
AVAILABLE €4.90
Details
Carburator Complete for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV43A100000
Carburetor Ass'y for Engine AMA MVG - T375
Carburetor Ass'y for Engine AMA MVG - T375 Genuine replacement part AMA, Carburetor Complete for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG -...
AVAILABLE €54.07
Details
Tank Cap Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €4.99
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.99
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €4.99
Details
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84972
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Upper Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.58
Details
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
Details
Camshaft Complete for Engine AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65080100000
Camshaft Complete for Engine AMA MVG - T375 - T475
Camshaft Complete for Engine AMA MVG - T375 - T475 Genuine spare part AMA, Camshaft Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €30.83
Details
Ignition Coil for Engines AMA MVG T375 - T475 - T575
A.M.A. S.p.A. SKU: RMGP65070302000
Ignition Coil for Engines AMA MVG T375 - T475 - T575
Ignition Coil for Engines AMA MVG T375 - T475 - T575 Genuine replacement part AMA, Ignition Coil Cpl. for Engines AMA MVG T375 - T475 - T575 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Engine...
Last items in stock €35.81
Details
Air Filter (Sponge for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGV440001000
Air Filter (Sponge for Engine AMA MVG - T375
Air Filter (Sponge for Engine AMA MVG - T375 Genuine replacement part AMA, Air Filter (Sponge) for Engine AMA MVG - T375 - 88603. Part for the following products: - Engine AMA MVG - T375 - 88603 - Code : RMGV440001000
AVAILABLE €7.03
Details
Muffler Heat Insulation Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €4.99
Details
Air Fiter Carburator Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €4.99
Details
Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65030200000
Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475
Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 Genuine spare part AMA, Thermal Flange Head Gasket for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the...
AVAILABLE €2.00
Details
Conrod Complete for Engines AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65010402000
Conrod Complete for Engines AMA MVG - T375 - T475
Conrod Complete for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Conrod Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover...
Last items in stock €21.42
Details
Blade cm 46 for Push Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84843
Blade cm 46 for Push Lawnmower AMA RS461
Blade cm 46 for Push Lawnmower AMA RS461 Genuine replacement part AMA, Blade cm 46 for Push Lawnmower AMA RS461. Parts for the following products: -  Push Lawnmower AMA RS461 - Code: 84843
AVAILABLE €18.13
Details
Speed Controller Ass'y for Engine AMA MVG - T375
A.M.A. S.p.A. SKU: RMGP65010203000
Speed Controller Ass'y for Engine AMA MVG - T375
Speed Controller Ass'y for Engine AMA MVG - T375 Genuine spare part AMA, Speed Controller Ass'y for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG - T375 - 88603...
AVAILABLE €17.95
Details
Tank Cap Sponge Filter for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €4.99
Details
Air Cleaner Case for Engines AMA MVG - T375 - T475
A.M.A. S.p.A. SKU: RMGP65040102002
Air Cleaner Case for Engines AMA MVG - T375 - T475
Air Cleaner Case for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Air Cleaner Case for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following products: -...
AVAILABLE €21.06
Details
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461
A.M.A. S.p.A. SKU: 84845
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461
Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 Genuine replacement part AMA, Traction V-Belt for Self-Propelled Lawnmower NRT-461 - NRT-461B - RT461B - LT 46E - LTS 461H. Part for the following products: -  Self-Propelled...
Usually Ships in: 7/10 Business Days Approx. €11.02
Details
Speed Governor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Out-of-Stock €4.99
Details
Mulching Cap for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84842
Mulching Cap for Lawnmower AMA RS461
Mulching Cap for Lawnmower AMA RS461 Genuine replacement part AMA, Mulching Cap for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H - RT461B....
on 7/10 Business Days Approx €9.96
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
AVAILABLE €3.23
Details
Fuel Tank Filter for Engine AMA MVG - T100
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
AVAILABLE €4.99
Details
Gear Box Bush for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84984
Gear Box Bush for Lawnmower AMA RT521-RT522
Gear Box Bush for Lawnmower AMA RT521-RT522 Genuine part AMA, Gear Box Bush for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Out-of-Stock €7.83
Details
Sliding Sleeve for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.99
Details
Oil Seal MM 23x38x7 for Self Propelled Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €4.99
Details
Inlet Valve for Engine AMA MVG T375 - T475
A.M.A. S.p.A. SKU: RMGP65080600000
Inlet Valve for Engine AMA MVG T375 - T475
Inlet Valve for Engine AMA MVG T375 - T475 Genuine part AMA, Inlet Valve for Engine AMA MVG T375 - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover AMA LT 52H Art....
on 7/10 Business Days Approx €11.37
Details
Brake Cable for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84971
Brake Cable for Lawnmower AMA RS461
Brake Cable for Lawnmower AMA RS461 Genuine replacement part AMA, Brake Cable for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H...
on Demand Only €4.99
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €4.99
Details
AMA RS461 Grass Bag Filter
A.M.A. S.p.A. SKU: 84839
AMA RS461 Grass Bag Filter
AMA Lawnmower RS461 Grass Bag Filter Original spare part AMA Garden, Inner Grass Bag Filter for Lawmower RS461 - RT461B - RS461T. Parts for the following products: -  Lawnmower RS461 - 89502...
AVAILABLE €15.45
Details
AMA NRT-461 Belt Cover
A.M.A. S.p.A. SKU: 84846
AMA NRT-461 Belt Cover
AMA Lawnmower NRT-461 Belt Cover Original spare part AMA Garden, Belt Cover for Lawmower NRT-461 - NRT-461B - LT 46E. Parts for the following products: -  Lawnmower NRT-461 - 90839 - ...
Last items in stock €11.22
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
AVAILABLE €4.99
Details
Comments (0)
No customer reviews for the moment.
