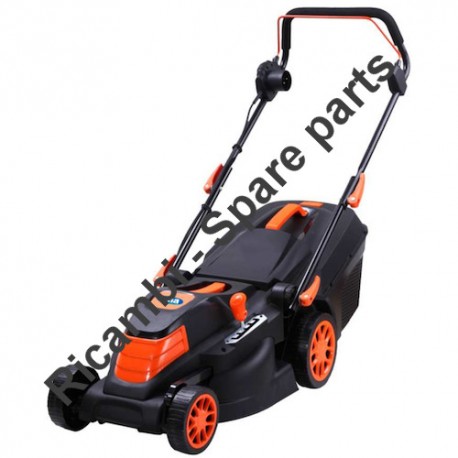

Ama Spare Parts for Electric Lawnmower ELM 1438

SKU: Ama ELM 1438
€17.10
VAT included

Ama Spare Parts for Electric Lawnmower ELM 1438

Ama genuine spare parts or replacements parts for to repair Electric Lawnmower ELM 1438 - 90502.
Ama Spare Parts for Electric Lawnmower ELM 1438
  • Online only
  • Ama Spare Parts for Electric Lawnmower ELM 1438
  • Ama Spare Parts for Electric Lawnmower ELM 1438

Ama Spare Parts for Electric Lawnmower ELM 1438

SKU: Ama ELM 1438 Condition: New
€17.10
VAT included

Ama Spare Parts for Electric Lawnmower ELM 1438

Ama genuine spare parts or replacements parts for to repair Electric Lawnmower ELM 1438 - 90502.
settings 24 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 90571 Belt €13.79
3
photo_cameraImage coming soon 90572 Big belt wheel €11.36
4
photo_cameraImage coming soon 90586 Switch box group €48.33
5
photo_cameraImage coming soon 90585 Box handle €1.26
6
photo_cameraImage coming soon 90583 Collection bag upper cover €17.27
7
photo_cameraImage coming soon 90581 Left collection bag €16.11
8
photo_cameraImage coming soon 90582 Right collection bag €17.27
9
photo_cameraImage coming soon 90587 Handle clamp €5.04
10
photo_cameraImage coming soon 90595 Upper cover €11.37
11
photo_cameraImage coming soon 90596 Mask €3.18
12
photo_cameraImage coming soon 90597 Press Plate €3.18
13
photo_cameraImage coming soon 90598 Housing €32.84
14
photo_cameraImage coming soon 90599 Down handle €19.34
16
photo_cameraImage coming soon 90601 Back cover €8.46
19
photo_cameraImage coming soon 90576 Back wheel cover €2.73
20
photo_cameraImage coming soon 90577 8' Rear wheel €15.65
21
photo_cameraImage coming soon 90578 Back wheel axle €14.14
22
Height Adjust Connecting Rod for Electric Lawnmower ELM 1438 90579 Height Adjust Connecting Rod for Electric Lawnmower ELM 1438 €6.07
23
photo_cameraImage coming soon 90580 Height adjustment handle €8.30
25
photo_cameraImage coming soon 90573 Front wheel cover €4.94
26
photo_cameraImage coming soon 90574 6' Front wheel €12.63
27
photo_cameraImage coming soon 90575 Front wheel axle €10.61
29
photo_cameraImage coming soon 90606 Blade boss €8.11
30
photo_cameraImage coming soon 90607 Blade €19.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Electric Lawnmower ELM 1438

Ama genuine spare parts or replacements parts for to repair Electric Lawnmower ELM 1438 - 90502.

In the following table, look for the model of the Lawnmower and the respective parts of the code.

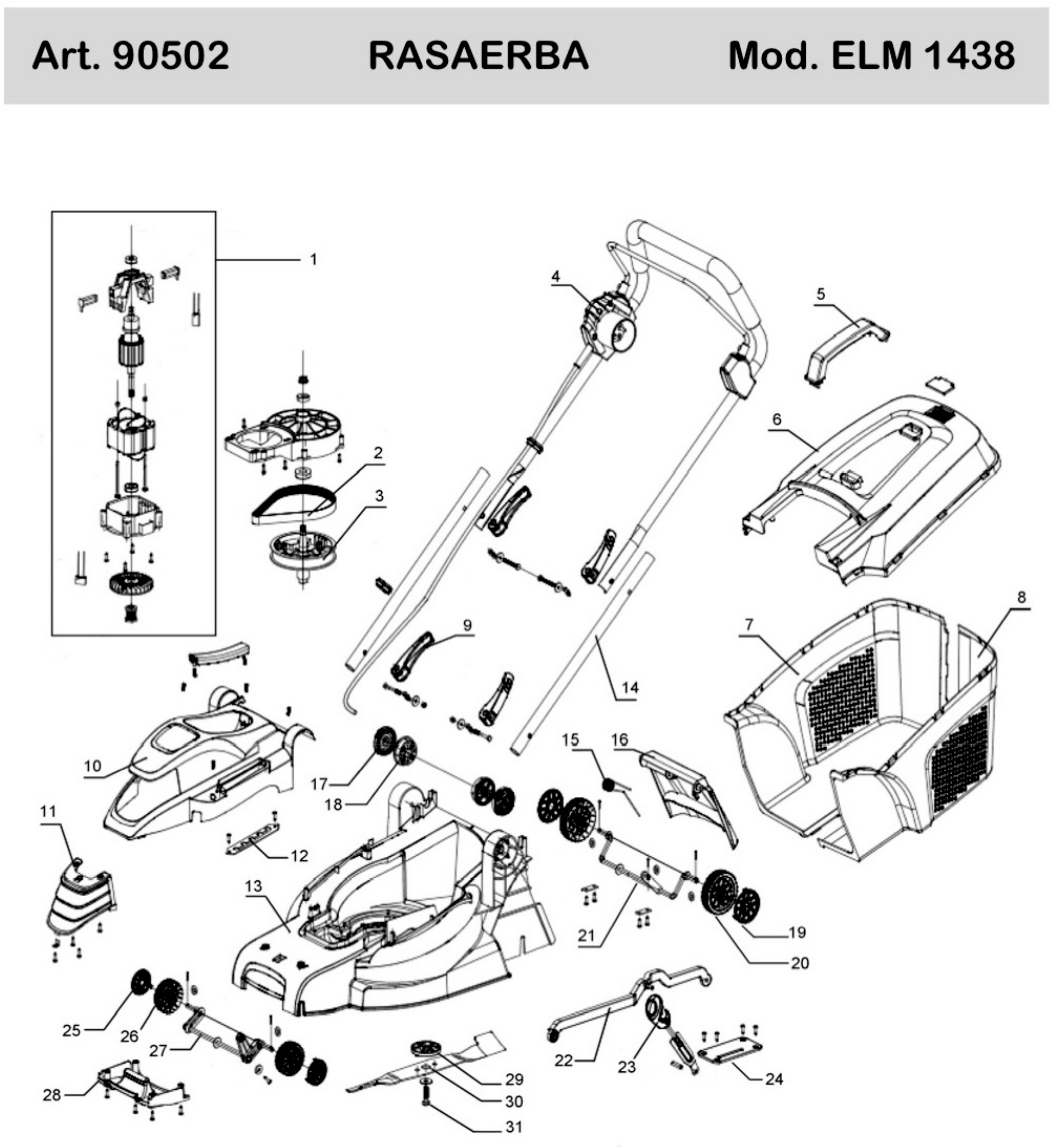

Electric Lawnmower ELM 1438 - 90502
Electric Lawnmower ELM 1438 - 90502
# Part Num. Description
1 90588 Motor ass'y
2 90571 Belt
3 90572 Big belt wheel
4 90586 Switch box group
5 90585 Box handle
6 90583 Collection bag upper cover
7 90581 Left collection bag
8 90582 Right collection bag
9 90587 Handle clamp
10 90595 Upper cover
11 90596 Mask
12 90597 Press Plate
13 90598 Housing
14 90599 Down handle
15 90600 Back Cover Spring
16 90601 Back cover
17 90602 Handle Pivot
18 90603 Handle Pivot
19 90576 Back wheel cover
20 90577 8' Rear wheel
21 90578 Back wheel axle
22 90579 Height adjust. connecting rod
23 90580 Height adjustment handle
24 90604 Height adjustment press plate
25 90573 Front wheel cover
26 90574 6' Front wheel
27 90575 Front wheel axle
28 90604 Grass slab
29 90606 Blade boss
30 90607 Blade
31 90561 Blade screw bolt
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama ELM 1438
9 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA ELM 1438

Diagram AMA ELM 1438

Download (209.53KB)
