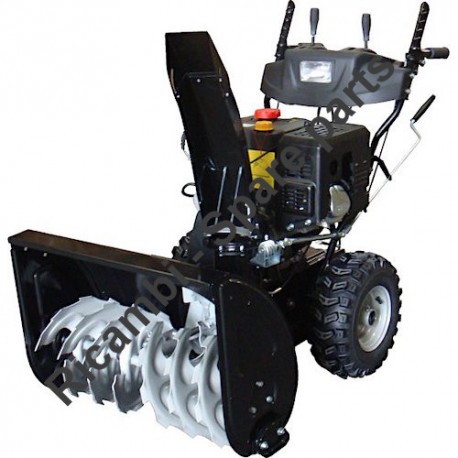

Ama Spare Parts for Snow Throwers Play Snow PS961 – 79591
Ama Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Snow Throwers Play Snow PS961 – 79591.
In the following table, look for the model of the Snow Throrowers and the respective parts of the code.

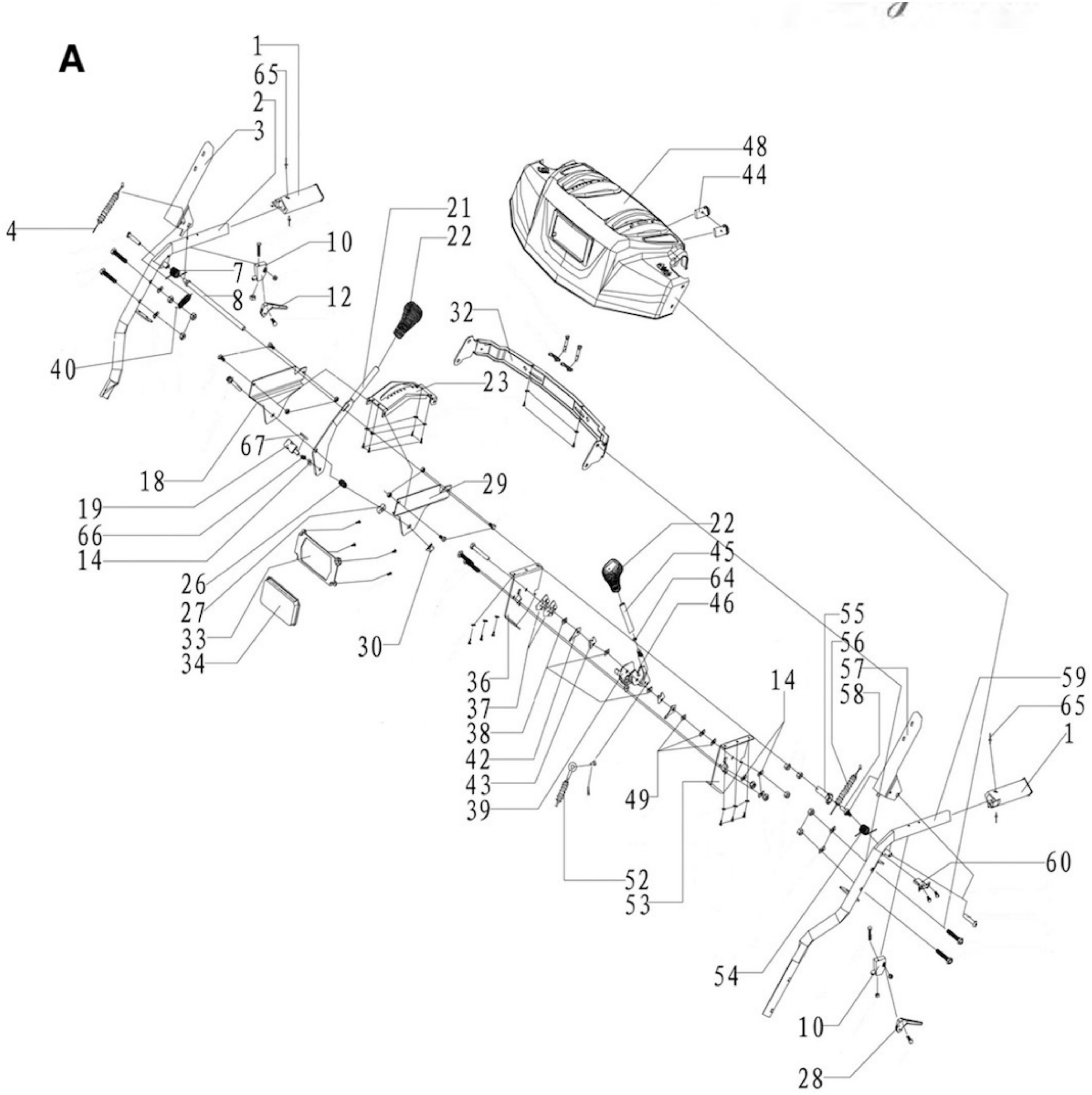

A 1
SPZSTG6556NA
Handle
2
SPZNF-002B hj
Handle assembly
3
SPZSX-11-031-1A
Handle welding drawing
4
SPZSJ-231
Stepped Wire
7
SPZNF-001-14-1
Clutch Handle Spring 1
8
SPZNF-001-12
Clutch Joint Rod
10
SPZSX-11-029
Handle sleeve
12
SPZSX-11-028
Handle
14
SPZFB-8*16*1.2
Plain Cushion
18
SPZNF-001-4-02
Gear lever fixed hub
19
SPZGPP6562C-01-07
Adjusting joint rod
21
SPZNF-001-8
Gear frame welding
22
SPZSTG8062Ae-26
Rocker Handle
23
SPZNF-001-15
Gear Lever
24
SPZFB-5*12*1
Plain Cushion
26
SPZSTG11 13 7010AE
Adjusting Spring
27
SPZFB-10*28*3
Plain Cushion
28
SPZNHLN-6
Handle
29
SPZNF-001-4-01
Gear lever fixed hub(1)
32
SPZNF-001-5-02
Plate
33
SPZSTG8062AE-22
Lamp fixed bracket
34
SPZL-620
Lamp
36
SPZNF-001-7-01
Right Fix Plate for Chute
37
SPZSJ-223
Washer
38
SPZSA-008
Washer
39
SPZSJ-210-1
Adjuster Damp Fixing Plate
40
SPZNF-001-14-3
Spring 3
42
SPZSJ-224
Gourd Fiche
43
SPZSJ-215
U Fiche
44
SPZSA-011
Switch
45
SPZNF-001-13
Second Rod for Chute Gear
46
SPZSJ-209
Adjust Rod For Welding
48
SPZNF-010
Panel
49
SPZFB-8*22*2
Plain Cushion
52
SPZSX-11-36E
Chute Bowden
53
SPZNF-001-7
Left Fix Plate for Chute
54
SPZNF-001-14-1
Clutch Handle Spring 2
55
SPZNF-001-01
Washer
56
SPZSX-11-036B
Auger Bowden
57
SPZNF-SX-11-31-1
Handel
58
SPZNF-001-11
Clutch Rod
59
SPZNF-002A hj
Welding Left Handel
60
SPZNF-001-6
Washer
64
SPZSW-8
Spring
65
SPZBE-4*12
Screw
66
SPZGPP6562C-01-09
Spring 1

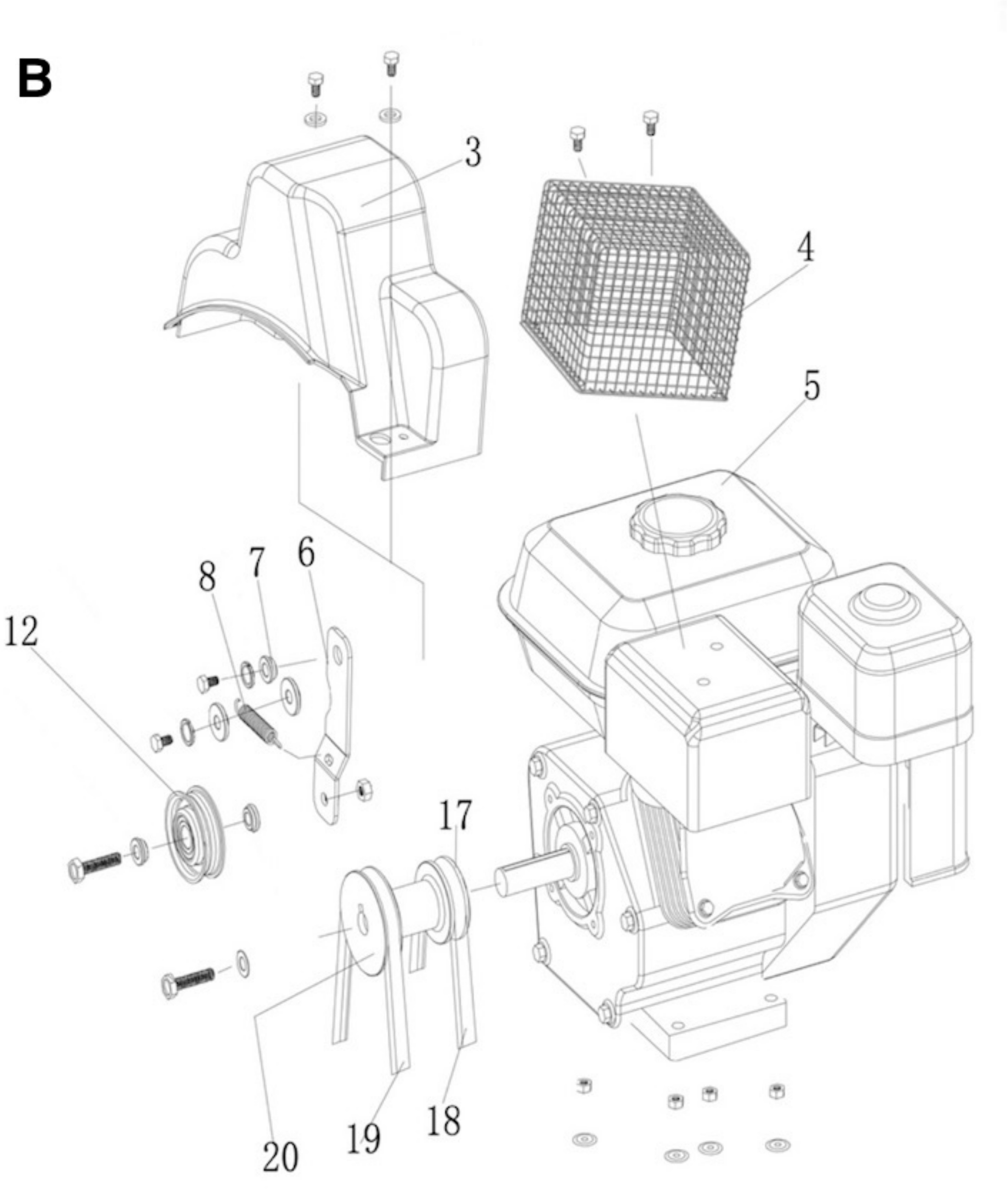

B 3
SPZSX-11-180
SJ Pulley Steel Cover
4
SPZSX-11-262
Protect Heat shield
5
SPZG270/ZS173FBE
Engine
6
SPZSX-11-173
SJ Tensioning board
7
SPZSJ-046-1
Tension Convex Washer
8
SPZSJ-035-1
SJ spring 3
12
SPZSX-11-170
Tension Pulley Comp
17
SPZSX-11-168b
Man Synchronization
18
SPZHFN-8
V-belt
19
SPZTB-5M*825
Synchro-Belt
20
SPZLBV13-930
SJ main pulley

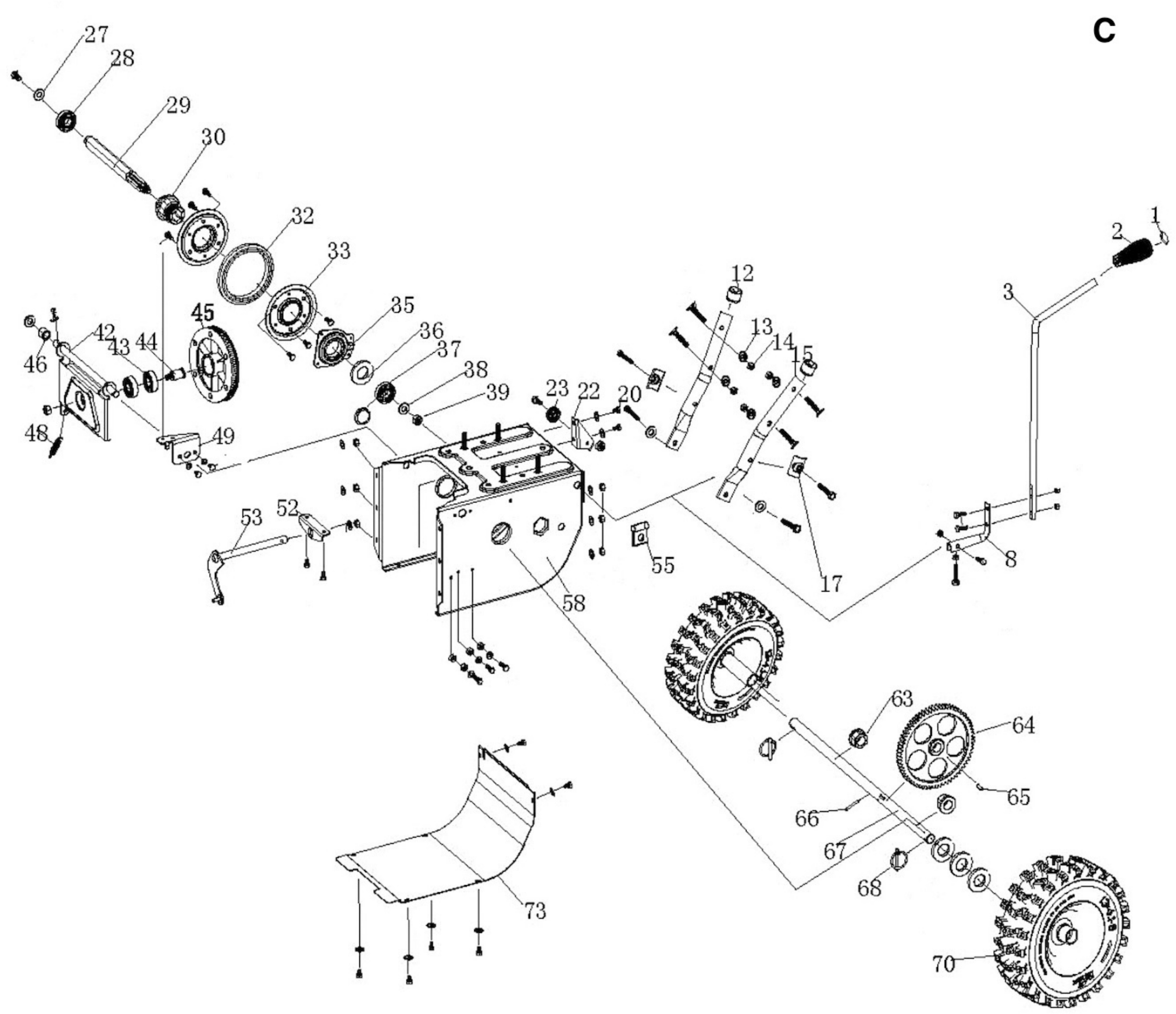

C 1
SPZSTG8062Ae-24
Handle cover
2
SPZSTG8062Ae-26
Engagea gear handle
3
SPZSTG8062Ae-09
Control lever
8
SPZSJ-068B
SJ Steel Grip Lever
12
SPZFSMG-25
Cover 25
13
SPZSA-131
Flange washer
14
SPZNHLN-8
hexagon locknut
15
SPZSJ-042-2A-2
Handle apart 2
17
SPZSJ-028
SJ Handle cushion
20
SPZHS-6*12
Outer hexagon nipples
22
SPZSJ-016A
Sj Pulley Sub Panel 1
23
SPZSJ-016B
Sj Wire Pulley
27
Plain cushion
28
SPZKBE-6203
Ball bearing with spring
29
SPZSJ-005
SJ Hexagon Gear Shaft
30
SPZSJ-013C
SJ change pulley
32
SPZSJ-013D
SJ change pulley rubber ring
33
SPZSJ-013A
SJ Change Pulley Washer
35
SPZSJ-013B
SJ Change Pulley
36
SPZSR-35
Snap spring
37
SPZKBE-6203
Ball bearing with spring
38
Plain cushion
39
hexagon locknut
42
SPZSJ-007
SJ Pulley Bracket
43
SPZKBE-6203
Ball bearing with spring
44
SPZSJ-010B
SJ Driving Wheel Shaft
45
SPZSJ-010A
SJ Driving Sync Wheel
46
SPZSJ-107
SJ Separate Sleeve
48
SPZSJ-069
Spring 6
49
SPZSTG9056Ae-01-02
SJ Pulley fixing abroad
52
SPZSJ-002
SJ Orthogonal Iron
53
SPZSJ-040
SJ Gearlever
55
SPZFD-04-62
Wire fixing lock
58
SPZSTG9056Ae-01-06
SJ Drive box shield
63
SPZSJ-026
SJ Cover Shaft Sheath
64
SPZSJ-003
SJ Big Gear
65
SPZWK-5*7.5*19
woodruff key
66
SPZOSP-4*30
Split spring pin
67
SPZSJ-017
SJ Drive Wheel Shaft
68
SPZSJ-066
SJ Spring Pin
70
SPZTC-14
Tyre
73
SPZSJ-102
SJ Dirve Steel Cover

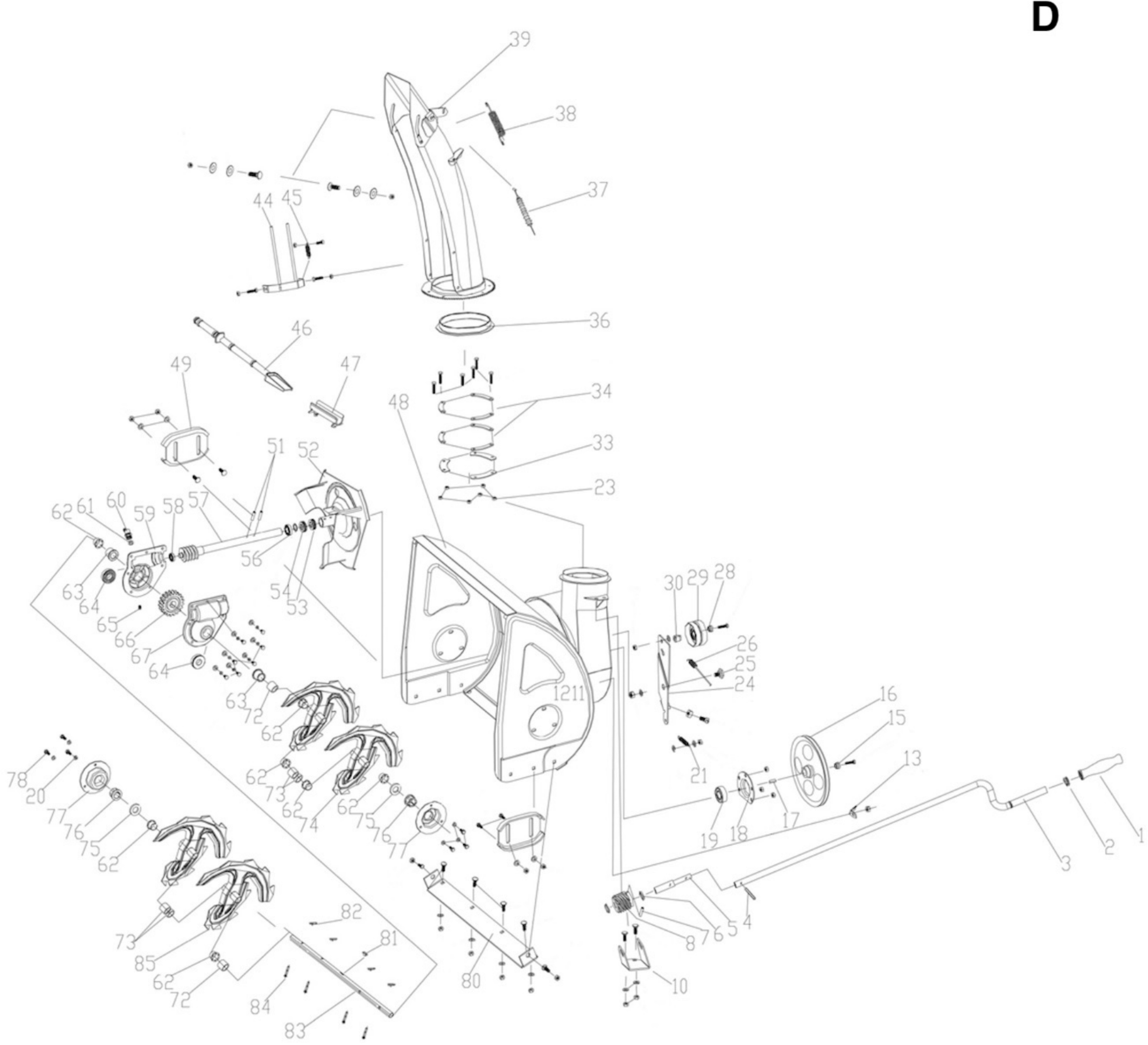

D 1
SPZSJ-242
Crank Handle
2
SPZSJ-240
Handle Cover
3
SPZSJ-227
Chute Rocker
4
SPZSJ-312
Bolt
5
SPZSJ-227-2
Chute Helical Rocker
6
SPZSJ-238
Bracket Washing
7
SPZOSP-4*42
Spring pin
8
SPZSJ-208
Spiral Gear
10
SPZSJ-225
Bracket
13
SPZSJ-300
Belt board
15
SPZFB-8*28*2
Plain cushion
16
SPZSJ-039-2
SJ Pulley
17
SPZFK-C6*17
C Key
18
SPZSJ-004
SJ Rockered Cover
19
SPZBE-UC204
Bearing
21
SPZSJ-037
Spring 5
24
SPZSJ-023-1
SJ Dead Plate 1
25
SPZSJ-050
SJ hexagon nipples
26
SPZSJ-230
Spring
28
SPZSJ-008C
SJ gasket
29
SPZSJ-008
Tension Pulley +Bearing
30
SPZSJ-008B
SJ Cushion
33
SPZSJ-021
Chute Sheeting
34
SPZSJ-021C
Chute washing
36
SPZSJ-237
Plastic Ring
37
SPZSJ-232
Chute Wire
38
SPZSJ-226
Chute Extension Spring
39
SPZSX-11-105/106- 1
Chute assy
44
SPZSJ-012
SJ Discharge Chute Accessori
45
SPZSJ-151
Spring 4
46
SPZSJ-150
Plastic shovel
47
SPZSJ-036
Shovel base
48
SPZSJ-104-2
SJ Housing
49
SPZSJ-111
SJ Sliding Stick
51
SPZFRP-6*30
Spring pin
52
SPZSJ-001
SJ Fan
53
SPZOS-32*20*6
Seal
54
SPZBE-51104
One way thrust bearing
56
SPZBE-6904
Deep groove ball bearing
57
SPZSJ-030
SJ Dirve shaft
58
SPZBE-16001
Deep groove ball bearing
59
SPZSJ-101A
SJ Pedestal
60
SPZRM-5HP
Oil nipple
62
SPZSJ-019
SJ Drive Shaft Sheath
63
SPZSJ-108-1
SJ Shaft Bushing
64
SPZOS-30*19*7
Seal
66
SPZSJ-038 SJ worm wheel 67
SPZSJ-101
SJ Upper Pedestal
72
SPZSTG245-2
Shaft bushing 22-2
73
SPZSTG245-1
Shaft bushing 22-1
74
SPZ30-SX-11-125
Right auger
75
SPZFB-19*38*1.5
Plain cushion
76
SPZSJ-020
SJ Shaft Bushing
77
SPZSJ-024
SJ Bearing Cover
80
SPZSJ-006-2
SJ Shave Plate
81
SPZWK-5*7.5*19
Woodruff key
82
SPZNJ-02
Trigger pin
83
SPZ245-SX-11-134
Output shaft
85
SPZ30-SX-11-135
Left auger

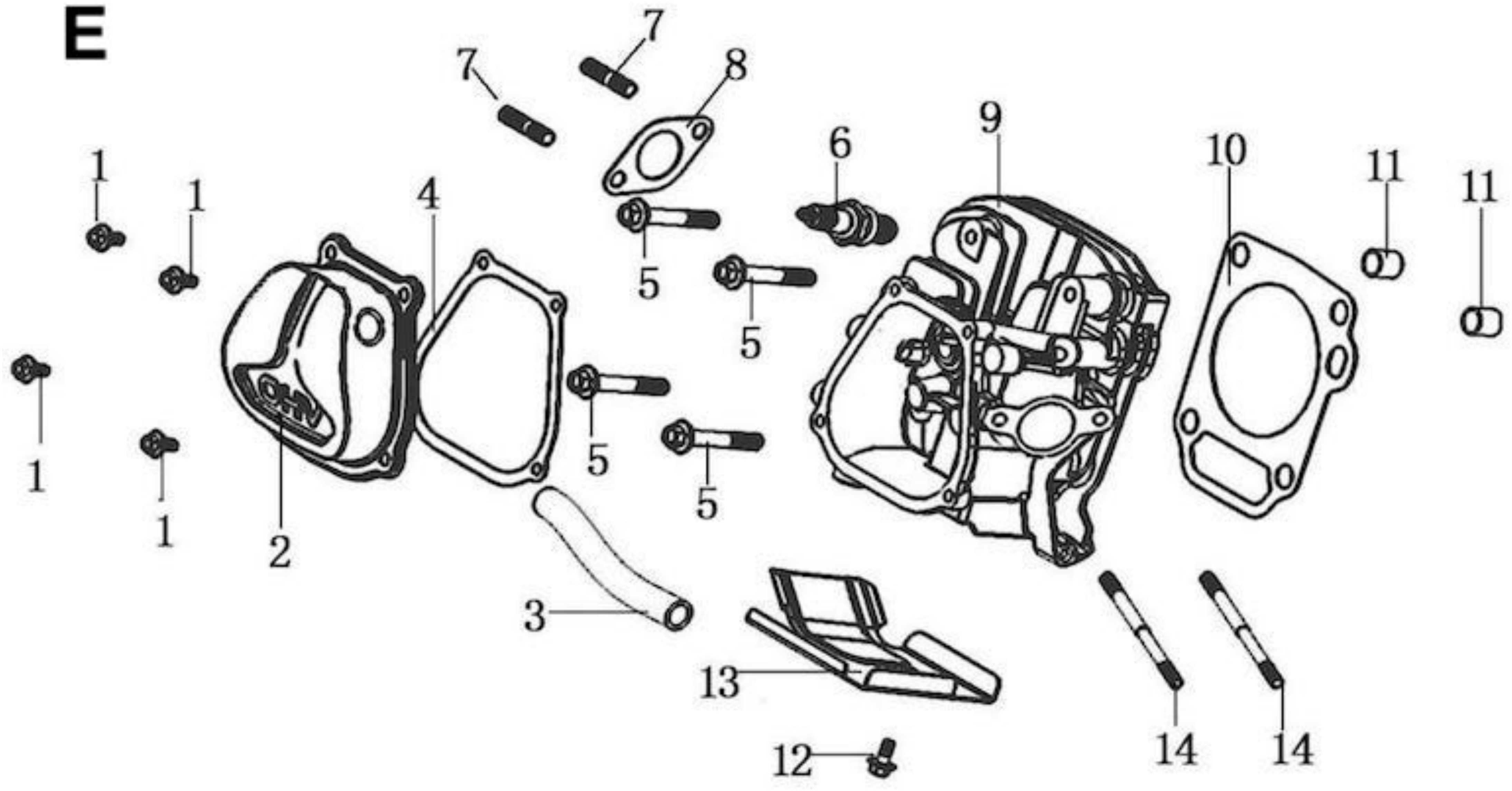

E 1
SPZ380140215-0003
BOLT , FLANGE , M6×14
2
SPZ120220023-T190
COVER COMP ., HEAD
3
SPZ380740671-T251
TUBE , BREATHER
4
SPZ120250021-T190
PACKING , HEAD COVER
5
SPZ380140337-0001
BOLT , FLANGE , M10×80
6
SPZ270960014-T040
PLUG , SPARK
7
SPZ380180099-0001
BOLT , STUD , IN.M8×54
8
SPZ180650085-T251
GASKET , EX.PIPE
9
SPZ120080403-T251
HEAD COMP .,CYLINDER
10
SPZ120150132-T250
GASKET , CYLINDER
11
SPZ380600116-T110
PIN , DOWEL12×20
12
SPZ380140001-0006
BOLT , FLANGE , M6×12
13
SPZ160190005-T080
SHROUD
14
SPZ380180092-0001
BOLT, STUD, INTAKE

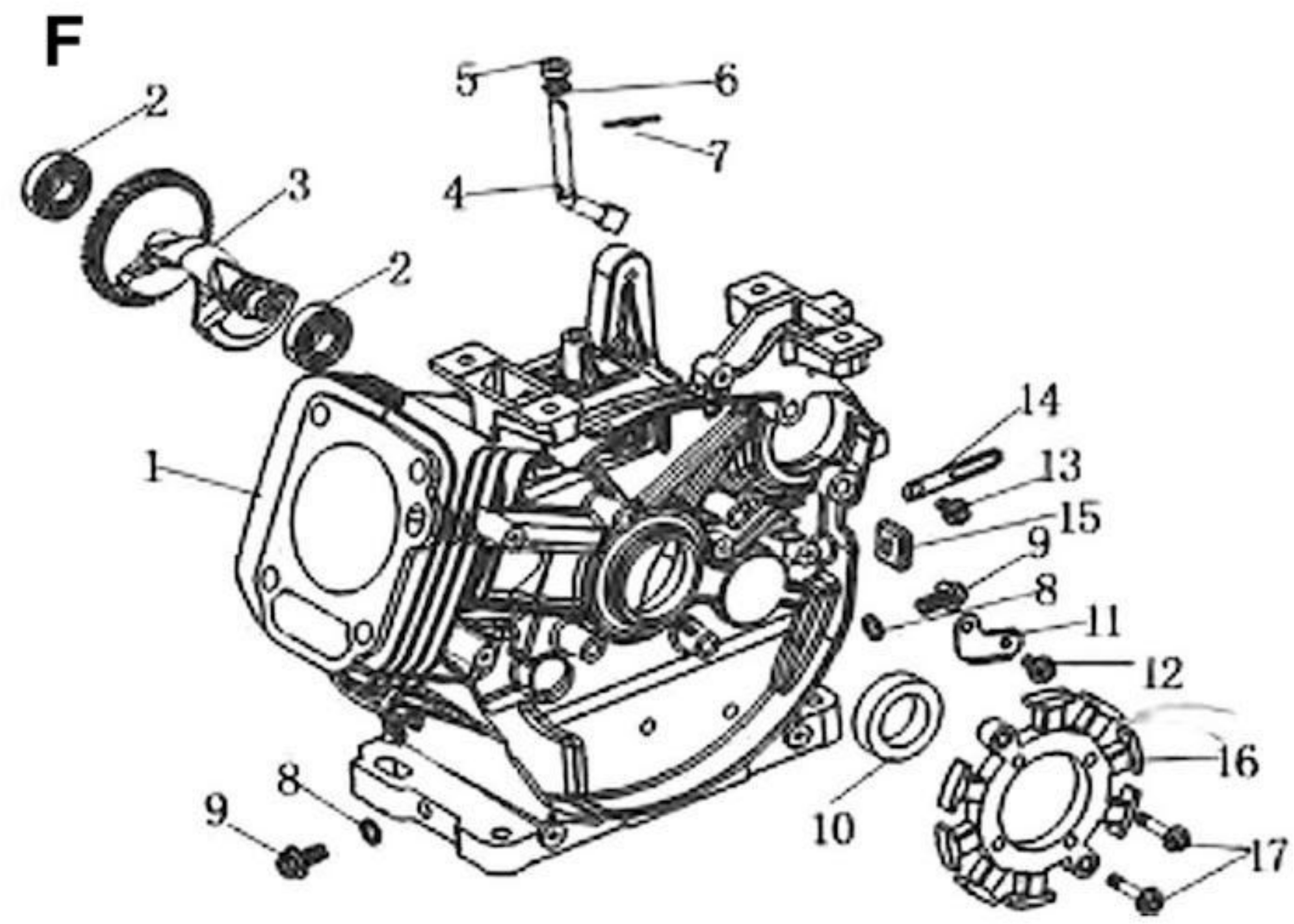

F 1
SPZ110810110-T251
CRANK CASE
2
SPZ380630099-0001
BEARING , RADIAL BALL
3
SPZ130450016-T190
WEIGHT,BALANCER
4
SPZ171630002-T080
SHAFT , GOVERNOR ARM
5
SPZ380650339-T110
OIL SEAL
6
SPZ380450522-T110
WASHER
7
SPZ381350004-T040
PIN, LOCK
8
SPZ380450516-T110
WASHER 12×20×2
9
SPZ110260024-T110
BOLT, DRAIN PLUG
10
SPZ380650492-T080
OIL SEAL 35×52×7
11
SPZ270280013-T251
PLATE,WINDING
12
SPZ380140011-0004
BOLT , FLANGE , M6×10
13
SPZ380140001-0006
BOLT , FLANGE , M6×12
14
SPZ380940346-T560
CABLE CLEAT
15
SPZ380930023-T110
CLIP,WIRE HARNESS
16
SPZ270210014-T251
COIL ASSY .
17
SPZ380140054-0003
BOLT , FLANGE , M6×30

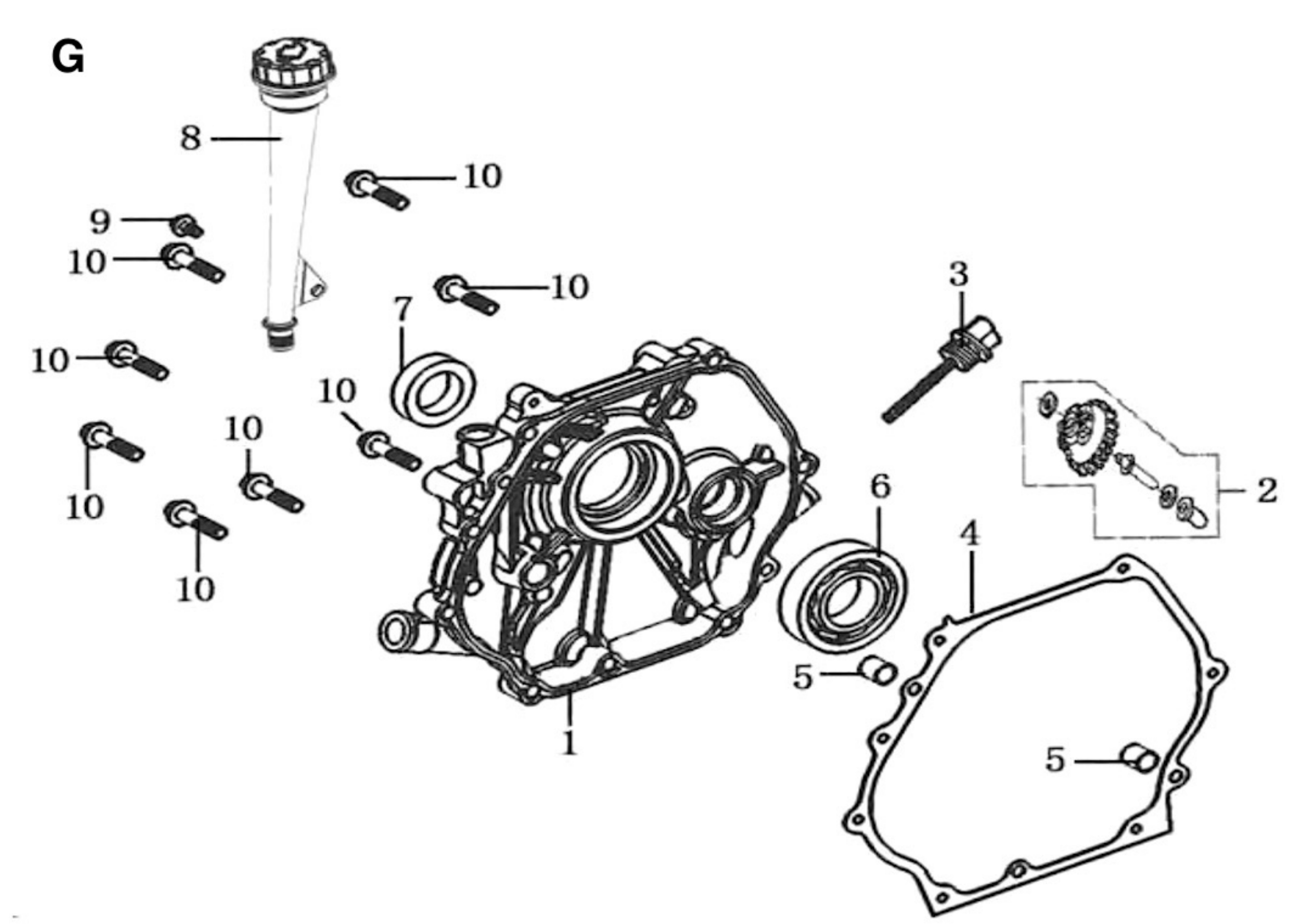

G 1
SPZ110820052-T251
CRANK CASE COVER
2
SPZ171750008-T080
GOVERNOR KIT
3
SPZ110690036-T190
CAP ASSY.
4
SPZ110830035-T180
GASKET, CASE COVER
5
SPZ380600119-T110
DOWEL PIN 8×12
6
SPZ380630140-0002
BEARING
7
SPZ380650493-T080
OIL SEAL 35×52×7
8
SPZ110690045-T251
CAP ASSY.
8
SPZ110690046-T222
CAP ASSY.
9
SPZ380140003-0005
BOLT , FLANGE , M6×20
10
SPZ380140051-0005
BOLT , FLANGE M8×40

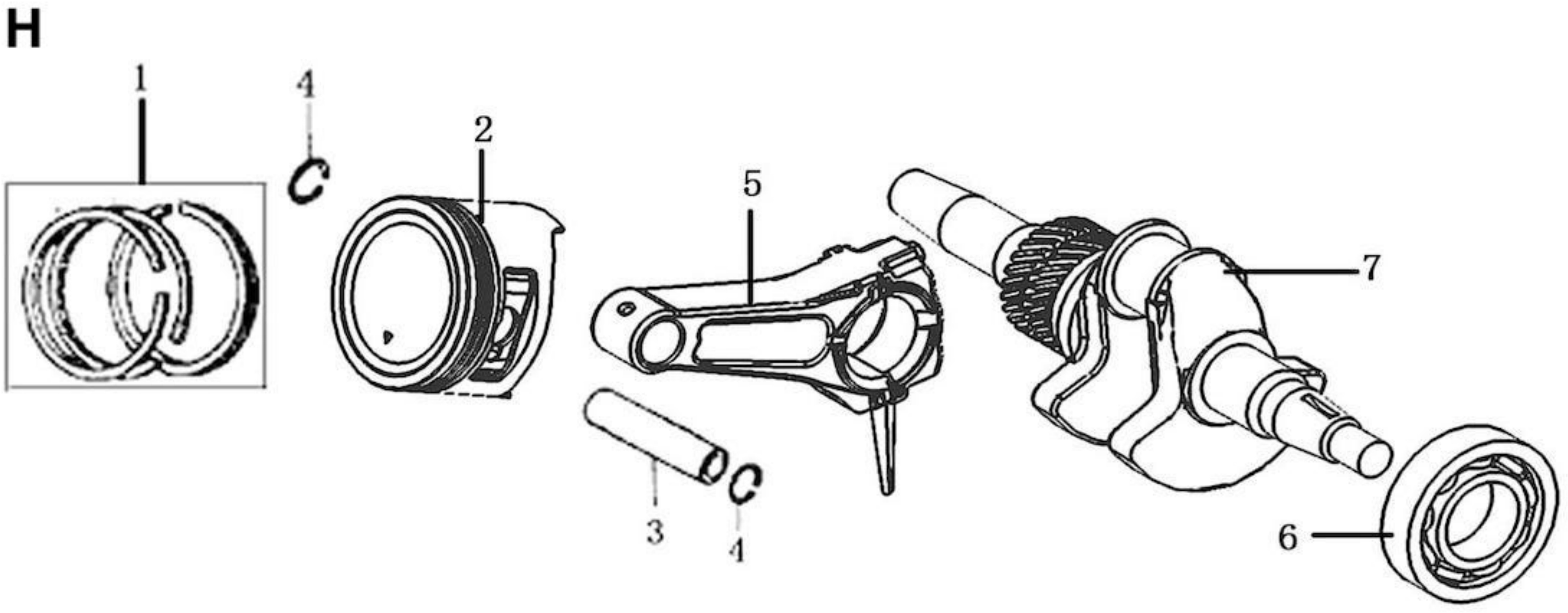

H 1
SPZ130070115-T250
RING SET
2
SPZ130030128-T250
PISTON
3
SPZ130060032-T080
PIN,PISTON
4
SPZ380560056-T040
CLIP,PISTON PIN
5
SPZ130150040-T080
CONNECTING ROD
6
SPZ380630140-0002
BEARING
7
SPZ130290245-T180
CRANKSHAFT COMP

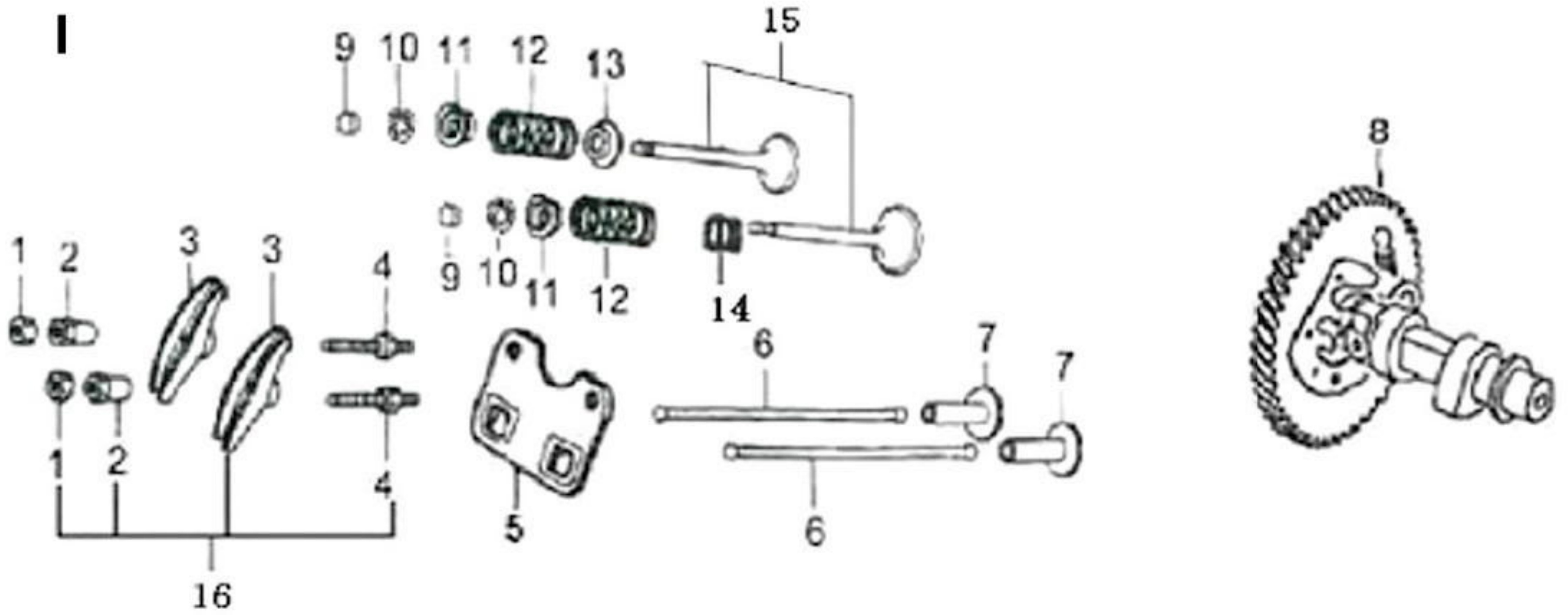

I 1
SPZ140470001-T040
NUT, PIVOT ADJUSTING
2
SPZ140490012-0001
PIVOT ROCKER ARM
3
SPZ140460024-T110
ROCKER ARM
4
SPZ140480012-T040
BOLT POVIT
5
SPZ140710002-0001
PLATE , PUSH ROD GUIDE
6
SPZ140670005-T080
PUSH ROD
7
SPZ140690004-T110
LIFTER , VALVE
8
SPZ140020060-T080
CAMSHAFT ASSY
9
SPZ140320002-T110
ROTATOR,VALVE
10
SPZ140390015-T11D
LOCER，VALVE
11
SPZ140380018-T110
SPRING
12
SPZ140340023-T110
SPRING,VALVE
13
SPZ140360010-T110
SEAT,VALVE SPRING
14
SPZ140400012-T110
SEAL,VALVE STEM

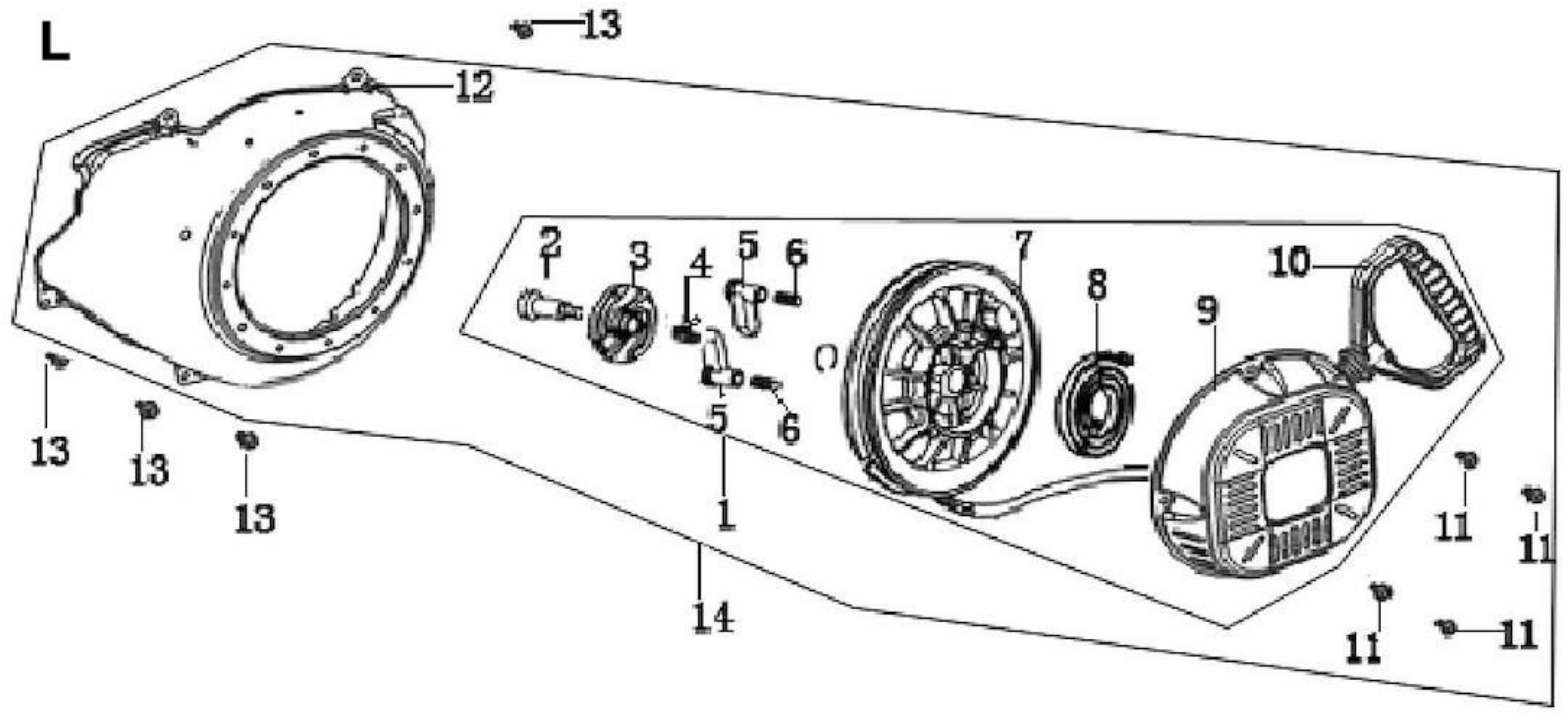

L 1
SPZ193500045-T251D
STARTER ASSY.
2
SPZ380020067-T040
SCREW,SETTING
3
SPZ193550003-T040
GUIDE,RATCHET
4
SPZ381150342-T040
SPRING,FRICTION
5
SPZ193540003-T040
RATCHET , STARTER
6
SPZ381160090-T040
SPRING , RETURN
7
SPZ193520005-T110
STARTER PULLEY
8
SPZ193340019-T110
SPRING,RECOIL STARTER
9
SPZ193640024-T251
COVER COMP ., FAN
10
SPZ193560006-T040
KNOB , RECOIL STARTER
11
SPZ380140089-0005
BOLT , FLANGE , M6×8
12
SPZ160210048-T251
COVER COMP ., FAN
13
SPZ380140001-0006
BOLT , FLANGE , M6×12
14
SPZ193490140-T251
RECOIL STARTER COMP.

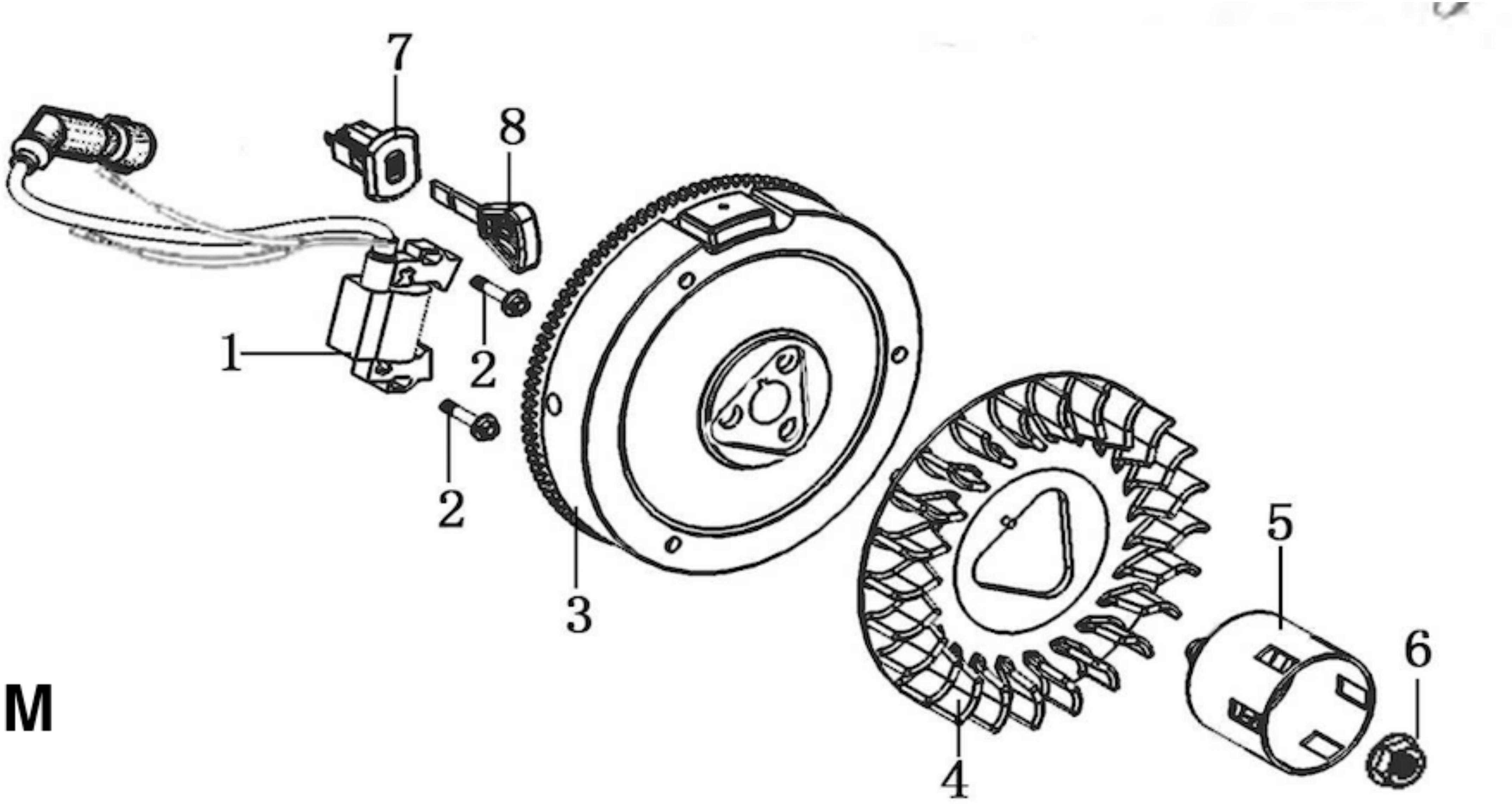

M 1
SPZ270920234-T251
COIL ASSY . , IGNITION
2
SPZ380140102-0004
BOLT , FLANGE , M6×25
3
SPZ270020152-T081
FLYWHEEL COMP
4
SPZ160180022-T251
FAN COOLING
5
SPZ193590004-T080
PULLEY,STARTER
6
SPZ380370050-T110
NUT SPECIAL
7
SPZ271660054-T251
OIL FILLER ASSY
8
SPZ273210001-T153
SWITCH KEY

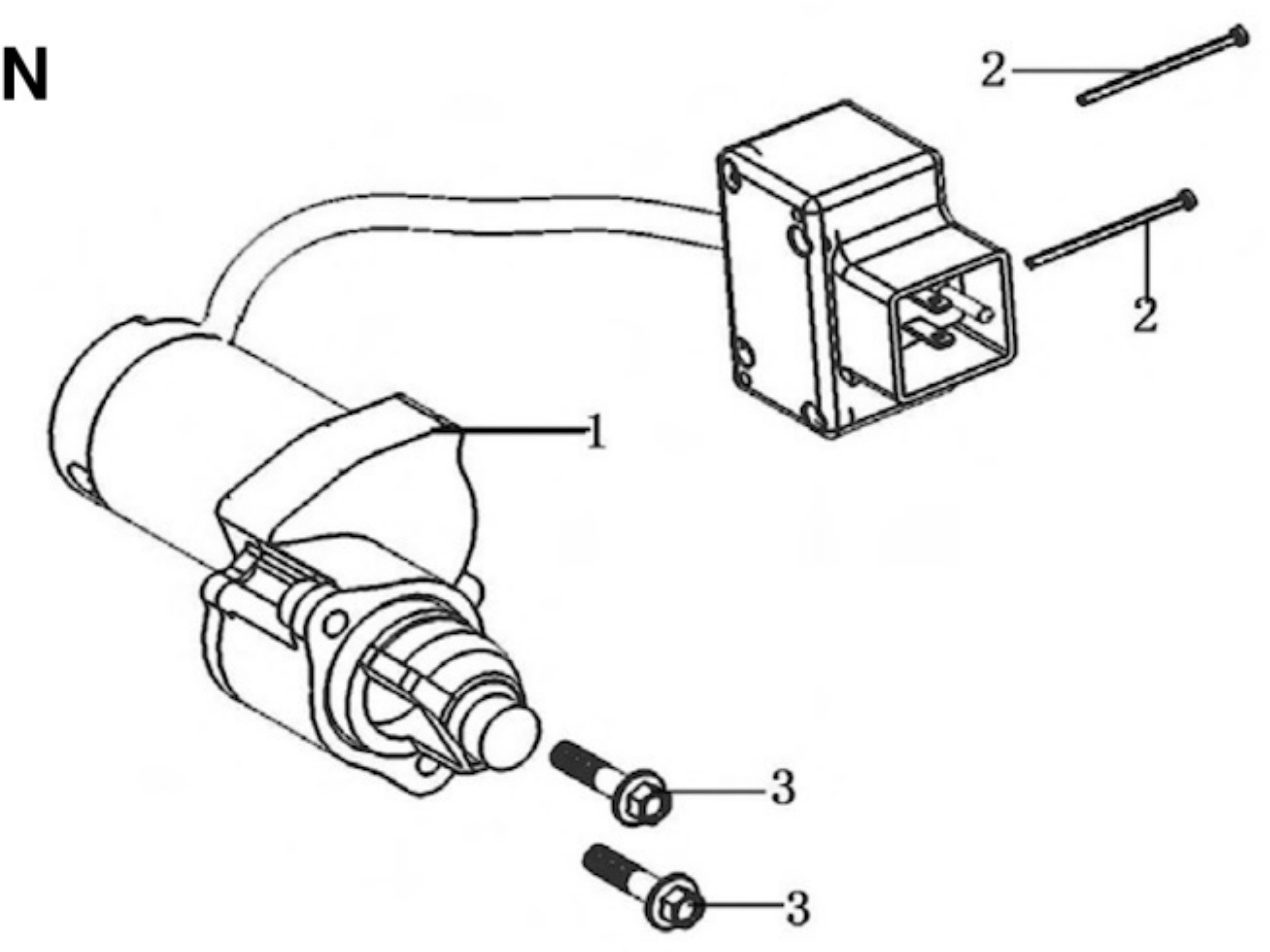

N 1
SPZ270360038-T081
STARTER,MOTOR
2
SPZ380200134-0001
SCREW,M4×55
3
SPZ380140005-0006
BOLT , FLANGE , M8×40

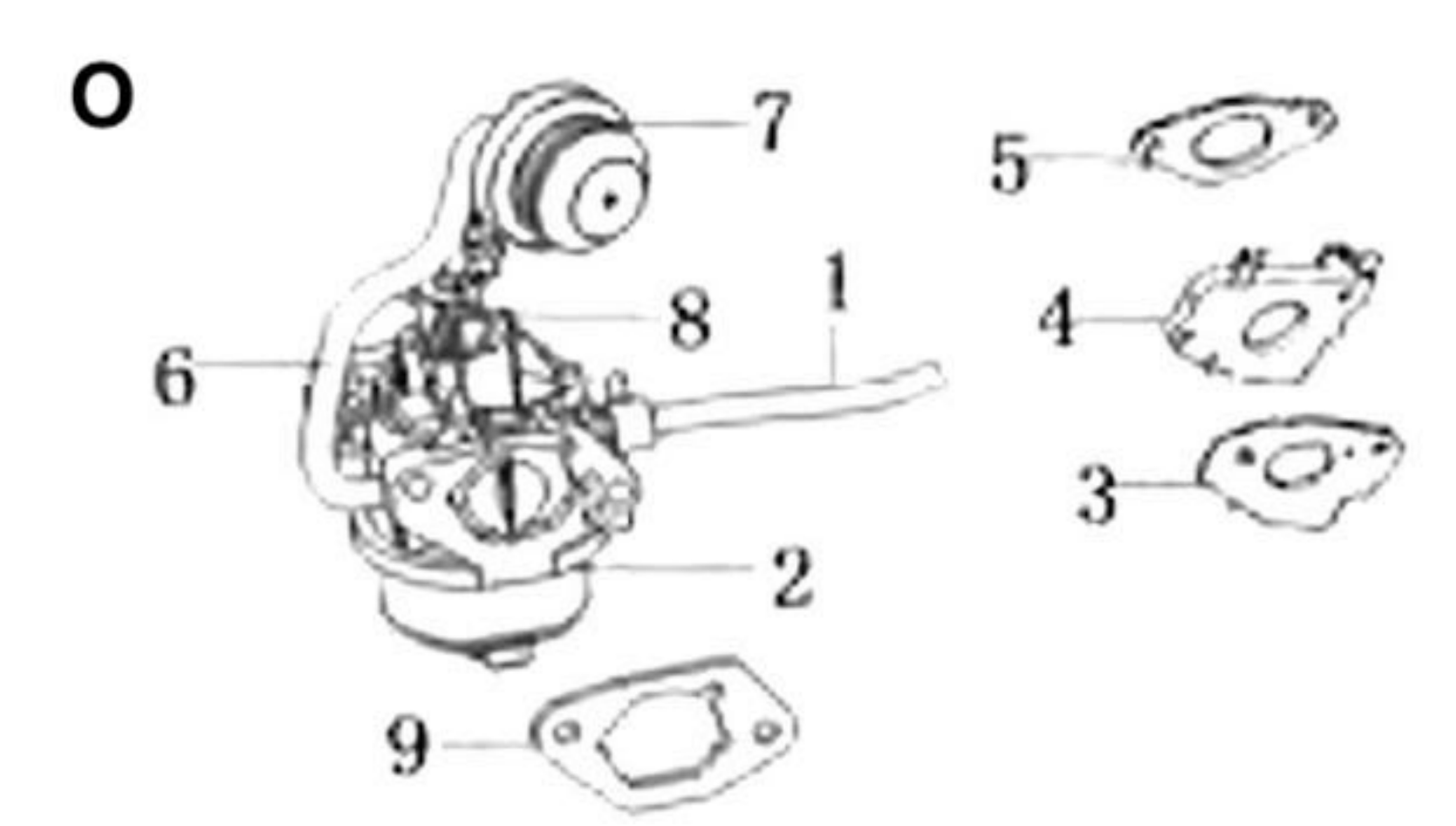

O 1
SPZ380750404-T251
HOSE,CARBURETOR
2
SPZ170250022-T110
OIL CUP
3
SPZ170430073-T100
PACKING,CARBURETOR
4
SPZ170440040-T100
INSULATOR,CARBURETOR
5
SPZ170430061-T09F
PACKING , INSULATOR
6
SPZ380750360-T153
PUMP RUBHER TUBP
7
SPZ173390001-T040
AIR PUMP PCOMP,CARBURETOR
8
SPZ170020722-T251
CARBURETOR ASSY
9
SPZ170430076-T110
SPACER COMP ., AIR CLEANER

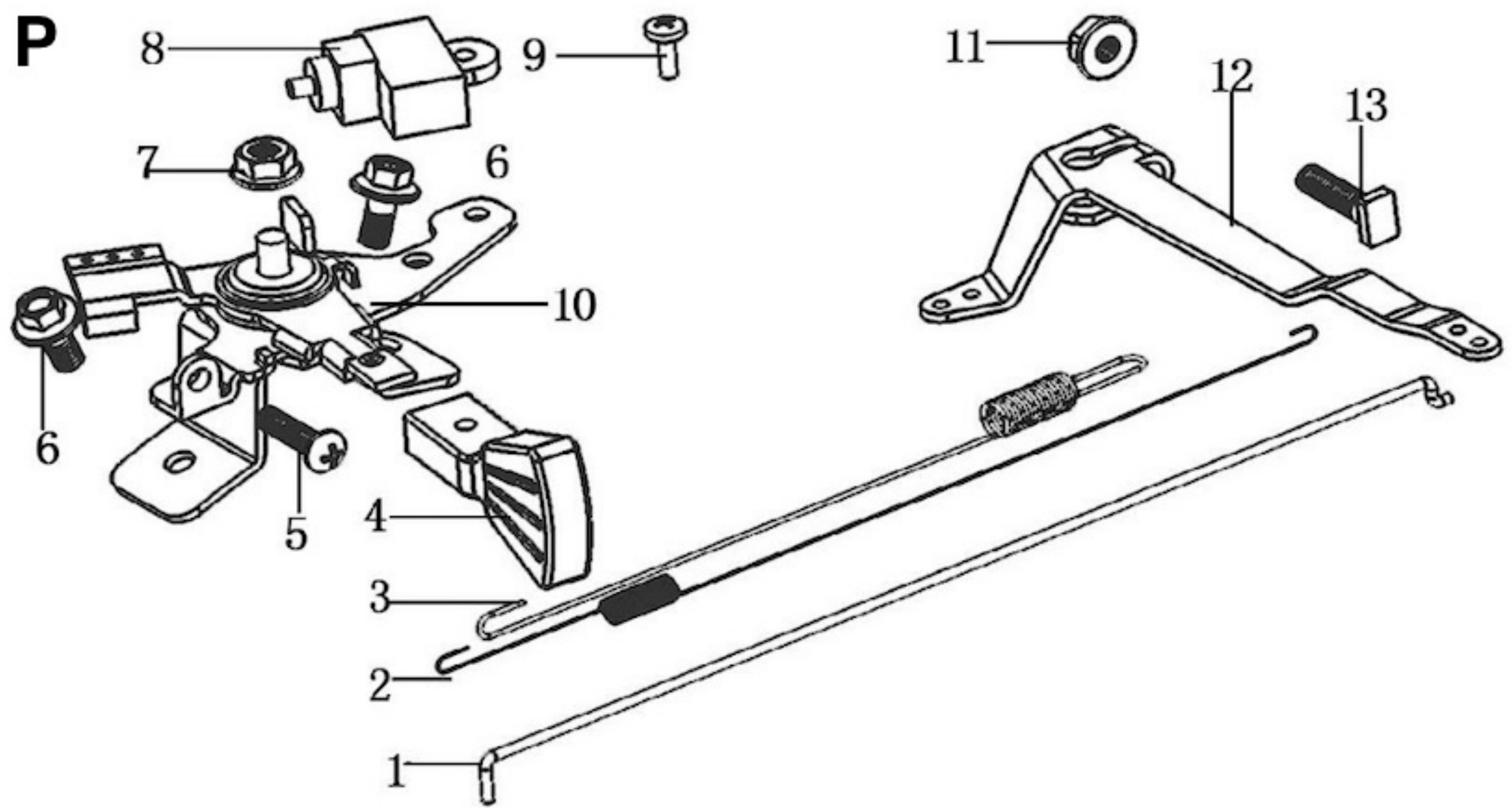

P 1
SPZ171590003-T080
ROD, GOVERNOR
2
SPZ171610001-T110
SPRING, THROTTLE RETURN
3
SPZ171600043-T251
SPRING, GOVERNOR
4
SPZ173710001-T153
GUM COVER,CONTROL HANDLE
5
SPZ380200011-0006
SCREW ,M5×30
6
SPZ380140011-0004
BOLT , FLANGE , M6×10
7
SPZ380370048-0001
NUT, FLANGE,6MM
8
SPZ271660026-T350
SWITCH ASSY,ENGINE STOP
9
SPZ380200008-0005
SCREW , 4×10
10
SPZ171680062-T251
CONTROL ASSY.
11
SPZ380370048-0001
NUT, FLANGE,6MM
12
SPZ171620020-T251
ARM, GOVERNOR
13
SPZ380250002-0001
BOLT, QUADRATE HEAD6×21

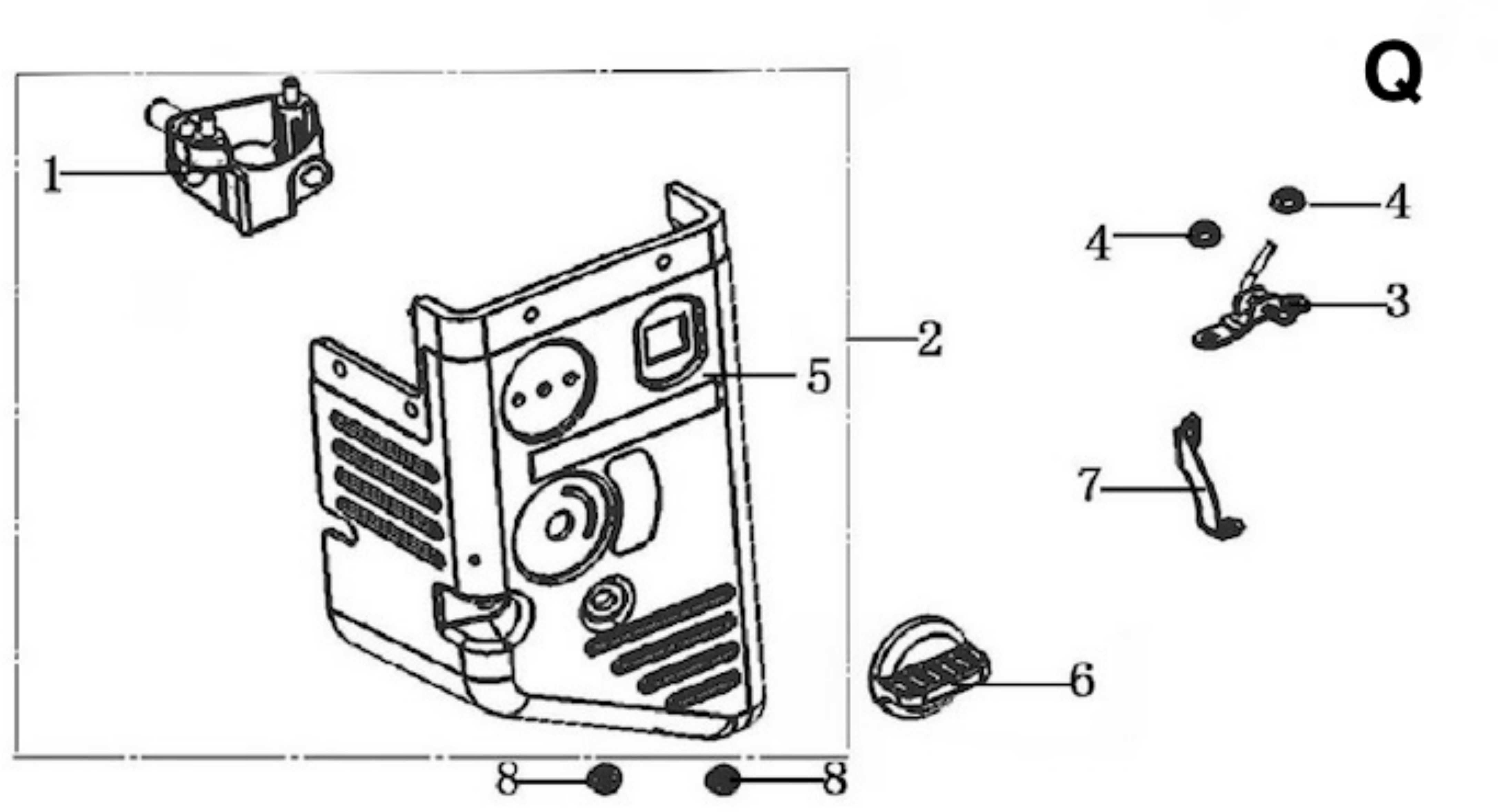

Q 1
SPZ180290022-T251
ELBOW,AIR CLEANER
2
SPZ180020484-T251
AIR CLEANER ASSY
3
SPZ171470004-T251
CHIOKE SET
4
SPZ380370048-0001
NUT, FLANGE,6MM
5
SPZ180070141-T251
COVER，AIRr CLEANER
6
SPZ271460056-T251
CHOKE LEVER
7
SPZ380930057-T251
CLIP,WIRE HARNESS
8
SPZ380370048-0008
NUT, FLANGE,6MM

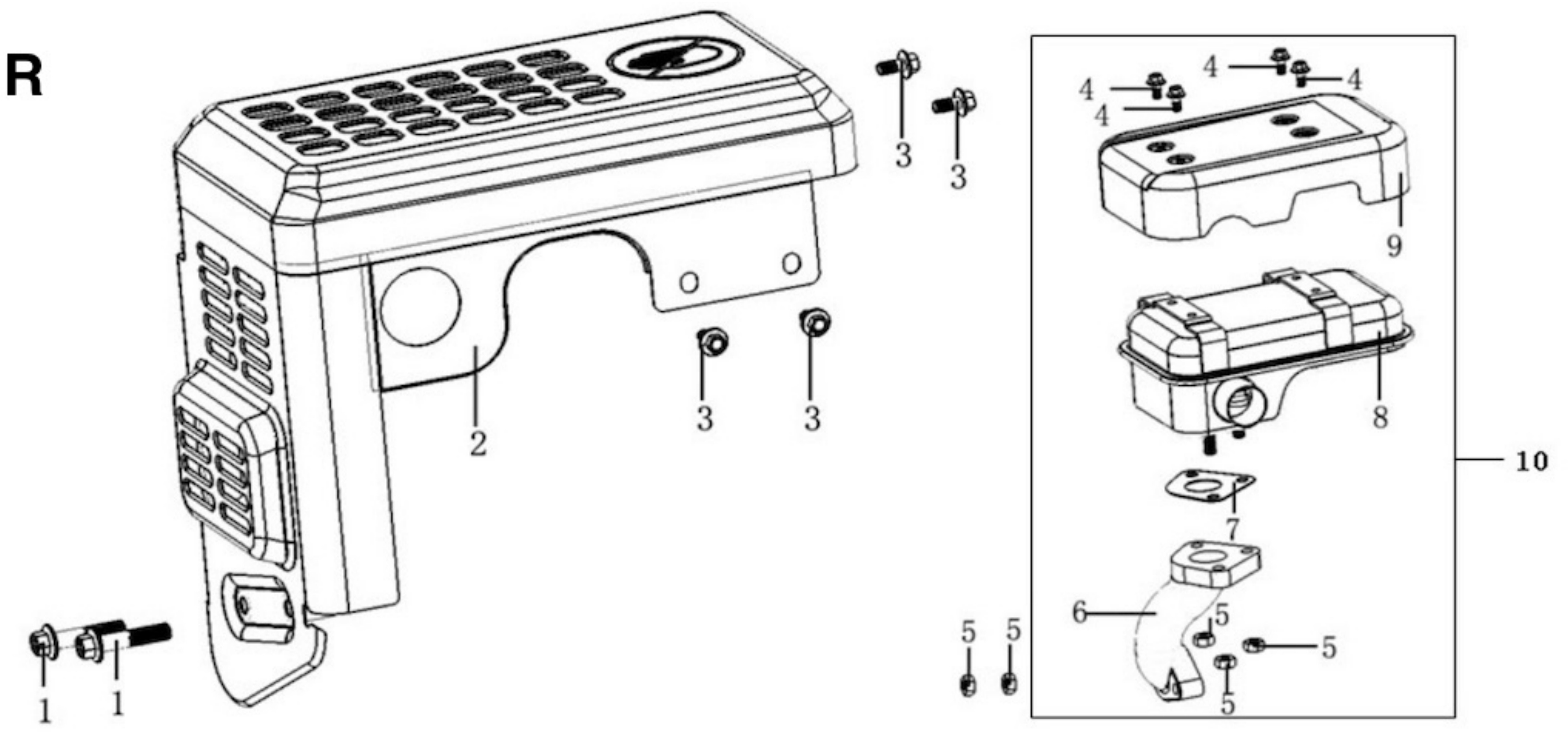

R 1
SPZ380140051-0005
BOLT , FLANGE , M8×20
2
SPZ180960063-T251
PROTECTOR COMP.
3
SPZ380140215-0004
BOLT , FLANGE , M6×14
4
SPZ380140011-0006
BOLT , FLANGE , M6×10
5
SPZ380340005-0005
NUT, FLANGE,8MM
6
SPZ180590186-T251
PIPE, EXHAUST
7
SPZ180660059-T251
GASKET , MUFFLER
8
SPZ180690070-T251
BODY MUFFLER
9
SPZ180970030-T251
PROTECTOR
10
SPZ180571190-T251
MUFFLER ASSY.

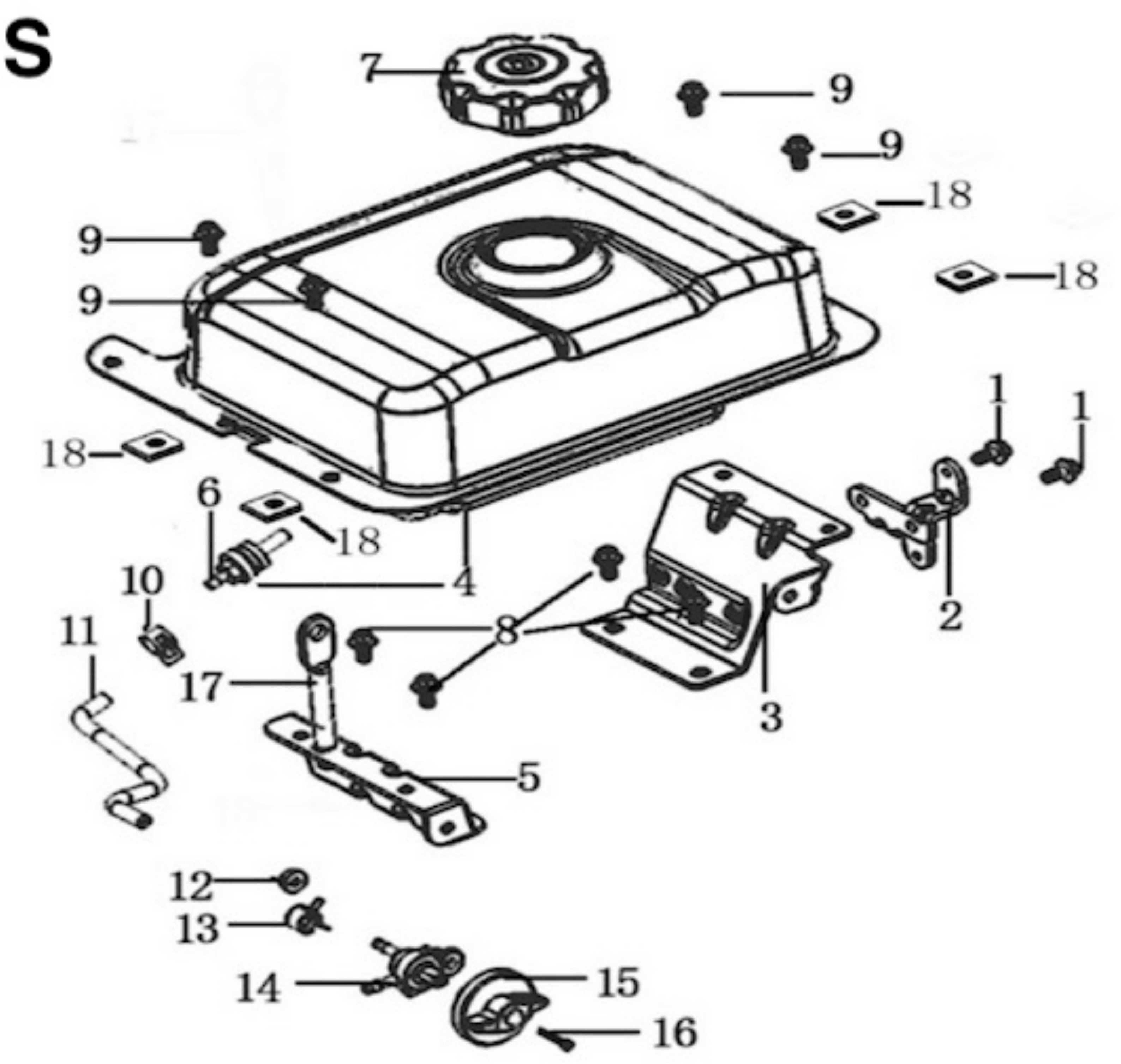

S 1
SPZ380140215-0004
BOLT , FLANGE , M6×14
2
SPZ270860032-T251
HOLDER,ELECTRIC STARTING BOX
3
SPZ172840011-T251
HOLDER,FUEL TANK
4
SPZ170490725-T251
TANK COMP ., FUEL
5
SPZ172840010-T251
HOLDER,FUEL TANK
6
SPZ170660077-T040
JOINT ASSY. , FUEL TANK
7
SPZ170870074-T153
CAP COOMP.,FUEL FILLER
8
SPZ380140004-0004
BOLT , FLANGE , M8×20
9
SPZ380140215-0004
BOLT , FLANGE , M6×14
10
SPZ380960121-0001
CLIP , TUBE
11
SPZ380750405-0001
TUBE , FUEL
12
SPZ380370048-0001
NUT, FLANGE,M6
13
SPZ380960121-0001
CLIP , TUBE
14
SPZ170980081-T251
FUEL SWITCH
15
SPZ173260001-T55G
KNOB FUEL SWITCH
16
SPZ380200062-0005
SCREW ,M4×20
18
SPZ170700101-T251
DAMPING PADS，FUEL TANK

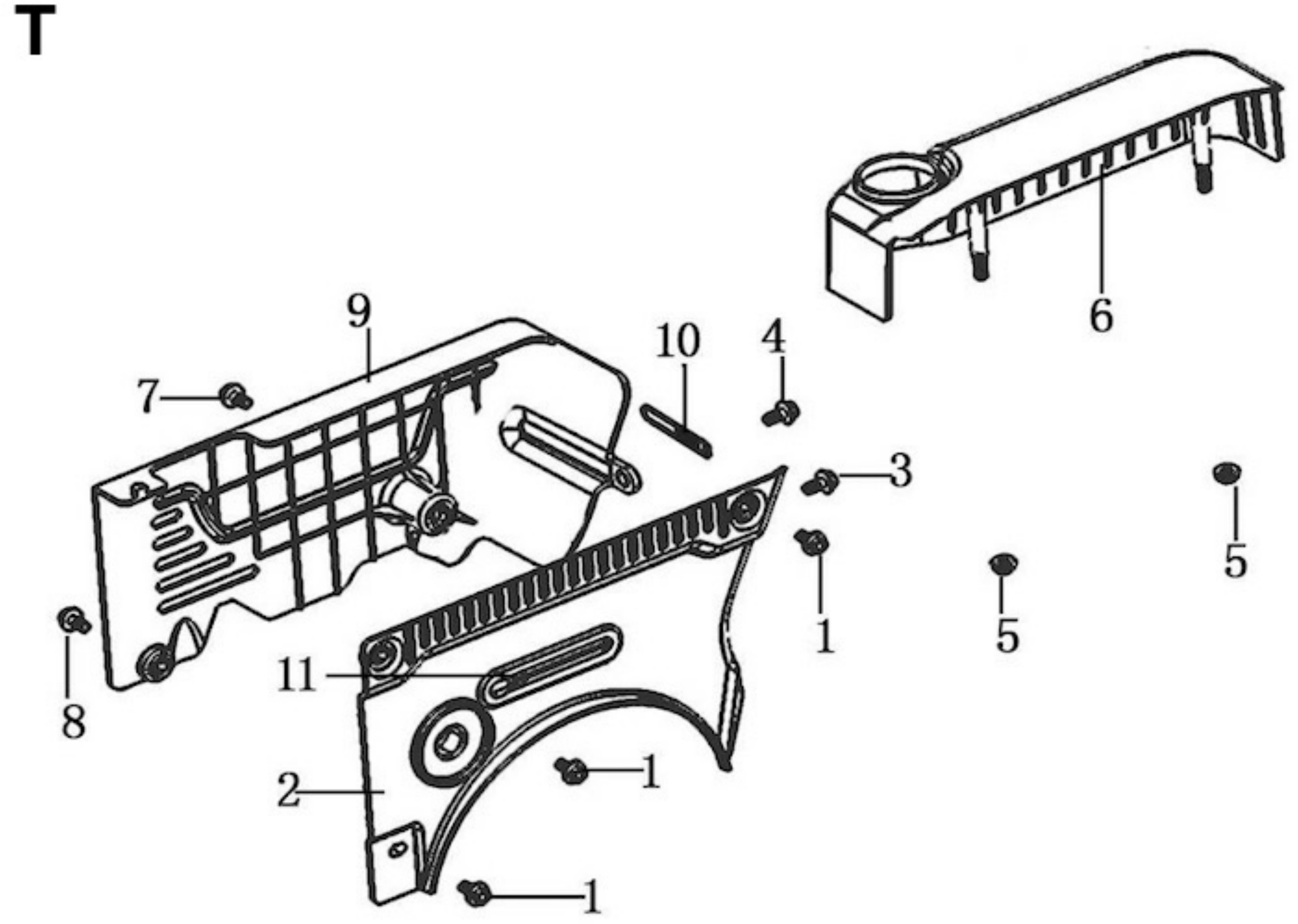

T 1
SPZ380140215-0004
BOLT , FLANGE , M6×14
2
SPZ661280003-T251
COVER，ENGINE
3
SPZ380140215-0004
BOLT , FLANGE , M6×14
4
SPZ380140002-0007
BOLT , FLANGE , M6×16
5
SPZ380370048-0003
NUT, FLANGE,6MM
6
SPZ343210012-T251
REAR SOVER TANK
7
SPZ380140004-0004
BOLT , FLANGE , M8×20
8
SPZ380140002-0007
BOLT , FLANGE , M6×16
9
SPZ661280004-T251
COVER，ENGINE
10
SPZ380930023-T110
CLIP,WIRE HARNESS
11
SPZ661660001-T251
COLLOID
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Reference
AMA PS961 – 79591
Available
12 Items
Data sheet
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Condition
New
Download
Diagram AMA PS961
Download (1.58MB)
Italiano
