Ama Spare Parts for Lawn Tractor ATR102L – 89988

Name: Ama Spare Parts for Lawn Tractor ATR102L – 89988
Brand: A.M.A. S.p.A.
SKU: AMA Garden ATR102L – 89988
Availability: InStock

SKU: AMA Garden ATR102L – 89988

€48.28

VAT included

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102L – 89988.

For Availability and order management times, call our telephone numbers.

211 spare parts

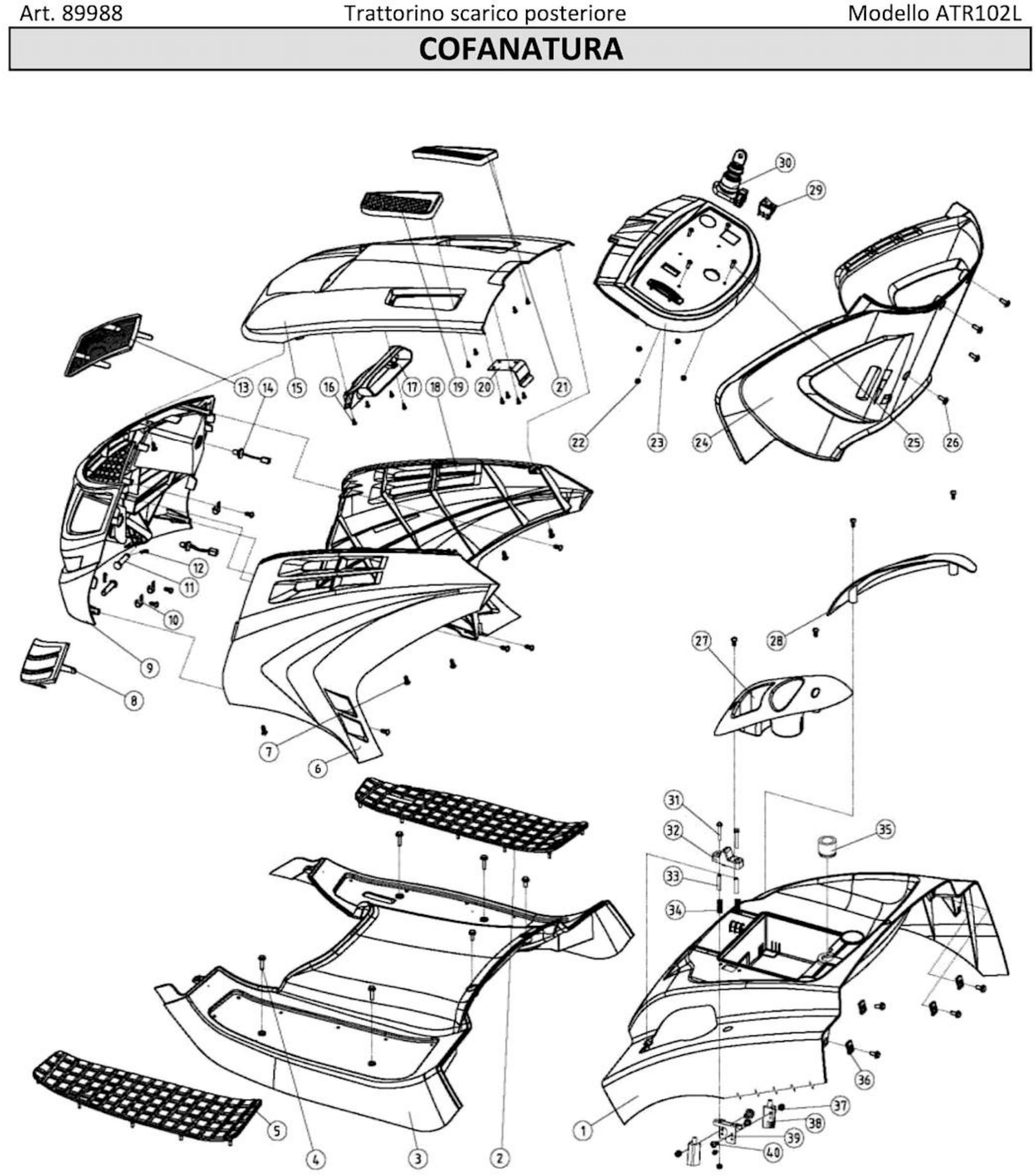

Page 1 View exploded

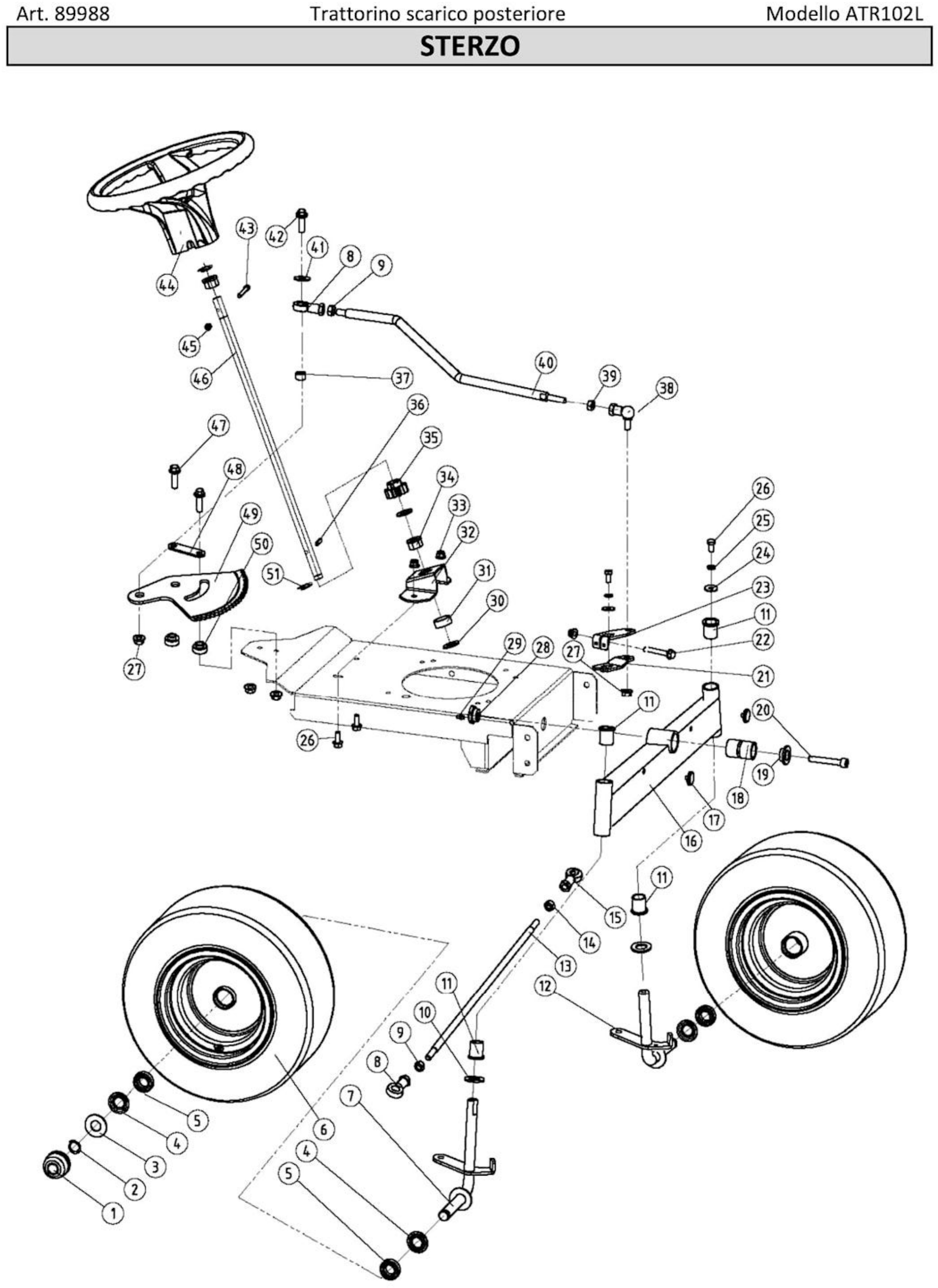

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	RZJ0332 Rear cover	€0.12	Not available for order
2	Image coming soon	RZJ0338 Right foot board	€0.12	Not available for order
3	Image coming soon	RZJ0339 Bottom plate	€0.12	Not available for order
5	Image coming soon	RZJ0337 Left foot board	€0.12	Not available for order
6	Image coming soon	RZJ0329 Left cover	€0.12	Not available for order
8	Image coming soon	RZJ0080 Left light cover	€0.12	Not available for order
9	Image coming soon	RZJ0070 Front cover	€0.12	Not available for order
11	Image coming soon	RZJ0468 Pin	€0.12	Not available for order
13	Image coming soon	RZJ0081 Right light cover	€0.12	Not available for order
15	Image coming soon	RZJ0331 Top cover	€0.12	Not available for order
17	Image coming soon	RZJ0360 Front wind board	€0.12	Not available for order
18	Image coming soon	RZJ0330 Right cover	€0.12	Not available for order
19	Image coming soon	RZJ0340 Left wind board	€0.12	Not available for order
20	Image coming soon	RZJ0469 Spring fastener	€0.12	Not available for order
21	Image coming soon	RZJ0341 Right wind board	€0.12	Not available for order
23	Image coming soon	RZJ0334 Instrument board	€0.12	Not available for order
24	Image coming soon	RZJ0333 Shield	€0.12	Not available for order
27	Image coming soon	RZJ0335 Cup support	€0.12	Not available for order
28	Image coming soon	RZJ0336 Handle guide plate	€0.12	Not available for order
29		RZJ0052 Clutch Switch for Lawn Tractors AMA ATR92L	€17.48
30		RZJ0049 Rotary Switch for Lawn Tractor AMA ATR102 on Demand Only	€22.84
32	Image coming soon	RZJ0370 Switch gland	€0.12	Not available for order
33	Image coming soon	RZJ0259 Guide sleeve	€0.12	Not available for order
34	Image coming soon	RZJ0260 Spring	€0.12	Not available for order
35	Image coming soon	RZJ0306 Rubber cushion	€0.11	Not available for order
38		RZJ0048 AMA ATR92L Open Close Switch	€17.92
39	Image coming soon	RZJ0098 Seat switch base	€0.12	Not available for order

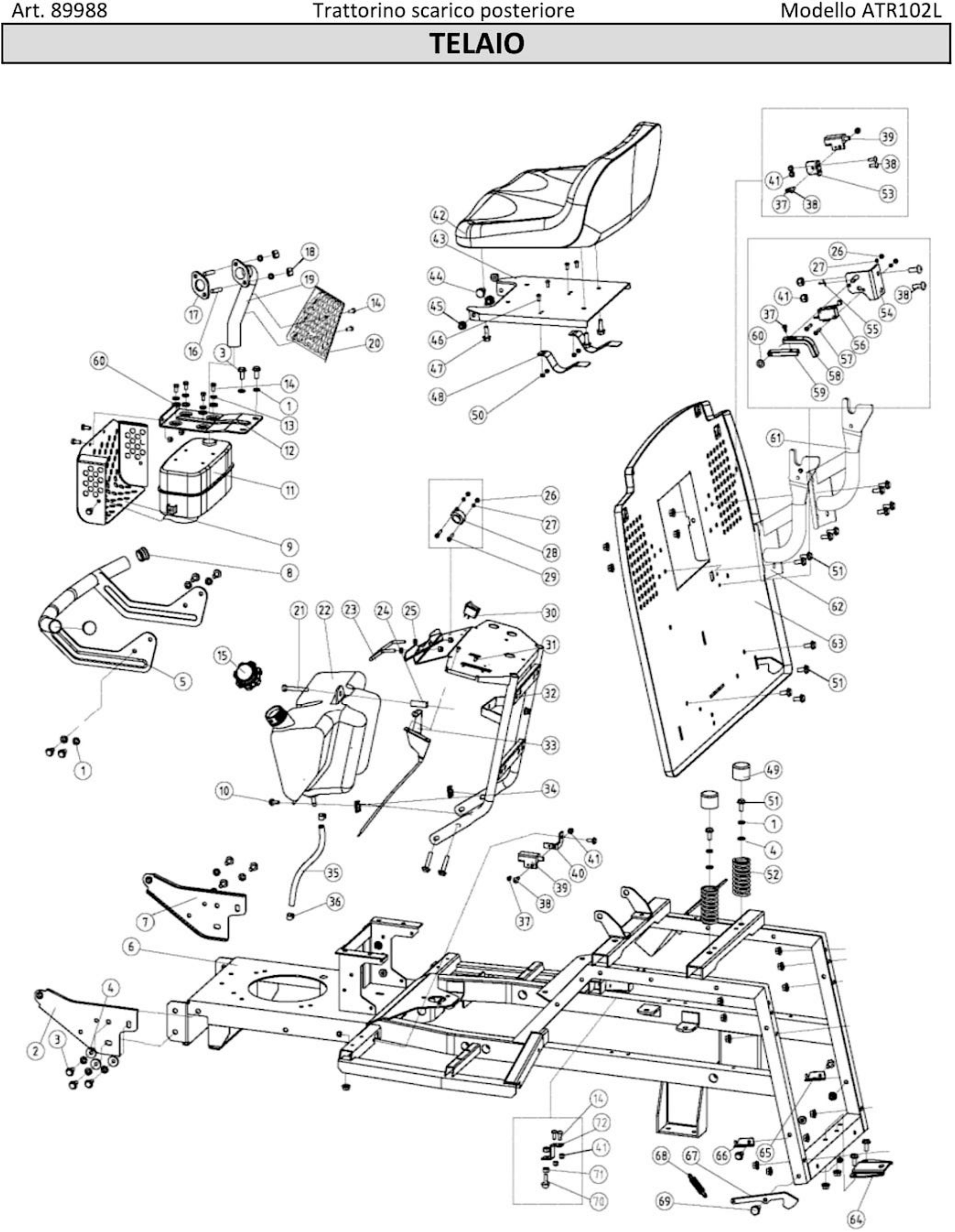

Page 2 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
2	Image coming soon	RZJ0497 Front cover bracket L	€0.12	Not available for order
5	Image coming soon	RZJ0393 Bumper weldment	€0.12	Not available for order
6	Image coming soon	RZJ0390 Frame weldment	€0.12	Not available for order
7	Image coming soon	RZJ0498 Front cover bracket R	€0.12	Not available for order
8	Image coming soon	RZJ0345 Bumper end lid	€0.12	Not available for order
9	Image coming soon	RZJ0490 Muffler cover	€0.12	Not available for order
11	Image coming soon	RZJ0517 Muffler	€0.12	Not available for order
12	Image coming soon	RZJ0163 Muffler base	€0.12	Not available for order
15	Image coming soon	RZJ0150 Tank cap	€0.12	Not available for order
16	Image coming soon	RZJ0277 Screw5/16-18UNC	€0.12	Not available for order
17	Image coming soon	RZJ0035 Vent-pipe washer	€0.12	Not available for order
18	Image coming soon	RZJ0286 Nut 5/16-18UNC	€0.12	Not available for order
19	Image coming soon	RZJ0159 Vent Pipe	€0.12	Not available for order
20	Image coming soon	RZJ0185 Vent pipe shield	€0.12	Not available for order
22	Image coming soon	RZJ0076 Tank	€0.12	Not available for order
23	Image coming soon	RZJ0496 Hood fastener	€0.12	Not available for order
24	Image coming soon	RZJ0509 Pivot tube	€0.12	Not available for order
28	Image coming soon	RZJ0055 Buzzer	€0.12	Not available for order
30	Image coming soon	RZJ0051 Light switch	€0.12	Not available for order
32	Image coming soon	RZJ0394 Front bracket weldment	€0.12	Not available for order
33	Image coming soon	RZJ0006 Throttle cable	€0.12	Not available for order
39		RZJ0048 AMA ATR92L Open Close Switch	€17.92
40	Image coming soon	RZJ0491 Switch base	€0.12	Not available for order
42	Image coming soon	RZJ0141 Seat	€0.12	Not available for order
43	Image coming soon	RZJ0144 Seat mounting bracket	€0.12	Not available for order
44	Image coming soon	RZJ0143 Swivel bolt	€0.12	Not available for order
48	Image coming soon	RZJ0494 Spring flake	€0.12	Not available for order
49	Image coming soon	RZJ0344 Spring cap	€0.12	Not available for order
52	Image coming soon	RZJ0444 Seat spring	€0.12	Not available for order
53	Image coming soon	RZJ0493 Switch base	€0.12	Not available for order
54	Image coming soon	RZJ0492 Switch base weldment	€0.12	Not available for order
56	Image coming soon	RZJ0050 Switch	€0.12	Not available for order
58	Image coming soon	RZJ0086 Hook	€0.12	Not available for order
59	Image coming soon	RZJ0085 Switch lever	€0.12	Not available for order
61	Image coming soon	RZJ0392 Swivel bracket weldment(R)	€0.12	Not available for order
62	Image coming soon	RZJ0391 Swivel bracket weldment(L)	€0.12	Not available for order
63	Image coming soon	RZJ0518 Rear baffle plate	€0.12	Not available for order
64	Image coming soon	RZJ0157 Tow attachment	€0.12	Not available for order
65	Image coming soon	RZJ0168 Brackrt for spring R	€0.12	Not available for order
66	Image coming soon	RZJ0167 Brackrt for spring L	€0.12	Not available for order
67	Image coming soon	RZJ0095 Pull hook	€0.12	Not available for order
68	Image coming soon	RZJ0111 Spring	€0.11	Not available for order
69	Image coming soon	RZJ0460 Pin screw	€0.11	Not available for order
70	Image coming soon	RZJ0064 Bumper cushion	€0.11	Not available for order
72	Image coming soon	RZJ0495 Bracket	€0.12	Not available for order

Page 3 View exploded

Click on the exploded view to buy spare parts

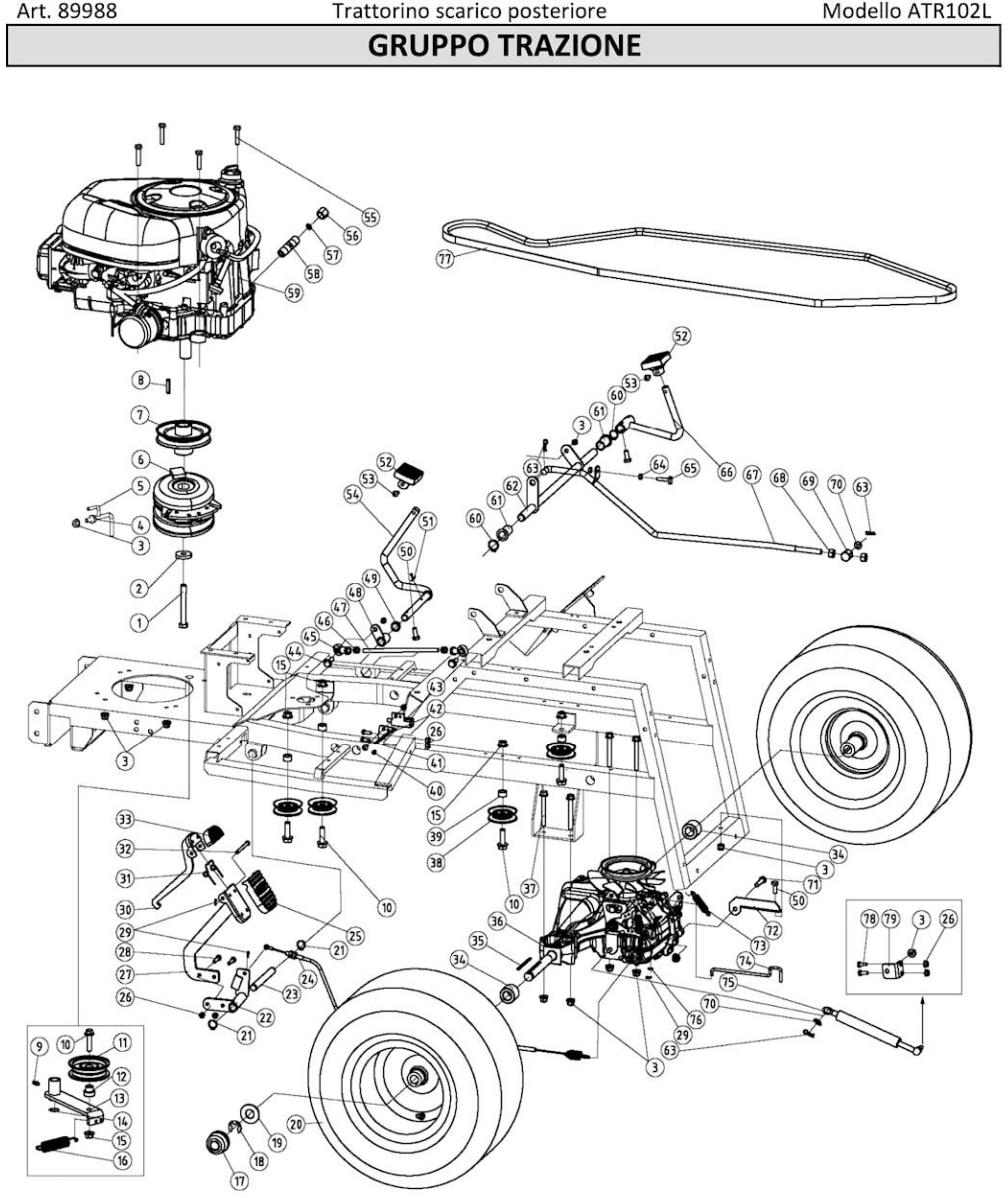

Pos.		Item	Price	Buy
1	Image coming soon	RZJ0483 Engine axial bolt 7/16-20unf	€0.12	Not available for order
5	Image coming soon	RZJ0482 Clutch support	€0.12	Not available for order
6	Image coming soon	RZJ0057 Electric clutch	€0.12	Not available for order
7	Image coming soon	RZJ0112 Engine pulley weldment	€0.12	Not available for order
8	Image coming soon	RZJ0297 Key 6.35x6.35x30	€0.12	Not available for order
11	Image coming soon	RZJ0151 Idler pulley	€0.12	Not available for order
12	Image coming soon	RZJ0140 Pulley bushing	€0.12	Not available for order
13	Image coming soon	RZJ0479 Idler pulley arm weldment	€0.12	Not available for order
15	Image coming soon	RZJ0284 Hexagon lock nut M10X1.25	€0.11	Not available for order
16	Image coming soon	RZJ0119 Traction spring	€0.12	Not available for order
17	Image coming soon	RZJ0128 Hub cover	€0.11	Not available for order
19	Image coming soon	RZJ0478 Washer ¢20x43x3	€0.12	Not available for order
20	Image coming soon	RZJ0130 Tyre 18x8.5-8	€0.12	Not available for order
22	Image coming soon	RZJ0179 Brake arm weldment	€0.12	Not available for order
23	Image coming soon	RZJ0488 Brake axle	€0.12	Not available for order
24	Image coming soon	RZJ0013 Brake cable assembly	€0.12	Not available for order
25	Image coming soon	RZJ0343 Brake pedal	€0.12	Not available for order
27	Image coming soon	RZJ0489 Brake pedal weldment	€0.12	Not available for order
30	Image coming soon	RZJ0181 Parking arm weldment	€0.12	Not available for order
31	Image coming soon	RZJ0120 Torsiong spring	€0.12	Not available for order
32	Image coming soon	RZJ0164 Pivot	€0.12	Not available for order
33	Image coming soon	RZJ0342 Parking pedal	€0.12	Not available for order
34	Image coming soon	RZJ0137 Spacer ring	€0.12	Not available for order
35	Image coming soon	RZJ0045 Key 4.85x4.85-60	€0.12	Not available for order
36	Image coming soon	RZJ0138 Hydro gear	€0.12	Not available for order
38	Image coming soon	RZJ0132 Idler pulley	€0.12	Not available for order
39	Image coming soon	RZJ0481 Spacer ring	€0.12	Not available for order
42	Image coming soon	RZJ0299 R-SW Base	€0.12	Not available for order
43		RZJ0048 AMA ATR92L Open Close Switch	€17.92
45	Image coming soon	RZJ0290 Joint bearing SIJK8C	€0.11	Not available for order
47	Image coming soon	RZJ0178 Pull rod	€0.12	Not available for order
48	Image coming soon	RZJ0177 Drive arm weldment	€0.12	Not available for order
52	Image coming soon	RZJ0320 Drive control pedal	€0.12	Not available for order
54	Image coming soon	RZJ0180 Forward arm	€0.12	Not available for order
56	Image coming soon	RZJ0183 Oil drain plug	€0.12	Not available for order
58	Image coming soon	RZJ0182 Oil drain tube	€0.12	Not available for order
61	Image coming soon	RZJ0348 Rubber bushing	€0.12	Not available for order
62	Image coming soon	RZJ0176 Cross shaft weldment	€0.12	Not available for order
65	Image coming soon	RZJ0487 Position control screw	€0.12	Not available for order
66	Image coming soon	RZJ0175 Reverse arm weldment	€0.12	Not available for order
67	Image coming soon	RZJ0174 Drive pull lever weldment	€0.12	Not available for order
69	Image coming soon	RZJ0484 Swivel jiont M10	€0.12	Not available for order
72	Image coming soon	RZJ0486 Transmission support	€0.12	Not available for order
73	Image coming soon	RZJ0118 Brake shoe return spring	€0.11	Not available for order
74	Image coming soon	RZJ0465 Pull lever	€0.12	Not available for order
75	Image coming soon	RZJ0134 Damper	€0.12	Not available for order
77	Image coming soon	RZJ0058 Belt AP2700	€0.12	Not available for order
79	Image coming soon	RZJ0485 Damper support	€0.12	Not available for order

Page 4 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	RZJ0128 Hub cover	€0.11	Not available for order
3	Image coming soon	RZJ0478 Washer ¢20x43x3	€0.12	Not available for order
4	Image coming soon	RZJ0470 Bearing washer	€0.12	Not available for order
6	Image coming soon	RZJ0129 Tyre 15x6-6	€0.12	Not available for order
7	Image coming soon	RZJ0135 R-stube axle weldment	€0.12	Not available for order
8	Image coming soon	RZJ0294 Join bearing	€11.59
11	Image coming soon	RZJ0071 Bush	€0.11	Not available for order
12	Image coming soon	RZJ0113 L-stube axle weldment	€0.12	Not available for order
13	Image coming soon	RZJ0160 Pull rod	€0.12	Not available for order
14	Image coming soon	RZJ0042 Hexagon nut 10-LH	€0.12	Not available for order
15	Image coming soon	RZJ0293 Join bearing	€0.12	Not available for order
16	Image coming soon	RZJ0395 Front beam weldment	€0.12	Not available for order
17	Image coming soon	RZJ0304 Rubbber cushion	€0.12	Not available for order
18	Image coming soon	RZJ0472 Pivot axis	€0.12	Not available for order
19	Image coming soon	RZJ0473 Bush	€0.12	Not available for order
21	Image coming soon	RZJ0476 Turning arm 1	€0.12	Not available for order
22	Image coming soon	RZJ0475 Turning arm 2	€0.12	Not available for order
27	Image coming soon	RZJ0284 Hexagon lock nut M10X1.25	€0.11	Not available for order
28	Image coming soon	RZJ0471 Hexagon bush	€0.12	Not available for order
31	Image coming soon	RZJ0082 Rubber ring	€0.12	Not available for order
32	Image coming soon	RZJ0474 Gear bracket	€0.12	Not available for order
34	Image coming soon	RZJ0071 Bush	€0.11	Not available for order
35	Image coming soon	RZJ0136 Gear	€0.12	Not available for order
37	Image coming soon	RZJ0481 Spacer ring	€0.12	Not available for order
38	Image coming soon	RZJ0292 Joint bearing SQ10-RS	€0.12	Not available for order
40	Image coming soon	RZJ0464 Pull rod	€0.12	Not available for order
44	Image coming soon	RZJ0079 Steering wheel	€0.12	Not available for order
46	Image coming soon	RZJ0477 Steering column	€0.12	Not available for order
48	Image coming soon	RZJ0161 Gear bracket	€0.12	Not available for order
49	Image coming soon	RZJ0099 Gear plate	€0.12	Not available for order
50	Image coming soon	RZJ0003 Bushing	€0.12	Not available for order

Page 5 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
2	Image coming soon	RZJ0348 Rubber bushing	€0.12	Not available for order
3	Image coming soon	RZJ0499 Lift cross shaft weldment	€0.12	Not available for order
8	Image coming soon	RZJ0466 Connection rod	€0.12	Not available for order
10	Image coming soon	RZJ0184 Pulling rod	€0.12	Not available for order
13	Image coming soon	RZJ0506 Swivel jiont 8	€0.12	Not available for order
15	Image coming soon	RZJ0505 Swivel jiont 12	€0.12	Not available for order
17	Image coming soon	RZJ0504 Swivel shaft	€0.12	Not available for order
18	Image coming soon	RZJ0507 Lift arm weldment	€0.12	Not available for order
19	Image coming soon	RZJ0503 Long spacer ring	€0.12	Not available for order
20	Image coming soon	RZJ0504 Swivel shaft	€0.12	Not available for order
21	Image coming soon	RZJ0310 Button	€0.11	Not available for order
22	Image coming soon	RZJ0312 Lift handle	€0.11	Not available for order
24	Image coming soon	RZJ0500 Push rod	€0.12	Not available for order
26	Image coming soon	RZJ0502 Pin retainer	€0.12	Not available for order
28	Image coming soon	RZJ0445 Pressure spring	€0.12	Not available for order
29	Image coming soon	RZJ0449 Spring retainer	€0.11	Not available for order
30	Image coming soon	RZJ0501 Lift hangdle weldment	€0.12	Not available for order

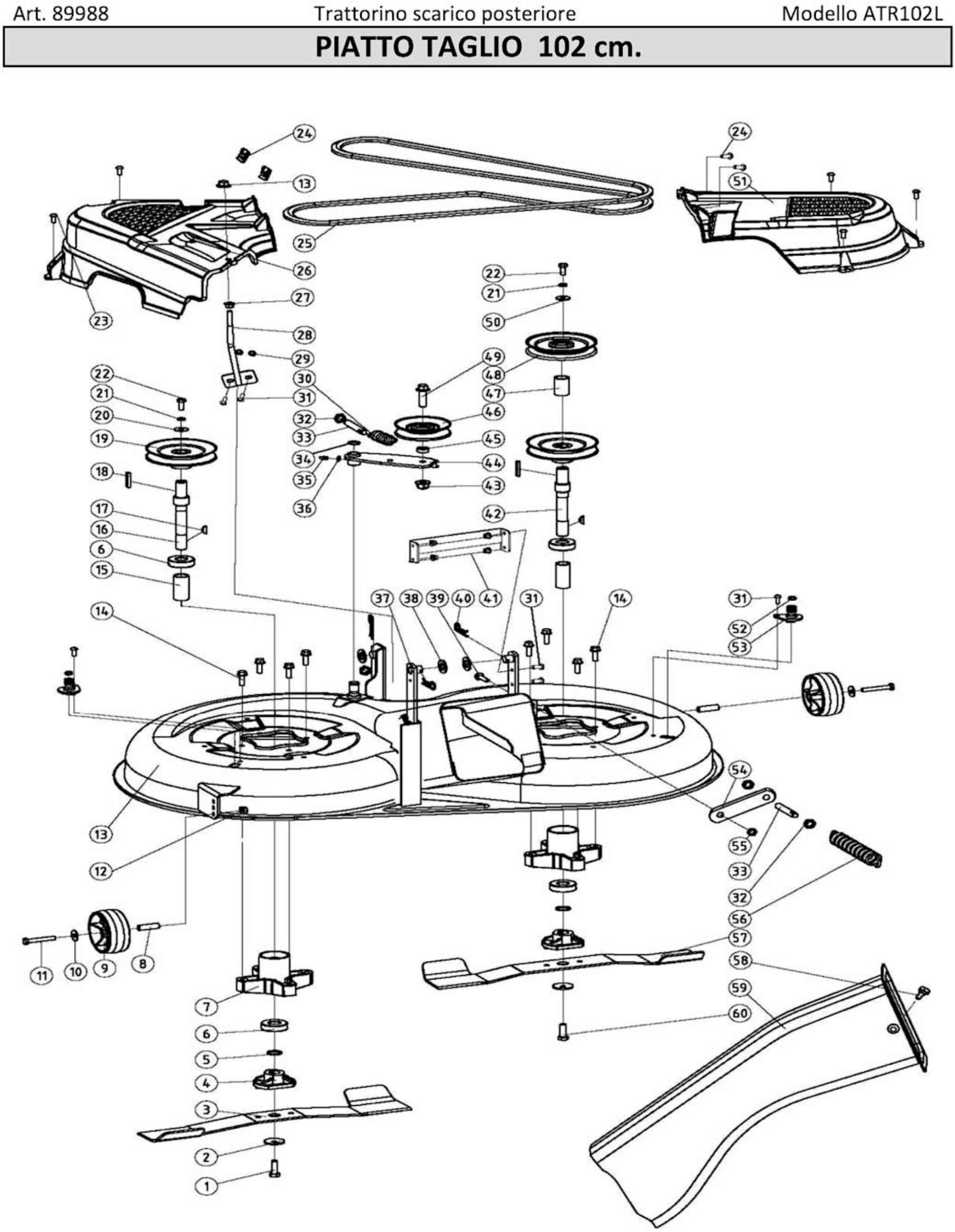

Page 6 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	RZJ0038 Bolt 3/8-24unf	€2.19
2	Image coming soon	RZJ0117 Dish washer	€0.11	Not available for order
3		RZJ0009 Left Blade for Lawn Tractor AMA ATR102B	€44.90
4		RZJ0092 Blade Hub for Lawn Tractor AMA ATS98L on Demand Only Call Us Before	€30.01
5	Image coming soon	RZJ0149 Spacer ring on Demand Only : Call us Before	€5.28
7		RZJ0091 Blade Boss for Lawn Tractor AMA ATR102B	€23.98
8	Image coming soon	RZJ0509 Pivot tube	€0.12	Not available for order
9	Image coming soon	RZJ0084 Wheeel	€0.12	Not available for order
13	Image coming soon	RZJ0389 Deck weldment	€0.12	Not available for order
15	Image coming soon	RZJ0148 Pivot tube	€0.12	Not available for order
16	Image coming soon	RZJ0147 Left blade axle	€35.92
17	Image coming soon	RZJ0296 Semi circular key 4x16	€2.17
18		RZJ0298 AMA Lawn Tractor ATR92L Woodruff Key 6x6x30	€2.21
19	Image coming soon	RZJ0146 Pulley weldment	€46.23
25		RZJ0061 Belt AA113 for Lawn Tractor AMA ATR102B	€106.07
26	Image coming soon	RZJ0351 Left pulley cover	€0.12	Not available for order
28	Image coming soon	RZJ0172 Cover bracket	€0.12	Not available for order
30	Image coming soon	RZJ0122 Traction spring	€0.12	Not available for order
33	Image coming soon	RZJ0510 Adjusting screw	€0.12	Not available for order
37	Image coming soon	RZJ0399 Hander plate weldment	€0.12	Not available for order
41	Image coming soon	RZJ0514 Connecting plate	€0.12	Not available for order
42		RZJ0152 Right Blade Axle for Lawn Tractors AMA ATR92L	€45.90
44	Image coming soon	RZJ0145 Idler pulley arm weldment	€0.12	Not available for order
45	Image coming soon	RZJ0508 Spacer	€0.12	Not available for order
46	Image coming soon	RZJ0151 Idler pulley	€0.12	Not available for order
47		RZJ0005 AMA Lawntractor ATR92L Pivot Tube	€6.71
48	Image coming soon	RZJ0133 Idler pulley	€0.12	Not available for order
51	Image coming soon	RZJ0352 Right pulley cover	€0.12	Not available for order
54	Image coming soon	RZJ0162 Spring bracket	€0.12	Not available for order
56	Image coming soon	RZJ0121 Traction spring	€0.12	Not available for order
57	Image coming soon	RZJ0010 Right blade	€44.90
58	Image coming soon	RZJ0143 Swivel bolt	€0.12	Not available for order
59	Image coming soon	RZJ0075 Collector channel	€36.88
60	Image coming soon	RZJ0037 LH Bolt 3/8-24unf	€2.08

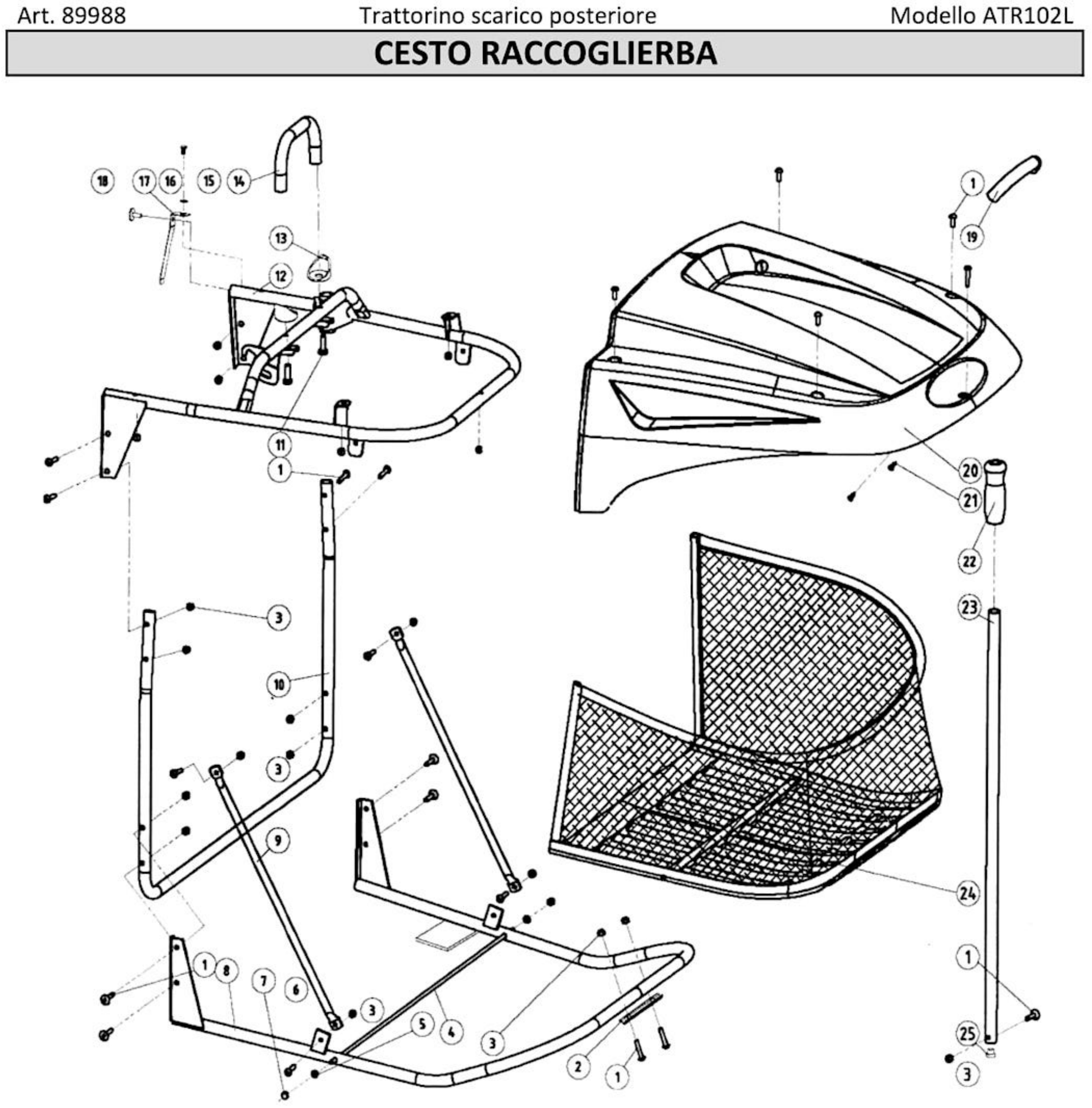

Page 7 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
2	Image coming soon	RZJ0171 Layer board	€0.12	Not available for order
4	Image coming soon	RZJ0512 Screw rod	€0.12	Not available for order
8	Image coming soon	RZJ0094 Bottom frame weldment	€0.12	Not available for order
9	Image coming soon	RZJ0397 Side stay pipe	€0.12	Not available for order
10	Image coming soon	RZJ0096 Front frame	€0.12	Not available for order
12	Image coming soon	RZJ0093 Top frame weldment	€0.12	Not available for order
13	Image coming soon	RZJ0353 Seal cap	€0.12	Not available for order
14	Image coming soon	RZJ0398 Front handle	€0.12	Not available for order
17	Image coming soon	RZJ0169 Spring fingers	€0.12	Not available for order
19	Image coming soon	RZJ0347 Rear handle	€0.12	Not available for order
20	Image coming soon	RZJ0346 Cover	€60.01
22	Image coming soon	RZJ0312 Lift handle	€0.11	Not available for order
23	Image coming soon	RZJ0511 Lever	€0.12	Not available for order
24	Image coming soon	RZJ0059 Grass catcher	€73.02
25	Image coming soon	RZJ0302 Core plug	€0.11	Not available for order

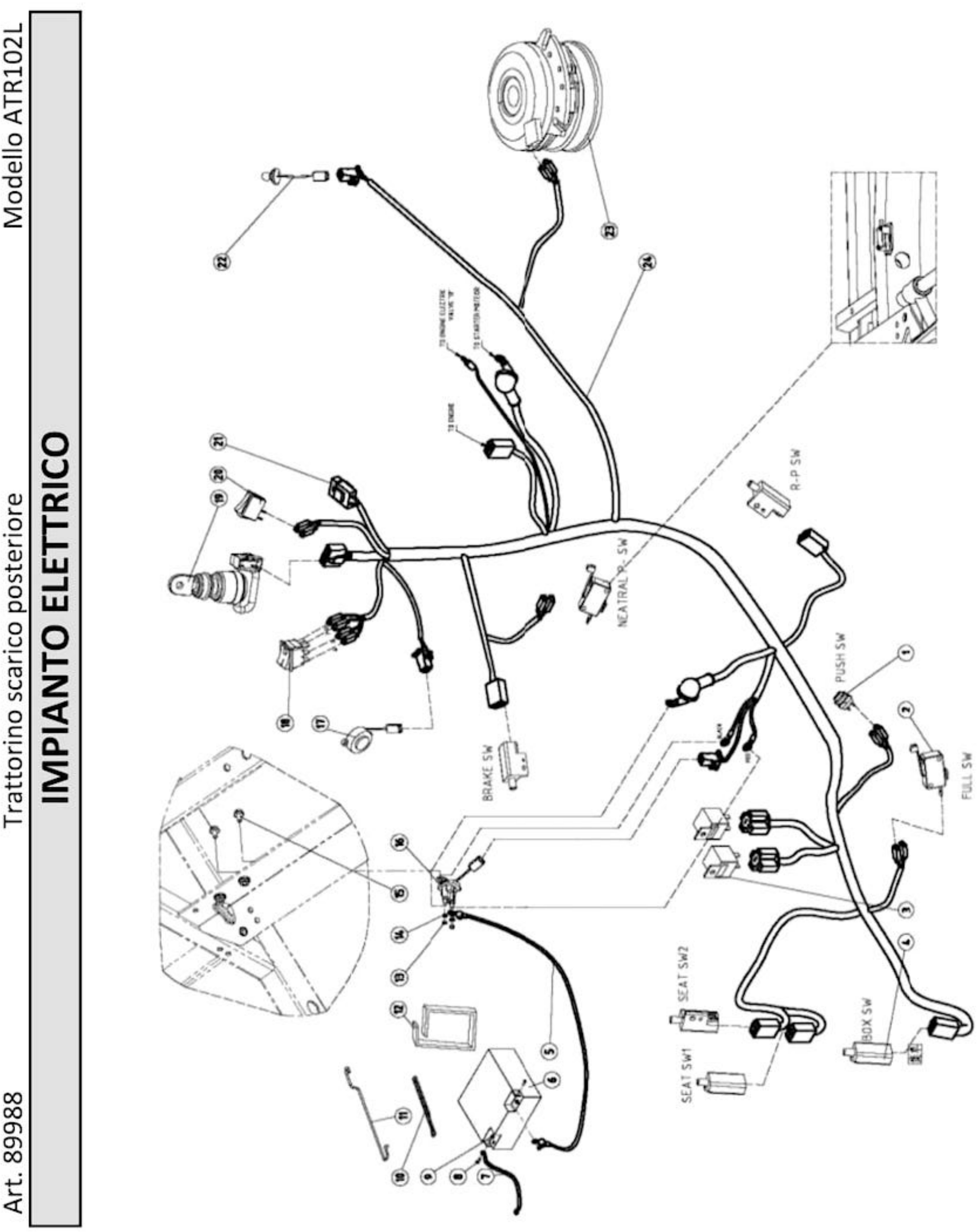

Page 8 View exploded

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	RZJ0155 Push swith	€10.14
2	Image coming soon	RZJ0050 Switch	€0.12	Not available for order
3	Image coming soon	RZJ0156 Relay	€0.12	Not available for order
4		RZJ0048 AMA ATR92L Open Close Switch	€17.92
6	Image coming soon	32660 Battery	€0.12	Not available for order
10	Image coming soon	RZJ0303 Rubber plate	€0.12	Not available for order
11	Image coming soon	RZJ0513 Stationary frame	€0.12	Not available for order
12	Image coming soon	RZJ0350 Rope	€0.12	Not available for order
16	Image coming soon	RZJ0056 Relay	€0.12	Not available for order
17	Image coming soon	RZJ0055 Buzzer	€0.12	Not available for order
18		RZJ0052 Clutch Switch for Lawn Tractors AMA ATR92L	€17.48
19		RZJ0049 Rotary Switch for Lawn Tractor AMA ATR102 on Demand Only	€22.84
20	Image coming soon	RZJ0051 Light switch	€0.12	Not available for order
23	Image coming soon	RZJ0057 Electric clutch	€0.12	Not available for order

Shipping and delivery information will be available shortly.

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102L – 89988.

For Availability and order management times, call our telephone numbers.

In the following table, look for the model of the Lawn Tractor and the respective parts of the code.

Lawn Tractor ATR102L – 89988
Cover Pag.1
#	Part Num.	Description
1	RZJ0332	Rear cover
2	RZJ0338	Right foot board
3	RZJ0339	Bottom plate
4		Screws M6x25
5	RZJ0337	Left foot board
6	RZJ0329	Left cover
7		Screw ST4.8x13
8	RZJ0080	Left light cover
9	RZJ0070	Front cover
10		Clamp
11	RZJ0468	Pin
12		Hair pin cotter
13	RZJ0081	Right light cover
14		Light
15	RZJ0331	Top cover
16		Screw ST4.2x10
17	RZJ0360	Front wind board
18	RZJ0330	Right cover
19	RZJ0340	Left wind board
20	RZJ0469	Spring fastener
21	RZJ0341	Right wind board
22		Hexagon lock nut M5
23	RZJ0334	Instrument board
24	RZJ0333	Shield
25		Screw M5x16
26		Hexagon bolt M6x16
27	RZJ0335	Cup support
28	RZJ0336	Handle guide plate
29	RZJ0052	Clutch switch
30	RZJ0049	Rotary Switch
31		Hexagon bolt M5x45
32	RZJ0370	Switch gland
33	RZJ0259	Guide sleeve
34	RZJ0260	Spring
35	RZJ0306	Rubber pad
36		Buckle nut M6
37		Hexagon lock nut M6
38	RZJ0048	Open Close Switch
39	RZJ0098	Seat switch base
40		Screw M6x16
Frame Pag.2
2	RZJ0497	Front cover bracket L
5	RZJ0393	Bumper weldment
6	RZJ0390	Frame weldment
7	RZJ0498	Front cover bracket R
8	RZJ0345	Bumper end lid
9	RZJ0490	Muffler cover
11	RZJ0517	Muffler
12	RZJ0163	Muffler base
15	RZJ0150	Tank cap
16	RZJ0277	Screw5/16-18UNC
17	RZJ0035	Vent-pipe washer
18	RZJ0286	Nut 5/16-18UNC
19	RZJ0159	Vent Pipe
20	RZJ0185	Vent pipe shield
22	RZJ0076	Tank
23	RZJ0496	Hood fastener
24	RZJ0509	Pivot tube
26		Hexagon nut M3
27		Spring washer 3
28	RZJ0055	Buzzer
29		Screw M3x10
30	RZJ0051	Light switch
32	RZJ0394	Front bracket weldment
33	RZJ0006	Throttle cable
35		Fuel tube
36		Tube hoop
37		Screw ST4.2x10
39	RZJ0048	switch
40	RZJ0491	Switch base
42	RZJ0141	Seat
43	RZJ0144	Seat mounting bracket
44	RZJ0143	Swivel bolt
48	RZJ0494	Spring flake
49	RZJ0344	Spring cap
52	RZJ0444	Seat spring
53	RZJ0493	Switch base
54	RZJ0492	Switch base weldment
55		Cotter pin 2x16
56	RZJ0050	Switch
57		Screw M3x20
58	RZJ0086	Hook
59	RZJ0085	Switch lever
61	RZJ0392	Swivel bracket weldment(R)
62	RZJ0391	Swivel bracket weldment(L)
63	RZJ0518	Rear baffle plate
64	RZJ0157	Tow attachment
65	RZJ0168	Brackrt for spring R
66	RZJ0167	Brackrt for spring L
67	RZJ0095	Pull hook
68	RZJ0111	Spring
69	RZJ0460	Pin screw
70	RZJ0064	Height control block
72	RZJ0495	Bracket
Traction Group Pag.3
1	RZJ0483	Engine axial bolt 7/16-20unf
5	RZJ0482	Clutch support
6	RZJ0057	Electric clutch
7	RZJ0112	Engine pulley weldment
8	RZJ0297	Key 6.35x6.35x30
9		Grease fitting M6
11	RZJ0151	Idler pulley
12	RZJ0140	Pulley bushing
13	RZJ0479	Idler pulley arm weldment
14		Axial elastic ring 16
15	RZJ0284	Hexagon nut M10x1.25
16	RZJ0119	Traction spring
17	RZJ0128	Hub cover
18		Snapring 15
19	RZJ0478	Washer ¢20x43x3
20	RZJ0130	Tyre 18x8.5-8
21		Axial elastic ring 14
22	RZJ0179	Brake arm weldment
23	RZJ0488	Brake axle
24	RZJ0013	Brake cable assembly
25	RZJ0343	Brake pedal
27	RZJ0489	Brake pedal weldment
29		Hair pin
30	RZJ0181	Parking arm weldment
31	RZJ0120	Torsiong spring
32	RZJ0164	Pivot
33	RZJ0342	Parking pedal
34	RZJ0137	Spacer ring
35	RZJ0045	Key 4.85x4.85-60
36	RZJ0138	Hydro gear
38	RZJ0132	Idler pulley
39	RZJ0481	Spacer ring
42	RZJ0299	R-SW Base
43	RZJ0048	switch
45	RZJ0290	Jion bearingS1JK8C
47	RZJ0178	Pull rod
48	RZJ0177	Drive arm weldment
51		Cotter pin 3.2x25
52	RZJ0320	Drive control pedal
54	RZJ0180	Forward arm
56	RZJ0183	Oil drain plug
57		O sealing ring11.2x2.65
58	RZJ0182	Oil drain tube
59		Engine
60		Axial elastic ring 16
61	RZJ0348	Rubber bushing
62	RZJ0176	Cross shaft weldment
63		Hair pin cotter
65	RZJ0487	Position control screw
66	RZJ0175	Reverse arm weldment
67	RZJ0174	Drive pull lever weldment
68		Hexagon nut M10
69	RZJ0484	Swivel jiont M10
72	RZJ0486	Transmission support
73	RZJ0118	Traction spring
74	RZJ0465	Pull lever
75	RZJ0134	Damper
77	RZJ0058	Belt AP2700
79	RZJ0485	Damper support
Steering Pag.4
1	RZJ0128	Hub cover
2		Axial elastic ring 20
3	RZJ0478	Washer
4	RZJ0470	Bearing washer
5		Bearing 61904
6	RZJ0129	Tyre 15x6-6
7	RZJ0135	R-stube axle weldment
8	RZJ0294	Join bearing
9		Hexagon nut M10
10		Washer 20
11	RZJ0071	Bushing
12	RZJ0113	L-stube axle weldment
13	RZJ0160	Pull rod
14	RZJ0042	Hexagon nut 10-LH
15	RZJ0293	Join bearing
16	RZJ0395	Front beam weldment
17	RZJ0304	Rubbber cushion
18	RZJ0472	Pivot axis
19	RZJ0473	Bush
20		Screw M10x50
21	RZJ0476	Turning arm 1
22	RZJ0475	Turning arm 2
23		Hexagon bolt M8x50
24		Washer 8
25		Spring washer 8
26		Hexagon bolt M8x20
27	RZJ0284	Hexagon lock nut M10X1.25
28	RZJ0471	Hexagon bush
29		Grease fitting M6
30		Washer 16
31	RZJ0082	Rubber ring
32	RZJ0474	Gear bracket
33		Hexagon lock nut M8
34	RZJ0071	Hexagon rubber bush
35	RZJ0136	Gear
36		Spring pin 6x26
37	RZJ0481	Spacer ring
38	RZJ0292	Joint bearing SQ10-RS
39		Hexagon nut M10
40	RZJ0464	Pull rod
41		WasherФ16281.5
42		Hexagon bolt M10x40
43		Screw M6x45
44	RZJ0079	Steering wheel
45		Hexagon lock nut M6
46	RZJ0477	Steering column
47		Hexagon bolt M10x35
48	RZJ0161	Gear bracket
49	RZJ0099	Gear plate
50	RZJ0003	Bushing
51		Seeger 15

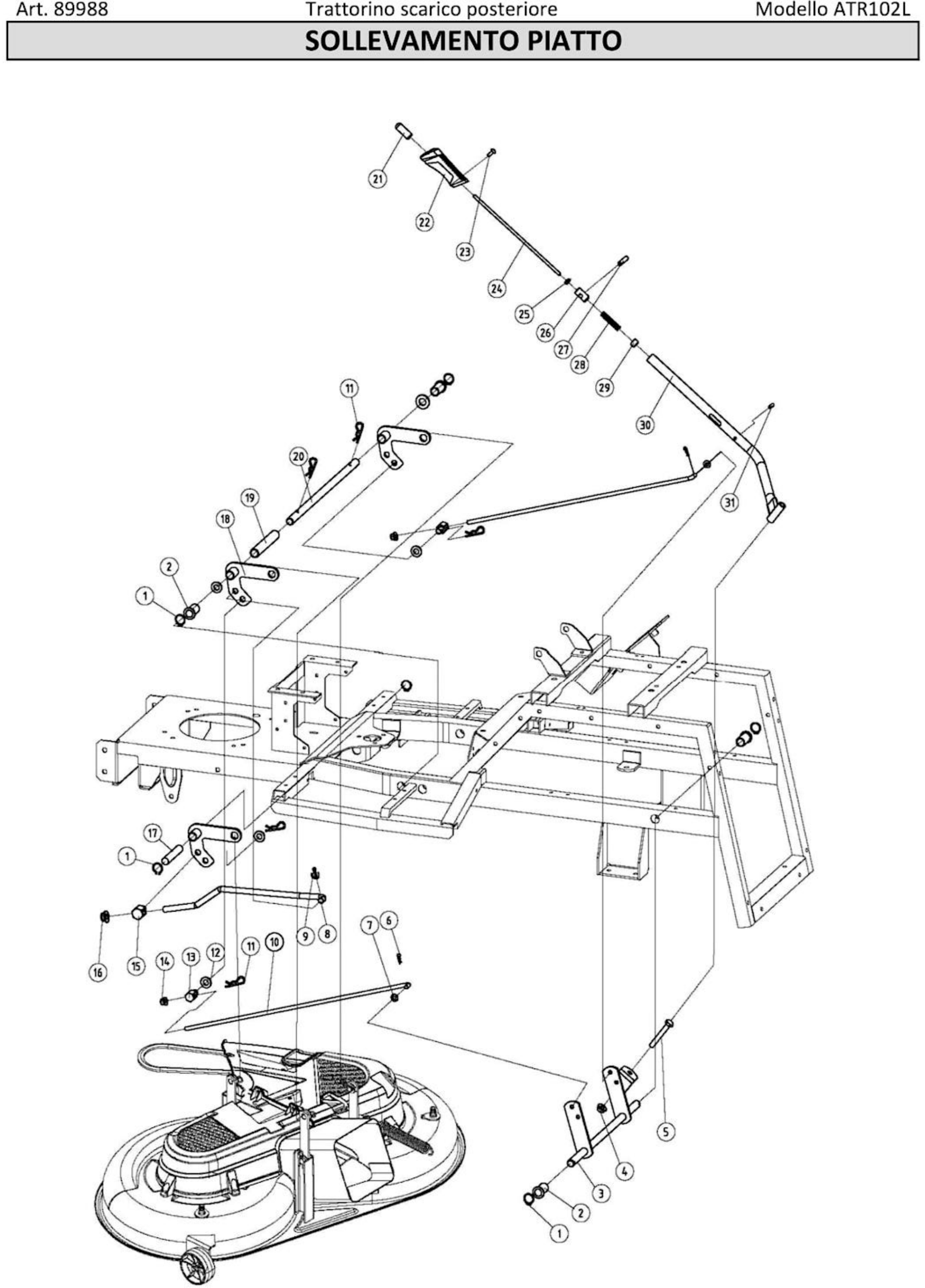

Flat Lifting Pag.5
1		Axial elastic ring 15
2	RZJ0348	Rubber bushing
3	RZJ0499	Lift cross shaft weldment
4		Hexagon nut M10
5		Hexagon bolt M10x70
6		Hair pin cotter
7		Washer 8
8	RZJ0466	Connection rod
9		Cotter pin 4x28
10	RZJ0184	Pulling rod
11		Hair pin cotter 3
12		Washer 12
13	RZJ0506	Swivel jiont 8
14		Hexagon lock nut M8
15	RZJ0505	Swivel jiont 12
16		Hexagon lock nut M12
17	RZJ0504	Swivel shaft
18	RZJ0507	Lift arm weldment
19	RZJ0503	Long spacer ring
20	RZJ0504	Lift swivel shaft
21	RZJ0310	Rubber button
22	RZJ0312	Lift handle
23		Screw M5*8
24	RZJ0500	Push rod
25		Hexagon nut M6
26	RZJ0502	Pin retainer
27		Spring pin 8x40
28	RZJ0445	Pressure spring
29	RZJ0449	Spring retainer
30	RZJ0501	Lift hangdle weldment
31		Spring pin 6x26
Plate Cut 102 cm Pag.6
1	RZJ0038	Bolt 3/8-24unf
2	RZJ0117	Saucer washer
3	RZJ0009	Left blade
4	RZJ0092	Blade Hub
5	RZJ0149	Spacer ring
6		Bearing 6204-2RZ
7	RZJ0091	Blade Boss
8	RZJ0509	Pivot tube
9	RZJ0084	Wheeel
12		Hexagon lock nut M8
13	RZJ0389	Deck weldment
14		Hexagon bolt M8x25
15	RZJ0148	Pivot tube
16	RZJ0147	Left blade axle
17	RZJ0296	Woodruff key 4x16
18	RZJ0298	Woodruff Key 6x6x30
19	RZJ0146	Pulley weldment
21		Spring washer 8
23		Hexagon screws M6*16
24		Buckle nut M6
25	RZJ0061	Belt AA113
26	RZJ0351	Left pulley cover
28	RZJ0172	Cover bracket
29		Hexagon lock nut M6
30	RZJ0122	Traction spring
31		Hexgon bolt M6x20
32		Hexagon nut M12
33	RZJ0510	Adjusting screw
34		Axial elastic ring 16
35		Grease fitting M6
36		Washer 6
37	RZJ0399	Hander plate weldment
38		Washer 16
39		Hexagob bolt M10x25
40		Hair pin cotter 3
41	RZJ0514	Connecting plate
42	RZJ0152	Right blade axle
43		Hexagon lock nut M12
44	RZJ0145	Idler pulley arm weldment
45	RZJ0508	Spacer
46	RZJ0151	Idler pulley
47	RZJ0005	Pivot tube
48	RZJ0133	Idler pulley
49		Hexagon bolt M12x45
50		Washer 8
51	RZJ0352	Right pulley cover
52		O sealing ring11.2x2.65
53		Water nozzle
54	RZJ0162	Spring bracket
55		Hexagon lock nut M10
56	RZJ0121	Traction spring
57	RZJ0010	Right blade
58	RZJ0143	Swivel bolt
59	RZJ0075	Collector channel
60	RZJ0037	LH Bolt 3/8-24unf
Gras Basket Pag.7
2	RZJ0171	Layer board
4	RZJ0512	Screw rod
8	RZJ0094	Bottom frame weldment
9	RZJ0397	Side stay pipe
10	RZJ0096	Front frame
12	RZJ0093	Top frame weldment
13	RZJ0353	Seal cap
14	RZJ0398	Front handle
15		Washer 5
16		Screw M5x16
17	RZJ0169	Spring fingers
19	RZJ0347	Rear handle
20	RZJ0346	Cover
21		Screw ST4.8x13
22	RZJ0312	Handle
23	RZJ0511	Lever
24	RZJ0059	Grass catcher
25	RZJ0302	Bumper
Electrical system Pag.8
1	RZJ0155	Push swith
2	RZJ0050	Switch
3	RZJ0156	Relay
4	RZJ0048	switch
5		Starter wire
6	32660	Battery
7		Engine grounding wire
8		Screw M5x16
9		Hexagon lock nut M5
10	RZJ0303	Rubber plate
11	RZJ0513	Stationary frame
12	RZJ0350	Rope
13		Hexagon nut M6
14		Spring washer 6
15		Hexagon bolt M6x16
16	RZJ0056	Relay
17	RZJ0055	Buzzer
18	RZJ0052	Clutch switch
19	RZJ0049	Engine lock
20	RZJ0051	Light switch
21		Fuse
22		Light
23	RZJ0057	Electric clutch
24		Power line

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference AMA Garden ATR102L – 89988

Available 12 Items

Data sheet

MORE INFO:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Lawn Tractor

Specific References

Condition New

Download

Diagram AMA ATR102L

Download (1.22MB)

A.M.A. S.p.A. SKU: RZJ0152

Right Blade Axle for Lawn Tractors AMA ATR92L

Right Blade Axle for Lawn Tractors AMA ATR92L Original spare part AMA Garden, Right Blade Axle for Lawn Tractors ATR92L - ATR102B - ATR1022L. Part for the following products: - Lawn...

Usually Ships in: 10 Business Days Approx. €45.90

Details

A.M.A. S.p.A. SKU: RZJ0052

Clutch Switch for Lawn Tractors AMA ATR92L

Clutch Switch for Lawn Tractors AMA ATR92L Original spare part AMA Garden, Clutch Switch for Lawn Tractors ATR92L - ATR102B - ATR92L Part for the following products: - Lawn...

on 10 Business Days Approx €17.48

Details

A.M.A. S.p.A. SKU: RZJ0061

Belt AA113 for Lawn Tractor AMA ATR102B

Belt AA113 for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Belt AA113 for 102 cm Plate for Lawn Tractor ATR102B - ATR102L Part for the following products: - Lawn Tractor ATR102B...

on 7/10 Business Days Approx. €106.07

Details

A.M.A. S.p.A. SKU: RZJ0091

Blade Boss for Lawn Tractor AMA ATR102B

Blade Boss for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Blade Boss for Lawn Tractors ATR102B - ATR102L Part for the following products: - Lawn Tractor ATR102B – 89977...

Last items in stock €23.98

Details

A.M.A. S.p.A. SKU: RZJ0009

Left Blade for Lawn Tractor AMA ATR102B

Left Blade for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Left Blade for Lawn Tractor ATR102B - ATR102L Part for the following products: - Lawn Tractor ATR102B – 89977 - Lawn Tractor ATR102L – 89988 - Code : RZJ0009

on 10/15 Business Days Approx. €44.90

Details

A.M.A. S.p.A. SKU: RZJ0092

Blade Hub for Lawn Tractor AMA ATS98L

Blade Hub for Lawn Tractor AMA ATS98L Original spare part AMA Garden, Blade Hub for Lawn Tractor ATS98L – ATR102B - RIDER ARR62L - ATR92L - ATR102L. Part for the...

on Demand Only Call Us Before €30.01

Details

A.M.A. S.p.A. SKU: RZJ0049

Rotary Switch for Lawn Tractor AMA ATR102

Rotary Switch for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Rotary Switch Complete for Lawn Tractor ATR102B - ATR102L Part for the following products: - Lawn Tractor ATR102B – 89977 - Lawn Tractor ATR102L – 89988 -...

Last items in stock €22.84

Details

A.M.A. S.p.A. SKU: RZJ0298

AMA Lawn Tractor ATR92L Woodruff Key 6x6x30

AMA Lawn Tractor ATR92L Woodruff Key 6x6x30 Original spare part AMA Garden, Woodruff Key 6x6x30 for Lawn Tractors ATR92L - ATR102B - ATR92L Part for the following products: - Lawn Tractor ATR92L -...

on 10 Business Days Approx €2.21

Details

A.M.A. S.p.A. SKU: RZJ0048

AMA ATR92L Open Close Switch

AMA ATR92L Open Close Switch Original spare part AMA Garden,Open Close Switch for Lawn Tractors ATR92L - ATR102B - ATR1022L. Part for the following products: - Lawn Tractor RIDER ARR62L - 84890 - Lawn Tractor ATR92L - 90025 -...

AVAILABLE €17.92

Details

A.M.A. S.p.A. SKU: RZJ0005

AMA Lawntractor ATR92L Pivot Tube

AMA Lawntractor ATR92L Pivot Tube Original AMA Garden, Pulley Pivot Tube for Lawntractor ATR92L - ATR102B. Parts for the following products: - Lawntractor ATR92L - 90025 - Lawntractor...

AVAILABLE €6.71

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Ama Spare Parts for Lawn Tractor ATR102L – 89988

Data sheet

Specific References

Download

Diagram AMA ATR102L

You might also like

Products

News

Notes

Our company
