Ama Spare Parts for Lawn Tractor ATR102B – 89977

SKU: AMA Garden ATR102B – 89977
€48.28
VAT included

Ama Spare Parts for Lawn Tractor ATR102B – 89977

Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.

For Availability and order management times, call our telephone numbers.
Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Online only
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977
  • Ama Spare Parts for Lawn Tractor ATR102B – 89977

Ama Spare Parts for Lawn Tractor ATR102B – 89977

SKU: AMA Garden ATR102B – 89977 Condition: New
€48.28
VAT included

Ama Spare Parts for Lawn Tractor ATR102B – 89977

Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.

For Availability and order management times, call our telephone numbers.
settings 21 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

21 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon RZJ0155 Push swith €10.14
42
Right Blade Axle for Lawn Tractors AMA ATR92L RZJ0152 Right Blade Axle for Lawn Tractors AMA ATR92L €45.90
47
AMA Lawntractor ATR92L Pivot Tube RZJ0005 AMA Lawntractor ATR92L Pivot Tube €6.71
59
photo_cameraImage coming soon RZJ0075 Collector channel €46.88
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
29
Clutch Switch for Lawn Tractors AMA ATR92L RZJ0052 Clutch Switch for Lawn Tractors AMA ATR92L €17.48
30
Rotary Switch for Lawn Tractor AMA ATR102 RZJ0049 Rotary Switch for Lawn Tractor AMA ATR102 €22.84
38
AMA ATR92L Open Close Switch RZJ0048 AMA ATR92L Open Close Switch €17.92
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
39
AMA ATR92L Open Close Switch RZJ0048 AMA ATR92L Open Close Switch €17.92
57
photo_cameraImage coming soon RZJ0010 Right blade €55.01
60
photo_cameraImage coming soon RZJ0037 LH Bolt 3/8-24unf €2.08
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
43
AMA ATR92L Open Close Switch RZJ0048 AMA ATR92L Open Close Switch €17.92
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
8
photo_cameraImage coming soon RZJ0294 Join bearing €11.59
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon RZJ0038 Bolt 3/8-24unf €2.19
3
Left Blade for Lawn Tractor AMA ATR102B RZJ0009 Left Blade for Lawn Tractor AMA ATR102B €62.70
4
Blade Hub for Lawn Tractor AMA ATS98L RZJ0092 Blade Hub for Lawn Tractor AMA ATS98L €30.01
5
photo_cameraImage coming soon RZJ0149 Spacer ring €4.28
7
Blade Boss for Lawn Tractor AMA ATR102B RZJ0091 Blade Boss for Lawn Tractor AMA ATR102B €23.98
16
photo_cameraImage coming soon RZJ0147 Left blade axle €35.92
17
photo_cameraImage coming soon RZJ0296 Semi circular key 4x16 €2.17
18
AMA Lawn Tractor ATR92L Woodruff Key 6x6x30 RZJ0298 AMA Lawn Tractor ATR92L Woodruff Key 6x6x30 €2.21
19
photo_cameraImage coming soon RZJ0146 Pulley weldment €46.23
25
Belt AA113 for Lawn Tractor AMA ATR102B RZJ0061 Belt AA113 for Lawn Tractor AMA ATR102B €106.07
42
Right Blade Axle for Lawn Tractors AMA ATR92L RZJ0152 Right Blade Axle for Lawn Tractors AMA ATR92L €45.90
47
AMA Lawntractor ATR92L Pivot Tube RZJ0005 AMA Lawntractor ATR92L Pivot Tube €6.71
57
photo_cameraImage coming soon RZJ0010 Right blade €55.01
59
photo_cameraImage coming soon RZJ0075 Collector channel €46.88
60
photo_cameraImage coming soon RZJ0037 LH Bolt 3/8-24unf €2.08

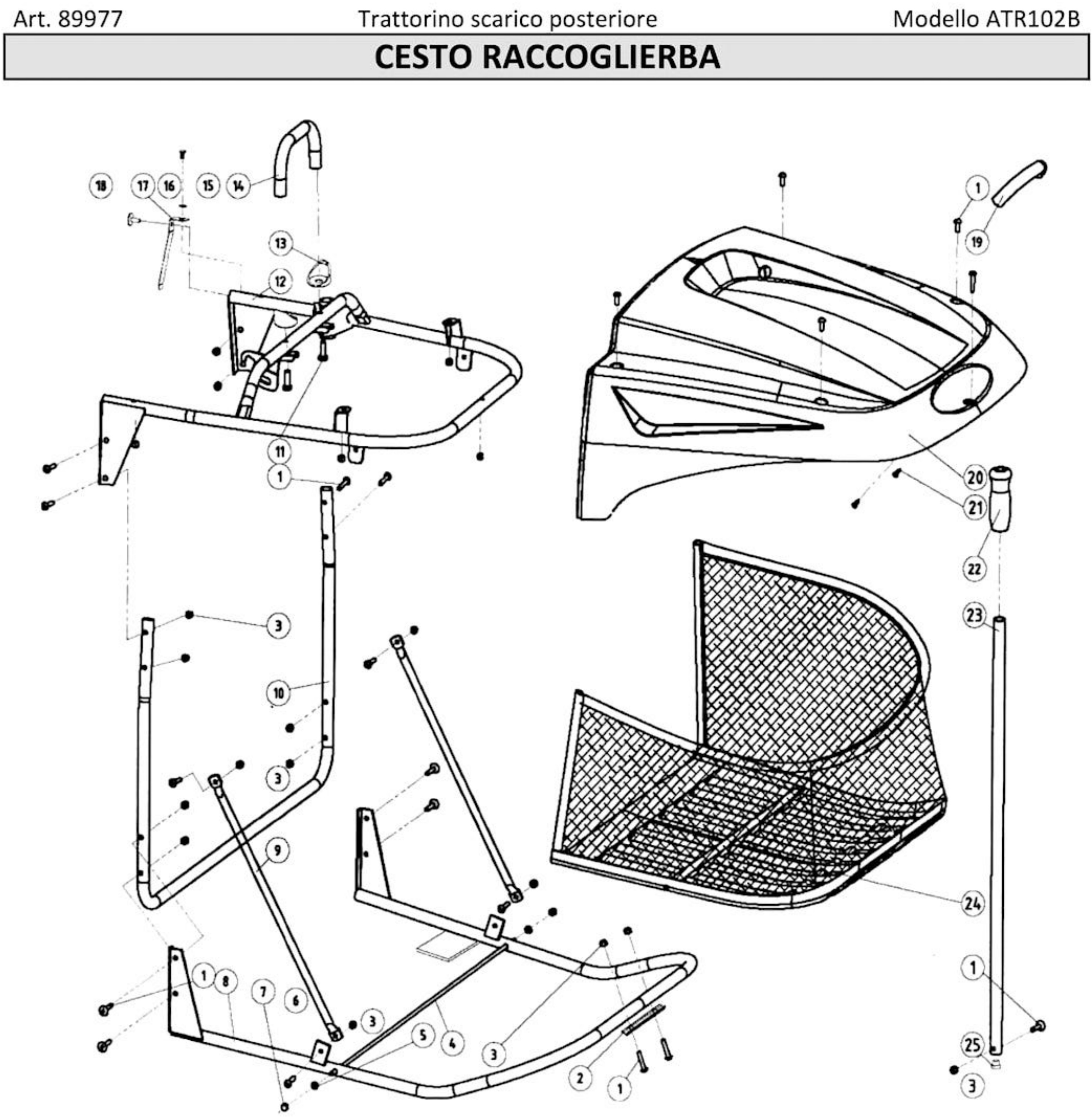

Page 8 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
24
photo_cameraImage coming soon RZJ0059 Grass catcher €73.02
Page 9 local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon RZJ0155 Push swith €10.14
4
AMA ATR92L Open Close Switch RZJ0048 AMA ATR92L Open Close Switch €17.92
18
Clutch Switch for Lawn Tractors AMA ATR92L RZJ0052 Clutch Switch for Lawn Tractors AMA ATR92L €17.48
19
Rotary Switch for Lawn Tractor AMA ATR102 RZJ0049 Rotary Switch for Lawn Tractor AMA ATR102 €22.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawn Tractor ATR102B – 89977

Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.

For Availability and order management times, call our telephone numbers.

In the following table, look for the model of the Lawn Tractor and the respective parts of the code.
AMA Garden ATR102B – 89977

AMA Garden Lawn Tractor ATR102B – 89977

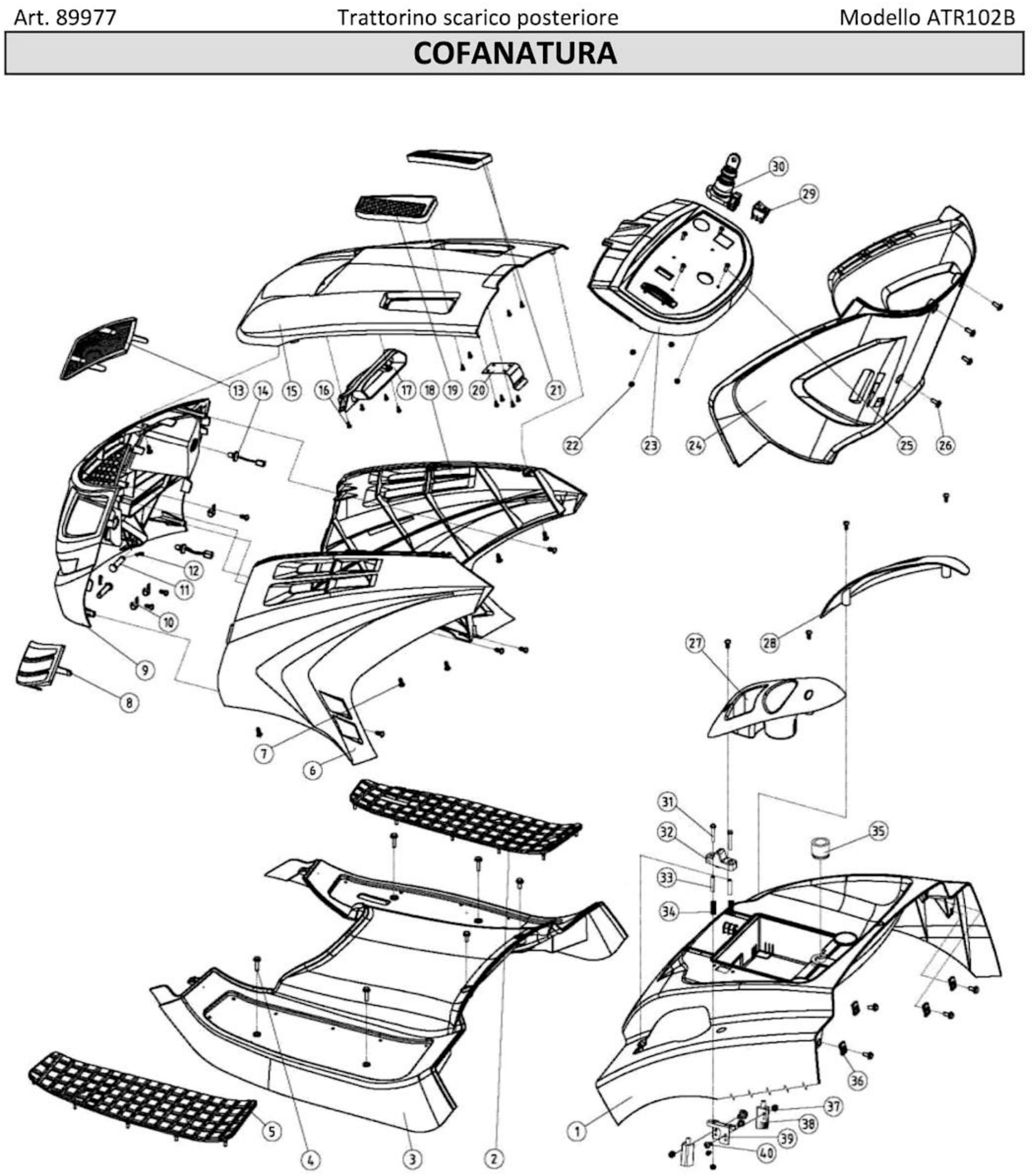

Cover Pag.1
# Part Num. Description
1 RZJ0332 Rear cover
2 RZJ0338 Right foot board
3 RZJ0339 Bottom plate
4 Screws M6x25
5 RZJ0337 Left foot board
6 RZJ0329 Left cover
7 Screw ST4.8x13
8 RZJ0080 Left light cover
9 RZJ0070 Front cover
10 Clamp
11 RZJ0468 Pin
12 Hair pin cotter
13 RZJ0081 Right light cover
14 RZJ0331 Light
15 Top cover
16 Screw ST4.2x10
17 RZJ0360 Front wind board
18 RZJ0330 Right cover
19 RZJ0340 Left wind board
20 RZJ0469 Spring fastener
21 RZJ0341 Right wind board
22 Hexagon lock nut M5
23 RZJ0334 Instrument board
24 RZJ0333 Shield
25 Screw M5x16
26 Hexagon bolt M6x16
27 RZJ0335 Cup support
28 RZJ0336 Handle guide plate
29 RZJ0052 Clutch switch
30 RZJ0049 Rotary Switch
31 Hexagon bolt M5x45
32 Switch gland
33 RZJ0370 Guide sleeve
34 RZJ0259 Spring
35 RZJ0260 Rubber pad
36 RZJ0306 Buckle nut M6
37 Hexagon lock nut M6
38 RZJ0048 Open Close Switch
39 RZJ0098 Seat switch base
40 Screw M6x16

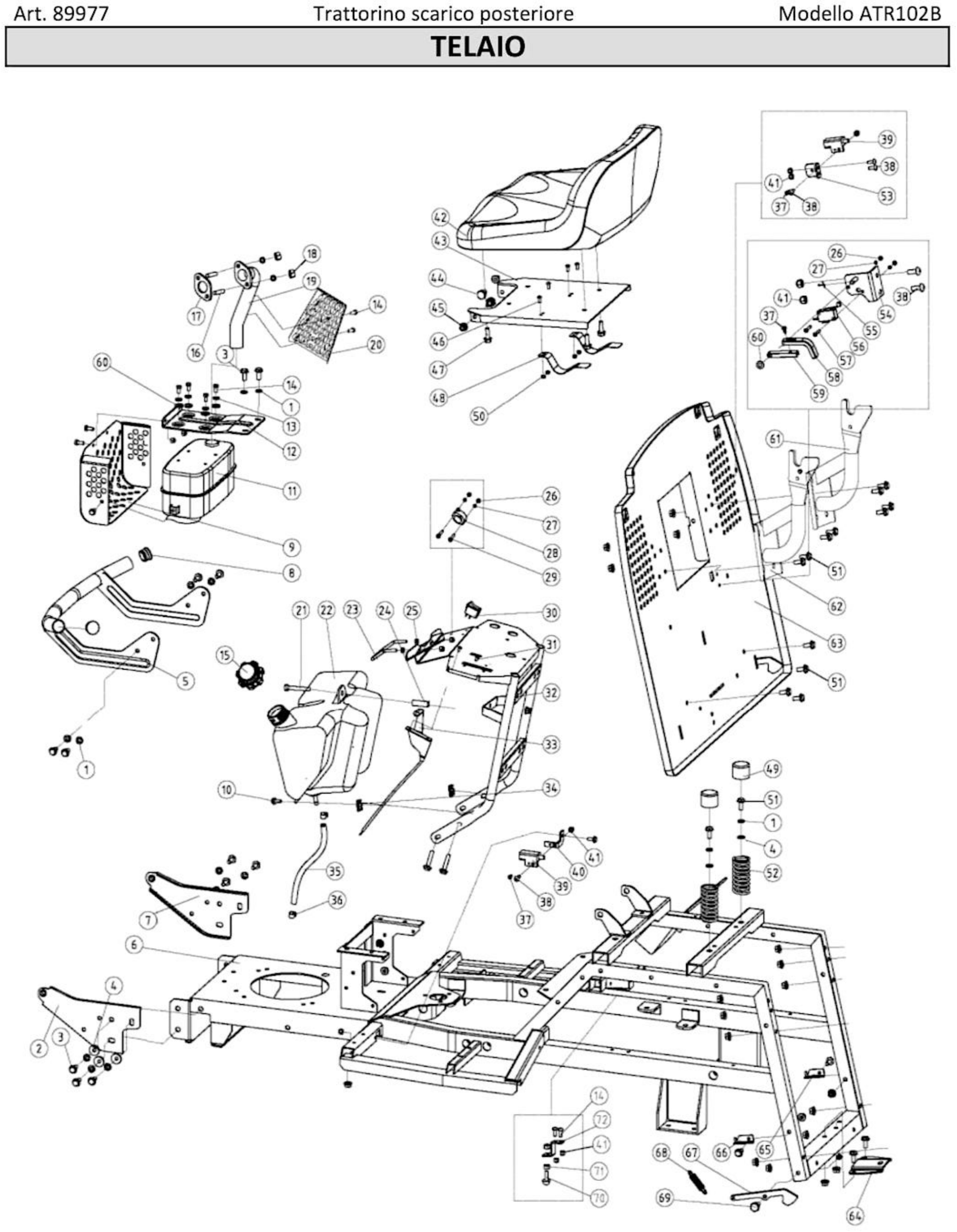

Frame Pag.2
2 RZJ0497 Front cover bracket L
5 RZJ0393 Bumper weldment
6 RZJ0390 Frame weldment
7 RZJ0498 Front cover bracket R
8 RZJ0345 Bumper end lid
9 RZJ0490 Muffler cover
11 RZJ0517 Muffler
12 RZJ0163 Muffler base
15 RZJ0150 Tank cap
16 RZJ0277 Screw5/16-18UNC
17 RZJ0035 Vent-pipe washer
18 RZJ0286 Nut 5/16-18UNC
19 RZJ0159 Vent Pipe
20 RZJ0185 Vent pipe shield
22 RZJ0076 Tank
23 RZJ0496 Hood fastener
24 RZJ0509 Pivot tube
26 Hexagon nut M3
27 Spring washer 3
28 RZJ0055 Buzzer
29 Screw M3x10
30 RZJ0051 Light switch
32 RZJ0394 Front bracket weldment
33 RZJ0006 Throttle cable
35 Fuel tube
36 Tube hoop
37 Screw ST4.2x10
39 RZJ0048 switch
40 RZJ0491 Switch base
42 RZJ0141 Seat
43 RZJ0144 Seat mounting bracket
44 RZJ0143 Swivel bolt
48 RZJ0494 Spring flake
49 RZJ0344 Spring cap
52 RZJ0444 Seat spring
53 RZJ0493 Switch base
54 RZJ0492 Switch base weldment
55 Cotter pin 2x16
56 RZJ0050 Switch
57 Screw M3x20
58 RZJ0086 Hook
59 RZJ0085 Switch lever
61 RZJ0392 Swivel bracket weldment(R)
62 RZJ0391 Swivel bracket weldment(L)
63 RZJ0518 Rear baffle plate
64 RZJ0157 Tow attachment
65 RZJ0168 Brackrt for spring R
66 RZJ0167 Brackrt for spring L
67 RZJ0095 Pull hook
68 RZJ0111 Spring
69 RZJ0460 Pin screw
70 RZJ0064 Height control block
72 RZJ0495 Bracket

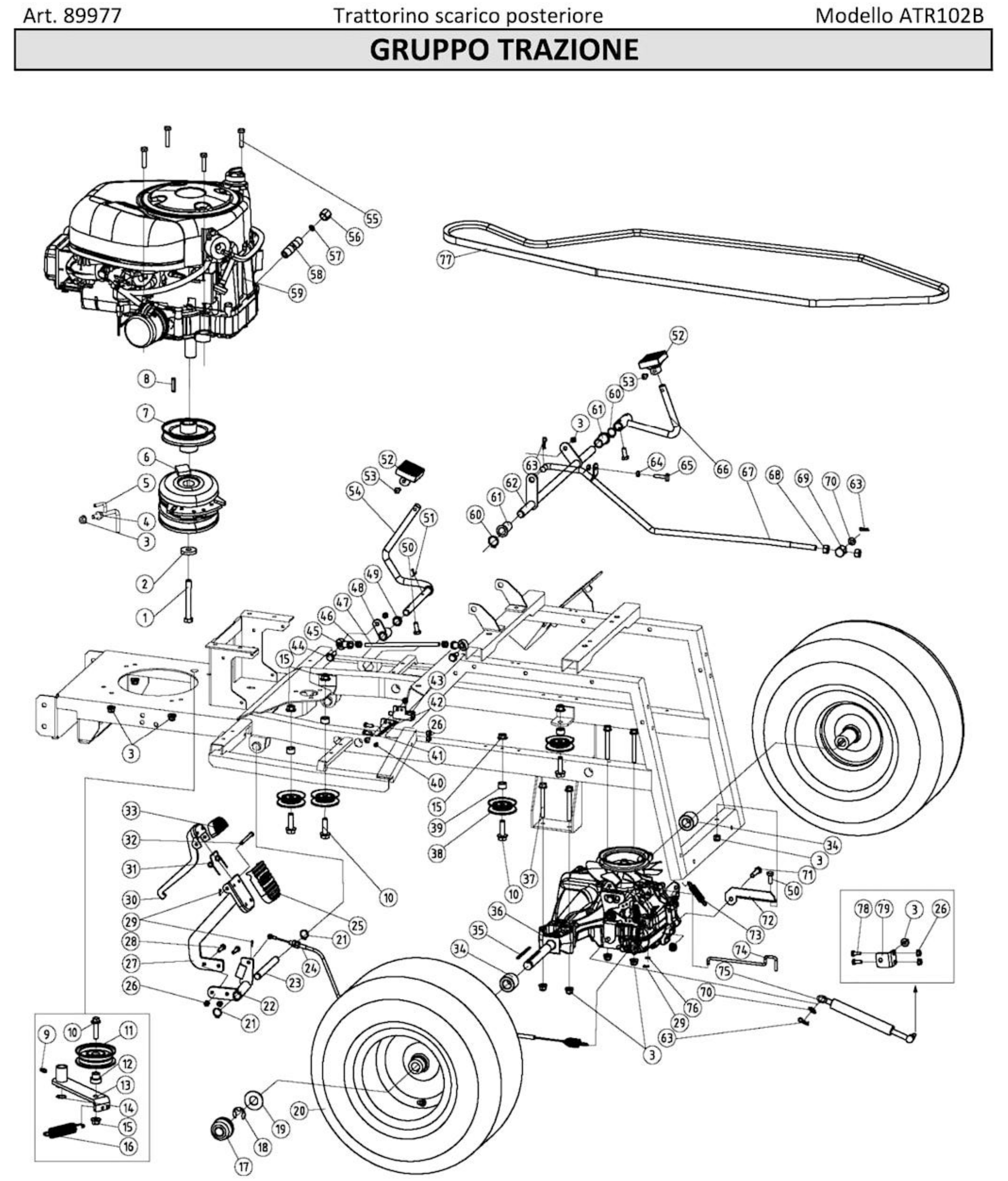

Traction Group Pag.3
1 RZJ0483 Engine axial bolt 7/16-20unf
5 RZJ0482 Clutch support
6 RZJ0057 Electric clutch
7 RZJ0112 Engine pulley weldment
8 RZJ0297 Key 6.35x6.35x30
9 Grease fitting M6
11 RZJ0151 Idler pulley
12 RZJ0140 Pulley bushing
13 RZJ0479 Idler pulley arm weldment
14 Axial elastic ring 16
15 RZJ0284 Hexagon nut M10x1.25
16 RZJ0119 Traction spring
17 RZJ0128 Hub cover
18 Snapring 15
19 RZJ0478 Washer ¢20x43x3
20 RZJ0130 Tyre 18x8.5-8
21 Axial elastic ring 14
22 RZJ0179 Brake arm weldment
23 RZJ0488 Brake axle
24 RZJ0013 Brake cable assembly
25 RZJ0343 Brake pedal
27 RZJ0489 Brake pedal weldment
29 Hair pin
30 RZJ0181 Parking arm weldment
31 RZJ0120 Torsiong spring
32 RZJ0164 Pivot
33 RZJ0342 Parking pedal
34 RZJ0137 Spacer ring
35 RZJ0045 Key 4.85x4.85-60
36 RZJ0138 Hydro gear
38 RZJ0132 Idler pulley
39 RZJ0481 Spacer ring
42 RZJ0299 R-SW Base
43 RZJ0048 switch
45 RZJ0290 Jion bearingS1JK8C
47 RZJ0178 Pull rod
48 RZJ0177 Drive arm weldment
51 Cotter pin 3.2x25
52 RZJ0320 Drive control pedal
54 RZJ0180 Forward arm
56 RZJ0183 Oil drain plug
57 O sealing ring11.2x2.65
58 RZJ0182 Oil drain tube
59 Engine
60 Axial elastic ring 16
61 RZJ0348 Rubber bushing
62 RZJ0176 Cross shaft weldment
63 Hair pin cotter
65 RZJ0487 Position control screw
66 RZJ0175 Reverse arm weldment
67 RZJ0174 Drive pull lever weldment
68 Hexagon nut M10
69 RZJ0484 Swivel jiont M10
72 RZJ0486 Transmission support
73 RZJ0118 Traction spring
74 RZJ0465 Pull lever
75 RZJ0134 Damper
77 RZJ0058 Belt AP2700
79 RZJ0485 Damper support

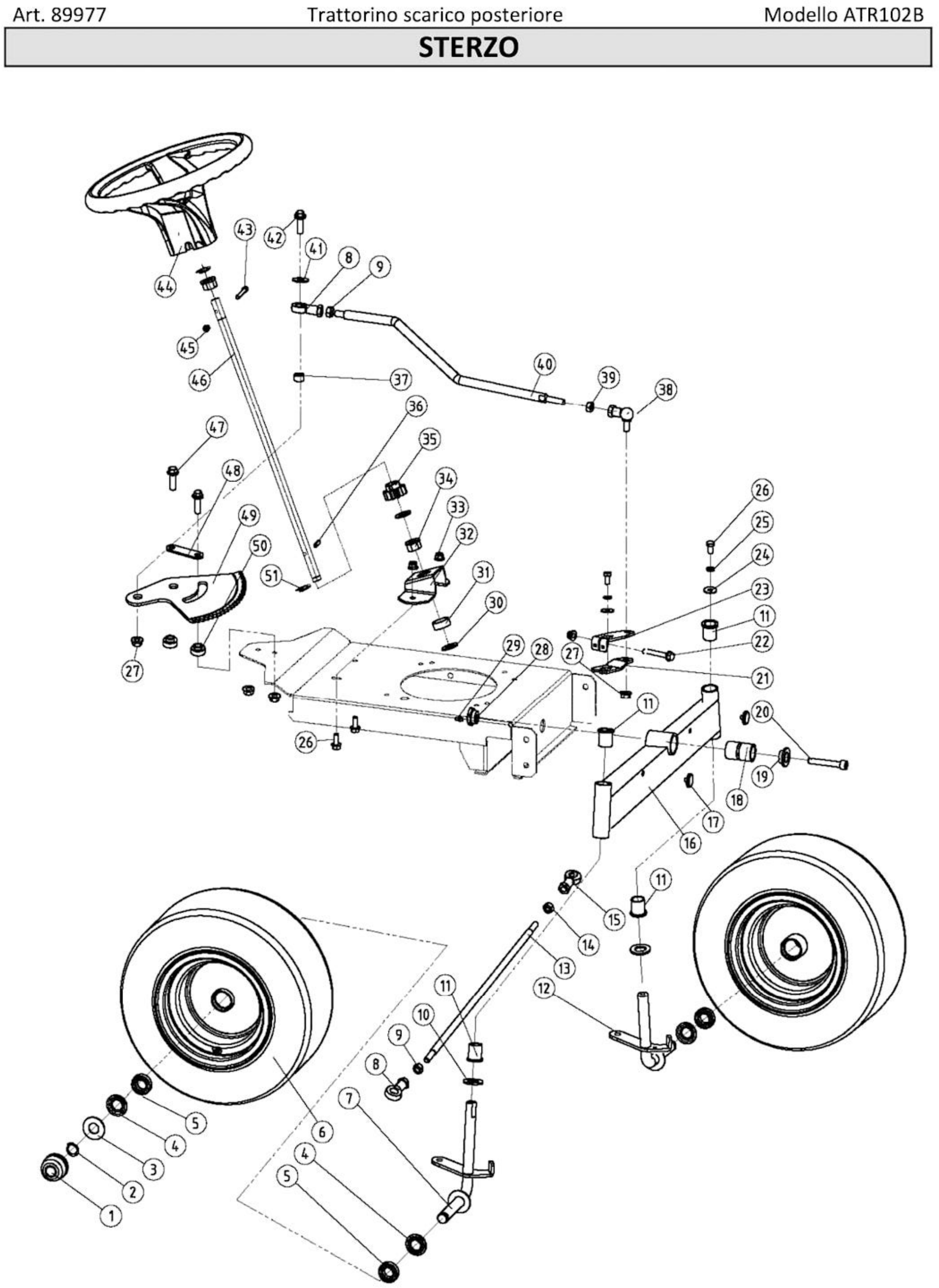

Steering Pag.4
1 RZJ0128 Hub cover
2 Axial elastic ring 20
3 RZJ0478 Washer
4 RZJ0470 Bearing washer
5 Bearing 61904
6 RZJ0129 Tyre 15x6-6
7 RZJ0135 R-stube axle weldment
8 RZJ0294 Join bearing
9 Hexagon nut M10
10 Washer 20
11 RZJ0071 Bushing
12 RZJ0113 L-stube axle weldment
13 RZJ0160 Pull rod
14 RZJ0042 Hexagon nut 10-LH
15 RZJ0293 Join bearing
16 RZJ0395 Front beam weldment
17 RZJ0304 Rubbber cushion
18 RZJ0472 Pivot axis
19 RZJ0473 Bush
20 Screw M10x50
21 RZJ0476 Turning arm 1
22 RZJ0475 Turning arm 2
23 Hexagon bolt M8x50
24 Washer 8
25 Spring washer 8
26 Hexagon bolt M8x20
27 RZJ0284 Hexagon lock nut M10X1.25
28 RZJ0471 Hexagon bush
29 Grease fitting M6
30 Washer 16
31 RZJ0082 Rubber ring
32 RZJ0474 Gear bracket
33 Hexagon lock nut M8
34 RZJ0071 Hexagon rubber bush
35 RZJ0136 Gear
36 Spring pin 6x26
37 RZJ0481 Spacer ring
38 RZJ0292 Joint bearing SQ10-RS
39 Hexagon nut M10
40 RZJ0464 Pull rod
41 WasherФ16*28*1.5
42 Hexagon bolt M10x40
43 Screw M6x45
44 RZJ0079 Steering wheel
45 Hexagon lock nut M6
46 RZJ0477 Steering column
47 Hexagon bolt M10x35
48 RZJ0161 Gear bracket
49 RZJ0099 Gear plate
50 RZJ0003 Bushing
51 Snap ring 15

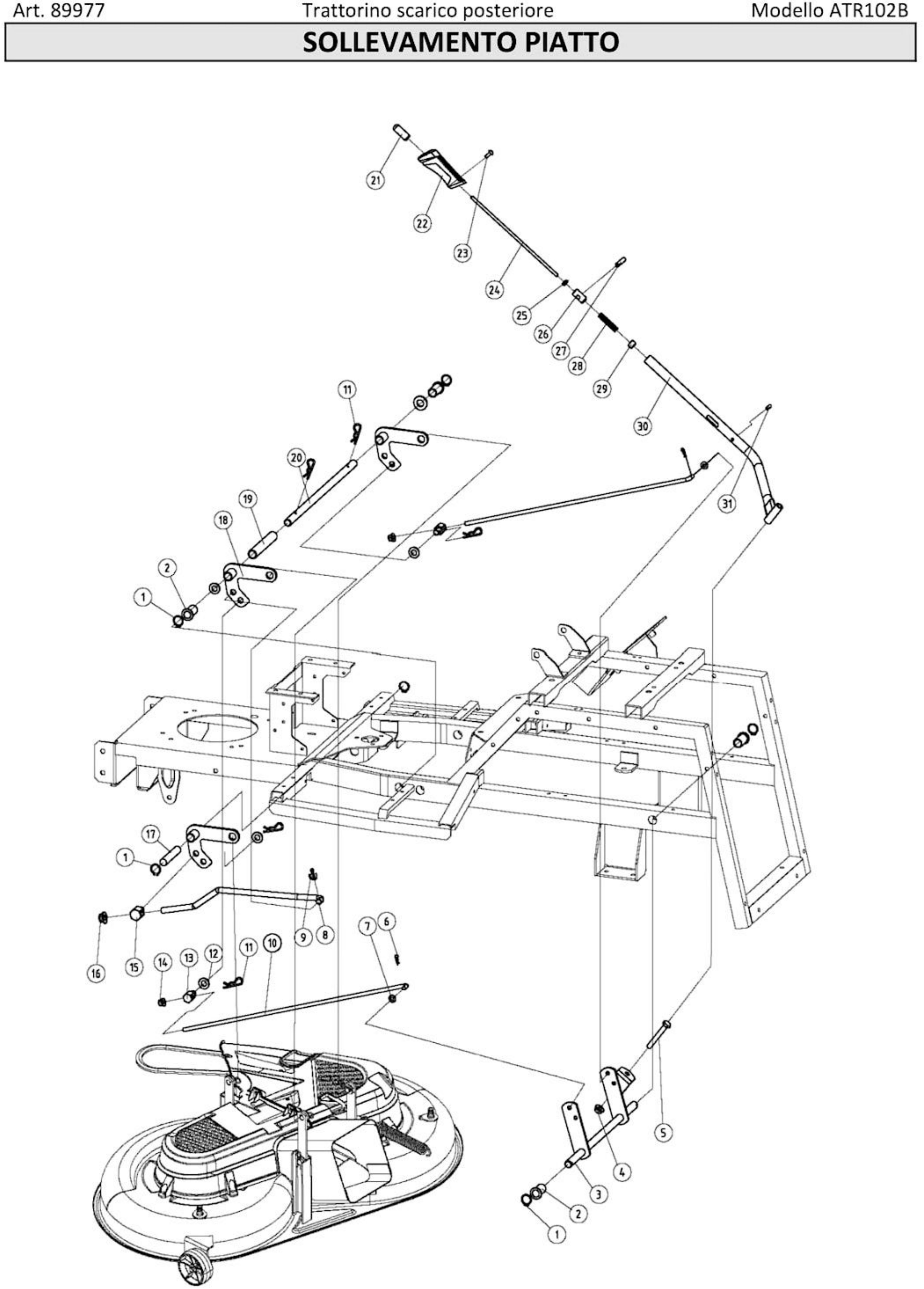

Flat Lifting Pag.5
1 Axial elastic ring 15
2 RZJ0348 Rubber bushing
3 RZJ0499 Lift cross shaft weldment
4 Hexagon nut M10
5 Hexagon bolt M10x70
Flat Lifting Pag.6
6 Hair pin cotter
7 Washer 8
8 RZJ0466 Connection rod
9 Cotter pin 4x28
10 RZJ0184 Pulling rod
11 Hair pin cotter 3
12 Washer 12
13 RZJ0506 Swivel jiont 8
14 Hexagon lock nut M8
15 RZJ0505 Swivel jiont 12
16 Hexagon lock nut M12
17 RZJ0504 Swivel shaft
18 RZJ0507 Lift arm weldment
19 RZJ0503 Long spacer ring
20 RZJ0504 Lift swivel shaft
21 RZJ0310 Rubber button
22 RZJ0312 Lift handle
23 Screw M5*8
24 RZJ0500 Push rod
25 Hexagon nut M6
26 RZJ0502 Pin retainer
27 Spring pin 8x40
28 RZJ0445 Pressure spring
29 RZJ0449 Spring retainer
30 RZJ0501 Lift hangdle weldment
31 Spring pin 6x26

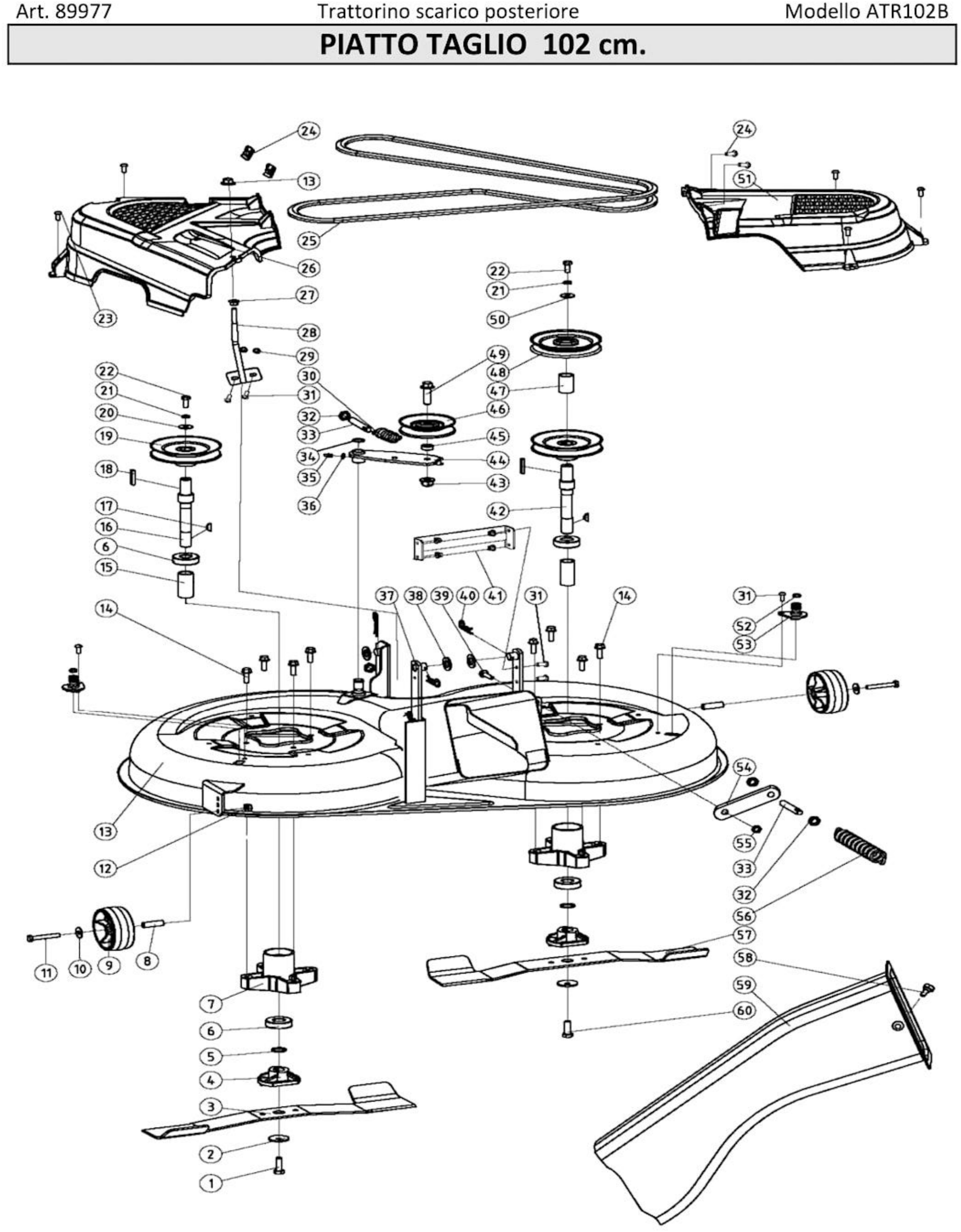

Plate Cut 102 cm Pag.7
1 RZJ0038 Bolt 3/8-24unf
2 RZJ0117 washer
3 RZJ0009 Left blade
4 RZJ0092 Blade Hub
5 RZJ0149 Spacer ring
6 Bearing 6204-2RZ
7 RZJ0091 Blade Boss
8 RZJ0509 Pivot tube
9 RZJ0084 Wheeel
12 Hexagon lock nut M8
13 RZJ0389 Deck weldment
14 Hexagon bolt M8x25
15 RZJ0148 Pivot tube
16 RZJ0147 Left blade axle
17 RZJ0296 Woodruff key 4x16
18 RZJ0298 Woodruff Key 6x6x30
19 RZJ0146 Pulley weldment
21 Spring washer 8
23 Hexagon screws M6*16
24 Buckle nut M6
25 RZJ0061 Belt AA113
26 RZJ0351 Left pulley cover
28 RZJ0172 Cover bracket
29 Hexagon lock nut M6
30 RZJ0122 Traction spring
31 Hexgon bolt M6x20
32 Hexagon nut M12
33 RZJ0510 Adjusting screw
34 Axial elastic ring 16
35 Grease fitting M6
36 Washer 6
37 RZJ0399 Hander plate weldment
38 Washer 16
39 Hexagob bolt M10x25
40 Hair pin cotter 3
41 RZJ0514 Connecting plate
42 RZJ0152 Right blade axle
43 Hexagon lock nut M12
44 RZJ0145 Idler pulley arm weldment
45 RZJ0508 Spacer
46 RZJ0151 Idler pulley
47 RZJ0005 Pivot tube
48 RZJ0133 Idler pulley
49 Hexagon bolt M12x45
50 Washer 8
51 RZJ0352 Right pulley cover
52 O sealing ring11.2x2.65
53 Water nozzle
54 RZJ0162 Spring bracket
55 Hexagon lock nut M10
56 RZJ0121 Traction spring
57 RZJ0010 Right blade
58 RZJ0143 Swivel bolt
59 RZJ0075 Collector channel
60 RZJ0037 LH Bolt 3/8-24unf
Grass Basket Pag.8
2 RZJ0171 Layer board
4 RZJ0512 Screw rod
8 RZJ0094 Bottom frame weldment
9 RZJ0397 Side stay pipe
10 RZJ0096 Front frame
12 RZJ0093 Top frame weldment
13 RZJ0353 Seal cap
14 RZJ0398 Front handle
15 Washer 5
16 Screw M5x16
17 RZJ0169 Spring fingers
19 RZJ0347 Rear handle
20 RZJ0346 Cover
21 Screw ST4.8x13
22 RZJ0312 Handle
23 RZJ0511 Lever
24 RZJ0059 Grass catcher
25 RZJ0302 Bumper
Electrical system Pag.9
1 RZJ0155 Push swith
2 RZJ0050 Switch
3 RZJ0156 Relay
4 RZJ0048 switch
5 Starter wire
6 32660 Battery
7 Engine grounding wire
8 Screw M5x16
9 Hexagon lock nut M5
10 RZJ0303 Rubber plate
11 RZJ0513 Stationary frame
12 RZJ0350 Rope
13 Hexagon nut M6
14 Spring washer 6
15 Hexagon bolt M6x16
16 RZJ0056 Relay
17 RZJ0055 Buzzer
18 RZJ0052 Clutch switch
19 RZJ0049 Engine lock
20 RZJ0051 Light switch
21 Fuse
22 Light
23 RZJ0057 Electric clutch
24 Power line
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA Garden ATR102B – 89977
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA ATR102B

Diagram AMA ATR102B

Download (1.22MB)

You might also like

A.M.A. S.p.A. SKU: RZJ0152
Right Blade Axle for Lawn Tractors AMA ATR92L Original spare part AMA Garden, Right Blade Axle for Lawn Tractors ATR92L - ATR102B - ATR1022L. Part for the following products: -  Lawn...
Last items in stock €45.90
A.M.A. S.p.A. SKU: RZJ0052
Clutch Switch for Lawn Tractors AMA ATR92L Original spare part AMA Garden, Clutch Switch for Lawn Tractors ATR92L - ATR102B - ATR92L Part for the following products: -  Lawn...
on 10 Business Days Approx €17.48
A.M.A. S.p.A. SKU: RZJ0061
Belt AA113 for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Belt AA113 for 102 cm Plate for Lawn Tractor ATR102B - ATR102L Part for the following products: -  Lawn Tractor ATR102B...
Last items in stock €106.07
A.M.A. S.p.A. SKU: RZJ0091
Blade Boss for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Blade Boss for Lawn Tractors ATR102B - ATR102L Part for the following products: -  Lawn Tractor ATR102B – 89977...
Last items in stock €23.98
A.M.A. S.p.A. SKU: RZJ0009
Left Blade for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Left Blade for Lawn Tractor ATR102B - ATR102L Part for the following products: -  Lawn Tractor ATR102B – 89977 -  Lawn Tractor ATR102L – 89988 - Code : RZJ0009
Last items in stock €62.70
A.M.A. S.p.A. SKU: RZJ0092
Blade Hub for Lawn Tractor AMA ATS98L Original spare part AMA Garden, Blade Hub for Lawn Tractor ATS98L – ATR102B - RIDER ARR62L - ATR92L - ATR102L.  Part for the...
Last items in stock €30.01
A.M.A. S.p.A. SKU: RZJ0049
Rotary Switch for Lawn Tractor AMA ATR102B Original spare part AMA Garden, Rotary Switch Complete for Lawn Tractor ATR102B - ATR102L Part for the following products: -  Lawn Tractor...
Last items in stock €22.84
A.M.A. S.p.A. SKU: RZJ0298
AMA Lawn Tractor ATR92L Woodruff Key 6x6x30 Original spare part AMA Garden, Woodruff Key 6x6x30 for Lawn Tractors ATR92L - ATR102B - ATR92L Part for the following products: -  Lawn Tractor ATR92L -...
on 10 Business Days Approx €2.21
A.M.A. S.p.A. SKU: RZJ0048
AMA ATR92L Open Close Switch Original spare part AMA Garden,Open Close Switch for Lawn Tractors ATR92L - ATR102B - ATR1022L. Part for the following products: - Lawn Tractor RIDER ARR62L - 84890 - ...
Last items in stock €17.92
A.M.A. S.p.A. SKU: RZJ0005
AMA Lawntractor ATR92L Pivot Tube Original AMA Garden, Pulley Pivot Tube for Lawntractor ATR92L - ATR102B. Parts for the following products: -  Lawntractor ATR92L - 90025 -  Lawntractor...
Last items in stock €6.71
Comments (0)
