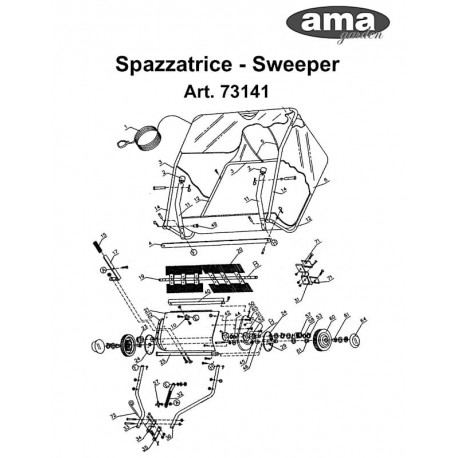

Lawn Tractors Accessories for Sweeper AMA 73141
Original replacement part AMA, Lawn Tractors Accessories for
Sweeper Art. 73141.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
Items will be shipped within:
10/15 working days approximately according to availability of the manufacturer.

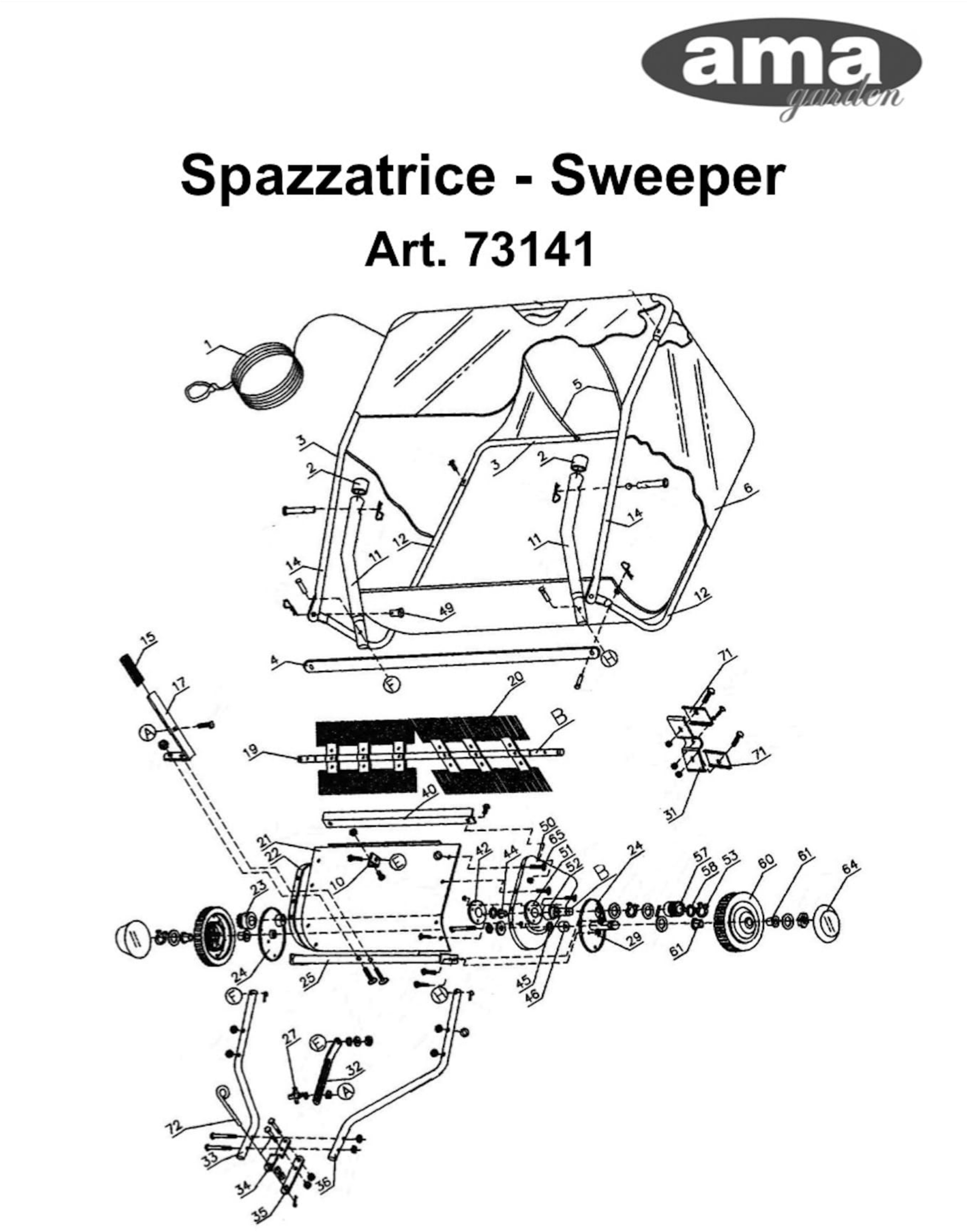

| Sweeper Art. 73141 |
| # |
Part Num. |
Description |
| 1 |
73141-1 |
Hopper Rope |
| 2 |
73141-2 |
Vinyl Cap |
| 3 |
73141-3 |
Hopper Frame Tube (Rear) |
| 4 |
73141-4 |
Bag Frame Strap |
| 5 |
73141-5 |
Hopper Support Rod |
| 6 |
73141-6 |
Hopper Bag |
| 10 |
73141-10 |
Angle Bracket |
| 11 |
73141-11 |
Bag Arm Tube |
| 12 |
73141-12 |
Lower Hopper Frame Tube |
| 14 |
73141-14 |
Upper Hopper Frame Tube |
| 15 |
73141-15 |
Height Adjust Gripe |
| 17 |
73141-17 |
Height Adjustment Handle |
| 19 |
73141-19 |
Brush Shaft |
| 20 |
73141-20 |
Brush |
| 21 |
73141-21 |
Wrapper |
| 22 |
73141-22 |
End Plate (R.H.) |
| 23 |
73141-23 |
Pinion Gear (R.H.) |
| 24 |
73141-24 |
Dust Cover Assembly |
| 25 |
73141-25 |
Height Adjustment Tube Assy |
| 27 |
73141-27 |
Wing Knob |
| 31 |
73141-31 |
Retainer Brush |
| 32 |
73141-32 |
Height Adjustment Strap |
| 33 |
73141-33 |
Hitch Tube (R.H) |
| 34 |
73141-34 |
Hitch Bracket |
| 35 |
73141-35 |
Hitch Bracket (Straight) |
| 36 |
73141-36 |
Hitch Tube (L.H.) |
| 40 |
73141-40 |
Connecting Rod |
| 42 |
73141-42 |
Dust Cover Retainer |
| 44 |
73141-44 |
Brush Shaft Bushing |
| 45 |
73141-45 |
Spacer Bushing |
| 46 |
73141-46 |
Spacer for Axle |
| 49 |
73141-49 |
Clevis Pin C |
| 50 |
73141-50 |
End Plate (L.H.) |
| 51 |
73141-51 |
Special Washer |
| 52 |
73141-52 |
Bushing |
| 57 |
73141-57 |
Pinion Gear (L.H.) |
| 60 |
73141-60 |
Wheel & Tire Assembly |
| 61 |
73141-61 |
Wheel Bushing |
| 64 |
73141-64 |
Hub Cap |
| 71 |
73141-71 |
Retainer Brush |
| 72 |
73141-72 |
Hitch Pin |
